Vado Standard Toilet Frame and Concealed Cistern For Wall Hung Pan
Stocks : 9 in stock, order now for immediate dispatch
Product Information
Upgrade your bathroom with the Vado Standard Toilet Frame and Concealed Cistern, a reliable and space-saving solution designed for wall-hung pans. Built for durability and efficiency, this concealed cistern system ensures a sleek and modern look while providing strong support and seamless functionality. Perfect for both residential and commercial bathrooms, the Vado Standard Toilet Frame and Concealed Cistern ensures a stylish and clutter-free space while maintaining high functionality.
Specification
- Warranty: 6 Years
- Product type: Wall Hung Toilet Frame
- Brand: Vado
- Style: Modern
- Shape: Rectangular
- Mounting: Floor
- Colour: Blue
Special Features
- Designed to accommodate wall hung toilet pans
- Steel frame has a corrosion resistant, durable coating
- Compatible with a wide variety of toilets, high weight bearing frame of 400kg
- Engineered with industry-leading, WRAS approved componentry
- Block wall and stud frame fixing brackets included
- 250mm leg height adjustment
- 30mm soil pipe height adjustment
- 180mm & 230mm width centres to support wall hung toilet
- Flush volume pre-set to 6/3 litres with the option to reduce to 4/2.6 litres
- Integral internal 1/4 turn lever isolation valve
- Integral internal debris filter
- Top mounted 1/2" inlet
- Front actuation
- Flush plate depth tolerance of 70mm
- Adjustable flush volumes: 4L/2.6L to 6L/3L, Remaining volume can be used for immediate cleaning flush.
- Images are for illustrative purposes only.
Dimensions
- H 835mm x W 500mm x D 132mm
- H 1135mm x W 505mm x D 155mm
TECHNICAL DRAWING

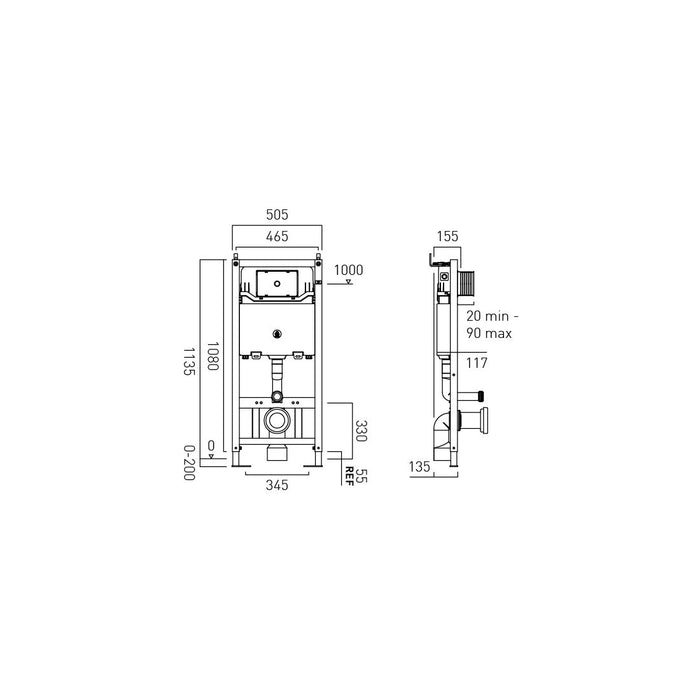

1135mm High Toilet Frame

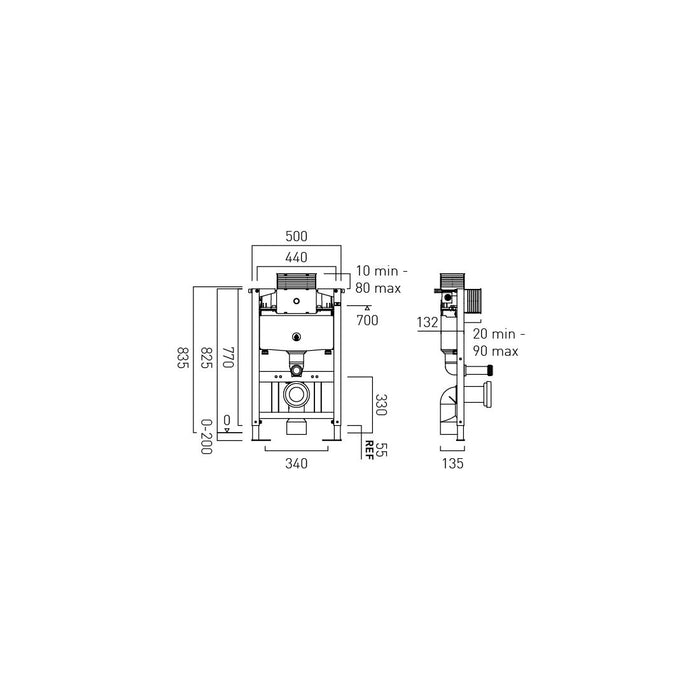

835mm High Toilet Frame
- View Less
Product Information
Upgrade your bathroom with the Vado Standard Toilet Frame and Concealed Cistern, a reliable and space-saving solution designed for wall-hung pans. Built for durability and efficiency, this concealed cistern system ensures a sleek and modern look while providing strong support and seamless functionality. Perfect for both residential and commercial bathrooms, the Vado Standard Toilet Frame and Concealed Cistern ensures a stylish and clutter-free space while maintaining high functionality.
Specification
- Warranty: 6 Years
- Product type: Wall Hung Toilet Frame
- Brand: Vado
- Style: Modern
- Shape: Rectangular
- Mounting: Floor
- Colour: Blue
Special Features
- Designed to accommodate wall hung toilet pans
- Steel frame has a corrosion resistant, durable coating
- Compatible with a wide variety of toilets, high weight bearing frame of 400kg
- Engineered with industry-leading, WRAS approved componentry
- Block wall and stud frame fixing brackets included
- 250mm leg height adjustment
- 30mm soil pipe height adjustment
- 180mm & 230mm width centres to support wall hung toilet
- Flush volume pre-set to 6/3 litres with the option to reduce to 4/2.6 litres
- Integral internal 1/4 turn lever isolation valve
- Integral internal debris filter
- Top mounted 1/2" inlet
- Front actuation
- Flush plate depth tolerance of 70mm
- Adjustable flush volumes: 4L/2.6L to 6L/3L, Remaining volume can be used for immediate cleaning flush.
- Images are for illustrative purposes only.
Dimensions
- H 835mm x W 500mm x D 132mm
- H 1135mm x W 505mm x D 155mm
TECHNICAL DRAWING
1135mm High Toilet Frame
835mm High Toilet Frame
- View Less
