Vado DX Photon 2 Outlet 2 Handle Thermostatic Concealed Shower Valve - Polished Chrome
Order now for dispatch in approximately 4 weeks.
Product Information

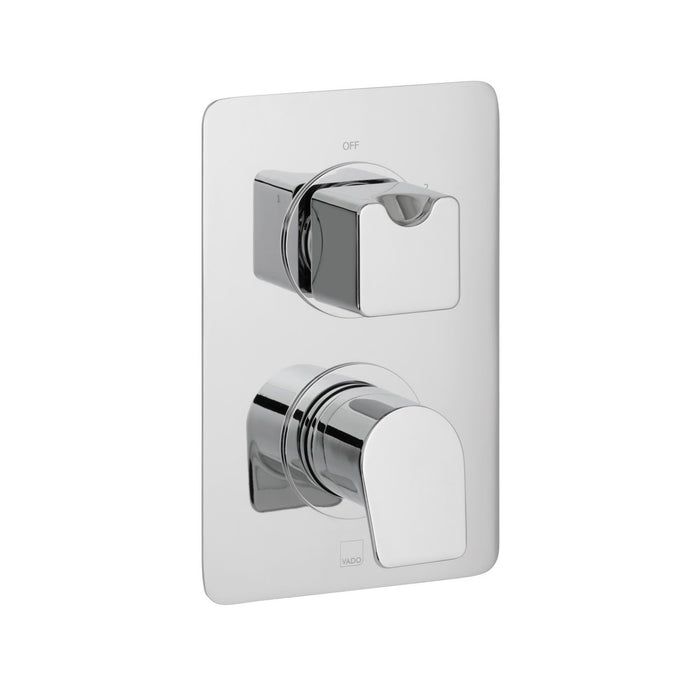

The Vado DX Photon 2 Outlet 2 Handle Thermostatic Concealed Shower Valve in Polished Chrome is designed for modern bathrooms, combining functionality with sleek aesthetics. This vertical wall-mounted valve features a rectangular backplate and dual handles—one for precise thermostatic temperature control and the other for water flow selection—allowing you to operate two outlets independently. It is compatible with gravity-fed, pumped, combination boiler, and pressurised plumbing systems, making it highly versatile. The valve comes equipped with a thermostatic cartridge (V-704-34S) and a flow cartridge (C-803-33X/3X) to ensure consistent temperature, safe operation, and reliable water distribution. Installation is straightforward with wall mount tolerances of 70–95mm and an optimum depth of 82mm, and a built-in bleed valve allows for easy system flushing during setup. Finished in polished chrome, it provides both durability and contemporary style, and it carries a 15-year guarantee for lasting peace of mind.
Specifications
- Guarantee: 15 Years
- Product type: Concealed Shower Valve
- Brand: Vado
- Collection: DX Photon
- Colour: Polished Chrome
- Style: Modern
- Shape: Rectangular
- Mounting: Wall
- Number of Outlets: 2
- Orientation: Vertical
- Number of Handles: 2
- Handle Type: Lever/Knob
- Minimum Operating Pressure: 0.2 Bar LP (Shower) / 1.0 Bar MP (Bath)
- Maximum Operating Pressure: 5.0 Bar HP
Special Features
- Easy to install and use
- Images are shown for illustration purposes only

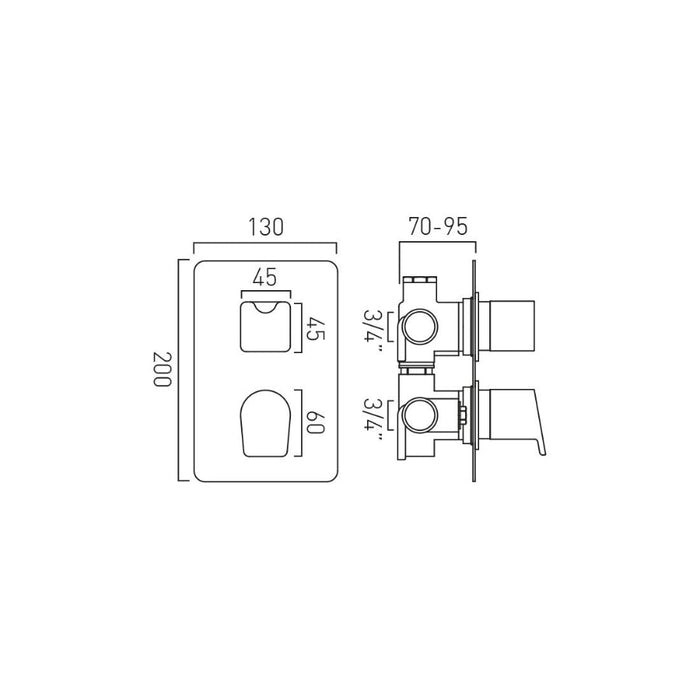

- Installation Tolerances: min-max wall mount 70-95mm optimum installation depth 82mm
- Connections/Fittings: 2 x 3/4” female inlets 2 x 3/4” female outlets
- Thermostatic cartridge V-704-34S flow cartridge C-803-33X/3X
- Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
- With Rectangular Backplate
- Bleed Valve for System Flush on Installation
- View Less
Product Information
The Vado DX Photon 2 Outlet 2 Handle Thermostatic Concealed Shower Valve in Polished Chrome is designed for modern bathrooms, combining functionality with sleek aesthetics. This vertical wall-mounted valve features a rectangular backplate and dual handles—one for precise thermostatic temperature control and the other for water flow selection—allowing you to operate two outlets independently. It is compatible with gravity-fed, pumped, combination boiler, and pressurised plumbing systems, making it highly versatile. The valve comes equipped with a thermostatic cartridge (V-704-34S) and a flow cartridge (C-803-33X/3X) to ensure consistent temperature, safe operation, and reliable water distribution. Installation is straightforward with wall mount tolerances of 70–95mm and an optimum depth of 82mm, and a built-in bleed valve allows for easy system flushing during setup. Finished in polished chrome, it provides both durability and contemporary style, and it carries a 15-year guarantee for lasting peace of mind.
Specifications
- Guarantee: 15 Years
- Product type: Concealed Shower Valve
- Brand: Vado
- Collection: DX Photon
- Colour: Polished Chrome
- Style: Modern
- Shape: Rectangular
- Mounting: Wall
- Number of Outlets: 2
- Orientation: Vertical
- Number of Handles: 2
- Handle Type: Lever/Knob
- Minimum Operating Pressure: 0.2 Bar LP (Shower) / 1.0 Bar MP (Bath)
- Maximum Operating Pressure: 5.0 Bar HP
Special Features
- Easy to install and use
- Images are shown for illustration purposes only
- Installation Tolerances: min-max wall mount 70-95mm optimum installation depth 82mm
- Connections/Fittings: 2 x 3/4” female inlets 2 x 3/4” female outlets
- Thermostatic cartridge V-704-34S flow cartridge C-803-33X/3X
- Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
- With Rectangular Backplate
- Bleed Valve for System Flush on Installation
- View Less
