UniSlope 1K Short Linear Drain HighLine Cassette & 15mm Framed Wetroom Kit
Order now for dispatch in approximately 4 weeks.
Product Information
Engineered for seamless integration into bathrooms and shower spaces of any size, the UniSlope 1K Wetroom kit empowers you to fashion a wet room with a strategically positioned drain against the wall. This design offers a single-way slope, eliminating the necessity to cut tiles towards the drain. Achieving level access becomes effortlessly attainable, obviating the requirement for a shower tray.
UniSlope designs are distinguished by an inherent slope within the drain, preventing water pooling, and boast substantial flanges for a steadfast installation. Additionally, it features a robust 12mm stainless steel frame, mitigating any issues related to flexing. The design is further enhanced with a removable, easy-to-clean trap equipped with a 50mm waste discharge capacity.
Wetroom Shower Tray Base Kit Inclusions:
- Wall-mounted linear drain made of stainless steel
- Preformed wet room tray
- 3kg waterproofing membrane
- 25-metre reinforcement tape
- 1-litre primer
- Sealed gasket
- 50mm water seal
- Construction glue
Linear Drain Features:
- Option to insert tiles into the top of the drain for a streamlined wetroom finish
- Solid stainless steel panel, with or without a frame
- Durable polished stainless steel PVD coating (other finishes available)
- Drains 48 litres of water per minute per outlet
- Easy to clean by removing the panel and trap
- Main drain body pressed from 1.5mm stainless steel
- Stability and safety ensured with large metal surface flanges for secure waterproofing
- Internal channel within the drain prevents stagnant water
- Approved for use in wooden and concrete constructions
- Outlet can be rotated 360°
- BBA approved
Wetroom Shower Tray Base Kit Features:
- 100% waterproof construction
- Extremely low installation height
- Preformed tray with built-in gradient for slope
- Suitable for both small and large tiles with a minimum thickness of 8mm
- Compatible with underfloor heating
- Can be trimmed
Suitable for:
- Wood or concrete subfloor
- Tiled floor finish
- Wet rooms
- Level access
- Raised on platform
- Underfloor heating
Not Suitable for:
- Vinyl floor finish
- Micro-cement
- Fitting directly on joists
Wetroom Shower Tray Base Specifications:
- Product Type: Shower tray base for wet rooms
- Shower Base Material: Polystyrene foam (XPS)
- Shower Base Shape: Square & Rectangle
- Colour: Grey with yellow
- Thickness: 19 to 30mm
- Waste Type: Linear (Rectangle shape)

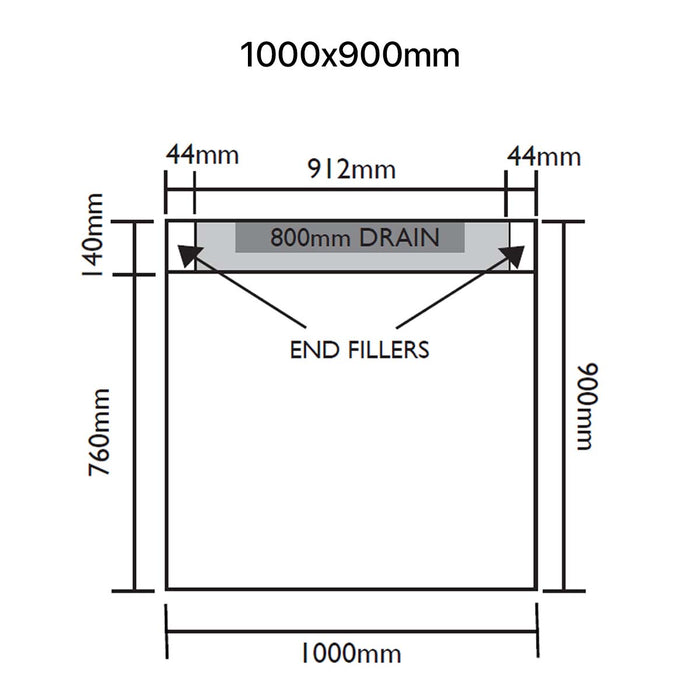

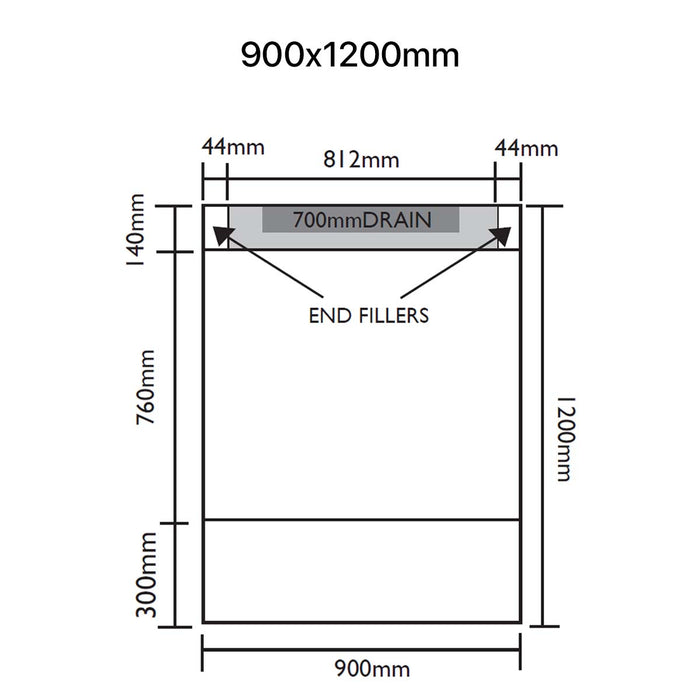

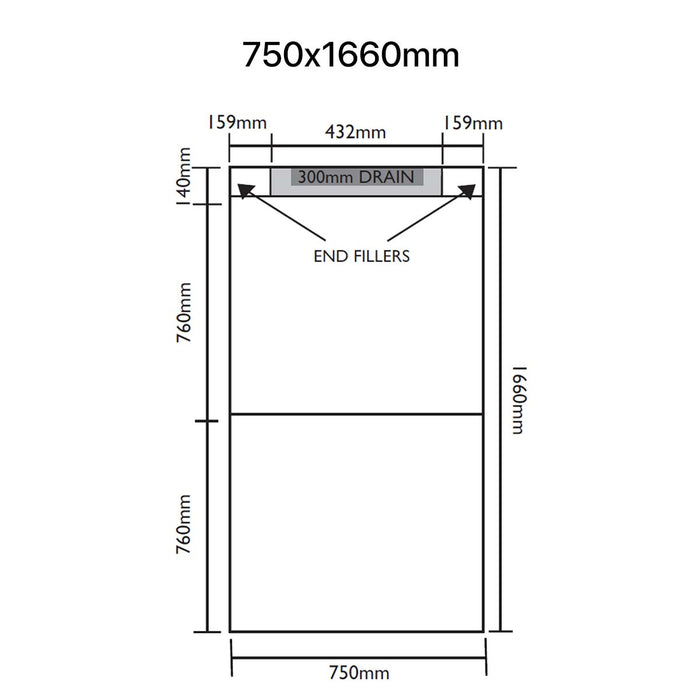

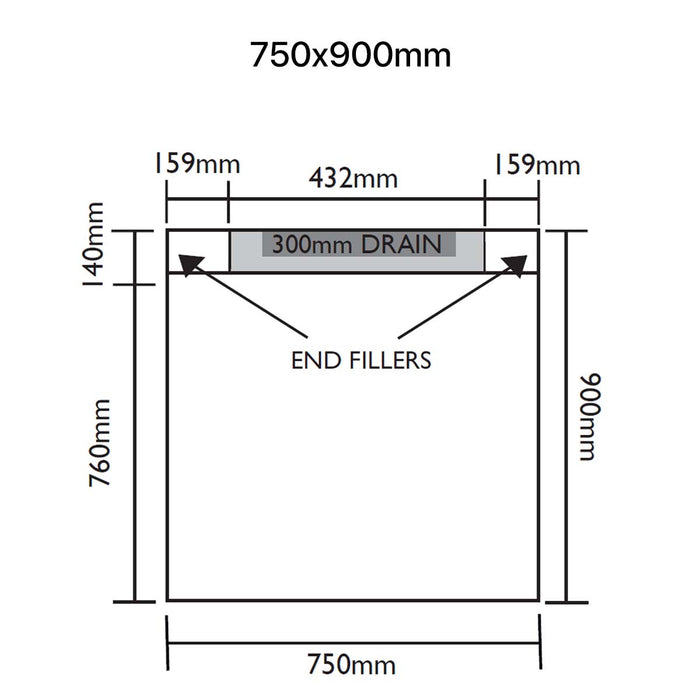

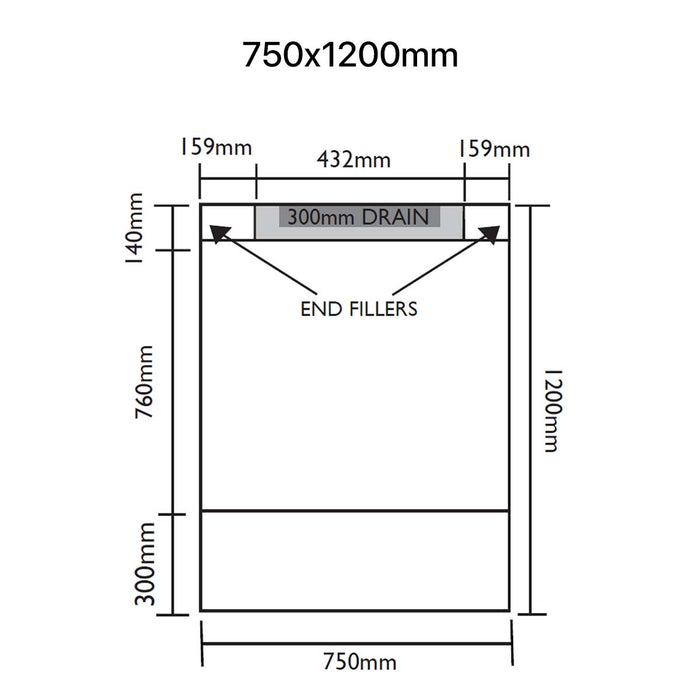

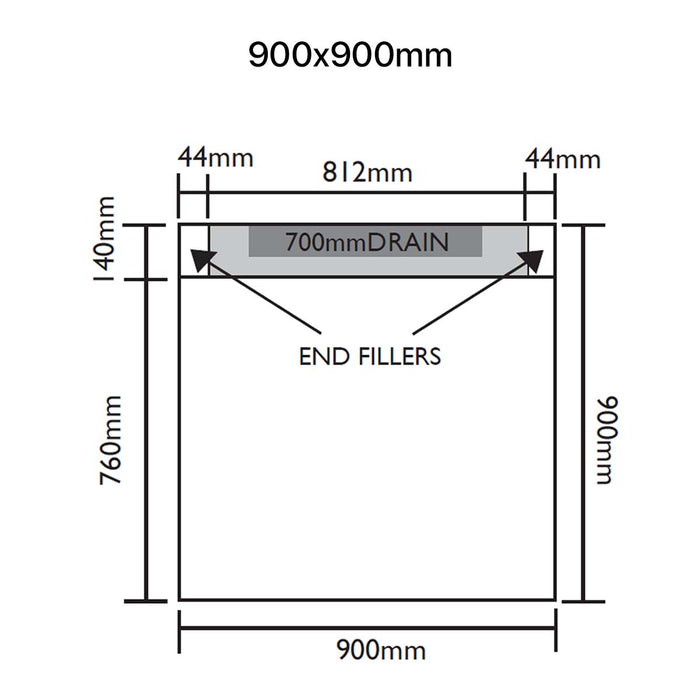

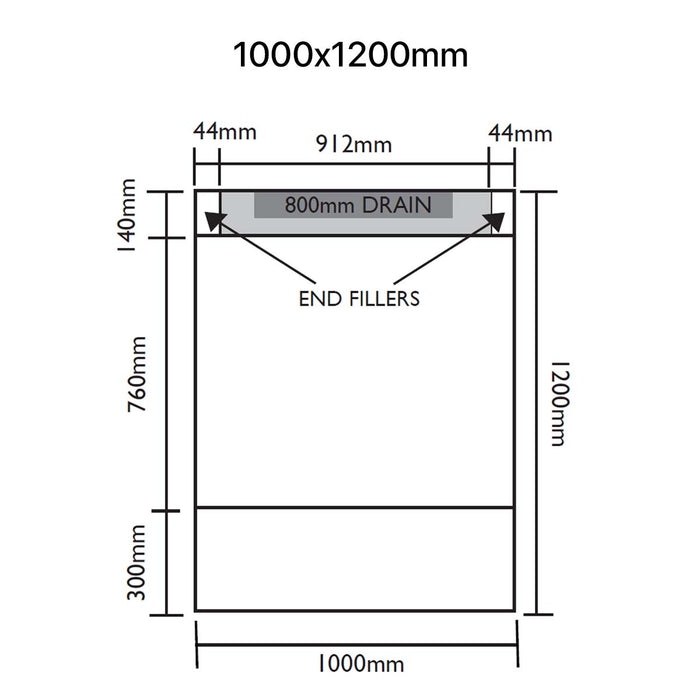

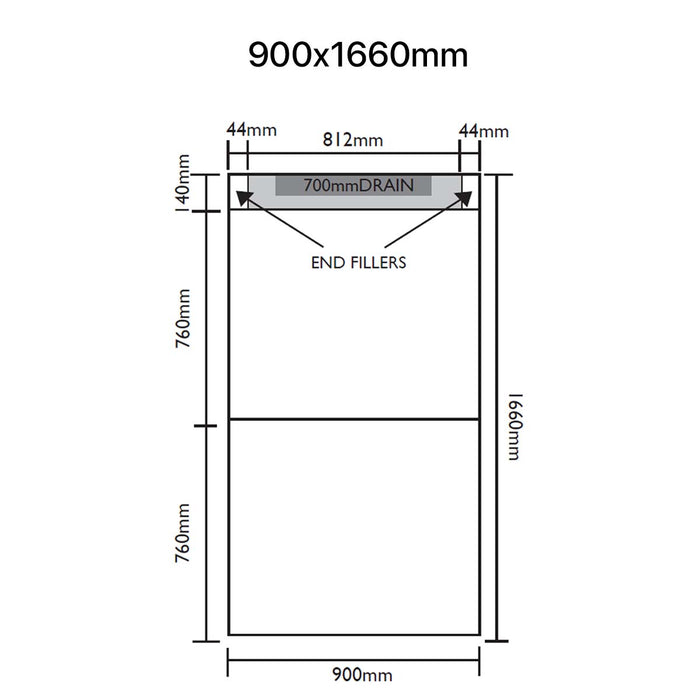

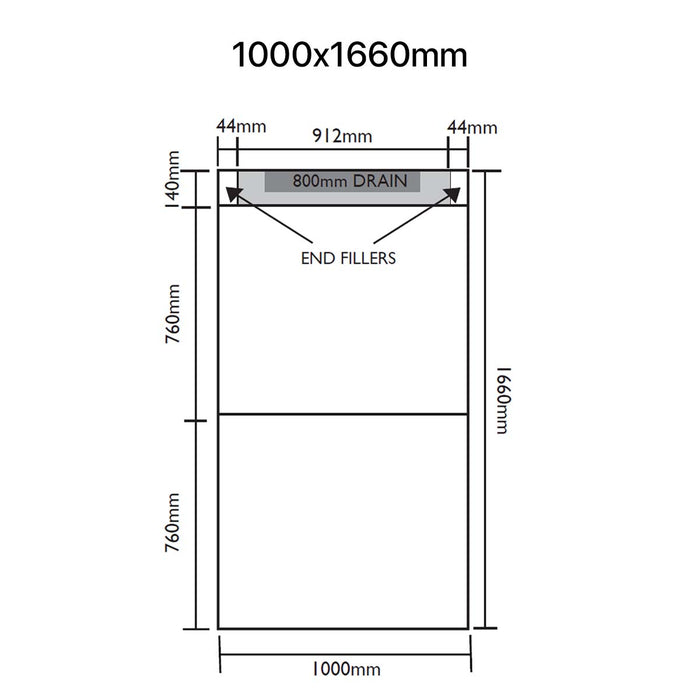

- Waste Position: Against the wall (see images)
- Drain: Horizontal
- Drain Grate Material: Stainless steel
- Guarantee: 10-year manufacturer's guarantee
Additional Details:

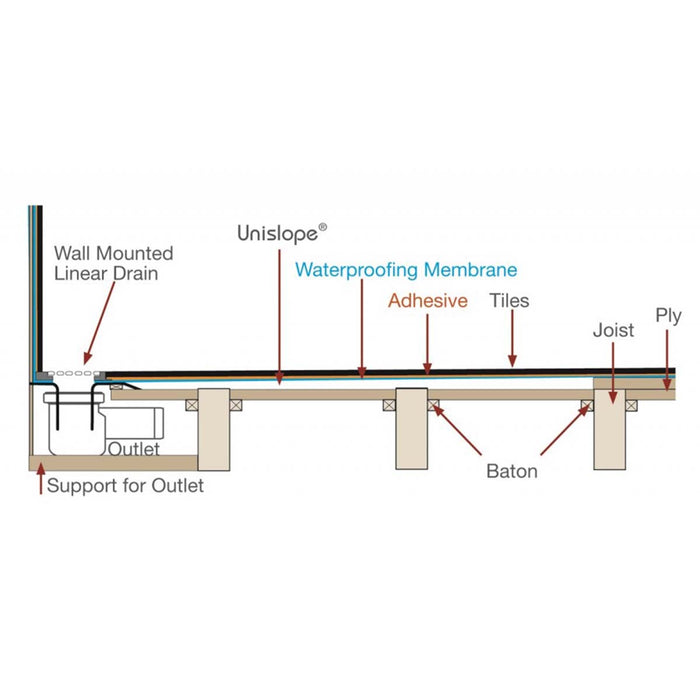

- UniSlope 1K wetroom/shower bases require external support as they are not self-supporting. To ensure a stable foundation for a level-entry configuration on a suspended timber floor, it is necessary to construct a sub-floor between the joists using materials such as 18mm plywood.
- The waterproofing kit provided comprises a user-friendly, solvent-free liquid membrane that can be easily applied. This membrane dries seamlessly into a continuous sheet, designed to flex and stretch along with the building's movements.
- The kit has undergone rigorous testing, meeting international standards and holding ETAG 022-1 certification as well as EC1 Plus approval. Additionally, it adheres to EN 1253 compliance standards.
- It is important to note that the tiles, shower, and glass enclosures depicted in product photos are not included and must be purchased separately.
