UniSlope 1K Polished Stainless Steel Short Linear Drain Wetroom Shower Kit
Order now for dispatch in approximately 4 weeks.
Product Information
Crafted for integration into bathrooms and shower spaces of any dimension, the Unislope 1K Wetroom kit empowers you to fashion a wet room with a wall-adjacent drain, facilitating a streamlined, one-way slope. This innovative design eliminates the necessity to cut tiles towards the drain, ensuring a seamless and level access without the need for a shower tray.
UniSlope's design includes a built-in slope within the drain to prevent water pooling, coupled with substantial flanges that guarantee a secure installation. Additionally, the kit features a robust 12mm stainless steel frame, addressing any flexing issues. The design incorporates a removable, easy-to-clean trap with a 50mm waste discharge capacity for added convenience.

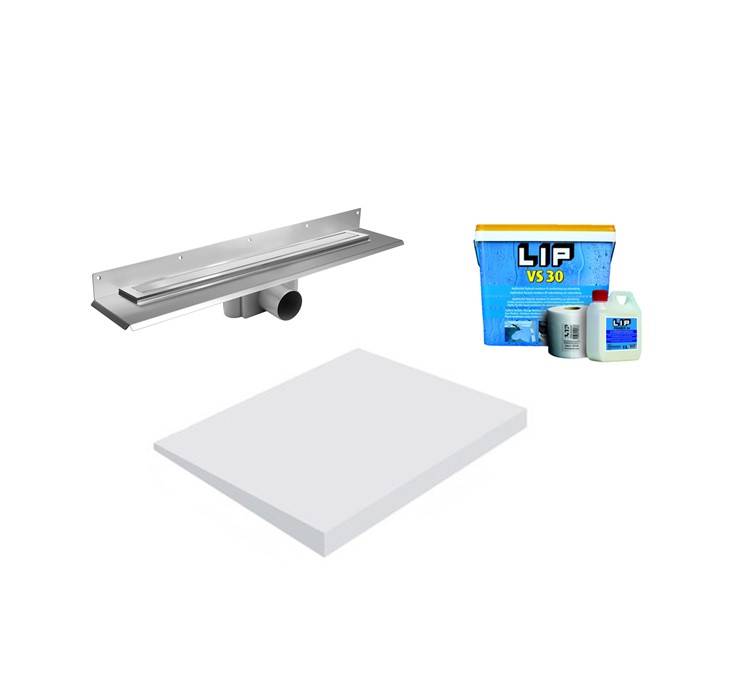

Wetroom Shower Tray Base Kit Inclusions:

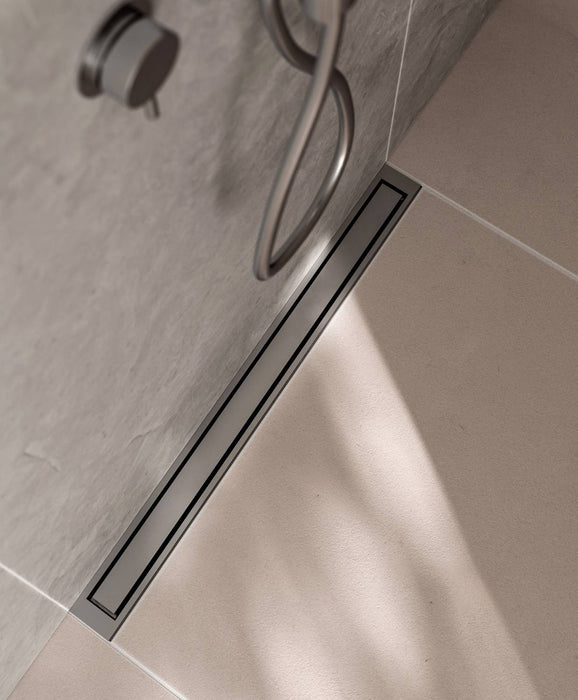

- Wall-mounted stainless steel linear drain
- Preformed wet room tray
- 3kg waterproofing membrane
- 25-metre reinforcement tape
- 1-litre primer
- Sealed gasket
- 50mm water seal
- Construction glue
Linear Drain Features:

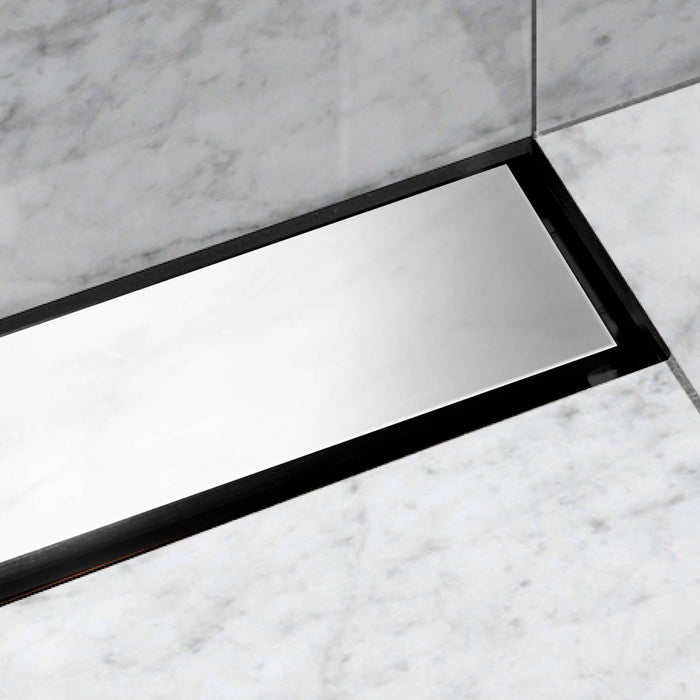

- Solid stainless steel panel with or without a frame
- Polished stainless steel PVD durable coating (alternative finishes available)
- Disposes 48 litres of water per minute per outlet
- Easy to clean; panel and trap can be removed
- Main drain body pressed from 1.5mm stainless steel
- Stable and secure with large metal surface flanges for waterproofing
- Internal channel within the drain to prevent stagnant water
- Approved for both wooden and concrete construction
- Outlet can be rotated 360°
- BBA approved
Wetroom Shower Tray Base Kit Features:
- 100% waterproof construction
- Extremely low installation height
- Preformed tray with built-in gradient for slope
- Suitable for both small and large tiles with a minimum thickness of 8mm
- Compatible with underfloor heating
- Trimmable
Suitable for:
- Wood or concrete subfloor
- Tiled floor finish
- Wet rooms
- Level access
- Raised on a platform
- Underfloor heating
Not suitable for:
- Vinyl floor finish
- Micro-cement
- Fitting directly on joists
Wetroom Shower Tray Base Specifications:
- Product Type: Shower tray base for wet rooms
- Shower Base Material: Polystyrene foam (XPS)
- Shower Base Shape: Square & Rectangle
- Colour: Grey with yellow
- Thickness: 19 to 30mm
- Waste Type: Linear (Rectangle shape)

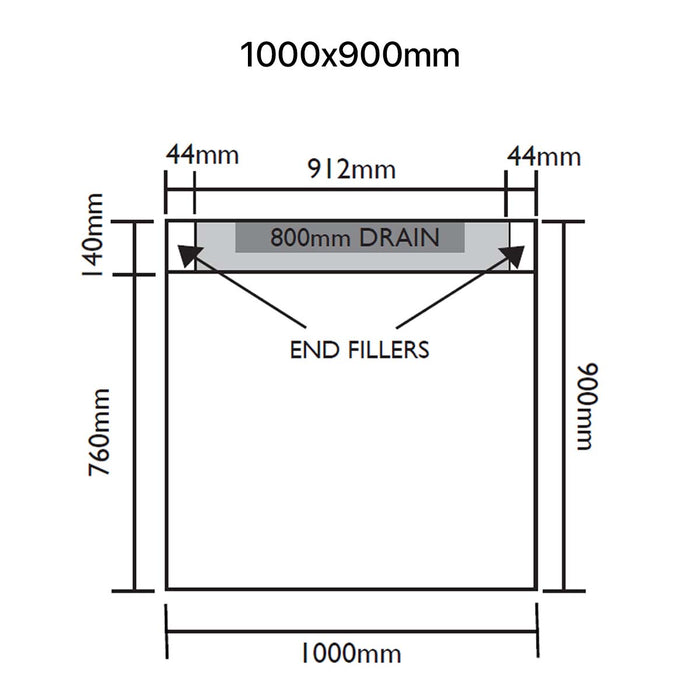

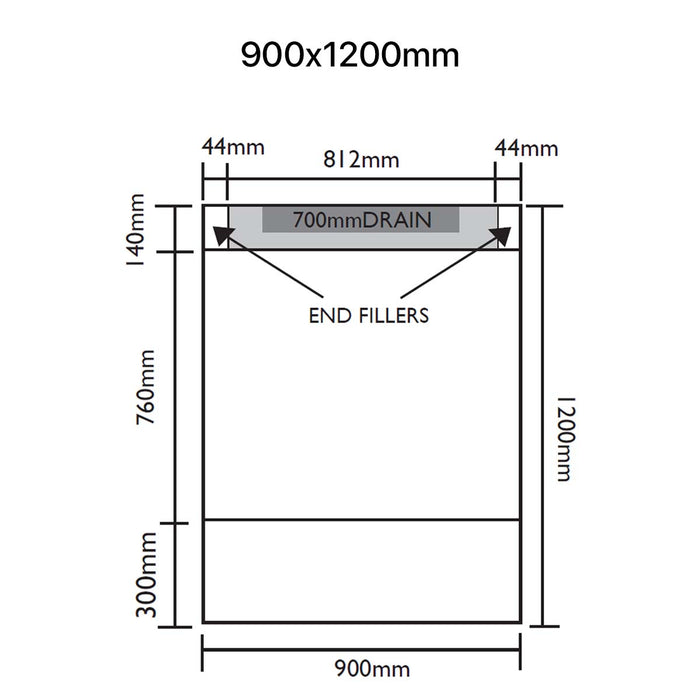

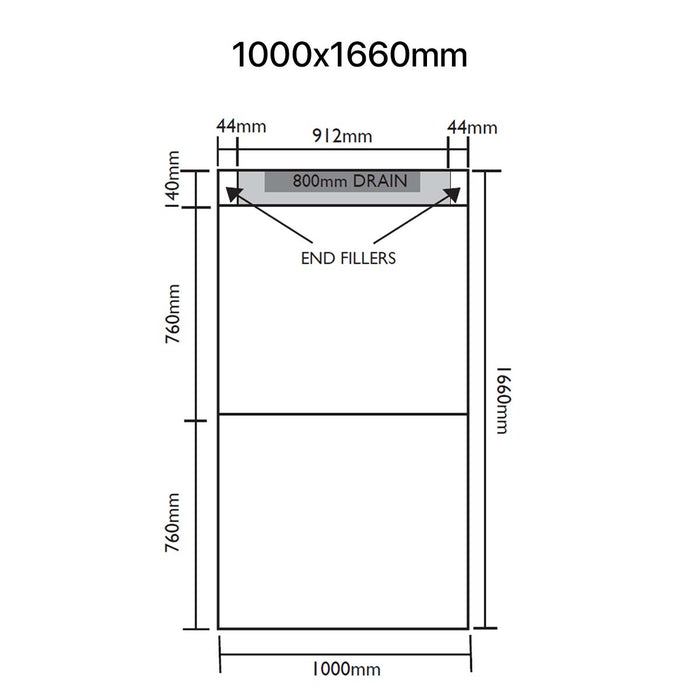

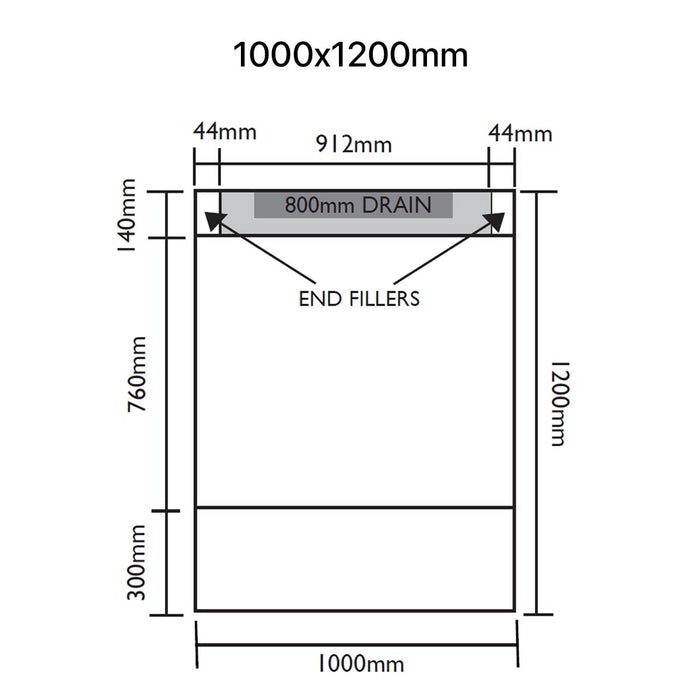

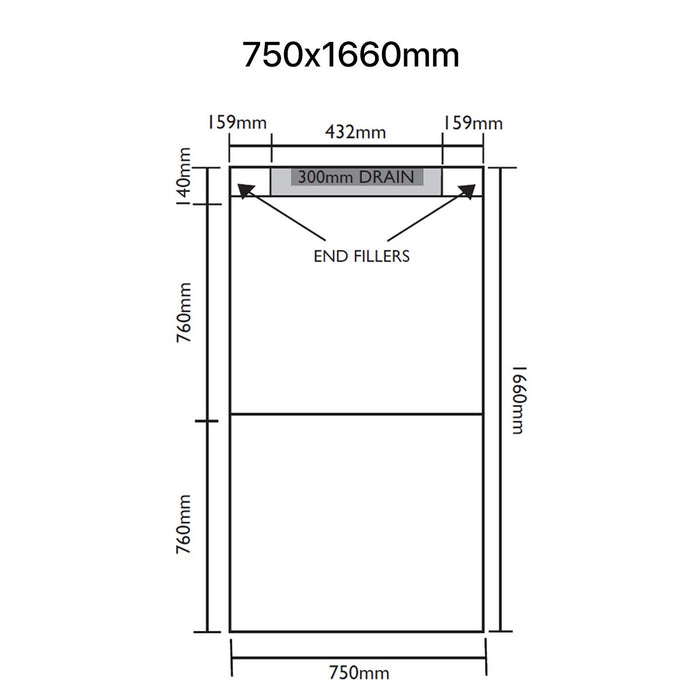

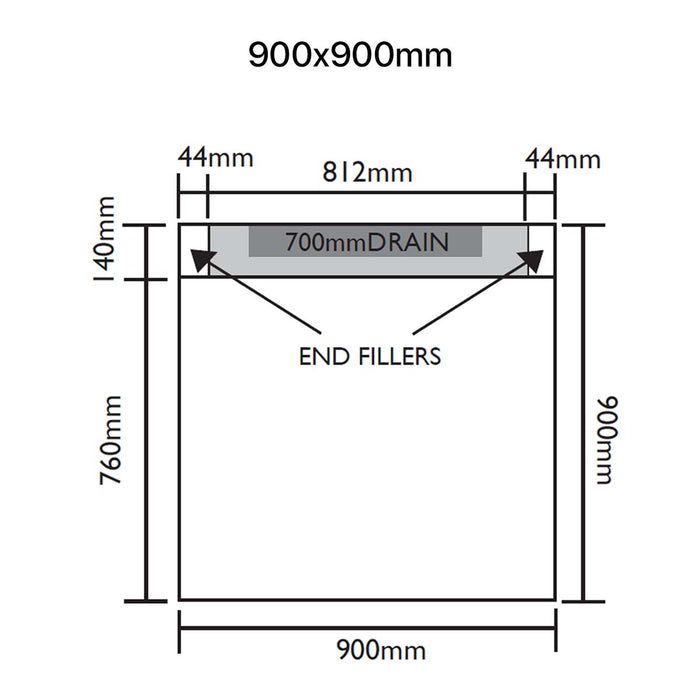

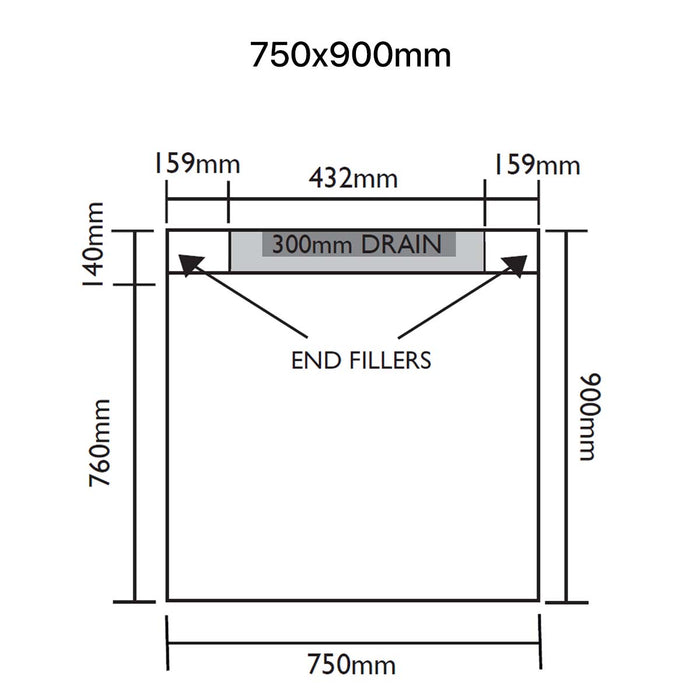

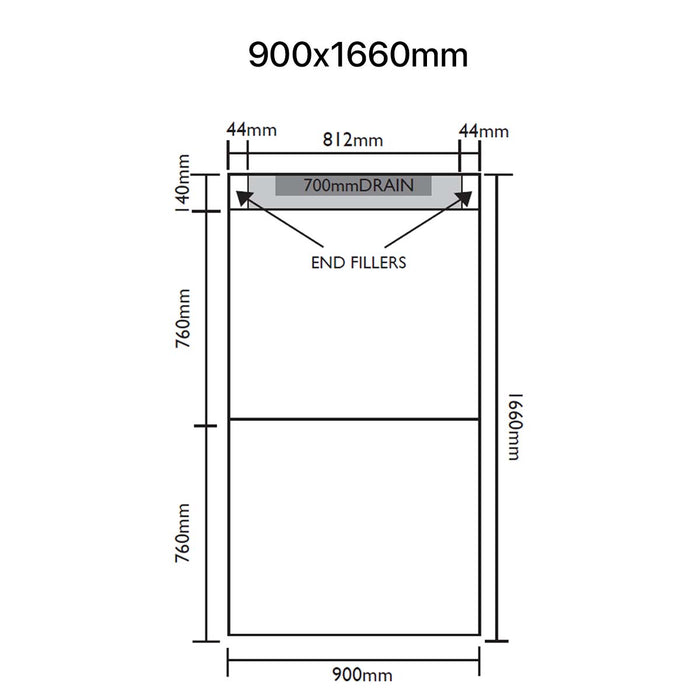

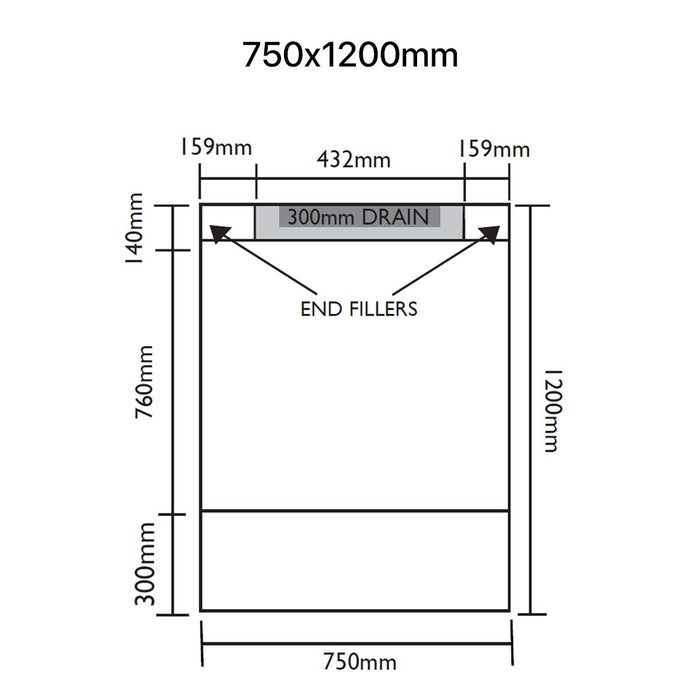

- Waste Position: Against the wall (see images)
- Drain: Horizontal
- Drain Grate Material: Stainless steel
- Guarantee: 10-year manufacturer's guarantee
Additional Information:

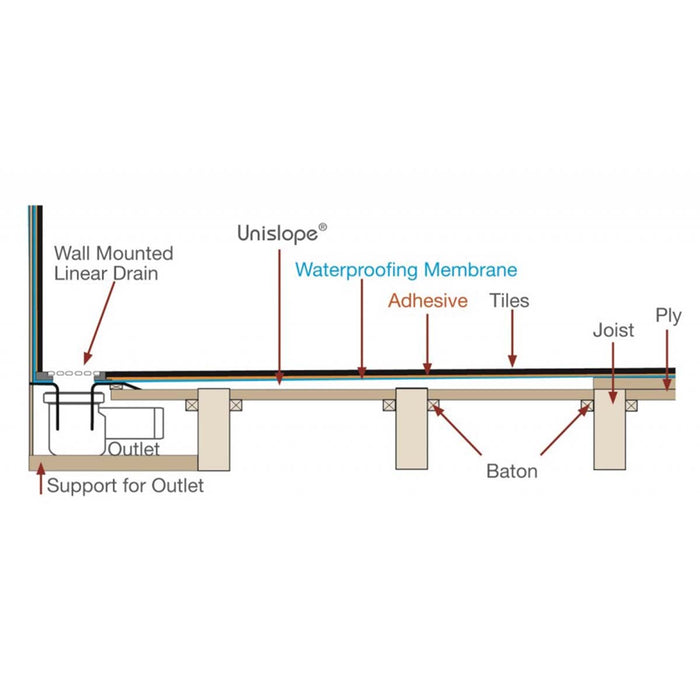

- The UniSlope 1K wetroom/shower bases require external support as they are not inherently self-supporting. To ensure a stable foundation for creating a level-entry design on a suspended timber floor, it is necessary to construct a sub-floor between the joists using materials such as 18mm plywood.
- Included in the waterproofing kit is a user-friendly, solvent-free paint-on liquid membrane. This membrane has the unique property of drying into a continuous sheet, providing flexibility to move and stretch with the building's dynamics.
- The kit has undergone rigorous testing according to international standards and holds ETAG 022-1 certification, along with EC1 Plus approval. Furthermore, it adheres to EN 1253 compliance standards.
- Please note that the tiles, shower, and glass enclosures showcased in product photos are not part of the package and must be purchased separately.
