SharpSlope Wet Room Shower Tray Base Kit Square Panel Drain
Order now for dispatch in approximately 4 weeks.
Product Description

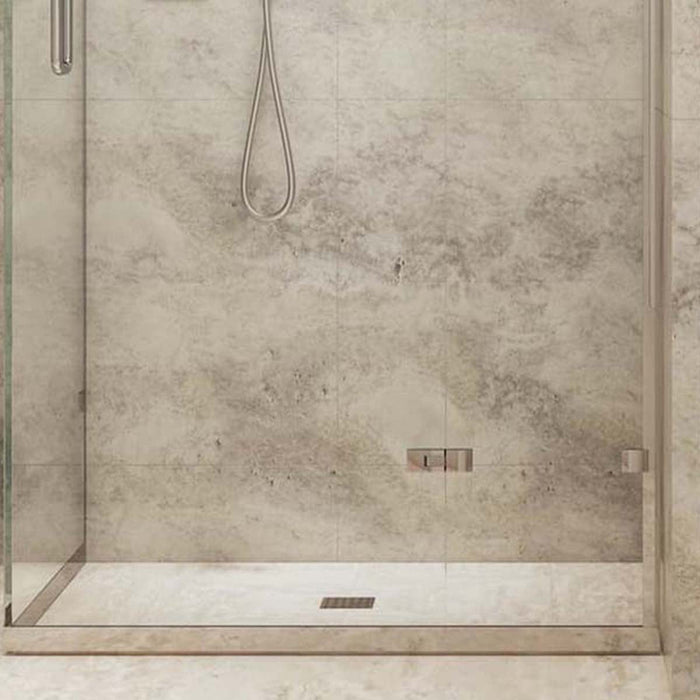

The SharpSlope wet room shower tray base kit is purpose-built to provide a completely waterproof foundation for walk-in showers and wet rooms in homes with either timber or concrete floors. Supplied as a full kit with all components needed for tanking, it suits both sleek modern and minimalist interiors and can be adapted to bathrooms and shower spaces of various sizes.
The tray base features a water-resistant extruded polystyrene foam core with an ultra-low installation height and a pre-formed 4-way drainage slope. Its cement-coated top surface allows direct tiling without the need for extra preparation. The base is entirely watertight and structurally stable, unaffected by humidity, water exposure, or minor subfloor movement.

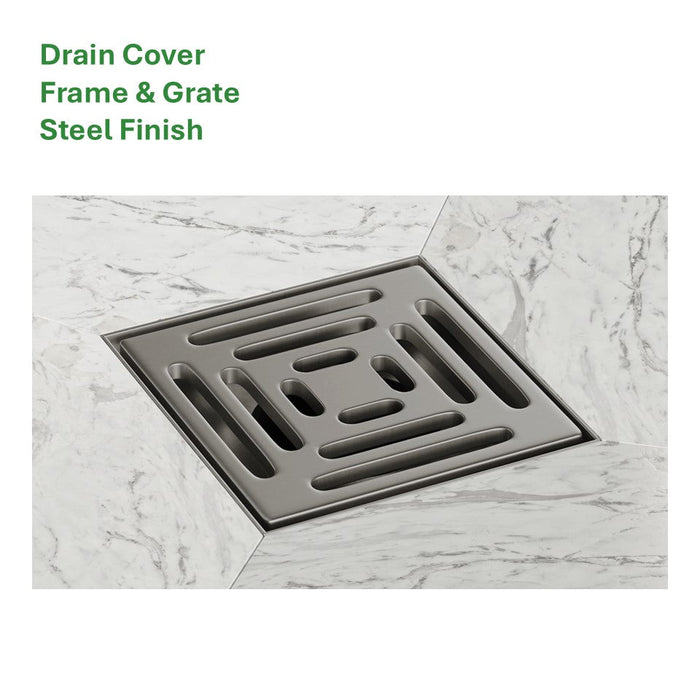

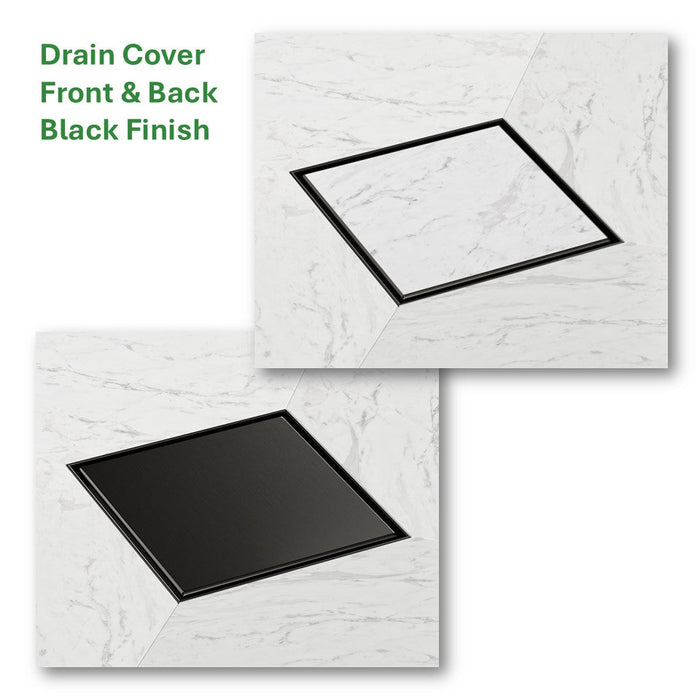

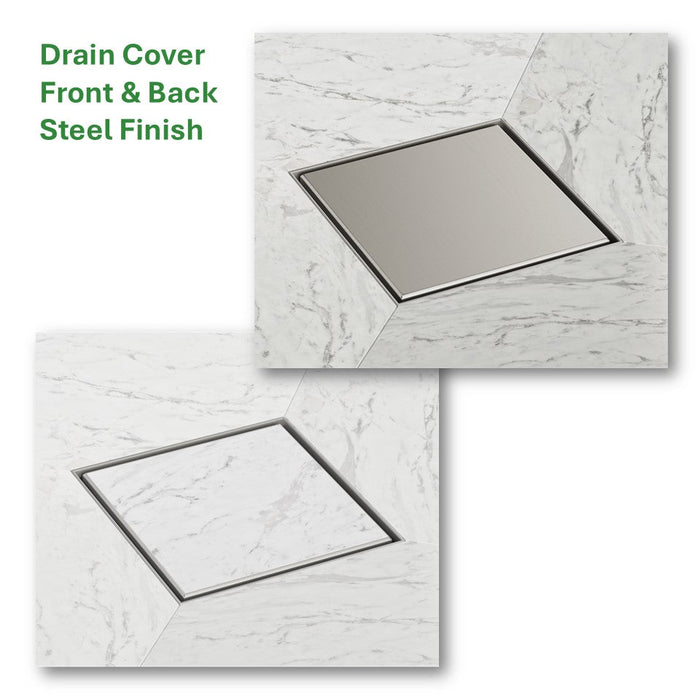

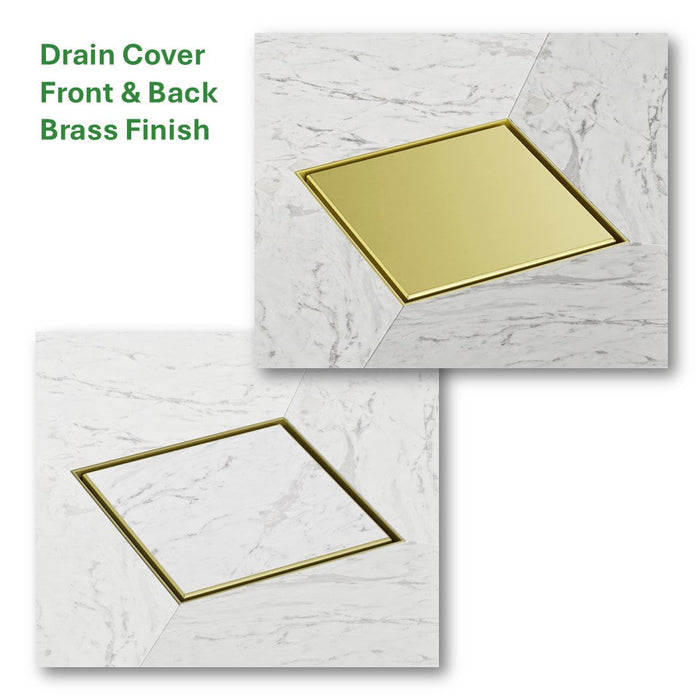

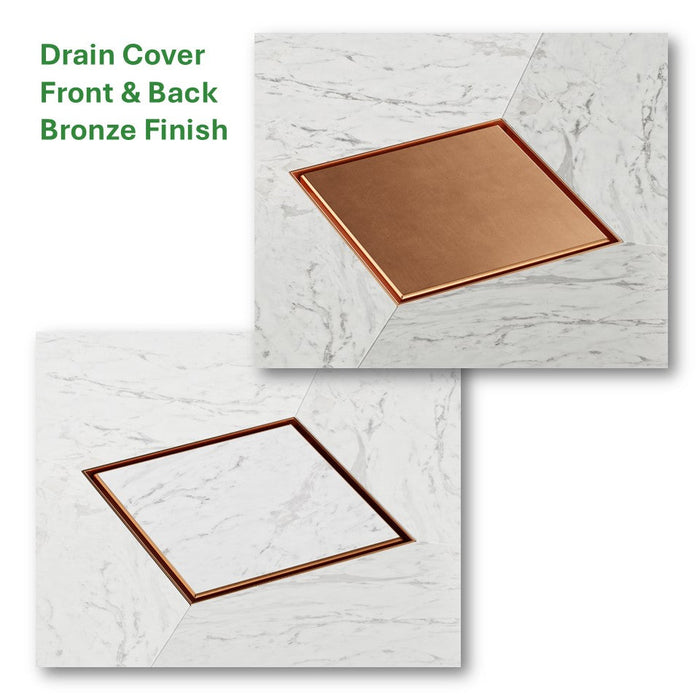

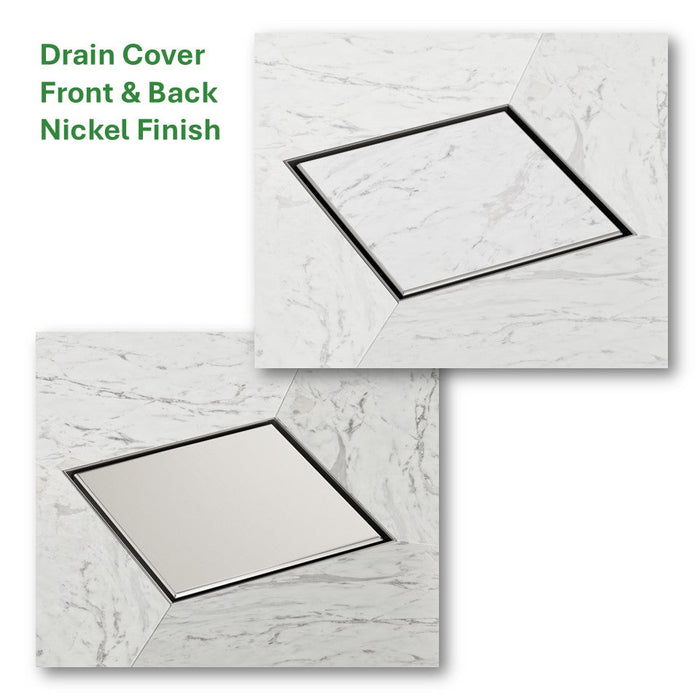

Drain covers are available in multiple styles, including stainless steel grates and premium-finish drain panels. The drain panels can be flipped to allow for tile inserts, letting the drain blend perfectly with surrounding tiles to create a seamless wetroom finish. (See product images for examples with and without tile inserts)
For installation guidance, watch the installation video or refer to the Installation Instructions PDF in the Product Downloads section.
Specifications
- Product type: Shower Tray Base for Wetrooms
- Shower Base Material: Polystyrene Foam (XPS)
- Shower Base Shape: Square & Rectangular
- Colour: Grey with Yellow
- Thickness: 22–30mm
- Waste Type: Square
- Waste Position: Centre & Offset
- Drain: Horizontal (Vertical option available)
- Drain Grate Material: Stainless Steel
- Guarantee: 10 Years

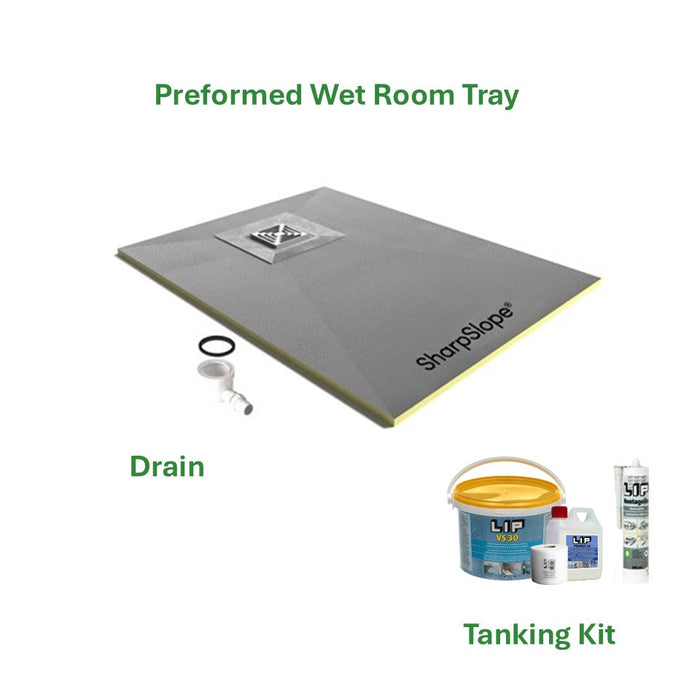

Wetroom Shower Tray Base Kit Includes
- Preformed wet room tray
- Waterproofing membrane
- 25 metre reinforcement tape
- 1 Litre primer
- Integrated drain – 40mm outlet
- Sealed gasket
- 50mm water seal
- Drain frame & panel
- Construction glue
Special Features
- Fully waterproof construction
- Low installation height
- Preformed slope for drainage
- Level access on all 4 sides
- Integrated stainless steel drain with sealed gasket
- 360° rotatable outlet
- Can be trimmed to size
- Suitable for tiles from 8mm thickness
- Compatible with underfloor heating
- Drain cover colour options available
- PVD finish on drain covers for fade and tarnish resistance

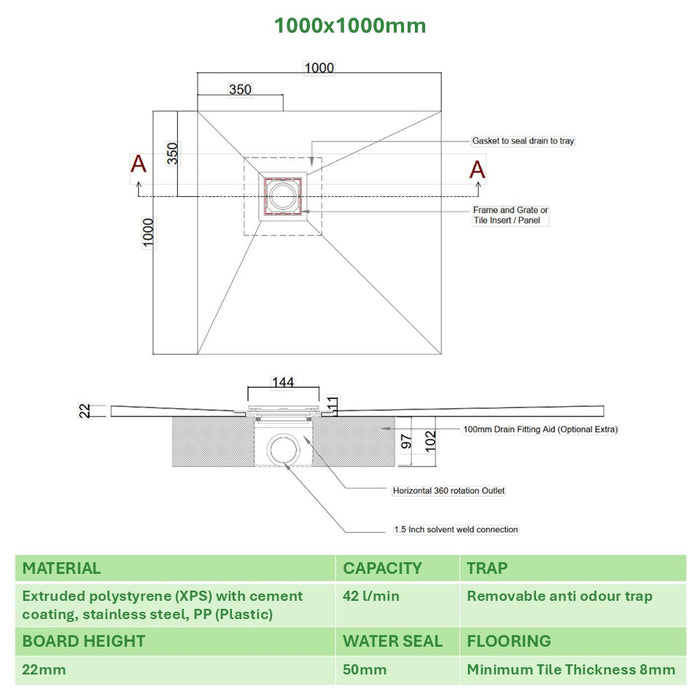

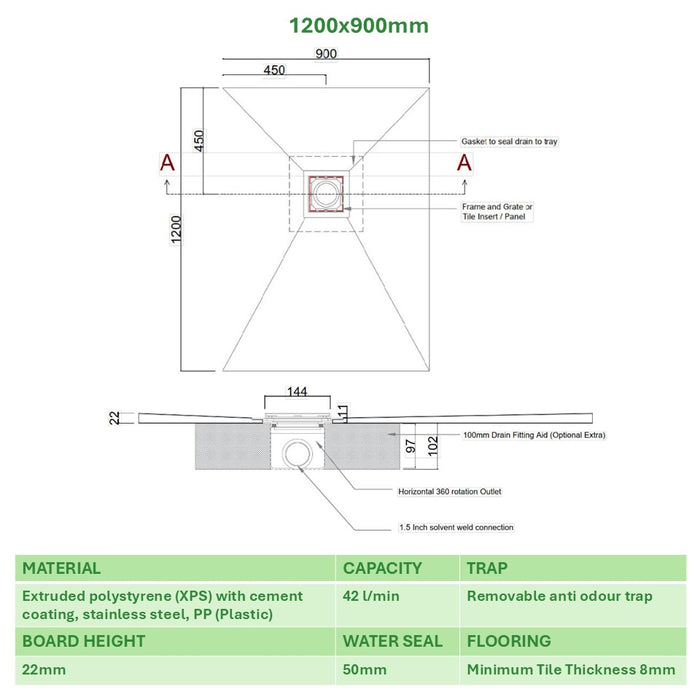

Wetroom Shower Tray Base Sizes (Width x Length x Depth)

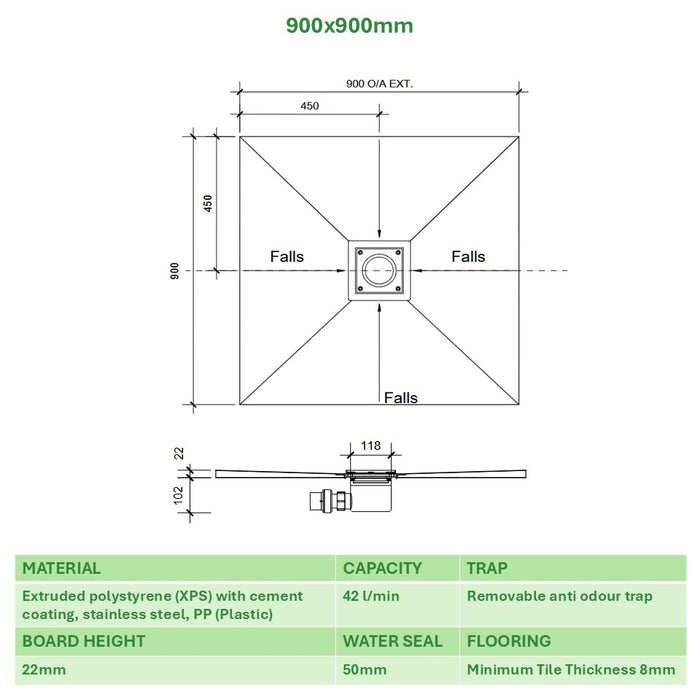

- W 900 x L 900 x D 22mm
- W 900 x L 1200 x D 22mm

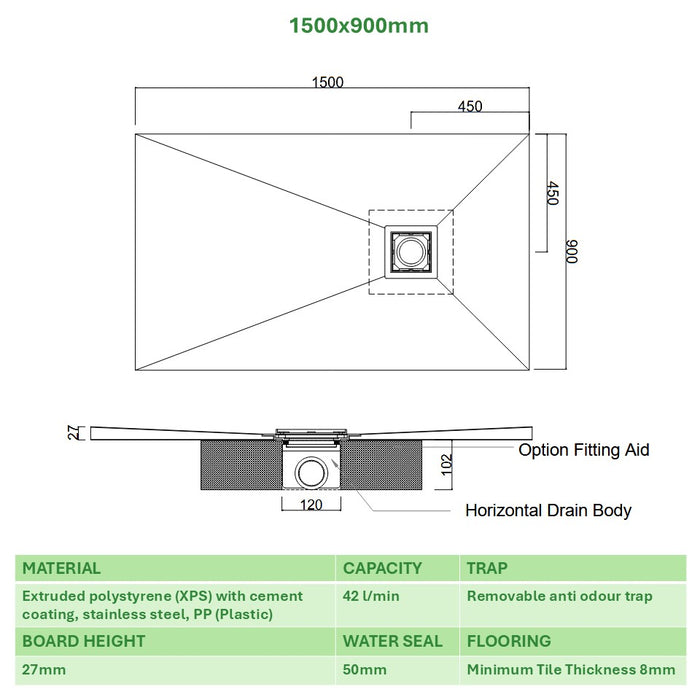

- W 900 x L 1500 x D 27mm

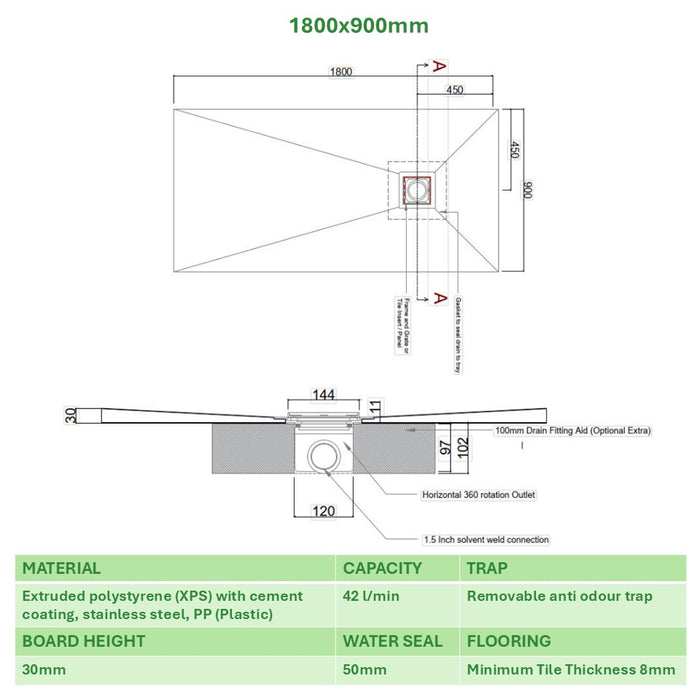

- W 900 x L 1800 x D 30mm
- W 1000 x L 1000 x D 22mm

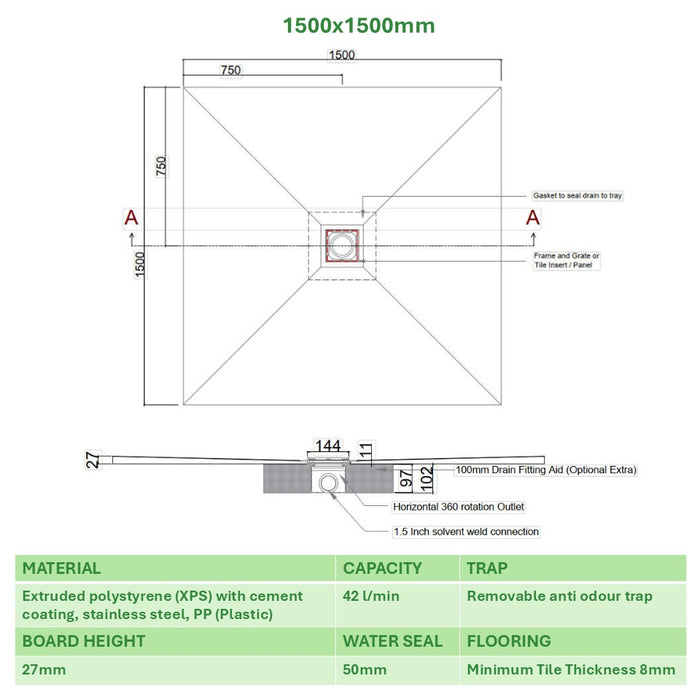

- W 1500 x L 1500 x D 27mm
Suitable for
- Wood or concrete subfloor
- Tiled floor finish
- Wet rooms
- Level access
- Raised on platform
- Underfloor heating
Not suitable for
- Vinyl floor finish
- Micro-cement
- Direct installation onto joists
Additional Information
- SharpSlope wetroom/shower bases are not self-supporting. For suspended timber floors, a subfloor (e.g., 18mm plywood) must be installed between joists to support a level-entry design.
- The waterproofing kit includes a solvent-free liquid membrane that dries into a continuous flexible sheet, designed to move with structural changes.
- Certified to ETAG 022-1, EC1 Plus approved, and compliant with EN 1253.
- Tiles, showers, and glass enclosures shown in images are not included and sold separately.
