SharpDrain Wet Room Shower Tray Linear Drain Tile Insert
Order now for dispatch in approximately 4 weeks.
Product Description
A shallow linear drain designed for wetrooms with limited floor depth. Crafted from stainless steel, it needs just 72 mm of installation depth and features a 50 mm water seal. The tile insert is offered in brushed stainless steel or robust PVD-coated colour finishes. Comes with a factory-fitted membrane to ensure enhanced waterproofing.
Specifications
- Product type: Linear Tile Insert
- Material: Stainless Steel

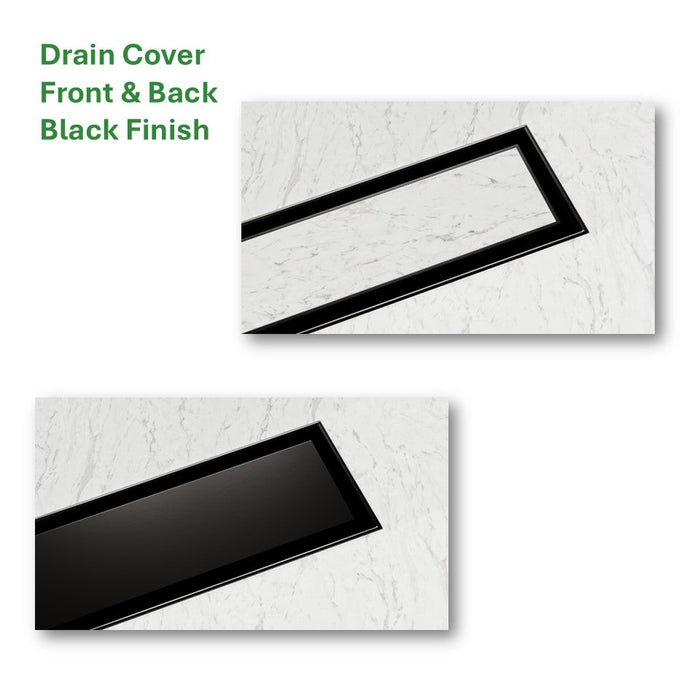

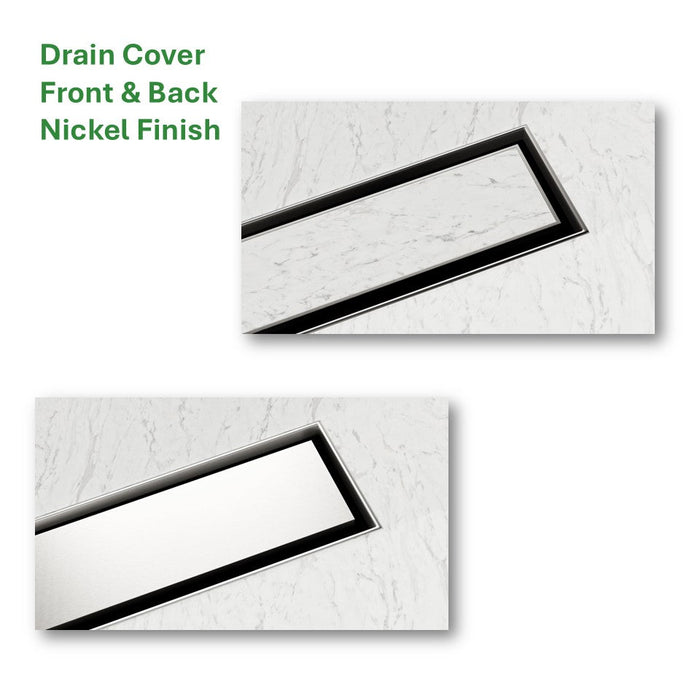

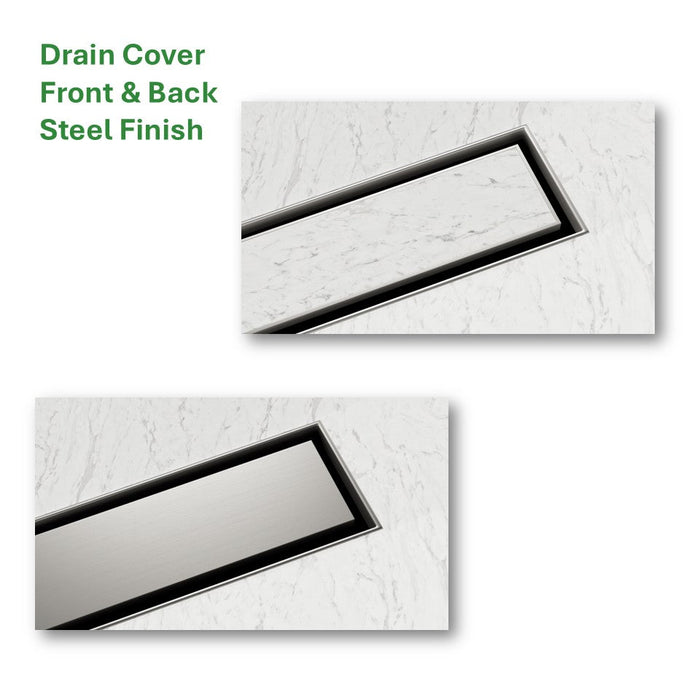

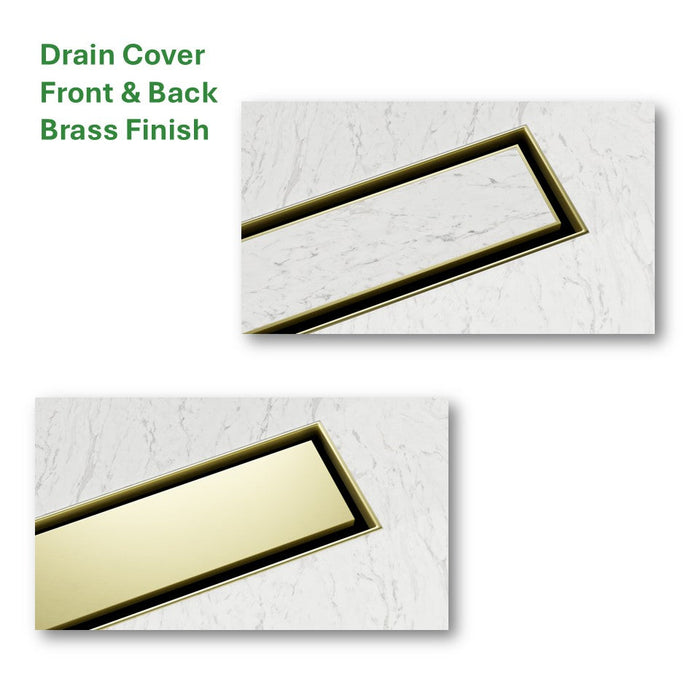

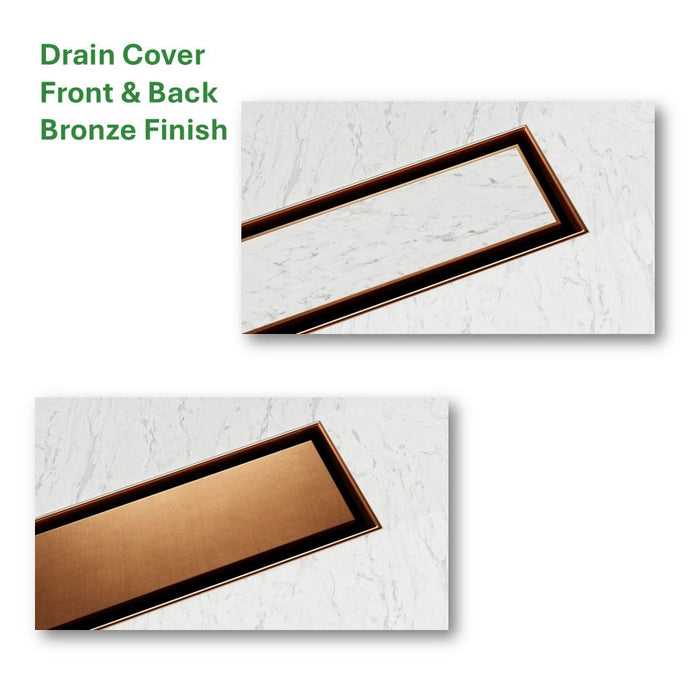

- Finish options: Steel, Black, Brass, Nickel, Bronze
- Drain Depth: 72mm
- Water Seal: 50mm
- Outlet Size: 1½" (40mm)
- Outlet Rotation: 360°
- Guarantee: 10 Years
- Drain Depth: 72mm
Kit Includes
- 32 Litres Per Minute
- Linear Drain
- 1½" Connection
- 50mm Water Seal
- Tile Insert and Frame
- 330mm Factory Fitted Membrane
- PVD Coated Colours
- Polystyrene Fitting Aid
Special Features
- Available in 5 premium finishes
- Tile insert for seamless integration
- High-capacity drainage performance
- 360° rotatable outlet for flexible positioning
- Durable PVD coating (on coloured finishes)
- Fully waterproof construction
- Easy to clean and maintain
Available Sizes

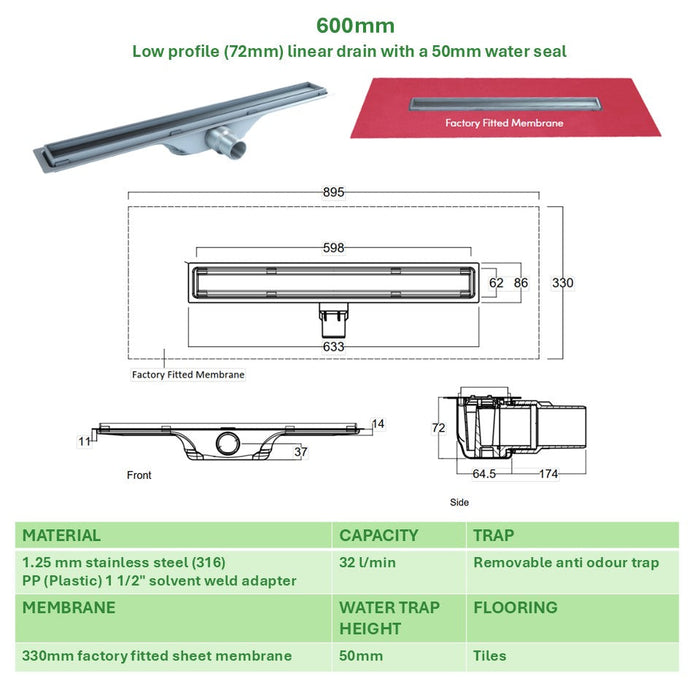

- Model 600 – Structural Length: 633mm | Visual Length: 600mm
- Model 700 – Structural Length: 733mm | Visual Length: 700mm

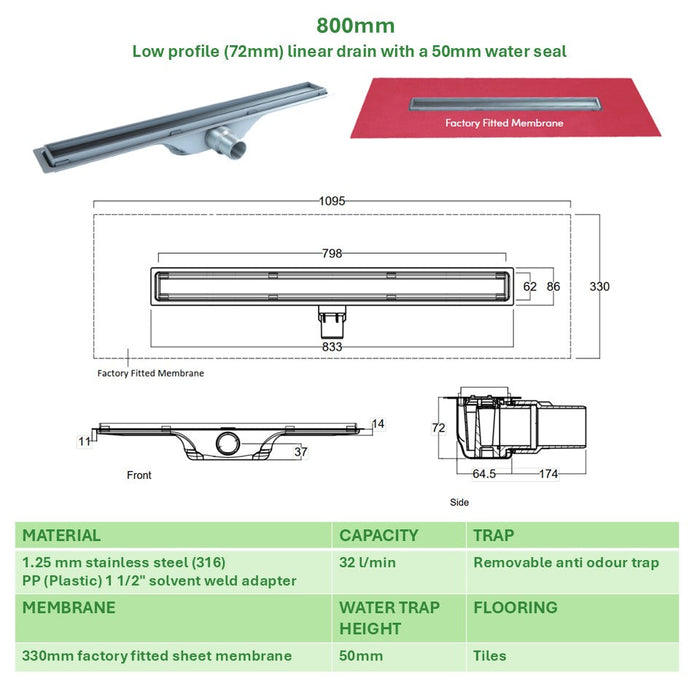

- Model 800 – Structural Length: 833mm | Visual Length: 800mm

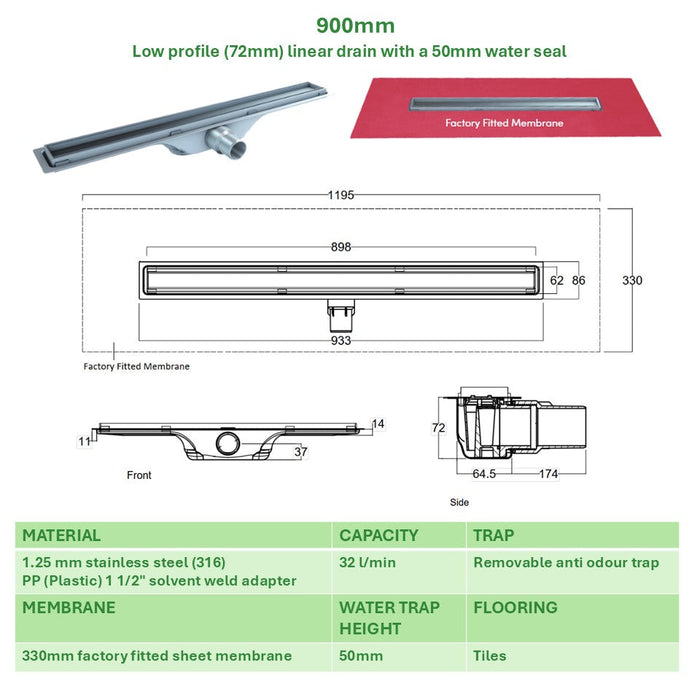

- Model 900 – Structural Length: 933mm | Visual Length: 900mm

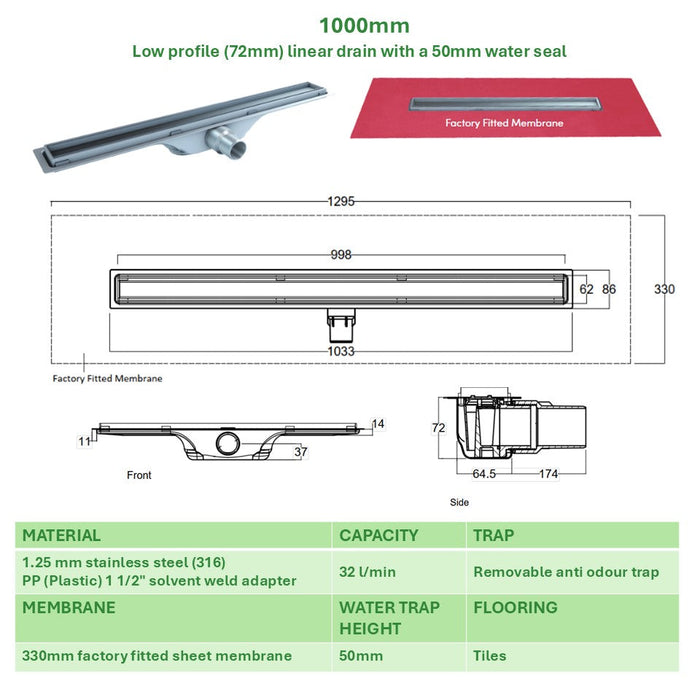

- Model 1000 – Structural Length: 1033mm | Visual Length: 1000mm
- Model 1200 – Structural Length: 1233mm | Visual Length: 1200mm
Suitable for
- Timber or concrete subfloors
- Tiled floor finishes

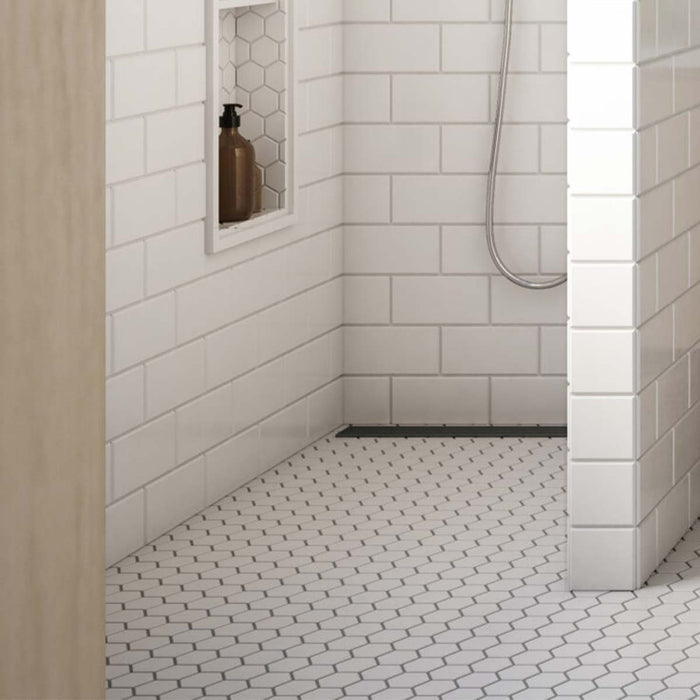

- Wetroom and walk-in shower designs
- Level access installations
- Raised platform setups
- Underfloor heating systems
- View Less
Product Description
A shallow linear drain designed for wetrooms with limited floor depth. Crafted from stainless steel, it needs just 72 mm of installation depth and features a 50 mm water seal. The tile insert is offered in brushed stainless steel or robust PVD-coated colour finishes. Comes with a factory-fitted membrane to ensure enhanced waterproofing.
Specifications
- Product type: Linear Tile Insert
- Material: Stainless Steel
- Finish options: Steel, Black, Brass, Nickel, Bronze
- Drain Depth: 72mm
- Water Seal: 50mm
- Outlet Size: 1½" (40mm)
- Outlet Rotation: 360°
- Guarantee: 10 Years
- Drain Depth: 72mm
Kit Includes
- 32 Litres Per Minute
- Linear Drain
- 1½" Connection
- 50mm Water Seal
- Tile Insert and Frame
- 330mm Factory Fitted Membrane
- PVD Coated Colours
- Polystyrene Fitting Aid
Special Features
- Available in 5 premium finishes
- Tile insert for seamless integration
- High-capacity drainage performance
- 360° rotatable outlet for flexible positioning
- Durable PVD coating (on coloured finishes)
- Fully waterproof construction
- Easy to clean and maintain
Available Sizes
- Model 600 – Structural Length: 633mm | Visual Length: 600mm
- Model 700 – Structural Length: 733mm | Visual Length: 700mm
- Model 800 – Structural Length: 833mm | Visual Length: 800mm
- Model 900 – Structural Length: 933mm | Visual Length: 900mm
- Model 1000 – Structural Length: 1033mm | Visual Length: 1000mm
- Model 1200 – Structural Length: 1233mm | Visual Length: 1200mm
Suitable for
- Timber or concrete subfloors
- Tiled floor finishes
- Wetroom and walk-in shower designs
- Level access installations
- Raised platform setups
- Underfloor heating systems
- View Less
