SharpSlope Wet Room Shower Tray Base Kit Linear Panel Drain
Order now for dispatch in approximately 4 weeks.
Product Information
The SharpSlope Linear Drain Wet Room Kit is expertly crafted to provide a fully waterproof foundation for the installation of wet rooms and walk-in showers, whether in timber or concrete-floored properties. Designed to include everything needed for wetroom tanking, this premium kit complements both contemporary and minimalist interiors and can be adapted to bathrooms and shower spaces of any size.
The tray base is constructed with a water-resistant extruded polystyrene foam core and offers an ultra-low installation height, incorporating a 4-way fall for efficient drainage. The upper surface features a cementitious coating, enabling direct tiling without extra preparation. Completely watertight and stable, the base remains unaffected by moisture, humidity, or slight movement in the subfloor.

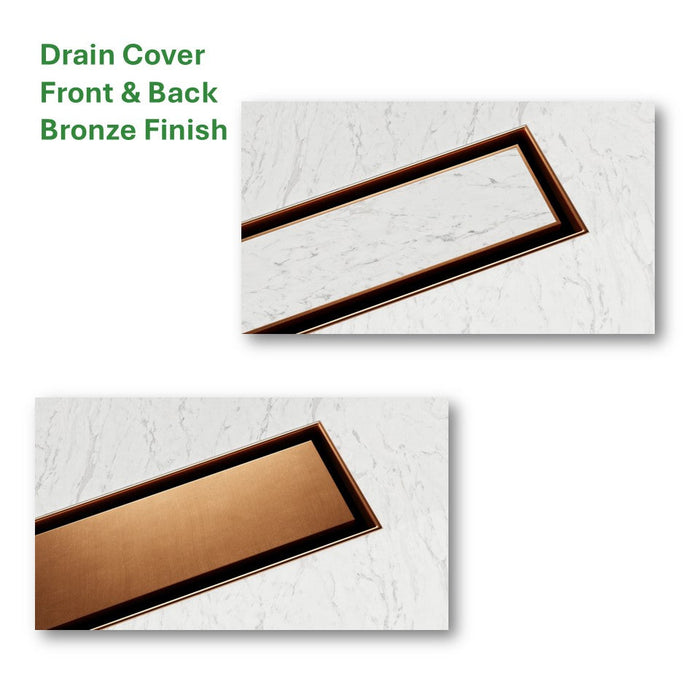

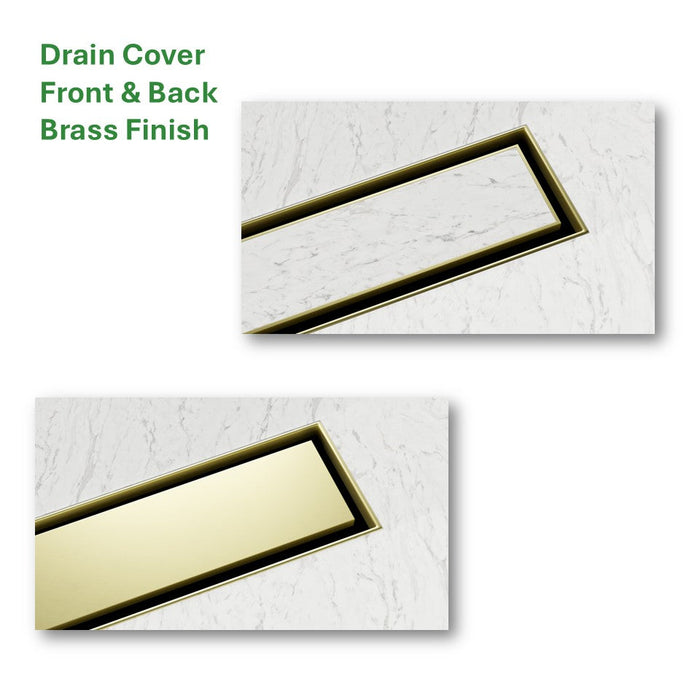

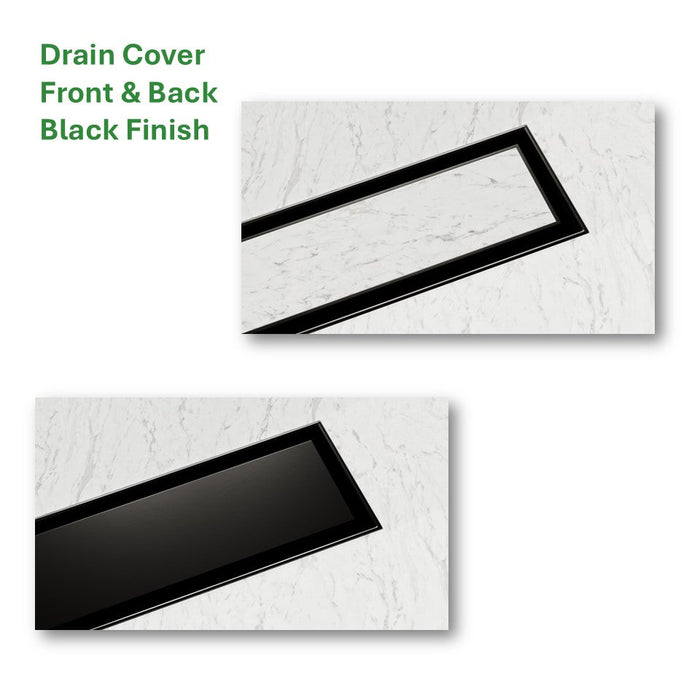

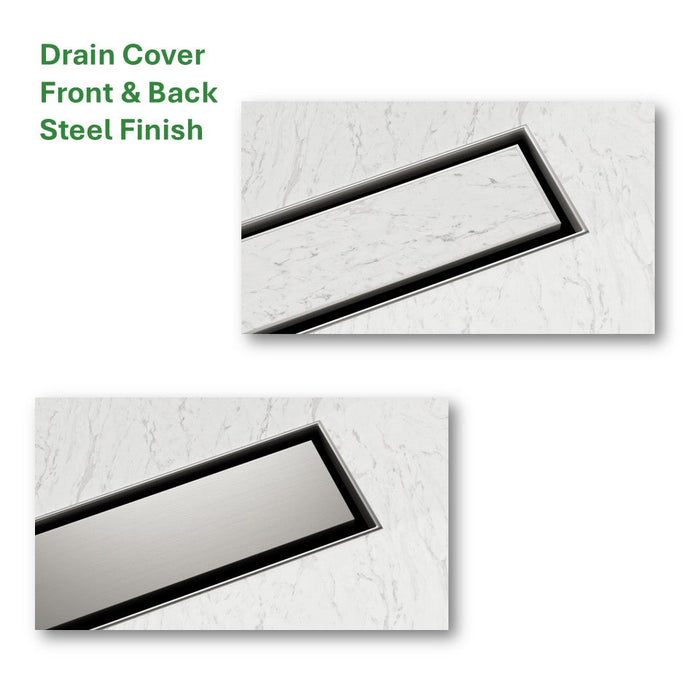

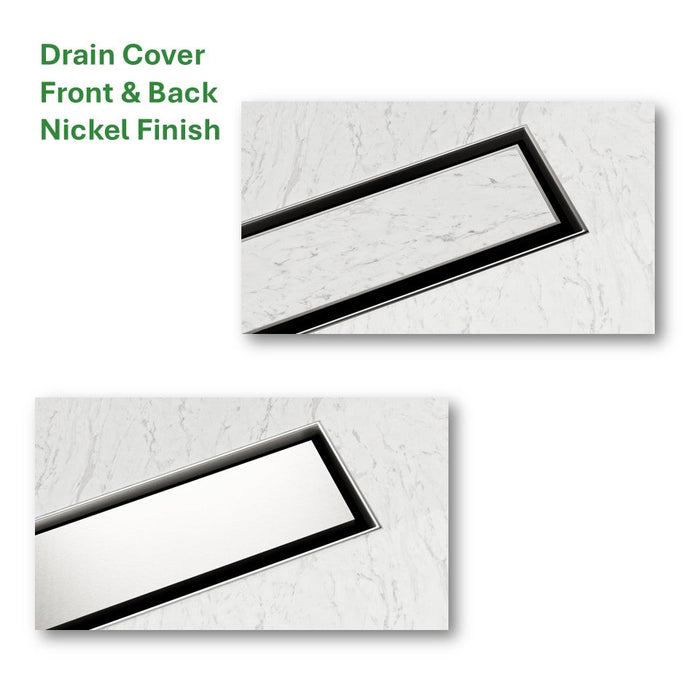

Drain panels are offered in a range of stylish finishes and can be inverted to allow tile inserts. This feature is perfect when tiling the tray base, ensuring both the surrounding area and the drain match seamlessly for a sleek, continuous wetroom look. (See product images for examples of drains with and without tile inserts.)
Specifications
- Product type: Wetroom Shower Tray Base
- Material: Polystyrene Foam
- Shape: Square & Rectangular
- Colour: Grey with Yellow
- Thickness: 30mm
- Waste Type: Linear (Rectangular)
- Waste Position: Centre & Offset
- Drain Direction: Horizontal
- Drain Grate Material: Stainless Steel
- Guarantee: 10 Years

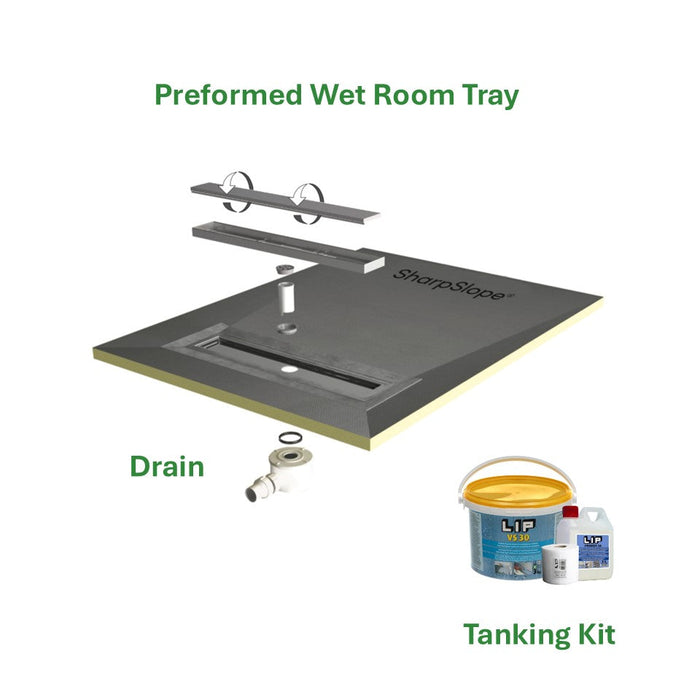

Wetroom Shower Tray Base Kit Includes
- Pre-formed wet room tray
- 3kg Waterproof membrane
- 25m reinforcement tape
- 1 Litre primer
- Built-in drain – 40mm outlet
- Sealed gasket
- 50mm water seal
- Drain frame & cover panel
- Construction adhesive
Special Features
- Completely waterproof construction
- Ultra-low installation profile
- Pre-formed slope for optimal drainage
- Level access achievable from all 4 sides
- Integrated stainless steel drain with gasket seal
- 360° rotatable outlet
- Cut-to-size capability
- Suitable for tiles from 8mm thickness upward
- Compatible with underfloor heating
- Optional drain cover colour choices
- PVD-coated drain covers resistant to fading or tarnishing

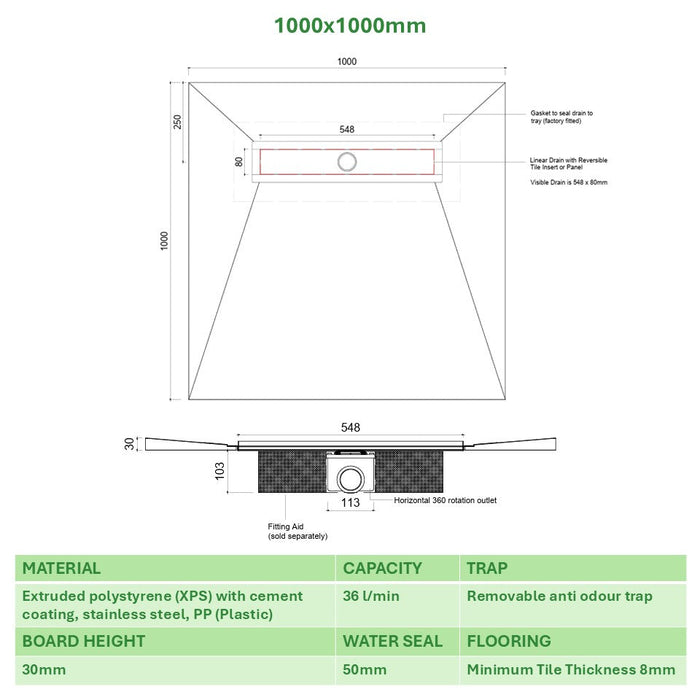

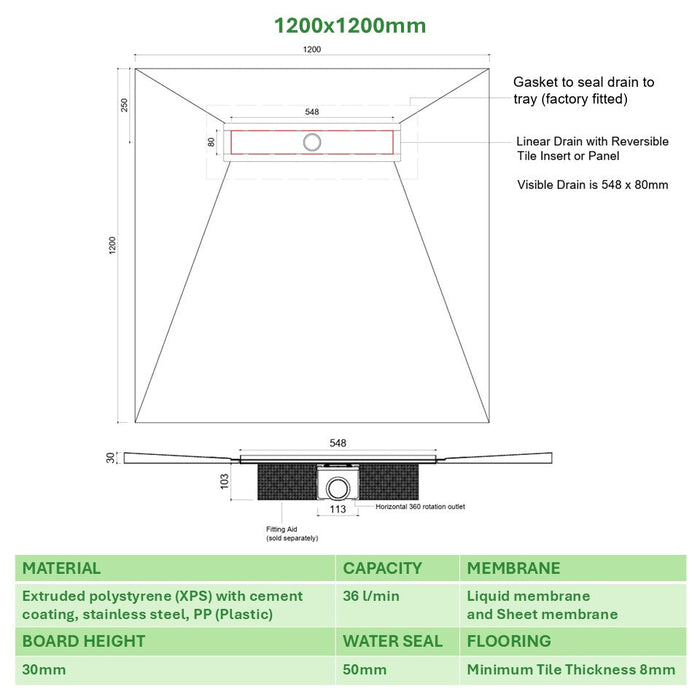

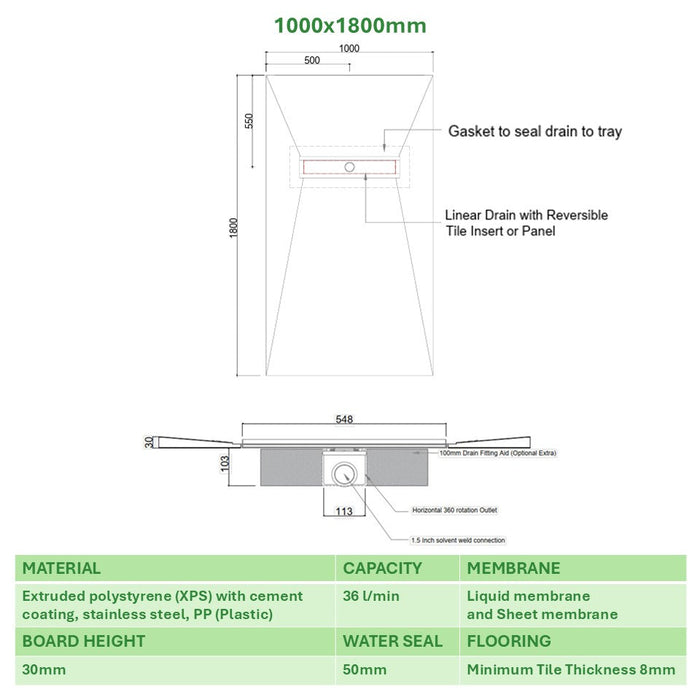

Wetroom Shower Tray Base Sizes (Width x Length x Depth)

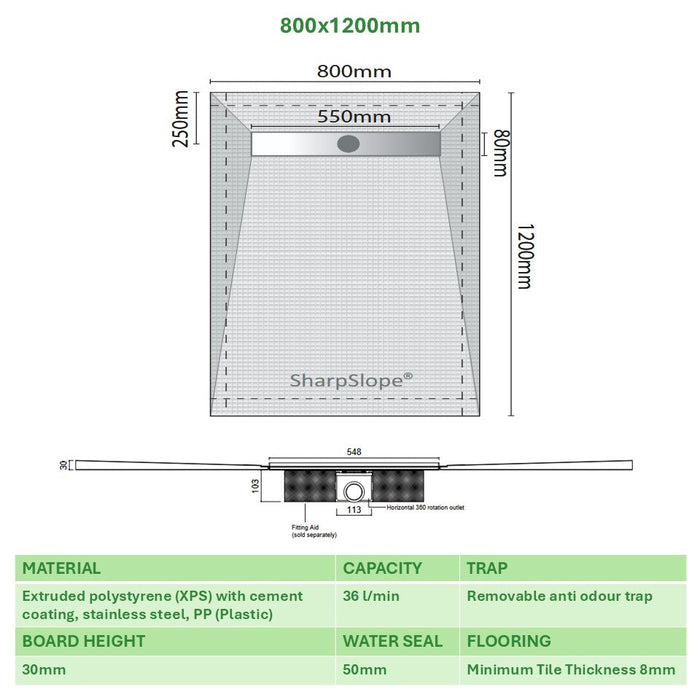

- W 800 x L 1200 x D 30mm

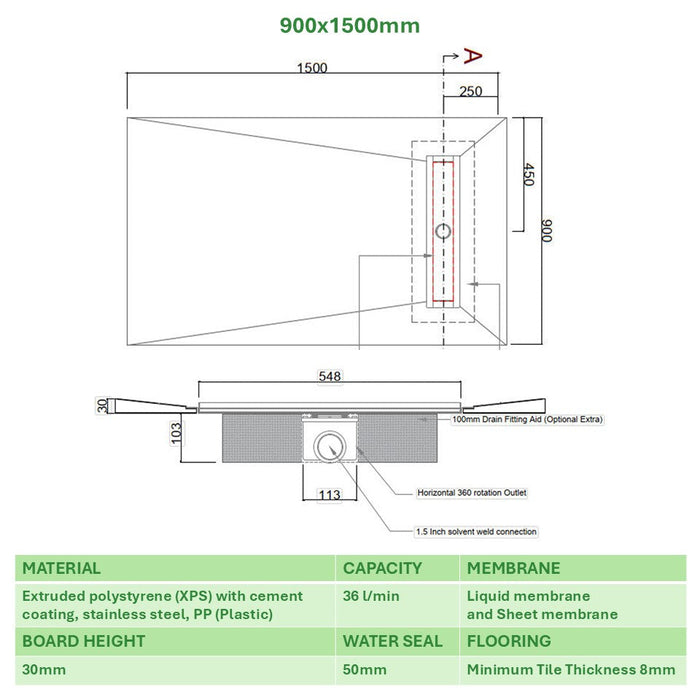

- W 900 x L 1500 x D 30mm
- W 1000 x L 1000 x D 30mm
- W 1200 x L 1200 x D 30mm

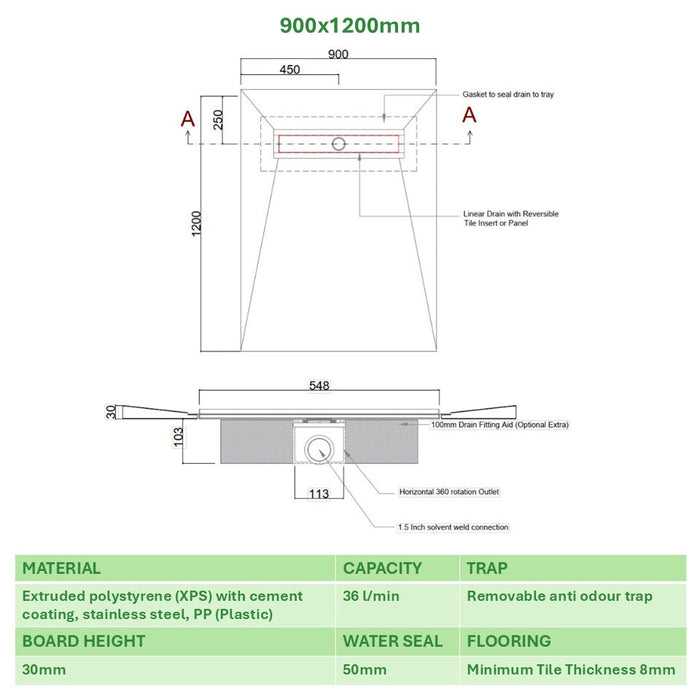

- W 900 x L 1200 x D 30mm

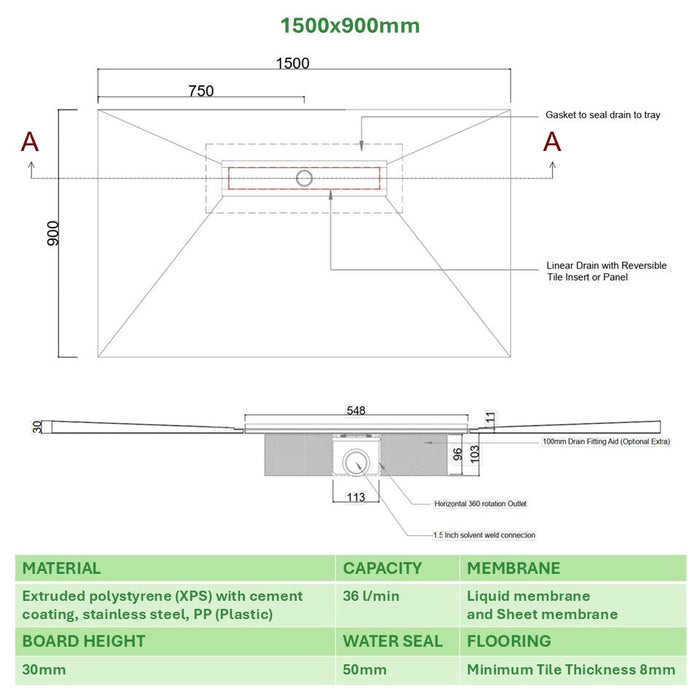

- W 1500 x L 900 x D 30mm
- W 1000 x L 1800 x D 30mm

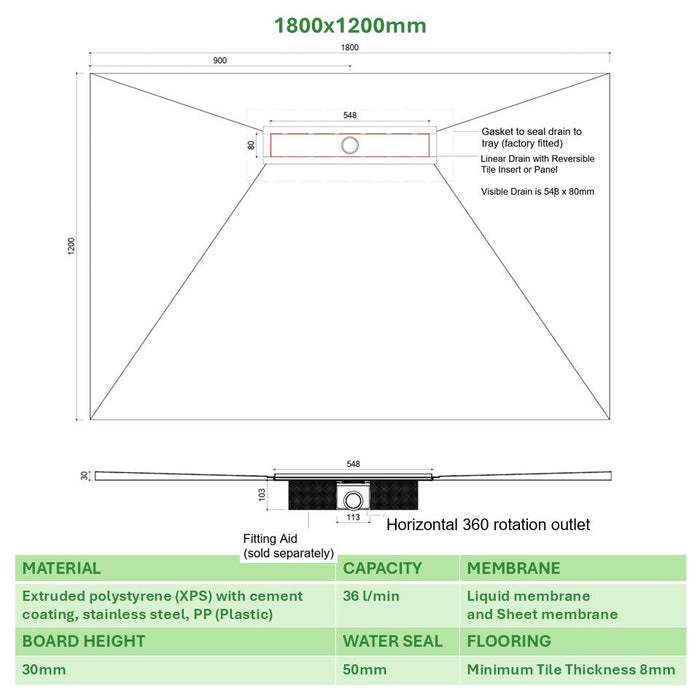

- W 1800 x L 1200 x D 30mm
Suitable for
- Timber or concrete subfloors
- Tiled floor finishes
- Wetroom designs
- Level access installations
- Raised platform setups
- Underfloor heating systems
Not suitable for
- Vinyl flooring
- Microcement finishes
- Direct installation on joists
Additional Information
- SharpSlope wetroom/shower trays are not self-supporting. For suspended timber floors, a subfloor (e.g., 18mm plywood) must be installed between joists to support a level-entry setup.
- The waterproofing system includes a solvent-free, paint-on liquid membrane that dries into a continuous, flexible sheet to accommodate structural movement.
- Certified to international standards, including ETAG 022-1 and EC1 Plus, and compliant with EN 1253.

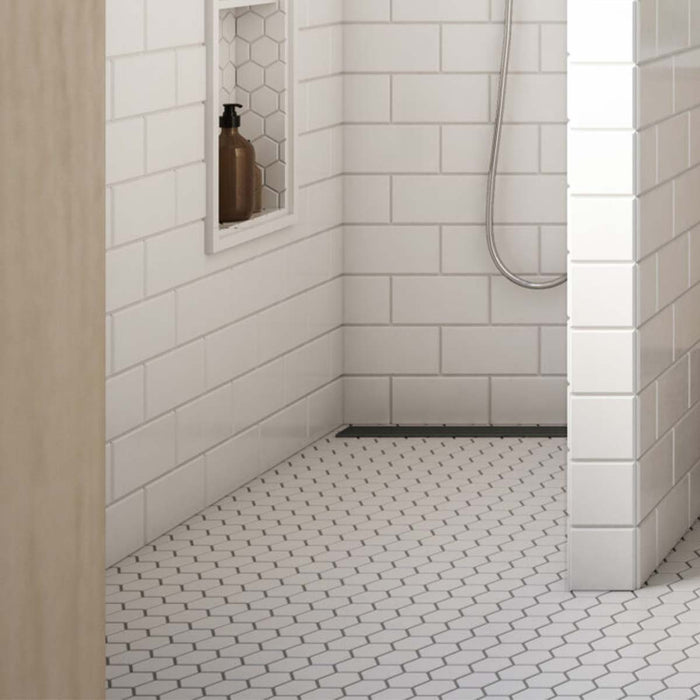

- Tiles, showers, and enclosures shown in product images are for illustration only and are sold separately.
