Scudo Vertical 3 Column Designer Radiator - Gloss White
Order now for dispatch in approximately 4 weeks.
Product Information
The Scudo Vertical 3 Column Designer Radiator combines traditional column radiator styling with a tall vertical profile, making it a practical and elegant heating solution for interiors where wall space is limited. Manufactured from durable low carbon steel, this wall-mounted radiator features a classic three-column construction with a clean Gloss White finish that complements both traditional and contemporary bathroom and interior schemes. With a radiator depth of 100mm, 25mm diameter bars and a maximum projection of 109mm, it provides a substantial three-column profile while maintaining a neat vertical installation.
The Scudo Vertical 3 Column Designer Radiator is available in three 1800mm-high sizes to provide flexibility for different wall spaces. All three sizes share the same 100mm radiator depth, 25mm bar diameter, 59mm C2 pipe centres and 109mm maximum projection. Supplied with a Lifetime Warranty, this Scudo Gloss White column radiator combines traditional three-column detailing, robust low carbon steel construction and a choice of vertical dimensions for a distinctive and practical heating solution.
Radiator valves are not included but can be purchased separately.
Product Specifications:
- Warranty: Lifetime
- Product Type: Column Radiator
- Brand: Scudo
- Colour: Gloss White
- Style: Traditional
- Mounting: Wall
- Material: Low Carbon Steel
- Orientation: Vertical
Special Features:
- Radiator Depth: 100mm
- Bar Diameter: 25
- Max Projection: 109mm
- Pipe Centres C2: 59mm
1800mm x 335mm
- Bar Arrangement: 7
- Number of Bars: 21
- Pipe Centres C1: 415mm
1800mm x 425mm
- Bar Arrangement: 9
- Number of Bars: 27
- Pipe Centres C1: 505mm
1800mm x 515mm
- Bar Arrangement: 11
- Number of Bars: 33
- Pipe Centres C1: 595mm
Assembly instructions for Vertical 3 Column Designer Radiator
Datasheet for 1800mm x 335mm Column Designer Radiator
Datasheet for 1800mm x 425mm Column Designer Radiator
Datasheet for 1800mm x 515mm Column Designer Radiator
Technical Specifications
| Size | 50°C BTU | 50°C Watts | 30°C BTU | 30°C Watts |
| 1800mm x 335mm | 5905 | 1732 | 3248 | 952 |
| 1800mm x 425mm | 7590 | 2226 | 4175 | 1224 |
| 1800mm x 515mm | 9279 | 2721 | 5103 | 1496 |
Technical Drawing

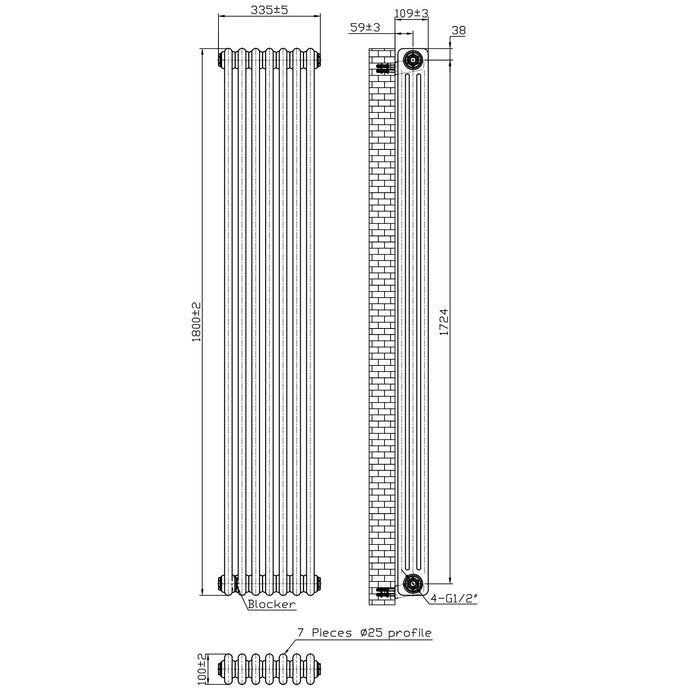

1800mm x 335mm

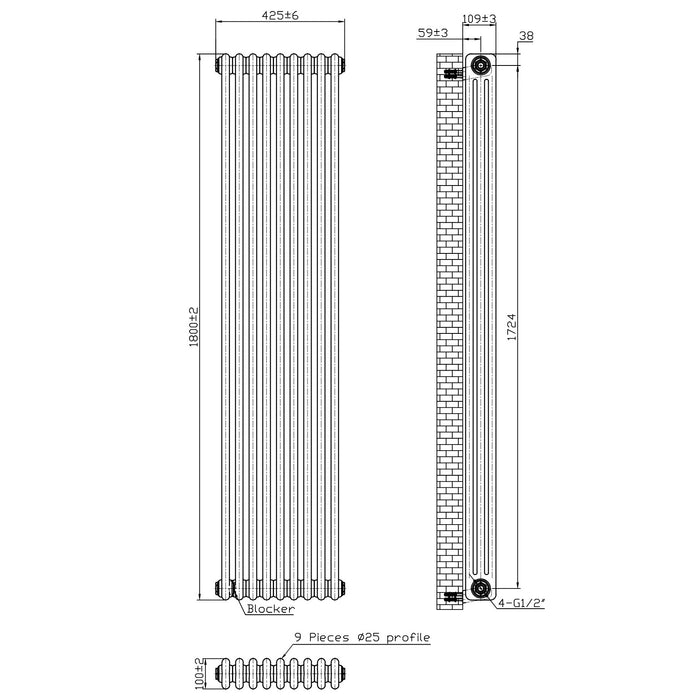

1800mm x 425mm

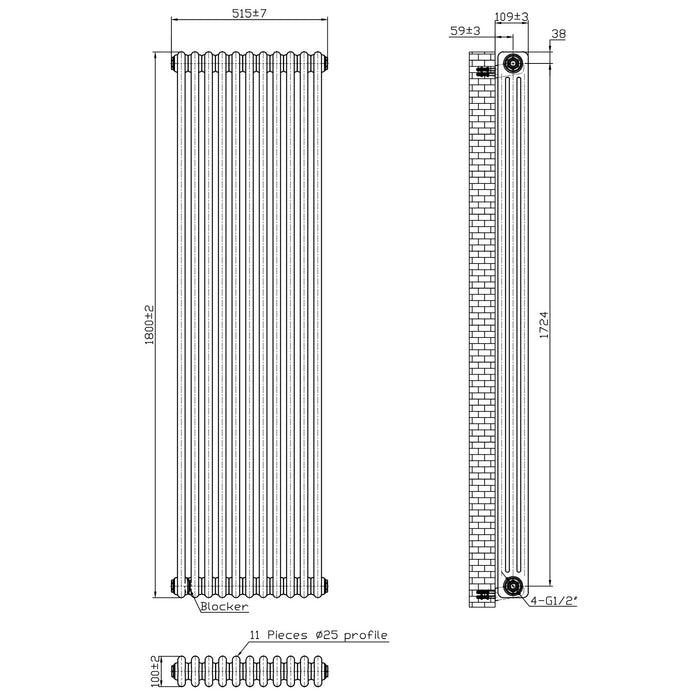

1800mm x 515mm
