Scudo Vertical 2 Column Designer Radiator

Name: Scudo Vertical 2 Column Designer Radiator
Brand: Scudo
SKU: SCUCOL-2-150-34-W
Price: 445.0 EUR
Availability: InStock

by Scudo

Code: COL-2-150-34-W

Code: COL-2-150-43-W

Code: COL-2-150-52-W

Code: COL-2-180-34-W

Code: COL-2-180-43-W

Code: COL-2-180-52-W

Code: COL-2-180-34-A

Code: COL-2-180-43-A

Code: COL-2-180-52-A

From €556.25

€556.25

€445.00

€556.25

From €445.00

€445.00

Save 20%

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch

Estimated Collection: 2 weeks

Estimated Delivery: 2-3 weeks

Select Your Options

Quantity

Product Information

The Scudo Vertical 2 Column Designer Radiator combines traditional column radiator styling with durable low carbon steel construction, providing a practical and space-efficient heating solution for classic and contemporary interiors. Designed for wall mounting in a vertical orientation, this radiator features a 25mm diameter + View More

The Scudo Vertical 2 Column Designer Radiator combines traditional column radiator styling with durable low carbon steel construction, providing a practical and space-efficient heating solution for classic and contemporary interiors. Designed for wall mounting in a vertical orientation, this radiator features a 25mm diameter bar profile, a 70mm radiator depth and a maximum projection of 94mm. Its vertical design makes it particularly suitable for installations where available wall width is limited, while the traditional column styling provides a distinctive and timeless appearance.

Radiator valves are not included but can be purchased separately.

Product Specifications:

Warranty: Lifetime
Product Type: Column Radiator
Brand: Scudo
Style: Traditional
Mounting: Wall
Material: Low Carbon Steel
Orientation: Vertical

Special Features:

Radiator Depth: 70mm
Bar Diameter: 25
Element Installation Compatible: No
Max Projection: 94mm
Pipe Centres C2: 59mm

1500mm x 335mm

Bar Arrangement: 7
Number of Bars: 14
Pipe Centres C1: 415mm

1500mm x 425mm

Bar Arrangement: 9
Number of Bars: 18
Pipe Centres C1: 505mm

1500mm x 515mm

Bar Arrangement: 11
Number of Bars: 22
Pipe Centres C1: 595mm

1800mm x 335mm

Bar Arrangement: 7
Number of Bars: 14
Pipe Centres C1: 415mm

1800mm x 425mm

Bar Arrangement: 9
Number of Bars: 18
Pipe Centres C1: 505mm

1800mm x 515mm

Bar Arrangement: 11
Number of Bars: 22
Pipe Centres C1: 515 + RV

Assembly instructions for Vertical Designer Radiator

Datasheet for 1500mm x 335mm Vertical Designer Radiator

Datasheet for 1500mm x 425mm Vertical Designer Radiator

Datasheet for 1500mm x 515mm Vertical Designer Radiator

Datasheet for 1800mm x 335mm Vertical Designer Radiator

Datasheet for 1800mm x 425mm Vertical Designer Radiator

Datasheet for 1800mm x 515mm Vertical Designer Radiator

Technical Specifications

Size	50°C BTU	50°C Watts	30°C BTU	30°C Watts
1500mm x 335mm	2973	872	1635	479
1500mm x 425mm	3823	1121	2103	617
1500mm x 515mm	4672	1370	2570	754
1800mm x 335mm	3562	1045	1959	574
1800mm x 425mm	4579	1343	2518	738
1800mm x 515mm	5599	1642	3079	903

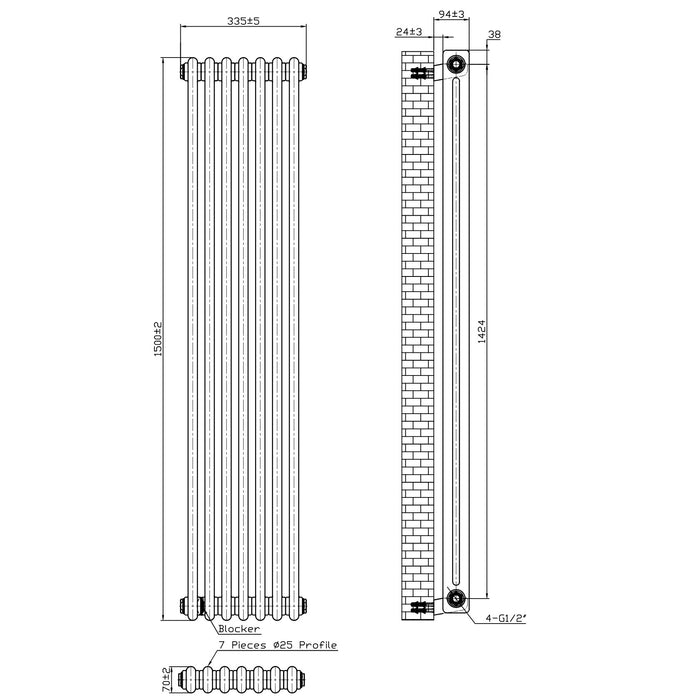

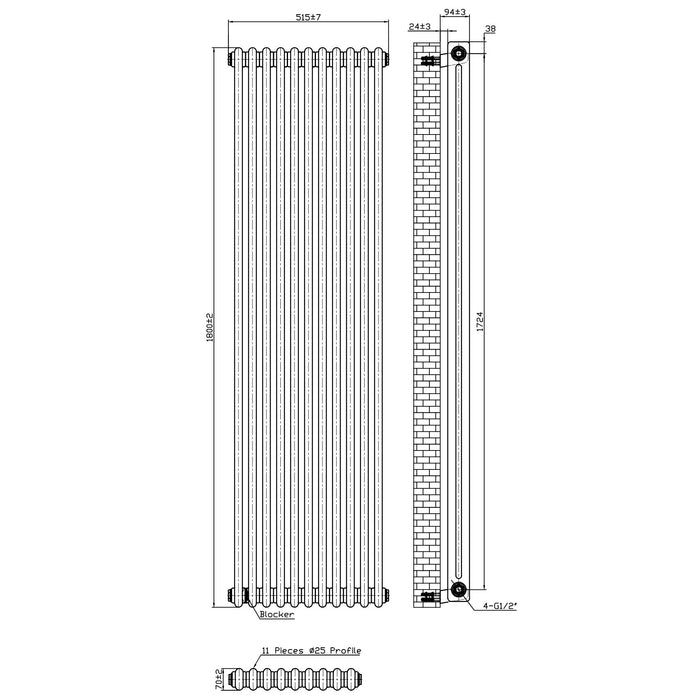

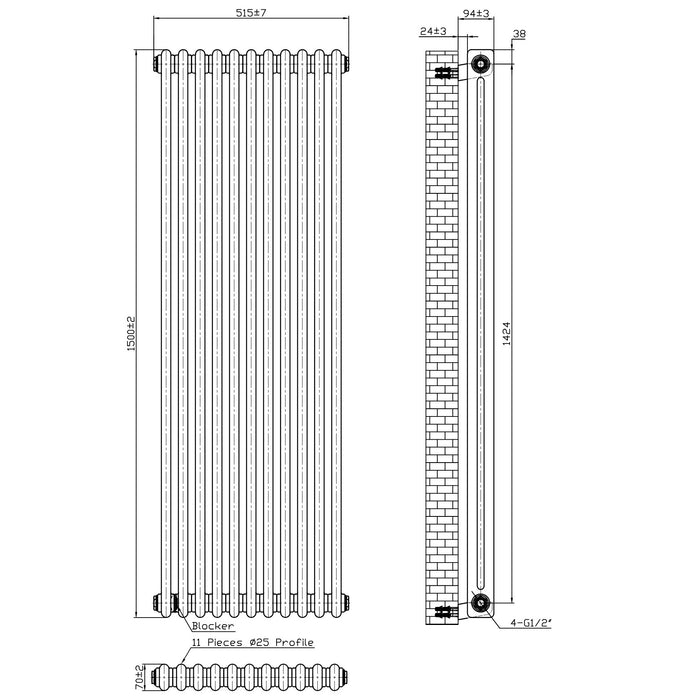

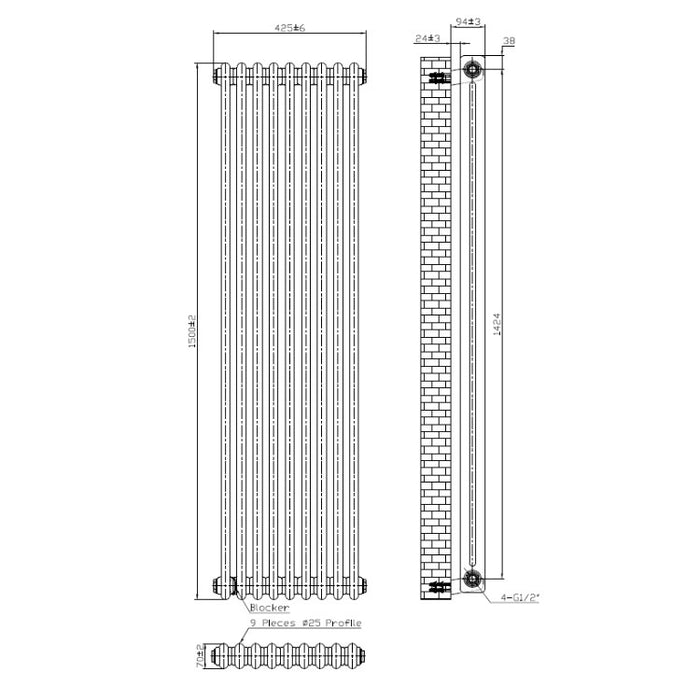

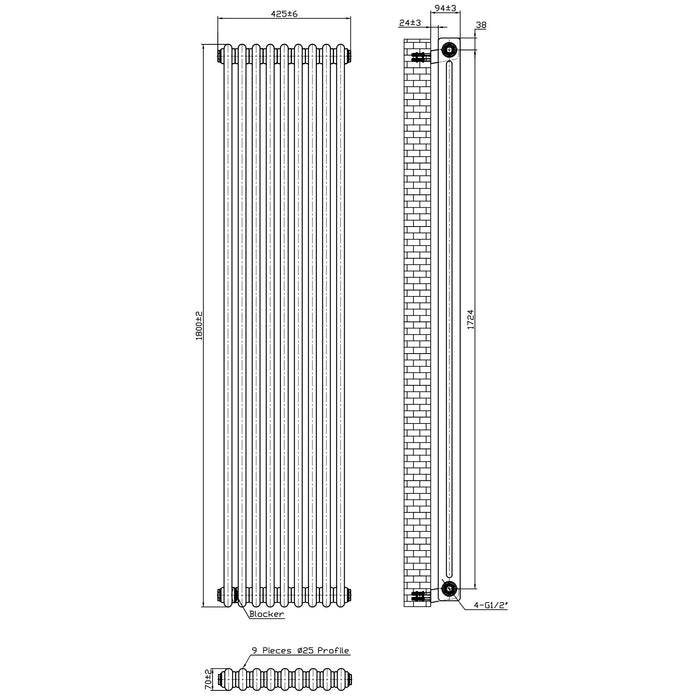

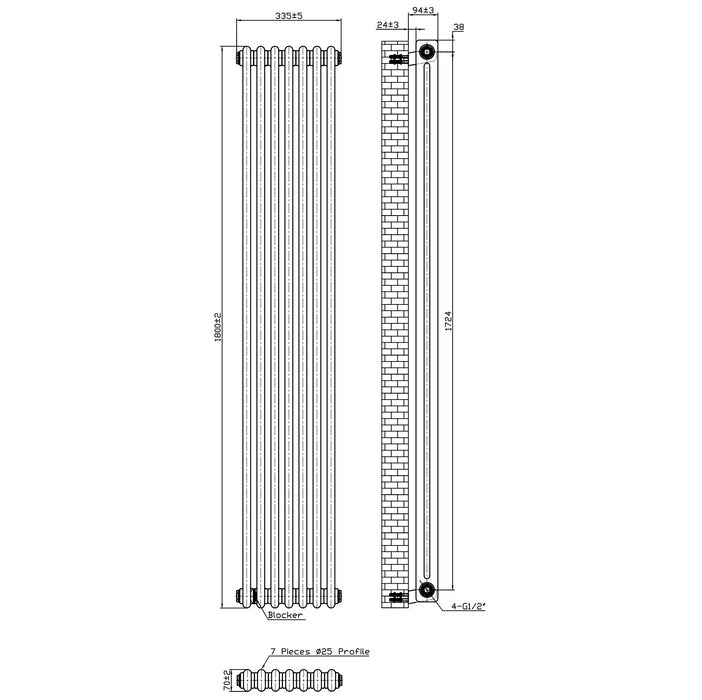

Technical Drawing
