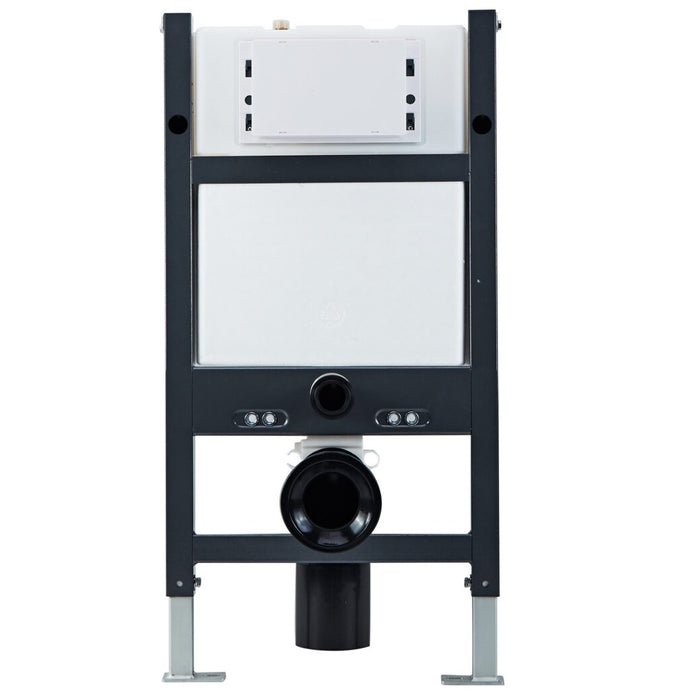

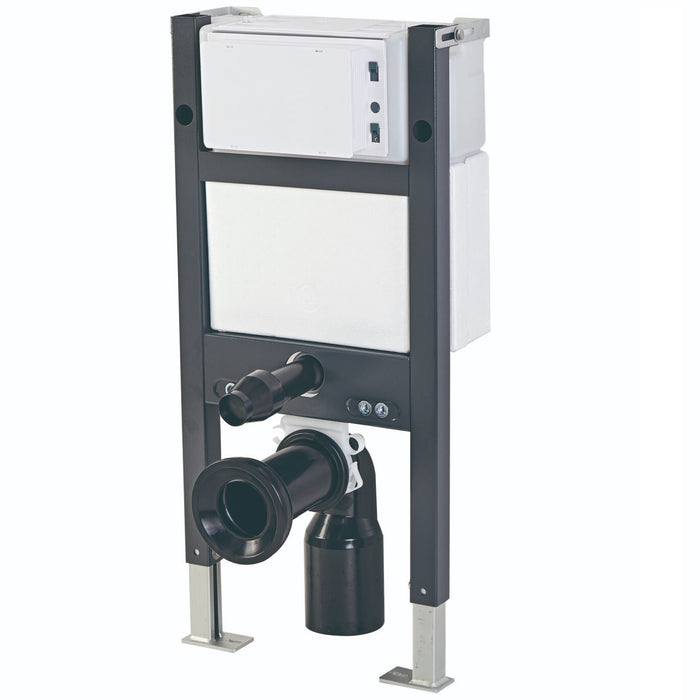

Scudo Under Window Wall Hung Toilet Frame & Concealed Cistern with Flush Button
Order now for dispatch in approximately 4 weeks.
Product Information
The Scudo Under Window Wall Hung Toilet Frame & Concealed Cistern is a compact and practical installation solution, specifically designed for bathrooms with limited wall height, such as beneath windows. Manufactured from durable steel and ABS, this modern frame provides exceptional strength with a weight capacity of up to 400kg while maintaining a slim profile for space-efficient installation. Supplied as a complete set with a concealed cistern and choice of pneumatic dual flush button, it is designed for use with compatible wall-hung toilet pans, creating a clean, minimalist finish that enhances contemporary bathroom interiors.
Measuring 820mm high, 415mm wide, and with an adjustable depth of 150mm to 187mm, this under-window frame is ideal for compact spaces without compromising on stability or functionality. Backed by a lifetime warranty, it offers long-lasting durability, dependable performance and an ideal solution for modern wall-hung toilet installations.
Specifications
- Warranty: Lifetime
- Product Type: Wall Hung Toilet Frame
- Brand: Scudo
- Style: Modern
- Shape: Rectangular
- Mounting: Floor
- Material: Steel/ABS
- Minimum Operating Pressure: 0.2 Bar
- Maximum Operating Pressure: 10 Bar
Special Features
- Set includes: Wall Hung Toilet Frame & Concealed Cistern with Dual Flush Button
- For use with compatible wall-hung toilet pans
- Factory set 3 and 6 litre flushing
- Adjustable height
- Overall height adjustment 820-1125mm
- Quiet filling
- Galvanised steel
- Weight limit 400Kg
- Water inlet location: Left
- Flush type: Pneumatic push button
Dimensions
Assembly instructions for Wall Hung Toilet Frame & Concealed Cistern
Datasheet for Wall Hung Toilet Frame & Concealed Cistern

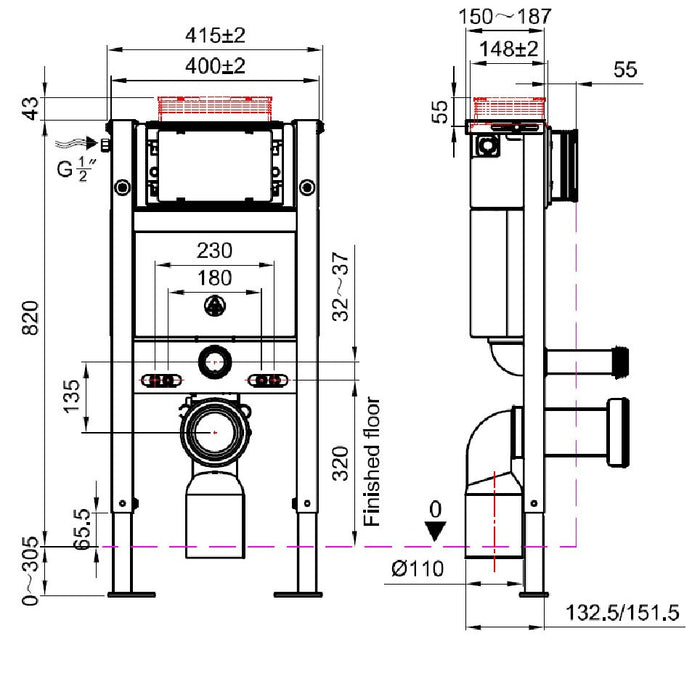

Technical Drawing
