Scudo Horizontal 3 Column Designer Radiator - Raw Metal
Order now for dispatch in approximately 4 weeks.
Product Information
The Scudo Horizontal 3 Column Designer Radiator combines traditional column radiator styling with durable low carbon steel construction, creating a distinctive heating solution for classic and contemporary interiors. Designed for horizontal wall mounting, this three-column radiator features a 25.2 x 1 bar profile, a 100mm radiator depth and a substantial 120mm maximum projection. The Raw Metal finish provides an industrial-inspired appearance while retaining the traditional character of a column radiator. Available in multiple widths, the range offers flexibility for different wall spaces.
Radiator valves are not included but can be purchased separately.
Specifications
- Warranty: Lifetime
- Product type: Column Radiator
- Brand: Scudo
- Colour: Raw Metal
- Style: Traditional
- Mounting: Wall
- Material: Low Carbon Steel
- Orientation: Horizontal
Special Features
- Pipe Centres C2: 70mm
- Bar Diameter Ø: 25.2 * 1
- Max Projection: 120mm
600mm x 643mm
- Bar Arrangement: 14
- Number Of Bars: 42
- Pipe Centres C1: 723mm
600mm x 821mm
- Bar Arrangement: 18
- Number Of Bars: 54
- Pipe Centres C1: 901mm
600mm x 999mm
- Bar Arrangement: 22
- Number Of Bars: 66
- Pipe Centres C1: 1079mm
600mm x 1177mm
- Bar Arrangement: 26
- Number Of Bars: 78
- Pipe Centres C1: 1257mm
Dimensions
- Depth: 100mm
Assembly instructions for 3 Column Designer Radiator
Datasheet for 600mm x 643mm 3 Column Designer Radiator
Datasheet for 600mm x 821mm 3 Column Designer Radiator
Datasheet for 600mm x 999mm 3 Column Designer Radiator
Datasheet for 600mm x 1177mm 3 Column Designer Radiator
Technical Specifications
|
Size |
BTU T50°C |
Watts T50°C |
BTU T30°C |
Watts T30°C |
|
600mm x 643mm |
3558 | 1043 | 1957 | 574 |
|
600mm x 821mm |
4584 | 1344 | 2521 | 739 |
|
600mm x 999mm |
5591 | 1640 | 3075 | 902 |
|
600mm x 1177mm |
6608 | 1938 | 3634 | 1066 |
Technical Drawing

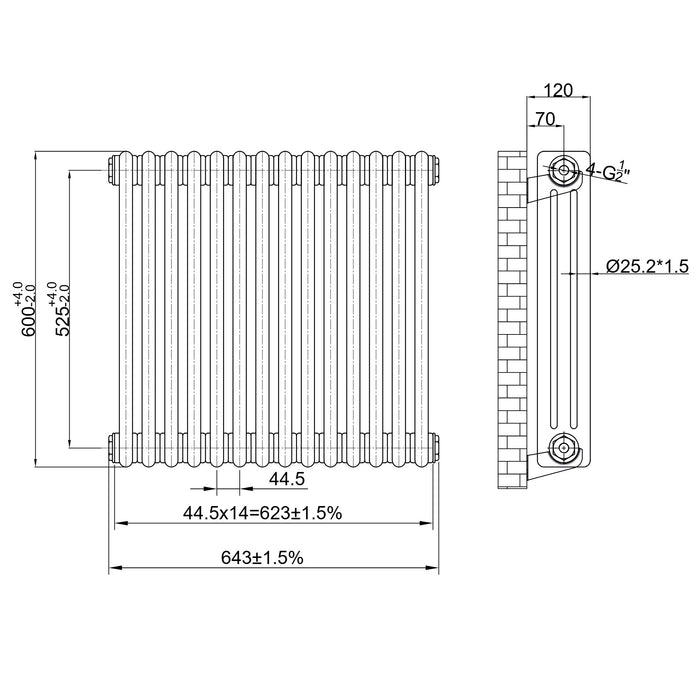

600mm x 643mm

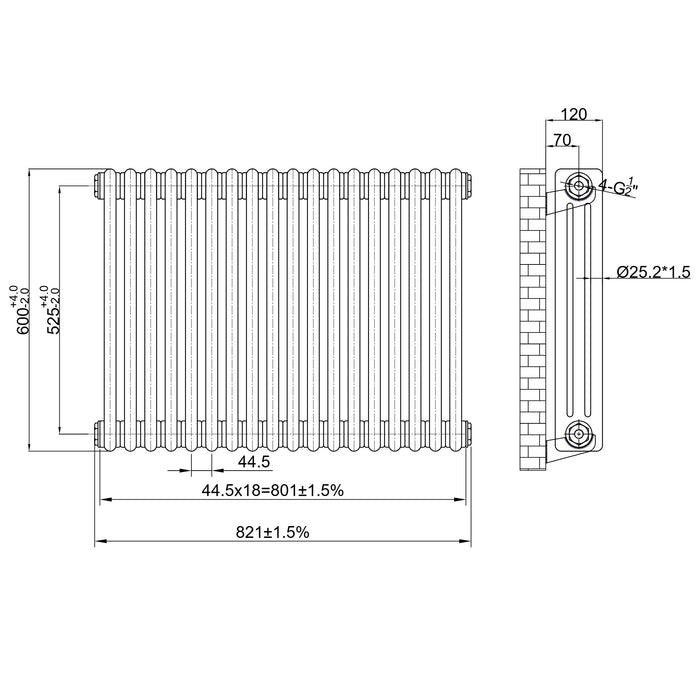

600mm x 821mm
600mm x 999mm

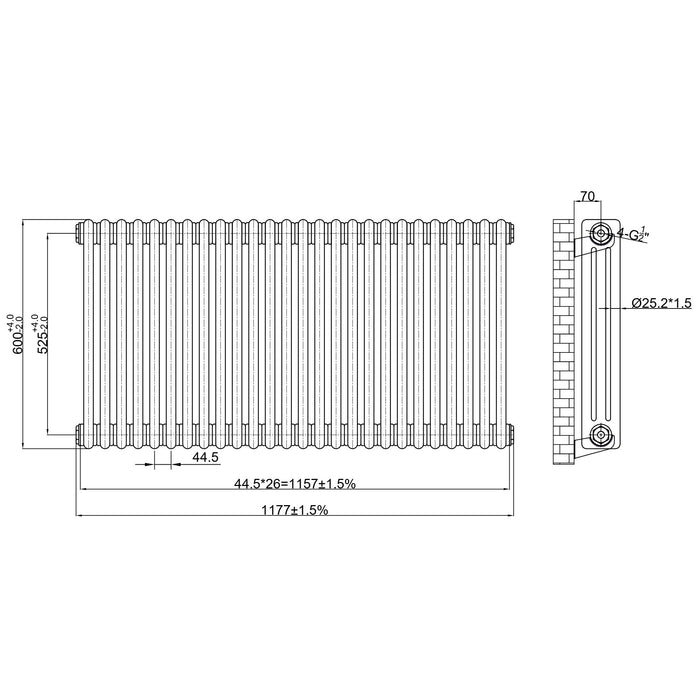

600mm x 1177mm
