Scudo Horizontal 3 Column Designer Radiator
Order now for dispatch in approximately 4 weeks.
Product Information
The Scudo Horizontal 3 Column Designer Radiator combines traditional column radiator styling with durable low carbon steel construction, providing a substantial and reliable heating solution for classic and contemporary interiors. Designed for horizontal wall mounting, this three-column radiator features 25mm diameter bars and a 100mm overall depth, creating a deeper profile suitable for installations where increased radiator depth is preferred. The traditional column design provides a timeless appearance, while the available range of sizes makes it easier to select a radiator suited to different wall spaces. Available finishes are Gloss White and Matt Anthracite, and the radiator is backed by a lifetime warranty.
Radiator valves are not included but can be purchased separately.
Specifications
- Warranty: Lifetime
- Product type: Column Radiator
- Brand: Scudo
- Style: Traditional
- Mounting: Wall
- Material: Low Carbon Steel
- Orientation: Horizontal
Special Features
- Pipe Centres C2: 59mm
- Bar Diameter Ø: 25mm
- Max Projection: 109mm
600mm x 650mm
- Bar Arrangement: 14
- Number Of Bars: 42
- Pipe Centres C1: 730mm
600mm x 830mm
- Bar Arrangement: 18
- Number Of Bars: 54
- Pipe Centres C1: 910mm
600mm x 1010mm
- Bar Arrangement: 22
- Number Of Bars: 66
- Pipe Centres C1: 1090mm
600mm x 1190mm
- Bar Arrangement: 26
- Number Of Bars: 78
- Pipe Centres C1: 1270mm
Dimensions
- Depth: 100mm
Technical Specifications
|
Size |
BTU T50°C |
Watts T50°C |
BTU T30°C |
Watts T30°C |
|
600mm x 650mm |
3558 | 1043 | 1957 | 574 |
|
600mm x 830mm |
4584 | 1344 | 2521 | 739 |
|
600mm x 1010mm |
5591 | 1640 | 3075 | 902 |
|
600mm x 1190mm |
6608 | 1938 | 3634 | 1066 |
Assembly instructions for 3 Column Designer Radiator
Datasheet for 600mm x 650mm 3 Column Designer Radiator
Datasheet for 600mm x 830mm 3 Column Designer Radiator
Datasheet for 600mm x 1010mm 3 Column Designer Radiator
Datasheet for 600mm x 1190mm 3 Column Designer Radiator

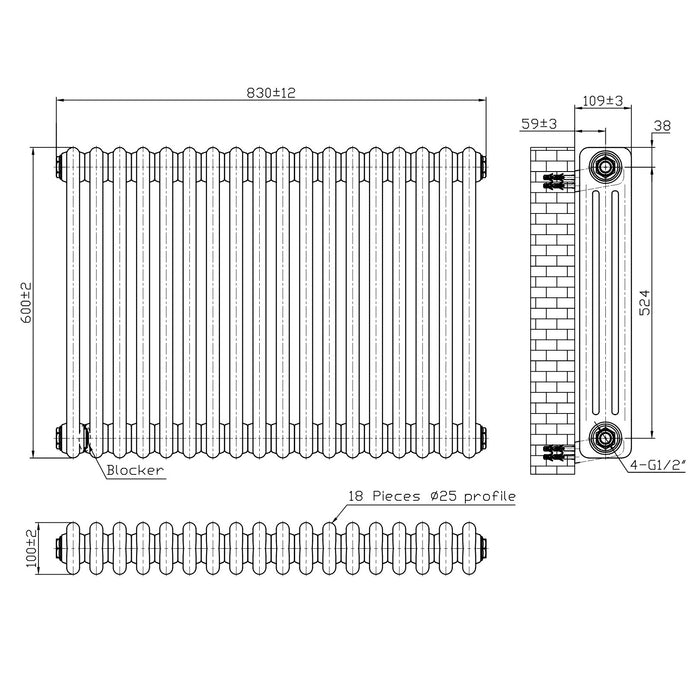

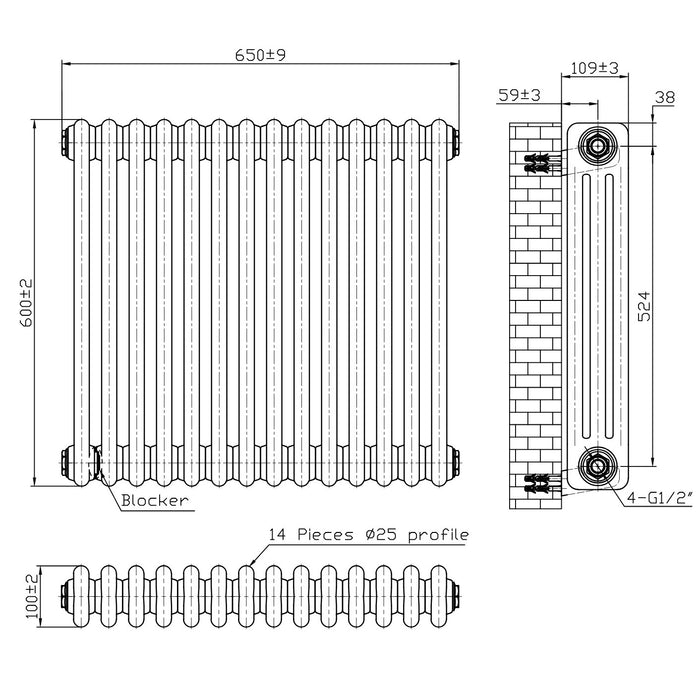

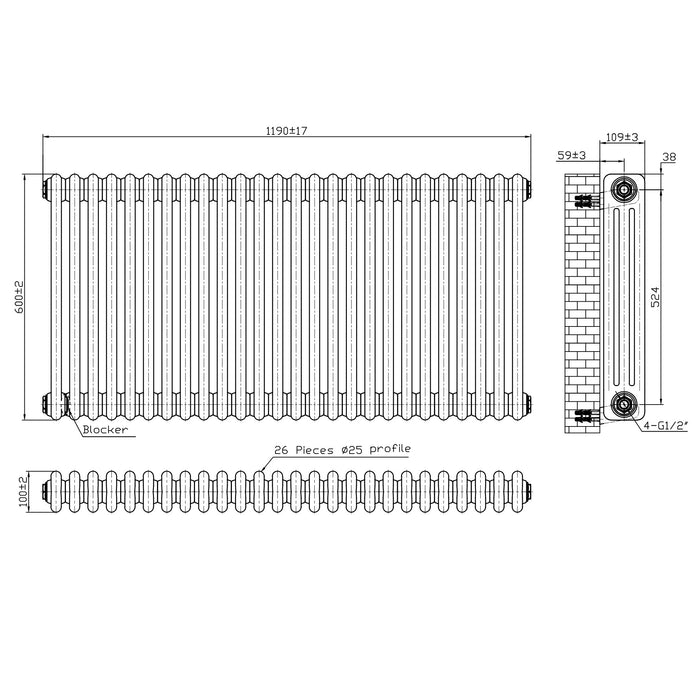

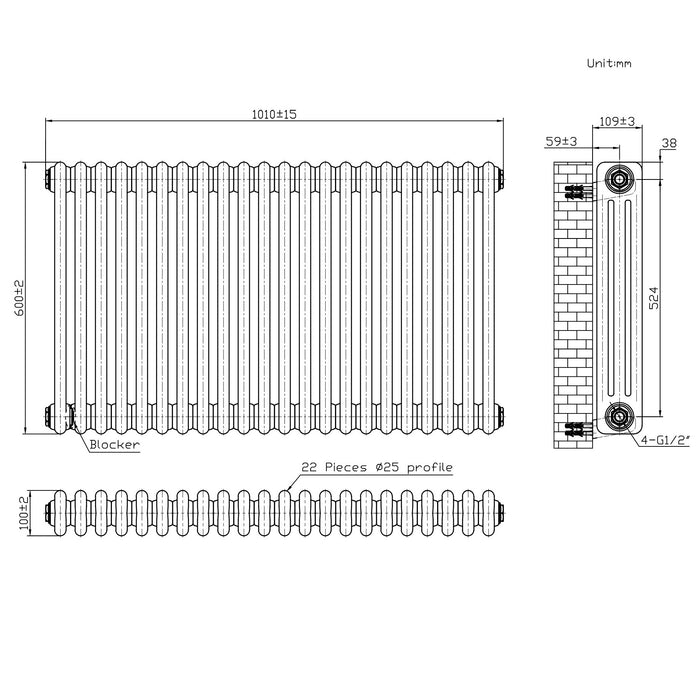

Technical Drawing
600mm x 650mm
600mm x 830mm
600mm x 1010mm
600mm x 1190mm
- View Less
