Scudo Horizontal 2 Column Designer Radiator
Order now for dispatch in approximately 4 weeks.
Product Information

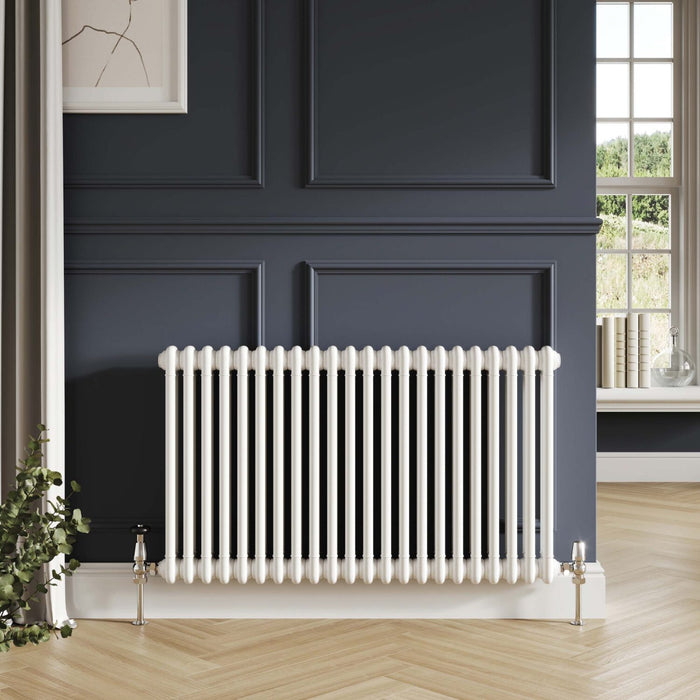

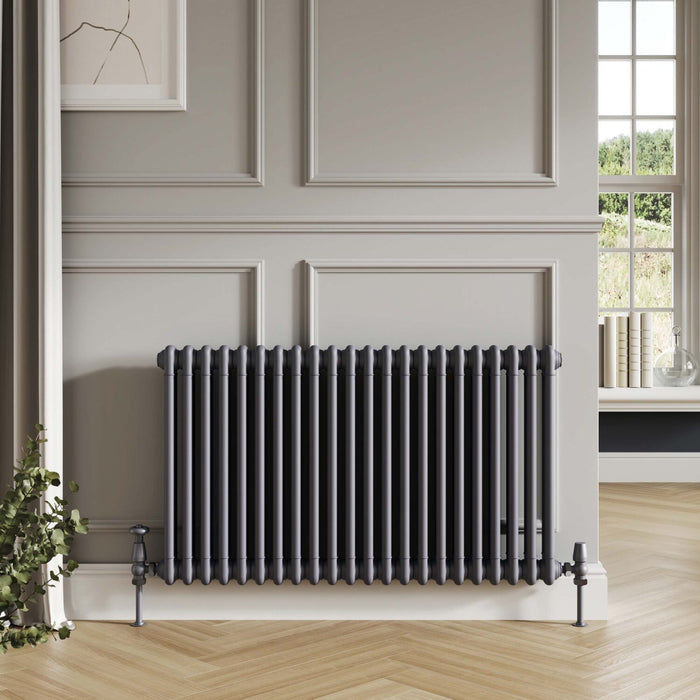

The Scudo Horizontal 2 Column Designer Radiator combines traditional column styling with durable low carbon steel construction, providing a practical heating solution for both classic and contemporary interiors. Designed for horizontal wall mounting, this two-column radiator features a 25mm diameter bar profile and a 70mm radiator depth, creating a substantial yet clean appearance. With a maximum projection of 94mm and C2 pipe centres of 59mm, the range of available widths provides flexibility for different wall spaces. Available in Gloss White and Matt Anthracite, the radiator is backed by a lifetime warranty and offers a durable, traditional heating solution for modern bathroom and home interiors.
Radiator valves are not included but can be purchased separately.
Specifications
- Warranty: Lifetime
- Product type: Column Radiator
- Brand: Scudo
- Style: Traditional
- Mounting: Wall
- Material: Low Carbon Steel
- Orientation: Horizontal
Special Features
- Pipe Centres C2: 59mm
- Bar Diameter Ø: 25mm
- Max Projection: 94mm
600mm x 650mm
- Bar Arrangement: 14
- Number Of Bars: 28
- Pipe Centres C1: 730mm
600mm x 830mm
- Bar Arrangement: 18
- Number Of Bars: 36
- Pipe Centres C1: 910mm
600mm x 1010mm
- Bar Arrangement: 22
- Number Of Bars: 44
- Pipe Centres C1: 1090mm
600mm x 1190mm
- Bar Arrangement: 26
- Number Of Bars: 52
- Pipe Centres C1: 1270mm
Dimensions
- Depth: 70mm
Technical Specifications
|
Size |
BTU T50°C |
Watts T50°C |
BTU T30°C |
Watts T30°C |
|
600mm x 650mm |
2412 | 707 | 1327 | 389 |
|
600mm x 830mm |
3101 | 909 | 1706 | 500 |
|
600mm x 1010mm |
3734 | 1110 | 2081 | 610 |
|
600mm x 1190mm |
4474 | 1312 | 2461 | 722 |
Technical Drawing
600mm x 650mm

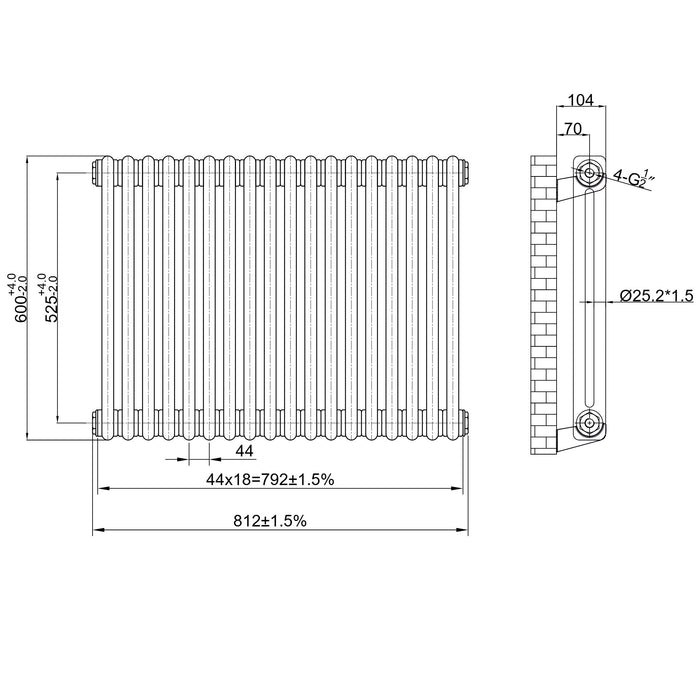

600mm x 830mm

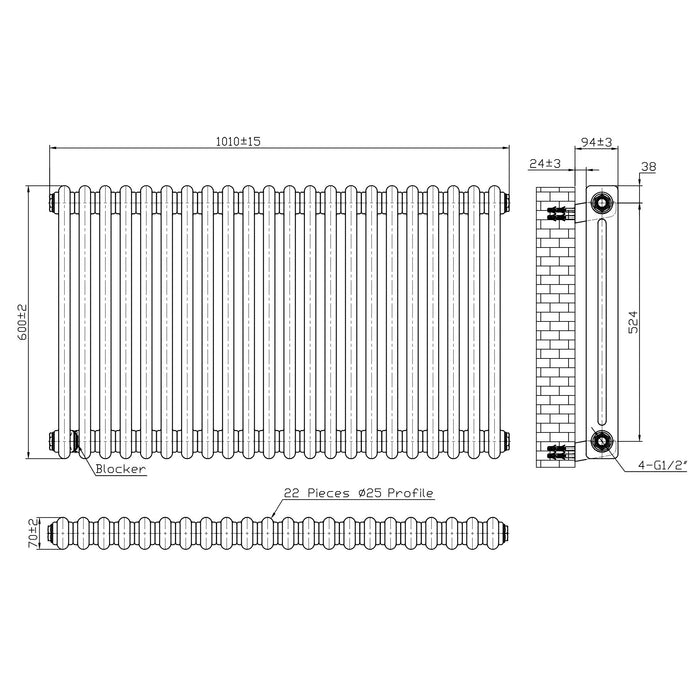

600mm x 1010mm

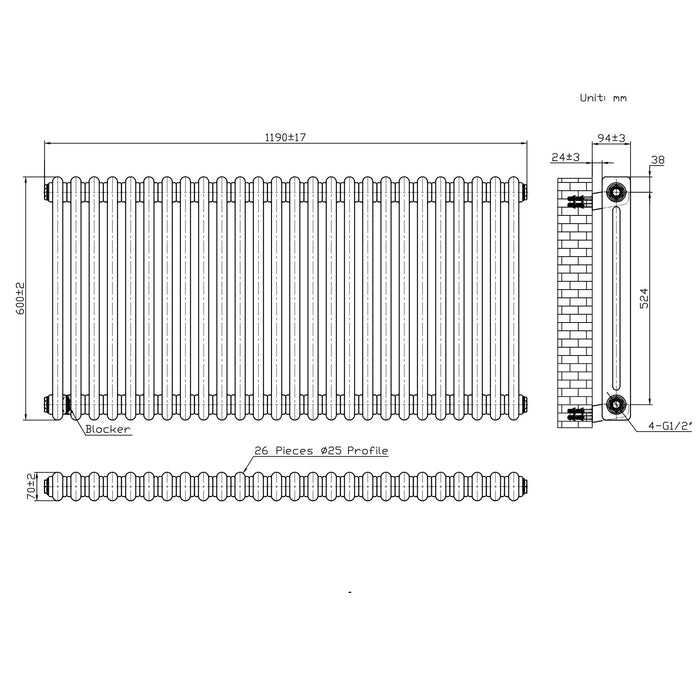

600mm x 1190mm
