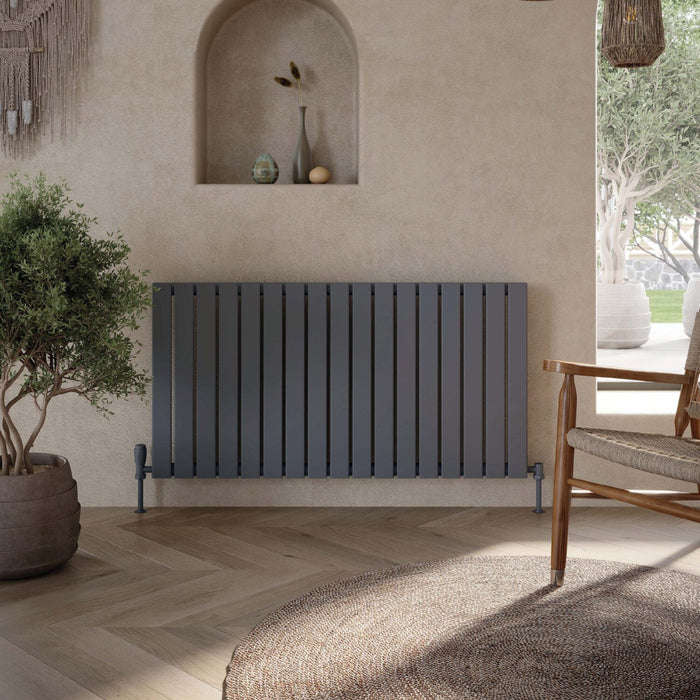

Scudo Bravo Single Panel Horizontal Designer Radiator
Order now for dispatch in approximately 4 weeks.
Product Information

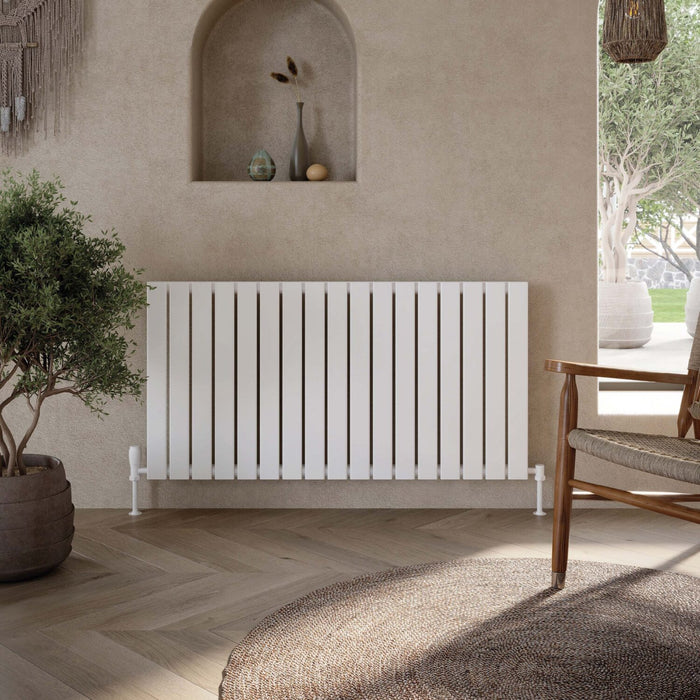

The Scudo Bravo Single Panel Horizontal Designer Radiator combines a modern profile with durable low carbon steel construction, making it a practical choice for contemporary heating installations. Designed for wall mounting in a horizontal orientation, the radiator features a distinctive bar arrangement with 60 x 12mm bars. The Bravo radiator is available in a range of widths to suit different wall spaces, with options including 600 x 410mm, 600 x 614mm, 600 x 750mm, 600 x 886mm, 600 x 1158mm and 600 x 1430mm. The radiator is available in Matt Anthracite and Gloss White and comes with a lifetime warranty.
Radiator valves are not included but can be purchased separately.
Product Specifications:
- Warranty: Lifetime
- Product Type: Designer Radiator
- Brand: Scudo
- Collection: Bravo
- Style: Modern
- Mounting: Wall
- Material: Low Carbon Steel
- Orientation: Horizontal

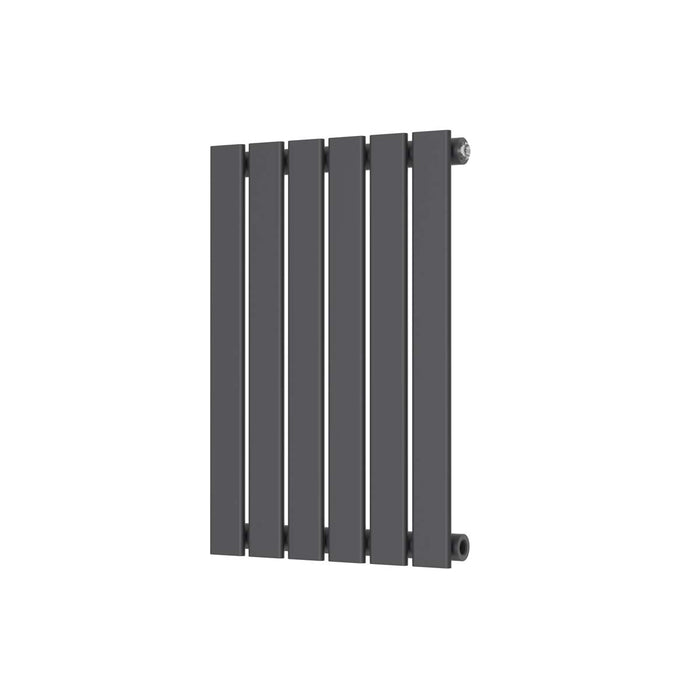

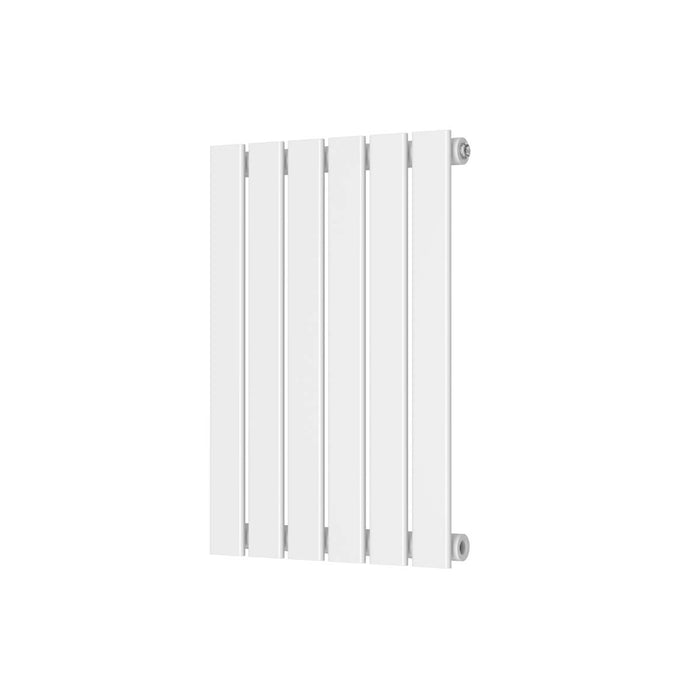

600mm x 410mm
- Bar Arrangement: 6
- Number of Bars: 6
- Bar Diameter: 60*12*R6
- Max Projection: 85+/-3mm
- Pipe Centres C1: 490mm
- Pipe Centres C2: 51 +/-3mm
- Water Content Volume: 2.47 Litres

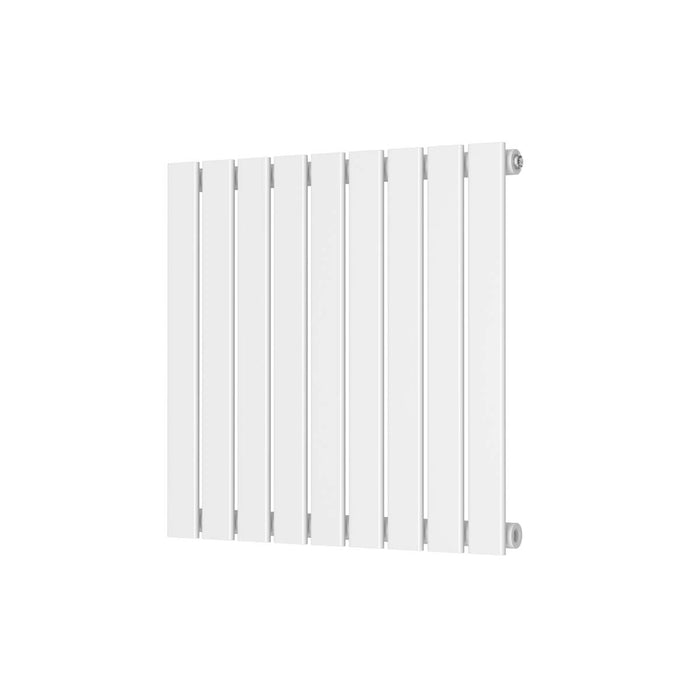

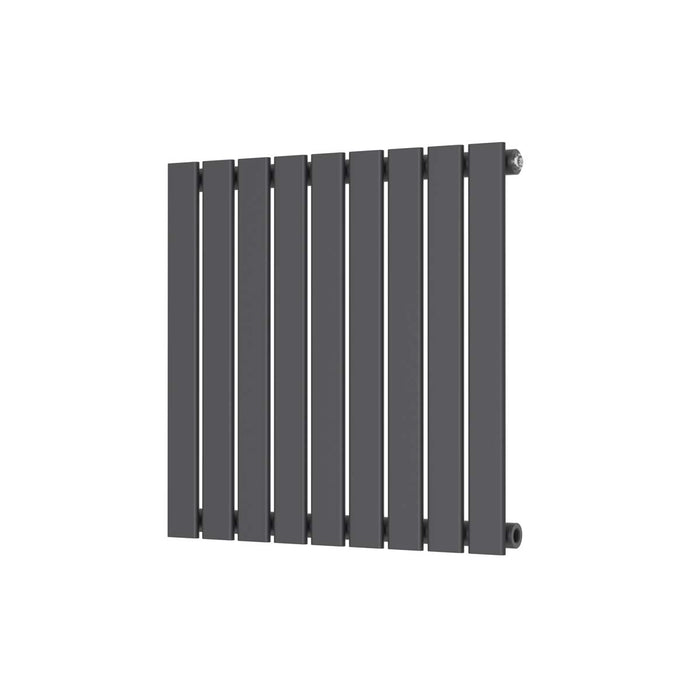

600mm x 614mm
- Bar Arrangement: 9
- Number of Bars: 9
- Bar Diameter: 60*12*R6
- Max Projection: 85mm
- Pipe Centres C1: 694mm
- Pipe Centres C2: 84 +/-3mm
- Water Content Volume: 3.7 Litres

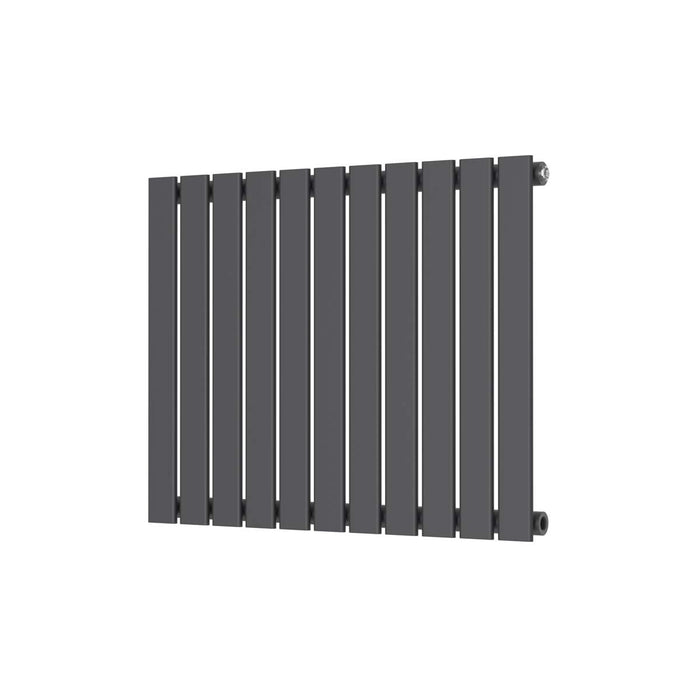

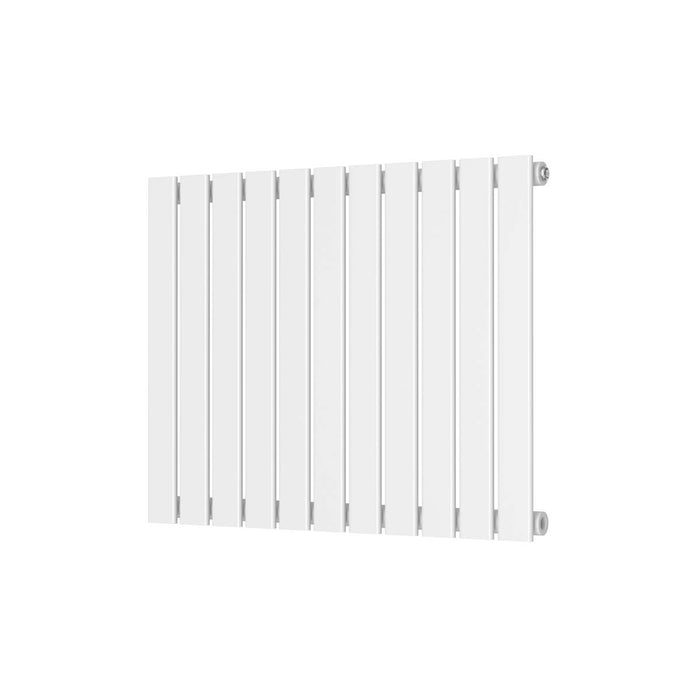

600mm x 750mm
- Bar Arrangement: 11
- Number of Bars: 11
- Bar Diameter: 60*12*R6
- Max Projection: 105 +/-3mm
- Pipe Centres C1: 830mm
- Pipe Centres C2: 51 +/-3mm
- Water Content Volume: 4.53 Litres

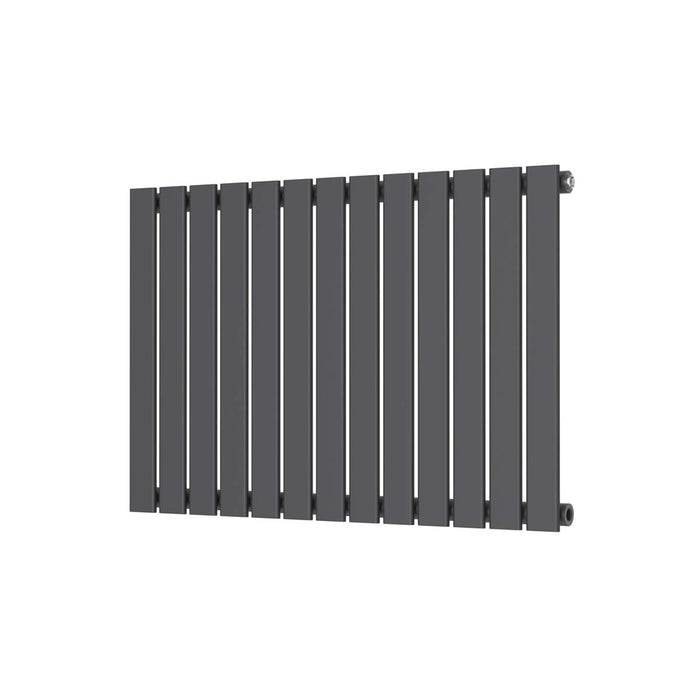

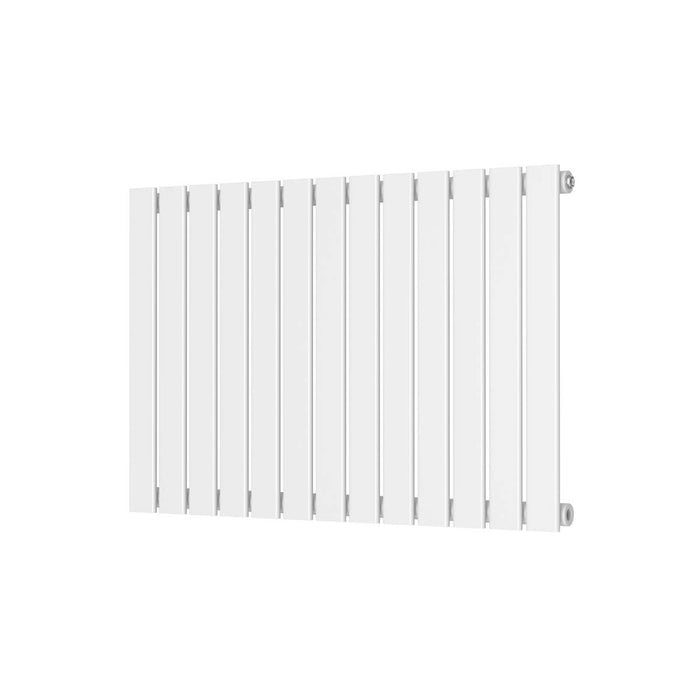

600mm x 886mm
- Bar Arrangement: 13
- Number of Bars: 13
- Bar Diameter: 60*12*R6
- Max Projection: 84 +/-3mm
- Pipe Centres C1: 966mm
- Pipe Centres C2: 51 +/-3mm
- Water Content Volume: 5.35 Litres

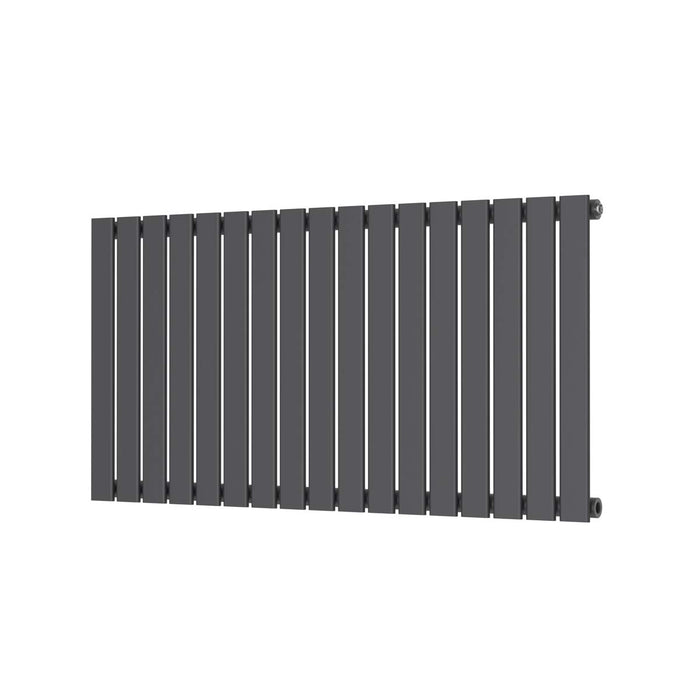

600mm x 1158mm
- Bar Arrangement: 17
- Number of Bars: 17
- Bar Diameter: 60*12
- Max Projection: 85mm
- Pipe Centres C1: 1238mm
- Pipe Centres C2: 51 +/-3mm

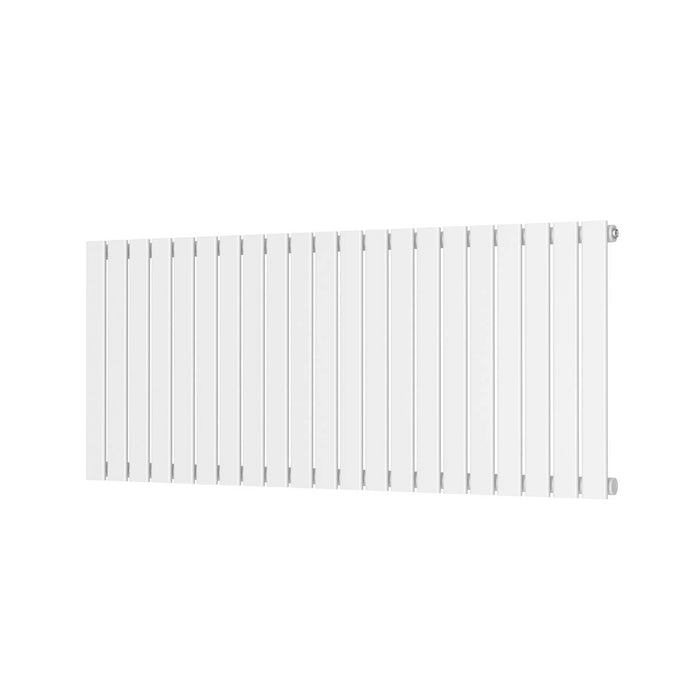

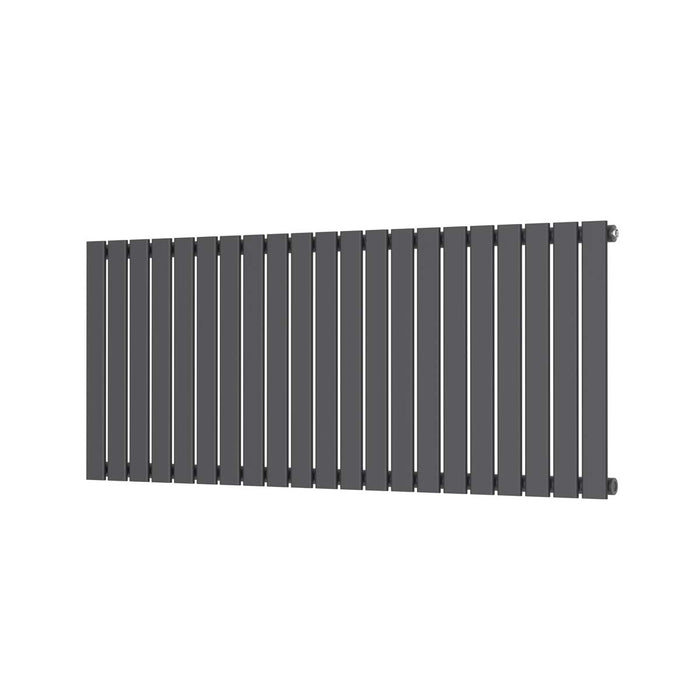

600mm x 1430mm
- Bar Arrangement: 21
- Number of Bars: 21
- Bar Diameter: 60*12*R6
- Max Projection: 85mm
- Pipe Centres C1: 1430+RV
- Pipe Centres C2: 51 +/-3mm
- Water Content Volume: 8.64 Litres
Assembly instructions for Bravo Single Panel Horizontal Designer Radiator
Datasheet for 600mm x 410mm Horizontal Designer Radiator
Datasheet for 600mm x 614mm Horizontal Designer Radiator
Datasheet for 600mm x 750mm Horizontal Designer Radiator
Datasheet for 600mm x 886mm Horizontal Designer Radiator
Datasheet for 600mm x 1158mm Horizontal Designer Radiator
Datasheet for 600mm x 1430mm Horizontal Designer Radiator
Technical Specifications
| Size | 50°C BTU | 50°C Watts | 30°C BTU | 30°C Watts |
| 600mm x 410mm | 1034 | 303 | 569 | 167 |
| 600mm x 614mm | 1551 | 455 | 853 | 250 |
| 600mm x 750mm | 1897 | 556 | ||
| 600mm x 886mm | 2241 | 657 | 1233 | 362 |
| 600mm x 1158mm | 2931 | 860 | 1612 | 473 |
| 600mm x 1430mm | 3691 | 1061 | 1990 | 584 |

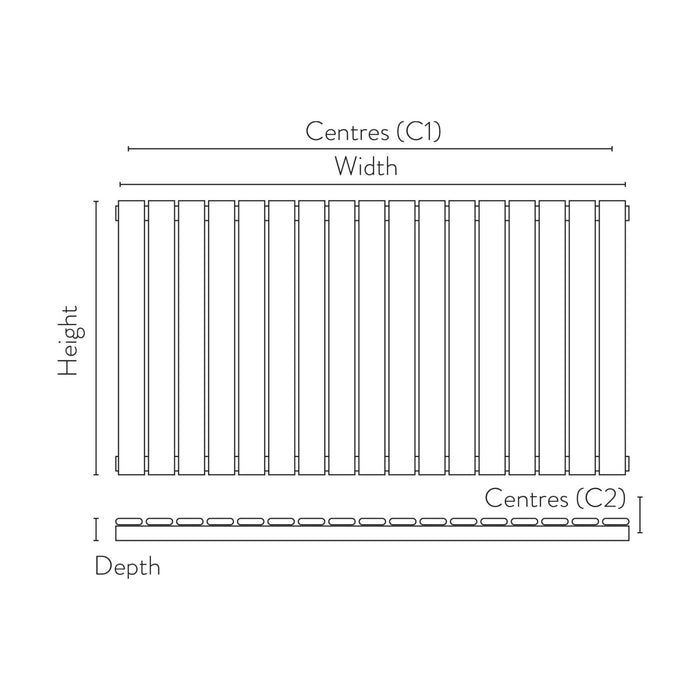

Technical Drawing
