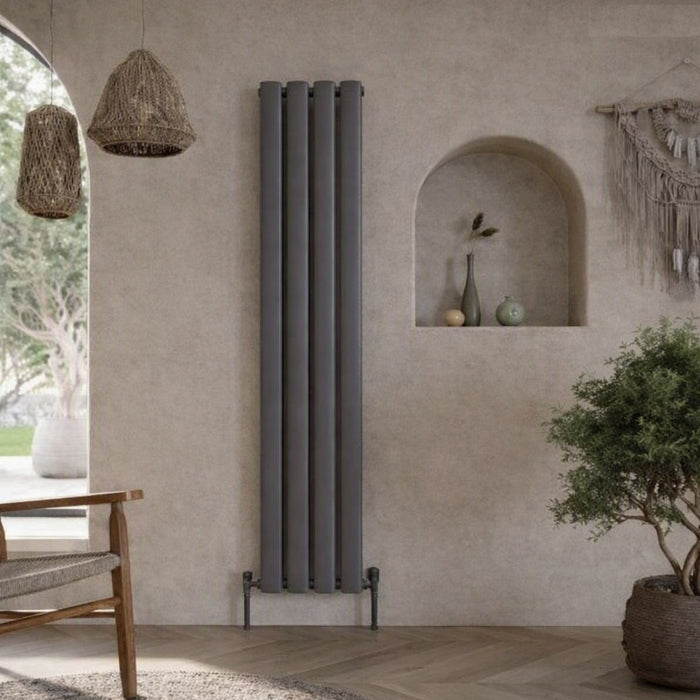

Scudo Apex Single Panel Vertical Designer Radiator
Order now for dispatch in approximately 4 weeks.
Product Information
The Scudo Apex Single Panel Vertical Designer Radiator combines a sleek modern appearance with practical heating performance, making it a stylish choice for contemporary bathrooms and interior spaces. Manufactured from durable low carbon steel, this wall-mounted radiator features a vertical orientation and single-panel construction with 50 x 25mm bar profiles. Its tall, streamlined design makes efficient use of vertical wall space while providing a clean and structured appearance. Depending on the selected width, the radiator is available with 4, 7 or 9 bars, providing different levels of heating output and surface area. With a maximum projection of 90mm, the Apex maintains a relatively neat profile against the wall. Available in Matt Anthracite and Gloss White, it can be coordinated with a range of modern interior finishes and accessories. Backed by a lifetime warranty, the Scudo Apex Single Panel Vertical Designer Radiator offers flexible sizing, modern styling and dependable heating performance.
Radiator valves are not included but can be purchased separately.
Product Specifications:
- Warranty: Lifetime
- Product Type: Designer Radiator
- Brand: Scudo
- Collection: Apex
- Style: Modern
- Mounting: Wall
- Material: Low Carbon Steel
- Orientation: Vertical
1800mm x 236mm
- Bar Arrangement: 4
- Number of Bars: 4
- Radiator Depth: 58mm
- Bar Diameter: 50*25mm
- Max Projection: 90mm
- Pipe Centres C1: 316mm
- Pipe Centres C2 : 48mm
1800mm x 413mm
- Bar Arrangement: 7
- Number of Bars: 7
- Radiator Depth: 60mm
- Bar Diameter: 50*25mm
- Max Projection: 90mm
- Pipe Centres C1: 493mm
- Pipe Centres C2: 48mm
1800mm x 531mm
- Bar Arrangement: 9
- Number of Bars: 9
- Radiator Depth: 60mm
- Bar Diameter: 50*25mm
- Max Projection: 90mm
- Pipe Centres C1: 611mm
- Pipe Centres C2: 48mm
Technical Specifications
| Size | 50°C BTU | 50°C Watts | 30°C BTU | 30°C Watts |
| 1800mm x 236mm | 1349 | 430 | 701 | 223 |
| 1800mm x 354mm | 2023 | 593 | ||
| 1800mm x 413mm | 2361 | 752 | 1227 | 391 |
| 1800mm x 531mm | 3035 | 967 | 1578 | 503 |
Assembly instructions for Apex Single Panel Vertical Designer Radiator
Datasheet for 1800mm x 236mm Vertical Designer Radiator
Datasheet for 1800mm x 413mm Vertical Designer Radiator
Datasheet for 1800mm x 531mm Vertical Designer Radiator
Technical Drawing

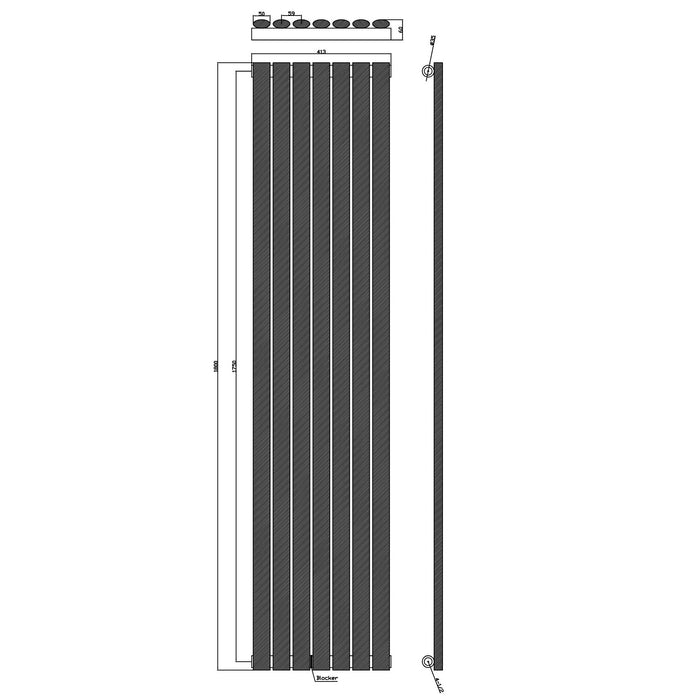

1800mm x 413mm

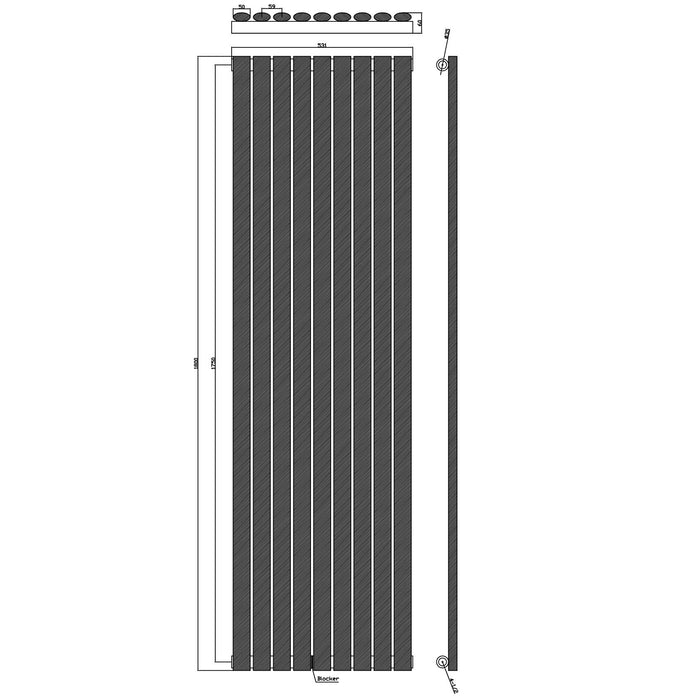

1800mm x 531mm
- View Less
