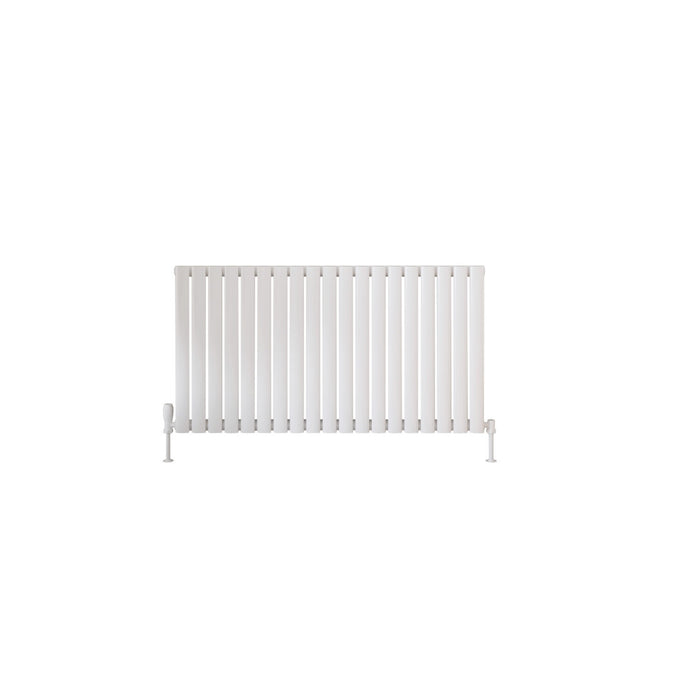

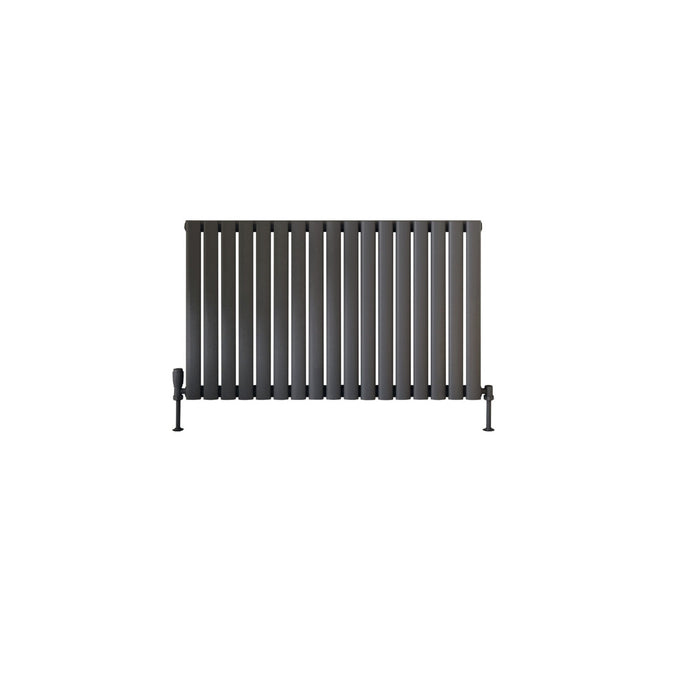

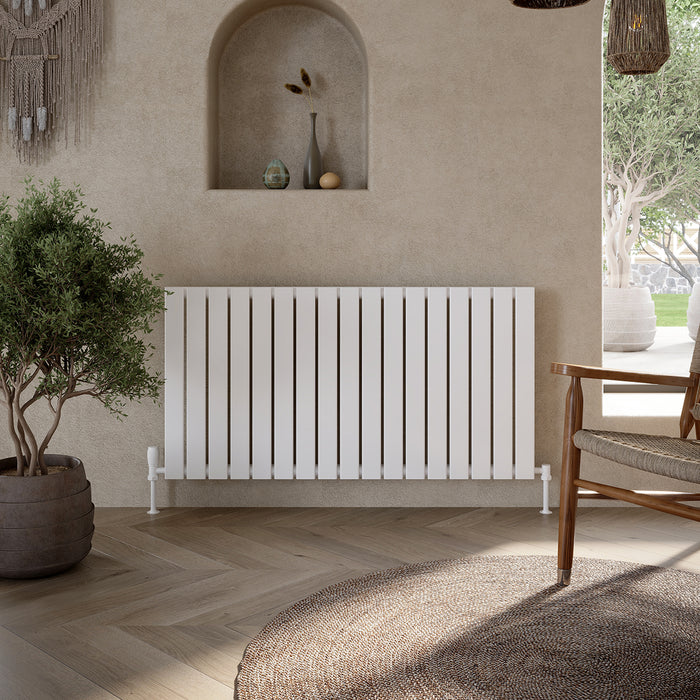

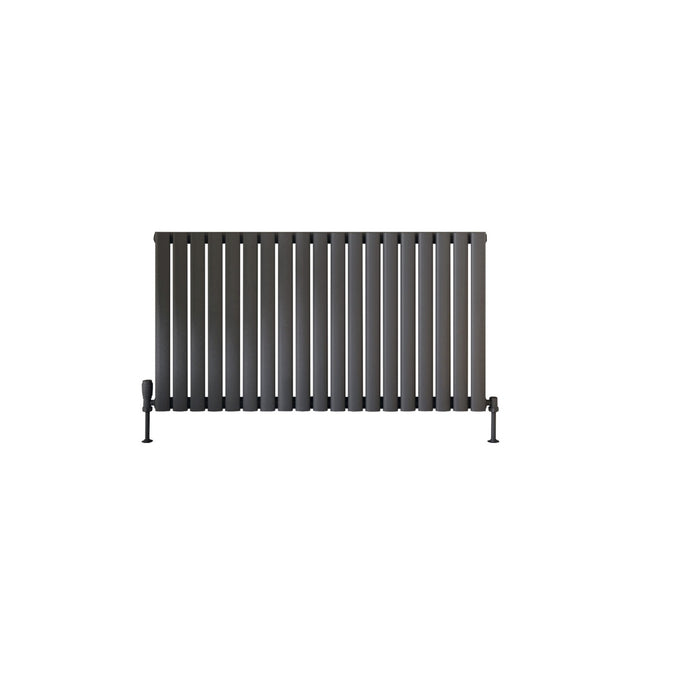

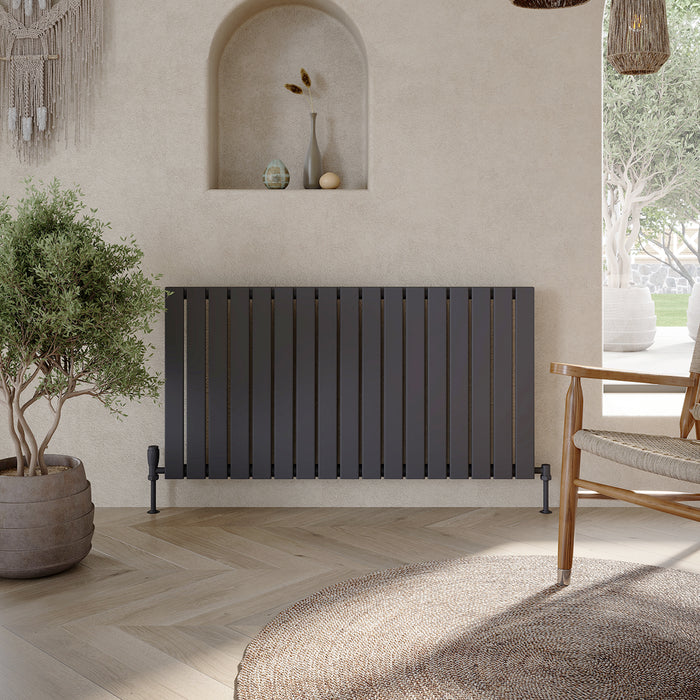

Scudo Apex Single Panel Horizontal Designer Radiator
Order now for dispatch in approximately 4 weeks.
Product Information
The Scudo Apex Single Panel Horizontal Designer Radiator combines a clean contemporary appearance with practical heating performance, making it a stylish choice for modern bathroom and interior spaces. Manufactured from durable low carbon steel, this wall-mounted radiator features a horizontal orientation and a single-panel design with a distinctive arrangement of 50 x 25mm bars. With a radiator depth of 60mm and a maximum projection of 90mm, it provides an effective heating solution while maintaining a relatively streamlined profile against the wall. The Apex is available in Matt Anthracite and Gloss White finishes, allowing it to complement a range of contemporary interior schemes. Backed by a lifetime warranty, the Scudo Apex Single Panel Horizontal Designer Radiator provides long-term reassurance alongside flexible sizing and contemporary design.
Radiator valves are not included but can be purchased separately.
Product Specifications:
- Warranty: Lifetime
- Product Type: Designer Radiator
- Brand: Scudo
- Collection: Apex
- Style: Modern
- Mounting: Wall
- Material: Low Carbon Steel
- Orientation: Horizontal
600mm x 944mm
- Bar Arrangement: 16
- Number of Bars: 16
- Radiator Depth: 60mm
- Bar Diameter: 50*25mm
- Max Projection: 90mm
- Pipe Centres C1: 1024mm
- Pipe Centres: 48mm
600mm x 944mm
- Bar Arrangement: 19
- Number of Bars: 19
- Radiator Depth: 60mm
- Bar Diameter: 50*25mm
- Max Projection: 90mm
- Pipe Centres C1: 1201mm
- Pipe Centres: 48mm
Technical Specifications
| Size | 50°C BTU | 50°C Watts | 30°C BTU | 30°C Watts |
| 600mm x 944mm | 2349 | 688 | 1221 | 389 |
| 600mm x 1121mm | 2788 | 888 | 1449 | 461 |
Assembly instructions for Apex Single Panel Horizontal Designer Radiator
Datasheet for 600mm x 944mm Horizontal Designer Radiator
Datasheet for 600mm x 1121mm Horizontal Designer Radiator

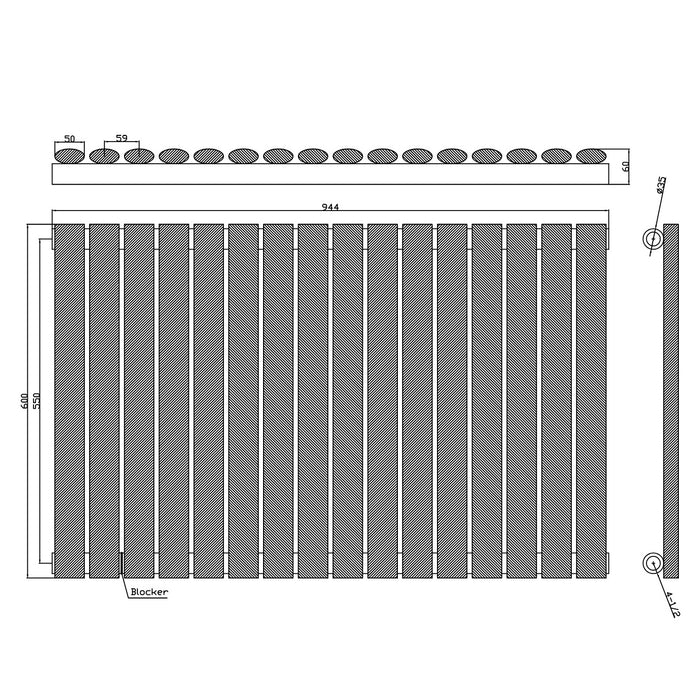

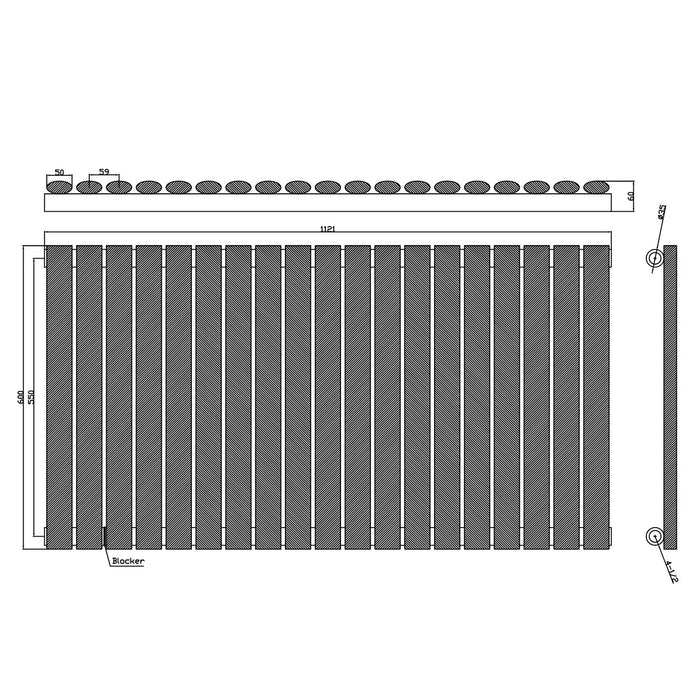

Technical Drawing
600mm x 944mm
600mm x 1121mm
