Scudo Apex Double Panel Vertical Designer Radiator
Order now for dispatch in approximately 4 weeks.
Product Information

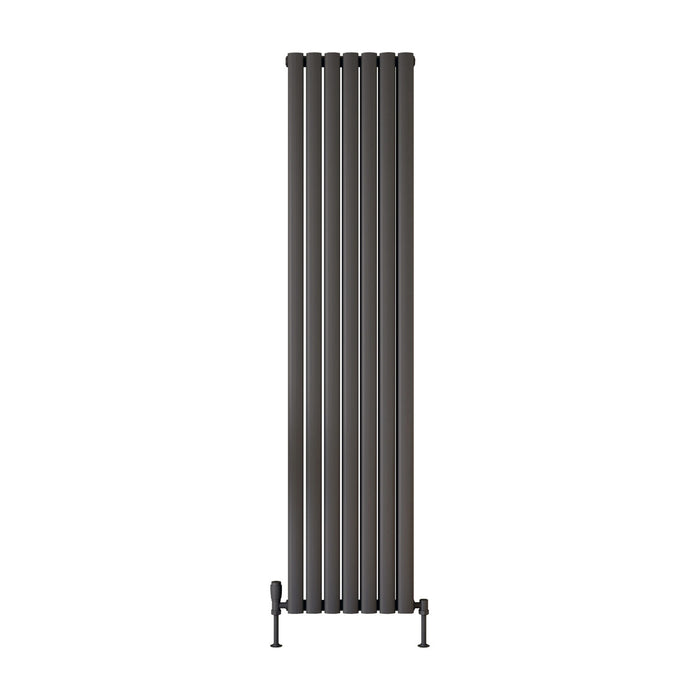

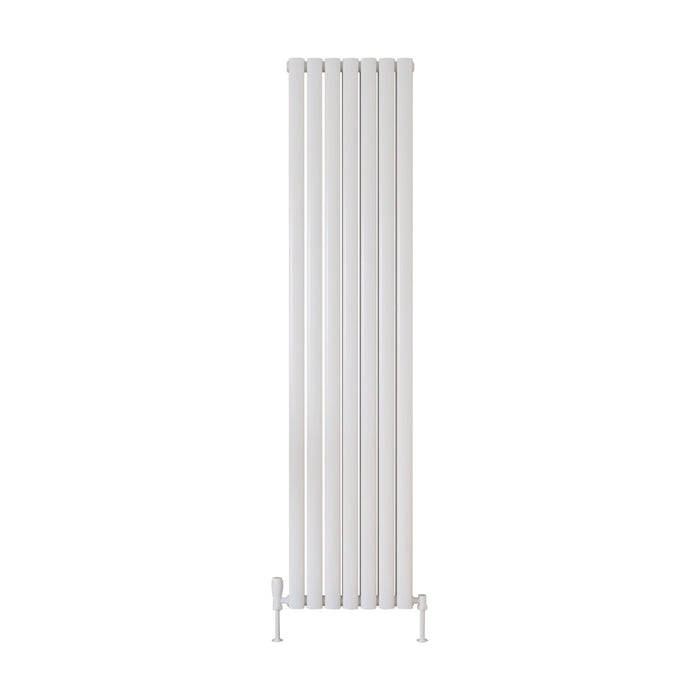

The Scudo Apex Double Panel Vertical Designer Radiator combines a contemporary designer appearance with increased heating performance, making it a practical choice for modern bathrooms and interior spaces. Manufactured from durable low carbon steel, this wall-mounted radiator features a vertical orientation and double-panel construction with 50 x 25mm bar profiles. The double-panel design provides a larger heating surface while maintaining a clean, structured appearance, and the 85mm radiator depth offers a substantial yet streamlined profile. With a maximum projection of 103mm, it provides practical wall-mounted heating without excessive projection into the room. Available in Matt Anthracite and Gloss White, the Apex can be coordinated with a variety of contemporary interior styles.
Radiator valves are not included but can be purchased separately.
Product Specifications:
- Warranty: Lifetime
- Product Type: Designer Radiator
- Brand: Scudo
- Collection: Apex
- Style: Modern
- Mounting: Wall
- Material: Low Carbon Steel
- Orientation: Vertical

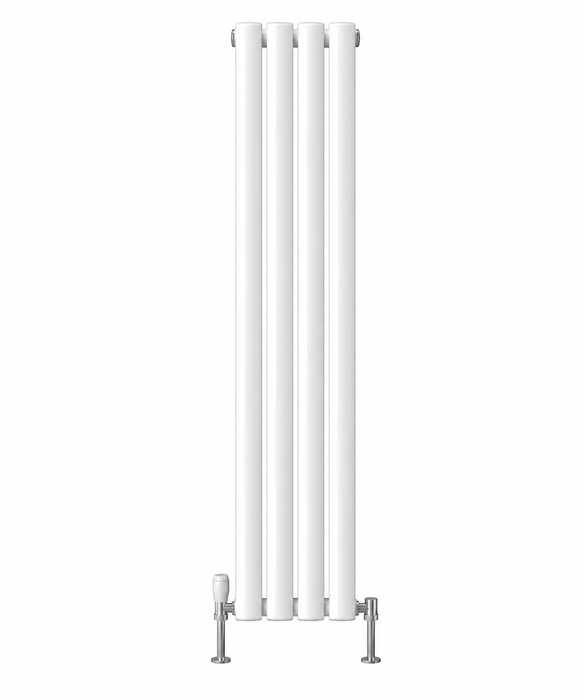

1800mm x 236mm
- Bar Arrangement: 4(*2)
- Number of Bars: 8
- Radiator Depth: 85mm
- Bar Diameter: 50*25mm
- Max Projection: 103mm
- Pipe Centres C1: 316mm
- Pipe Centres C2: 66mm
1800mm x 413mm
- Bar Arrangement: 7(*2)
- Number of Bars: 14
- Radiator Depth: 85mm
- Bar Diameter: 50*25mm
- Max Projection: 103mm
- Pipe Centres C1: 493mm
- Pipe Centres C2: 66mm

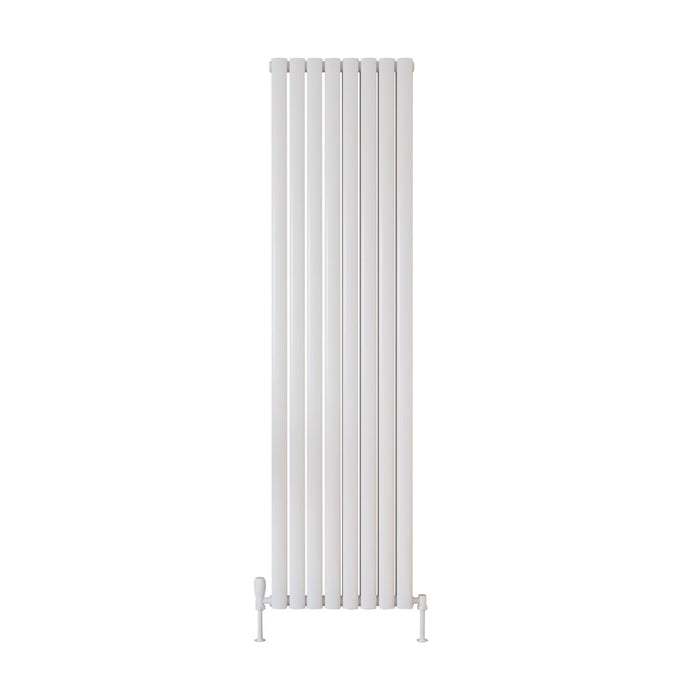

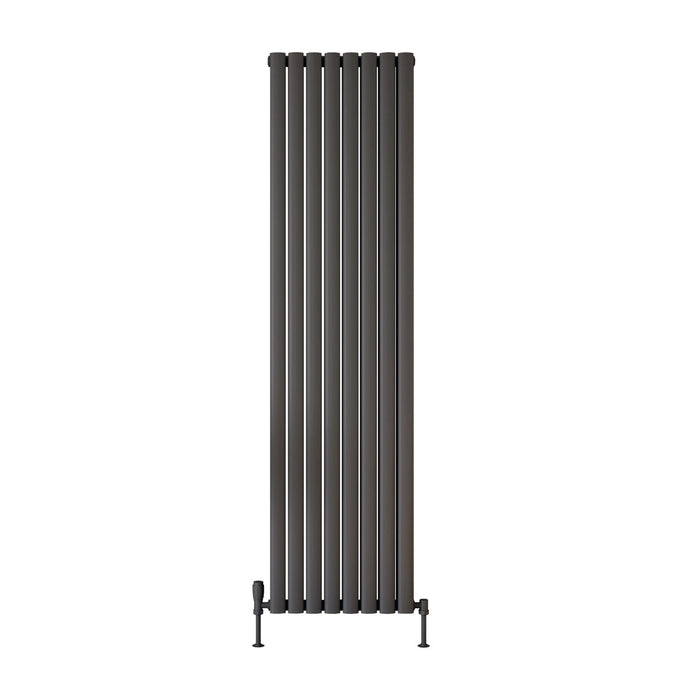

1800mm x 531mm
- Bar Arrangement: 9(*2)
- Number of Bars: 18
- Radiator Depth: 85mm
- Bar Diameter: 50*25mm
- Max Projection: 103mm
- Pipe Centres C1: 611mm
- Pipe Centres C2: 66mm
Technical Specifications
| Size | 50°C BTU | 50°C Watts | 30°C BTU | 30°C Watts |
| 1800mm x 236mm | 2799 | 891 | 1455 | 463 |
| 1800mm x 295mm | 3499 | 1025 | ||
| 1800mm x 354mm | 4198 | 1230 | ||
| 1800mm x 413mm | 4898 | 1560 | 2546 | 811 |
| 1800mm x 531mm | 6296 | 2005 | 3273 | 1042 |
Assembly instructions for Apex Double Panel Vertical Designer Radiator
Datasheet for 1800mm x 236mm Vertical Designer Radiator
Datasheet for 1800mm x 413mm Vertical Designer Radiator
Datasheet for 1800mm x 531mm Vertical Designer Radiator

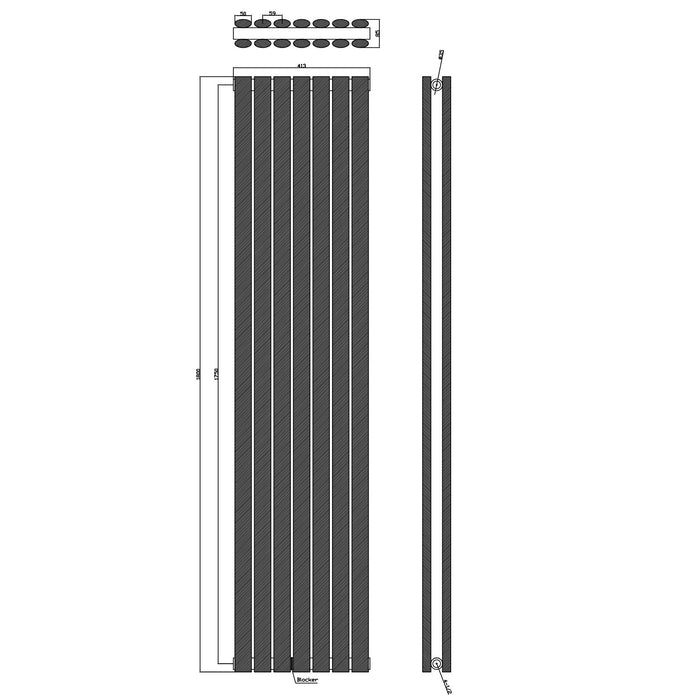

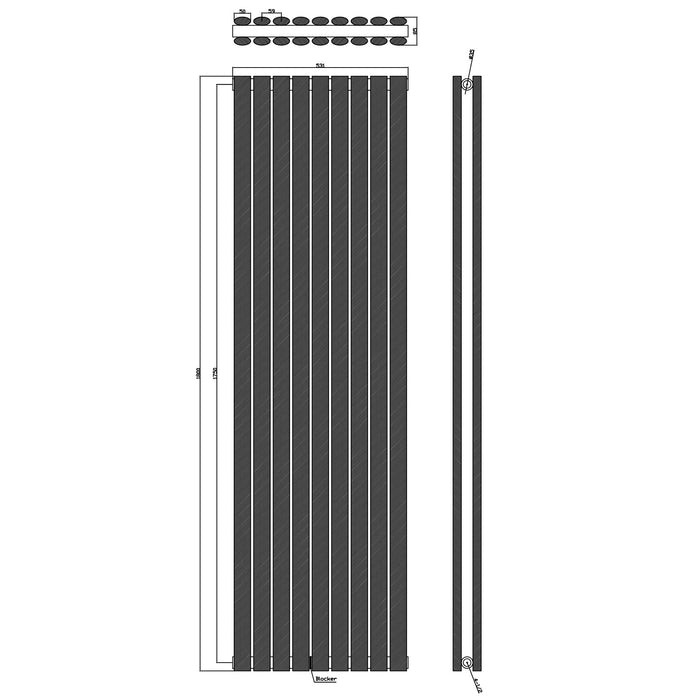

Technical Drawing
1800mm x 413mm
1800mm x 531mm
- View Less
