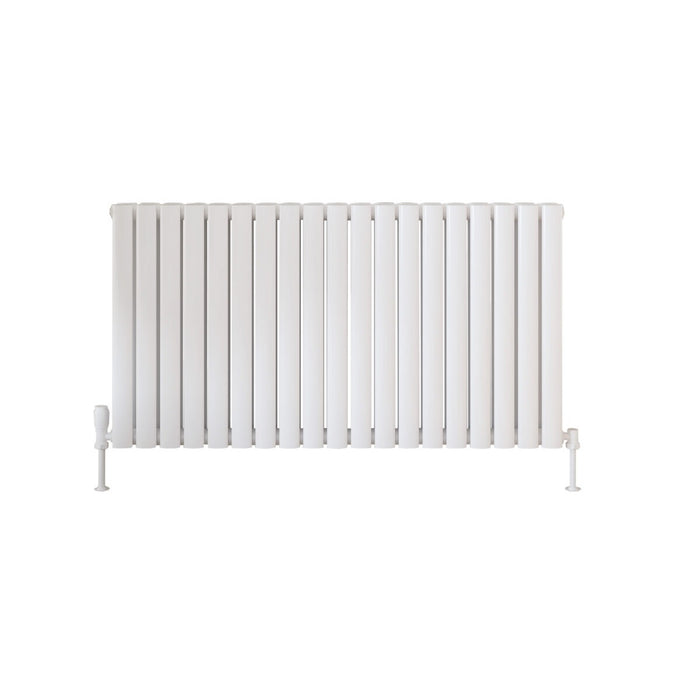

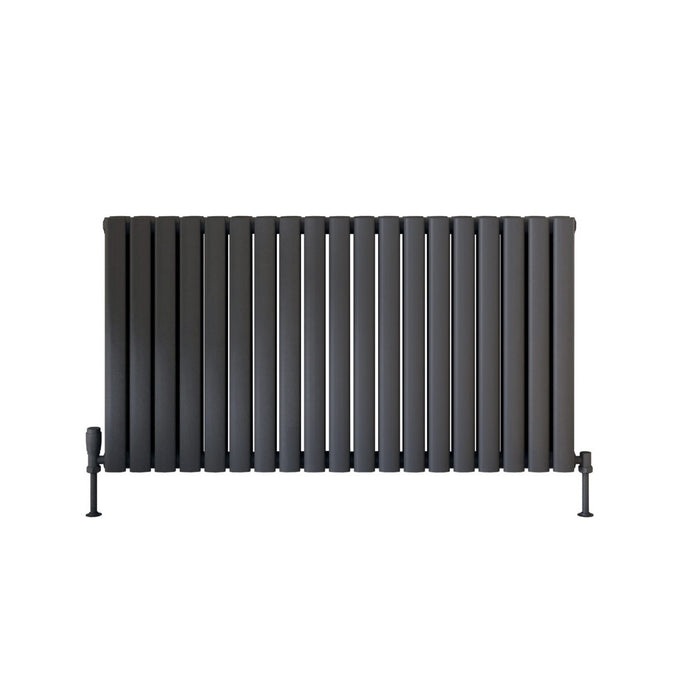

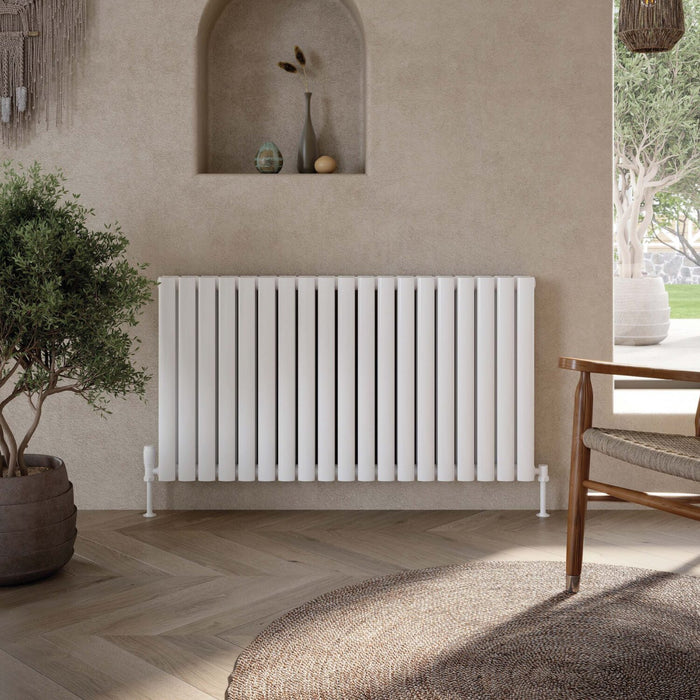

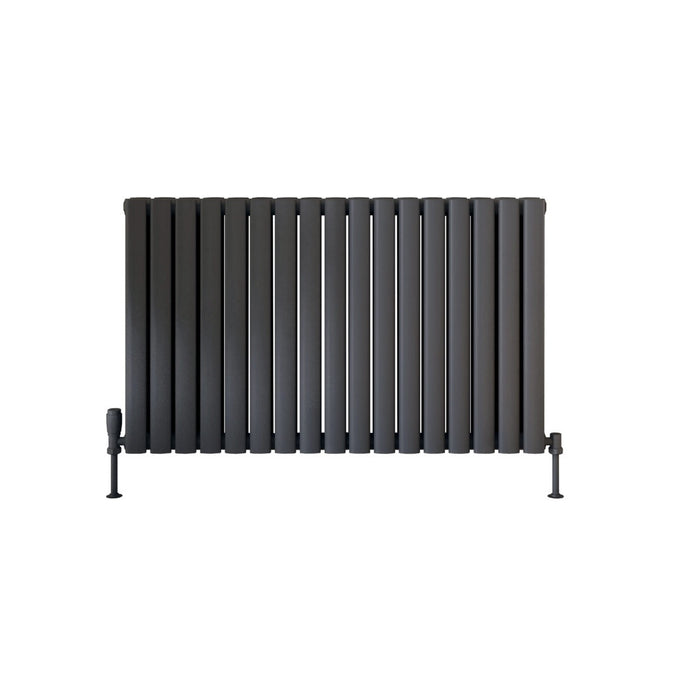

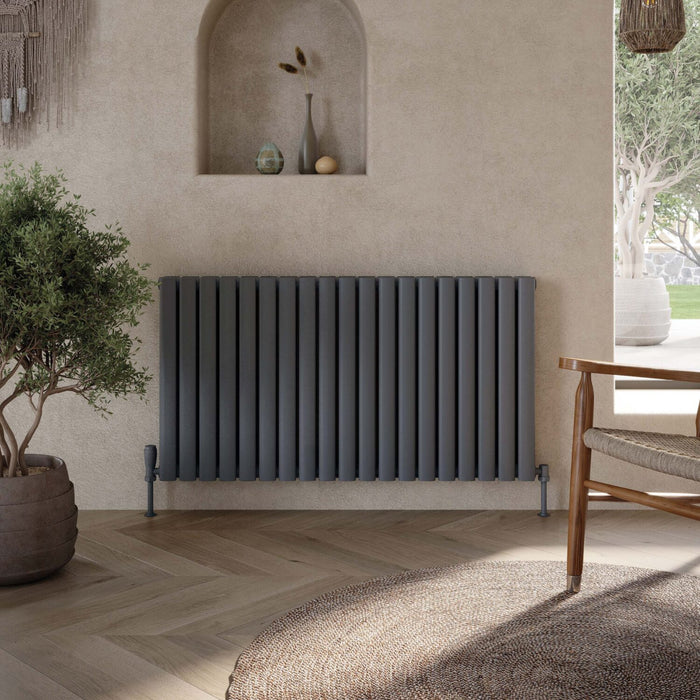

Scudo Apex Double Panel Horizontal Designer Radiator
Order now for dispatch in approximately 4 weeks.
Product Information
The Scudo Apex Double Panel Horizontal Designer Radiator combines a contemporary appearance with enhanced heating performance, making it a practical choice for modern bathroom and interior spaces. Manufactured from durable low carbon steel, this wall-mounted horizontal radiator features a double-panel construction with 50 x 25mm bar profiles, providing increased surface area for effective heat output. With an 85mm radiator depth and a maximum projection of 103mm, the Apex Double Panel offers a substantial heating solution while maintaining a clean and structured designer appearance. The radiator is available in Matt Anthracite and Gloss White finishes, allowing it to complement a variety of modern interior schemes. Backed by a lifetime warranty, the Scudo Apex Double Panel Horizontal Designer Radiator provides long-term reassurance alongside contemporary styling and practical heating performance.
Radiator valves are not included but can be purchased separately.
Product Specifications:
- Warranty: Lifetime
- Product Type: Designer Radiator
- Brand: Scudo
- Collection: Apex
- Style: Modern
- Mounting: Wall
- Material: Low Carbon Steel
- Orientation: Horizontal
600mm x 767mm
- Bar Arrangement: 13*2
- Number of Bars: 26
- Radiator Depth: 85mm
- Bar Diameter: 50*25mm
- Max Projection: 103mm
- Pipe Centres C1: 847mm
- Pipe Centres C2: 66mm
600mm x 944mm
- Bar Arrangement: 16(*2)
- Number of Bars: 32
- Radiator Depth: 85mm
- Bar Diameter: 50*25mm
- Max Projection: 103mm
- Pipe Centres C1: 1024mm
- Pipe Centres C2: 66mm
Technical Specifications
| Size | 50°C BTU | 50°C Watts | 30°C BTU | 30°C Watts |
| 600mm x 944mm | 3771 | 1201 | 1960 | 624 |
| 600mm x 1121mm | 4641 | 1478 | 2413 | 768 |
Assembly instructions for Apex Double Panel Horizontal Designer Radiator
Datasheet for 600mm x 767mm Horizontal Designer Radiator
Datasheet for 600mm x 944mm Horizontal Designer Radiator

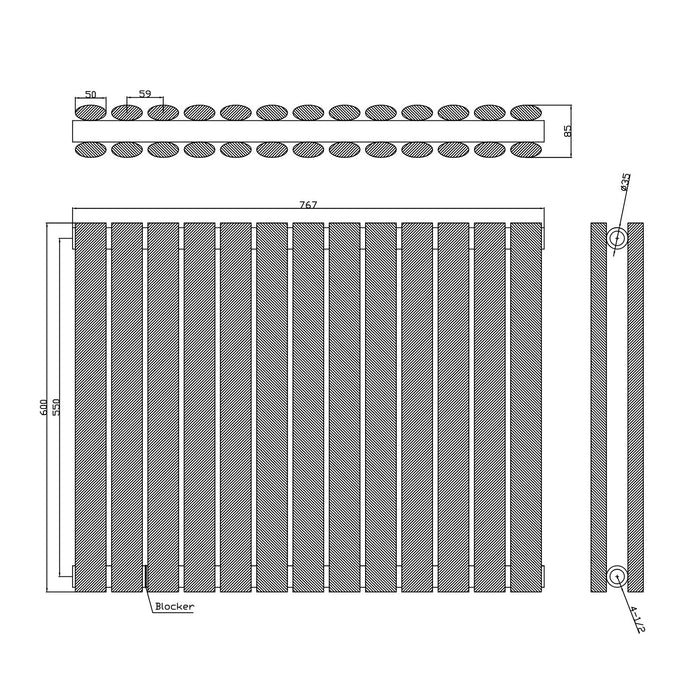

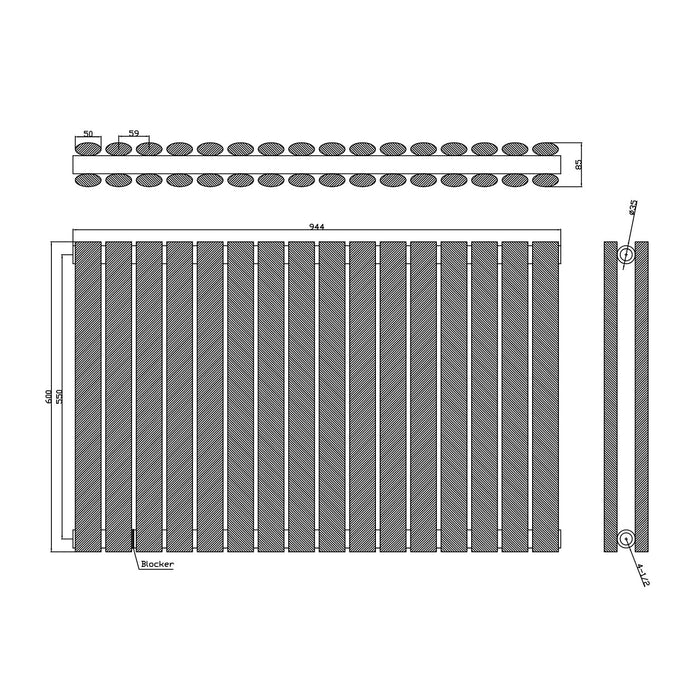

Technical Drawing
600mm x 767mm
600mm x 944mm
