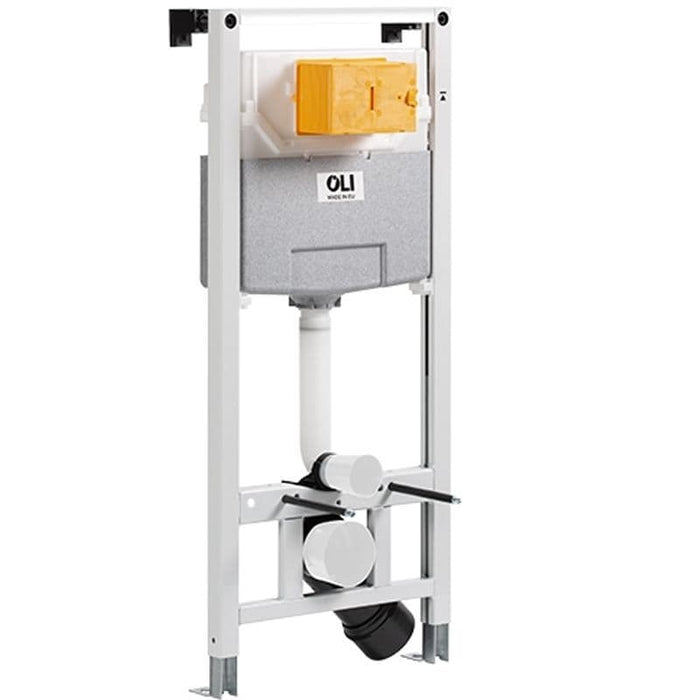

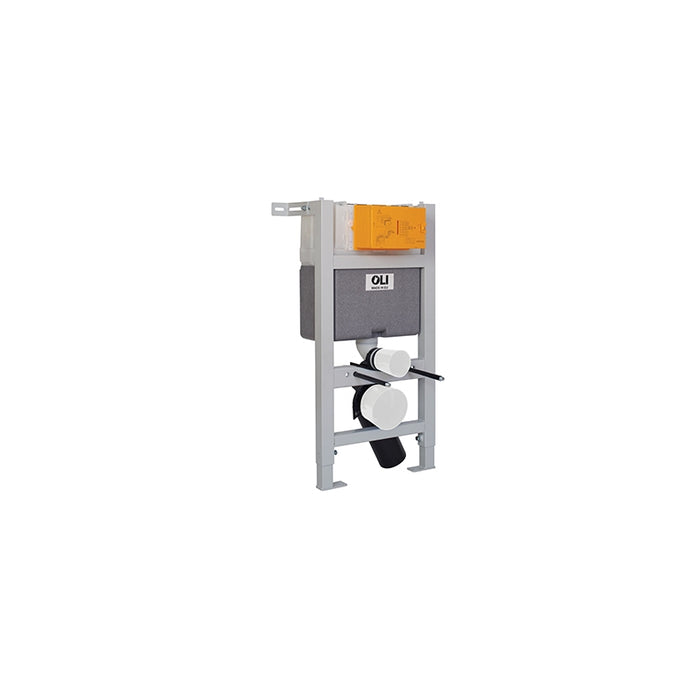

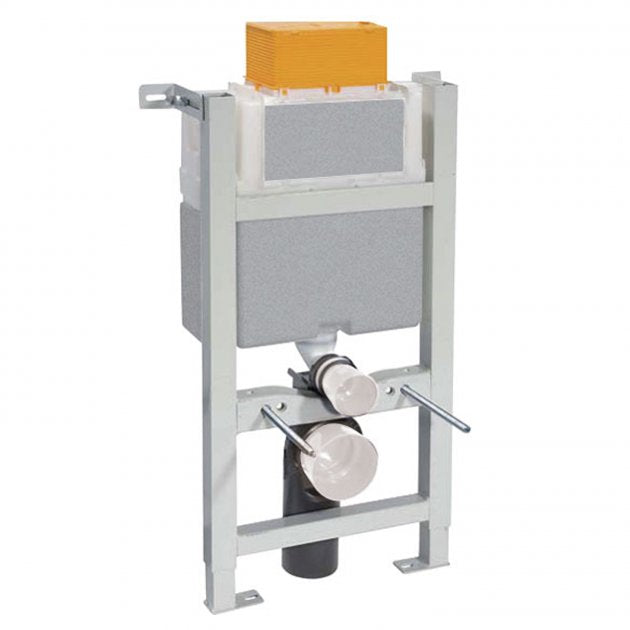

Oli Wall Hung Concealed Cistern Frame
Stocks : 25 in stock, order now for immediate dispatch
Product Description
The Sanitarblock installation system is suitable for applications in drywall with load-bearing walls. The system's main advantage is the ease and speed of safely installing a cistern with a wall-hung toilet.
Assembly can be done by only one person, allowing for a fast and precise levelling of the frame. According to the construction site scenario, the fixation feet have 3 positions and a metal blockade to adjust to the intended position. The fixation feet have a cross drill to increase the margin of the holes, facilitating the installation.
Frame height 82cm or 112cm
- Wall-hung toilets up to 660mm long;
- Solid wall or drywall installation;
- Frame tested for a 400kg load;
- Top or front actuation/access; (82cm Height Only)
- Depth adjustable outlet bend;
- Easy and quick installation with the fast fit system;
- Height adjustable from 0 to 200mm;
- One-man assembly;
Included:
Wall fixing kit;
G ½ stop valve;
Inlet and outlet toilet connection;
Toilet fixing material (when applicable);
Outlet bend and Ø90/110 adaptor (when applicable).

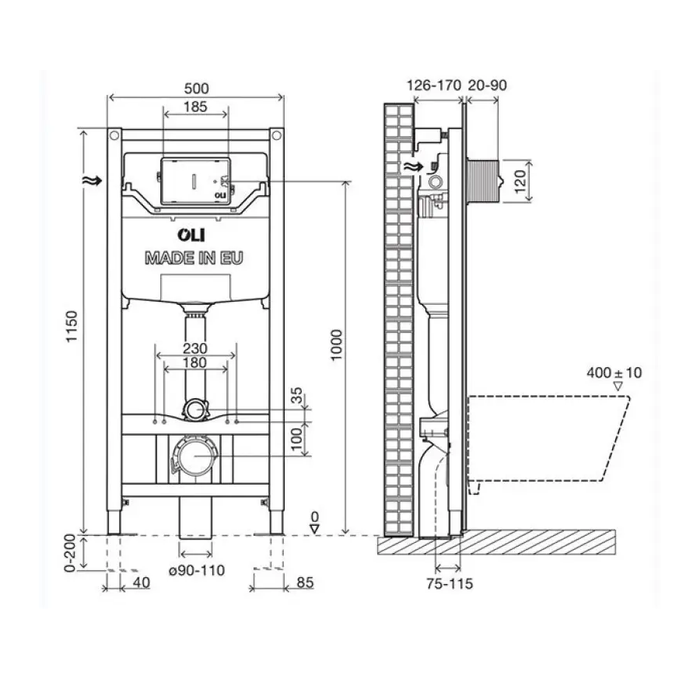

TECHNICAL DRAWING 1
115 cm

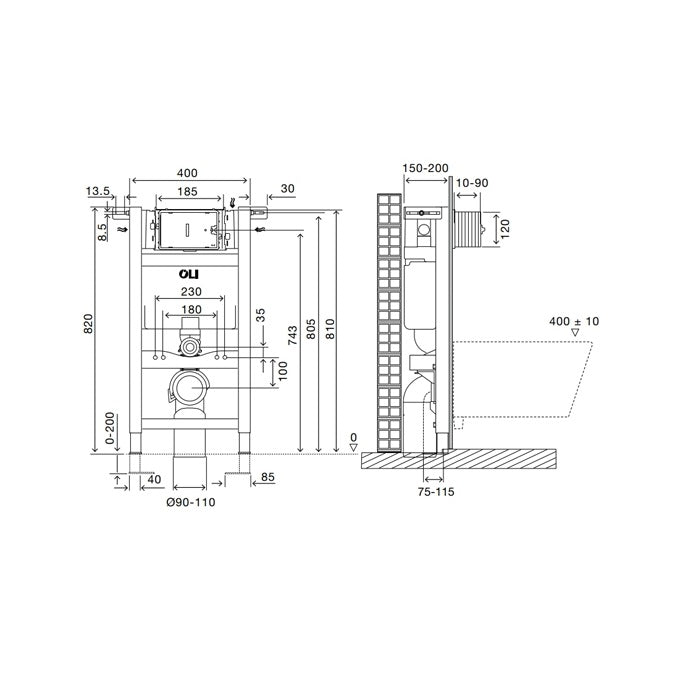

TECHNICAL DRAWING
82 cm
- View Less
Product Description
The Sanitarblock installation system is suitable for applications in drywall with load-bearing walls. The system's main advantage is the ease and speed of safely installing a cistern with a wall-hung toilet.
Assembly can be done by only one person, allowing for a fast and precise levelling of the frame. According to the construction site scenario, the fixation feet have 3 positions and a metal blockade to adjust to the intended position. The fixation feet have a cross drill to increase the margin of the holes, facilitating the installation.
Frame height 82cm or 112cm
- Wall-hung toilets up to 660mm long;
- Solid wall or drywall installation;
- Frame tested for a 400kg load;
- Top or front actuation/access; (82cm Height Only)
- Depth adjustable outlet bend;
- Easy and quick installation with the fast fit system;
- Height adjustable from 0 to 200mm;
- One-man assembly;
Included:
Wall fixing kit;
G ½ stop valve;
Inlet and outlet toilet connection;
Toilet fixing material (when applicable);
Outlet bend and Ø90/110 adaptor (when applicable).
TECHNICAL DRAWING 1
115 cm
TECHNICAL DRAWING
82 cm
- View Less
