Jackoboard Aqua Flat Shower Tray Board - Central Drain

Save 20% Save 20%
Original price From €340.19
Original price €340.19
Current price €273.00
Original price €340.19

From €273.00
Current price €273.00

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch
Estimated Collection: 1 week
Estimated Delivery: 2 weeks
Select Your Options
Size (W x L x D): 800 x 800 x 20mm

Product Description

Introducing the JACKOBOARD Aqua Flat Shower Tray Board with Central Drain Position: Engineered specifically for suspended timber floors, the JACKOBOARD Aqua Flat series offers an ideal solution for crafting wet rooms and walk-in showers. While tailored for timber structures, this versatile system can also be seamlessly instal + View More

Introducing the JACKOBOARD Aqua Flat Shower Tray Board with Central Drain Position:

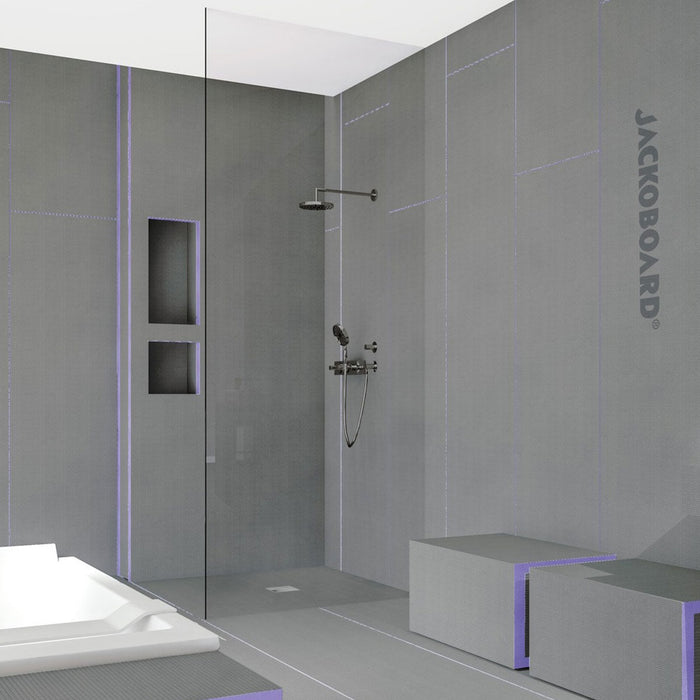

Engineered specifically for suspended timber floors, the JACKOBOARD Aqua Flat series offers an ideal solution for crafting wet rooms and walk-in showers. While tailored for timber structures, this versatile system can also be seamlessly installed in solid floors.

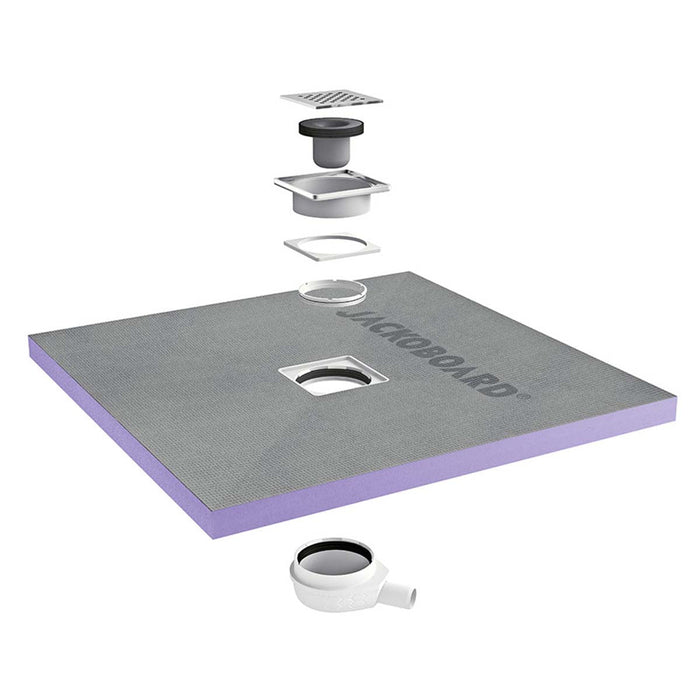

This innovative shower tray board system comprises a meticulously matched shower base and drain unit. Unique to this design, the Aqua Flat board is exclusively compatible with its designated drain unit, ensuring a perfect fit and optimal performance.

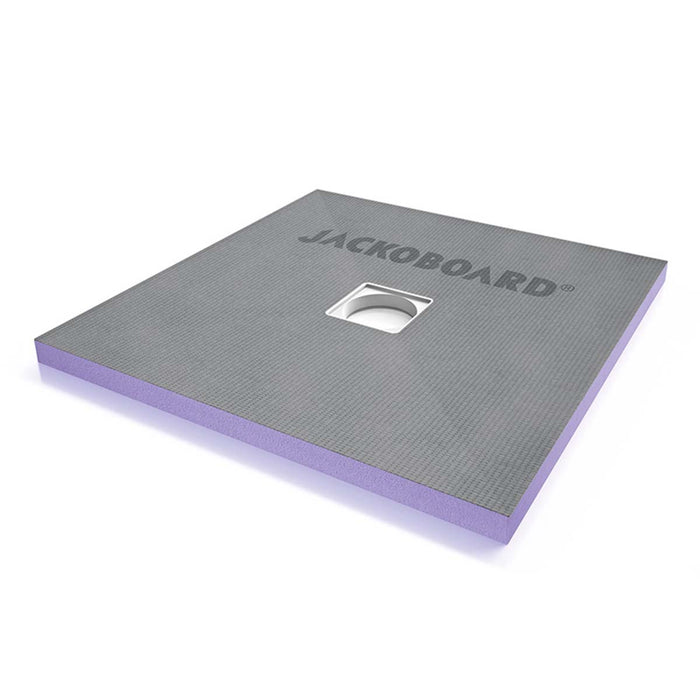

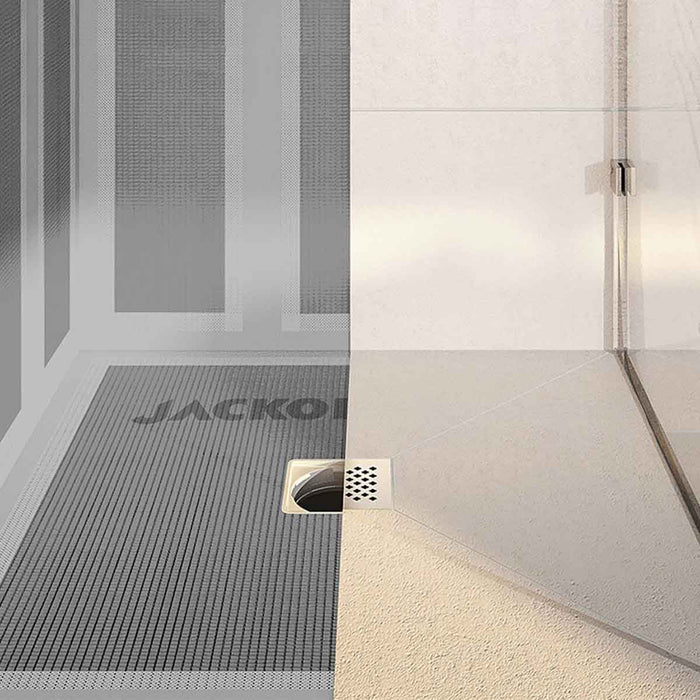

Constructed with a water-repellent core made of extruded polystyrene foam, the shower tray board boasts an exceptionally low installation height and incorporates a built-in drainage fall. Featuring a specialized coating on both sides, it allows for direct tiling without the need for additional preparatory work. The entire board is completely waterproof and stable, impervious to the effects of moisture, humidity, or substrate movement.

For comprehensive waterproofing, it is highly recommended to utilize a sealing membrane kit such as the JACKOBOARD Wetroom Sealing Kit.

Key Features of the Shower Tray Board:

  • 100% waterproof construction
  • Extremely low installation height
  • Special coating on both sides for direct tiling
  • Excellent thermal insulation properties
  • Wheelchair-accessible
  • Compressive strength > 300 kPa
  • Sealed drain flange
  • Central drain position

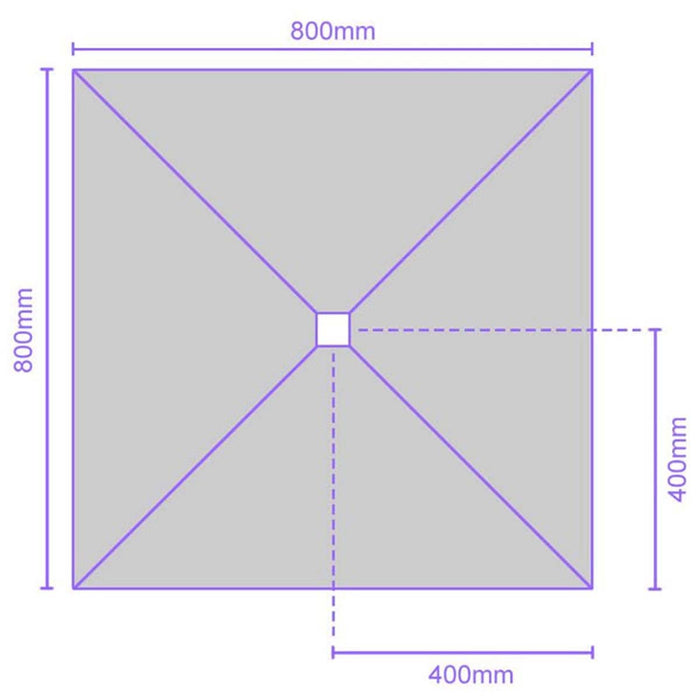

Available Sizes (Width x Length x Depth):

  • W 800 x L 800 x D 20mm

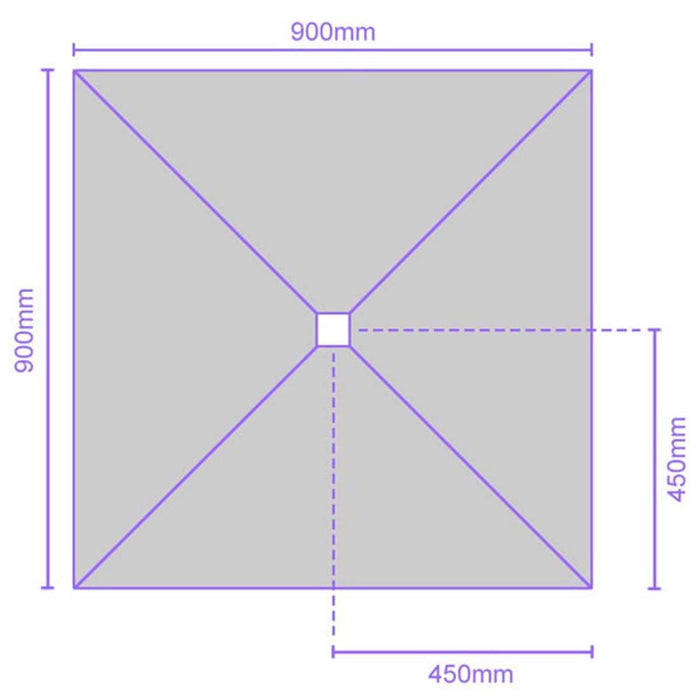

  • W 900 x L 900 x D 20mm
  • W 1000 x L 1000 x D 20mm

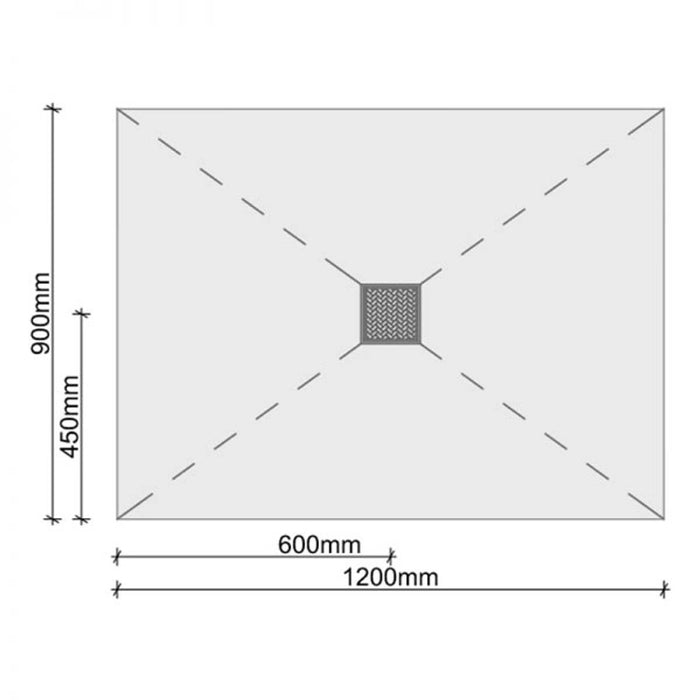

  • W 1200 x L 900 x D 20mm

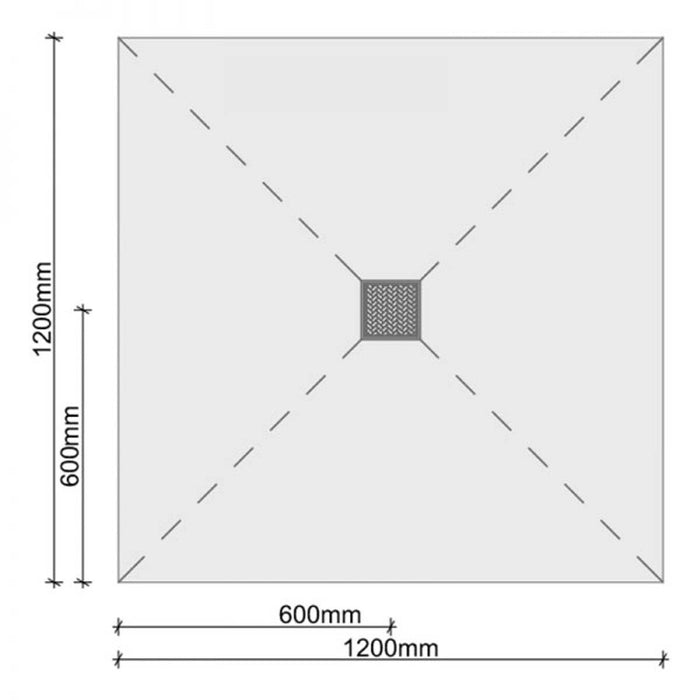

  • W 1200 x L 1200 x D 20mm

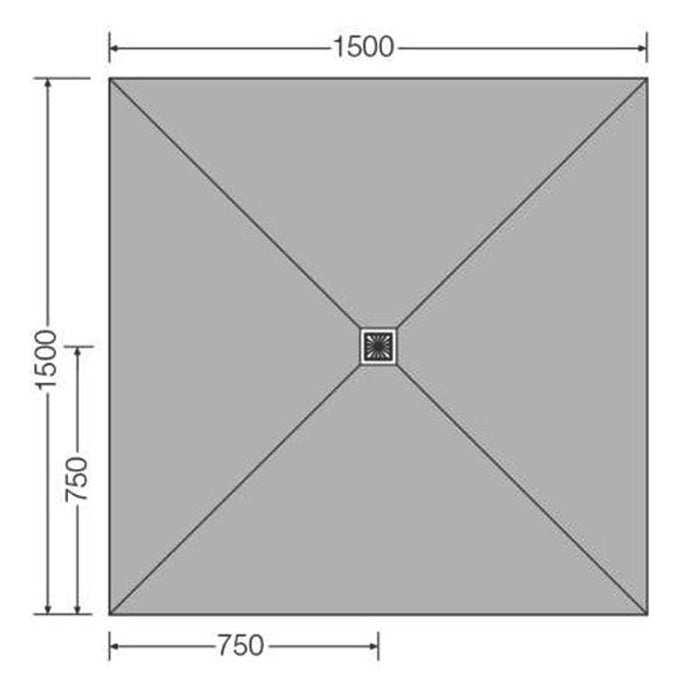

  • W 1500 x L 1500 x D 25mm

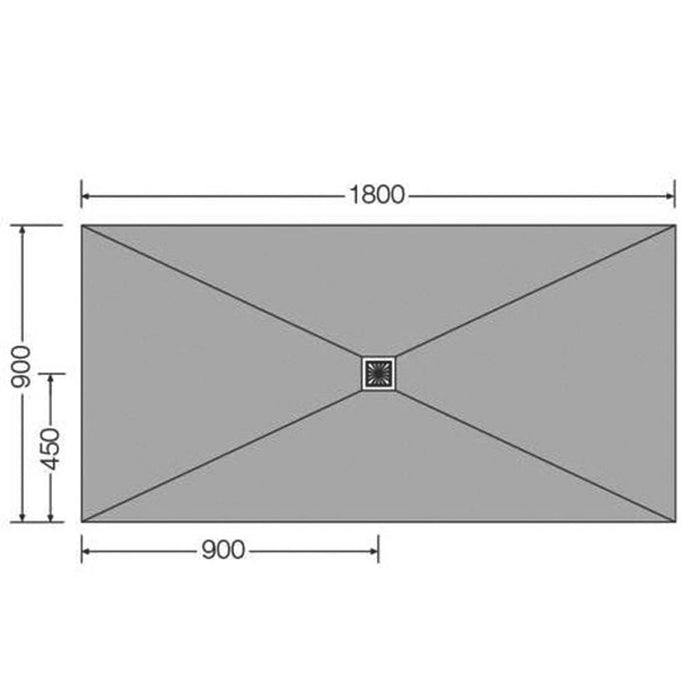

  • W 1800 x L 900 x D 20mm

Suitable For:

  • Wood or concrete subfloor
  • Tiled floor finish
  • Wheelchair use (min 50mm sq tiles)
  • Wet rooms
  • Level access
  • Raised on platform
  • Underfloor heating

Not Suitable For:

  • Vinyl floor finish
  • Micro-cement
  • Fitting directly on joists

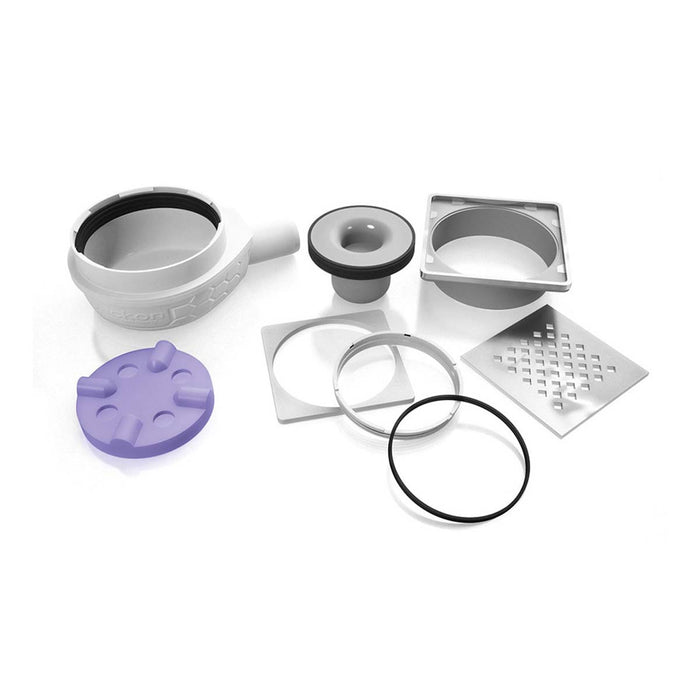

The drain kit includes:

  • Clamping collar
  • Clamping collar tool
  • Grate height extension insert
  • Odour trap
  • Backflow seal
  • Grate support frame
  • Solid stainless steel grate
  • Drain not included; sold separately

Specifications:

  • Brand: Jackoboard
  • Product Type: Shower tray board
  • Shower Base Material: Extruded polystyrene foam
  • Shower Base Shape: Square & Rectangle
  • colour: Grey with purple
  • Thickness: 20 & 25mm
  • Waste Type: Square
  • Waste Position: centre
  • Drain: Horizontal
  • Drain Grate Material: Stainless steel
  • Guarantee: 20-year manufacturer's guarantee

Additional Information:

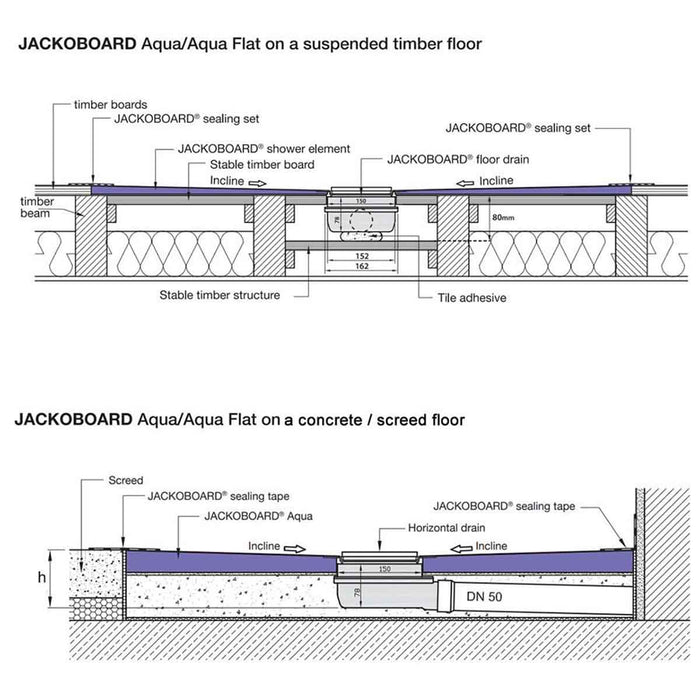

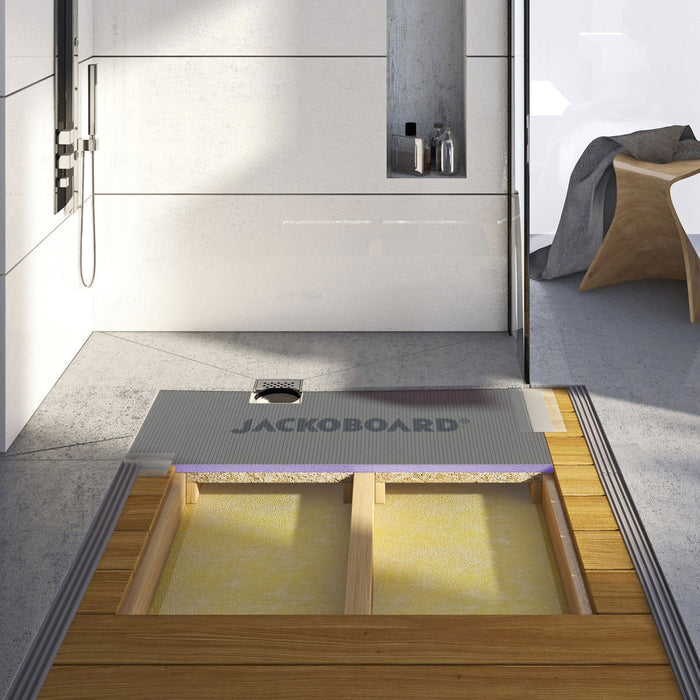

  • Jackoboard Aqua shower boards are not self-supporting; for level-entry designs on suspended timber floors, a sub-floor must be constructed between the joists (e.g., 18mm plywood).
  • Trimmable by 50mm off each edge.
  • To accommodate the drain body under the floor, the centre point of the drain must be at least 90mm away from any floor joists.

- View Less
