Hansgrohe Square Shower Valve With Raindance Select Rail Kit And Exafill - Chrome
Order now for dispatch in approximately 4 weeks.
Product Description

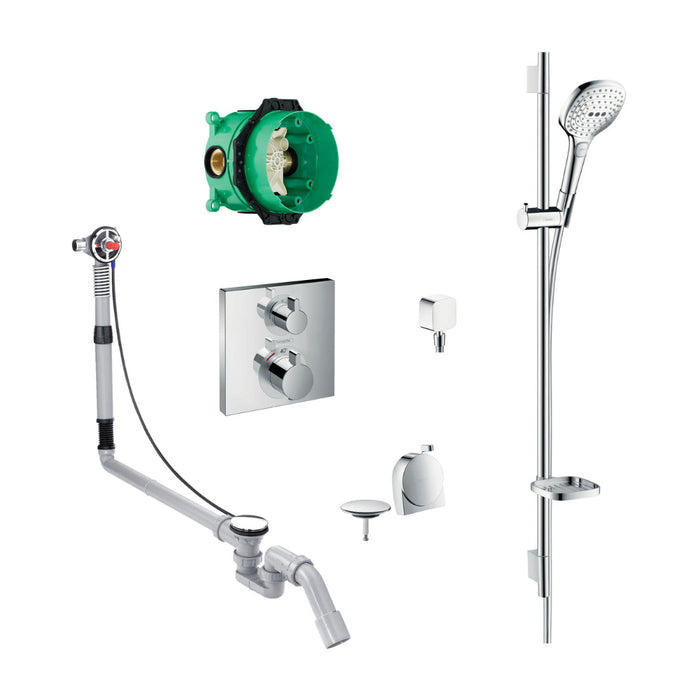

The Hansgrohe Square Shower Valve with Raindance Select Rail Kit and Exafill in chrome combines contemporary design with high functionality. This set is perfect for concealed installations and features the iBox universal basic set, which is compatible with various shower, bathtub, and thermostatic mixer finish sets. The 2 Outlet Thermostatic Mixer offers precise volume control and diverter for two outlets, with flow rates up to 29 l/min at 3 bar. The Raindance Select Shower Set includes a 120 mm shower head with three spray types (RainAir, Rain, Whirl) and the convenient Quick Clean feature for easy maintenance. The bath filler is equipped with a wide flood jet and adjustable spray insert, offering excellent water flow rates. This set also includes a five-year manufacturer's guarantee for peace of mind.
Specifications
- Style: Modern
- Mounting: Wall
- Colour: Chrome
- Shape: Round
- Collection: iBox
- Brand: Hansgrohe
Special Features:
iBox universal Basic set Features
- suitable for all shower, bath tub and thermostatic mixer finish sets for concealed installation
- connection thread: Rp ¾
- operating pressure: min. 1 bar/max. 10 bar
- rotationally-symmetric installation
- minimum mounting depth: 80 mm
- maximum mounting depth: 108 mm
- WRAS 240602019
- WRAS 2104049
2 Outlet Thermostatic mixer Features
- 2 outlets
- volume control and diverter for 2 outlets
- thermostatic mixer cartridge, shut-off/ diverter valve
- installation type: concealed installation
- maximum flow rate at 1 bar: 16 l/min
- flow rate upper outlet: 28 l/min
- flow rate lower outlet: 25 l/min
- maximum flow rate at 3 bar: 29 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- volume control
- Safety stop at 40 °C
- temperature limitation adjustable
- non-return valve
- connection type: basic set
- noise class: I
- WRAS 2308702
Shower set 3jet with shower rail Features
- consists of: hand shower, shower rail, shower hose, slider, soap dish
- shower head size: 120 mm
- spray type: RainAir, Rain, Whirl
- convenient spray selection via Select button
- Quick Clean: Limescale deposits can simply be rubbed off with your finger
- 90° position adjustable hand shower holder, pivots left and right, up and down
- maximum flow rate 14,4 l/min at 3 bar
- operating pressure: min. 1 bar/max. 6 bar
- wall supports made of plastic
- profile pipe: round
- shower rail diameter: 22 mm
- drilling distance: 915 mm
- pivot connector prevents hose from tangling
Wall outlet with non-return valve Features
- shower hose connection with ball joint
- plastic connection angle
- non-return valve
- connection type: G ½
- connection thread ½"
- material cover: plastic
Basic set for bath filler with waste Features
- consists of: basic set, bathtub trap
- suitable for special bath tubs, with bellows for bath tubs with slanted bath rim
- supply hose water connection left DN20
- odour trap backwater height is 50 mm
- bowden cable length 780 mm
- third party controlled acc.: DIN EN 274-3
- WRAS 2310052
FITTING FOR BATH WASTES Features
Five-year manufacturers guaranteeBath filler Features,
- consists of: cover, security plug
- suitable for standard and special bath tubs
- wide flood jet
- spray insert can be adjusted by 30°
- maximum flow rate at 3 bar: 19 l/min
- WRAS 2310052
- View Less
Product Description
The Hansgrohe Square Shower Valve with Raindance Select Rail Kit and Exafill in chrome combines contemporary design with high functionality. This set is perfect for concealed installations and features the iBox universal basic set, which is compatible with various shower, bathtub, and thermostatic mixer finish sets. The 2 Outlet Thermostatic Mixer offers precise volume control and diverter for two outlets, with flow rates up to 29 l/min at 3 bar. The Raindance Select Shower Set includes a 120 mm shower head with three spray types (RainAir, Rain, Whirl) and the convenient Quick Clean feature for easy maintenance. The bath filler is equipped with a wide flood jet and adjustable spray insert, offering excellent water flow rates. This set also includes a five-year manufacturer's guarantee for peace of mind.
Specifications
- Style: Modern
- Mounting: Wall
- Colour: Chrome
- Shape: Round
- Collection: iBox
- Brand: Hansgrohe
Special Features:
iBox universal Basic set Features
- suitable for all shower, bath tub and thermostatic mixer finish sets for concealed installation
- connection thread: Rp ¾
- operating pressure: min. 1 bar/max. 10 bar
- rotationally-symmetric installation
- minimum mounting depth: 80 mm
- maximum mounting depth: 108 mm
- WRAS 240602019
- WRAS 2104049
2 Outlet Thermostatic mixer Features
- 2 outlets
- volume control and diverter for 2 outlets
- thermostatic mixer cartridge, shut-off/ diverter valve
- installation type: concealed installation
- maximum flow rate at 1 bar: 16 l/min
- flow rate upper outlet: 28 l/min
- flow rate lower outlet: 25 l/min
- maximum flow rate at 3 bar: 29 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- volume control
- Safety stop at 40 °C
- temperature limitation adjustable
- non-return valve
- connection type: basic set
- noise class: I
- WRAS 2308702
Shower set 3jet with shower rail Features
- consists of: hand shower, shower rail, shower hose, slider, soap dish
- shower head size: 120 mm
- spray type: RainAir, Rain, Whirl
- convenient spray selection via Select button
- Quick Clean: Limescale deposits can simply be rubbed off with your finger
- 90° position adjustable hand shower holder, pivots left and right, up and down
- maximum flow rate 14,4 l/min at 3 bar
- operating pressure: min. 1 bar/max. 6 bar
- wall supports made of plastic
- profile pipe: round
- shower rail diameter: 22 mm
- drilling distance: 915 mm
- pivot connector prevents hose from tangling
Wall outlet with non-return valve Features
- shower hose connection with ball joint
- plastic connection angle
- non-return valve
- connection type: G ½
- connection thread ½"
- material cover: plastic
Basic set for bath filler with waste Features
- consists of: basic set, bathtub trap
- suitable for special bath tubs, with bellows for bath tubs with slanted bath rim
- supply hose water connection left DN20
- odour trap backwater height is 50 mm
- bowden cable length 780 mm
- third party controlled acc.: DIN EN 274-3
- WRAS 2310052
FITTING FOR BATH WASTES Features
Five-year manufacturers guaranteeBath filler Features,
- consists of: cover, security plug
- suitable for standard and special bath tubs
- wide flood jet
- spray insert can be adjusted by 30°
- maximum flow rate at 3 bar: 19 l/min
- WRAS 2310052
- View Less
