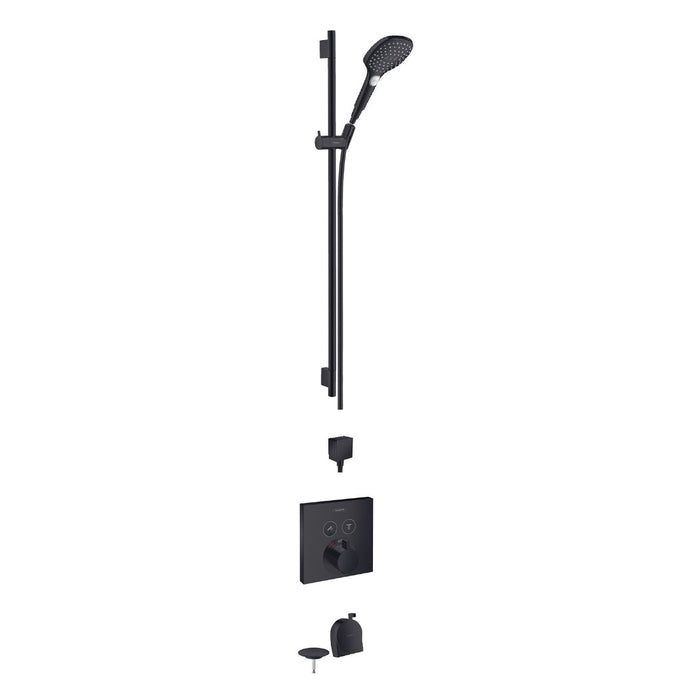

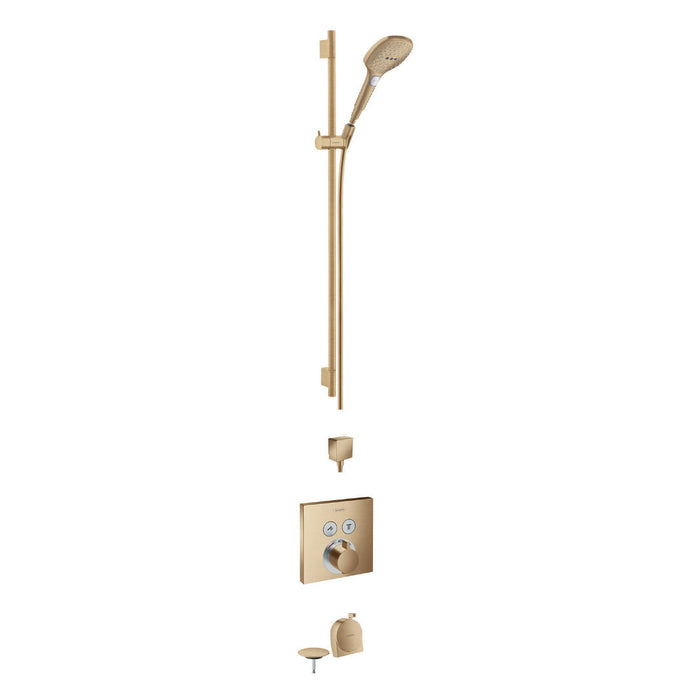

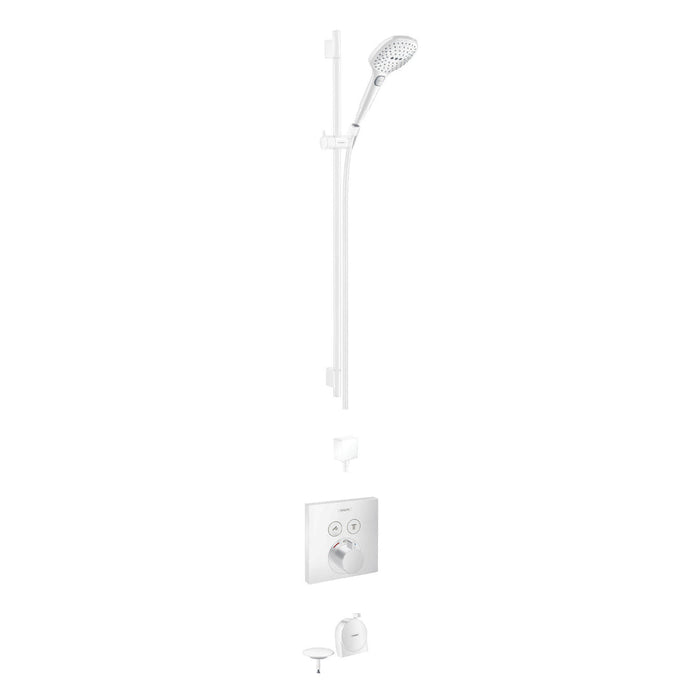

Hansgrohe Square Select Concealed Shower Valve With Raindance Select Rail Kit And Exafill
Order now for dispatch in approximately 4 weeks.
Product Description
The Hansgrohe Square Select Concealed Shower Valve with Raindance Select Rail Kit and Exafill combines modern design and advanced functionality. This stylish system features a concealed installation with the versatile iBox universal basic set, compatible with all shower and bath mixer sets. The 2-outlet thermostatic mixer provides precise water control with simultaneous outlet use, while the Select push-button system lets you easily switch between different spray types. The hand shower, awarded the if Product Design Award 2013, offers a smooth and comfortable experience. With a sleek finish in multiple colours, this system delivers both elegance and performance, backed by a five-year guarantee.
Specifications
- Style: Modern
- Mounting: Wall
- Colour: Matt Black/Matt White/Brushed Bronze/Brushed Black Chrome/Polished Gold Optic
- Shape: Round
- Collection: iBox
- Brand: Hansgrohe
Special Features:
iBox universal Basic set Features
- suitable for all shower, bath tub and thermostatic mixer finish sets for concealed installation
- connection thread: Rp ¾
- operating pressure: min. 1 bar/max. 10 bar
- rotationally-symmetric installation
- minimum mounting depth: 80 mm
- maximum mounting depth: 108 mm
- WRAS 240602019
- WRAS 2104049

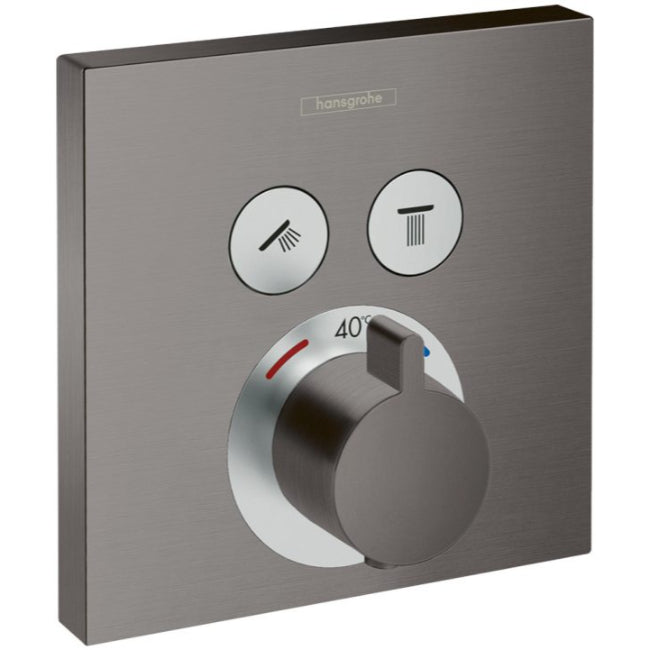

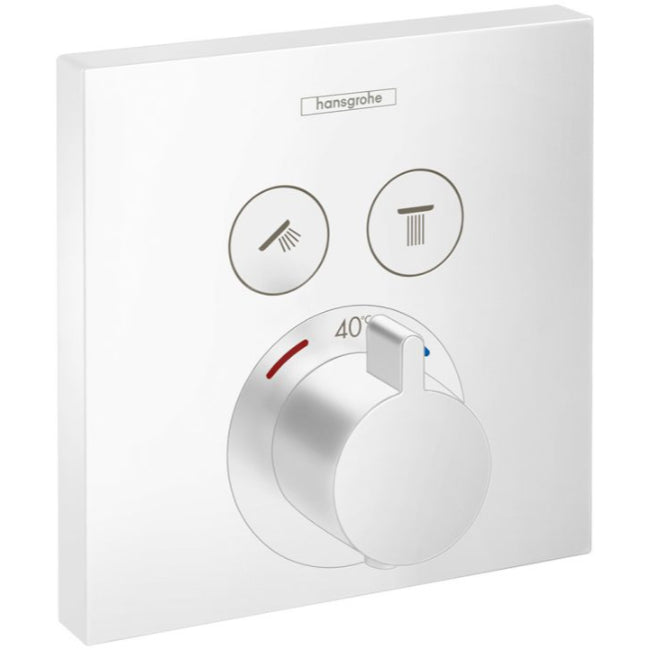

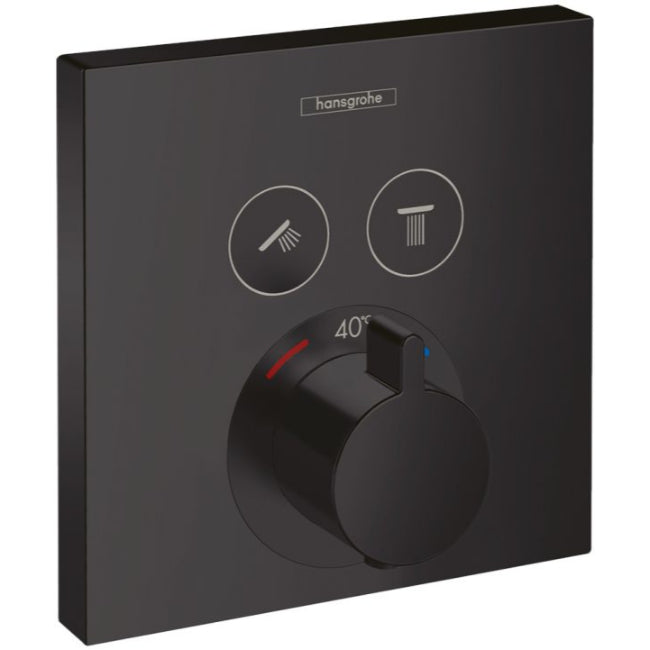

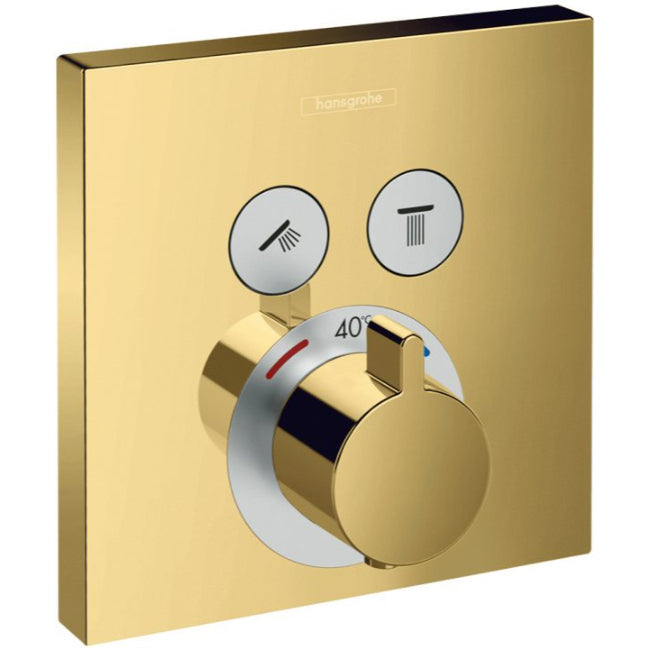

2 outlets Thermostatic mixer Features
- 2 outlets
- simultaneous use of several outlets
- Select push-button on/off control for 2 outlets
- thermostatic mixer cartridge, Start/stop valve to operate the outlets
- installation type: concealed installation
- maximum flow rate at 1 bar: 15 l/min
- flow rate upper outlet: 25 l/min
- flow rate lower outlet: 23 l/min
- flow rate by simultaneous use of all outlets: 29,7 l/min
- maximum flow rate at 3 bar: 29,7 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- Safety stop at 40 °C
- temperature limitation adjustable
- connection type: basic set
- thermostatic mixer is delivered with buttons hand shower and Rain large
- noise class: II
- WRAS 2211001

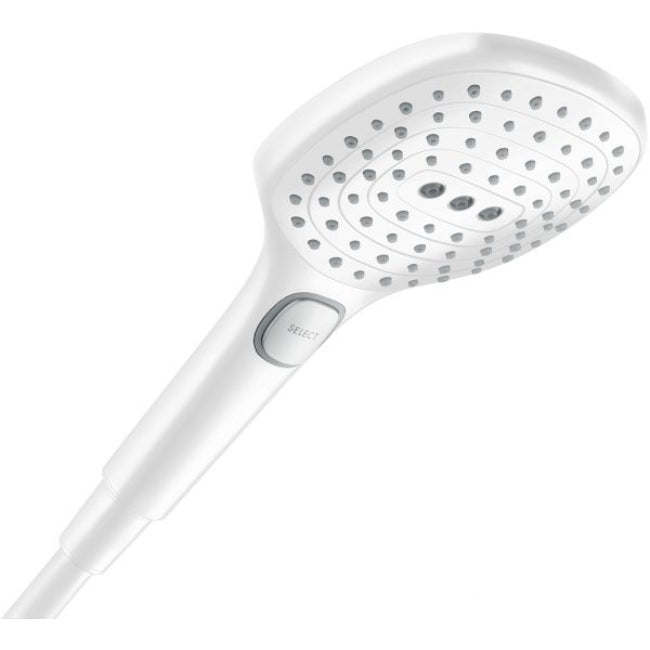

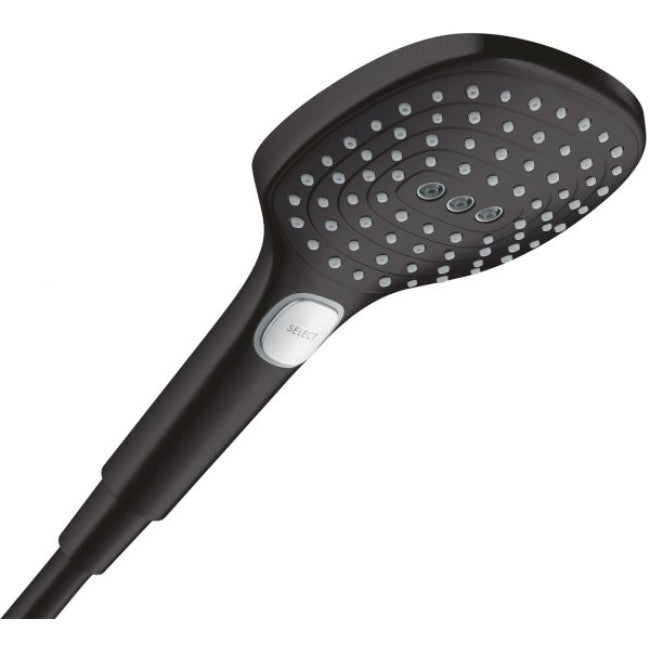

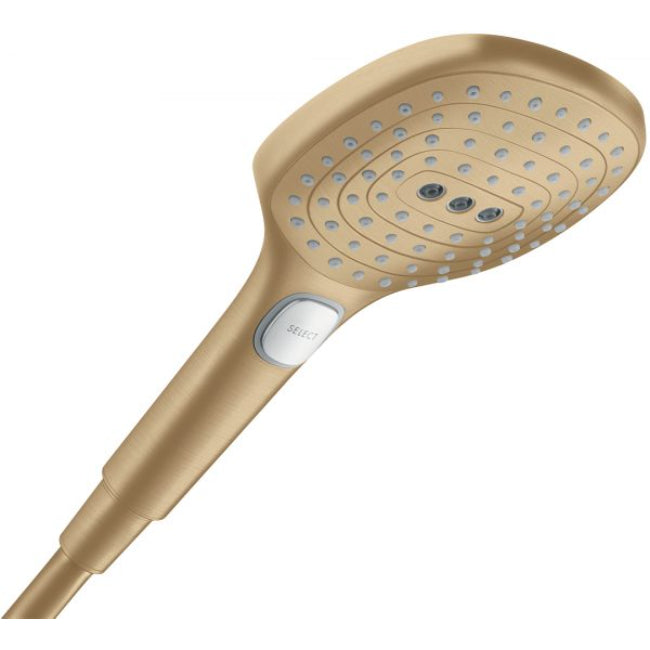

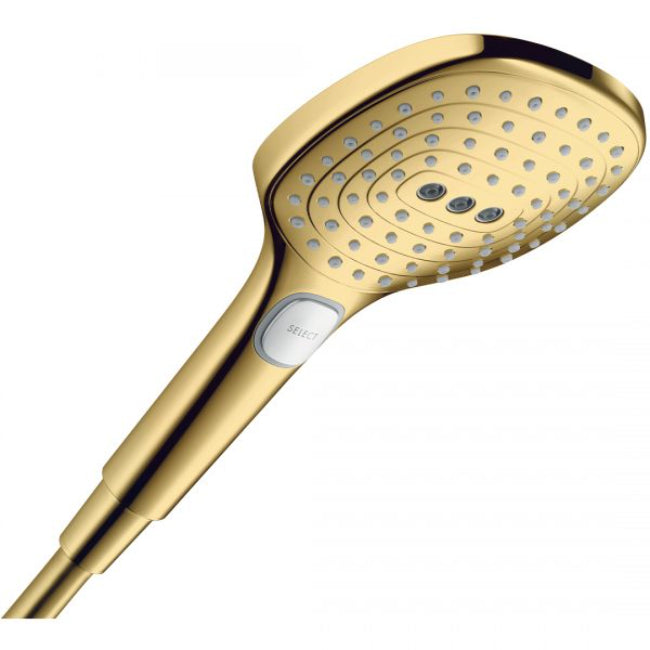

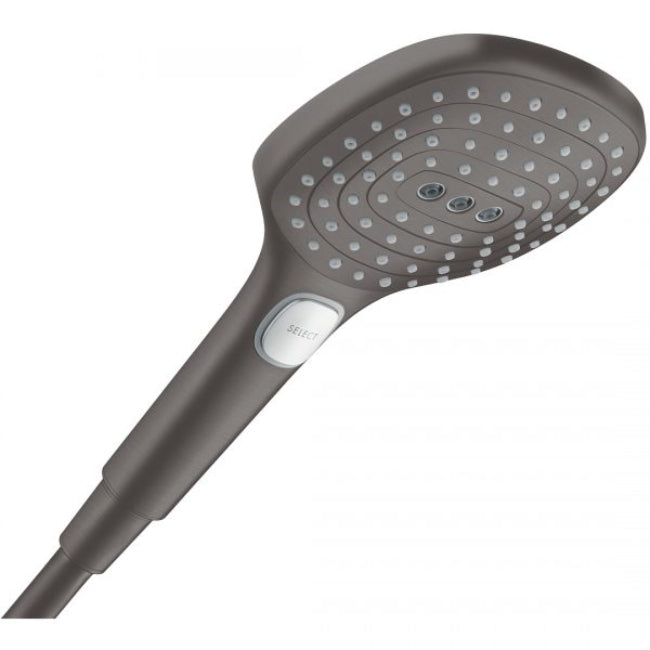

Hand shower Feature
- shower head size: 120 mm
- spray type: RainAir, Rain, Whirl
- convenient spray selection via Select button
- maximum flow rate at 3 bar: 14,4 l/min
- outlet from: 8 l/min
- minimum operation pressure: 1 bar
- operating pressure: min. 1 bar/max. 6 bar
- with internal water conduction
- rinseable filter washer
- connection thread: G ½
- winner of the if Product Design Award 2013
- WRAS 2210037

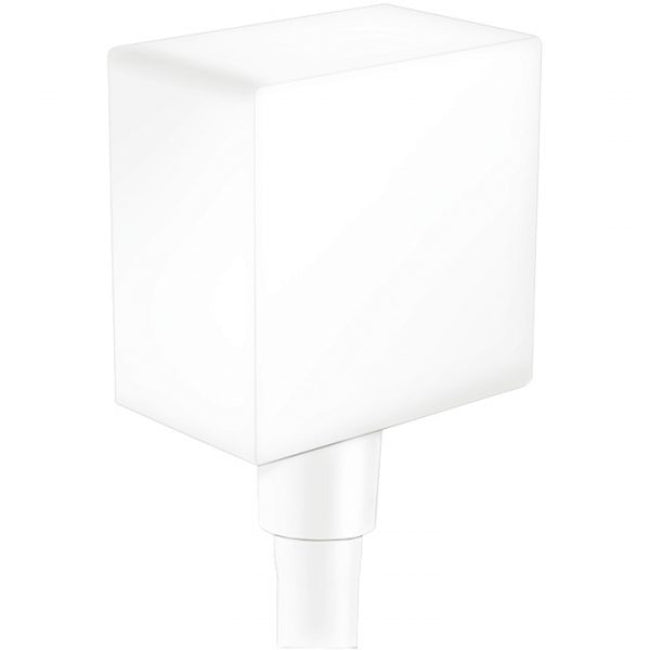

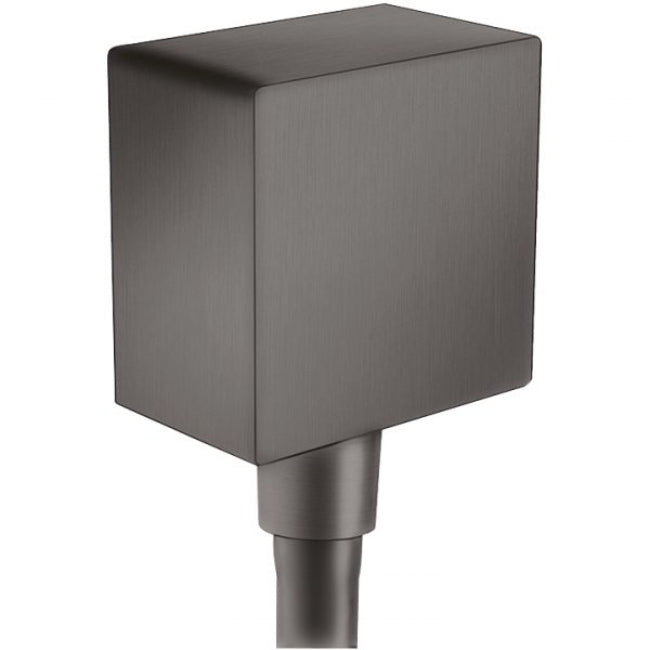

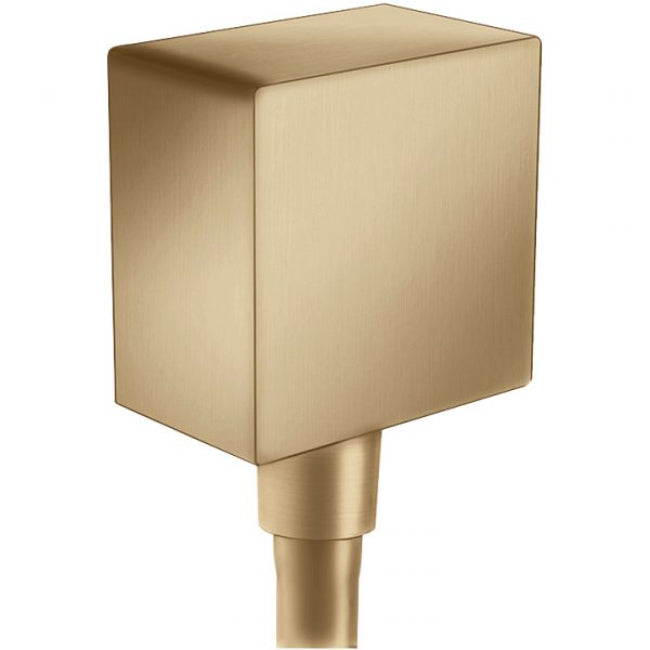

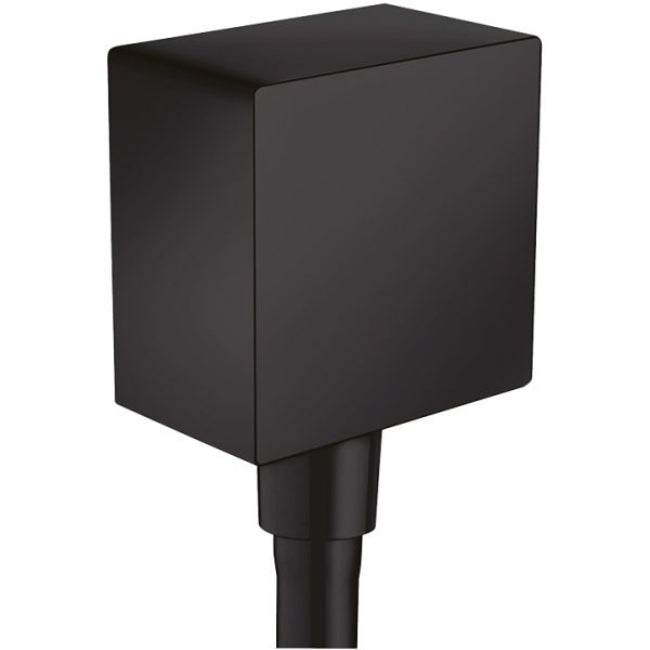

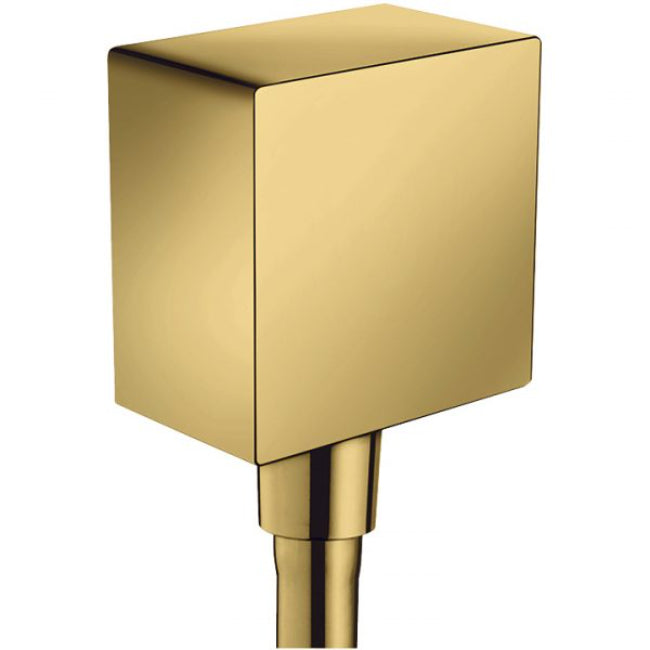

Wall outlet Features
- plastic connection angle
- non-return valve
- connection type: G ½
- connection thread ½"
- material cover: plastic

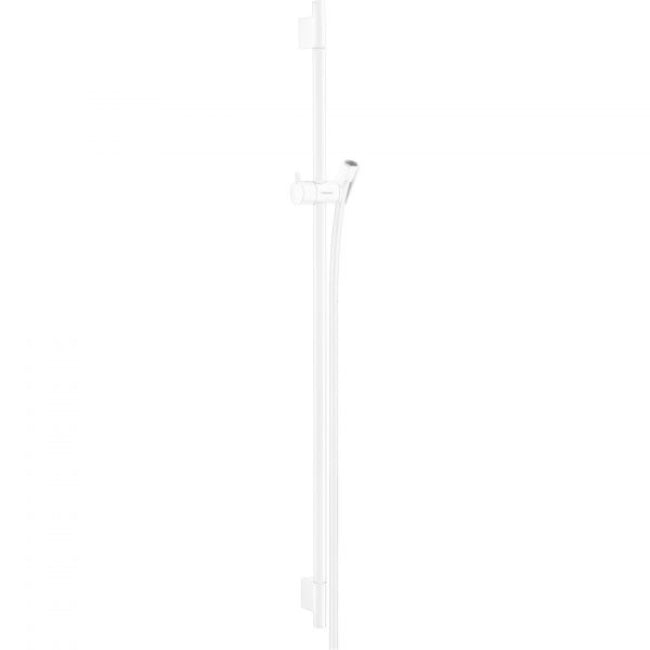

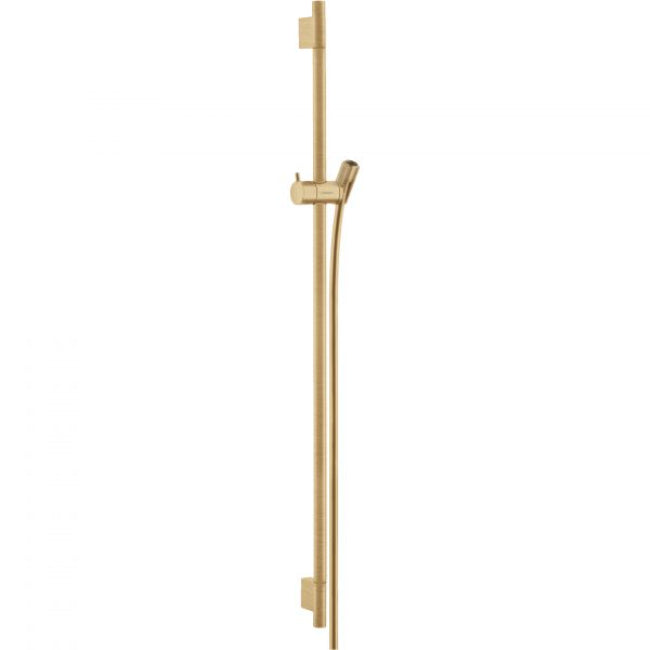

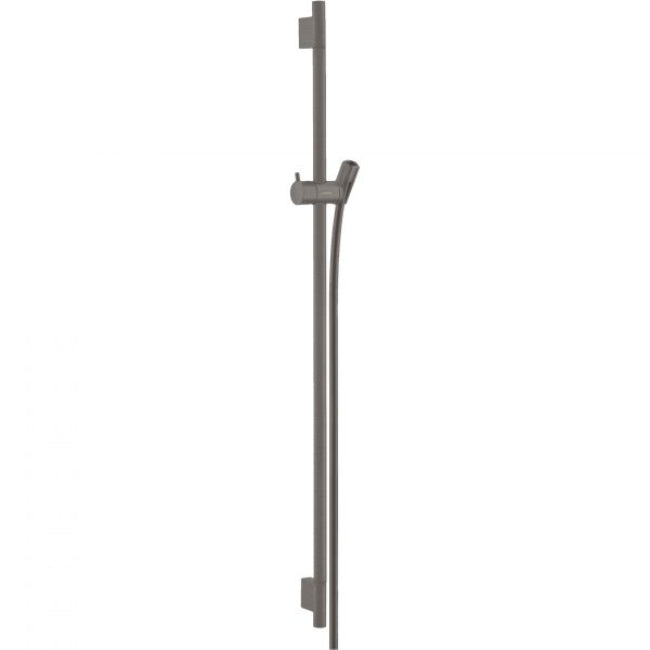

Shower rail Features
- consists of: shower rail, shower hose, slider
- pivot connector prevents hose from tangling
- shower rail diameter: 22 mm
- profile pipe: round
- drilling distance: 915 mm
- shower hose length: 1600 mm
- metal hand shower holder
- hand shower holder with locking mechanism
- hand shower holder sleeplessly adjustable
- wall supports made of plastic

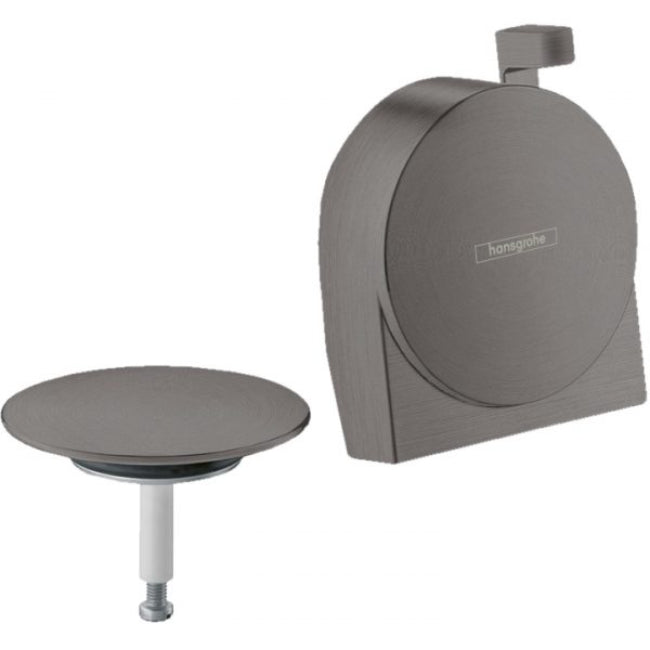

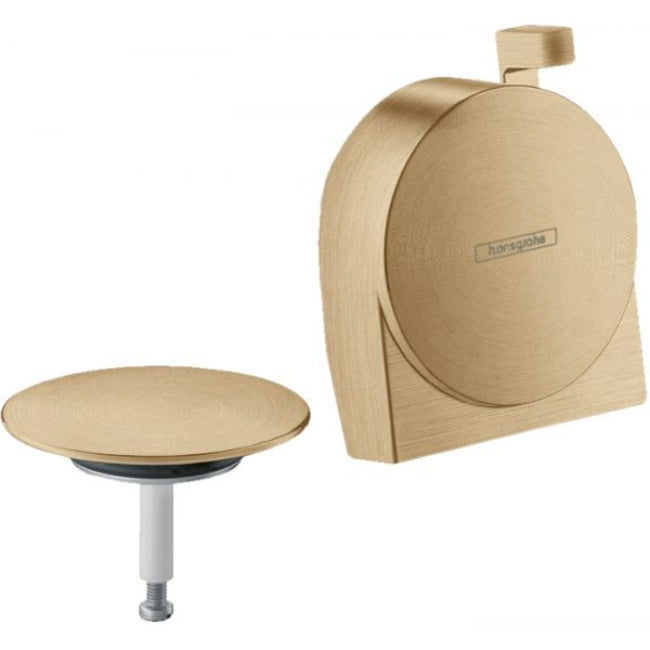

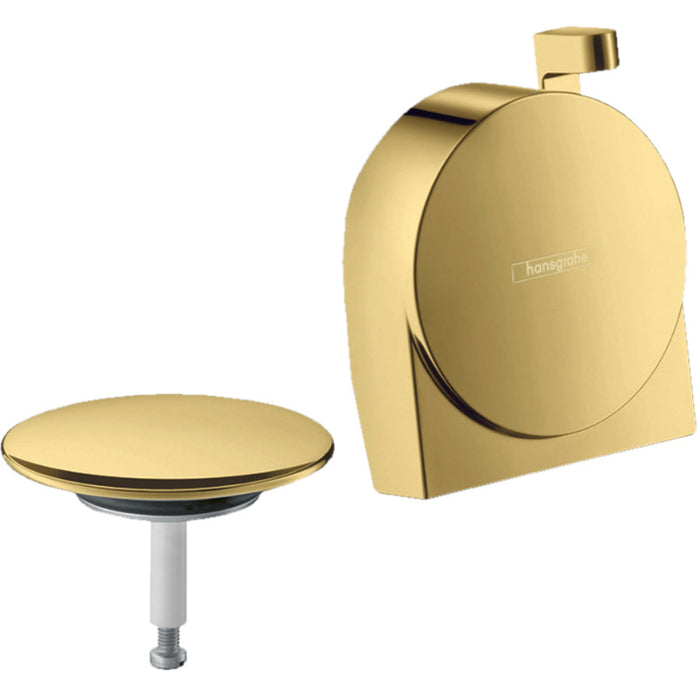

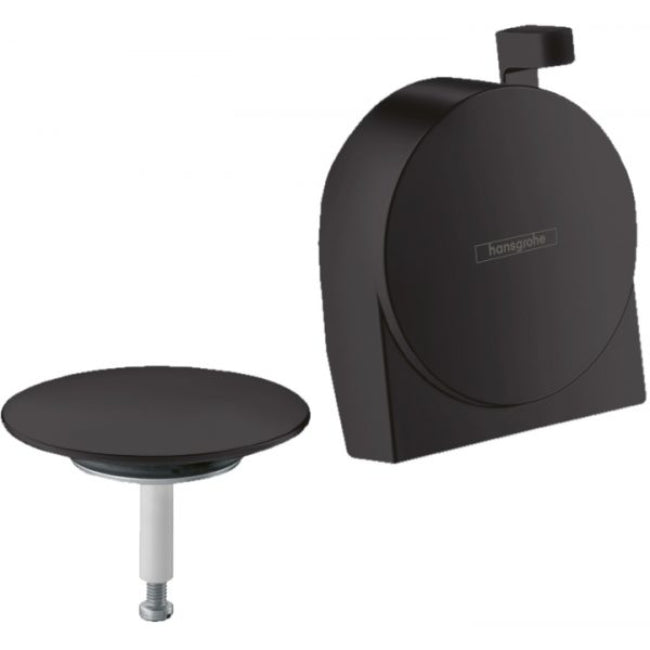

bath filler Features
- consists of: cover, security plug
- suitable for standard and special bath tubs
- wide flood jet
- spray insert can be adjusted by 30°
- maximum flow rate at 3 bar: 19 l/min
- WRAS 2310052
Basic set for bath filler with waste Features,
- consists of: basic set, bathtub trap
- suitable for special bath tubs, with bellows for bath tubs with slanted bath rim
- supply hose water connection left DN20
- odour trap backwater height is 50 mm
- bowden cable length 780 mm
- third party controlled acc.: DIN EN 274-3
- WRAS 2310052
Symbol tub Features
- Five-year manufacturers guarantee
FITTING FOR BATH WASTES Features
Five-year manufacturers guarantee- View Less
Product Description
The Hansgrohe Square Select Concealed Shower Valve with Raindance Select Rail Kit and Exafill combines modern design and advanced functionality. This stylish system features a concealed installation with the versatile iBox universal basic set, compatible with all shower and bath mixer sets. The 2-outlet thermostatic mixer provides precise water control with simultaneous outlet use, while the Select push-button system lets you easily switch between different spray types. The hand shower, awarded the if Product Design Award 2013, offers a smooth and comfortable experience. With a sleek finish in multiple colours, this system delivers both elegance and performance, backed by a five-year guarantee.
Specifications
- Style: Modern
- Mounting: Wall
- Colour: Matt Black/Matt White/Brushed Bronze/Brushed Black Chrome/Polished Gold Optic
- Shape: Round
- Collection: iBox
- Brand: Hansgrohe
Special Features:
iBox universal Basic set Features
- suitable for all shower, bath tub and thermostatic mixer finish sets for concealed installation
- connection thread: Rp ¾
- operating pressure: min. 1 bar/max. 10 bar
- rotationally-symmetric installation
- minimum mounting depth: 80 mm
- maximum mounting depth: 108 mm
- WRAS 240602019
- WRAS 2104049
2 outlets Thermostatic mixer Features
- 2 outlets
- simultaneous use of several outlets
- Select push-button on/off control for 2 outlets
- thermostatic mixer cartridge, Start/stop valve to operate the outlets
- installation type: concealed installation
- maximum flow rate at 1 bar: 15 l/min
- flow rate upper outlet: 25 l/min
- flow rate lower outlet: 23 l/min
- flow rate by simultaneous use of all outlets: 29,7 l/min
- maximum flow rate at 3 bar: 29,7 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- Safety stop at 40 °C
- temperature limitation adjustable
- connection type: basic set
- thermostatic mixer is delivered with buttons hand shower and Rain large
- noise class: II
- WRAS 2211001
Hand shower Feature
- shower head size: 120 mm
- spray type: RainAir, Rain, Whirl
- convenient spray selection via Select button
- maximum flow rate at 3 bar: 14,4 l/min
- outlet from: 8 l/min
- minimum operation pressure: 1 bar
- operating pressure: min. 1 bar/max. 6 bar
- with internal water conduction
- rinseable filter washer
- connection thread: G ½
- winner of the if Product Design Award 2013
- WRAS 2210037
Wall outlet Features
- plastic connection angle
- non-return valve
- connection type: G ½
- connection thread ½"
- material cover: plastic
Shower rail Features
- consists of: shower rail, shower hose, slider
- pivot connector prevents hose from tangling
- shower rail diameter: 22 mm
- profile pipe: round
- drilling distance: 915 mm
- shower hose length: 1600 mm
- metal hand shower holder
- hand shower holder with locking mechanism
- hand shower holder sleeplessly adjustable
- wall supports made of plastic
bath filler Features
- consists of: cover, security plug
- suitable for standard and special bath tubs
- wide flood jet
- spray insert can be adjusted by 30°
- maximum flow rate at 3 bar: 19 l/min
- WRAS 2310052
Basic set for bath filler with waste Features,
- consists of: basic set, bathtub trap
- suitable for special bath tubs, with bellows for bath tubs with slanted bath rim
- supply hose water connection left DN20
- odour trap backwater height is 50 mm
- bowden cable length 780 mm
- third party controlled acc.: DIN EN 274-3
- WRAS 2310052
Symbol tub Features
- Five-year manufacturers guarantee
FITTING FOR BATH WASTES Features
Five-year manufacturers guarantee- View Less
