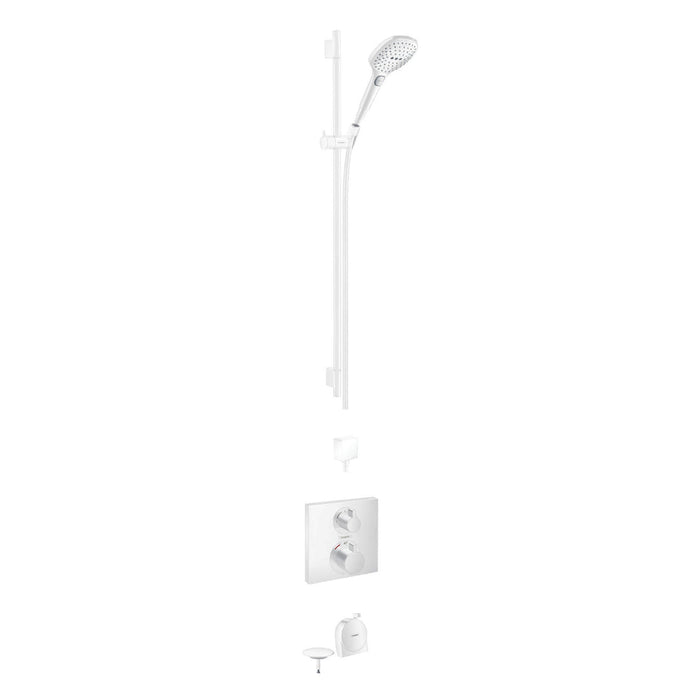

Hansgrohe Square Concealed Shower Valve With Raindance Select Rail Kit And Exafill
Order now for dispatch in approximately 4 weeks.
Product Description

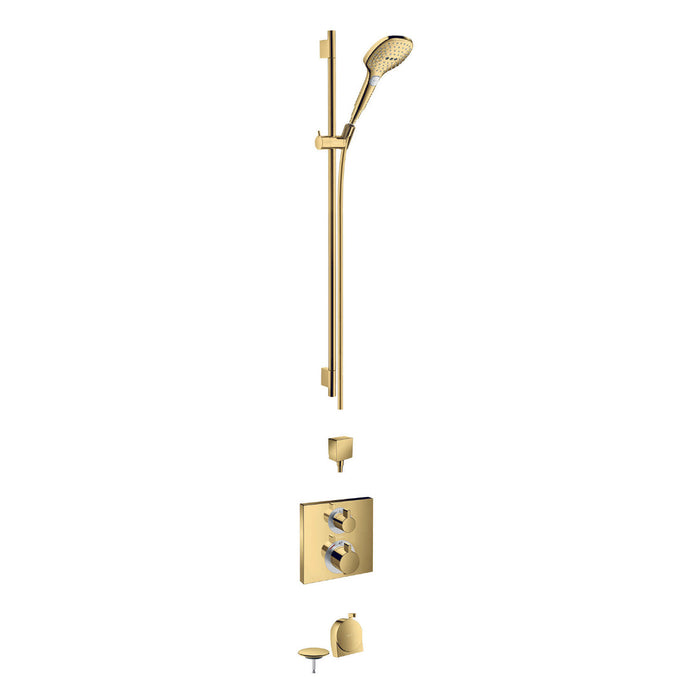

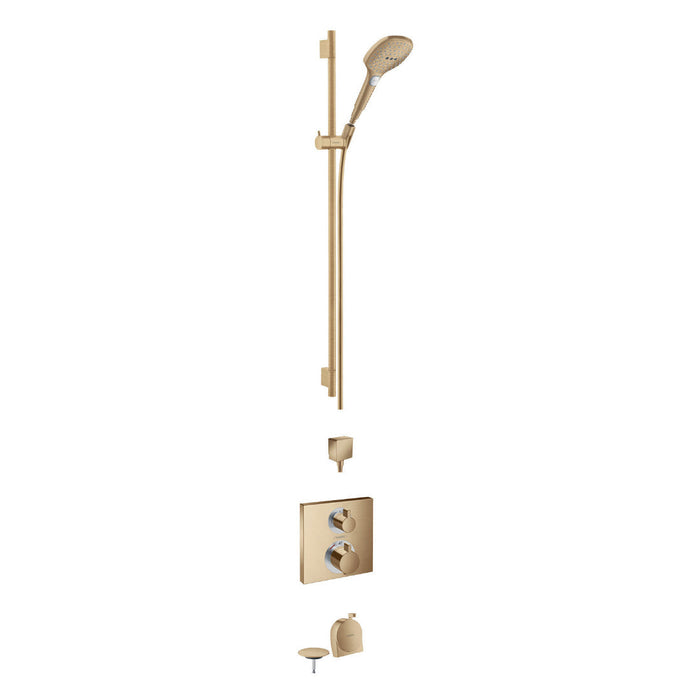

The Hansgrohe Square Concealed Shower Valve with Raindance Select Rail Kit and Exafill is a modern and stylish shower system designed for wall installation. Available in various finishes such as Matt Black, Matt White, Brushed Bronze, Brushed Black Chrome, and Polished Gold Optic, it offers a sleek aesthetic for any bathroom. The system includes a 2-outlet thermostatic mixer with volume control and diverter, providing precise water flow and temperature regulation. It's hand shower offers three spray options and a convenient Select button for effortless control. The system also features a durable shower rail, pivot connector, and bath filler, with a five-year manufacturers guarantee for long-lasting reliability.
Specifications
- Style: Modern
- Mounting: Wall
- Colour: Matt Black/Matt White/Brushed Bronze/Brushed Black Chrome/Polished Gold Optic
- Shape: Round
- Collection: iBox
- Brand: Hansgrohe
Special Features:
iBox universal Basic set Features
- suitable for all shower, bath tub and thermostatic mixer finish sets for concealed installation
- connection thread: Rp ¾
- operating pressure: min. 1 bar/max. 10 bar
- rotationally-symmetric installation
- minimum mounting depth: 80 mm
- maximum mounting depth: 108 mm
- WRAS 240602019
- WRAS 2104049

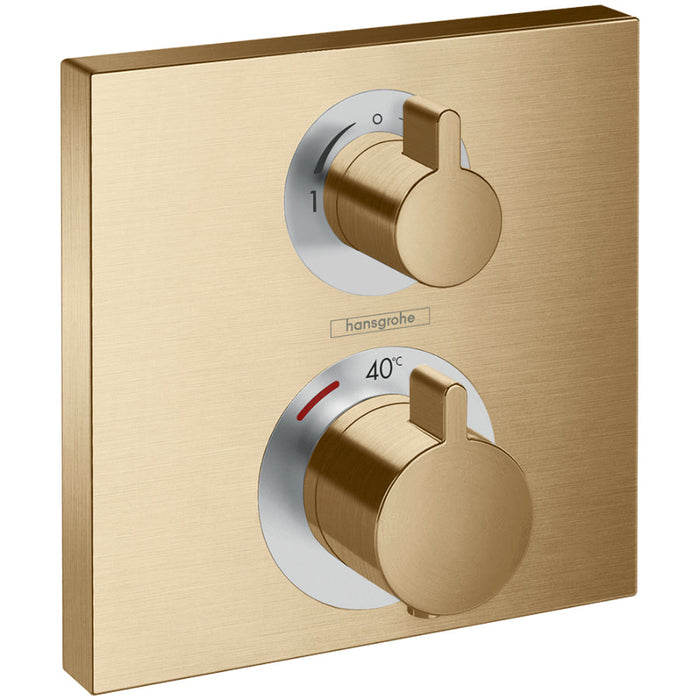

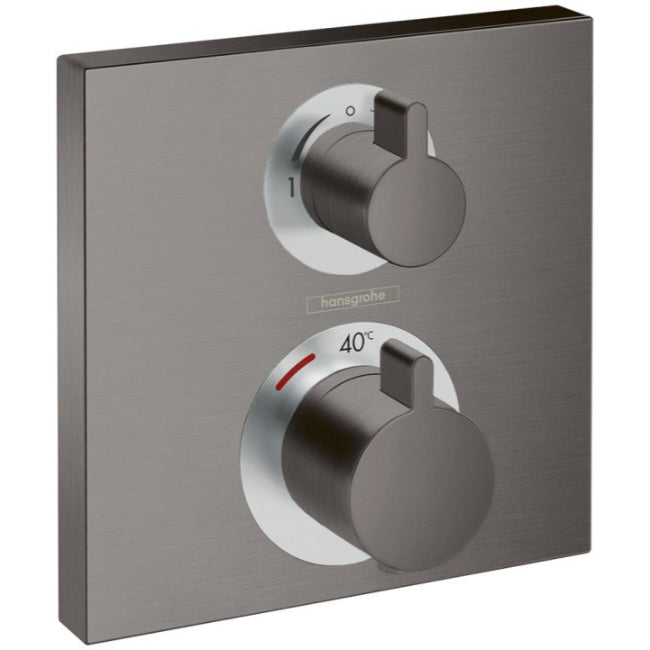

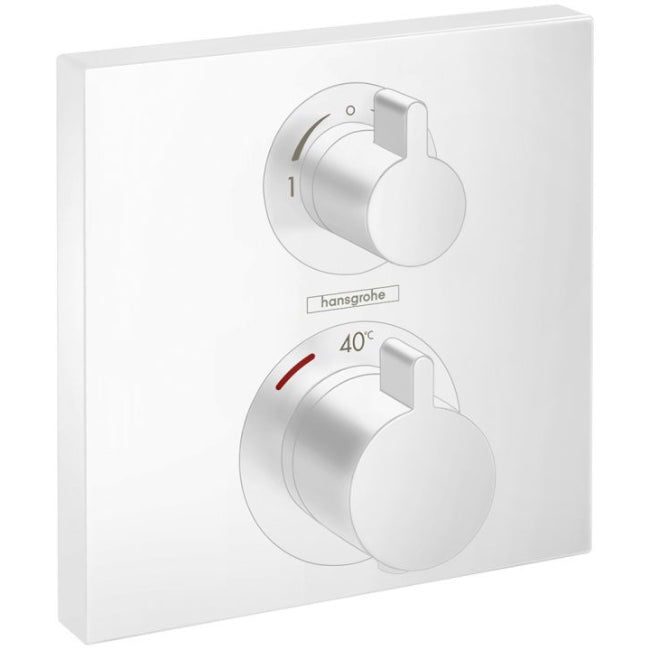

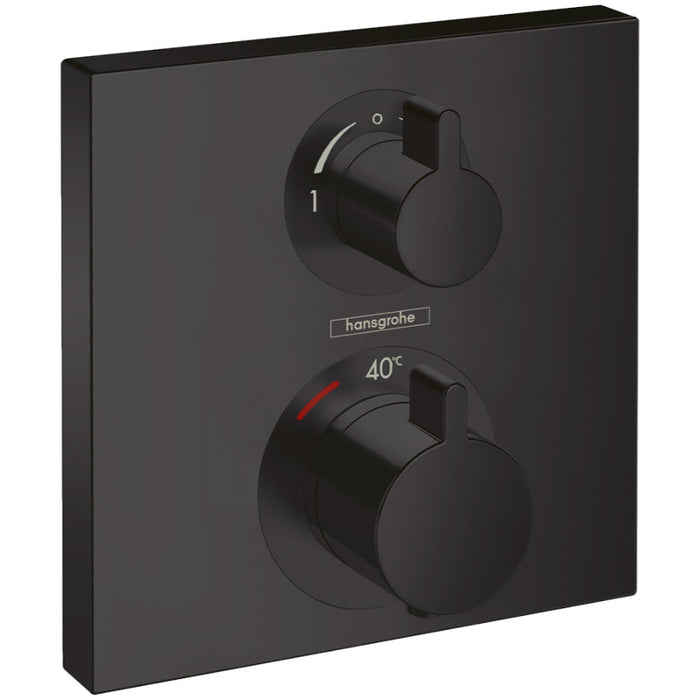

2 outlets Thermostatic mixer Features
- 2 outlets
- volume control and diverter for 2 outlets
- thermostatic mixer cartridge, shut-off/ diverter valve
- installation type: concealed installation
- maximum flow rate at 1 bar: 16 l/min
- flow rate upper outlet: 28 l/min
- flow rate lower outlet: 25 l/min
- maximum flow rate at 3 bar: 29 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- volume control
- Safety stop at 40 °C
- temperature limitation adjustable
- non-return valve
- connection type: basic set
- noise class: I
- WRAS 2308702

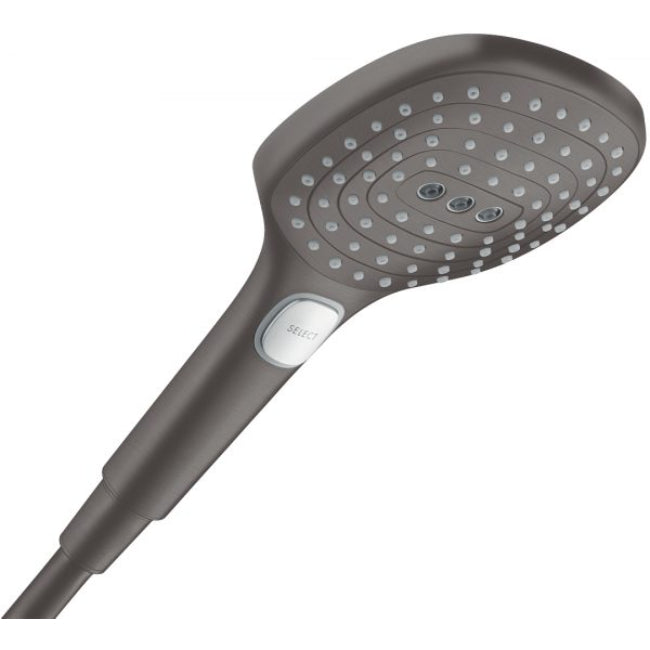

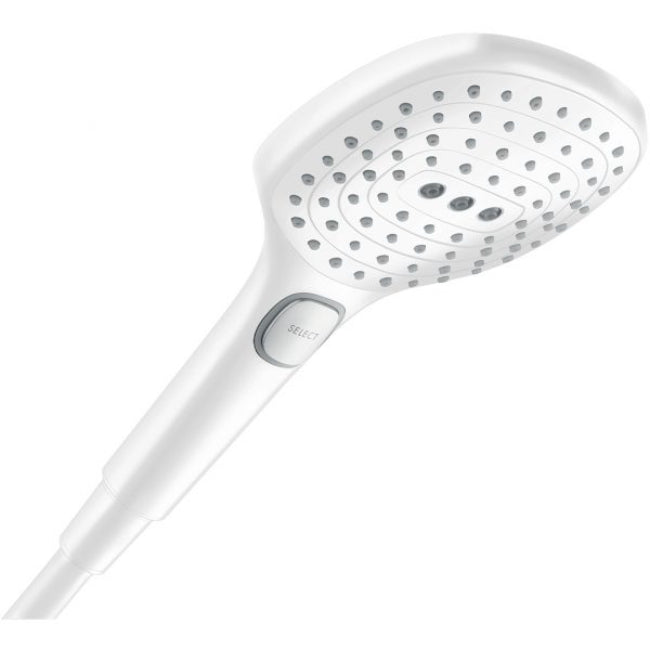

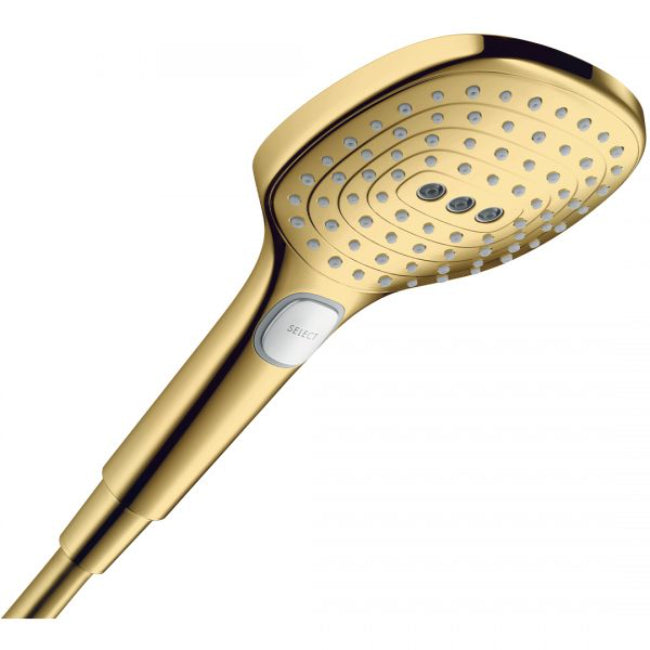

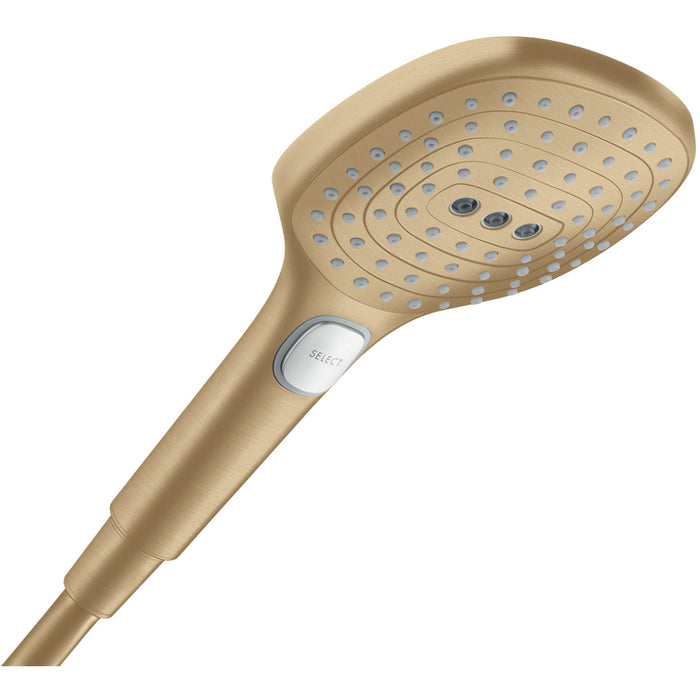

Hand shower Feature
- shower head size: 120 mm
- spray type: RainAir, Rain, Whirl
- convenient spray selection via Select button
- maximum flow rate at 3 bar: 14,4 l/min
- outlet from: 8 l/min
- minimum operation pressure: 1 bar
- operating pressure: min. 1 bar/max. 6 bar
- with internal water conduction
- rinseable filter washer
- connection thread: G ½
- winner of the if Product Design Award 2013
- WRAS 2210037

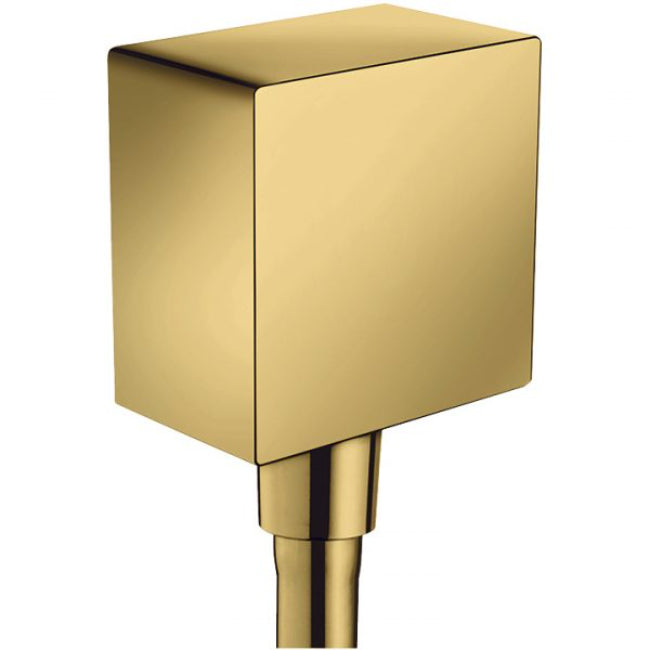

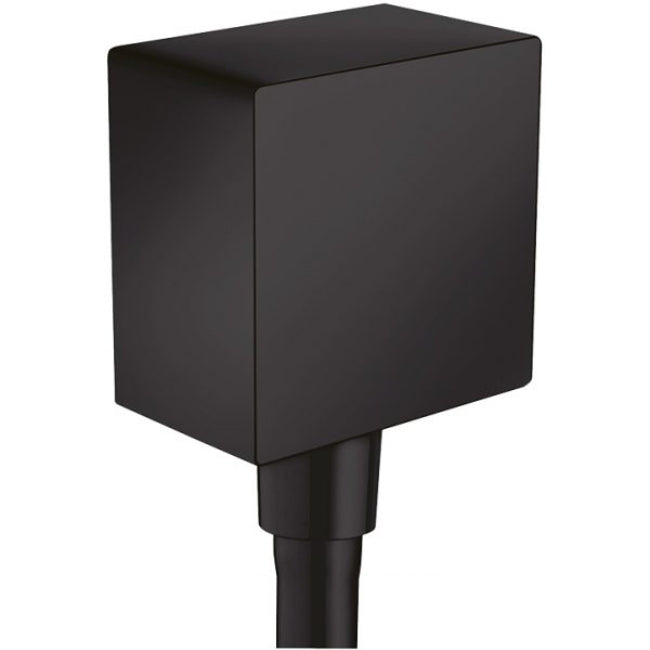

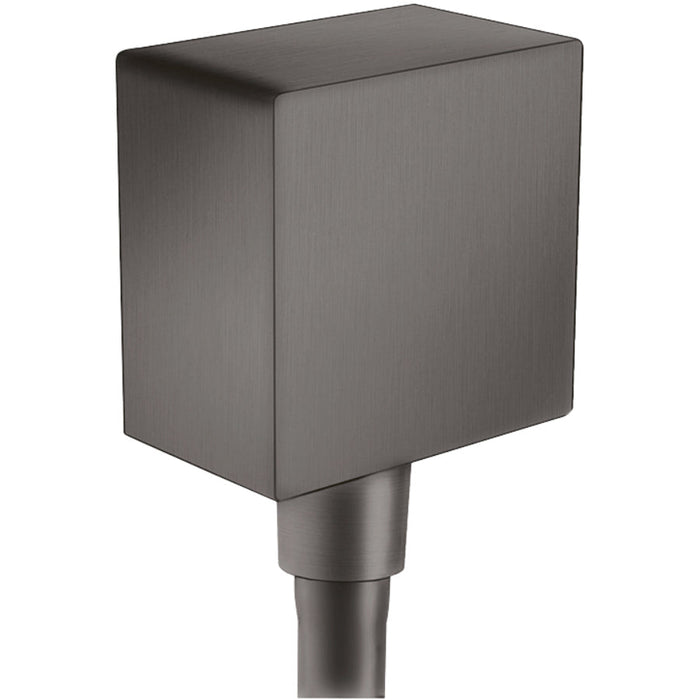

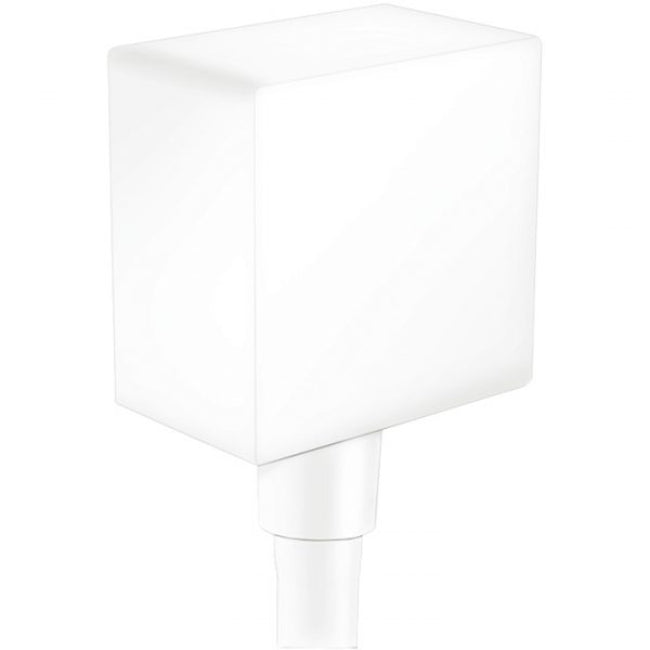

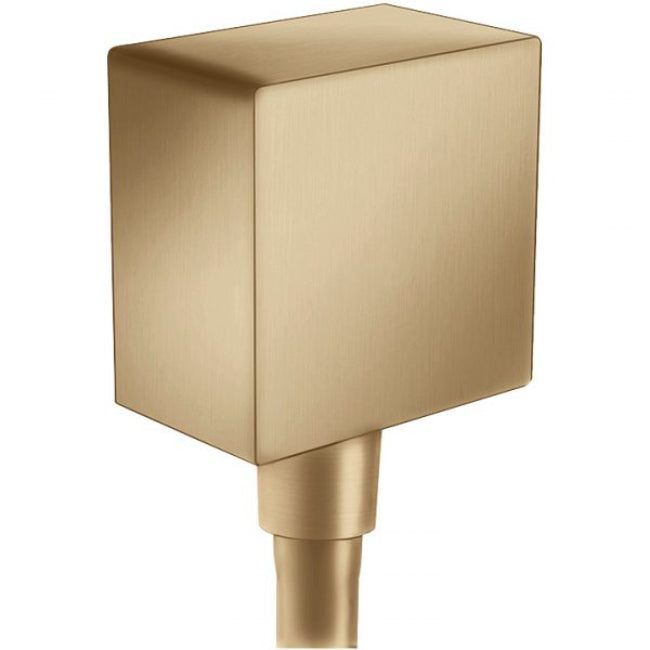

Wall outlet Features
- plastic connection angle
- non-return valve
- connection type: G ½
- connection thread ½"
- material cover: plastic

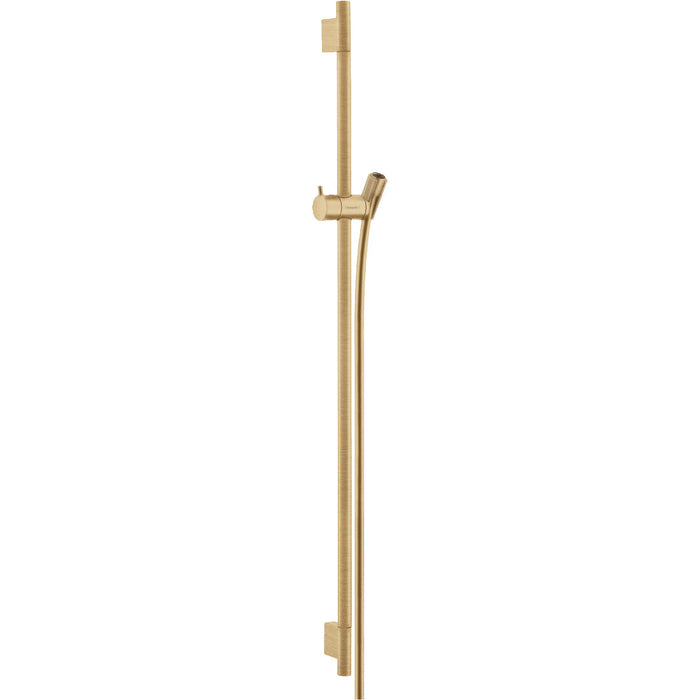

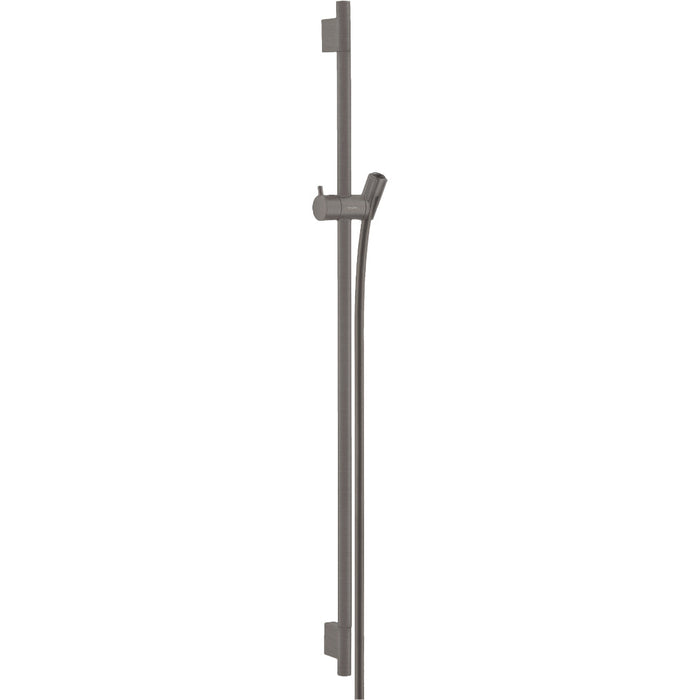

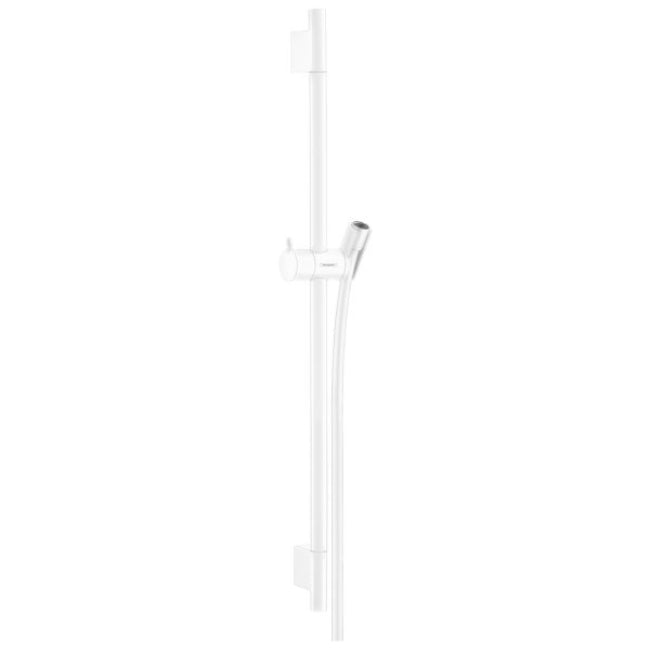

Shower rail Features
- consists of: shower rail, shower hose, slider
- pivot connector prevents hose from tangling
- shower rail diameter: 22 mm
- profile pipe: round
- drilling distance: 915 mm
- shower hose length: 1600 mm
- metal hand shower holder
- hand shower holder with locking mechanism
- hand shower holder sleeplessly adjustable
- wall supports made of plastic
bath filler Features
- consists of: cover, security plug
- suitable for standard and special bath tubs
- wide flood jet
- spray insert can be adjusted by 30°
- maximum flow rate at 3 bar: 19 l/min
- WRAS 2310052
Basic set for bath filler with waste Features,
- consists of: basic set, bathtub trap
- suitable for special bath tubs, with bellows for bath tubs with slanted bath rim
- supply hose water connection left DN20
- odour trap backwater height is 50 mm
- bowden cable length 780 mm
- third party controlled acc.: DIN EN 274-3
- WRAS 2310052
Symbol tub Features
- Five-year manufacturers guarantee
FITTING FOR BATH WASTES Features
Five-year manufacturers guarantee- View Less
