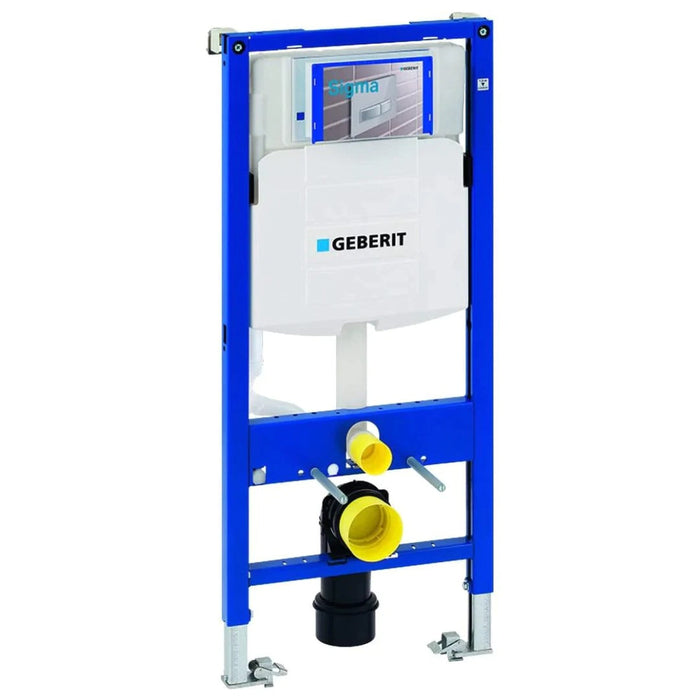

Geberit Sigma 112cm Wall Hung Concealed Cistern Frame
Stocks : 4 in stock, order now for immediate dispatch
Need us to hold your order?
We can hold your order in our warehouse and dispatch it in the new year when you're ready. Just add a note in the cart to let us know.
Product Information
The Geberit Sigma Toilet Installation Frame is a must-have for a sleek, modern bathroom. The 112cm Duofix UP320 Cistern Frame is concealed behind the wall, ensuring all flushing mechanics remain hidden. The cistern is front-mounted with anti-fog insulation, keeping it functional and efficient. Additionally, users can adjust the flush volume to suit their needs, making it customisable for different preferences.
The Sigma 112cm Duofix Cistern Installation Frame offers flexible solutions for drywall setups. The Geberit Duofix system enables the construction of complete toilet system walls, meeting both standard and unique requirements. Once installed, only the flush button is visible for a minimalist finish.
The Geberit Sigma 112cm Duofix UP320 Cistern Frame is an industry-leading solution, providing a reliable and adjustable installation for wall-hung toilets. The frame includes a concealed cistern and all necessary accessories to ensure a complete installation, offering long-term durability and ease of use.
Product Specifications:
- Brand: Geberit
- Range: Sigma
- Style: Modern
- Shape: Rectangular
- Floor clearance: 0-200mm
- Ceramic fixings: M12, set at 180mm or 230mm
- Mounting height: 1200mm
- Works with all wall-hung toilets available on our website
- Designed for use with all Sigma Flush Plates
- Can operate using treated rainwater (filtered through a system)
- Adjustable flush volume for personalised water usage
Special Features
- Supports up to 400kg
- Comes with all accessories required for installation
- Simple setup with 4 secure fixing points
- Compatible with Sigma Flush Buttons
- Powder-coated frame for durability
- Soundproofed outlet and thermal insulation
- Geberit Sigma 112cm Duofix UP320 Cistern Frame
- Wall-hung toilet (sold separately)
- Flush plate (sold separately)
- Wall mounting brackets (sold separately)
Dimensions
- Height: 1120mm
- Width: 500mm

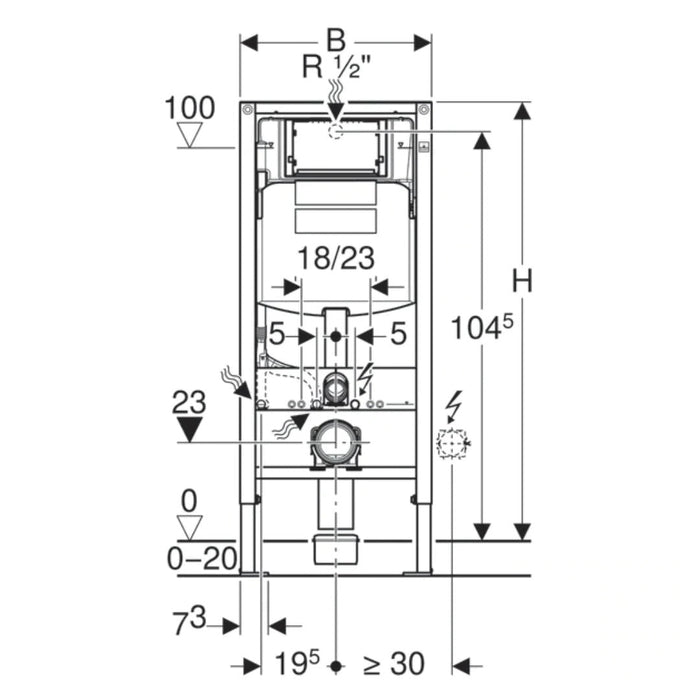

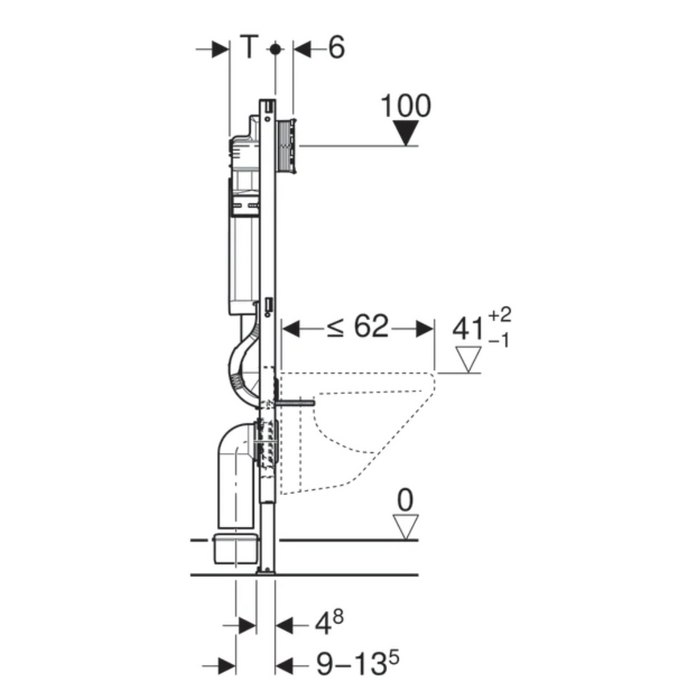

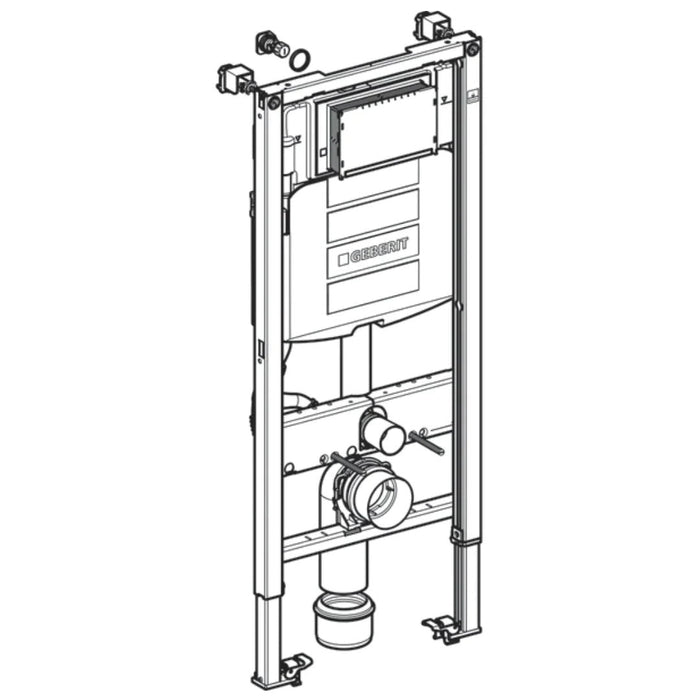

Technical Drawing
