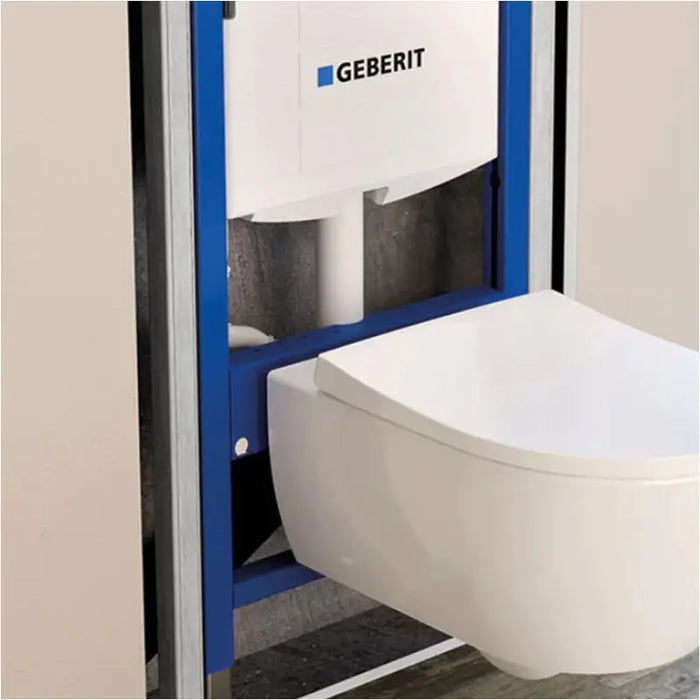

Geberit Sigma Wall Hung Concealed Cistern Frame

by Geberit
48 Hour Dispatch
Original price From €640.60
Original price €640.60
€641.00

From €641.00
Current price €641.00

Stocks : 1 in stock, order now for immediate dispatch

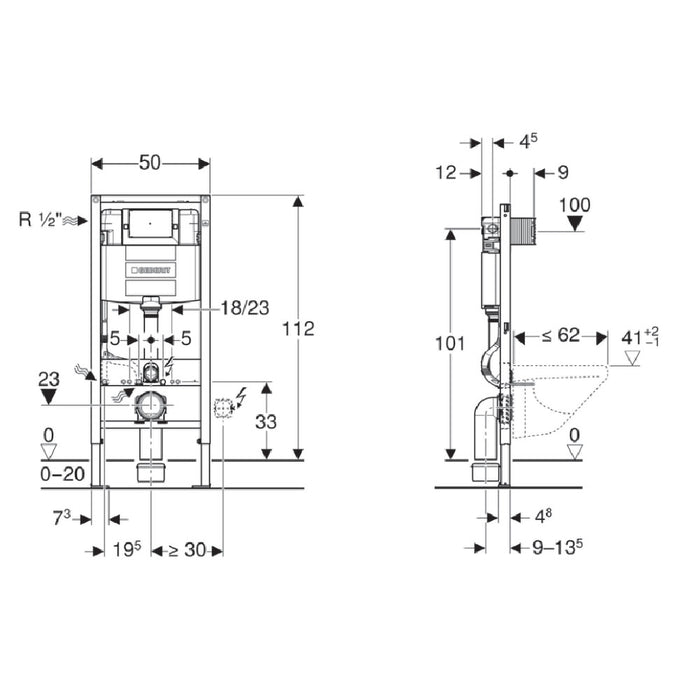

Frame Height: 112 cm

Product Description

To boost the functionality of your bathroom, Geberit introduces the Duofix WC Frame with cistern. The intelligently designed fixture in Ultramarine blue will add a unique touch to your bathroom decor while allowing you to fix a wall-hung WC unit. Includes a Sigma concealed cistern that is made from high-quality material for + View More
To boost the functionality of your bathroom, Geberit introduces the Duofix WC Frame with cistern. The intelligently designed fixture in Ultramarine blue will add a unique touch to your bathroom decor while allowing you to fix a wall-hung WC unit. Includes a Sigma concealed cistern that is made from high-quality material for strength and durability. Compatible with Sigma 10 or Tango flush plates, it comes with dual and single flush buttons and a protective cover. A complete package for installing the WC, it includes all necessary fixings.
  • For drywall construction.
  • For installation in part or room-height pre-wall installations.
  • For installation in room-height installation walls.
  • For installation in part or room-height Geberit Duofix system walls.
  • For wall-hung WCs with connection dimensions in accordance with EN 33:2011.
  • For wall-hung WCs with projection up to 620mm.
  • For floor constructions 0–200mm.
  • Connection bend can be mounted without tools at different depths, adjustable range of 450mm.
  • Concealed cistern with front actuation.
  • Concealed cistern, fully insulated against condensation.
  • Immediate post flush possible with factory setting.
  • Tool-free installation and maintenance work on the concealed cistern.
  • Water supply connection on the rear or top centre.
  • The protection cover box for service opening protects against moisture and dirt.
  • The protection box for service opening can be cut to length.
  • With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets.
  • Fastening option for electrical connection.
  • Power and Connect Box mountable.
  • Frame with Ø9mm drilling holes for fastening in wood frame construction.
  • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces.
  • Galvanised feet.
  • Feet adjustable 0–200mm.
  • Non-slip leg supports.
  • Rotatable foot plates.
  • Foot plate depth suitable for installation in U-profiles UW50 and UW75 and Geberit Duofix system rails.
  • Technical Details:.
  • Flow pressure range - 0.1 to 10 bar.
  • Operating temperature water maximum 25 °C.
  • Volume small range: 2-4 litres.
  • Volume factory setting 5.8 and 3 litres.
  • Scope Of Delivery:.
  • Protection box for service opening.
  • 2x wall anchors.
  • 2 fixing brackets.
  • Connection set for WC, Ø90 mm.
  • Connection bend 90° made of PE-HD, Ø90 mm.
  • 2x protection plugs.
  • Cup for flush volume reduction 4.0 / 2.6 l.
  • 2x threaded rods M12.
  • Fastening material.
  • Flush plate not included - need to be ordered separately.

- View Less
