Geberit Sigma 98cm Wall Hung Concealed Cistern Frame
Product Information

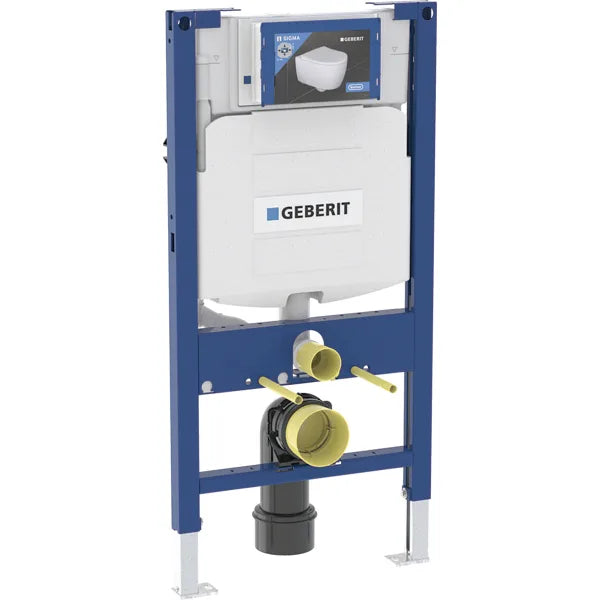

The Geberit Duofix Wall Hung WC Frame (980mm) & Sigma Concealed Cistern (12cm) is a durable, self-supporting unit with a blue and white powder-coated finish. Ideal for drywall and pre-wall installations, it features adjustable galvanised feet (0-20cm), non-slip leg supports, and rotatable foot plates for secure placement.
The concealed cistern is fully insulated against condensation, allows immediate post-flush, and supports tool-free installation and maintenance. It includes a sound-absorbing, adjustable connection bend and is compatible with Geberit AquaClean shower toilets.
Specification
- Product type: Wall Hung Toilet Frame
- Brand: Geberit
- Range: Sigma
- Style: Modern
- Shape: Rectangular
- Mounting: Floor
Special Features:
- Flush Volume: 5.8/3L (adjustable 3-4L)
- Flow Pressure: 0.1-10 bar
- Max Water Temp: 25°C
- Compatible with wall-hung WCs (up to 62cm projection) and suitable for drywall construction.
Dimensions
- Height: 980mm
- Width: 500mm

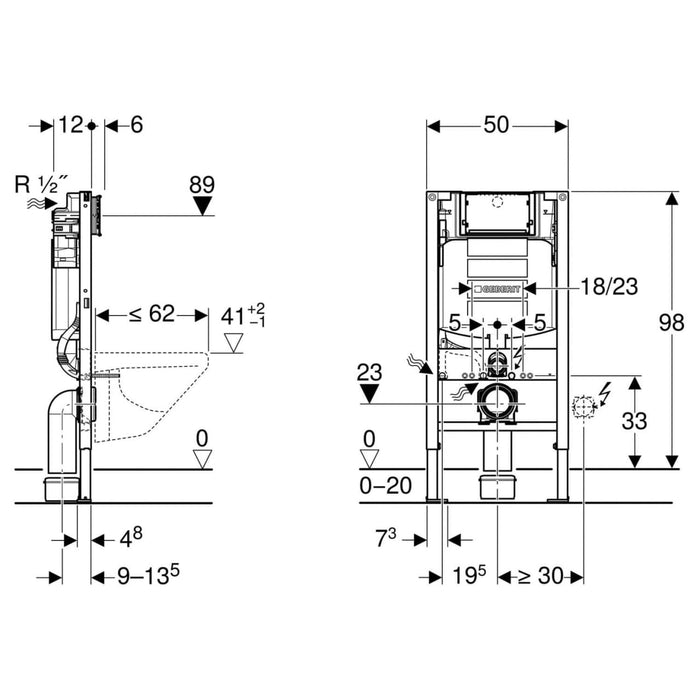

Technical Drawing
- View Less
Product Information
The Geberit Duofix Wall Hung WC Frame (980mm) & Sigma Concealed Cistern (12cm) is a durable, self-supporting unit with a blue and white powder-coated finish. Ideal for drywall and pre-wall installations, it features adjustable galvanised feet (0-20cm), non-slip leg supports, and rotatable foot plates for secure placement.
The concealed cistern is fully insulated against condensation, allows immediate post-flush, and supports tool-free installation and maintenance. It includes a sound-absorbing, adjustable connection bend and is compatible with Geberit AquaClean shower toilets.
Specification
- Product type: Wall Hung Toilet Frame
- Brand: Geberit
- Range: Sigma
- Style: Modern
- Shape: Rectangular
- Mounting: Floor
Special Features:
- Flush Volume: 5.8/3L (adjustable 3-4L)
- Flow Pressure: 0.1-10 bar
- Max Water Temp: 25°C
- Compatible with wall-hung WCs (up to 62cm projection) and suitable for drywall construction.
Dimensions
- Height: 980mm
- Width: 500mm
Technical Drawing
- View Less
