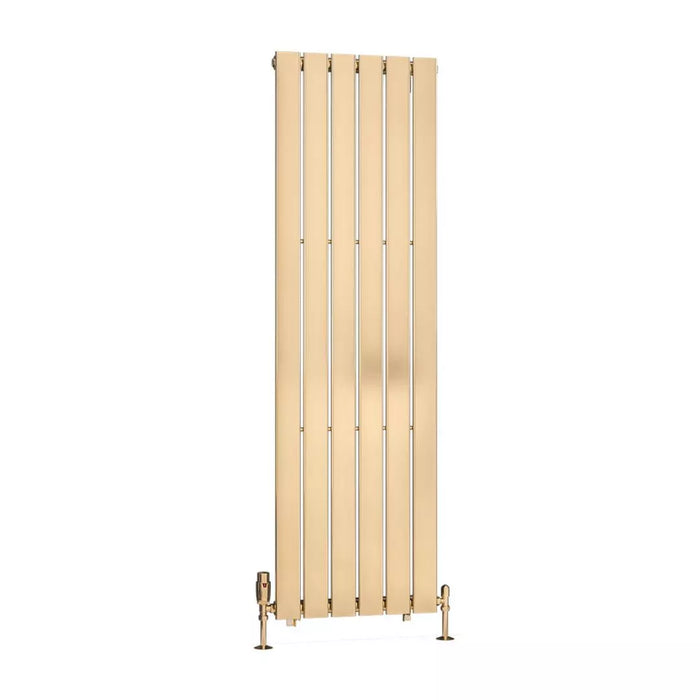

Eastbrook Warrington Type10 Designer Radiator - Brushed Brass
Order now for dispatch in approximately 4 weeks.
Product Information

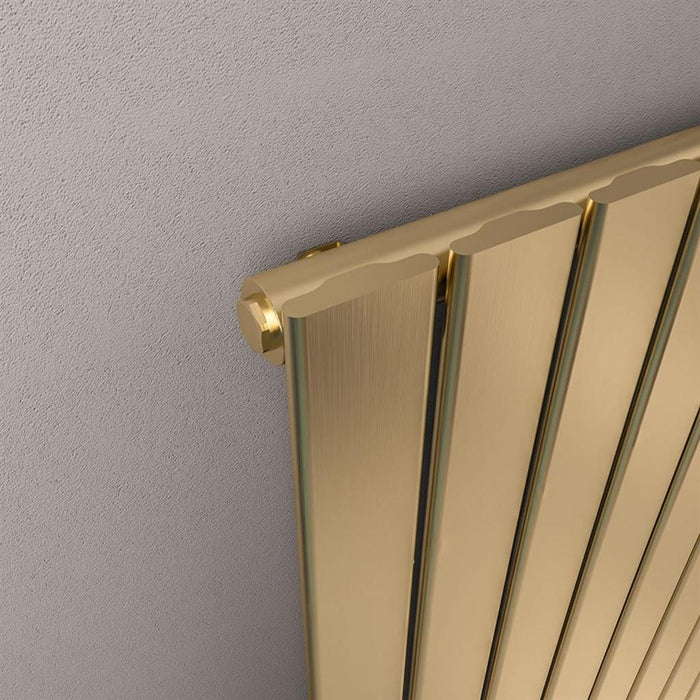

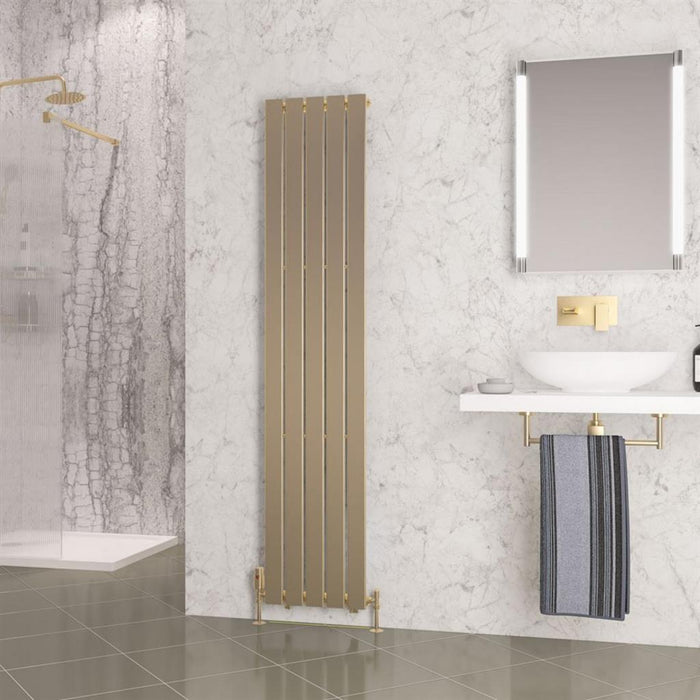

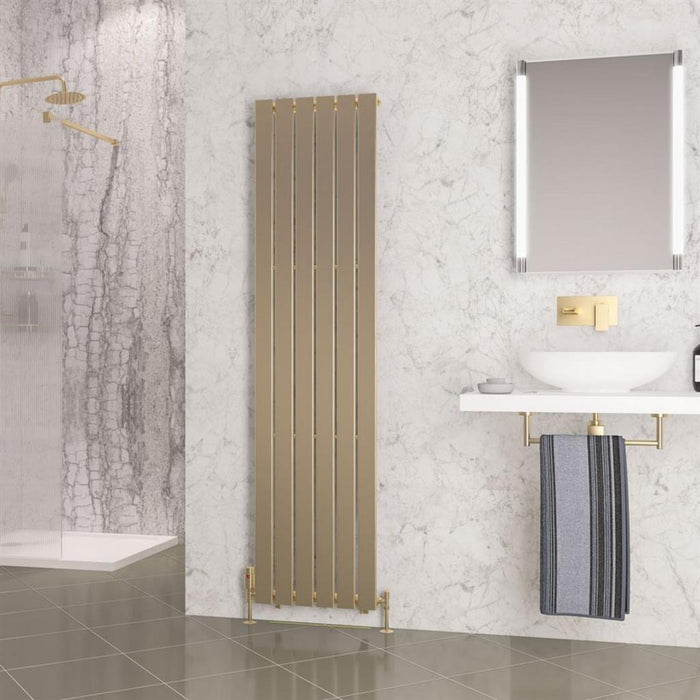

The Eastbrook Warrington Type 10 Designer Radiator in Brushed Brass combines luxurious styling with dependable heating performance, making it an excellent choice for contemporary bathrooms and modern living spaces. Manufactured from durable mild steel, this vertical wall-mounted radiator features a sleek single-profile construction with 68mm high x 12mm deep vertical bars, creating a streamlined and sophisticated appearance. Finished with a high-quality brushed brass PVD coating, it provides a premium look with enhanced durability, while the matching colour wall fixing sets complete the installation with a coordinated finish.
Tested to BS EN442 standards, the Warrington Type 10 radiator is designed specifically for indirect heating systems, with heat output based on Delta T30°C and T50°C. It features a pre-fitted flow diverter positioned in the middle of the bottom header to support efficient water circulation, while the tappings span the width of the rail and sit approximately 51mm from the wall. With a projection of 84mm, it offers an effective heating solution while maintaining a space-conscious profile. Corrosion inhibitor must be added to and maintained within the heating system. Backed by a 5-year warranty, this designer radiator delivers lasting quality, contemporary elegance, and reliable performance.
Specifications
- Warranty: 5 Years
- Product type: Designer Radiator
- Brand: Eastbrook
- Range: Warrington
- Colour: Brushed Brass
- Style: Modern
- Mounting: Wall
- Material: Mild Steel
- Orientation: Vertical
Special Features
- Single profile construction
- Height 68mm x Depth 12mm vertical bars
- Tested to BS EN442 standards
- High quality PVD Coating
- Matching colour wall fixing sets
- All measurements are in Height by Width
- Heat output based on Delta T30°C and T50°C
- For indirect heating systems only
- Comes with pre-fitted flow diverter, fitted in the middle of the bottom header
- Corrosion inhibitor must be added to the heating system and maintained
- Tappings are the width of the rail and approx. 51mm off the wall
- Projection from wall 84mm
- Images are shown for illustration purposes only
Dimensions:
- Depth: 84mm
Technical Specifications
|
Size |
Watts T30°C |
BTU T30°C |
Watts T50°C |
BTU T50°C |
|
1500mm x 300mm |
151 |
515 |
293 |
1000 |
|
1500mm x 376mm |
188 |
642 |
366 |
1249 |
|
1500mm x 452mm |
226 |
771 |
439 |
1497 |
|
1500mm x 528mm |
263 | 897 | 512 | 1746 |
|
1500mm x 604mm |
301 | 1027 | 585 | 1995 |
|
1800mm x 300mm |
192 | 655 | 383 | 1307 |
|
1800mm x 376mm |
240 | 819 | 479 | 1634 |
|
1800mm x 452mm |
288 | 983 | 575 | 1961 |
|
1800mm x 528mm |
336 | 1146 | 670 | 2285 |
|
1800mm x 604mm |
384 | 1310 | 766 | 2613 |
Assembling instructions for Type10 Designer Radiator
Datasheet for 1500mm x 300mm Designer Radiator
Datasheet for 1500mm x 376mm Designer Radiator
Datasheet for 1500mm x 452mm Designer Radiator
Datasheet for 1500mm x 528mm Designer Radiator
Datasheet for 1500mm x 604mm Designer Radiator
Datasheet for 1800mm x 300mm Designer Radiator
Datasheet for 1800mm x 376mm Designer Radiator
Datasheet for 1800mm x 452mm Designer Radiator
Datasheet for 1800mm x 528mm Designer Radiator
Datasheet for 1800mm x 604mm Designer Radiator

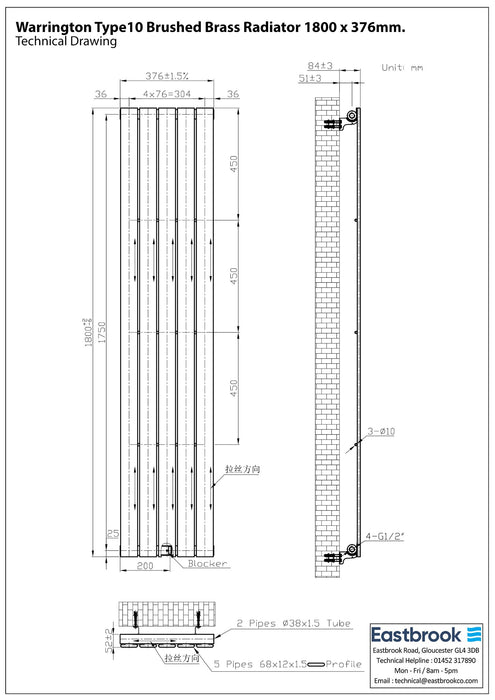

Technical Drawing

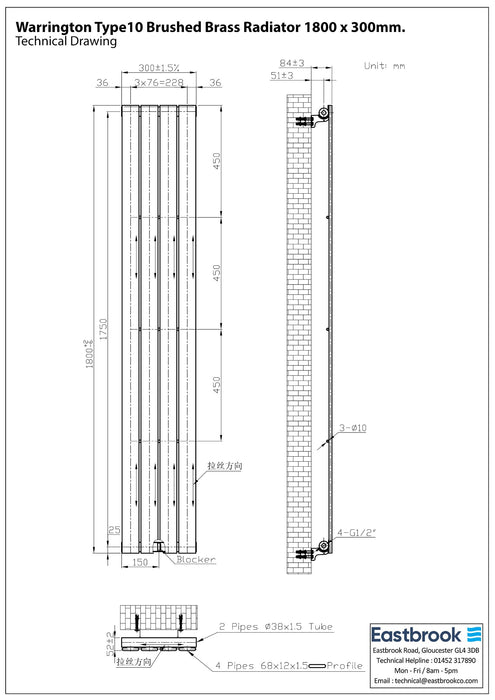

1800mm x 300mm
1800mm x 376mm
1800mm x 452mm

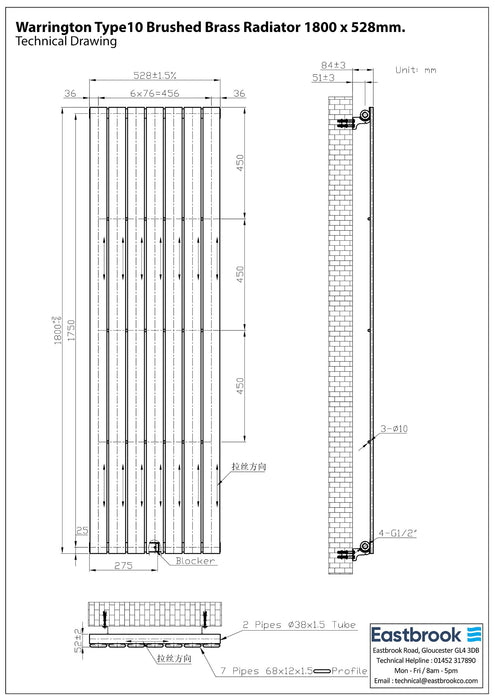

1800mm x 528mm

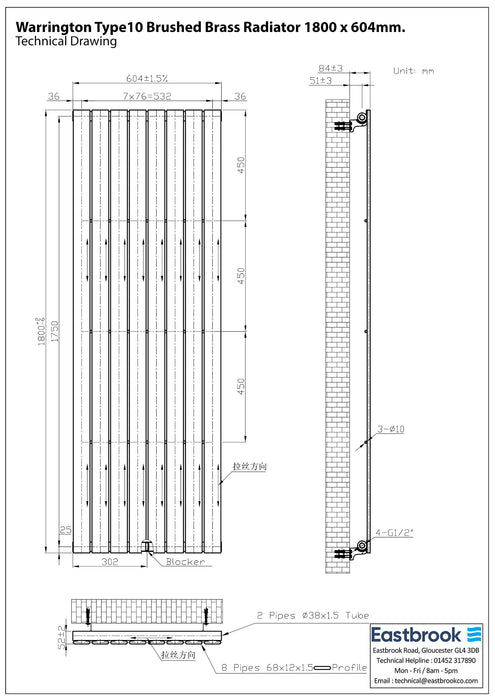

1800mm x 604mm
- View Less
