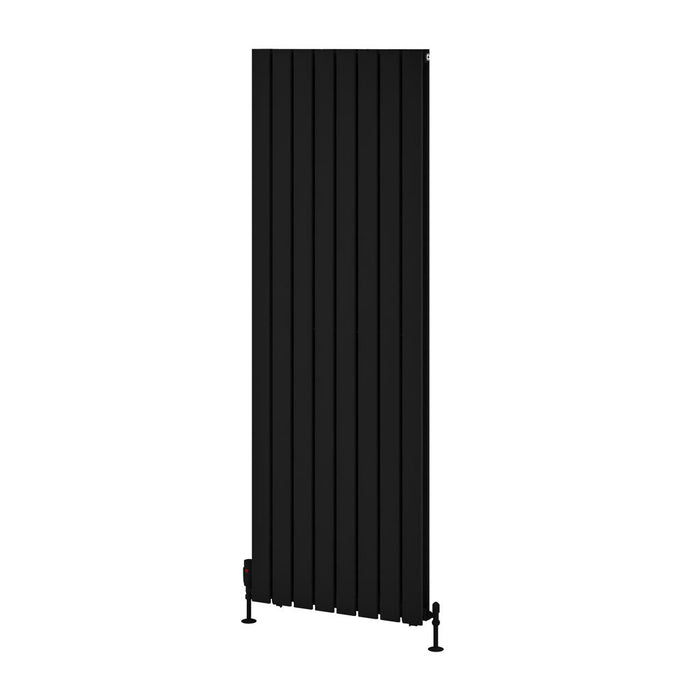

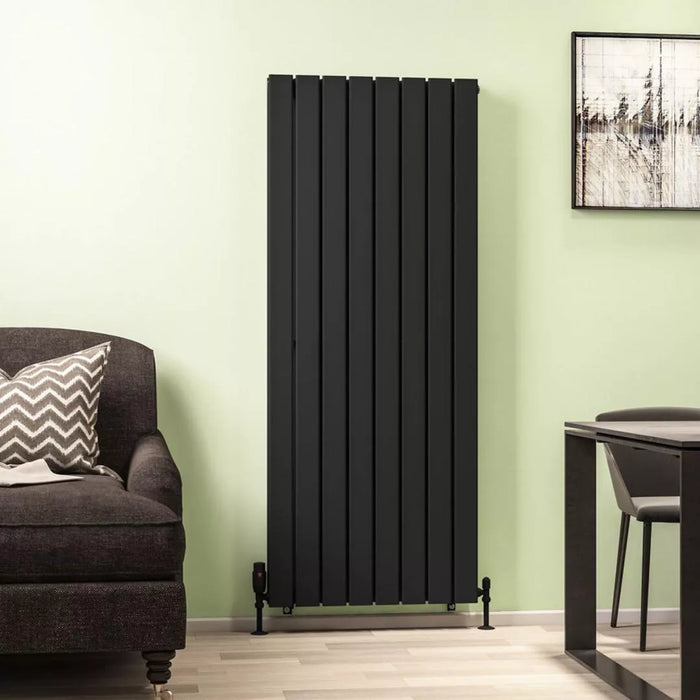

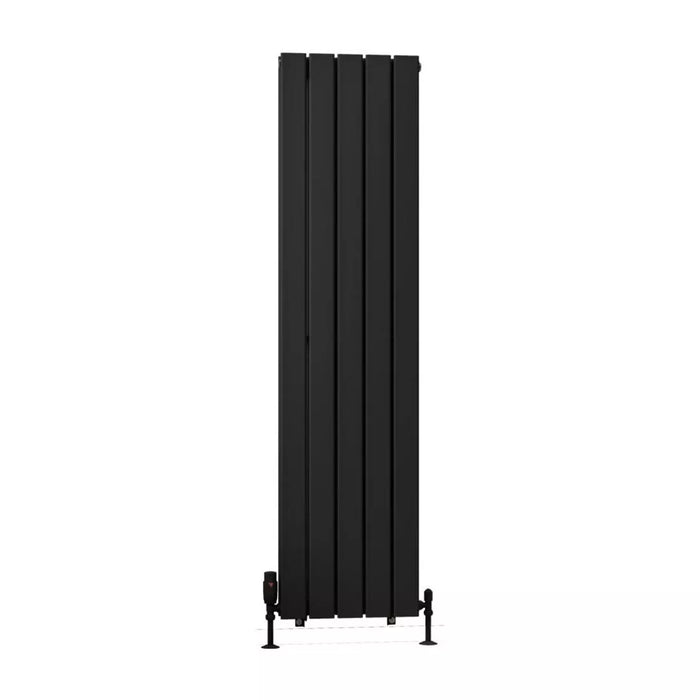

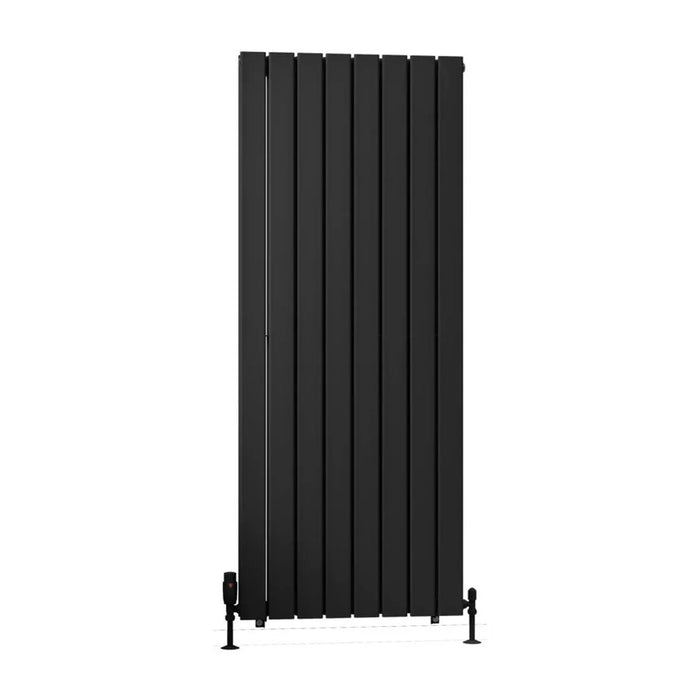

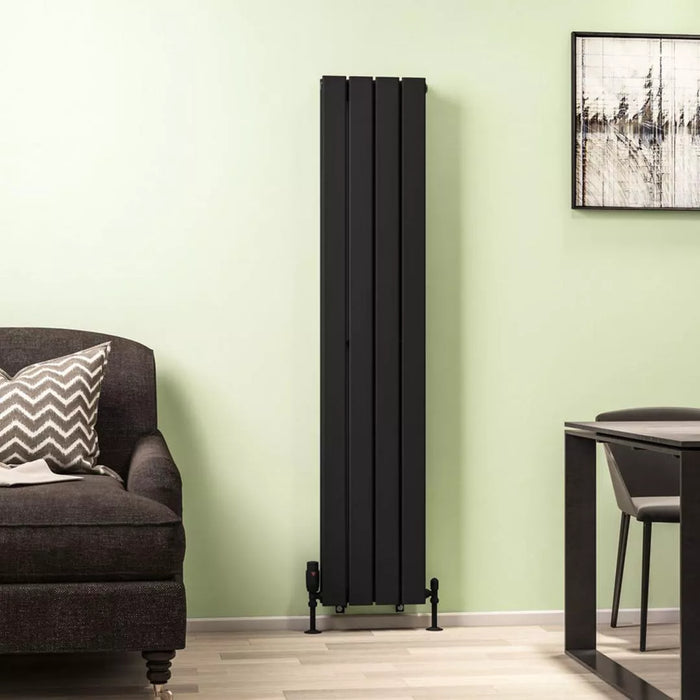

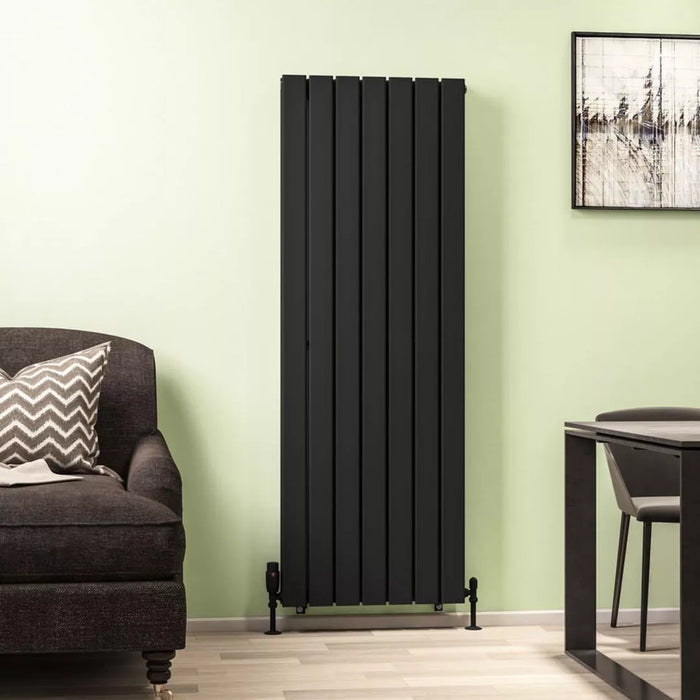

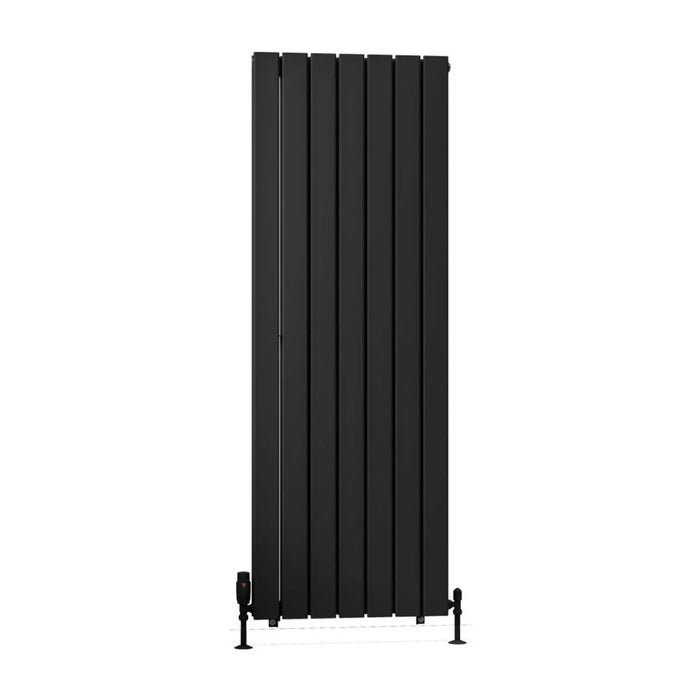

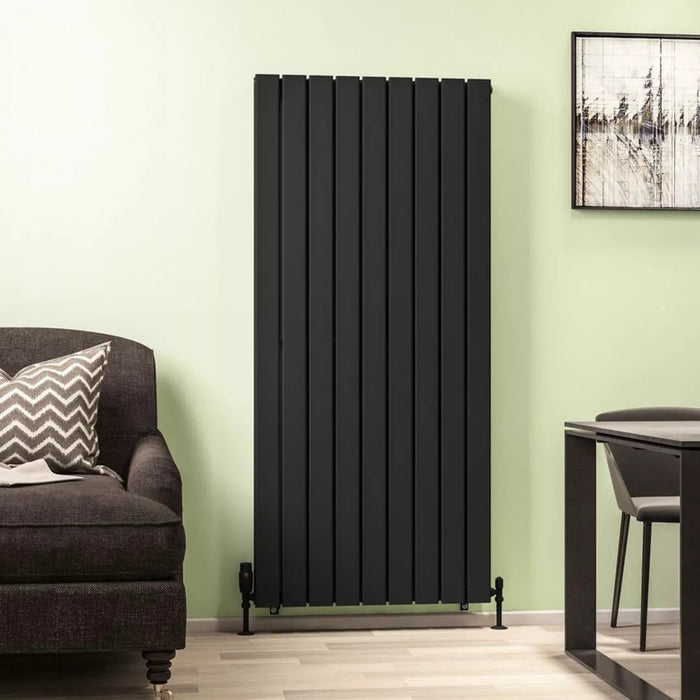

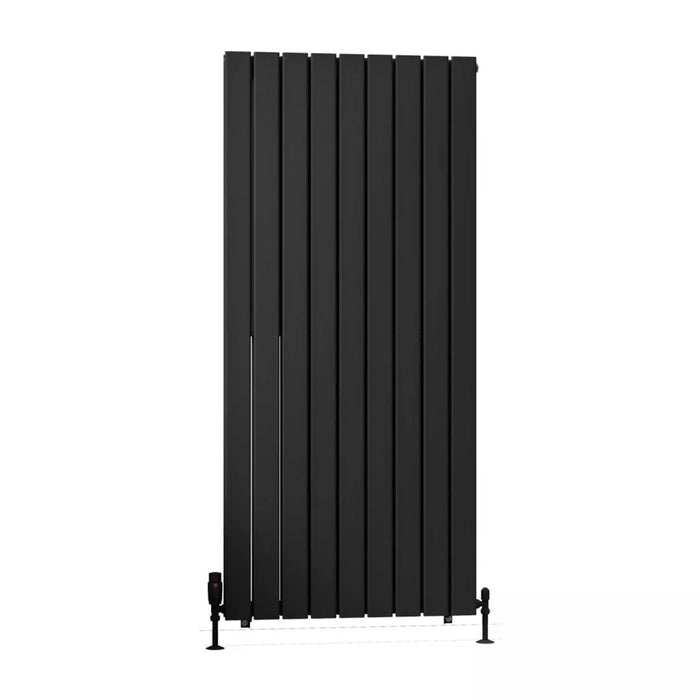

Eastbrook Warrington Type 20 Vertical Designer Radiator Matt Black

Name: Eastbrook Warrington Type 20 Vertical Designer Radiator Matt Black
Brand: Eastbrook
SKU: EAS41.1164
Price: 386.0 EUR
Availability: InStock

by Eastbrook

From €429.27

€429.27

€386.00

€429.27

From €386.00

€386.00

Save 10%

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch

Estimated Collection: 1 week

Estimated Delivery: 2 weeks

Select Your Options

Quantity

Product Information

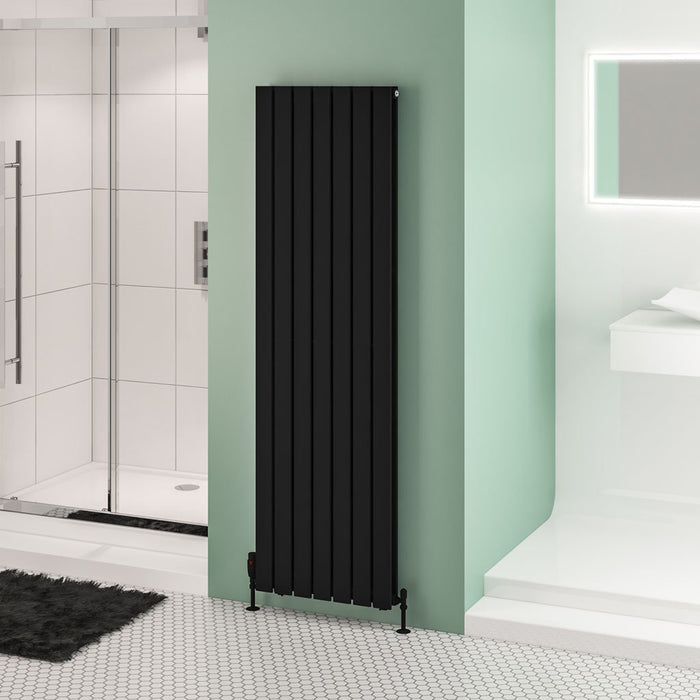

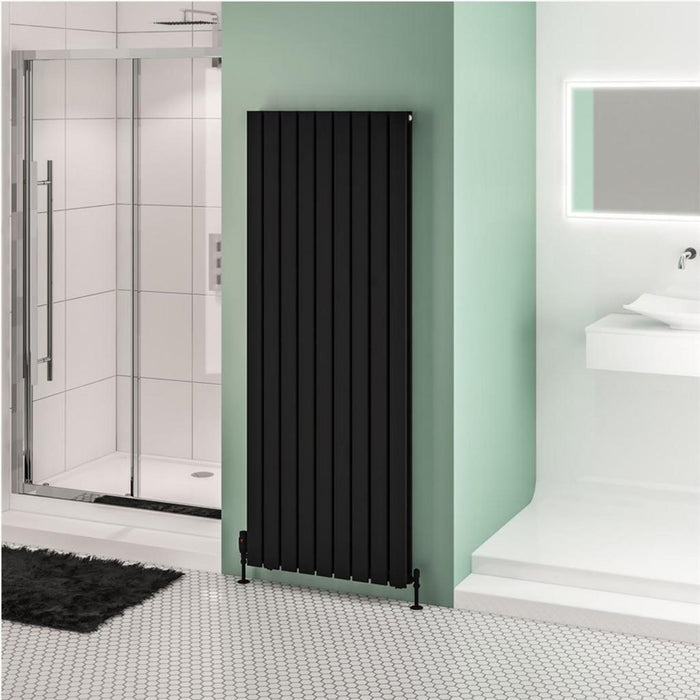

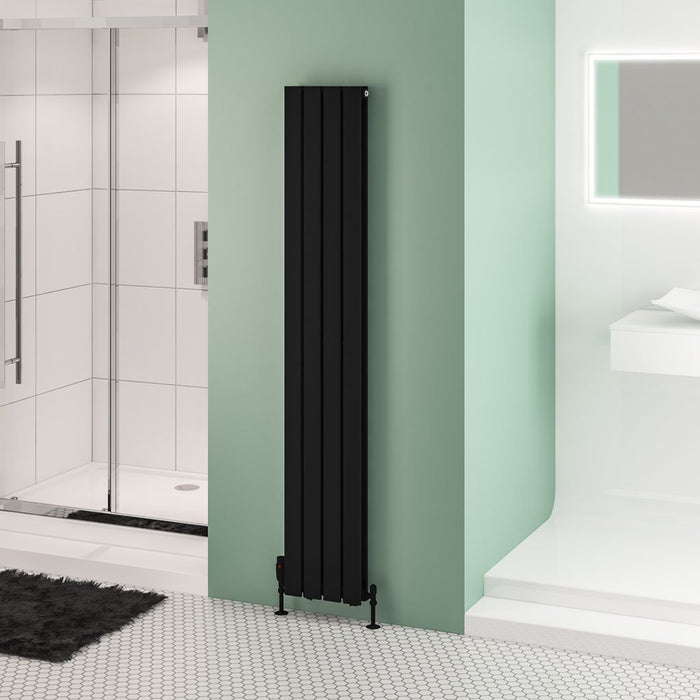

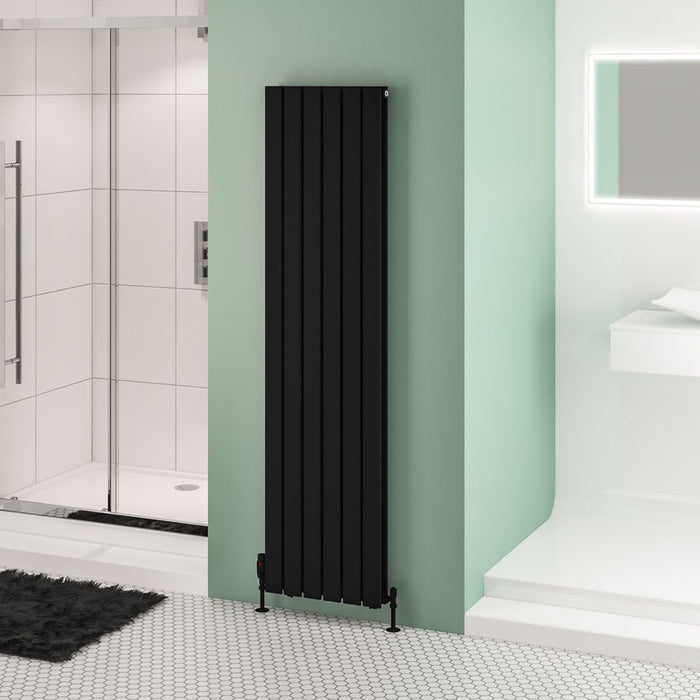

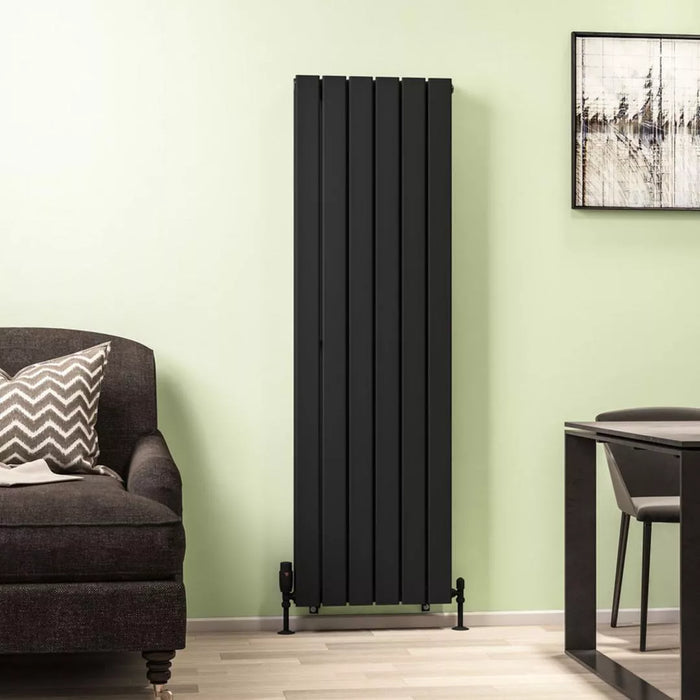

The Eastbrook Warrington Type 20 Vertical Designer Radiator in Matt Black combines bold contemporary aesthetics with dependable heating performance, making it a striking addition to modern bathrooms and living spaces. Manufactured from durable mild steel, this wall-mounted radiator features a double-profile construction with + View More

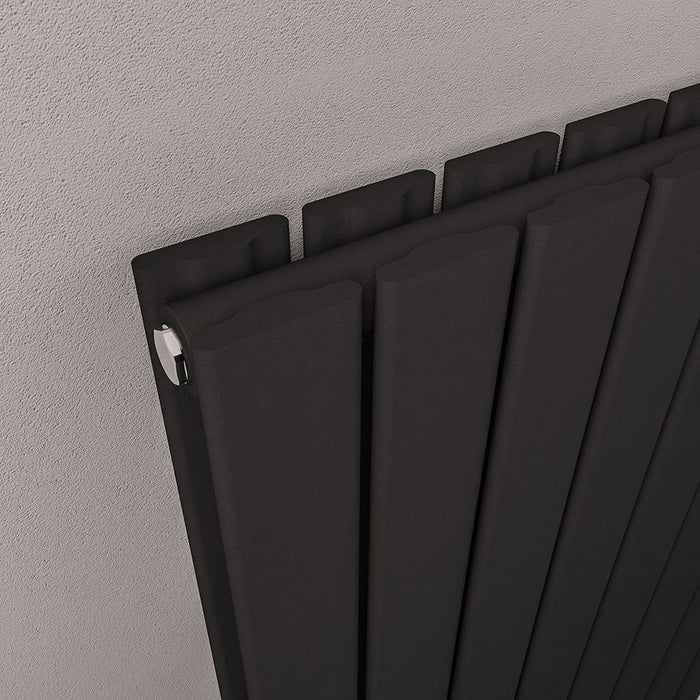

The Eastbrook Warrington Type 20 Vertical Designer Radiator in Matt Black combines bold contemporary aesthetics with dependable heating performance, making it a striking addition to modern bathrooms and living spaces. Manufactured from durable mild steel, this wall-mounted radiator features a double-profile construction with 68mm high x 12mm deep vertical bars, creating a strong, streamlined appearance. The sophisticated matt black finish adds a modern designer touch, while matching colour wall fixing sets provide a neat and coordinated installation.

Tested to BS EN442 standards, the Warrington Type 20 radiator is designed for indirect heating systems, with heat output based on Delta T30°C and T50°C. It comes with a pre-fitted flow diverter positioned in the middle of the bottom header to support efficient water circulation, while the tappings span the width of the rail and sit approximately 51mm from the wall. With a projection of 84mm, it provides effective heating while maintaining a practical wall profile. The radiator is not suitable for heating elements, and corrosion inhibitor must be added to and maintained within the heating system. Backed by a 5-year warranty, it delivers reliable performance, lasting durability, and contemporary style.

Product Specifications:

Warranty: 5 Years
Product Type: Designer Radiator
Brand: Eastbrook
Collection: Warrington
Finish: Matt Black
Style: Modern
Mounting: Wall
Material: Mild Steel

Special Features:

Easy to install and use
Images are shown for illustration purposes only
Double profile construction.
Height 68mm x Depth 12mm vertical bars.
Tested to BS EN442 standards.
Not suitable for elements.
Matching colour wall fixing sets.
Heat output based on Delta T30°C and T50°C.
For indirect heating systems only.
Comes with pre-fitted flow diverter, fitted in the middle of the bottom header.
Corrosion inhibitor must be added to the heating system and maintained.
Tapings are the width of the rail and approx. 51mm off the wall.
Projection from wall 84mm.

Dimensions:

Depth: 84mm

Technical Specifications

Size	Watts T30°C	BTU T30°C	Watts T50°C	BTU T50°C
1500mm x 304mm	372	1269	721	2459
1500mm x 380mm	466	1590	902	3076
1500mm x 456mm	559	1907	1082	3690
1500mm x 532mm	652	2224	1262	4304
1500mm x 608mm	745	2541	1443	4921
1500mm x 684mm	838	2858	1623	5535

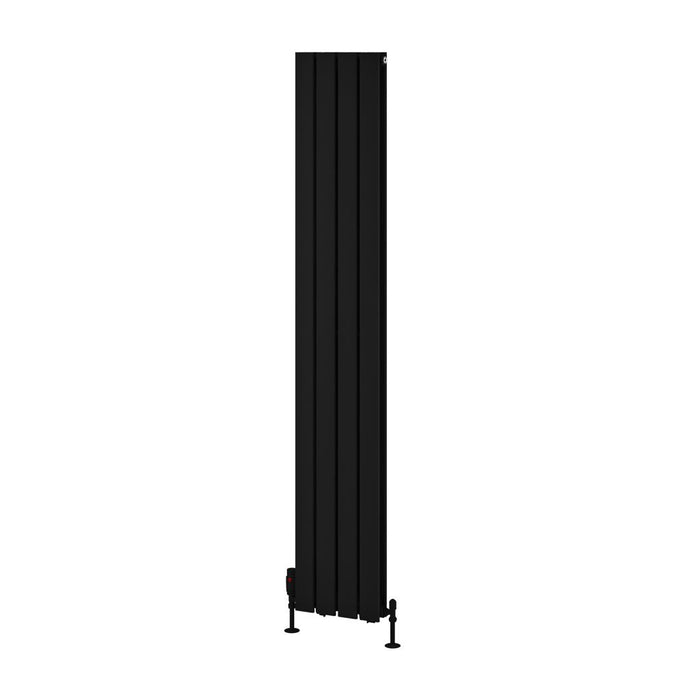

1800mm x 304mm	468	1596	902	3076
1800mm x 380mm	584	1992	1127	3844
1800mm x 456mm	701	2391	1352	4611

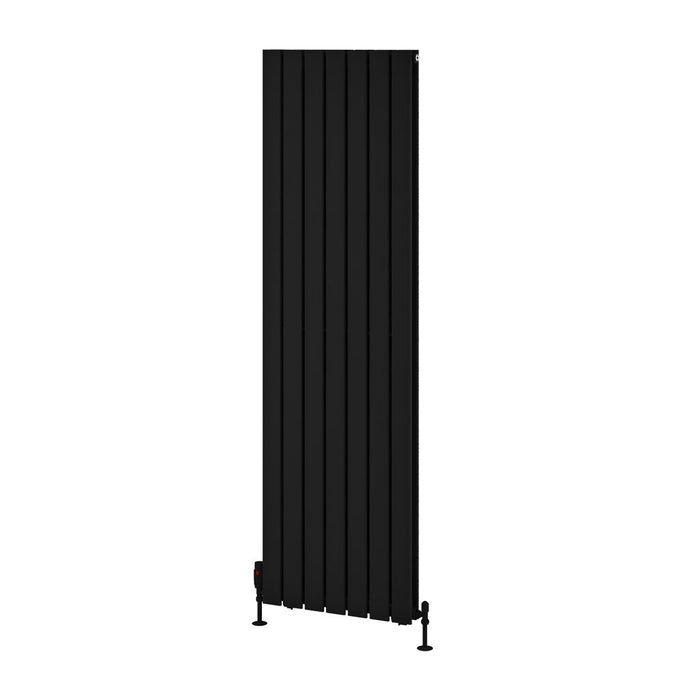

1800mm x 532mm	818	2790	1578	5381
1800mm x 608mm	935	3189	1803	6149

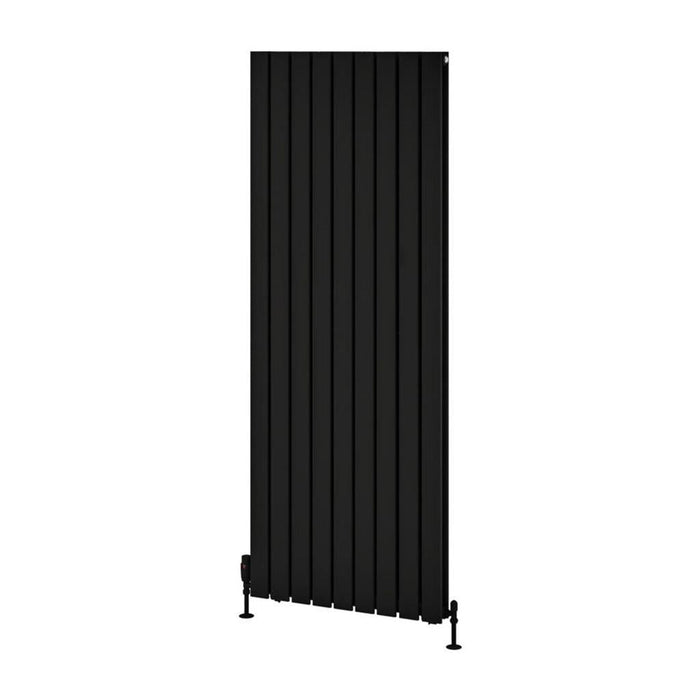

1800mm x 684mm	1052	3588	2028	6916

Assembling instructions for Vertical Designer Radiator

Datasheet for 1500mm x 304mm Vertical Designer Radiator

Datasheet for 1500mm x 380mm Vertical Designer Radiator

Datasheet for 1500mm x 456mm Vertical Designer Radiator

Datasheet for 1500mm x 532mm Vertical Designer Radiator

Datasheet for 1500mm x 608mm Vertical Designer Radiator

Datasheet for 1500mm x 684mm Vertical Designer Radiator

Datasheet for 1800mm x 304mm Vertical Designer Radiator

Datasheet for 1800mm x 380mm Vertical Designer Radiator

Datasheet for 1800mm x 456mm Vertical Designer Radiator

Datasheet for 1800mm x 532mm Vertical Designer Radiator

Datasheet for 1800mm x 608mm Vertical Designer Radiator

Datasheet for 1800mm x 684mm Vertical Designer Radiator

Technical Drawing

1800mm x 304mm

1800mm x 380mm

1800mm x 456mm

1800mm x 532mm

1800mm x 608mm

1800mm x 684mm
