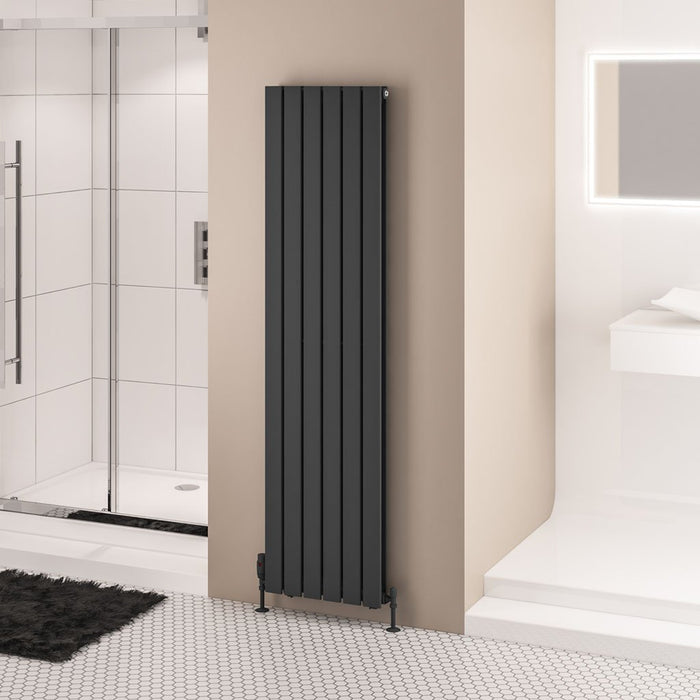

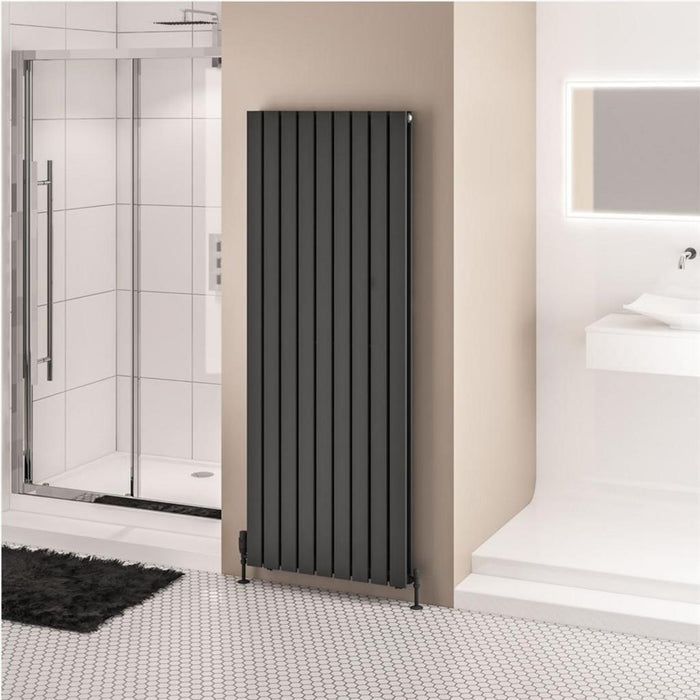

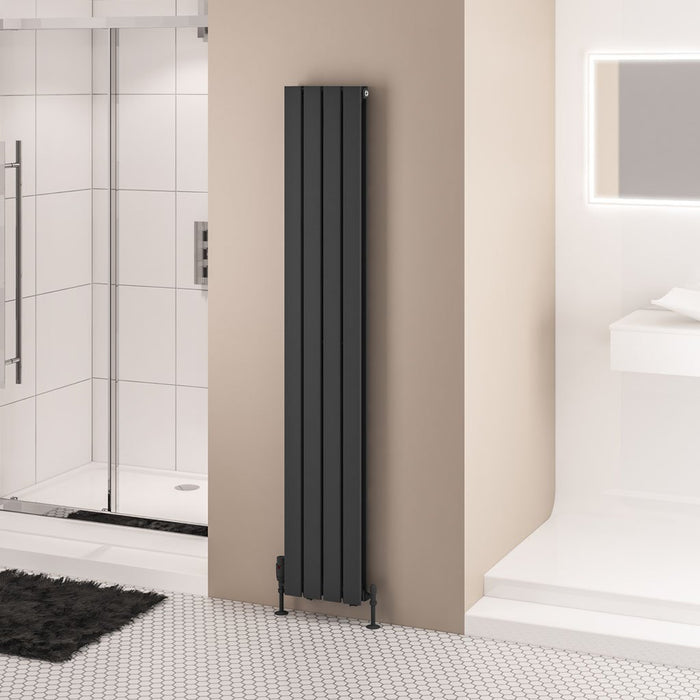

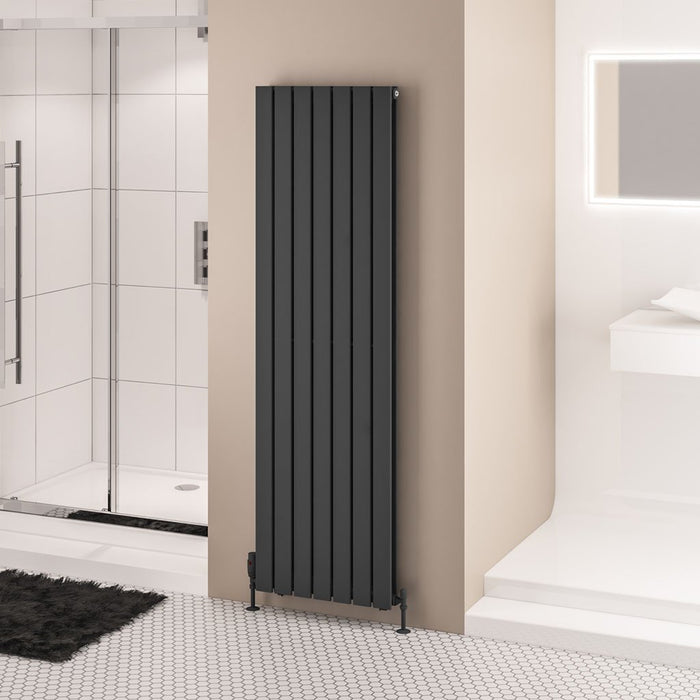

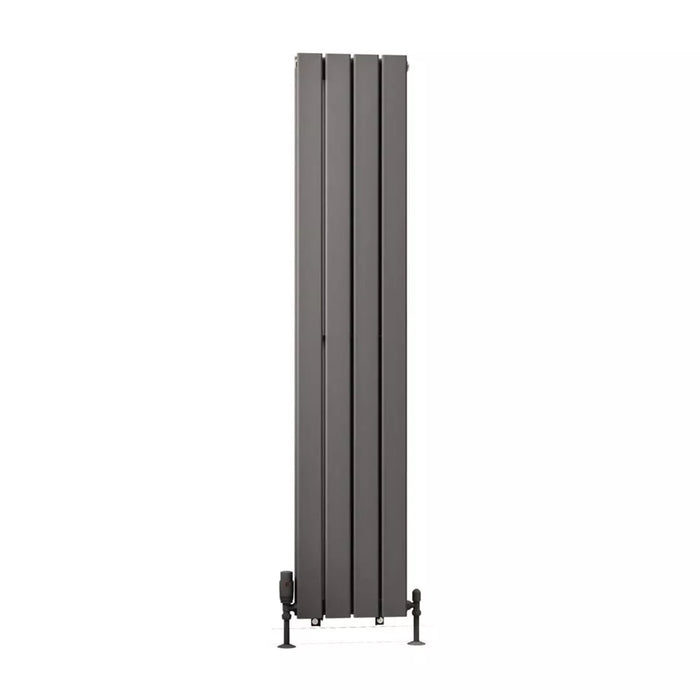

Eastbrook Warrington Type 20 Vertical Designer Radiator Matt Anthracite
Order now for dispatch in approximately 4 weeks.
Product Information

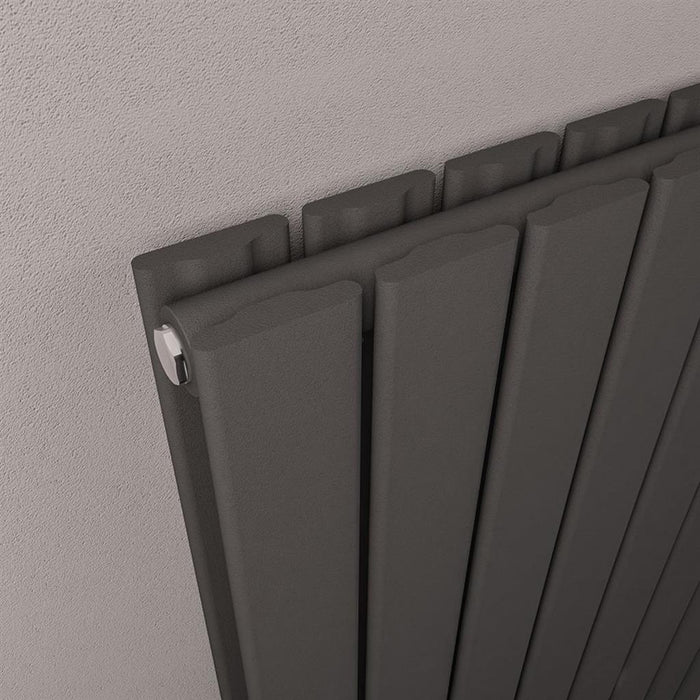

The Eastbrook warrington type 20 designer radiator in matt anthracite combines modern aesthetics with efficient performance. Made from mild steel, it features a wall-mounted design with double profile construction and vertical bars measuring 68mm in height and 12mm in depth. With a range of sizes available, it provides flexibility for various room sizes and heating needs. The radiator projects 84mm from the wall, offering a sleek and contemporary look.Tested to bs en442 standards, it is suitable for indirect heating systems only and includes a pre-fitted flow diverter for optimal heat distribution. Matching colour wall fixings are included, and it comes with a 5-year guarantee.
Product Specifications:
- Guarantee: 5 Years
- Brand: Eastbrook
- Collection: Warrington
- Finish: Matt Anthracite
- Style: Modern
- Mounting: Wall
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Double profile construction.
- Height 68mm x Depth 12mm vertical bars.
- Tested to BS EN442 standards.
- Not suitable for elements.
- Matching colour wall fixing sets.
- Heat output based on Delta T 60°C.
- For indirect heating systems only.
- Comes with pre-fitted flow diverter, fitted in the middle of the bottom header.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are the width of the rail and approx. 51mm off the wall.
- Projection from wall 84mm.
Dimensions:
- Depth: 84mm
|
Size |
Watts ?T60°C |
Watts ?T50°C |
BTU ?T60°C |
BTU ?T50°C |
|
1800mm x 304mm |
1367 |
1068 |
4664 |
3643 |
|
1800mm x 380mm |
1709 |
1335 |
5831 |
4555 |
|

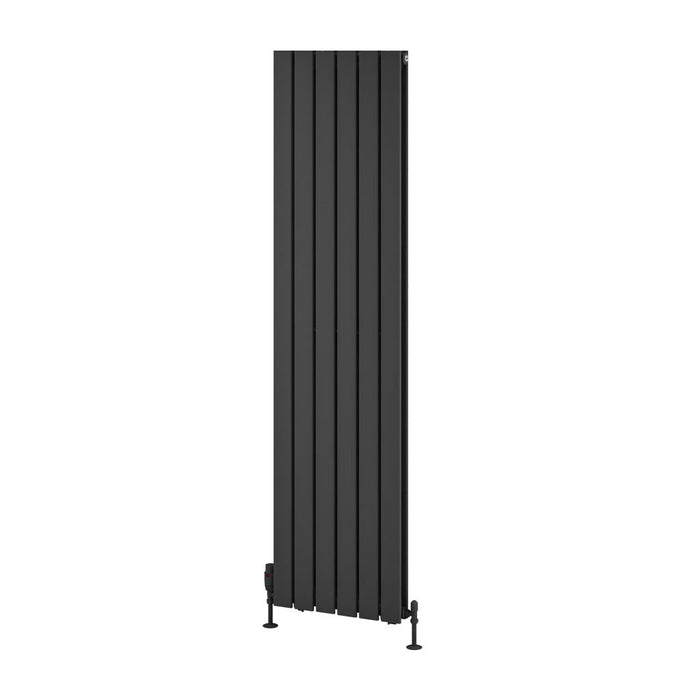

1800mm x 456mm |
2050 |
1602 |
6995 |
5494 |
|

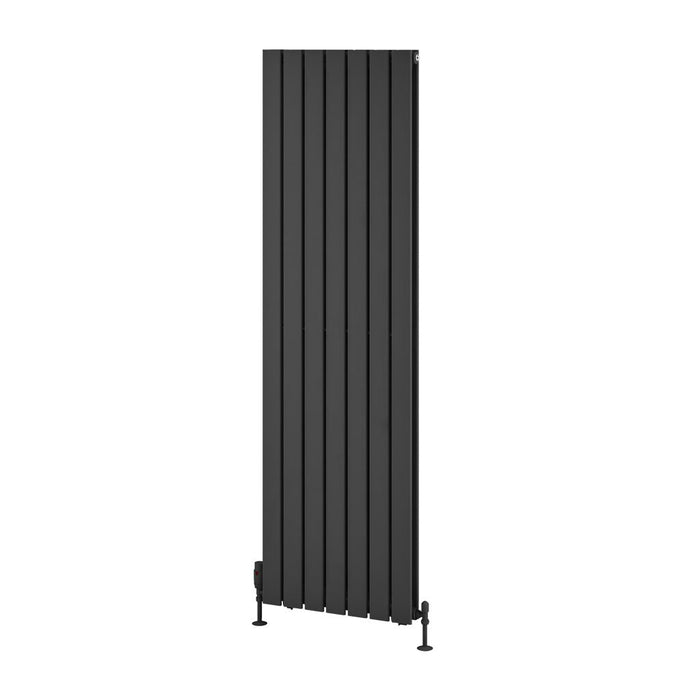

1800mm x 532mm |
2293 |
1791 |
8165 |
6377 |
|

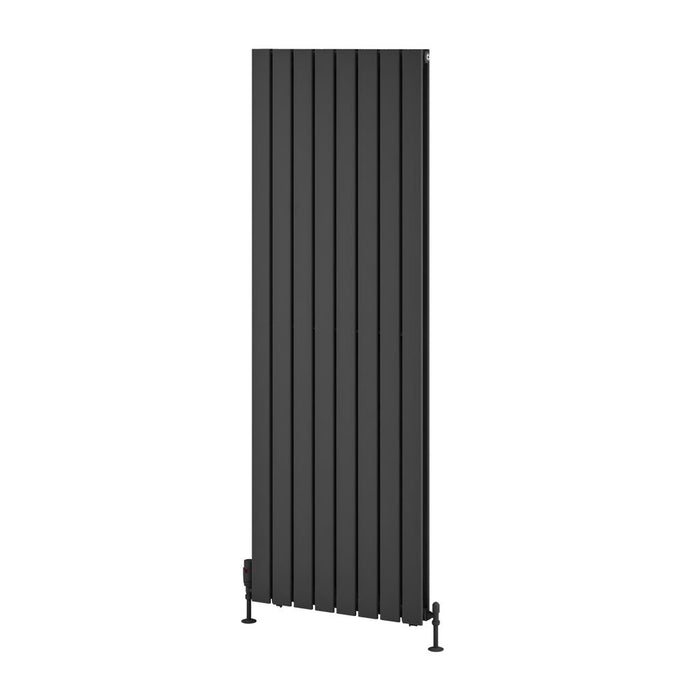

1800mm x 608mm |
2735 |
2137 |
9332 |
7289 |
|

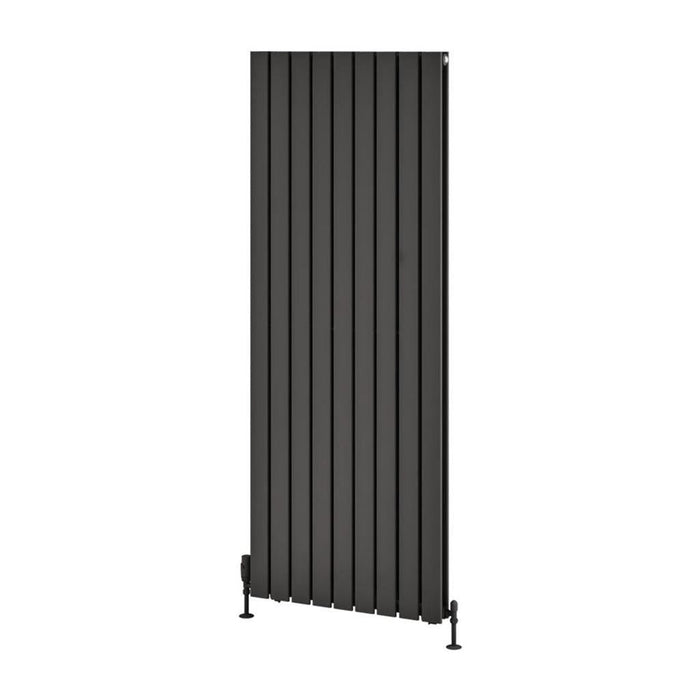

1800mm x 684mm |
3703 |
12635 |
Assembling instructions for Vertical Designer Radiator
Datasheet for 1800mm x 304mm Vertical Designer Radiator
Datasheet for 1800mm x 380mm Vertical Designer Radiator
Datasheet for 1800mm x 456mm Vertical Designer Radiator
Datasheet for 1800mm x 532mm Vertical Designer Radiator
Datasheet for 1800mm x 608mm Vertical Designer Radiator
Datasheet for 1800mm x 684mm Vertical Designer Radiator

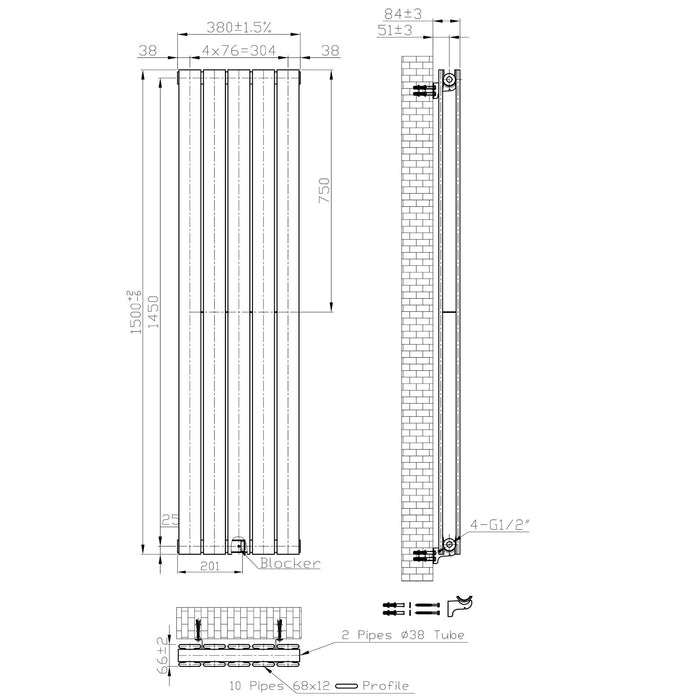

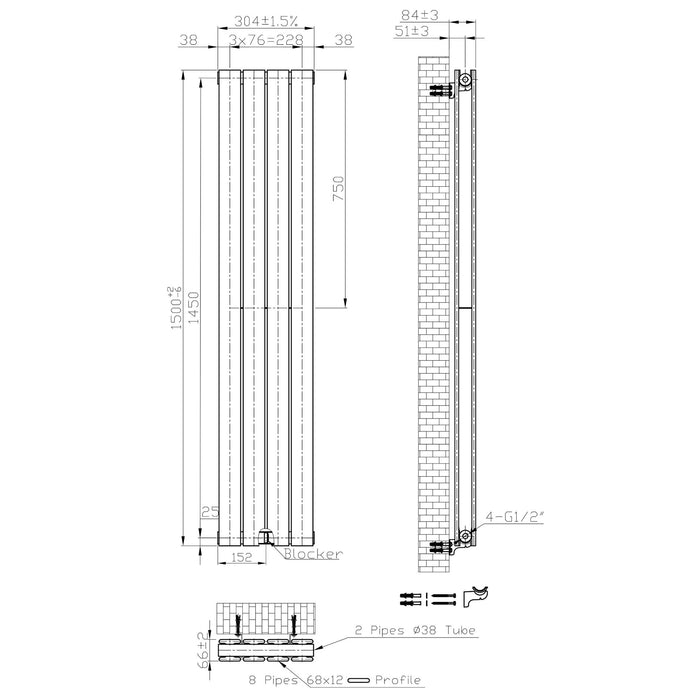

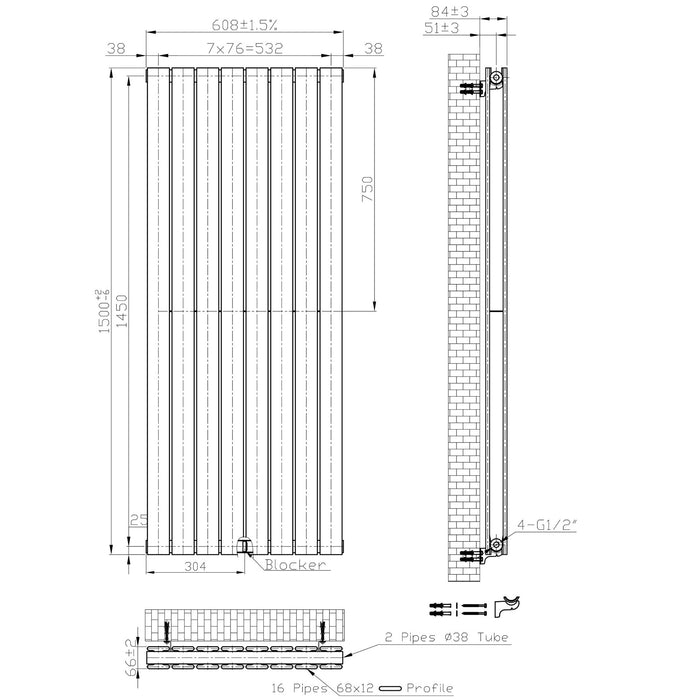

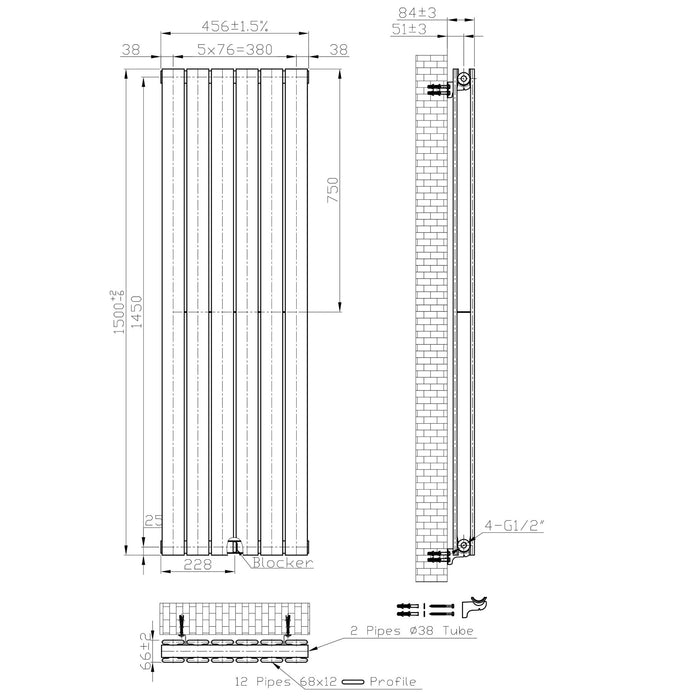

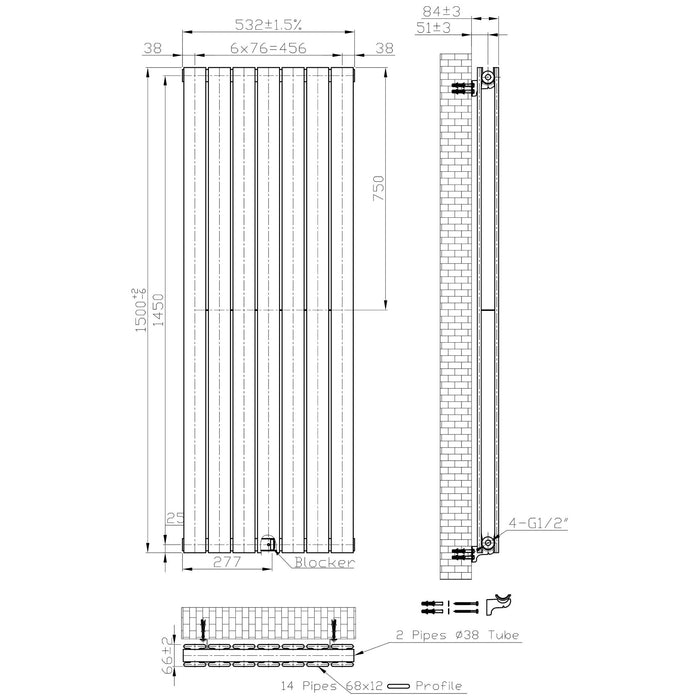

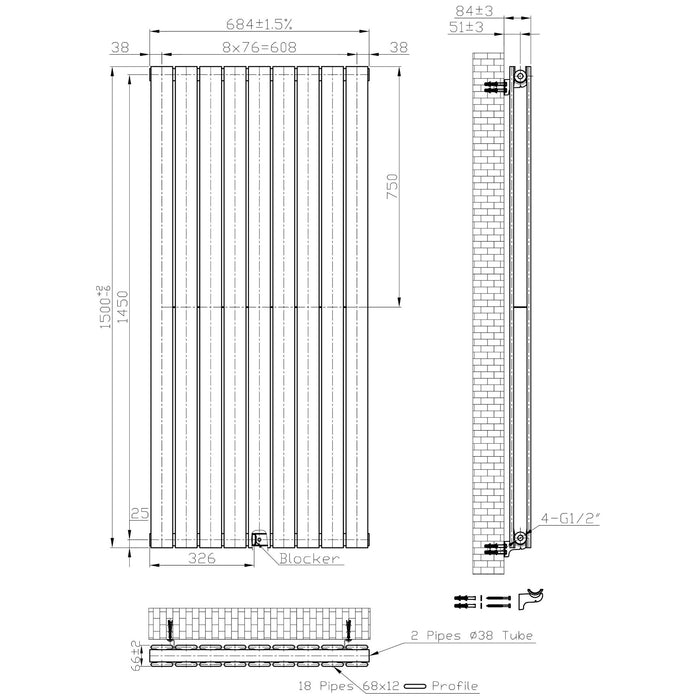

Technical Drawing
1800mm x 304mm
1800mm x 380mm
1800mm x 456mm
1800mm x 532mm
1800mm x 608mm
1800mm x 684mm
- View Less
