Eastbrook Warrington Type 20 Horizontal Designer Radiator Matt Black

Name: Eastbrook Warrington Type 20 Horizontal Designer Radiator Matt Black
Brand: Eastbrook
SKU: EAS41.0552
Price: 290.0 EUR
Availability: InStock

by Eastbrook

From €322.26

€322.26

€290.00

€322.26

From €290.00

€290.00

Save 10%

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch

Estimated Collection: 1 week

Estimated Delivery: 2 weeks

Select Your Options

Quantity

Product Information

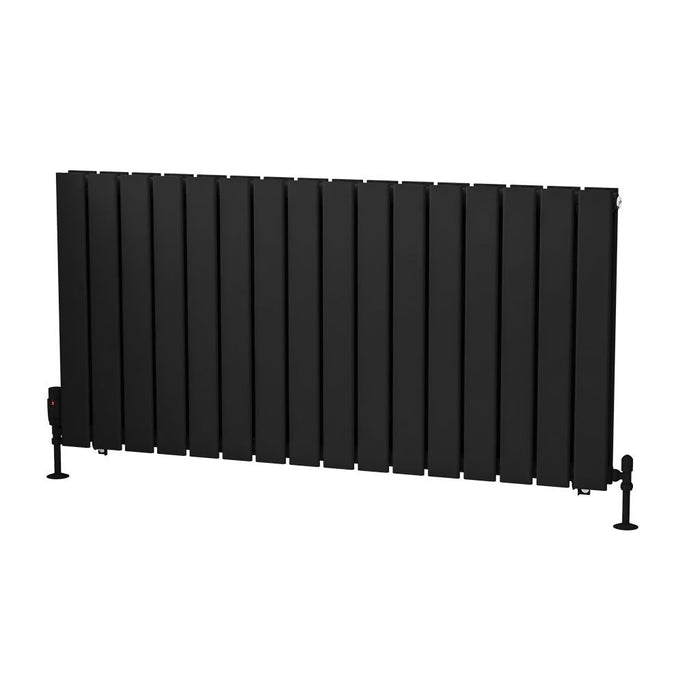

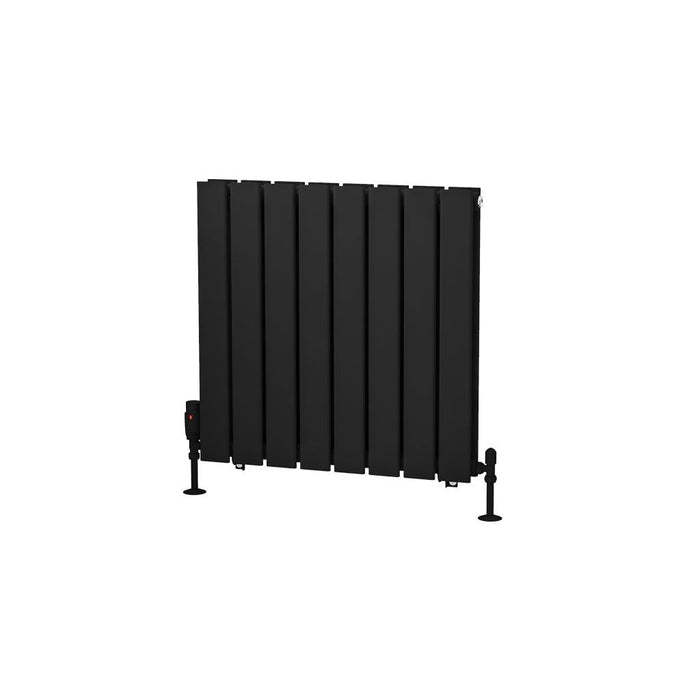

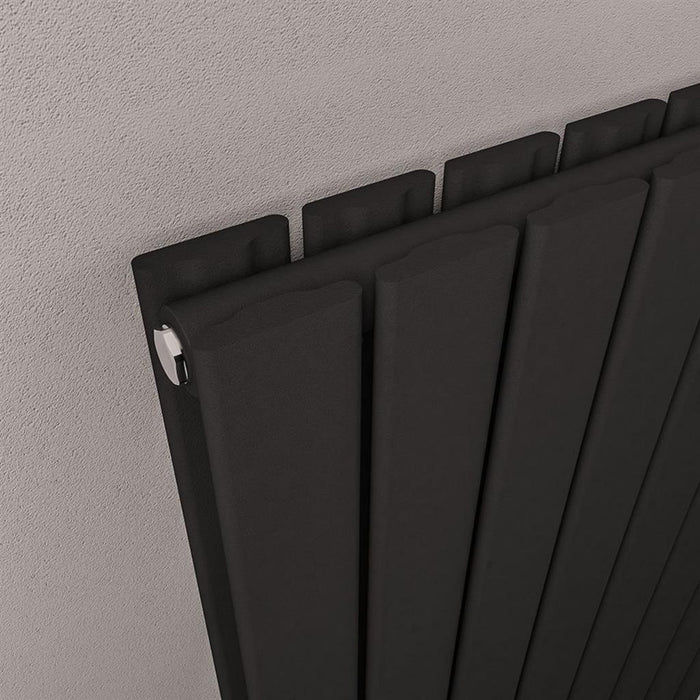

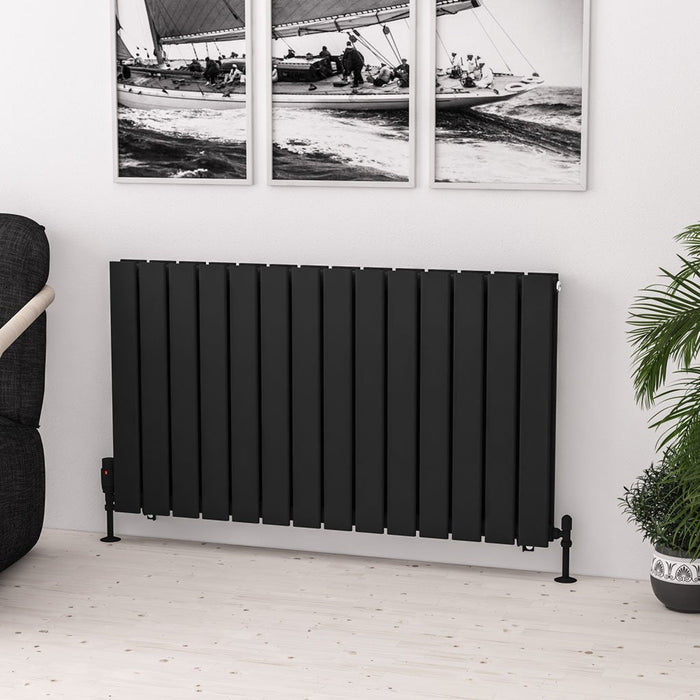

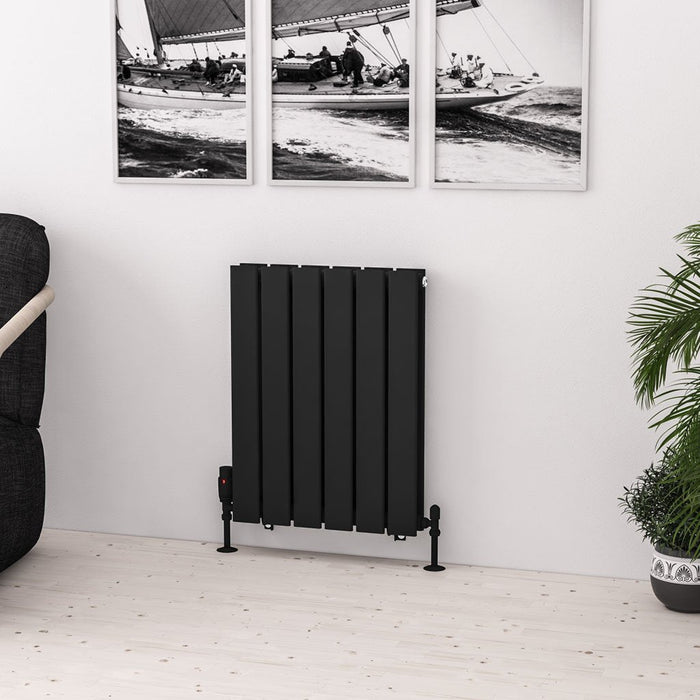

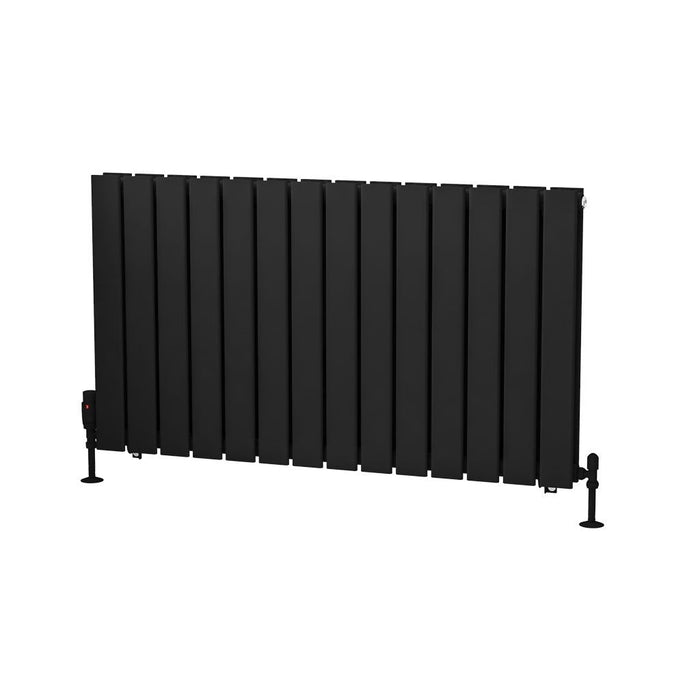

The Eastbrook warrington type 20 designer radiator in matt black offers a stylish and modern solution for your heating needs. Constructed from durable mild steel, it features a wall-mounted design with double profile construction, providing an attractive and functional heating element. The radiator has vertical bars that meas + View More

The Eastbrook warrington type 20 designer radiator in matt black offers a stylish and modern solution for your heating needs. Constructed from durable mild steel, it features a wall-mounted design with double profile construction, providing an attractive and functional heating element. The radiator has vertical bars that measure 68mm in height and 12mm in depth, making it ideal for both compact and larger spaces. Available in multiple widths, it stands 600mm tall and projects 84mm from the wall.This radiator is designed for indirect heating systems only and is tested to bs en442 standards. It includes a pre-fitted flow diverter for enhanced performance and matching colour wall fixings. Please note, images are for illustration purposes only.

Product Specifications:

Warranty: 5 Years
Product Type: Designer Radiator
Brand: Eastbrook
Collection: Warrington
Finish: Matt Black
Style: Modern
Mounting: Wall
Material: Mild Steel

Special Features:

Easy to install and use
Images are shown for illustration purposes only
Double profile construction.
Height 68mm x Depth 12mm vertical bars.
Tested to BS EN442 standards.
Not suitable for elements.
Matching colour wall fixing sets.
Heat output based on Delta T30°C and T50°C.
For indirect heating systems only.
Comes with pre-fitted flow diverter, fitted in the middle of the bottom header.
Corrosion inhibitor must be added to the heating system and maintained.
Tapings are the width of the rail and approx. 51mm off the wall.
Projection from wall 84mm.

Dimensions:

Depth: 84mm

Technical Specifications

Size	Watts T30°C	BTU T30°C	Watts T50°C	BTU T50°C

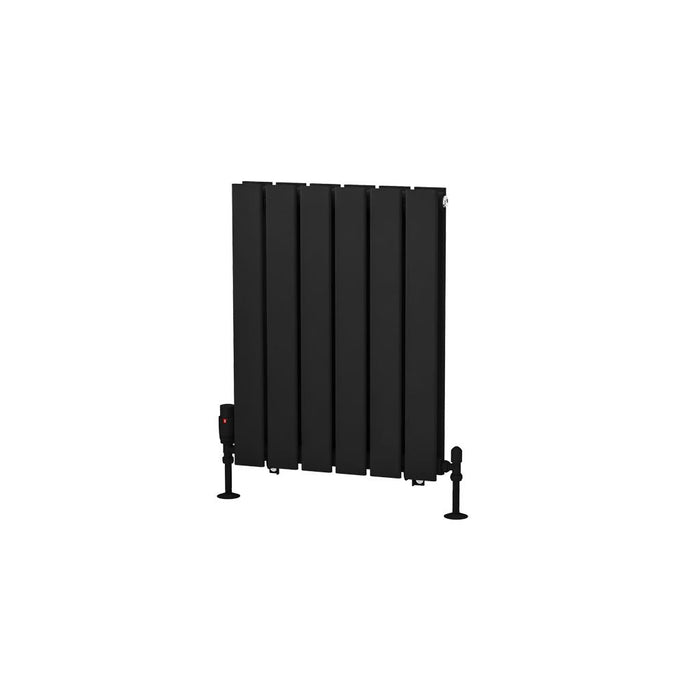

600mm x 456mm	268	914	510	1740
600mm x 608mm	358	1221	680	2319

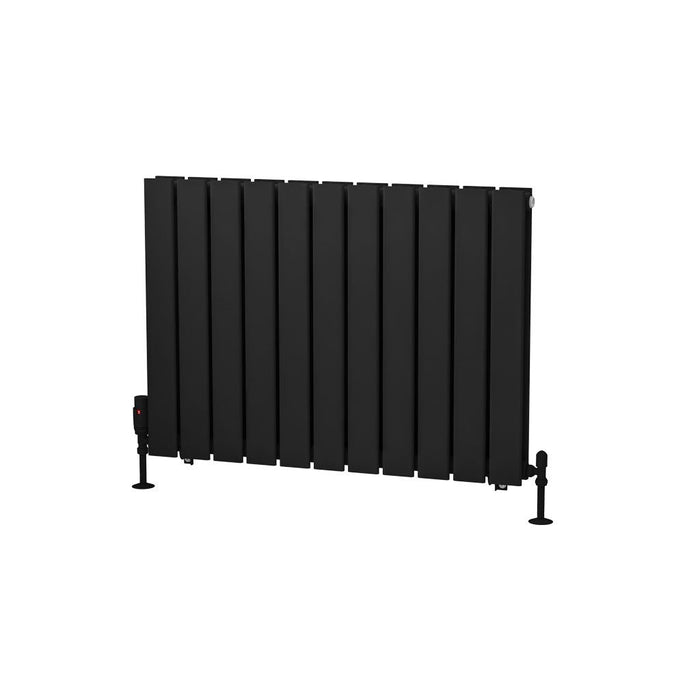

600mm x 836mm	492	1678	935	3189
600mm x 1064mm	626	2135	1190	4058
600mm x 1216mm	715	2439	1360	4638

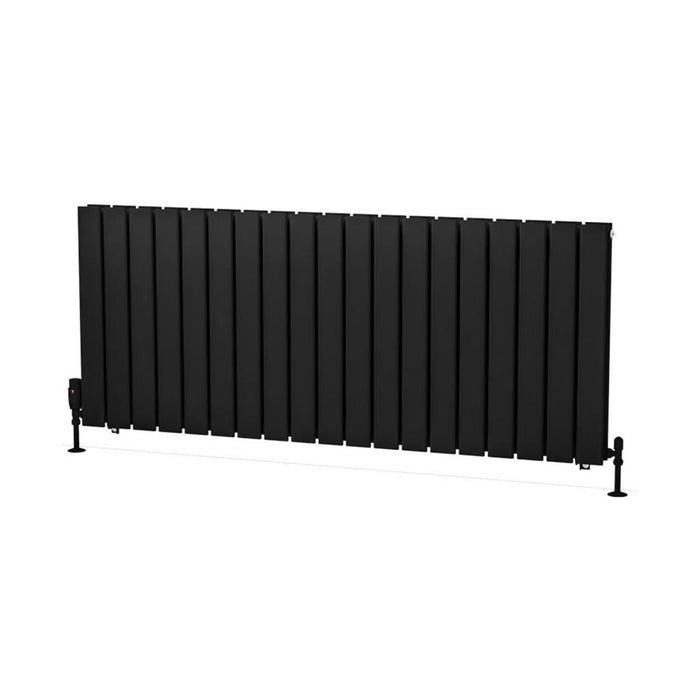

600mm x 1444mm	849	2896	1615	5508

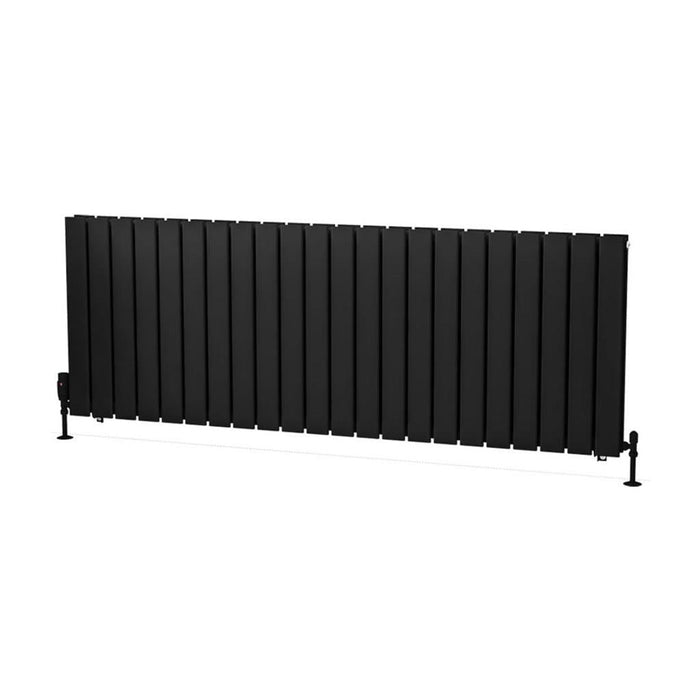

600mm x 1672mm	983	3353	1870	6377

Assembling instructions for Horizontal Designer Radiator

Datasheet for 600mm x 456mm Horizontal Designer Radiator

Datasheet for 600mm x 608mm Horizontal Designer Radiator

Datasheet for 600mm x 836mm Horizontal Designer Radiator

Datasheet for 600mm x 1064mm Horizontal Designer Radiator

Datasheet for 600mm x 1216mm Horizontal Designer Radiator

Datasheet for 600mm x 1444mm Horizontal Designer Radiator

Datasheet for 600mm x 1672mm Horizontal Designer Radiator

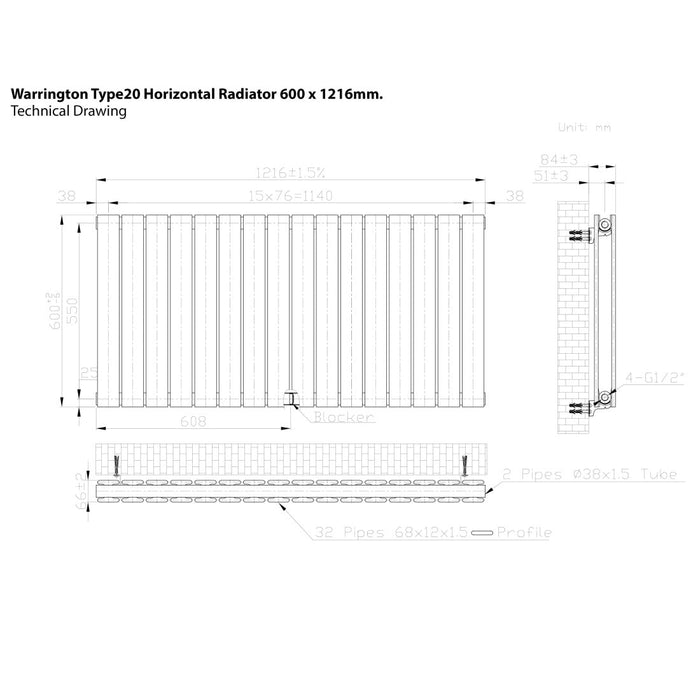

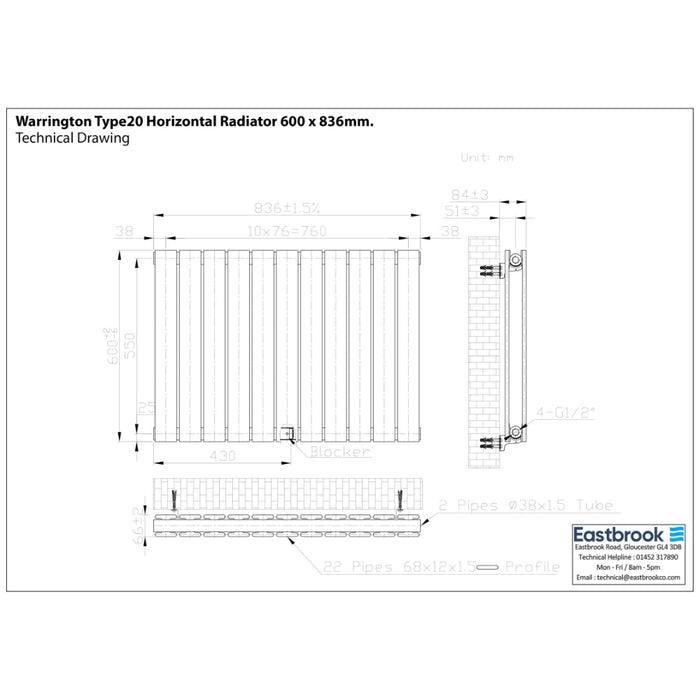

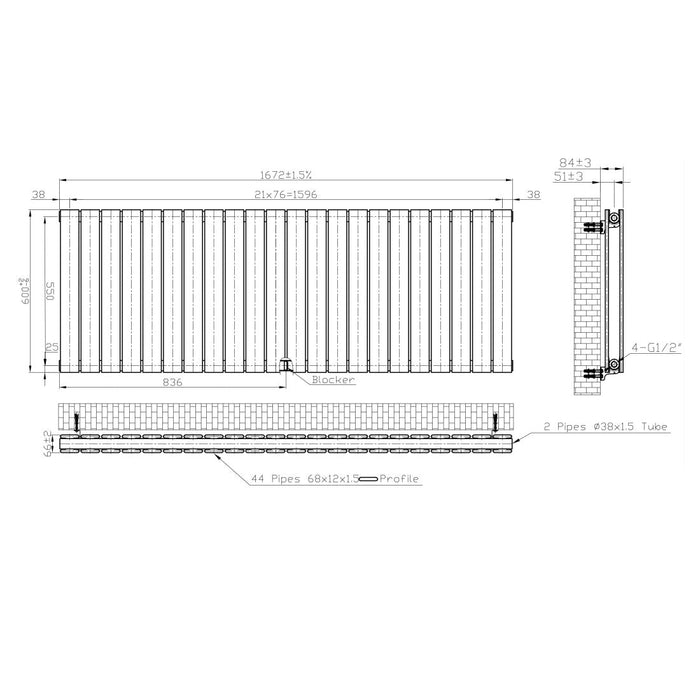

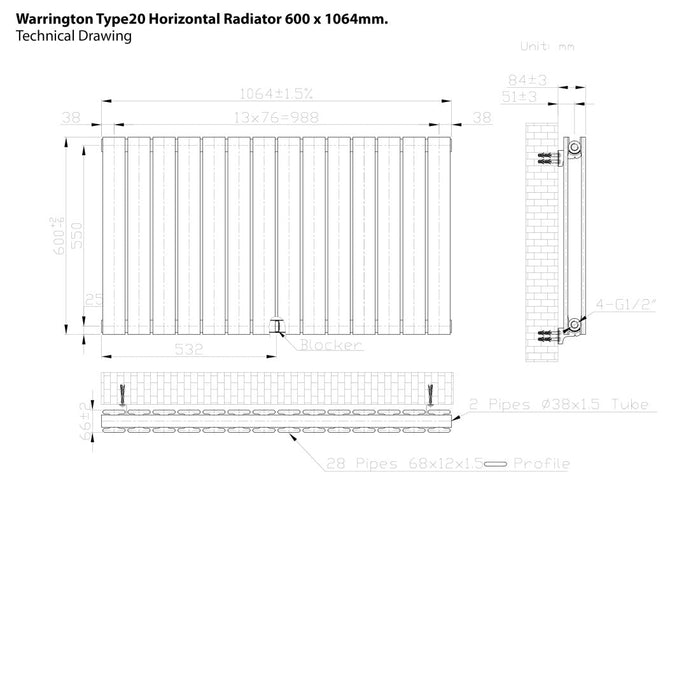

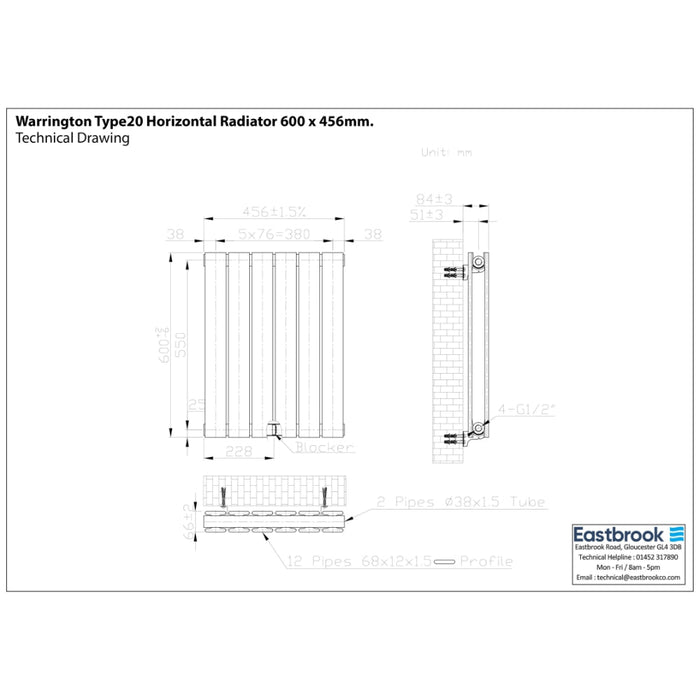

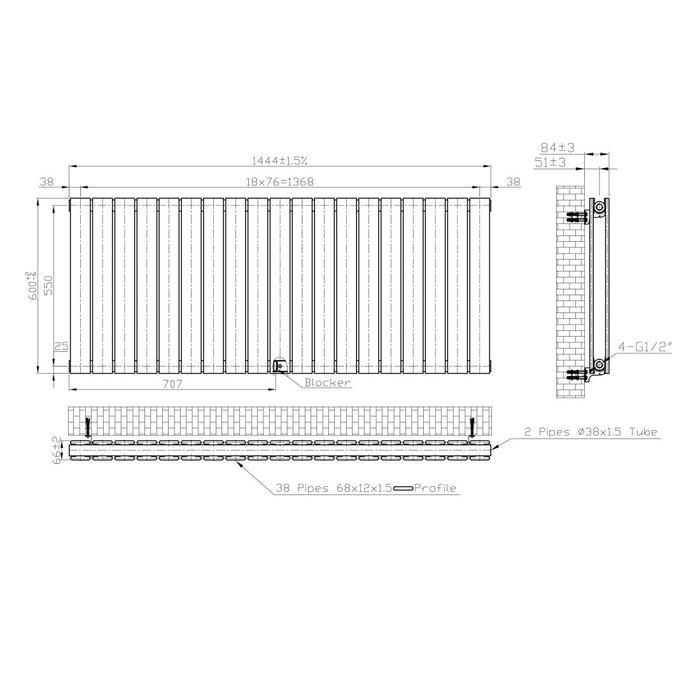

Technical Drawing

600mm x 456mm

600mm x 608mm

600mm x 836mm

600mm x 1064mm

600mm x 1216mm

600mm x 1444mm

600mm x 1672mm

Datasheet for 600mm x 456mm Radiator

Datasheet for 600mm x 608mm Radiator

Datasheet for 600mm x 836mm Radiator

Datasheet for 600mm x 1064mm Radiator

Datasheet for 600mm x 1216mm Radiator

Datasheet for 600mm x 1444mm Radiator

Datasheet for 600mm x 1672mm Radiator
