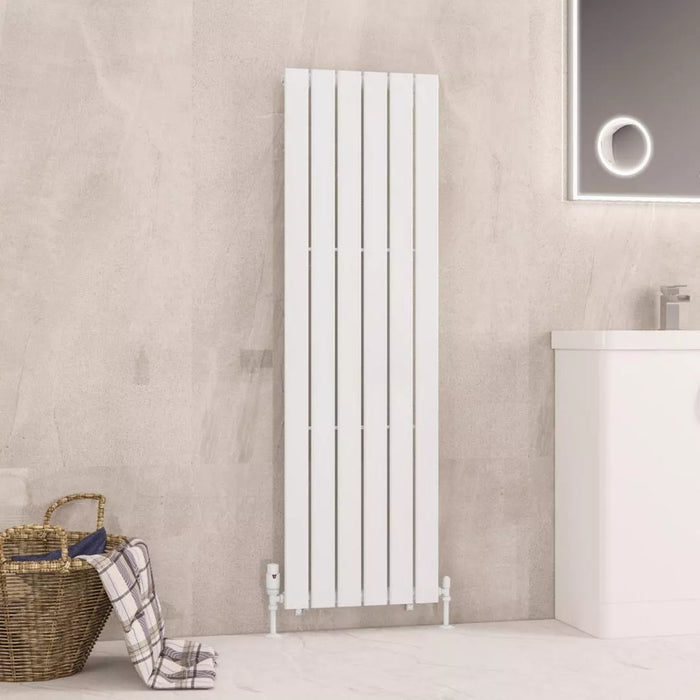

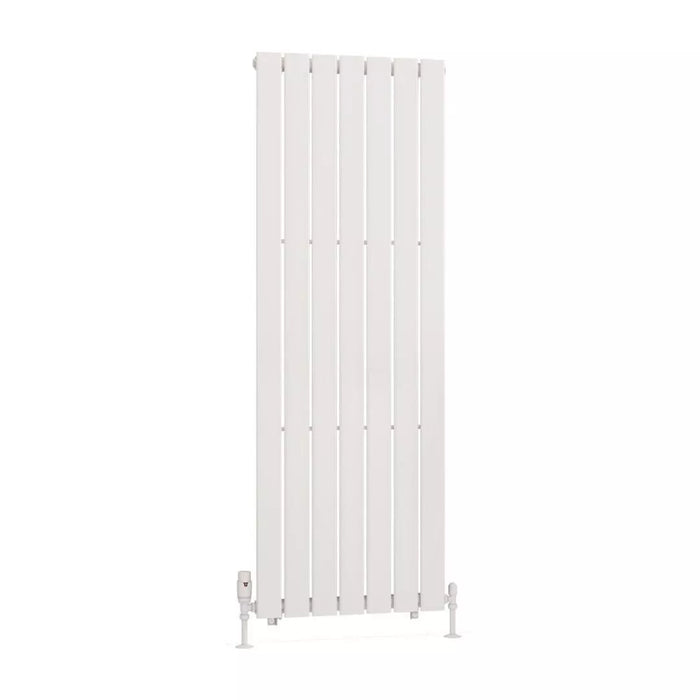

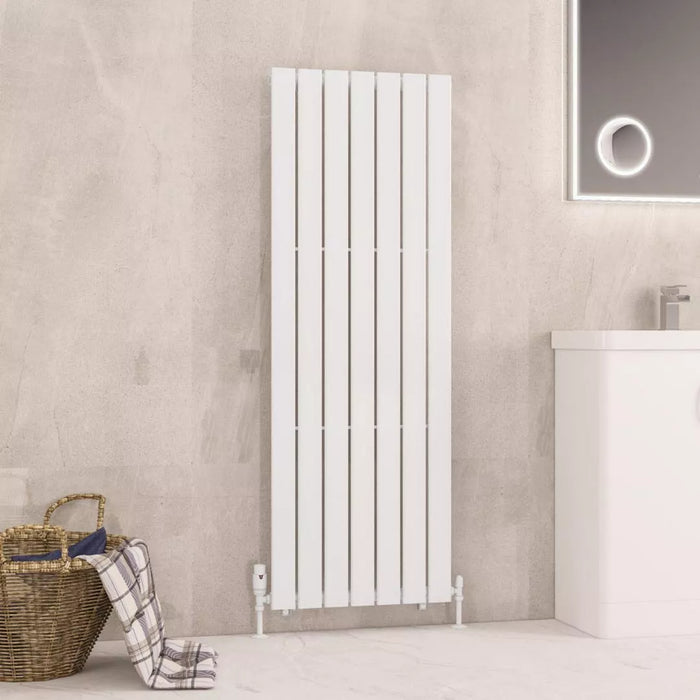

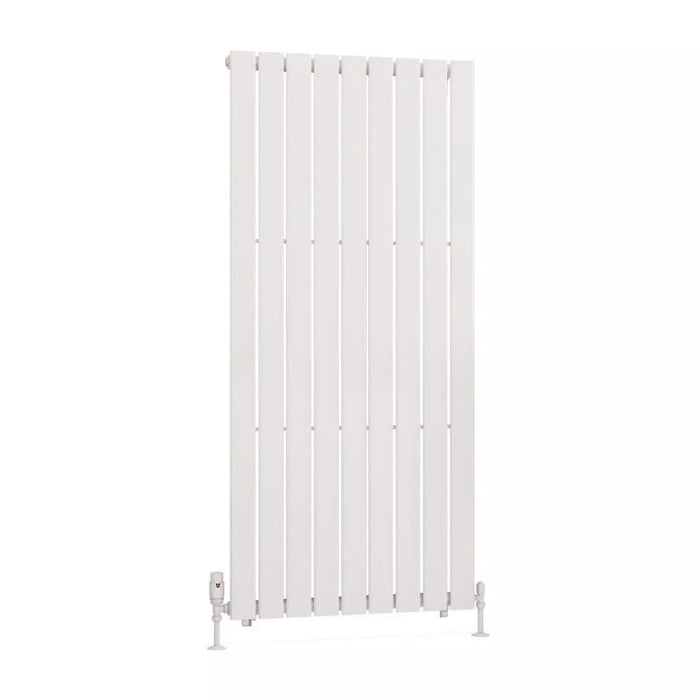

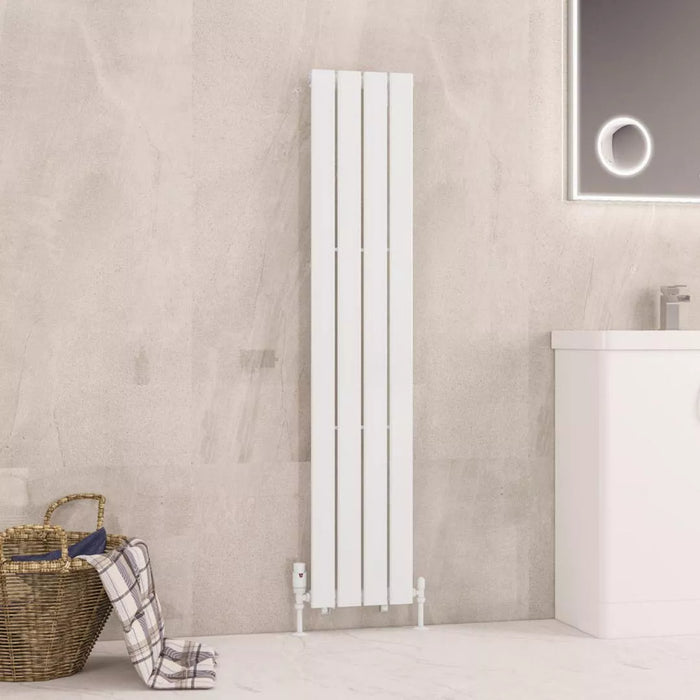

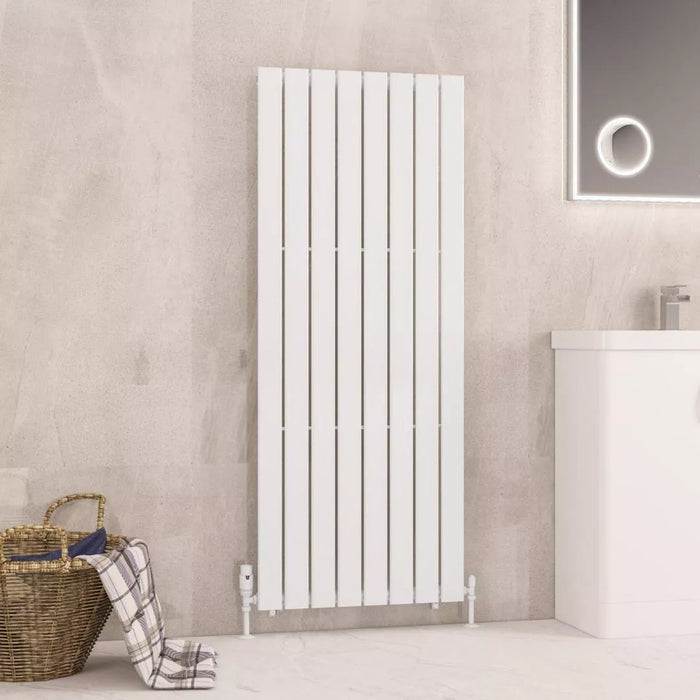

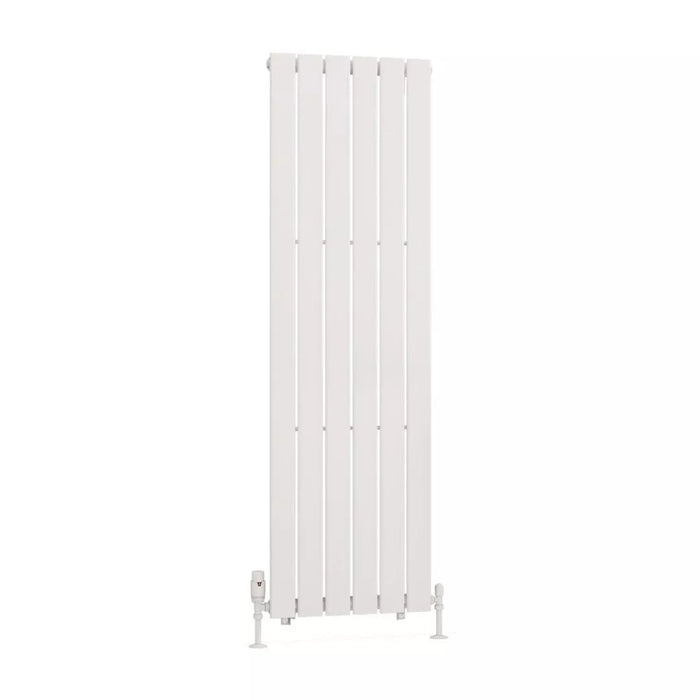

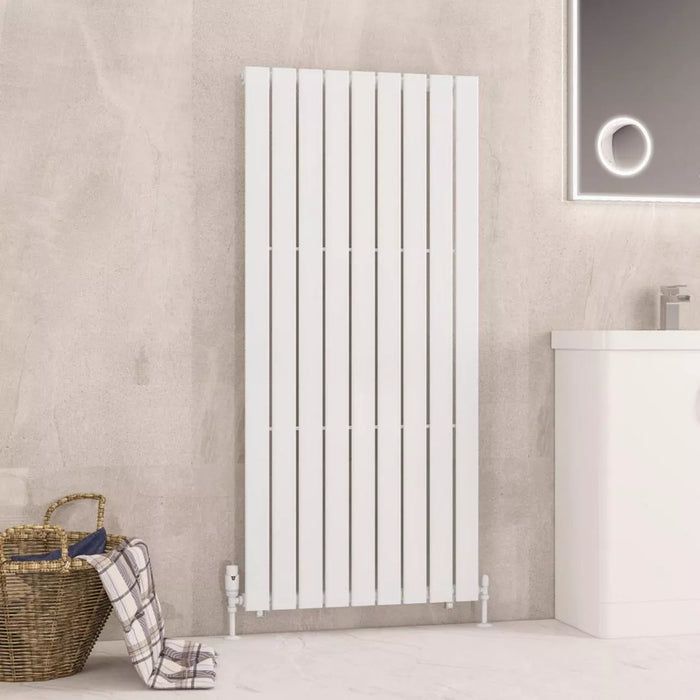

Eastbrook Warrington Type 10 Vertical Designer Radiator Gloss White

Name: Eastbrook Warrington Type 10 Vertical Designer Radiator Gloss White
Brand: Eastbrook
SKU: EAS41.1119
Price: 240.0 EUR
Availability: InStock

by Eastbrook

From €266.91

€266.91

€240.00

€266.91

From €240.00

€240.00

Save 10%

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch

Estimated Collection: 1 week

Estimated Delivery: 2 weeks

Select Your Options

Quantity

Product Information

The Eastbrook warrington type 10 designer radiator in gloss white is a modern and stylish heating solution for contemporary spaces. Constructed from mild steel, it features a single profile design with 68mm high and 12mm deep vertical bars. This wall-mounted radiator is specifically designed for use with indirect heating syst + View More

The Eastbrook warrington type 10 designer radiator in gloss white is a modern and stylish heating solution for contemporary spaces. Constructed from mild steel, it features a single profile design with 68mm high and 12mm deep vertical bars. This wall-mounted radiator is specifically designed for use with indirect heating systems and provides excellent heat output, tested to bs en442 standards.With a projection of 84mm from the wall and a pre-fitted flow diverter, the radiator ensures efficient performance. It comes with matching colour wall fixing sets for easy installation and requires the addition of a corrosion inhibitor for optimal maintenance and longevity.

Product Specifications:

Warranty: 5 Years
Product Type: Designer Radiator
Brand: Eastbrook
Collection: Warrington
Finish: Gloss White
Style: Modern
Mounting: Wall
Material: Mild Steel

Special Features:

Easy to install and use
Images are shown for illustration purposes only
Single profile construction.
Height 68mm x Depth 12mm vertical bars.
Tested to BS EN442 standards.
Not suitable for elements.
Matching colour wall fixing sets.
Heat output based on Delta T30°C and T50°C.
For indirect heating systems only.
Comes with pre-fitted flow diverter, fitted in the middle of the bottom header.
Corrosion inhibitor must be added to the heating system and maintained.
Tapings are the width of the rail and approx. 51mm off the wall.
Projection from wall 84mm.

Dimensions:

Depth: 84mm

Technical Specifications

Size	Watts T30°C	BTU T30°C	Watts T50°C	BTU T50°C
1500mm x 300mm	258	880	490	1671
1500mm x 376mm	322	1099	612	2087
1500mm x 452mm	387	1320	735	2507
1500mm x 528mm	451	1538	857	2923
1500mm x 604mm	516	1760	980	3342
1500mm x 680mm	580	1978	1102	3758
1800mm x 300mm	322	1099	616	2101
1800mm x 376mm	403	1375	769	2623
1800mm x 452mm	483	1648	923	3148
1800mm x 528mm	564	1924	1077	3673
1800mm x 604mm	644	2197	1231	4198
1800mm x 680mm	725	2473	1385	4723

Assembling instructions for Vertical Designer Radiator

Datasheet for 1500mm x 300mm Vertical Designer Radiator

Datasheet for 1500mm x 376mm Vertical Designer Radiator

Datasheet for 1500mm x 452mm Vertical Designer Radiator

Datasheet for 1500mm x 528mm Vertical Designer Radiator

Datasheet for 1500mm x 604mm Vertical Designer Radiator

Datasheet for 1500mm x 680mm Vertical Designer Radiator

Datasheet for 1800mm x 300mm Vertical Designer Radiator

Datasheet for 1800mm x 376mm Vertical Designer Radiator

Datasheet for 1800mm x 452mm Vertical Designer Radiator

Datasheet for 1800mm x 528mm Vertical Designer Radiator

Datasheet for 1800mm x 604mm Vertical Designer Radiator

Datasheet for 1800mm x 680mm Vertical Designer Radiator

Technical Drawing

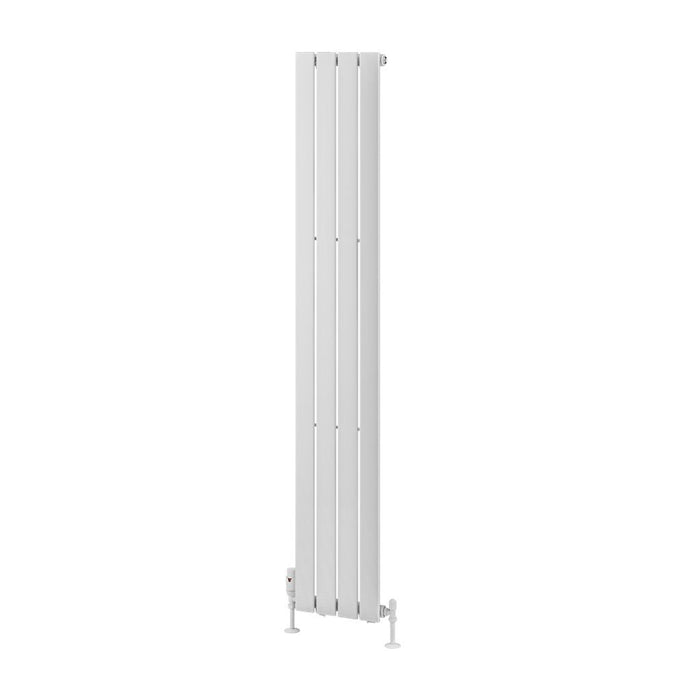

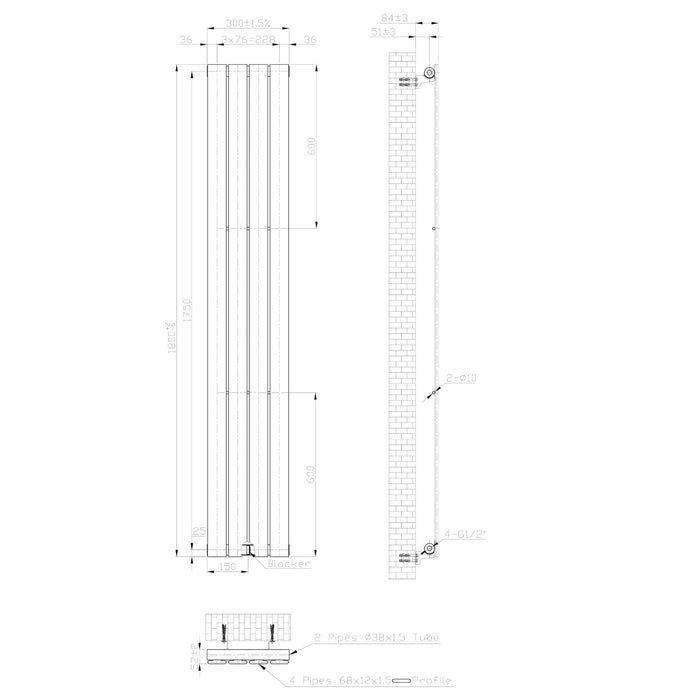

1800mm x 300mm

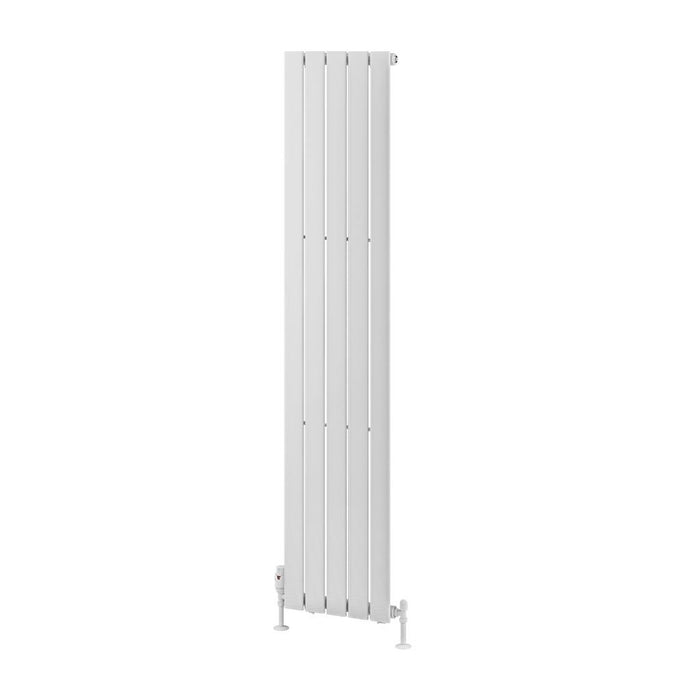

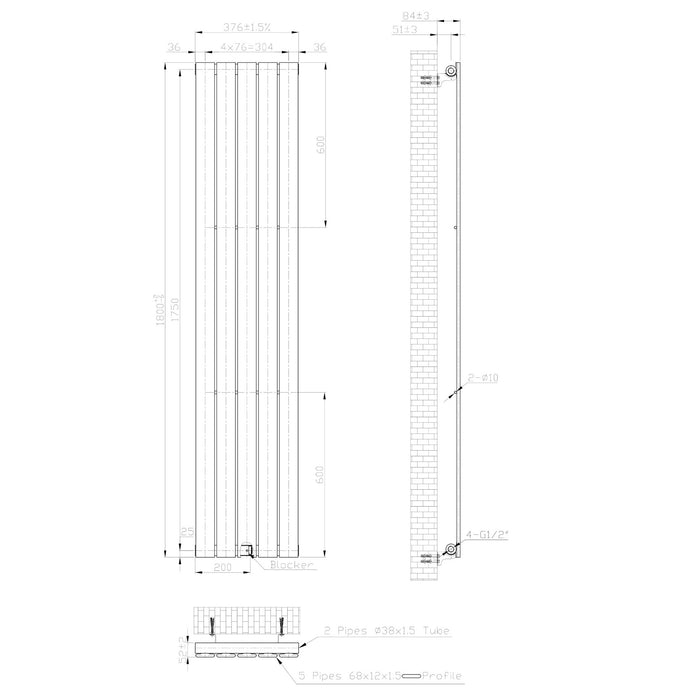

1800mm x 376mm

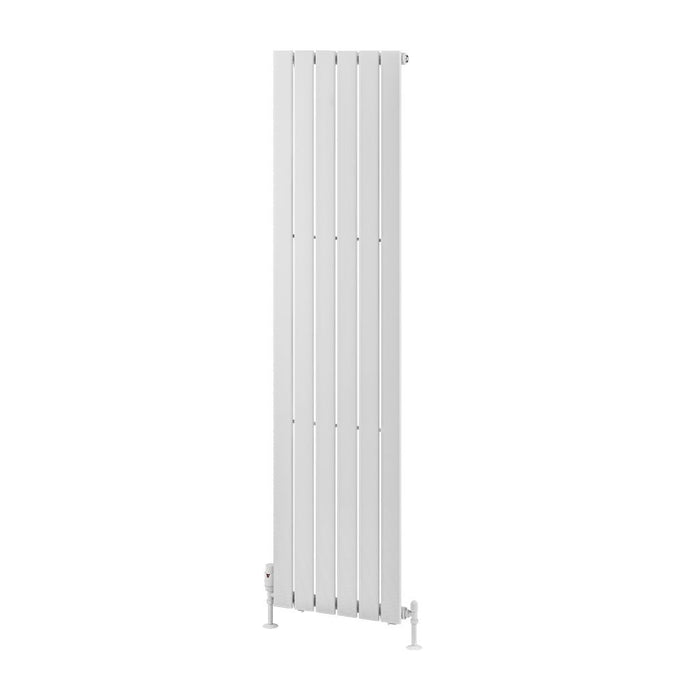

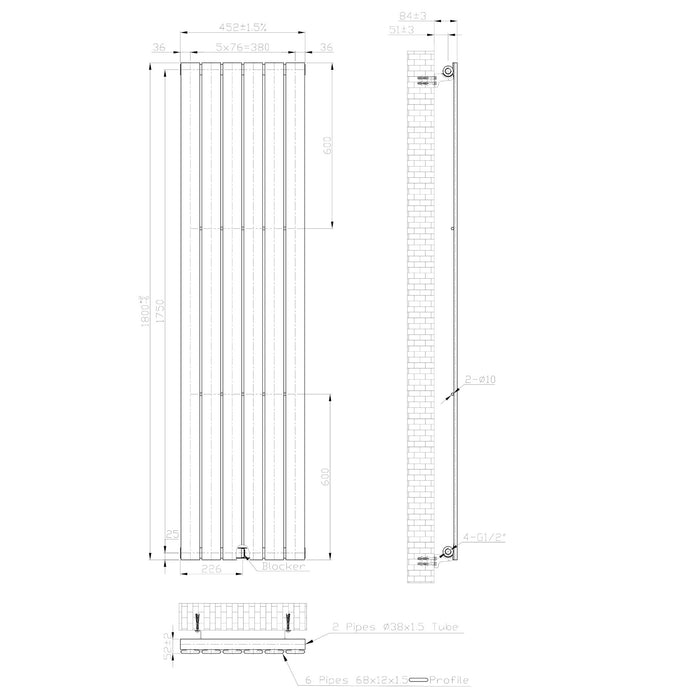

1800mm x 452mm

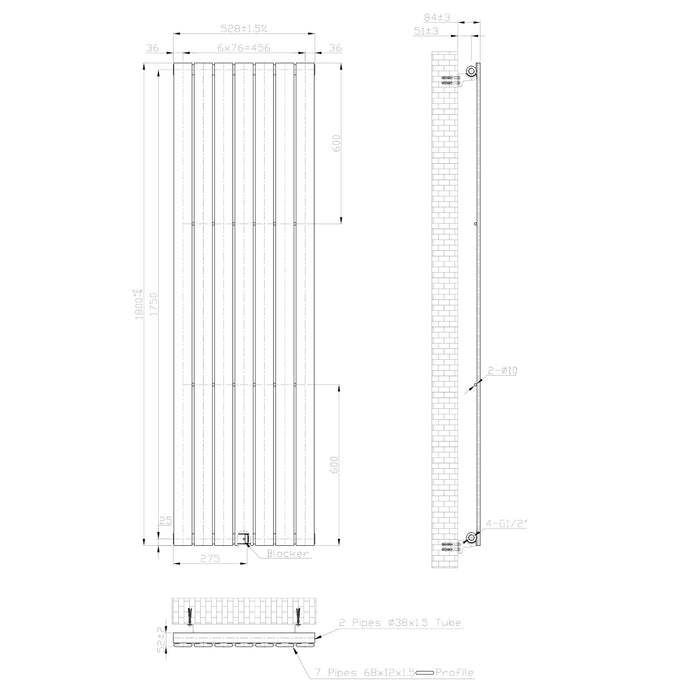

1800mm x 528mm

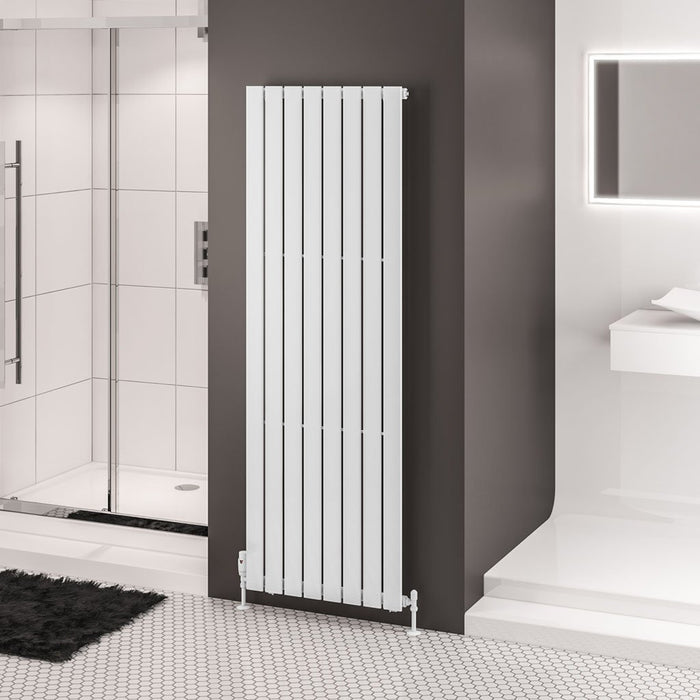

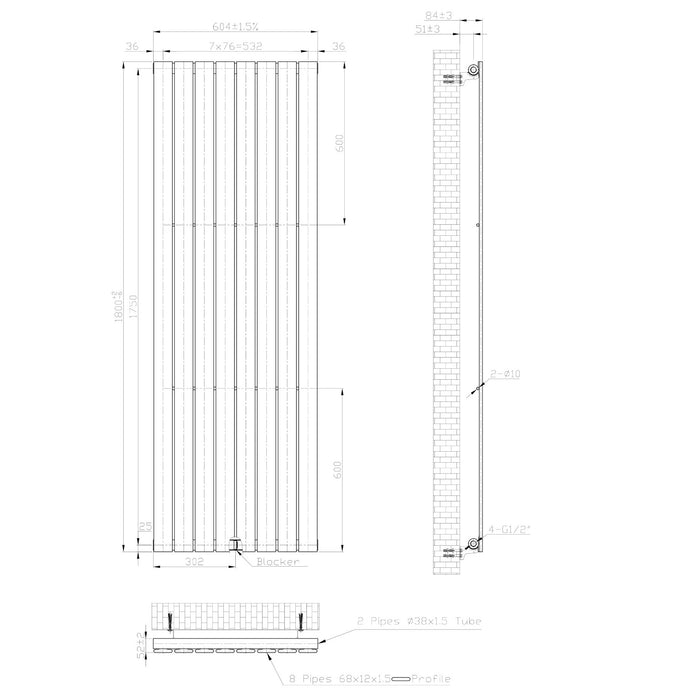

1800mm x 604mm

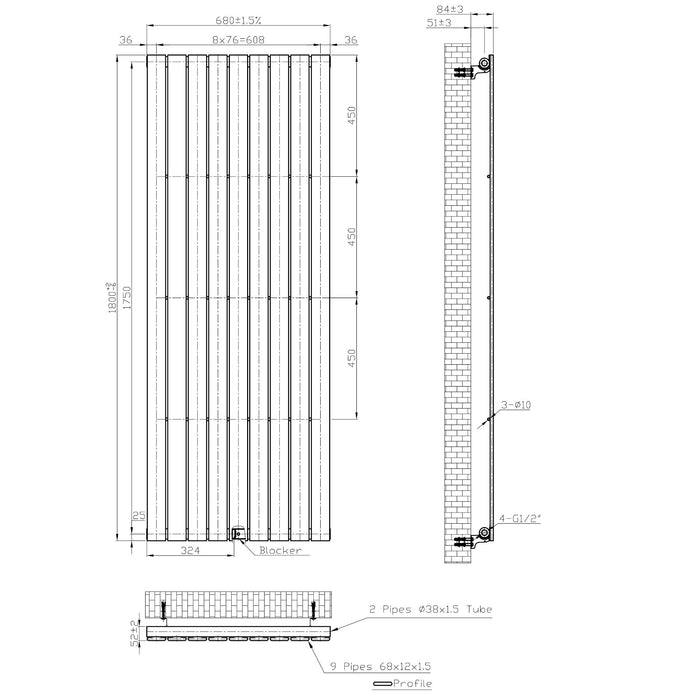

1800mm x 680mm

- View Less
