Eastbrook Warrington Type 10 Horizontal Designer Radiator Matt Black
Order now for dispatch in approximately 4 weeks.
Product Information

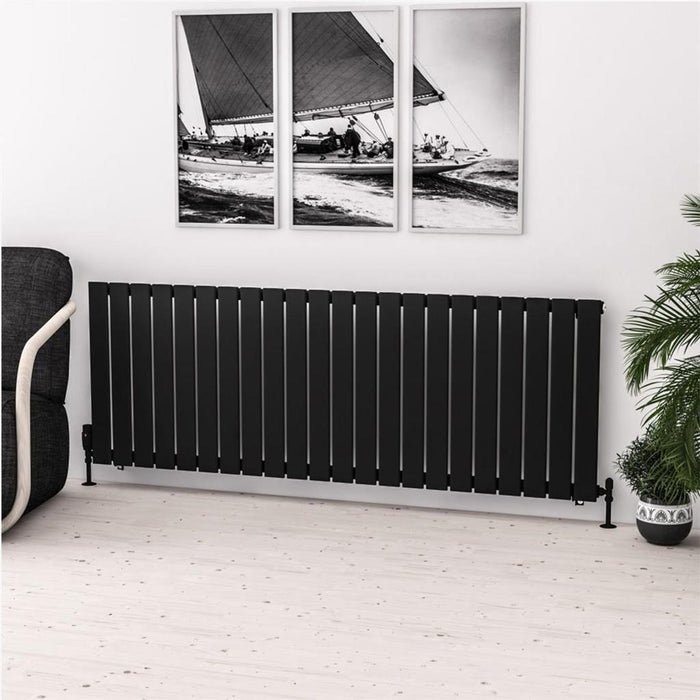

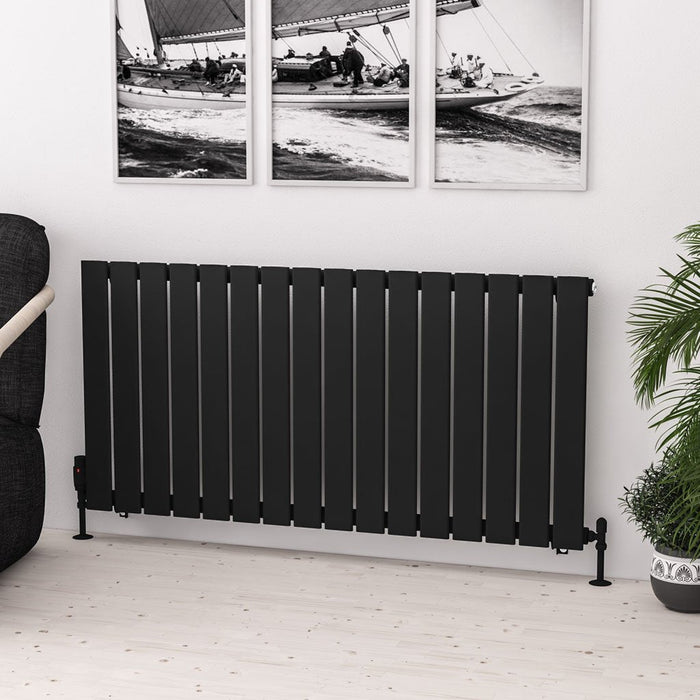

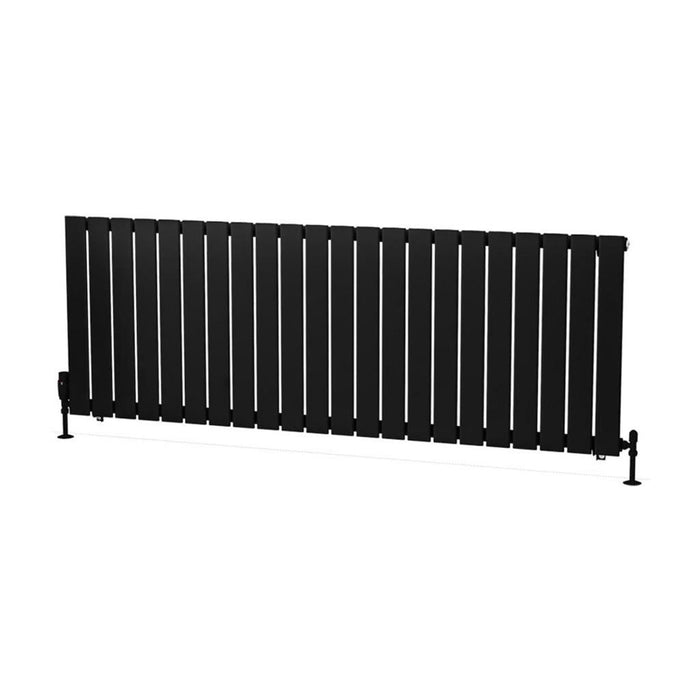

The Eastbrook warrington type 10 designer radiator in matt black is a sleek and modern solution for any home. Made from durable mild steel, it features a single profile construction with vertical bars measuring 68mm in height and 12mm in depth. Designed for wall mounting, it provides efficient heat output, ideal for indirect heating systems.With a projection of 84mm from the wall, this radiator is tested to bs en442 standards. It comes with a pre-fitted flow diverter and matching wall fixing sets for easy installation. The 5-year guarantee ensures reliability and long-lasting performance, making it a great addition to any modern space.
Product Specifications:
- Guarantee: 5 Years
- Brand: Eastbrook
- Collection: Warrington
- Finish: Matt Black
- Style: Modern
- Mounting: Wall
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Single profile construction.
- Height 68mm x Depth 12mm vertical bars.
- Tested to BS EN442 standards.
- Not suitable for elements.
- Matching colour wall fixing sets.
- Heat output based on Delta T 60°C.
- For indirect heating systems only.
- Comes with pre-fitted flow diverter, fitted in the middle of the bottom header.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are the width of the rail and approx. 51mm off the wall.
- Projection from wall 84mm.
Dimensions:
- Depth: 84mm
|
Size |
Watts ?T60°C |
Watts ?T50°C |
BTU ?T60°C |
BTU ?T50°C |
|

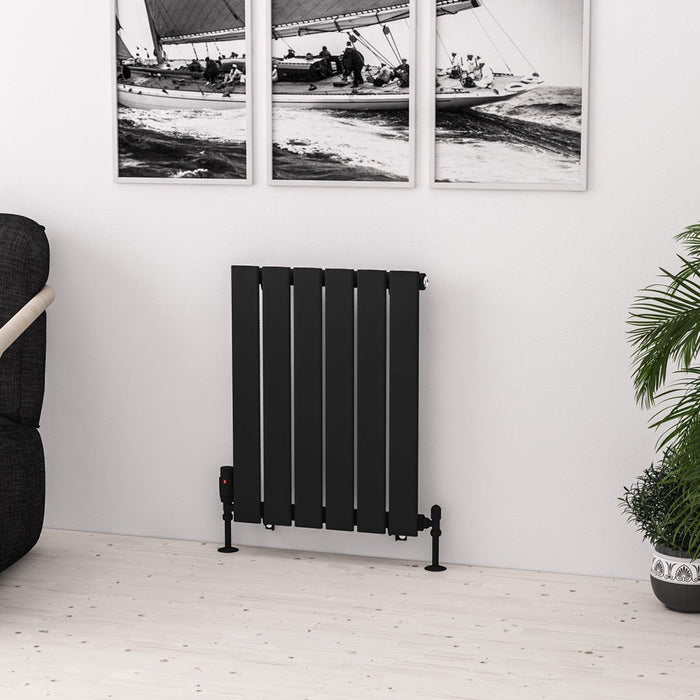

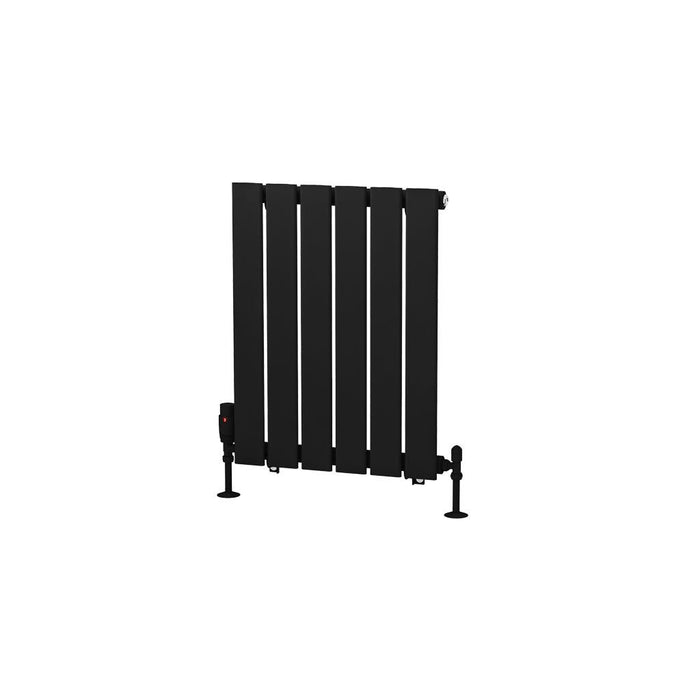

600mm x 452mm |
397 |
311 |
1355 |
1059 |
|

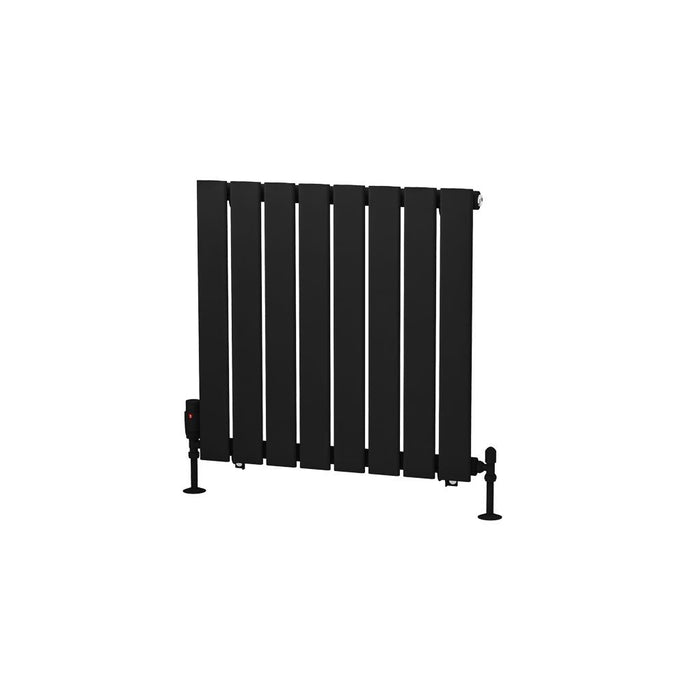

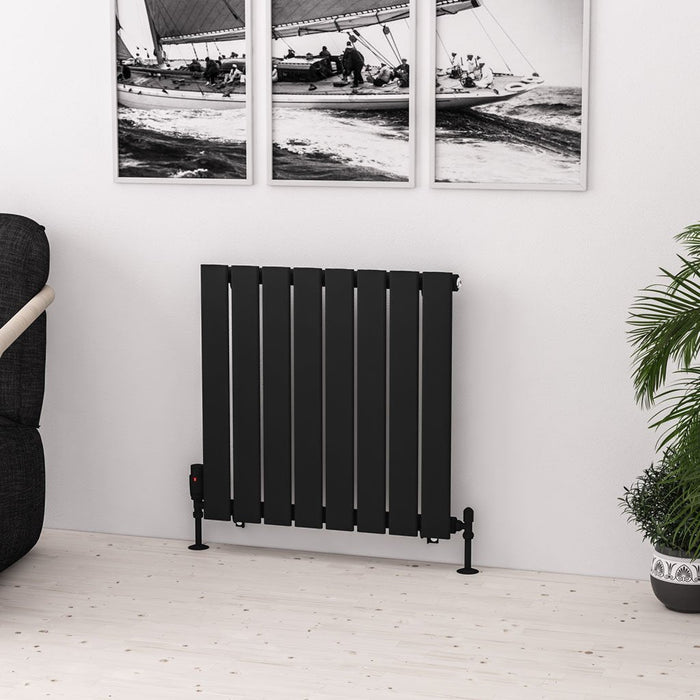

600mm x 604mm |
529 |
414 |
1805 |
1410 |
|

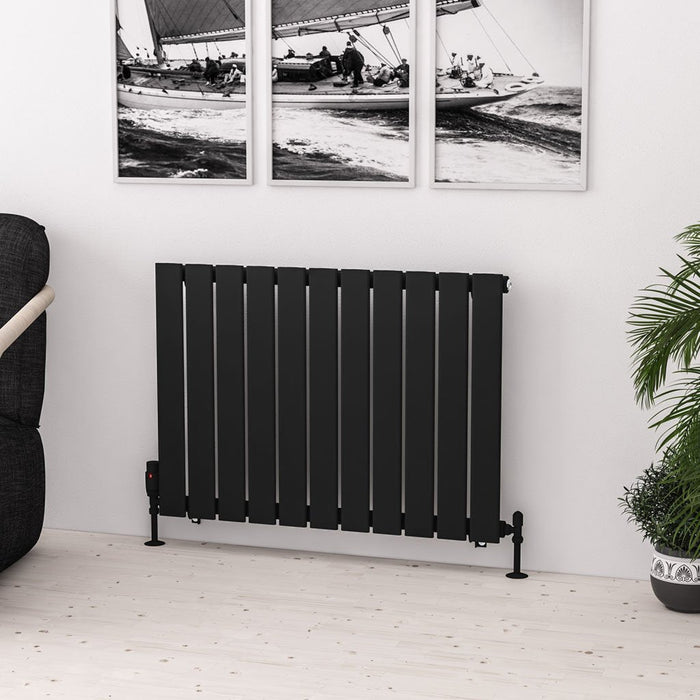

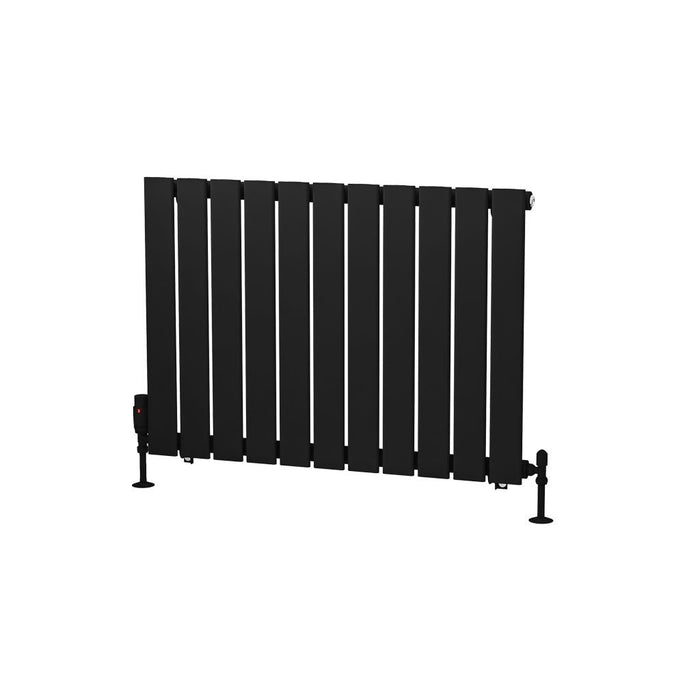

600mm x 832mm |
728 |
569 |
2484 |
1941 |
|

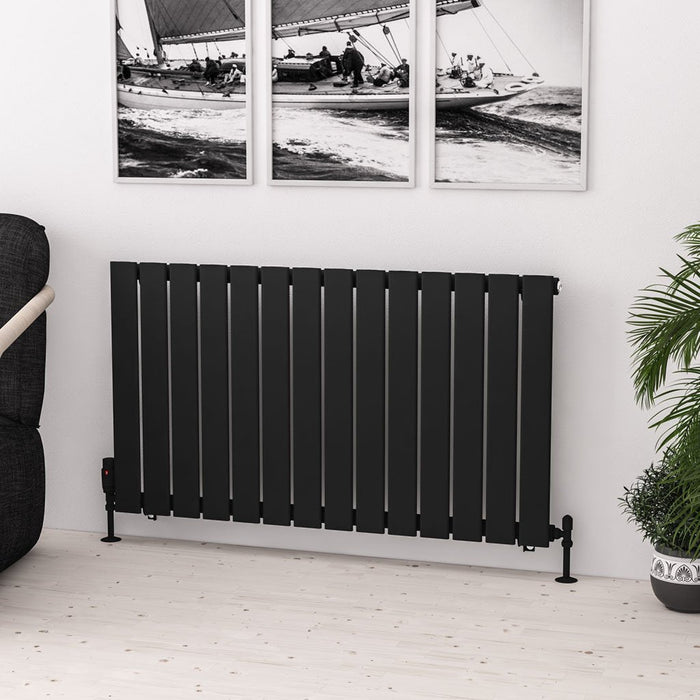

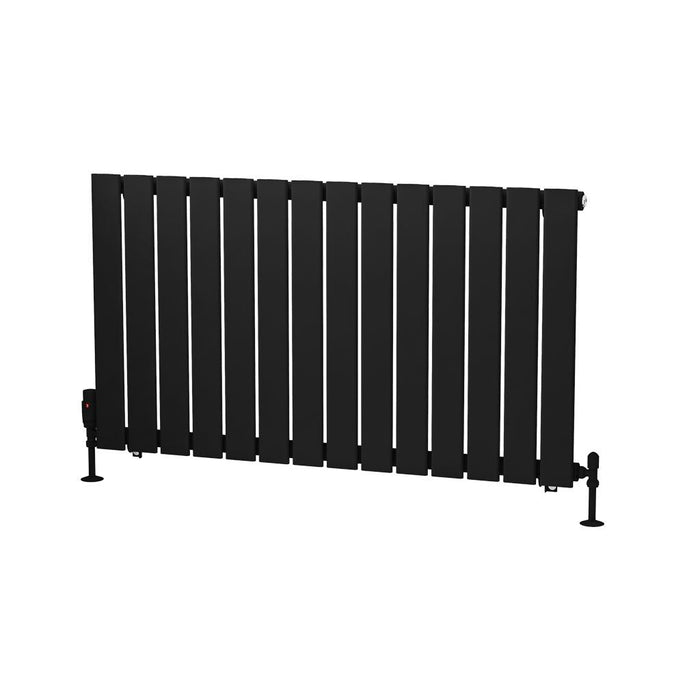

600mm x 1060mm |
927 |
724 |
3163 |
2471 |
|
600mm x 1212mm |
1060 |
828 |
3617 |
2825 |
|
600mm x 1440mm |
1257 |
4289 |
||
|
600mm x 1668mm |
1455 |
4964 |
Assembling instructions for Horizontal Designer Radiator
Datasheet for 600mm x 452mm Horizontal Designer Radiator
Datasheet for 600mm x 604mm Horizontal Designer Radiator
Datasheet for 600mm x 832mm Horizontal Designer Radiator
Datasheet for 600mm x 1060mm Horizontal Designer Radiator
Datasheet for 600mm x 1212mm Horizontal Designer Radiator
Datasheet for 600mm x 1440mm Horizontal Designer Radiator
Datasheet for 600mm x 1668mm Horizontal Designer Radiator
Technical Drawing
600mm x 452mm
600mm x 604mm
600mm x 832mm
600mm x 1060mm
600mm x 1212mm
600mm x 1440mm
600mm x 1668mm
- View Less
