Eastbrook Warrington Type 10 Horizontal Designer Radiator Matt Anthracite

Name: Eastbrook Warrington Type 10 Horizontal Designer Radiator Matt Anthracite
Brand: Eastbrook
SKU: EAS41.0521
Price: 195.0 EUR
Availability: InStock

by Eastbrook

From €217.71

€217.71

€195.00

€217.71

From €195.00

€195.00

Save 10%

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch

Estimated Collection: 1 week

Estimated Delivery: 2 weeks

Select Your Options

Quantity

Product Information

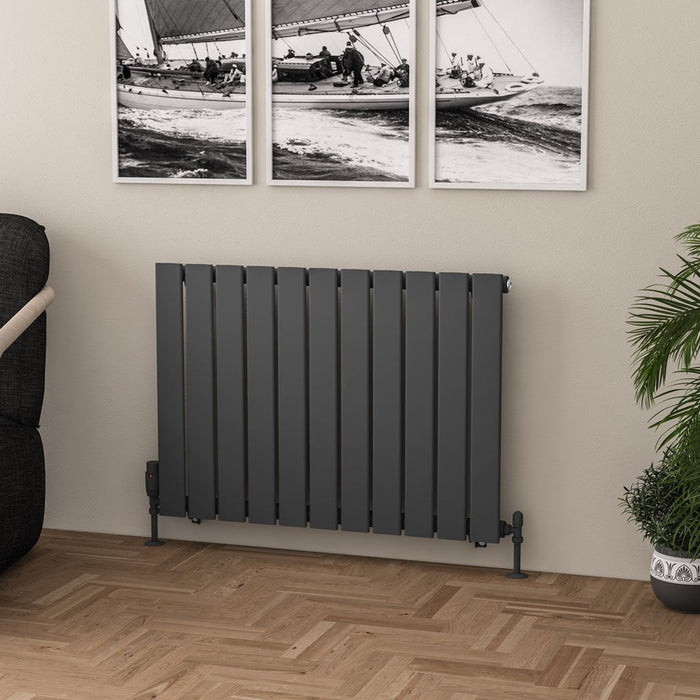

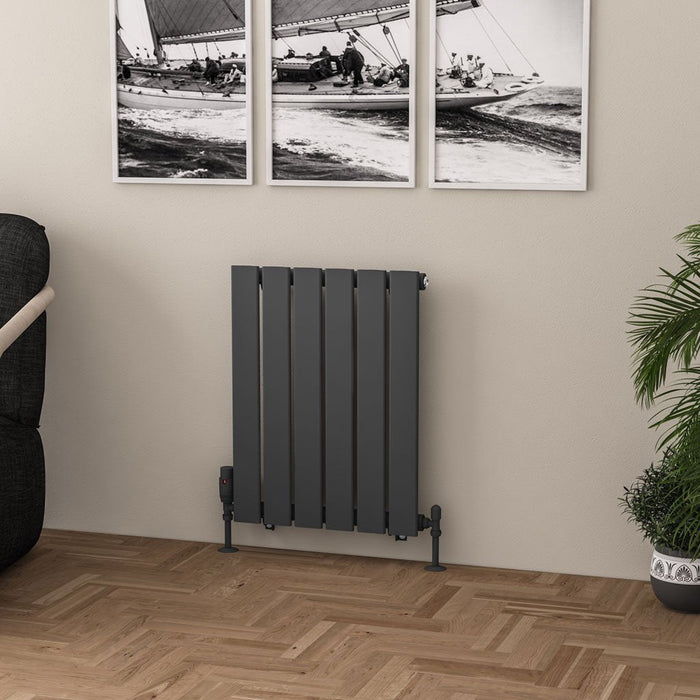

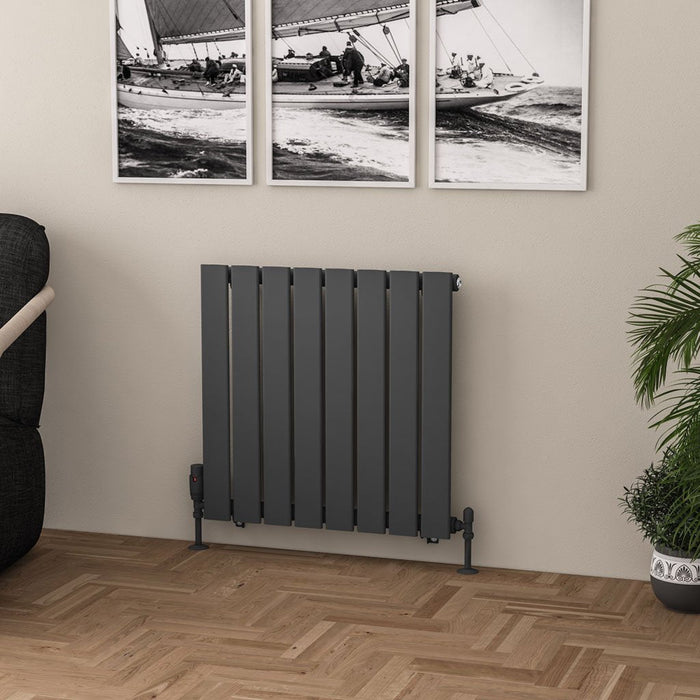

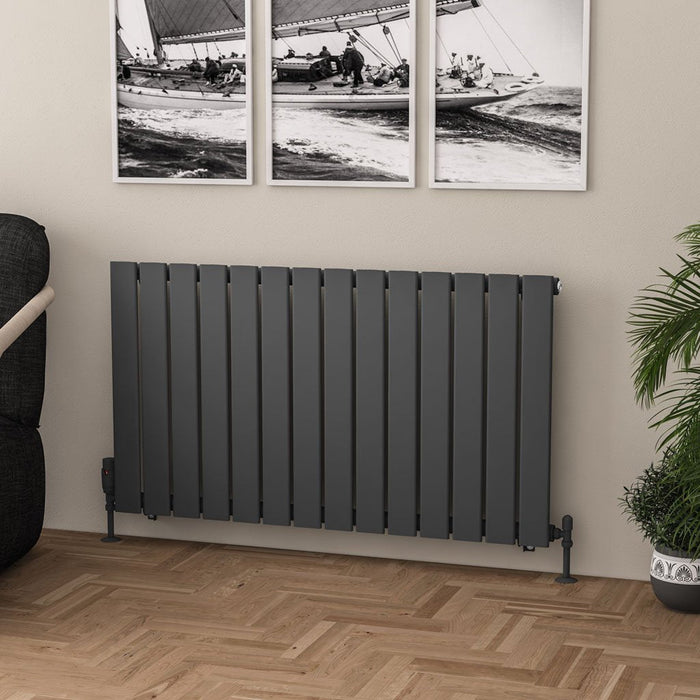

The Eastbrook warrington type 10 designer radiator in matt anthracite provides a sleek, modern design with outstanding performance. Constructed from high-quality mild steel, it features a single profile with vertical bars, each measuring 68mm in height and 12mm in depth. This wall-mounted radiator is easy to install and is de + View More

The Eastbrook warrington type 10 designer radiator in matt anthracite provides a sleek, modern design with outstanding performance. Constructed from high-quality mild steel, it features a single profile with vertical bars, each measuring 68mm in height and 12mm in depth. This wall-mounted radiator is easy to install and is designed for indirect heating systems, offering effective heat distribution.Tested to bs en442 standards, the radiator includes a pre-fitted flow diverter for better heat control and is suitable for use with corrosion inhibitors. The matt anthracite finish ensures durability and a contemporary look, making it an ideal choice for any modern space.

Product Specifications:

Warranty: 5 Years
Product Type: Designer Radiator
Brand: Eastbrook
Collection: Warrington
Finish: Matt Anthracite
Style: Modern
Mounting: Wall
Material: Mild Steel

Special Features:

Easy to install and use
Images are shown for illustration purposes only

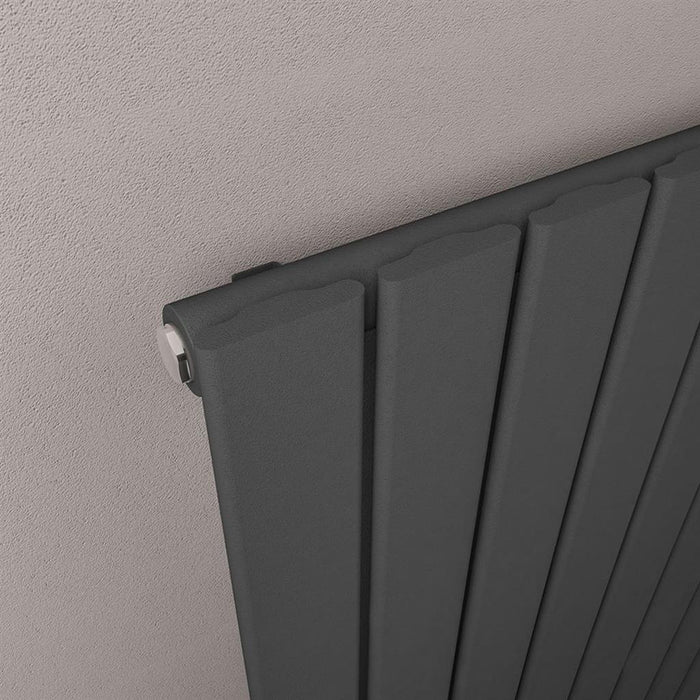

Single profile construction.
Height 68mm x Depth 12mm vertical bars.
Tested to BS EN442 standards.
Not suitable for elements.
Matching colour wall fixing sets.
Heat output based on Delta T30°C and 50°C.
For indirect heating systems only.
Comes with pre-fitted flow diverter, fitted in the middle of the bottom header.
Corrosion inhibitor must be added to the heating system and maintained.
Tapings are the width of the rail and approx. 51mm off the wall.
Projection from wall 84mm.

Dimensions:

Depth: 84mm

Technical Specifications

Size	Watts T30°C	BTU T30°C	Watts T50°C	BTU T50°C
600mm x 452mm	169	577	321	1095
600mm x 604mm	225	768	427	1457

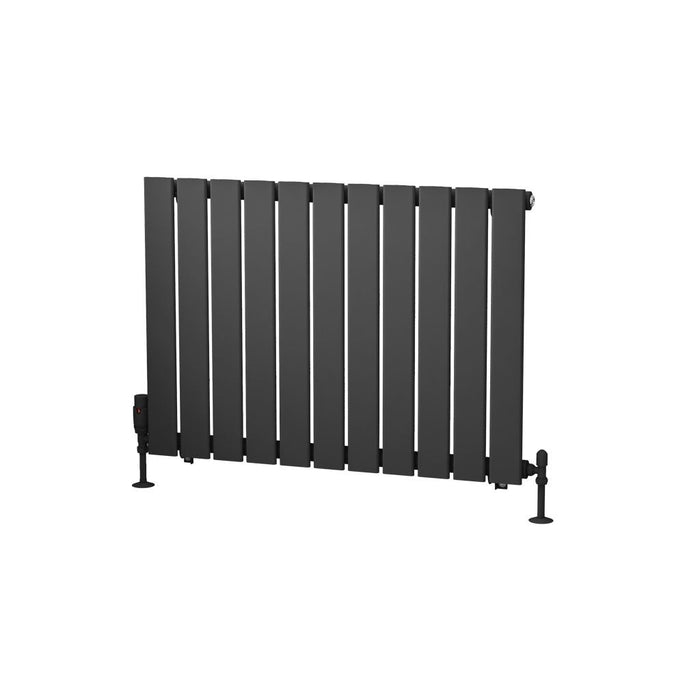

600mm x 832mm	310	1058	588	2006

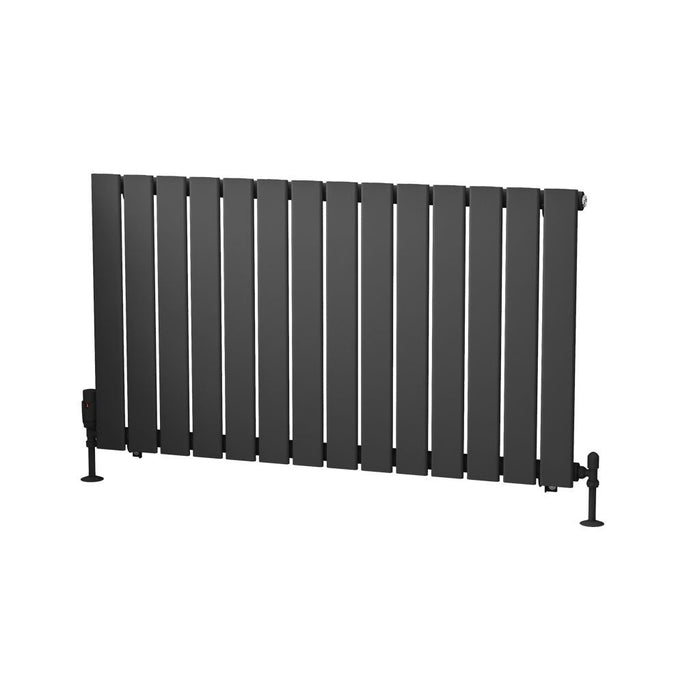

600mm x 1060mm	394	1344	748	2551

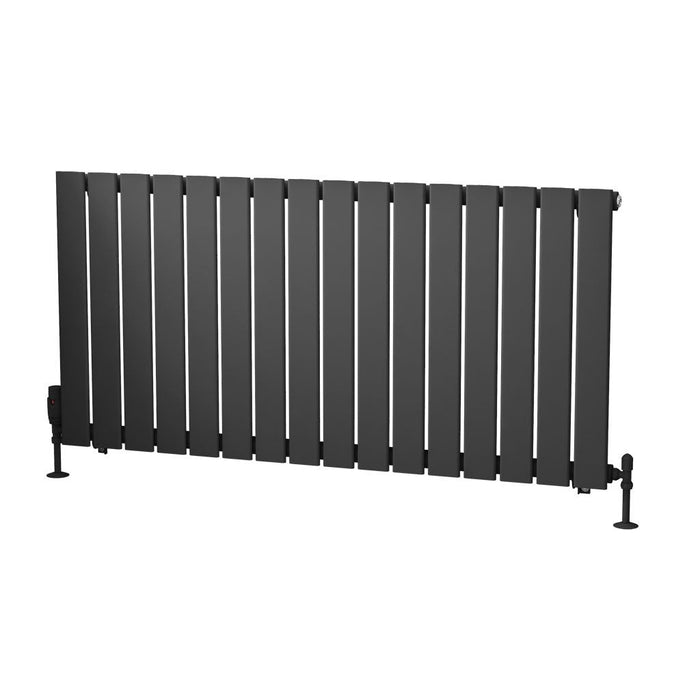

600mm x 1212mm	450	1535	854	2913

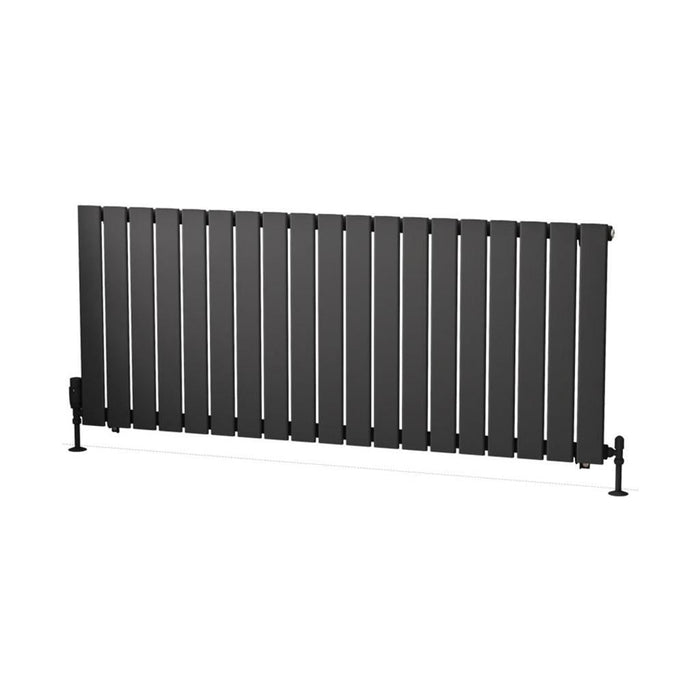

600mm x 1440mm	535	1825	1015	3462
600mm x 1668mm	619	2111	1175	4007

Assembling instructions for Horizontal Designer Radiator

Datasheet for 600mm x 452mm Horizontal Designer Radiator

Datasheet for 600mm x 604mm Horizontal Designer Radiator

Datasheet for 600mm x 832mm Horizontal Designer Radiator

Datasheet for 600mm x 1060mm Horizontal Designer Radiator

Datasheet for 600mm x 1212mm Horizontal Designer Radiator

Datasheet for 600mm x 1440mm Horizontal Designer Radiator

Datasheet for 600mm x 1668mm Horizontal Designer Radiator

Technical Drawing

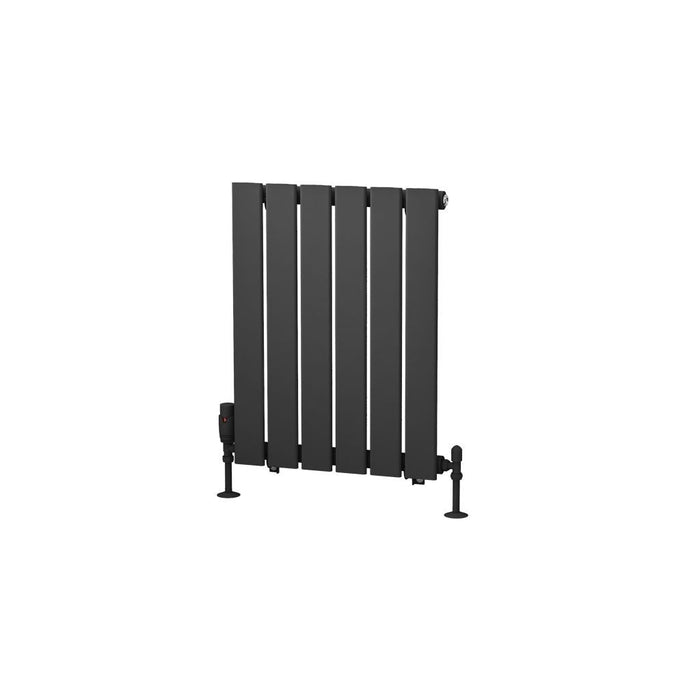

600mm x 452mm

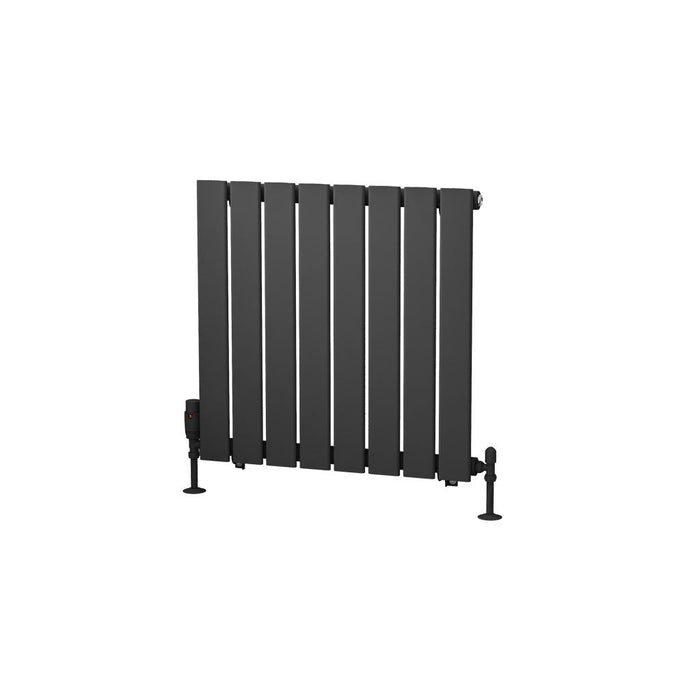

600mm x 604mm

600mm x 832mm

600mm x 1060mm

600mm x 1212mm

600mm x 1440mm

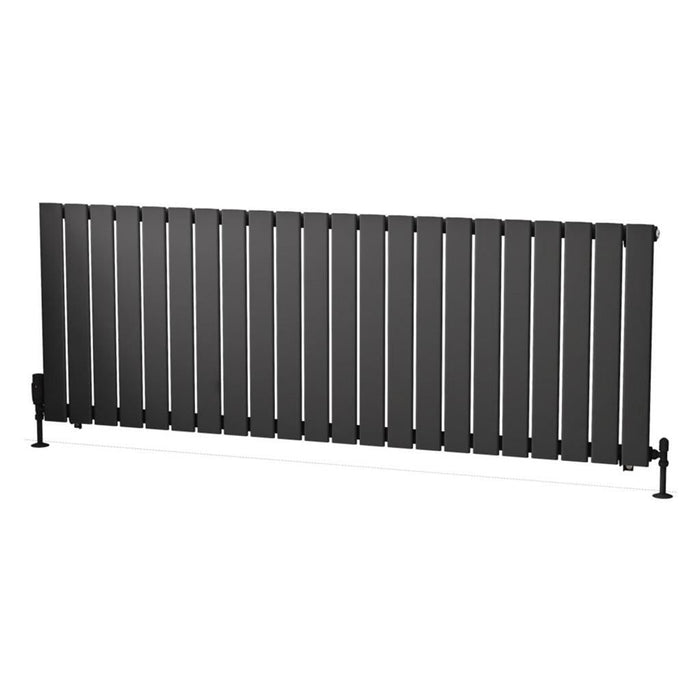

600mm x 1668mm

Datasheet for 600mm x 452mm Radiator

Datasheet for 600mm x 604mm Radiator

Datasheet for 600mm x 832mm Radiator

Datasheet for 600mm x 1060mm Radiator

Datasheet for 600mm x 1212mm Radiator

Datasheet for 600mm x 1440mm Radiator

Datasheet for 600mm x 1668mm Radiator

- View Less
