Eastbrook Warrington Type 10 Horizontal Designer Radiator Gloss White

Name: Eastbrook Warrington Type 10 Horizontal Designer Radiator Gloss White
Brand: Eastbrook
SKU: EAS41.0520
Price: 191.0 EUR
Availability: InStock

by Eastbrook

From €212.79

€212.79

€191.00

€212.79

From €191.00

€191.00

Save 10%

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch

Estimated Collection: 1 week

Estimated Delivery: 2 weeks

Select Your Options

Quantity

Product Information

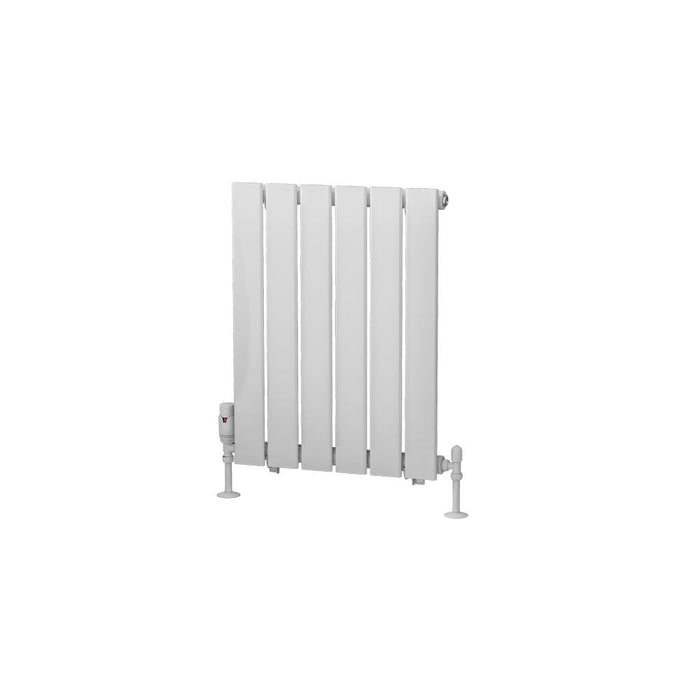

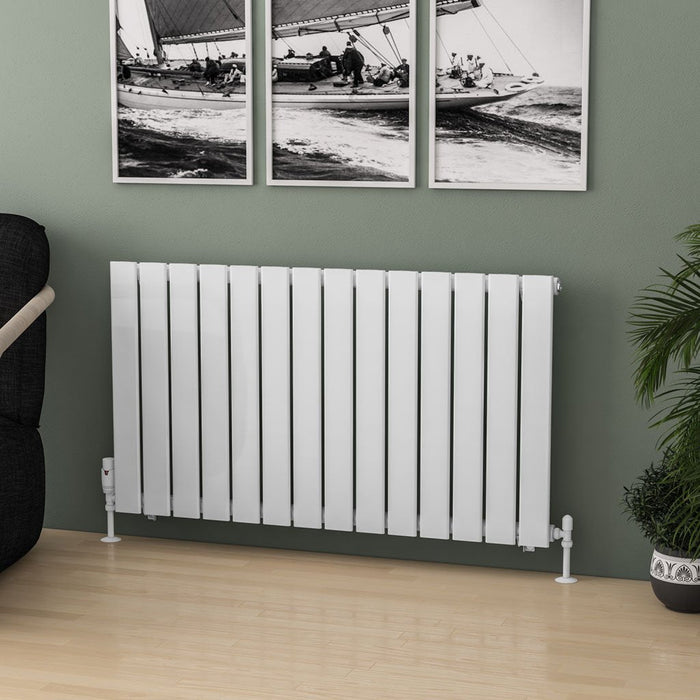

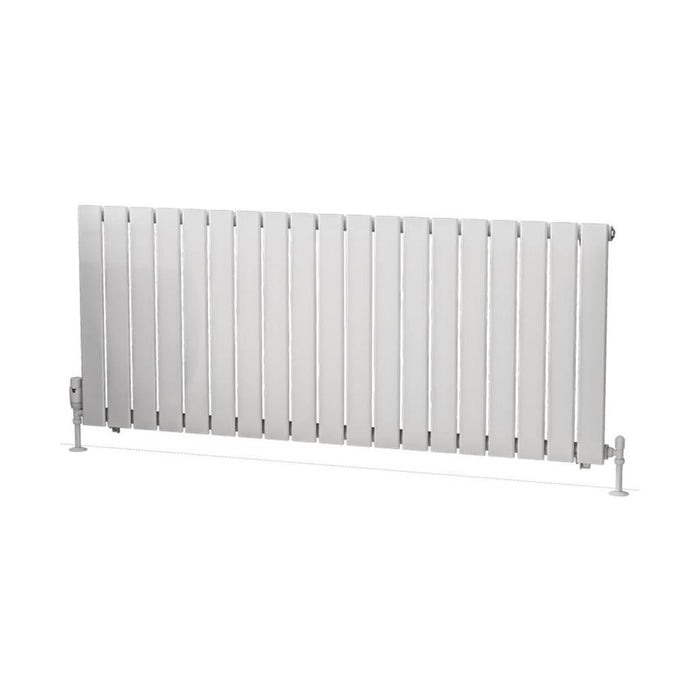

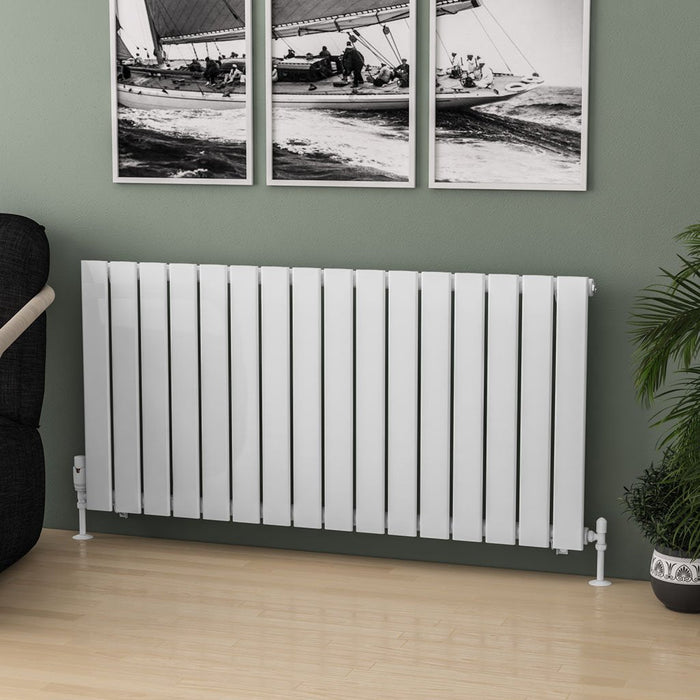

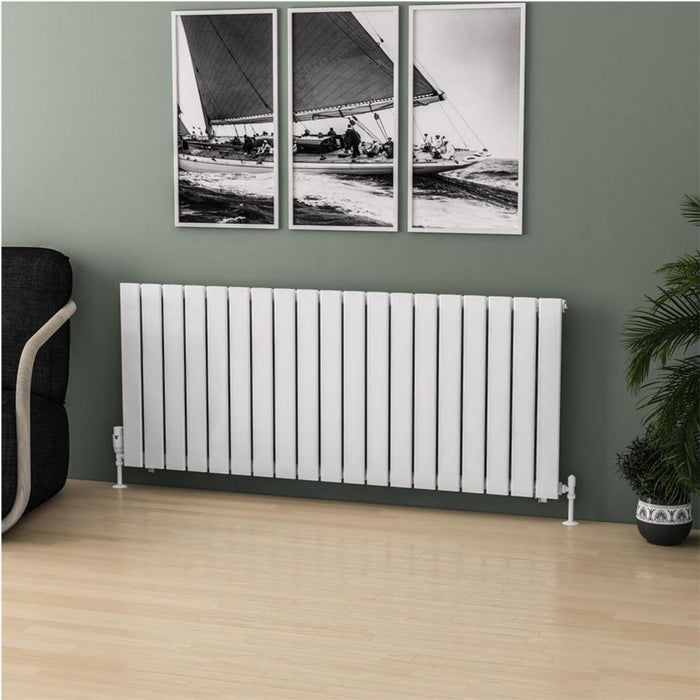

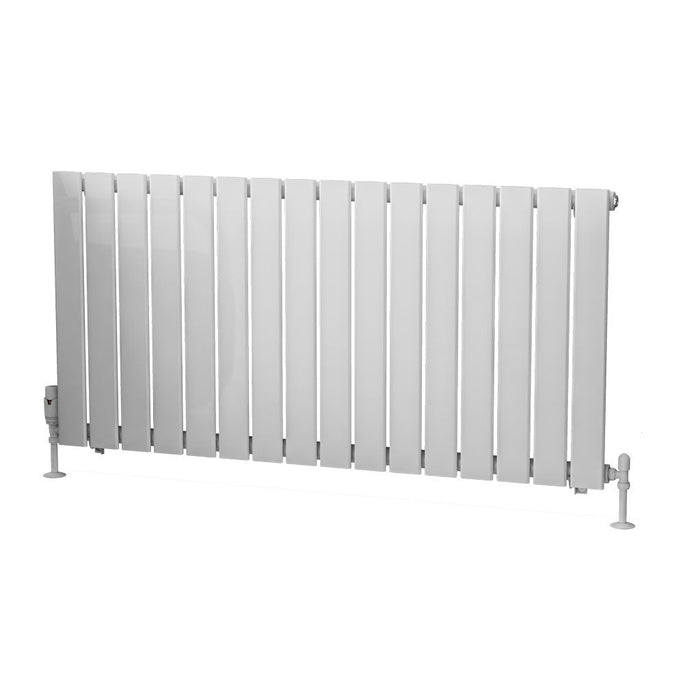

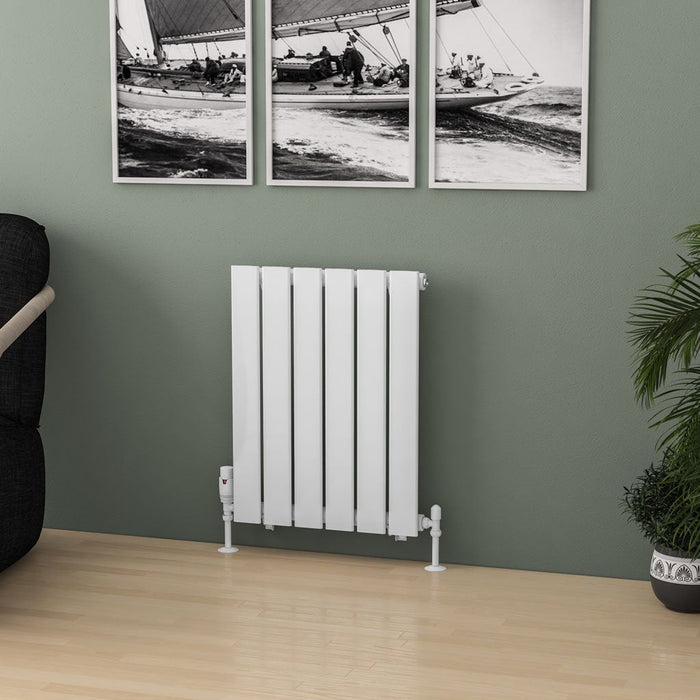

The Eastbrook warrington type 10 designer radiator in gloss white is a sleek and efficient solution for modern heating needs. Made from durable mild steel, it features a single profile construction with 68mm high and 12mm deep vertical bars. The wall-mounted design is ideal for indirect heating systems and ensures optimal hea + View More

The Eastbrook warrington type 10 designer radiator in gloss white is a sleek and efficient solution for modern heating needs. Made from durable mild steel, it features a single profile construction with 68mm high and 12mm deep vertical bars. The wall-mounted design is ideal for indirect heating systems and ensures optimal heat output, tested to bs en442 standards.This radiator comes with matching colour wall fixing sets for easy installation. It includes a pre-fitted flow diverter and has a projection of 84mm from the wall. The system requires a corrosion inhibitor for maintenance and efficient long-term performance.

Product Specifications:

Warranty: 5 Years
Product Type: Designer Radiator
Brand: Eastbrook
Collection: Warrington
Finish: Gloss White
Style: Modern
Mounting: Wall
Material: Mild Steel

Special Features:

Easy to install and use
Images are shown for illustration purposes only

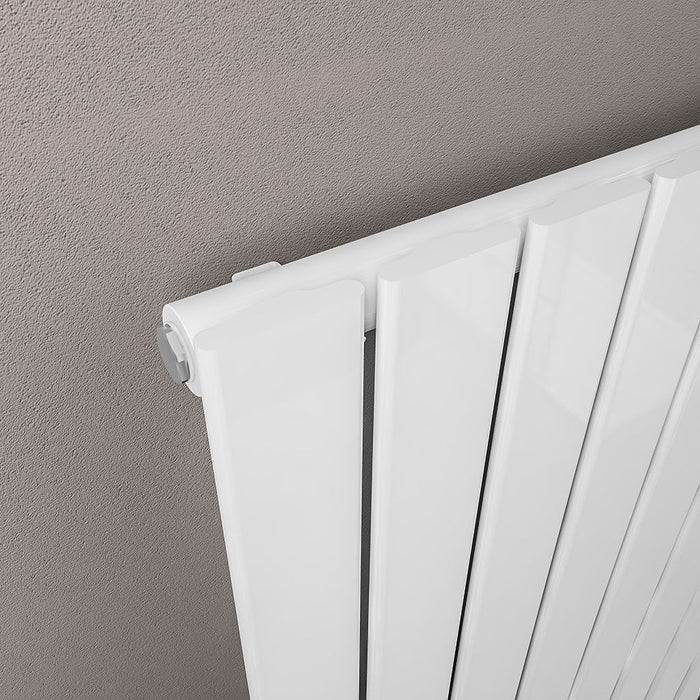

Single profile construction.
Height 68mm x Depth 12mm vertical bars.
Tested to BS EN442 standards.
Not suitable for elements.
Matching colour wall fixing sets.
Heat output based on Delta T30°C and 50°C.
For indirect heating systems only.
Comes with pre-fitted flow diverter, fitted in the middle of the bottom header.
Corrosion inhibitor must be added to the heating system and maintained.
Tapings are the width of the rail and approx. 51mm off the wall.
Projection from wall 84mm.

Dimensions:

Depth: 84mm

Technical Specifications

Size	Watts T30°C	BTU T30°C	Watts T50°C	BTU T50°C
600mm x 452mm	169	577	321	1095
600mm x 604mm	225	768	427	1457
600mm x 832mm	310	1058	588	2006
600mm x 1060mm	394	1344	748	2551
600mm x 1212mm	450	1535	854	2913
600mm x 1440mm	535	1825	1015	3462
600mm x 1668mm	619	2111	1175	4007

Assembling instructions for Horizontal Designer Radiator

Datasheet for 600mm x 452mm Horizontal Designer Radiator

Datasheet for 600mm x 604mm Horizontal Designer Radiator

Datasheet for 600mm x 832mm Horizontal Designer Radiator

Datasheet for 600mm x 1060mm Horizontal Designer Radiator

Datasheet for 600mm x 1212mm Horizontal Designer Radiator

Datasheet for 600mm x 1440mm Horizontal Designer Radiator

Datasheet for 600mm x 1668mm Horizontal Designer Radiator

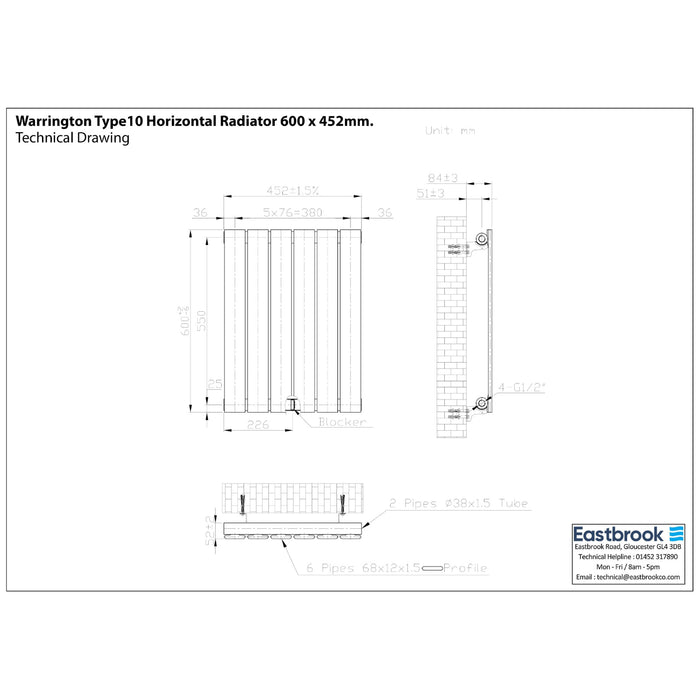

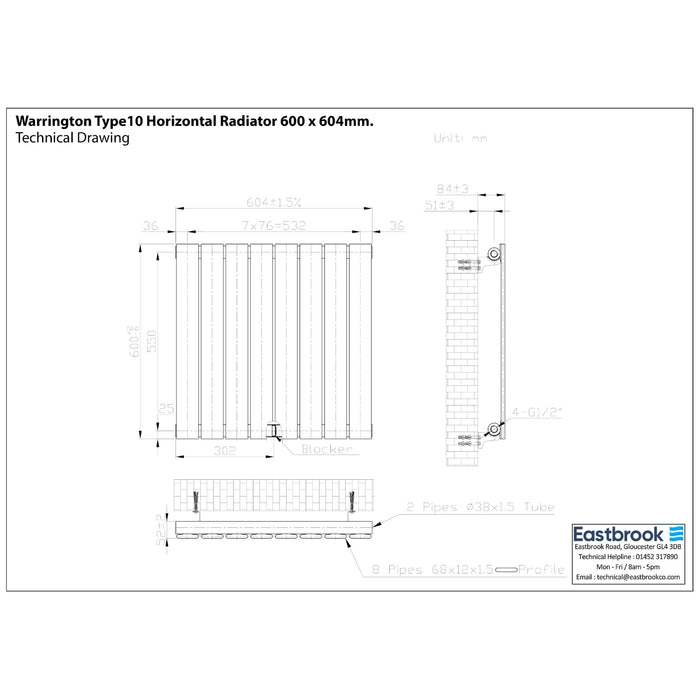

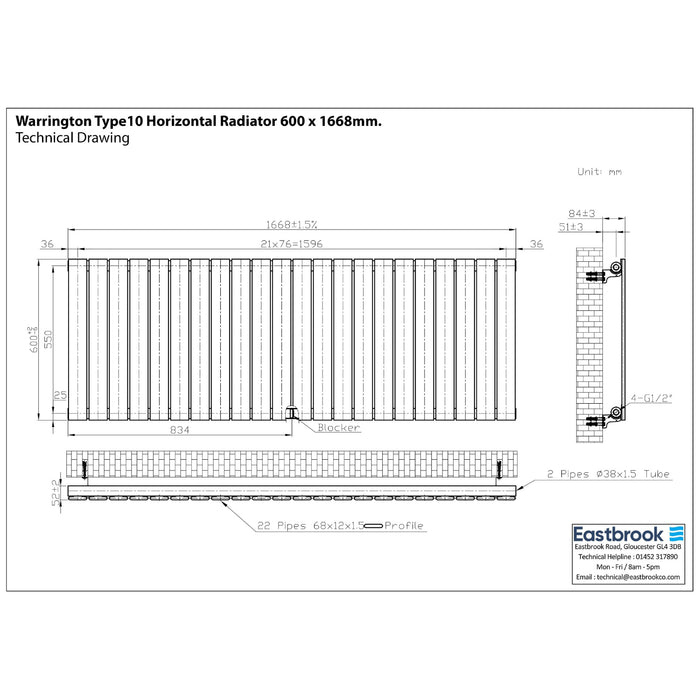

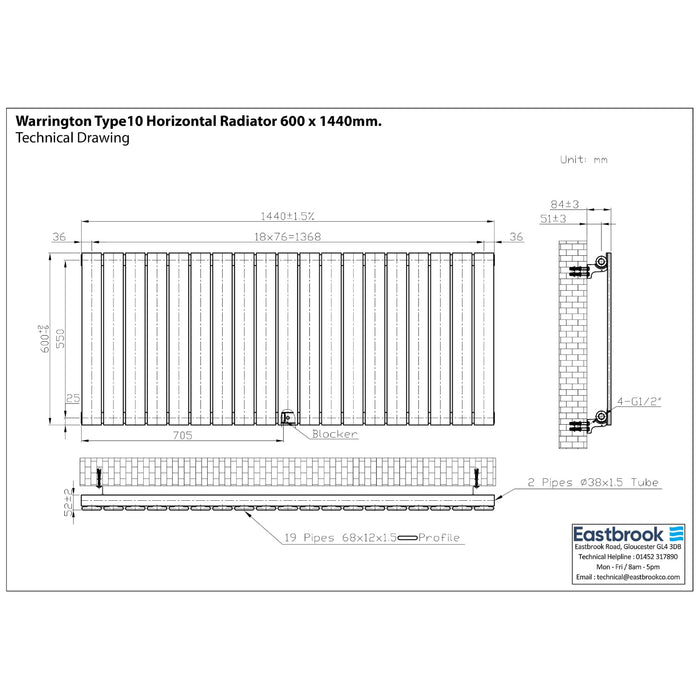

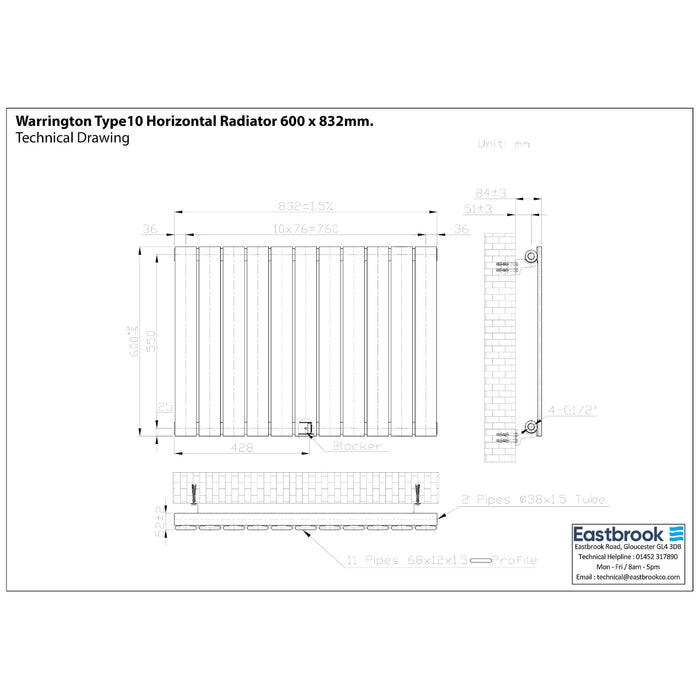

Technical Drawing

600mm x 452mm

600mm x 604mm

600mm x 832mm

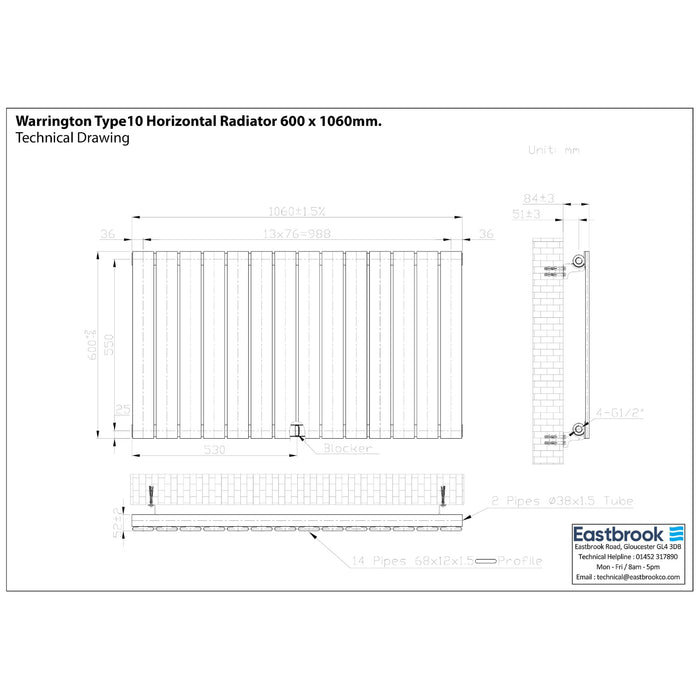

600mm x 1060mm

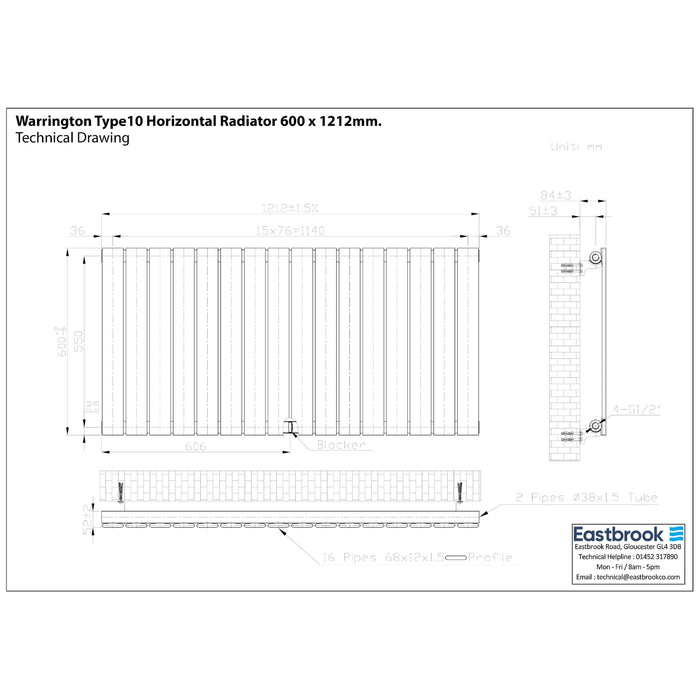

600mm x 1212mm

600mm x 1440mm

600mm x 1668mm

Datasheet for 600mm x 452mm Radiator

Datasheet for 600mm x 604mm Radiator

Datasheet for 600mm x 832mm Radiator

Datasheet for 600mm x 1060mm Radiator

Datasheet for 600mm x 1212mm Radiator

Datasheet for 600mm x 1440mm Radiator

Datasheet for 600mm x 1668mm Radiator

- View Less
