Eastbrook Type 22 Compact Single Panel Radiator Matt Black

Name: Eastbrook Type 22 Compact Single Panel Radiator Matt Black
Brand: Eastbrook
SKU: EAS25.0194
Price: 408.0 EUR
Availability: InStock

by Eastbrook

From €454.28

€454.28

€408.00

€454.28

From €408.00

€408.00

Save 10%

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch

Estimated Collection: 1 week

Estimated Delivery: 2 weeks

Select Your Options

Quantity

Product Information

The Eastbrook type 22 compact single panel radiator in matt black combines functionality with modern design. Crafted from mild steel, it is built to last and tested to meet bs en 442 standards. It features a sleek appearance, complete with a fitted top grill and side panels, ensuring both style and efficiency. With a maximum + View More

The Eastbrook type 22 compact single panel radiator in matt black combines functionality with modern design. Crafted from mild steel, it is built to last and tested to meet bs en 442 standards. It features a sleek appearance, complete with a fitted top grill and side panels, ensuring both style and efficiency. With a maximum operating pressure of 4 bars, this radiator is perfect for hot water central heating systems and is designed for two-pipe installations. Easy to install, this radiator includes an installation kit with a bleed valve, blanking plug, and necessary connections. Available in various sizes, it provides efficient heat output, making it an excellent choice for homes looking for reliable and attractive heating solutions.

Product Specifications:

Warranty: 10 Years
Product Type: Designer Radiator
Brand: Eastbrook
Collection: Type 22
Finish: Matt Black
Style: Modern
Material: Mild Steel

Special Features:

Easy to install and use
Images are shown for illustration purposes only
Radiator Valves and Heating Element are not included
Tested to BS EN 442 standards.
Hot water central heating systems only.
Max operating pressure 4 bars.
Complete with fitted top grill & side panels.
Radiators have 4 x 1/2 connections.
Installation kit included in packaging.
Heat outputs based on Delta T30°C & Delta T50°C.
Radiators are only suitable for two-pipe installations.
For indirect heating systems only.
Pipework installation is recommended after receipt of radiator.
Air vent (bleed valve) and blanking plug included in installation kit.
Bottom opposite tapings are the width of the radiator and 72 or 84mm off the wall.
Vertical tapings are approx. 55mm less than the height of the radiator and 72 or 84mm off the wall.

Dimensions:

Depth: 102mm

Technical Specifications

Size	Watts T30°C	BTU T30°C	Watts T50°C	BTU T50°C	Water Content / Litres

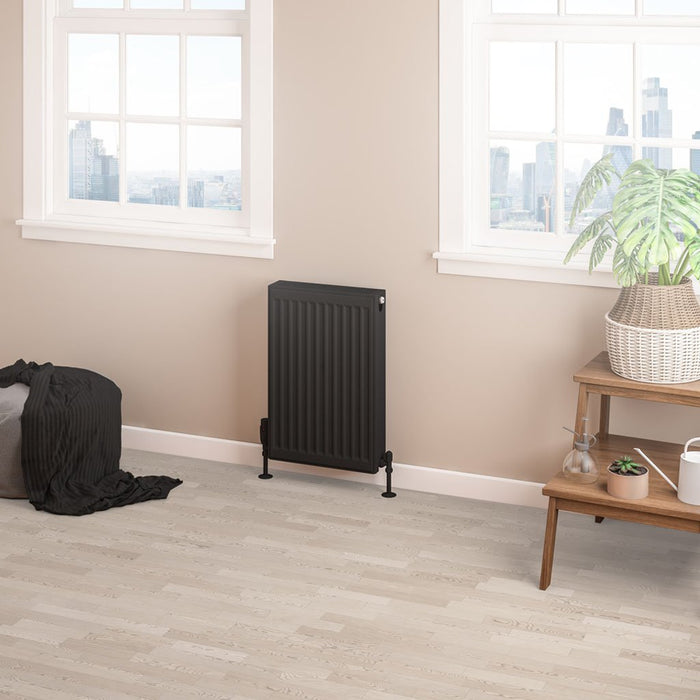

600mm x 400mm	335	1143	660	2253	2.48 Litres
600mm x 600mm	502	1715	990	3380	3.72 Litres

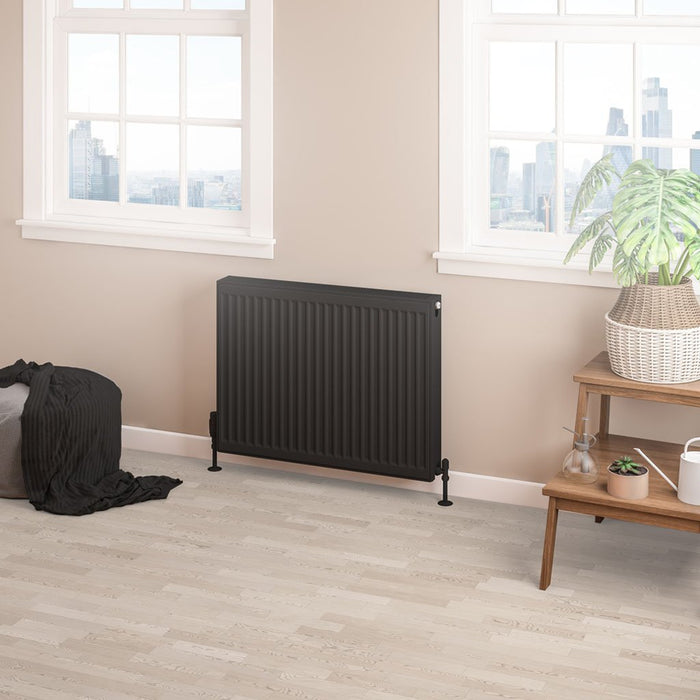

600mm x 800mm	670	2287	1320	4506	4.96 Litres

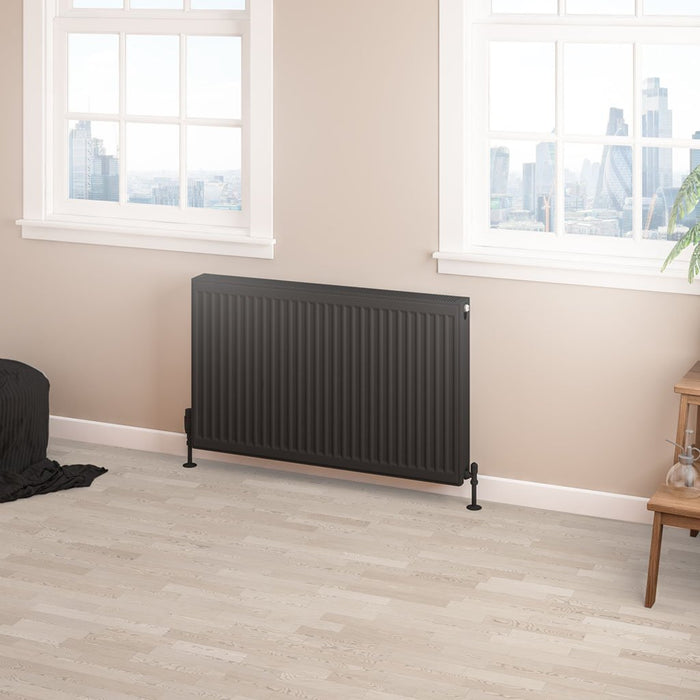

600mm x 1000mm	837	2859	1650	5633	6.20 Litres

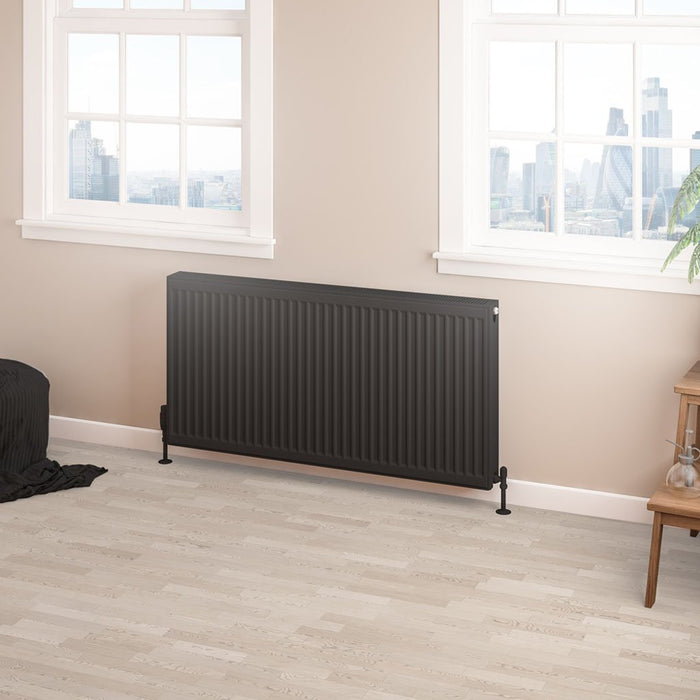

600mm x 1200mm	1005	3430	1980	6760	7.44 Litres
600mm x 1400mm	1172	4002	2310	7886	8.68 Litres
600mm x 1600mm	1340	4574	2640	9013	9.92 Litres
600mm x 1800mm	1507	5146	2970	10139	11.20 Litres

Assembling instructions for Compact Single Panel Radiator

Datasheet for 600mm x 400mm Single Panel Radiator

Datasheet for 600mm x 600mm Single Panel Radiator

Datasheet for 600mm x 800mm Single Panel Radiator

Datasheet for 600mm x 1000mm Single Panel Radiator

Datasheet for 600mm x 1200mm Single Panel Radiator

Datasheet for 600mm x 1400mm Single Panel Radiator

Datasheet for 600mm x 1600mm Single Panel Radiator

Datasheet for 600mm x 1800mm Single Panel Radiator

Technical Drawing
