Eastbrook Type 22 Compact Single Panel Radiator Matt Anthracite

Name: Eastbrook Type 22 Compact Single Panel Radiator Matt Anthracite
Brand: Eastbrook
SKU: EAS25.0186
Price: 408.0 EUR
Availability: InStock

by Eastbrook

From €454.28

€454.28

€408.00

€454.28

From €408.00

€408.00

Save 10%

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch

Estimated Collection: 1 week

Estimated Delivery: 2 weeks

Select Your Options

Quantity

Product Information

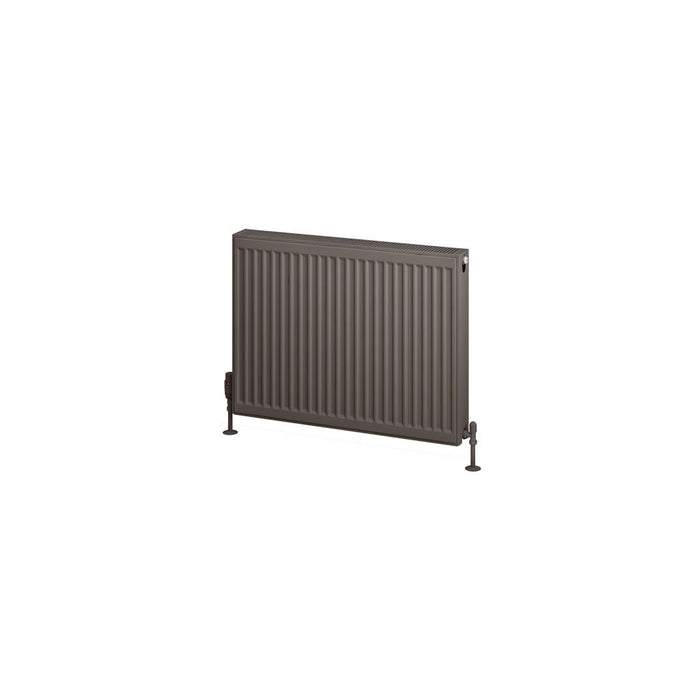

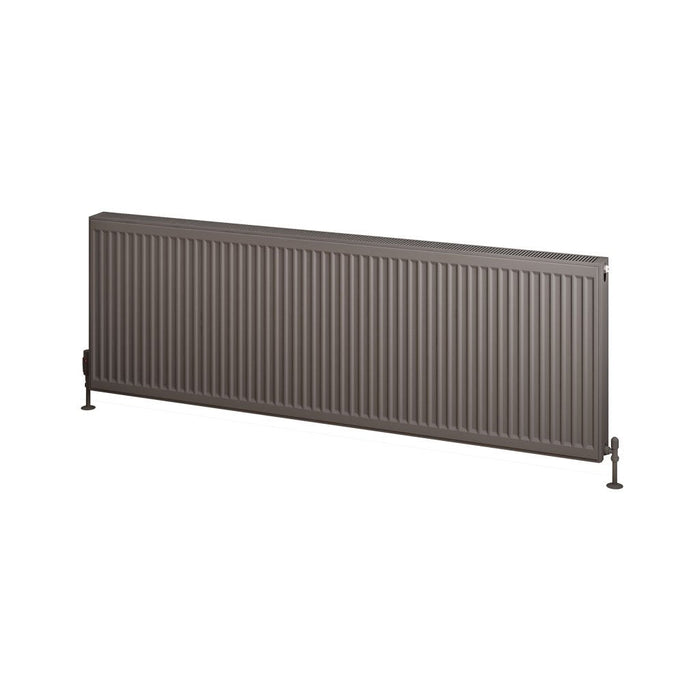

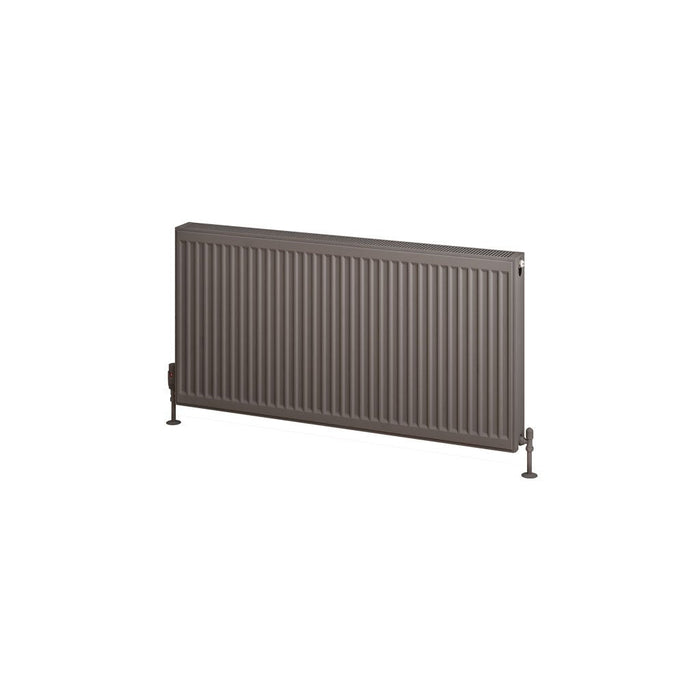

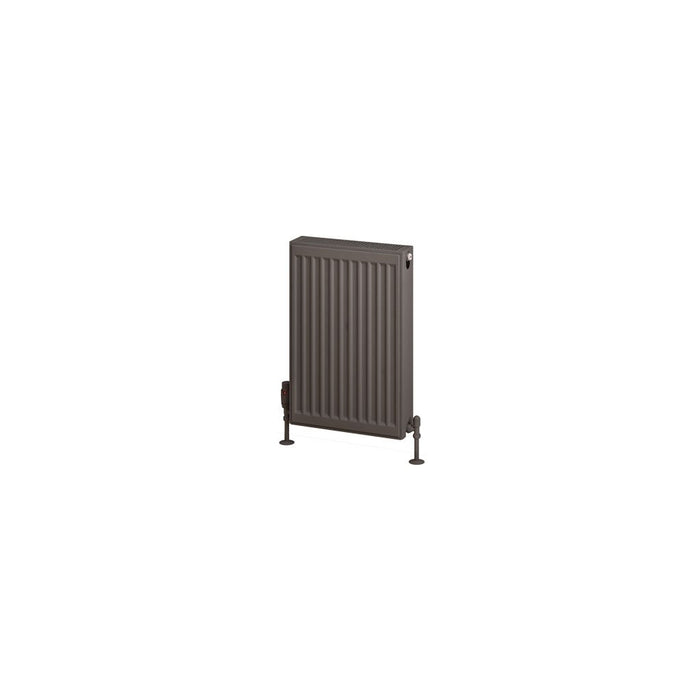

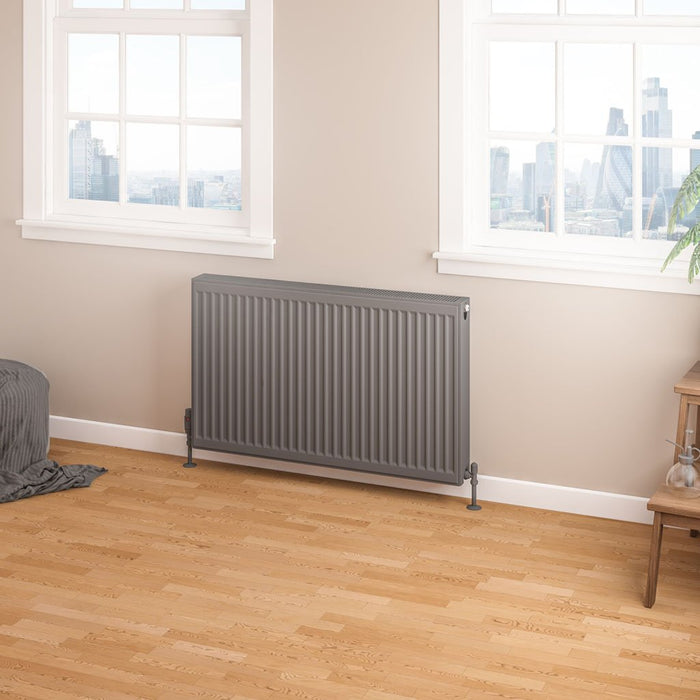

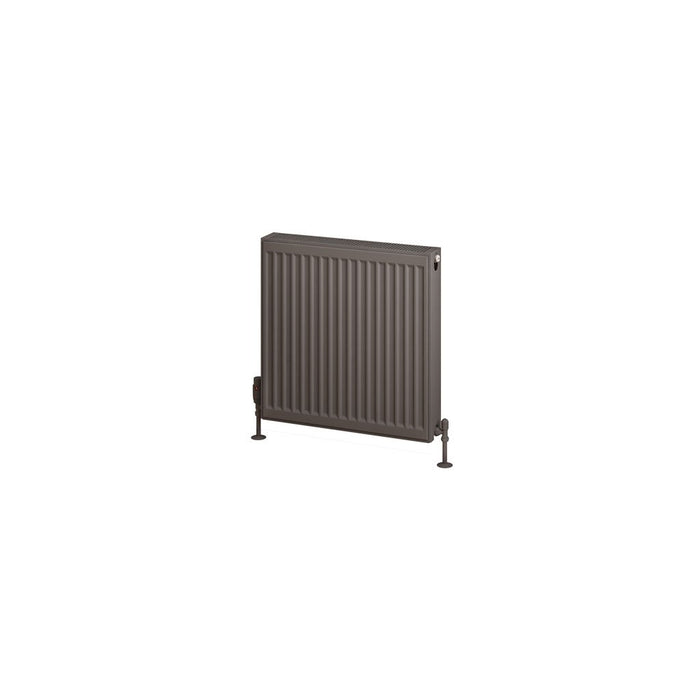

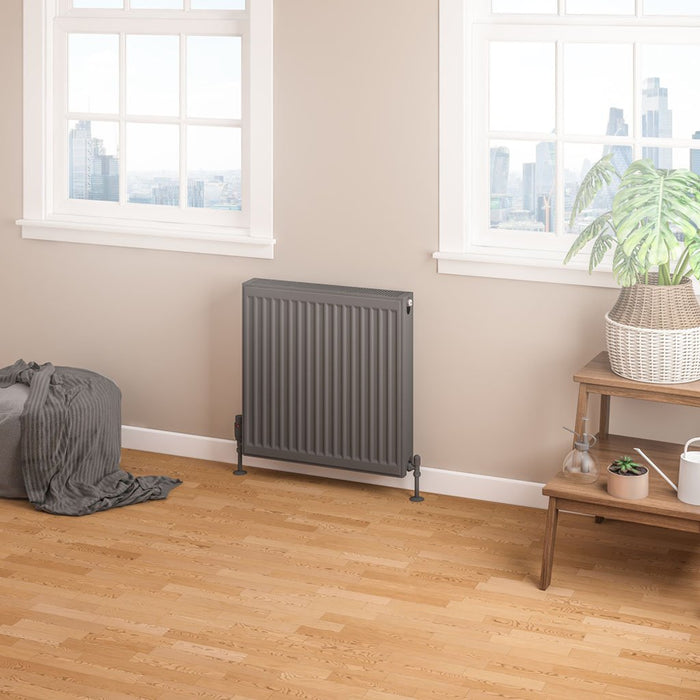

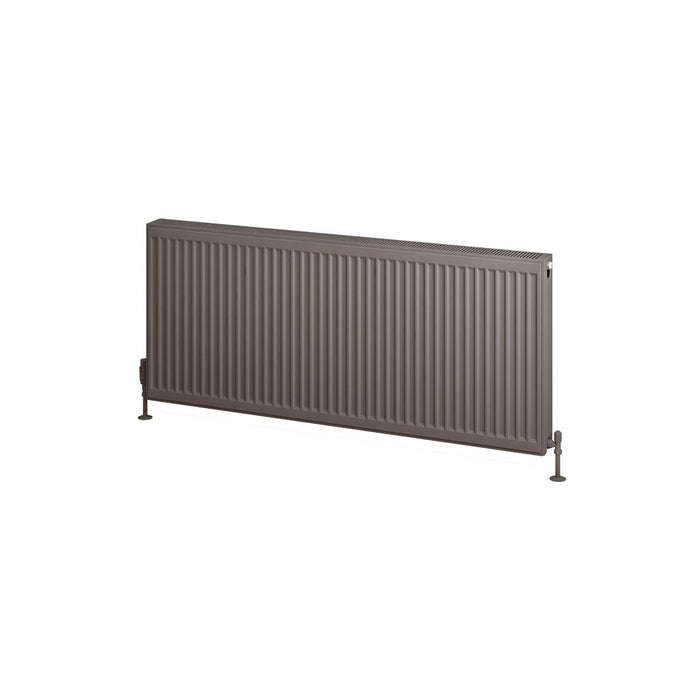

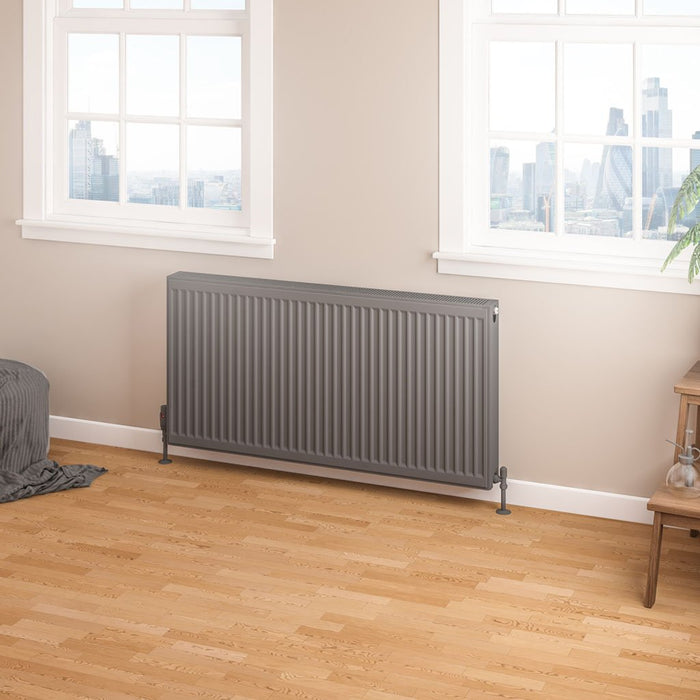

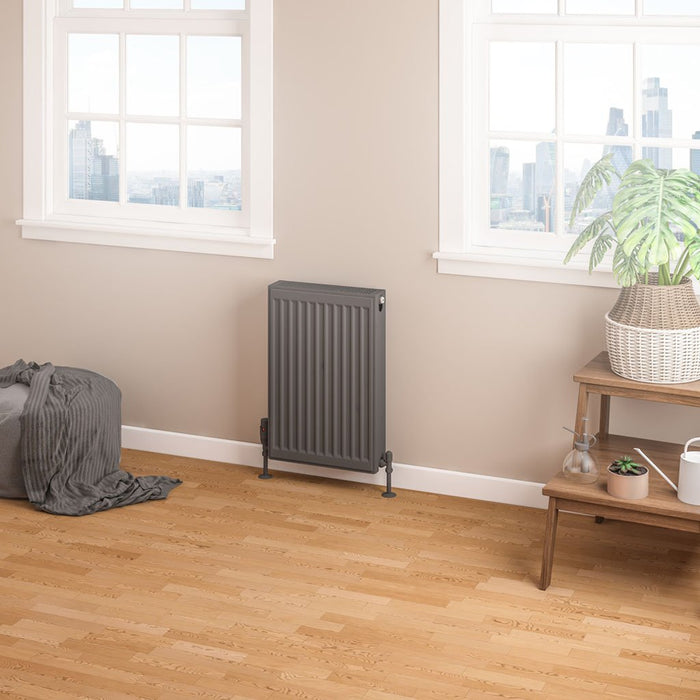

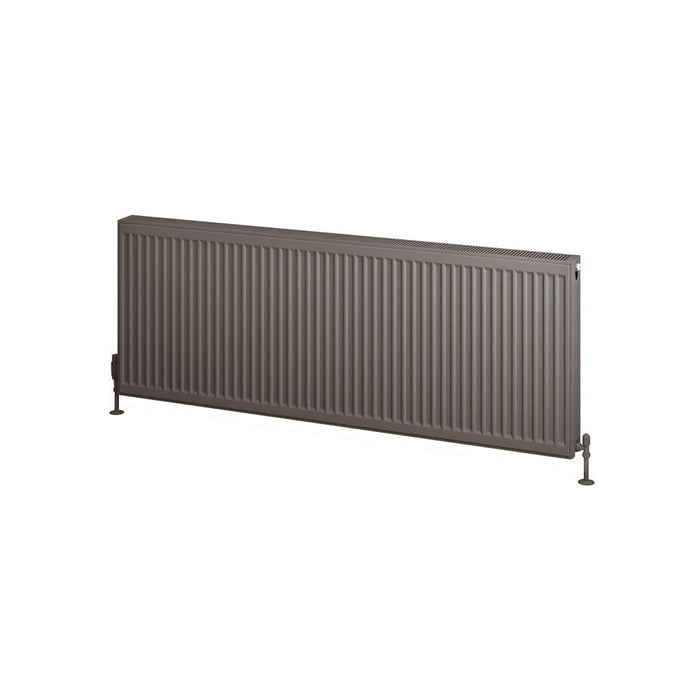

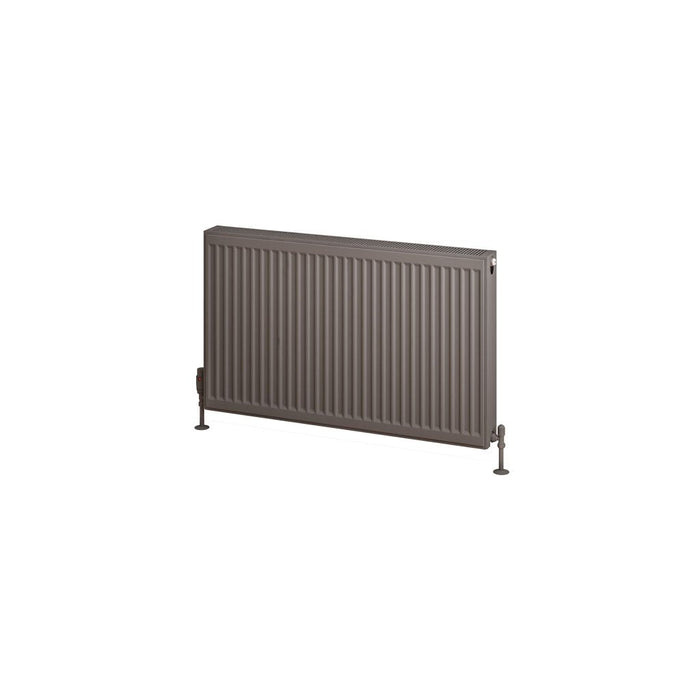

The Eastbrook type 22 compact single panel radiator in matt anthracite provides modern style and efficient heating. Made from durable mild steel, it is designed to fit hot water central heating systems. The radiator comes with a fitted top grill and side panels, and includes an installation kit for easy setup. It is tested to + View More

The Eastbrook type 22 compact single panel radiator in matt anthracite provides modern style and efficient heating. Made from durable mild steel, it is designed to fit hot water central heating systems. The radiator comes with a fitted top grill and side panels, and includes an installation kit for easy setup. It is tested to bs en 442 standards and features a maximum operating pressure of 4 bars.Available in various sizes, this radiator is suitable for two-pipe installations and indirect heating systems. Radiator valves and heating elements are not included, but it comes complete with necessary accessories, including an air vent and blanking plug.

Product Specifications:

Guarantee: 10 Years
Brand: Eastbrook
Collection: Type 22
Finish: Matt Anthracite
Style: Modern
Material: Mild Steel

Special Features:

Easy to install and use
Images are shown for illustration purposes only
Radiator Valves and Heating Element are not included
Tested to BS EN 442 standards.
Hot water central heating systems only.
Max operating pressure 4 bars.
Complete with fitted top grill & side panels.
Radiators have 4 x 1/2 connections.
Installation kit included in packaging.
Heat outputs based on Delta ?T 50°C & Delta ?T 60°C.
Radiators are only suitable for two-pipe installations.
For indirect heating systems only.
Pipework installation is recommended after receipt of radiator.
Air vent (bleed valve) and blanking plug included in installation kit.
Bottom opposite tapings are the width of the radiator and 72 or 84mm off the wall.
Vertical tapings are approx. 55mm less than the height of the radiator and 72 or 84mm off the wall.

Dimensions:

Depth: 102mm

Size	Watts ?T60°C	Watts ?T50°C	BTU ?T60°C	BTU ?T50°C
600mm x 400mm	829	656	2891	2240
600mm x 600mm	1245	985	4247	3360

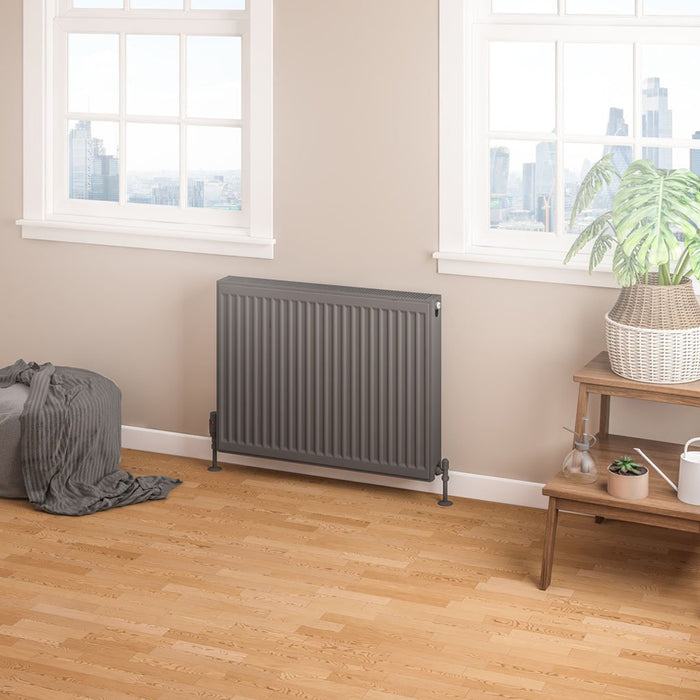

600mm x 800mm	1660	1313	5663	4480
600mm x 1000mm	2074	1641	7078	5600
600mm x 1200mm	2489	1969	8494	6720

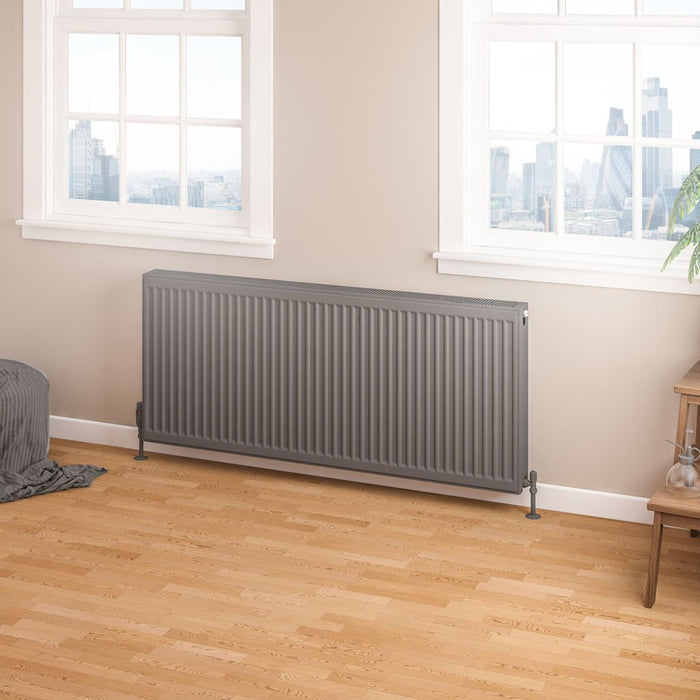

600mm x 1400mm	2905	2298	9910	7840

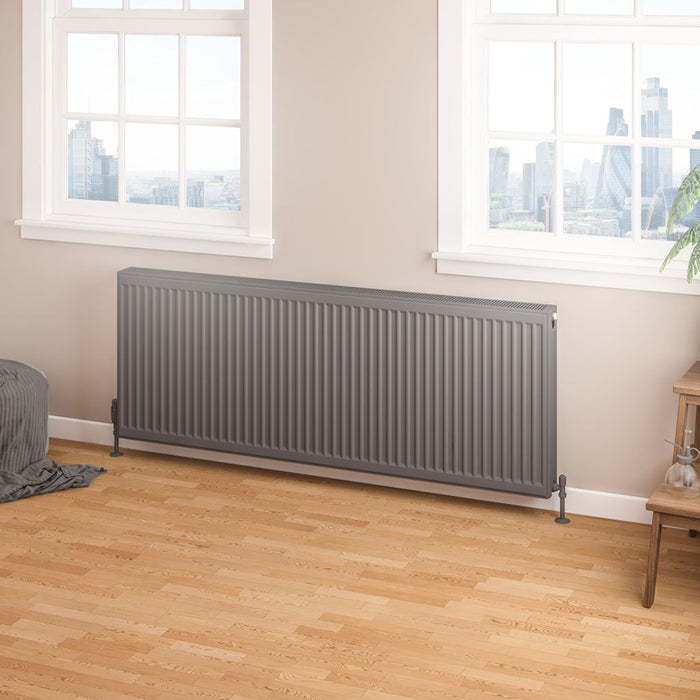

600mm x 1600mm	3319	2626	11325	8960

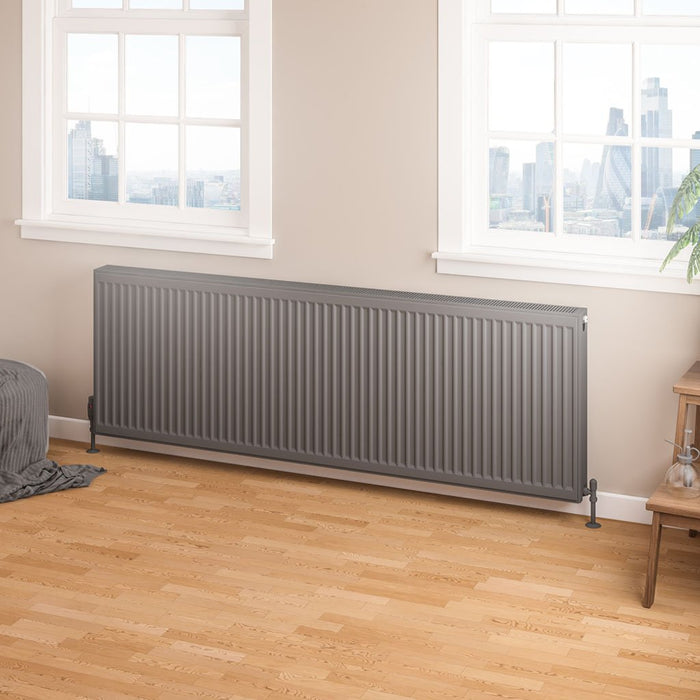

600mm x 1800mm	3734	2954	12741	10080

Assembling instructions for Compact Single Panel Radiator

Datasheet for 600mm x 400mm Single Panel Radiator

Datasheet for 600mm x 600mm Single Panel Radiator

Datasheet for 600mm x 800mm Single Panel Radiator

Datasheet for 600mm x 1000mm Single Panel Radiator

Datasheet for 600mm x 1200mm Single Panel Radiator

Datasheet for 600mm x 1400mm Single Panel Radiator

Datasheet for 600mm x 1600mm Single Panel Radiator

Datasheet for 600mm x 1800mm Single Panel Radiator

Technical Drawing
