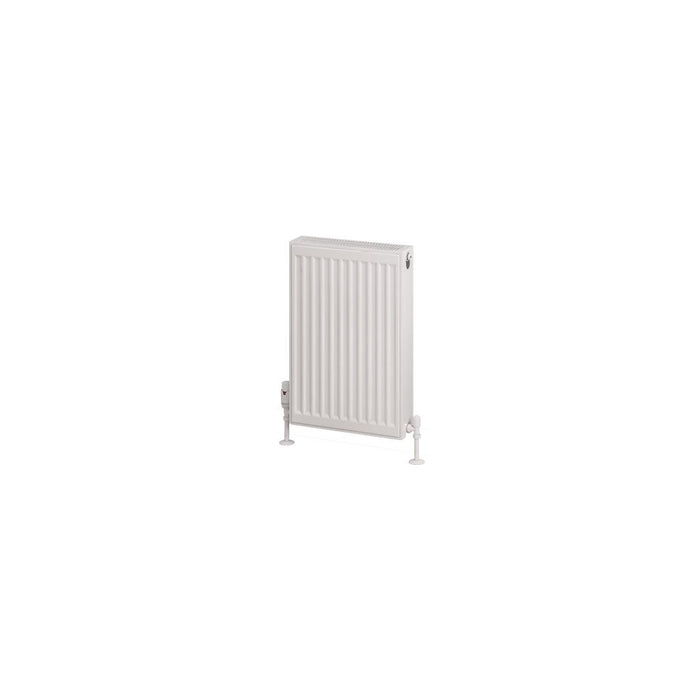

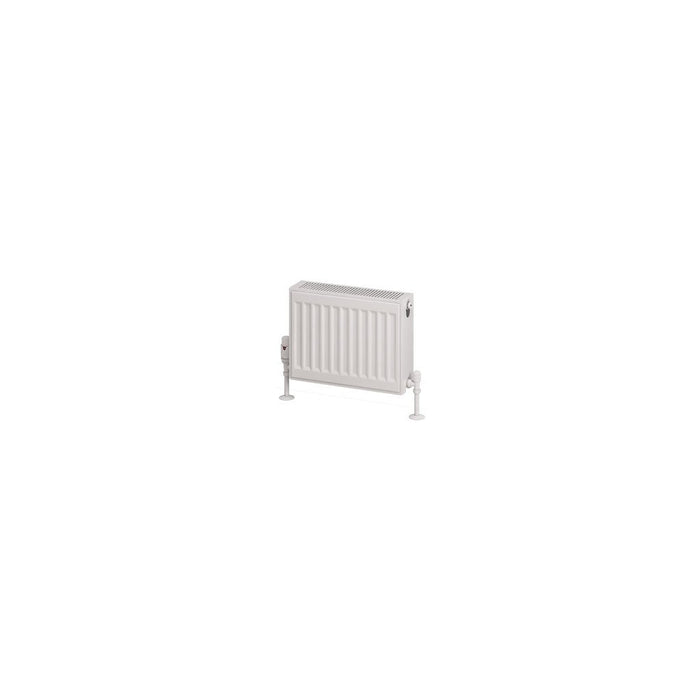

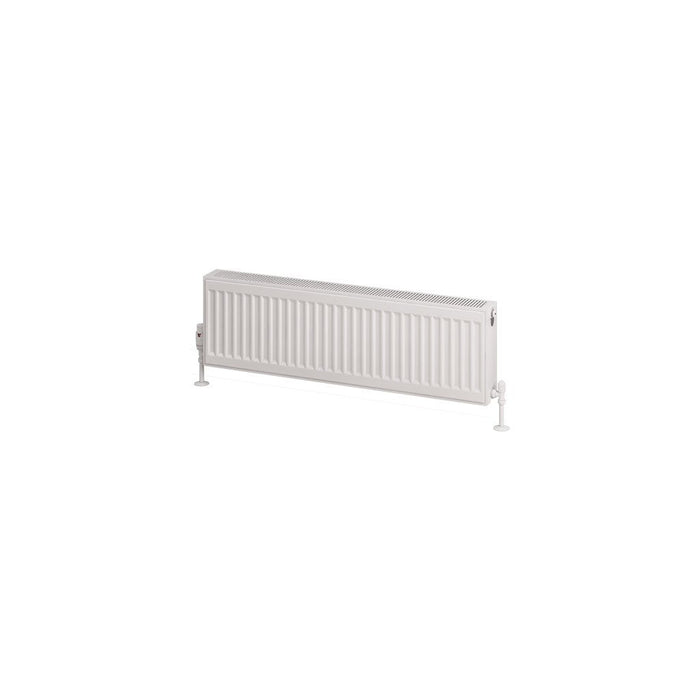

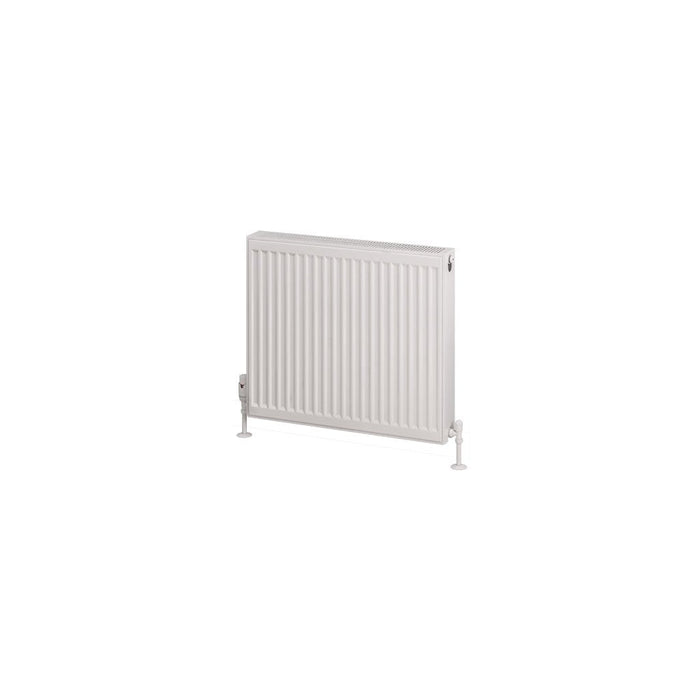

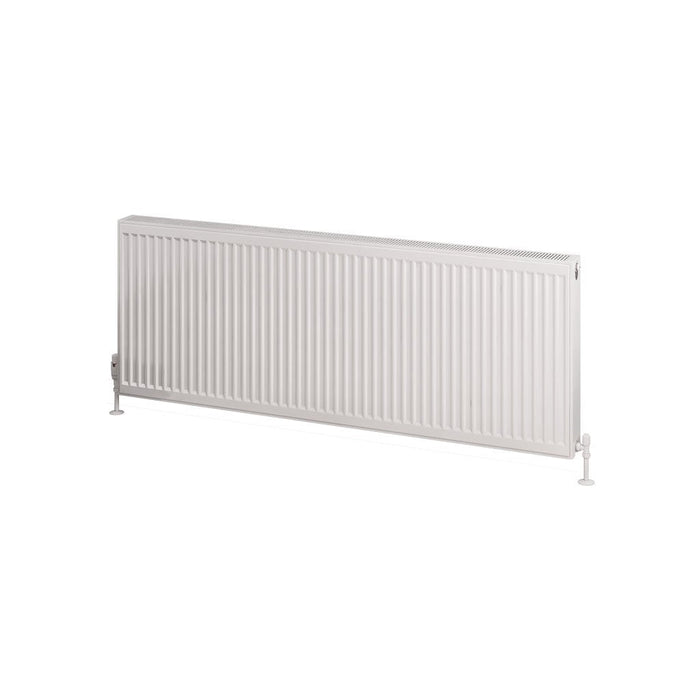

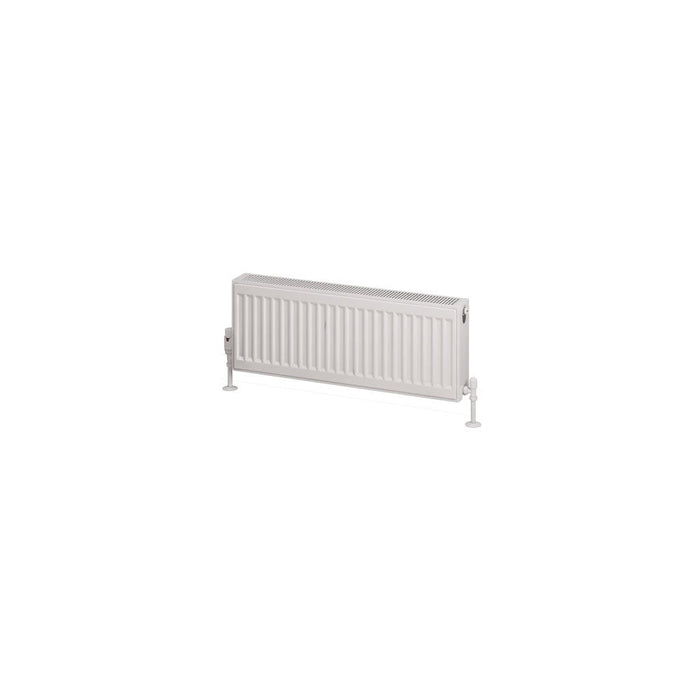

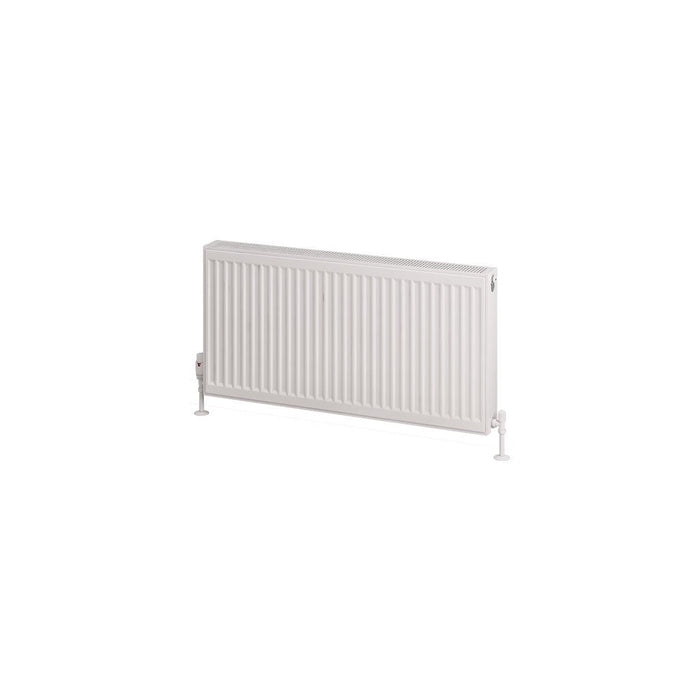

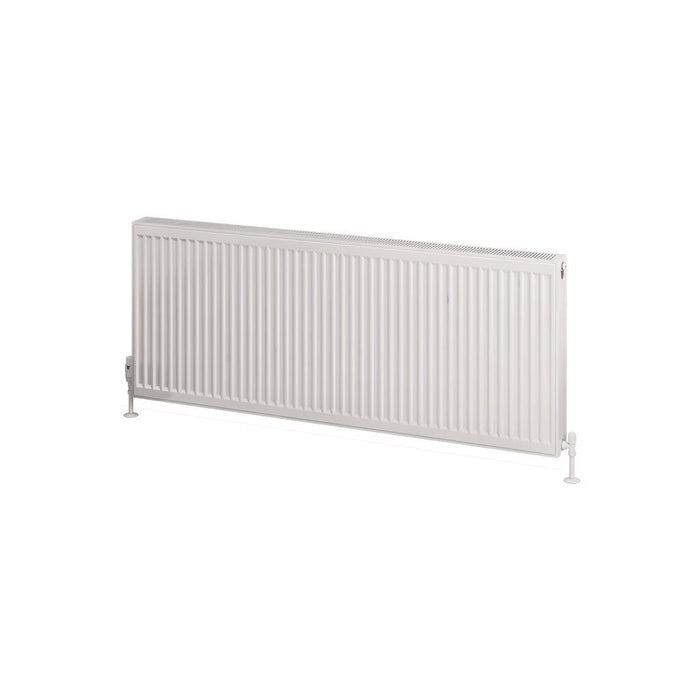

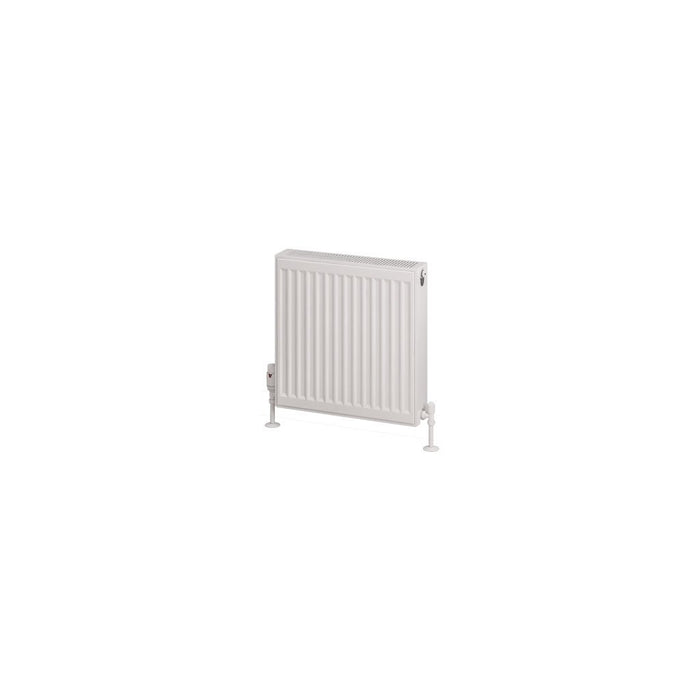

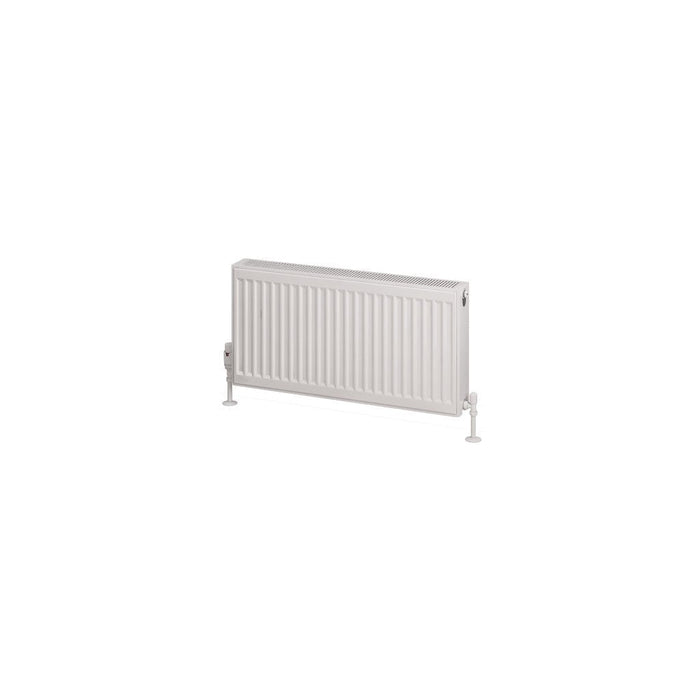

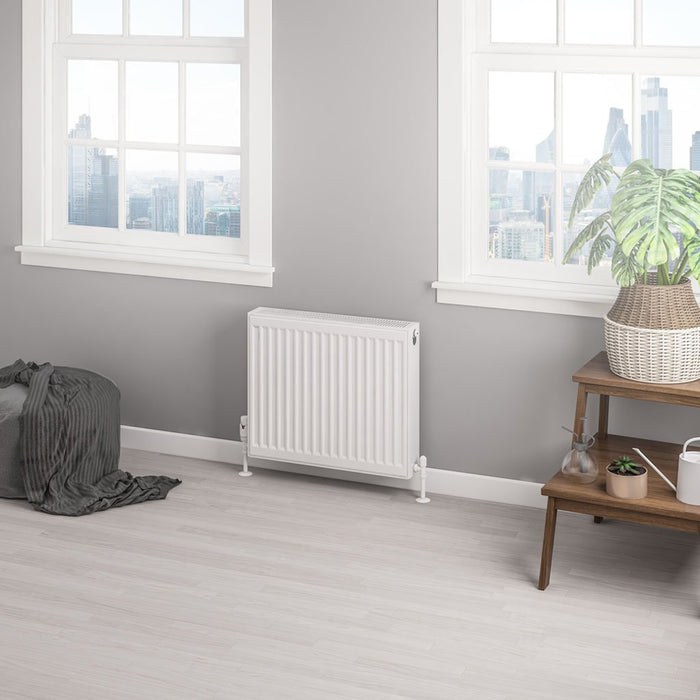

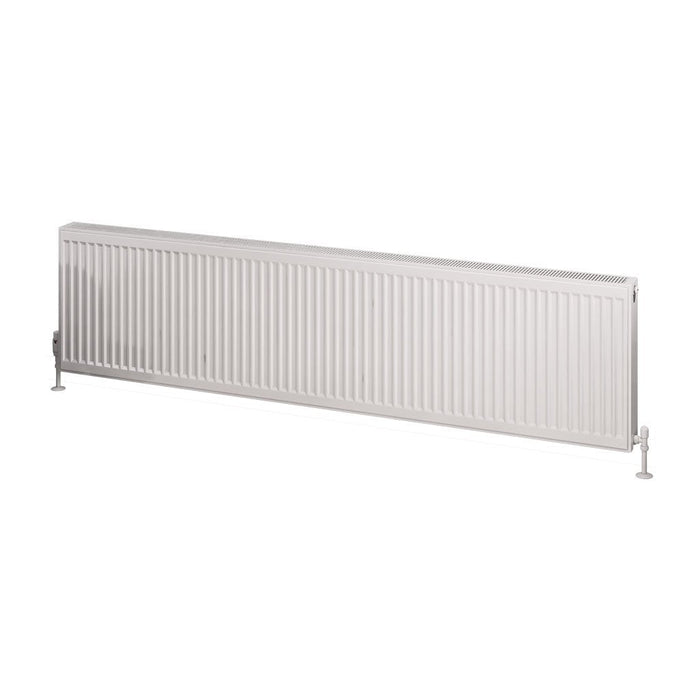

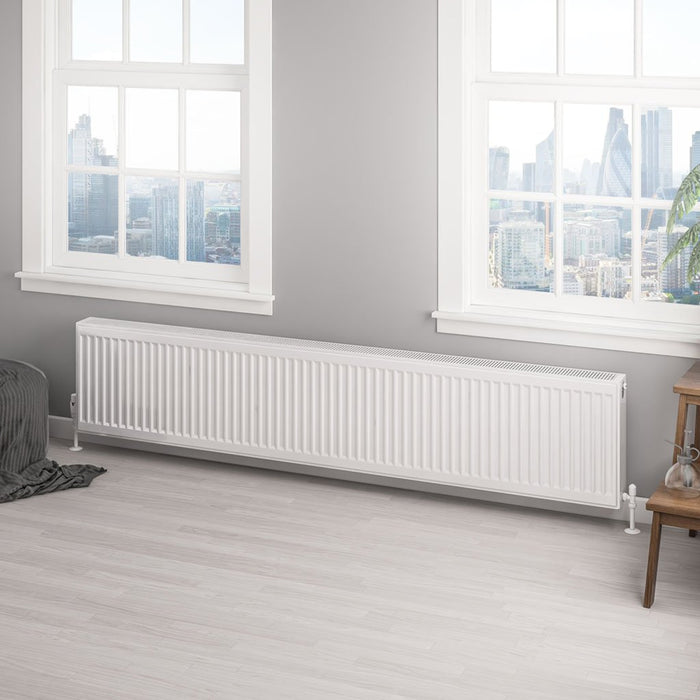

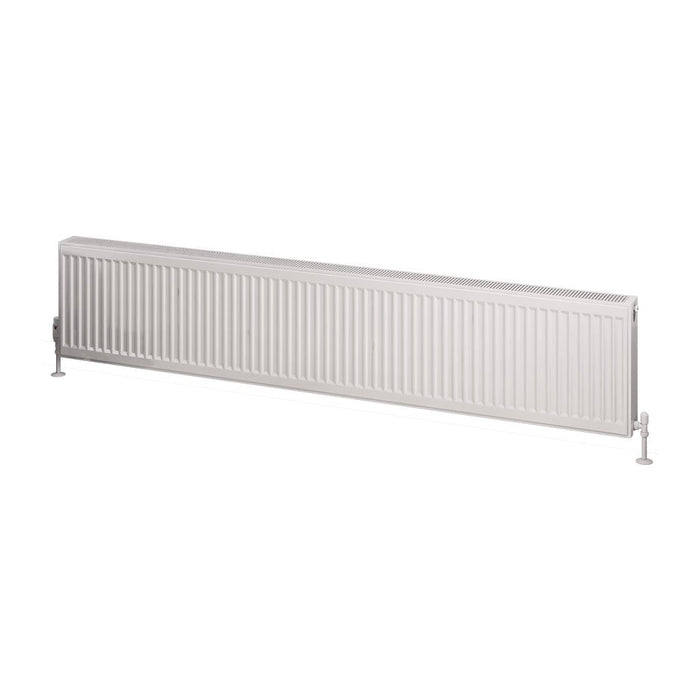

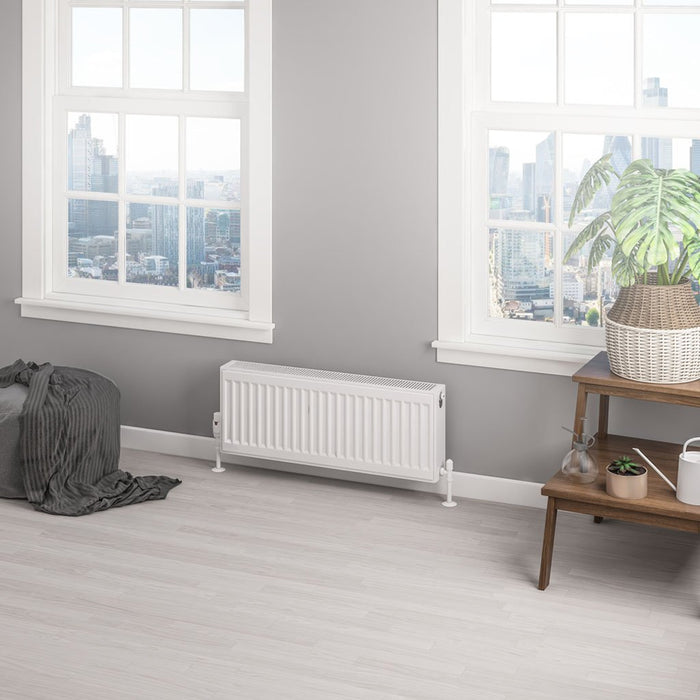

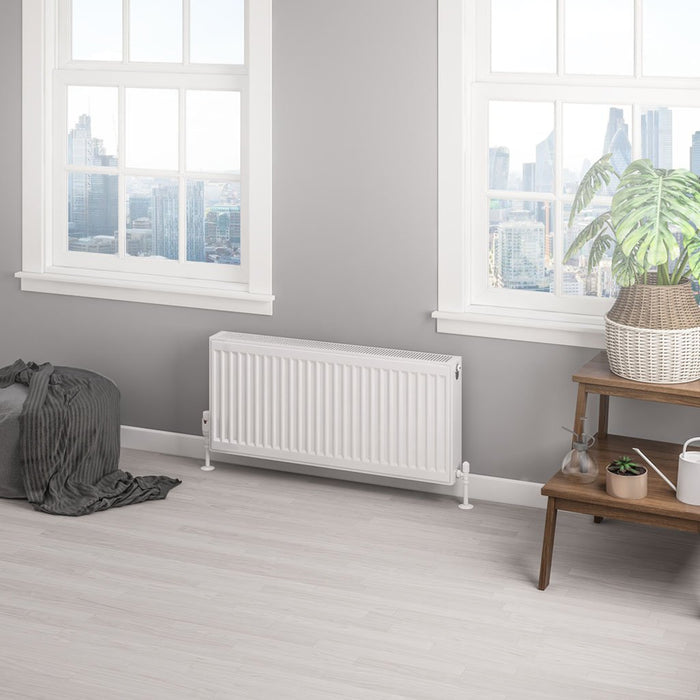

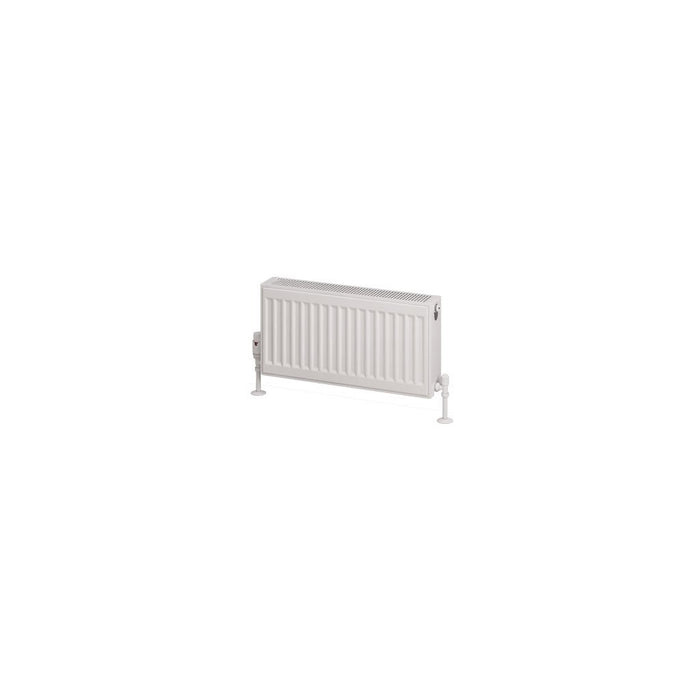

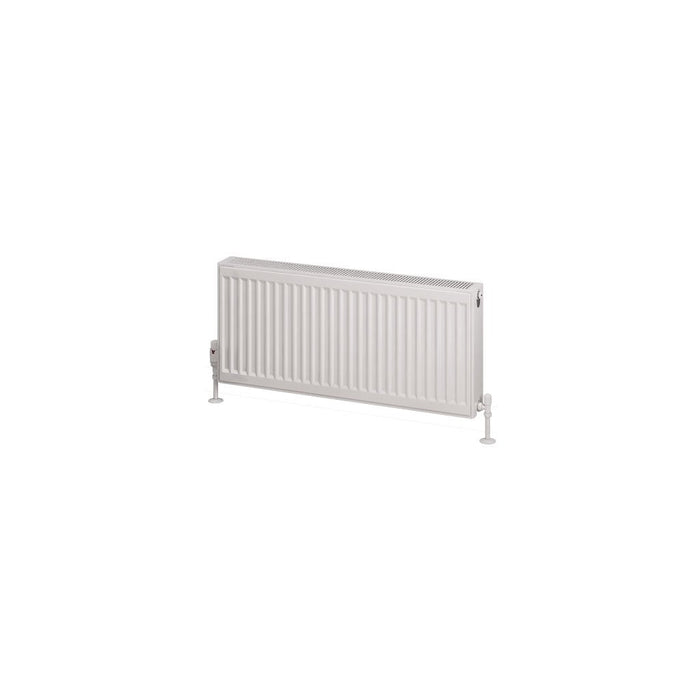

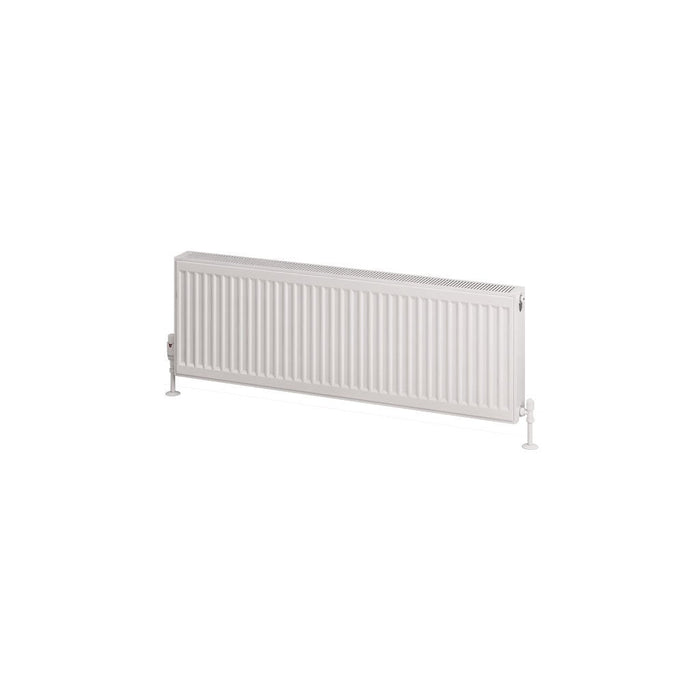

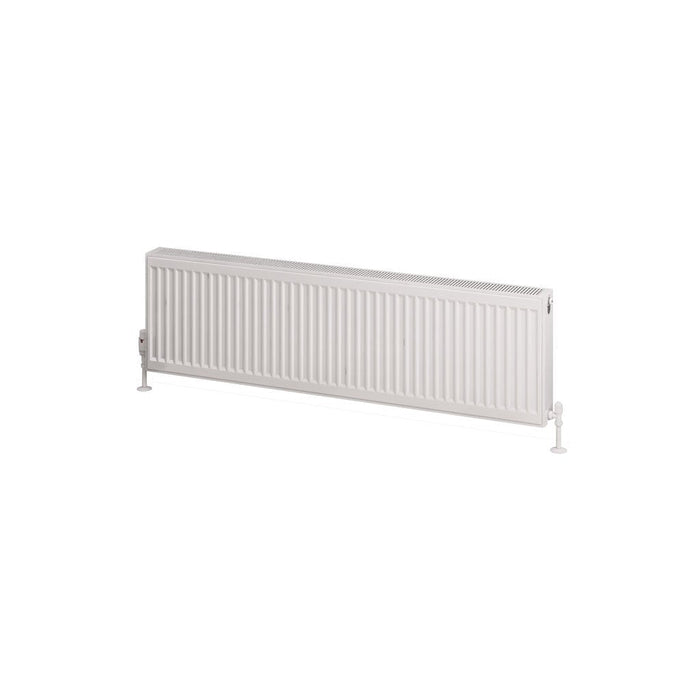

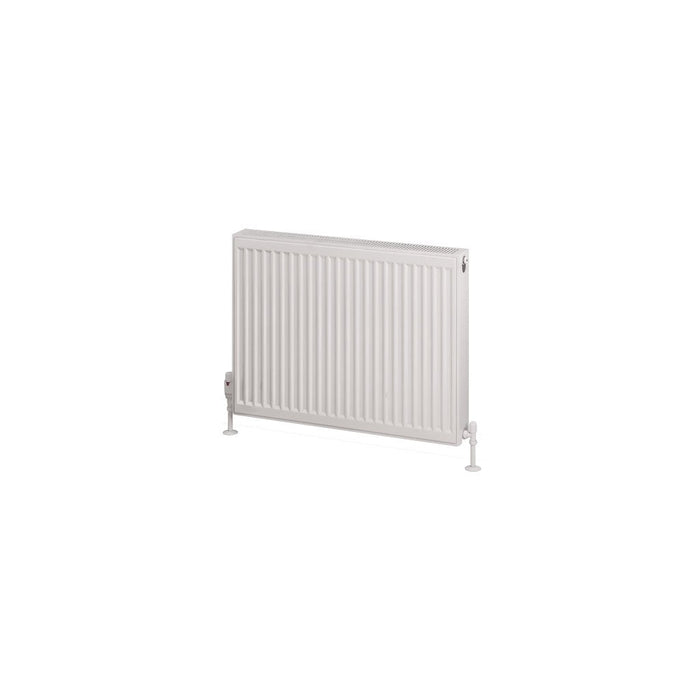

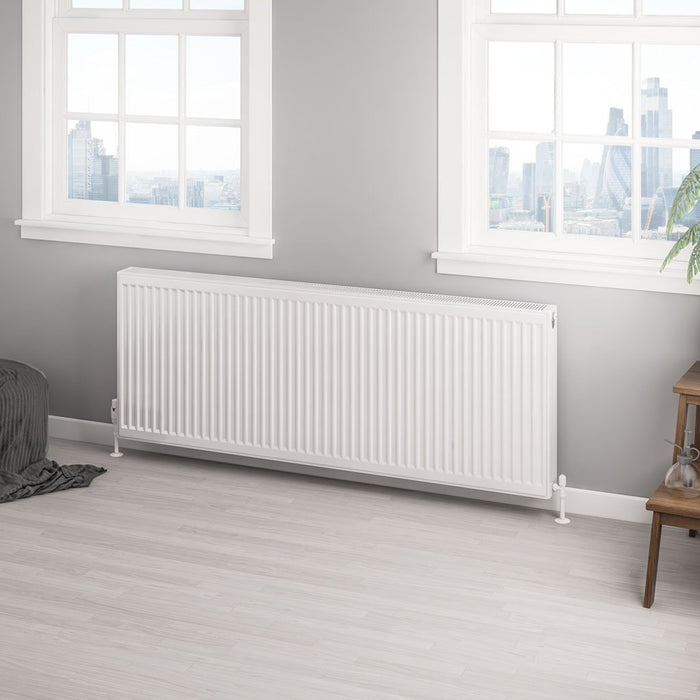

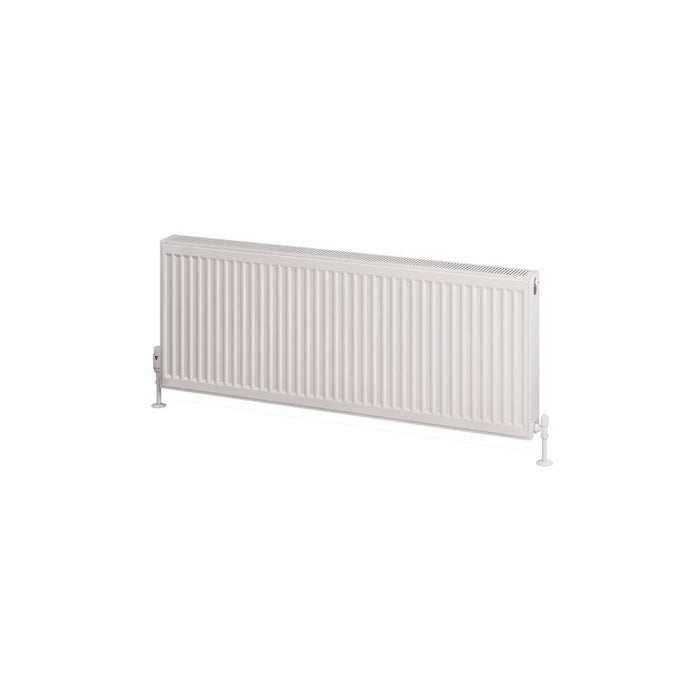

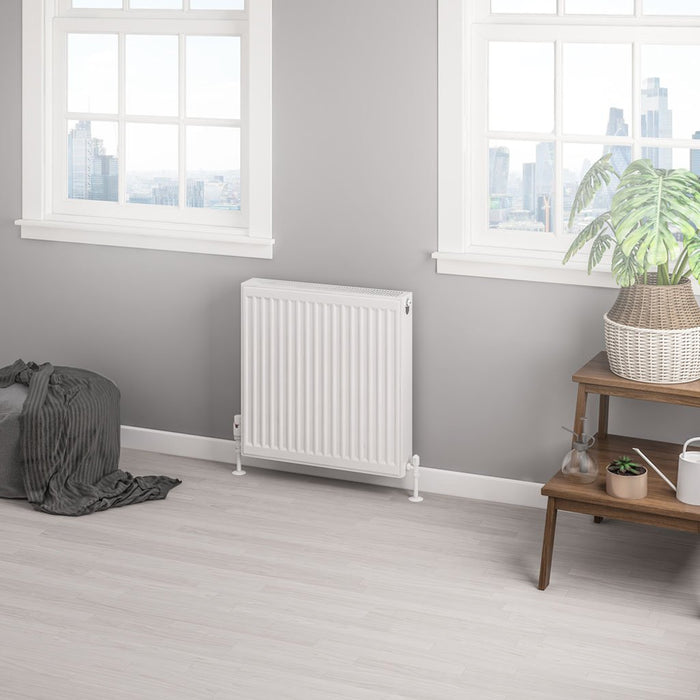

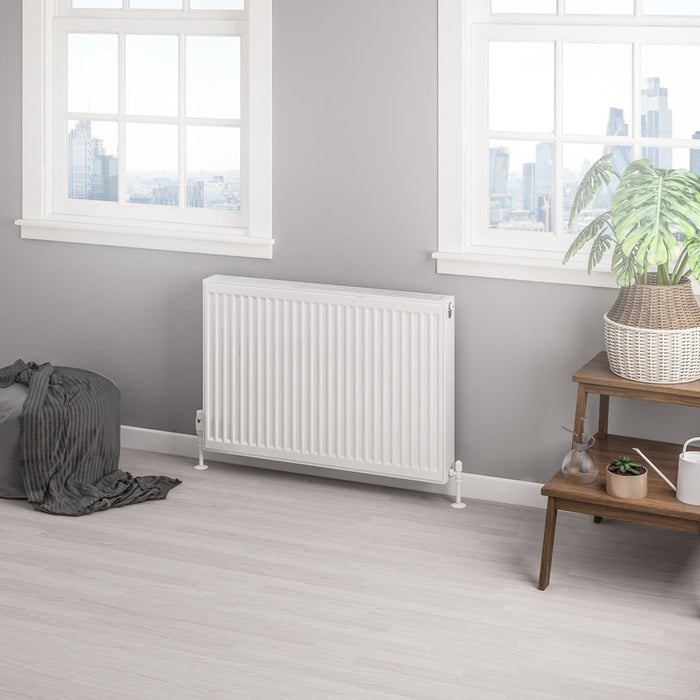

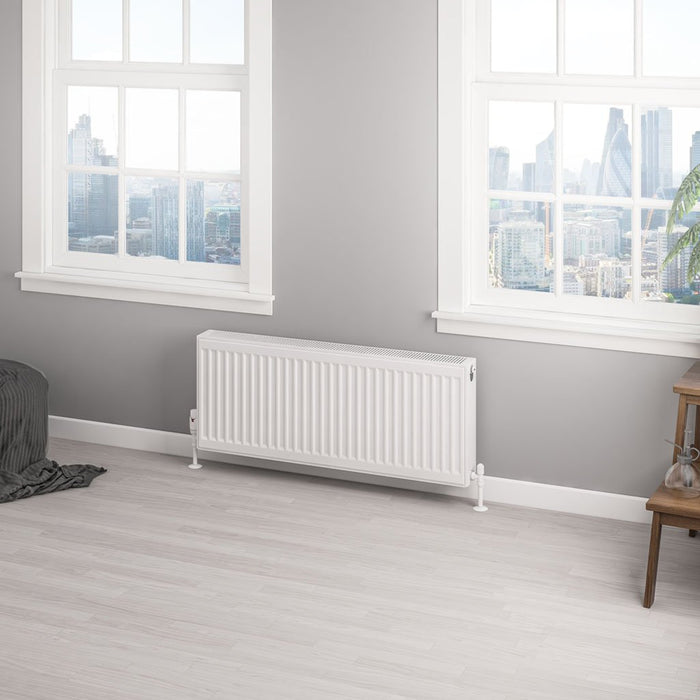

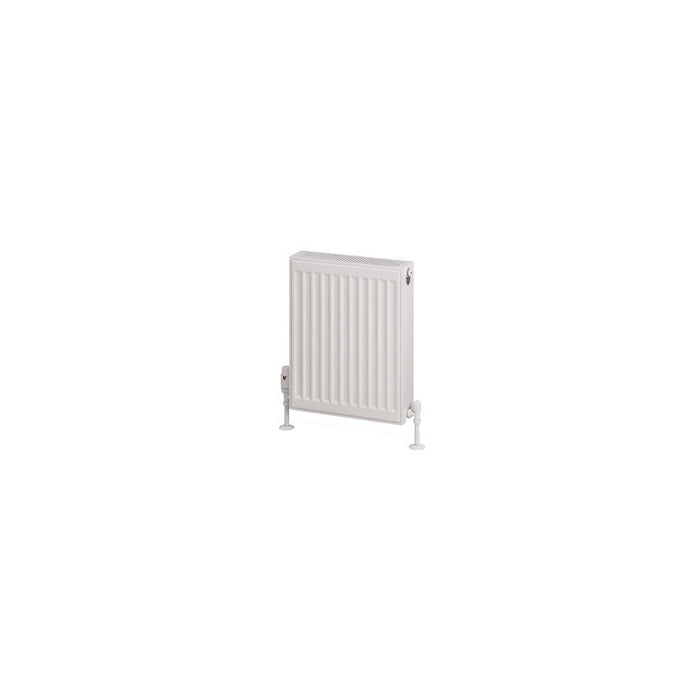

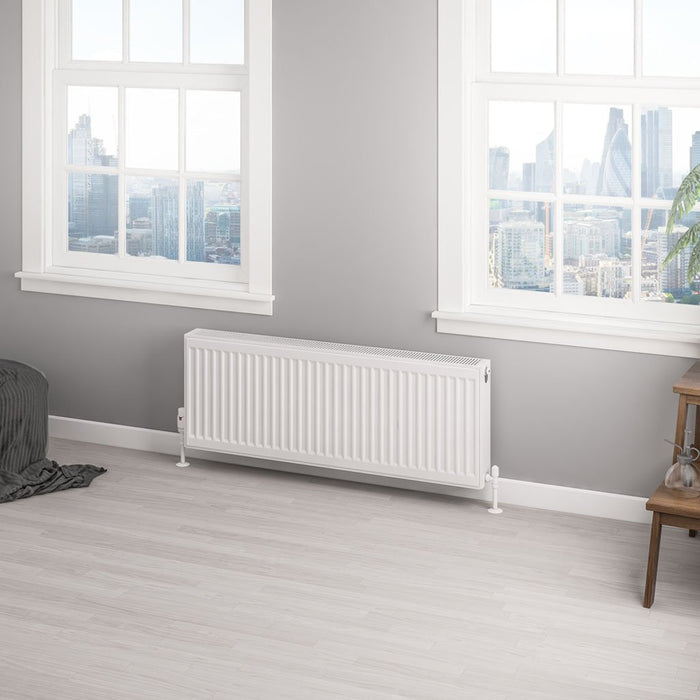

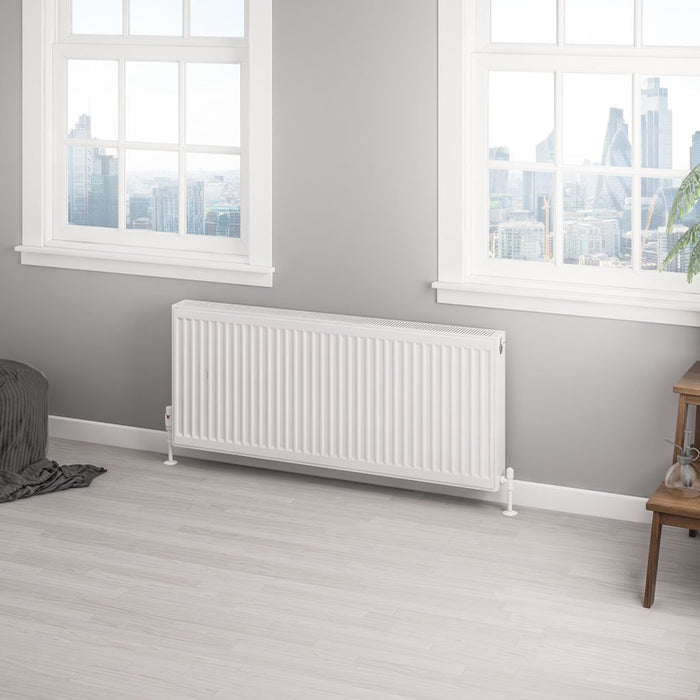

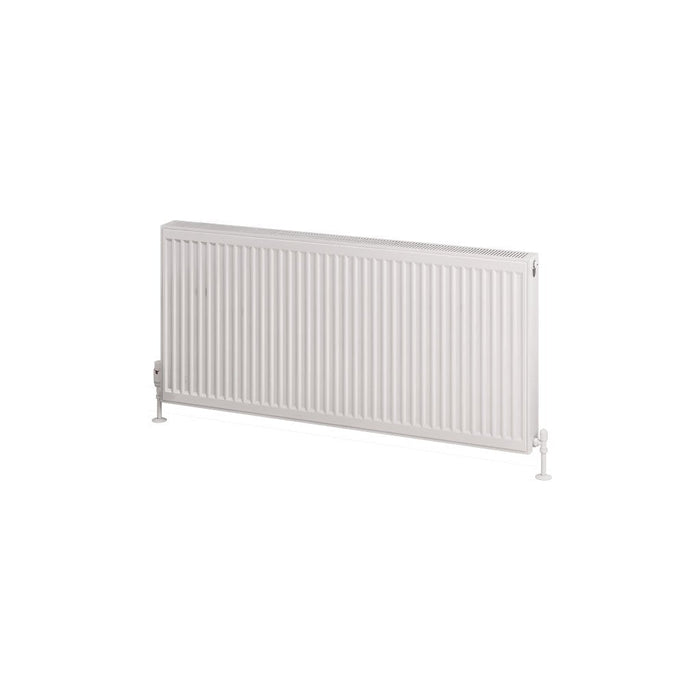

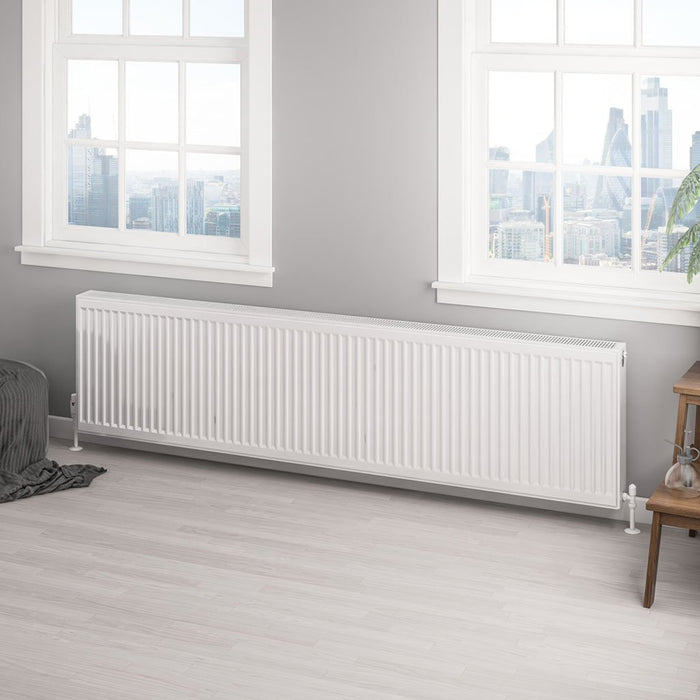

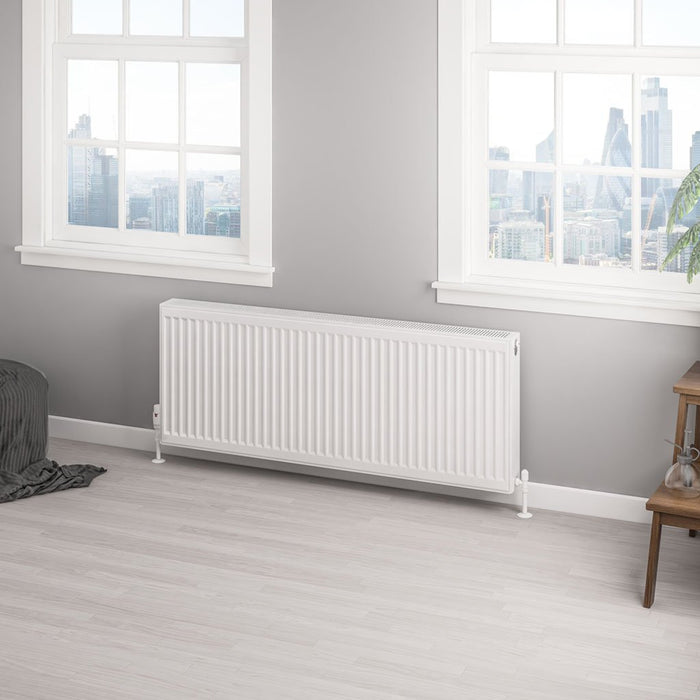

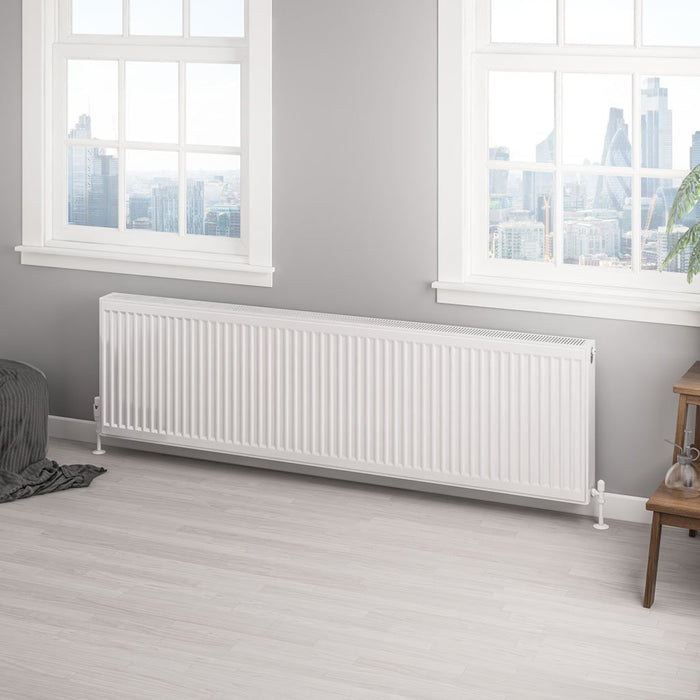

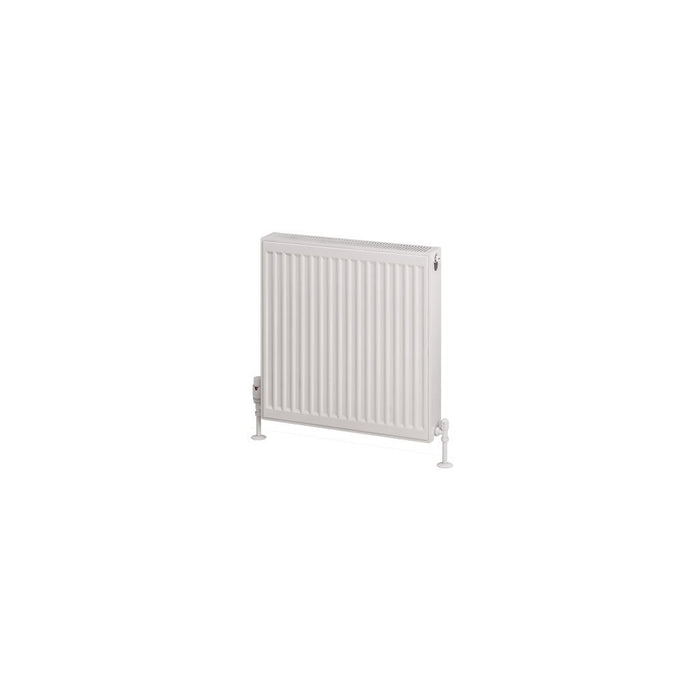

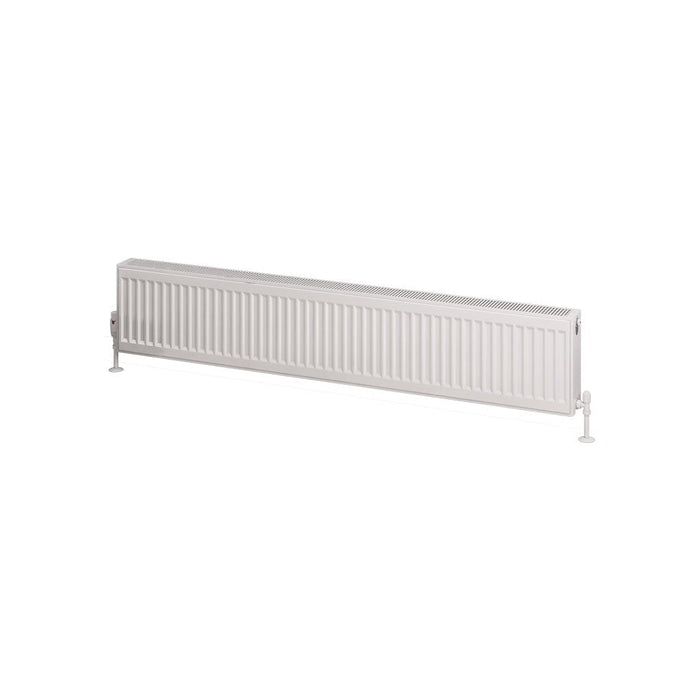

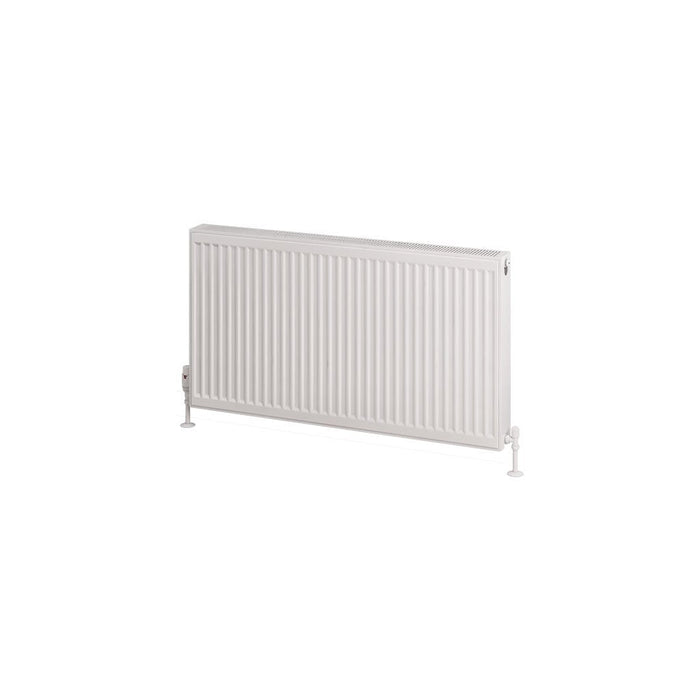

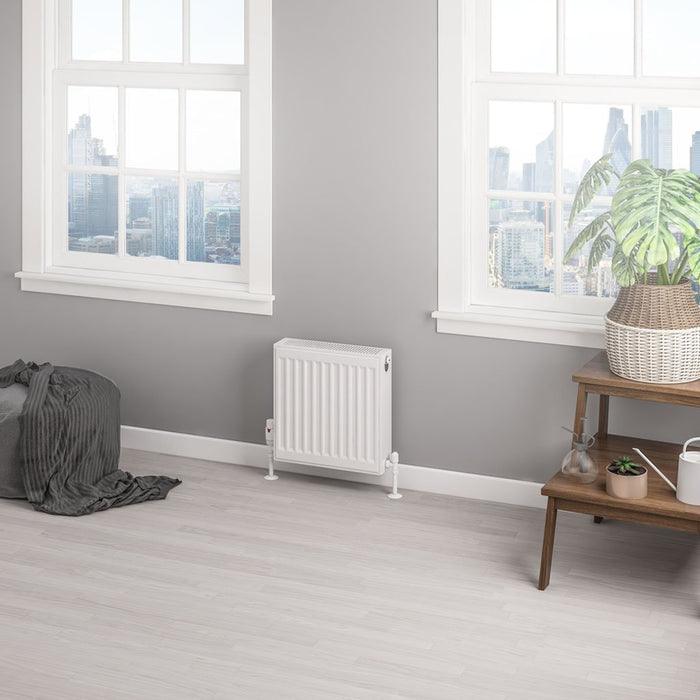

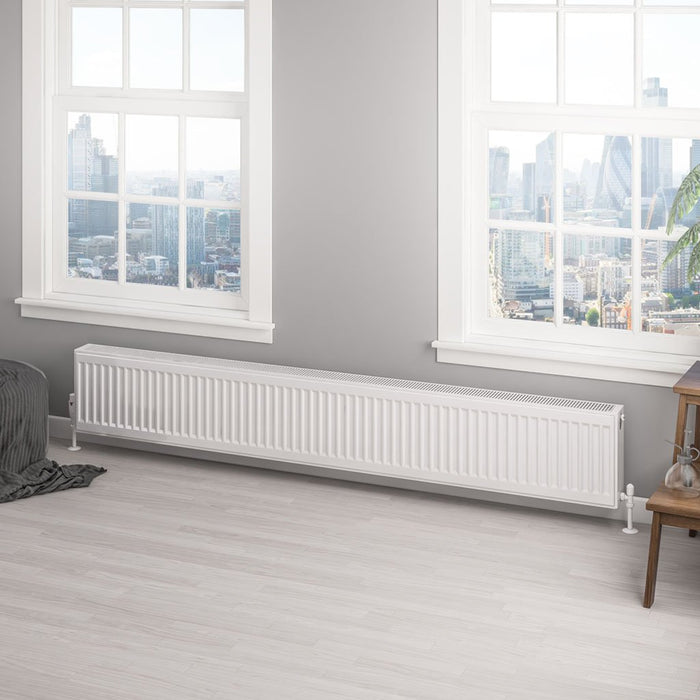

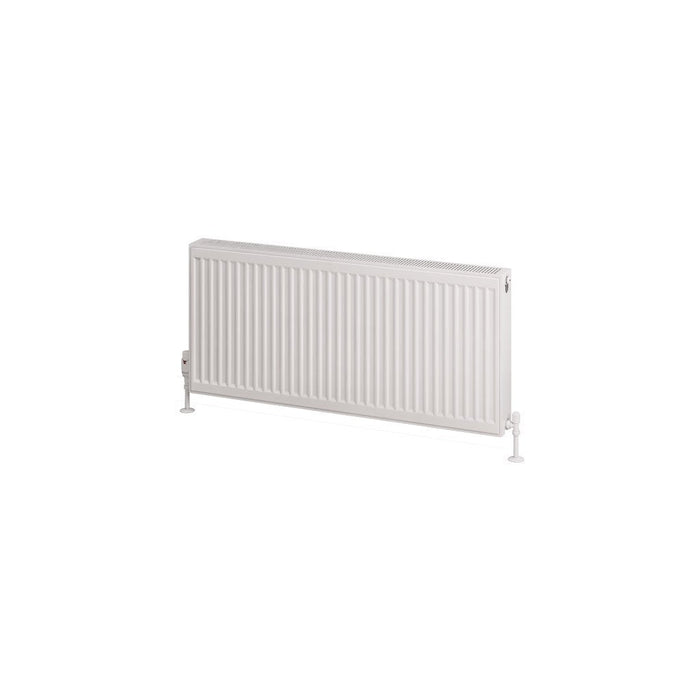

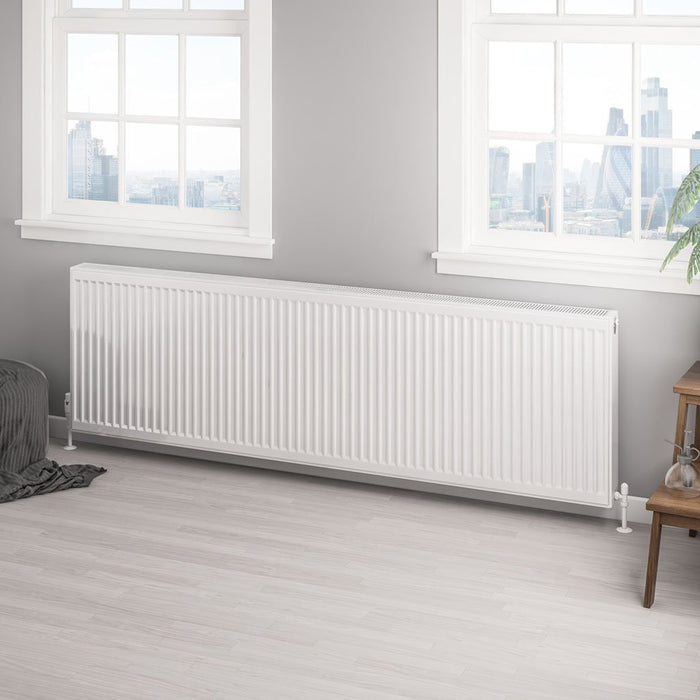

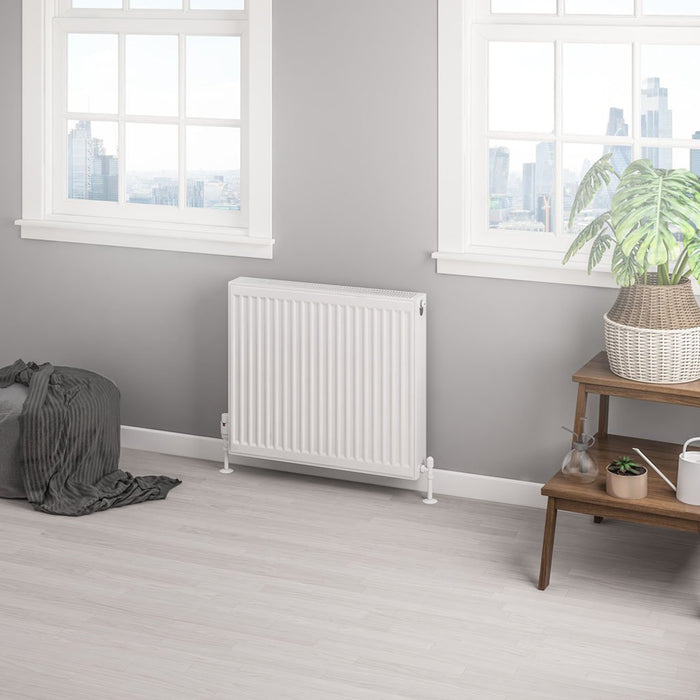

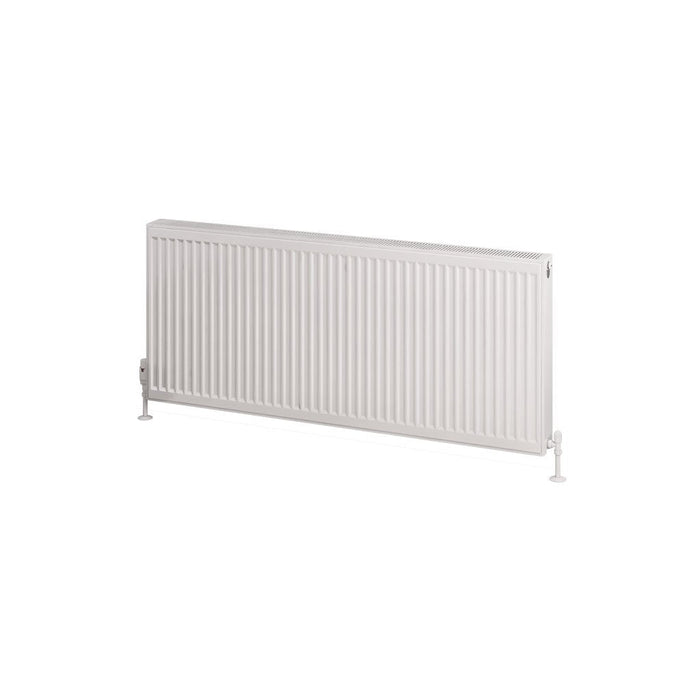

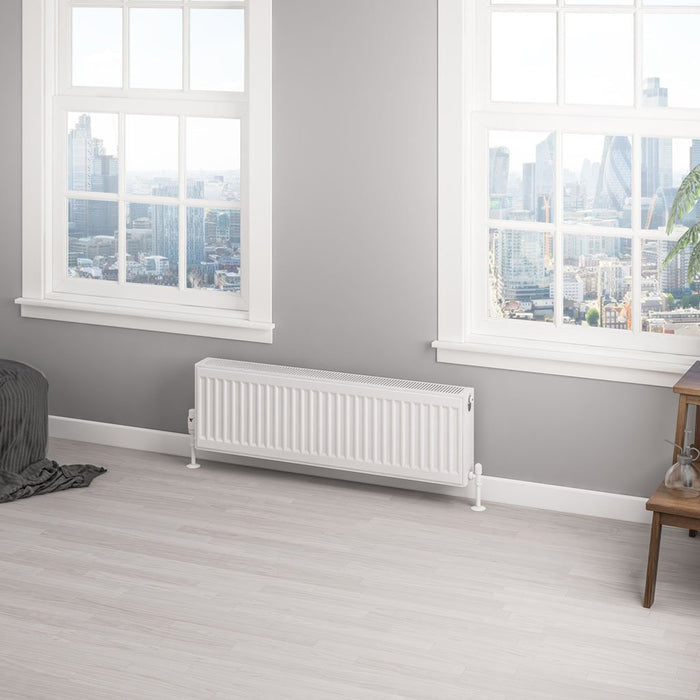

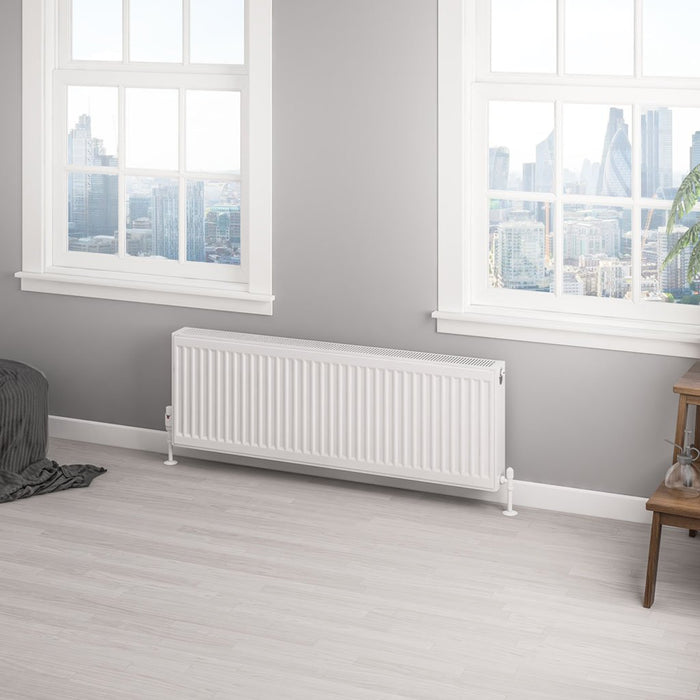

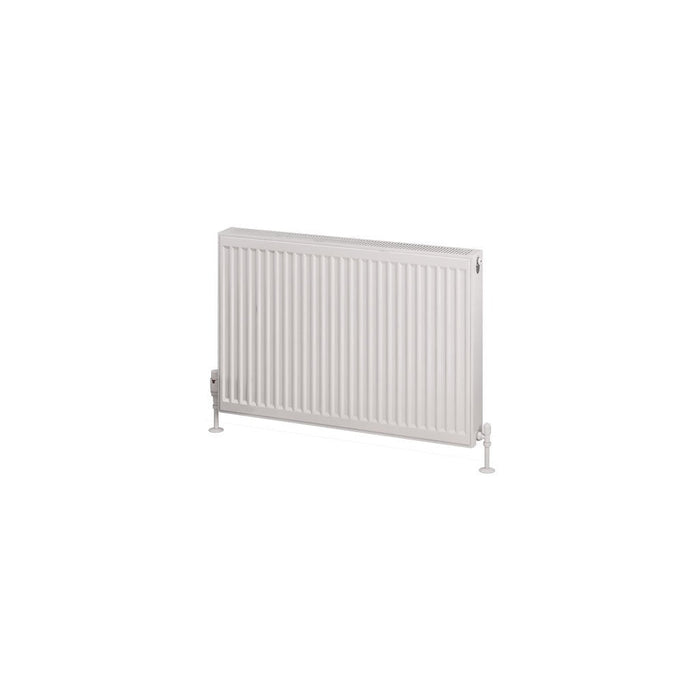

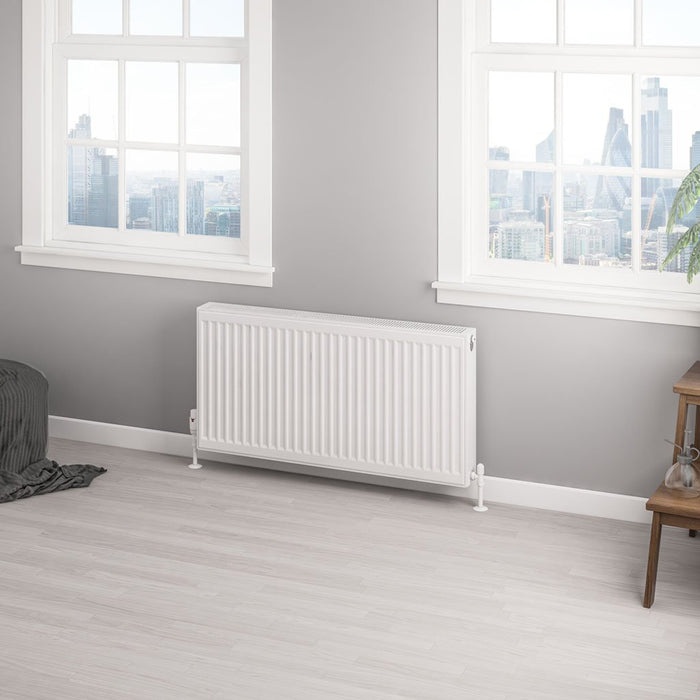

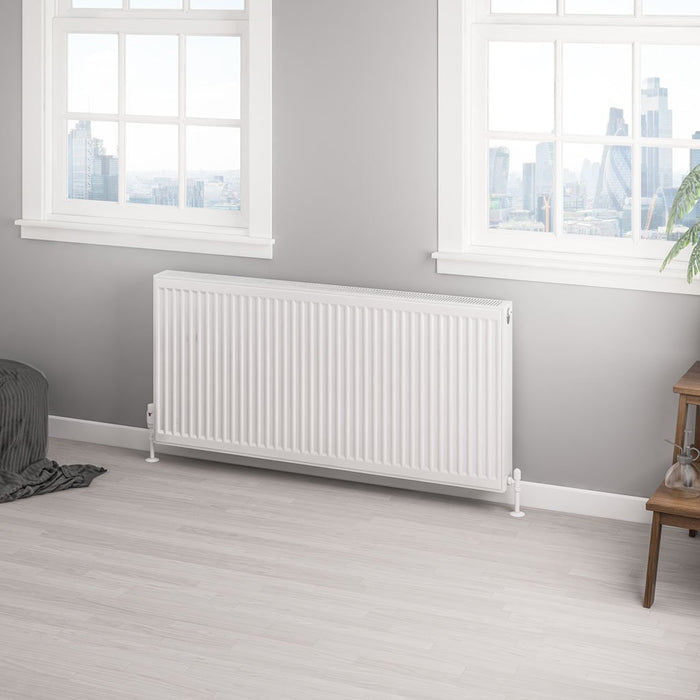

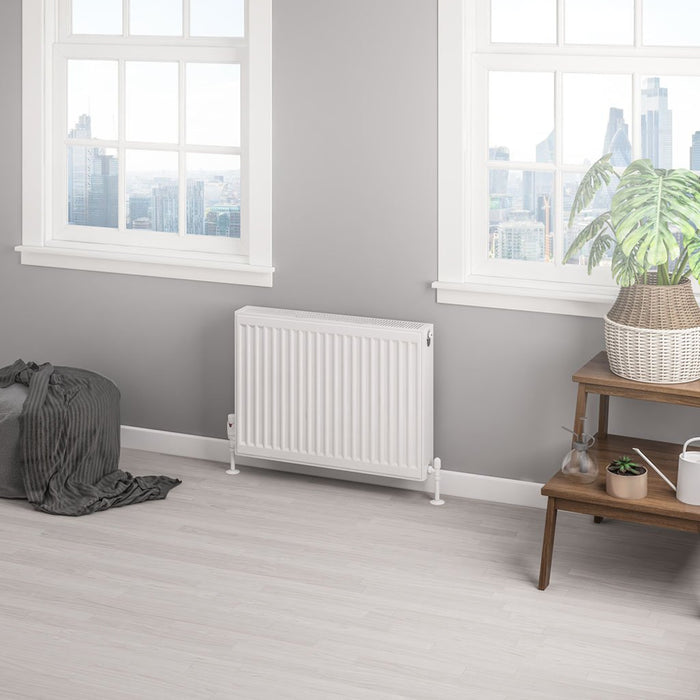

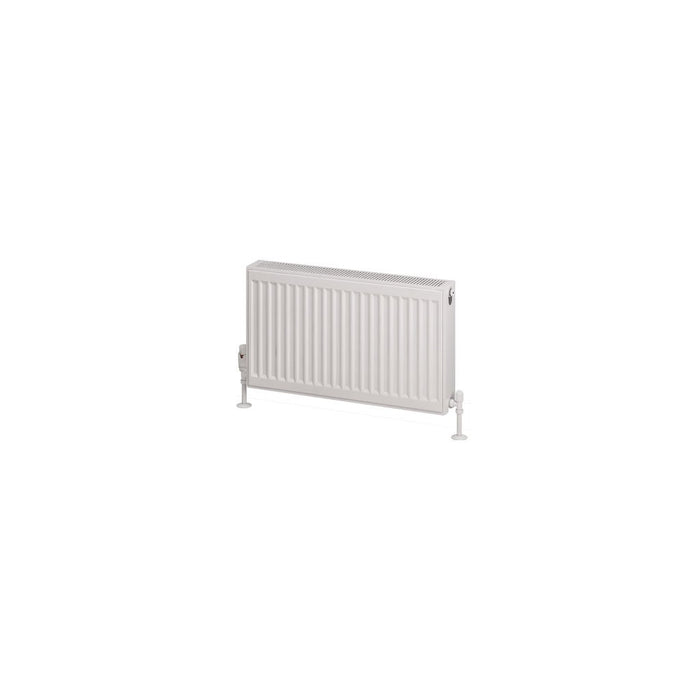

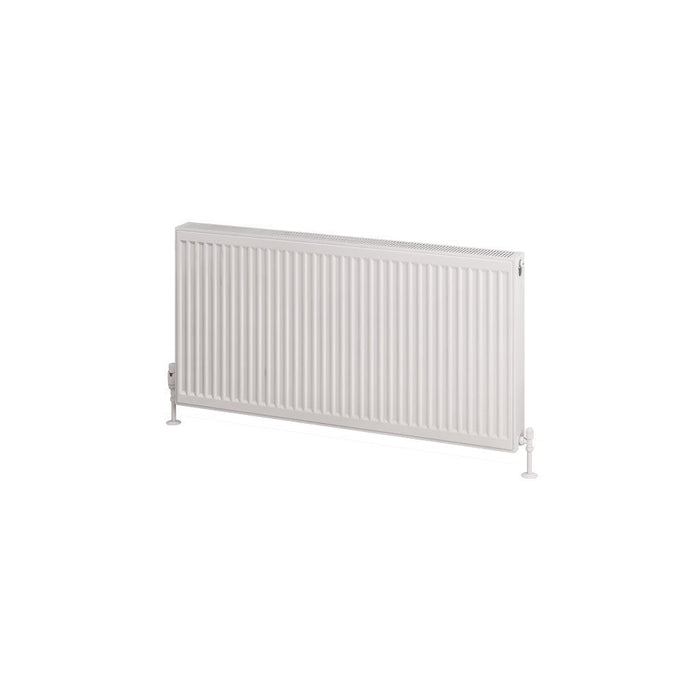

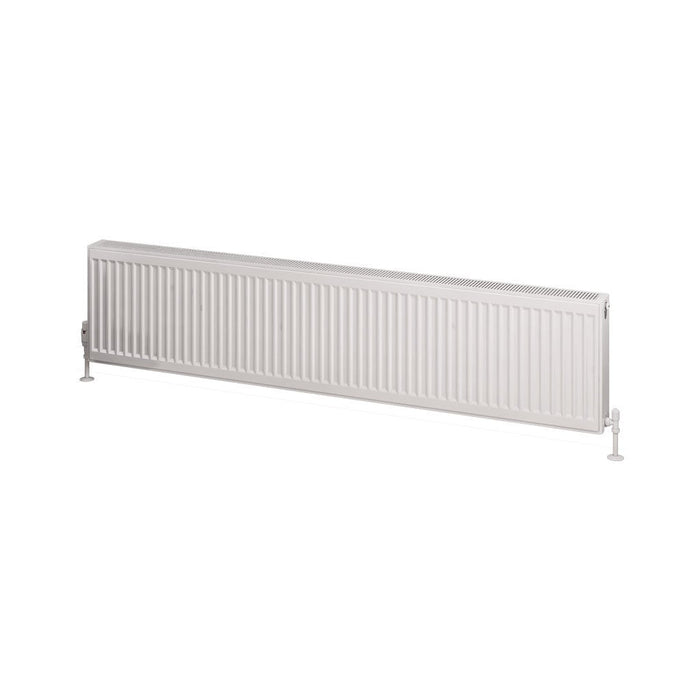

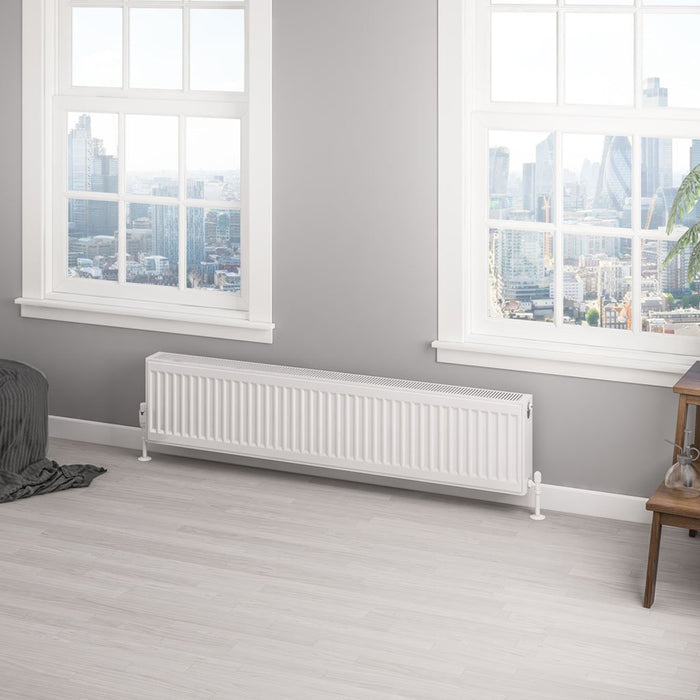

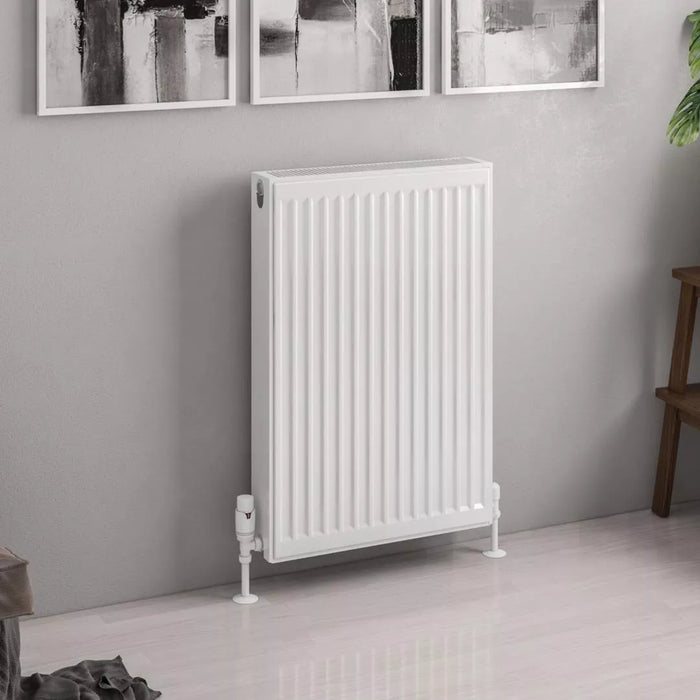

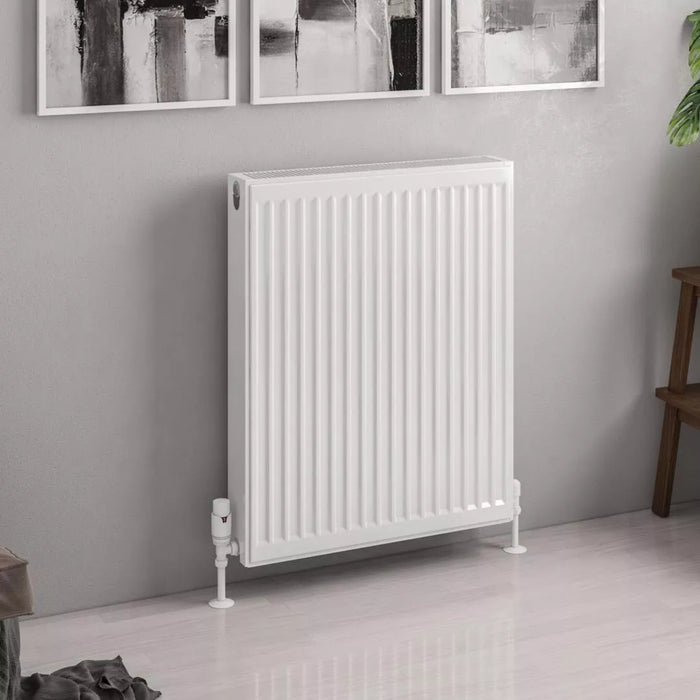

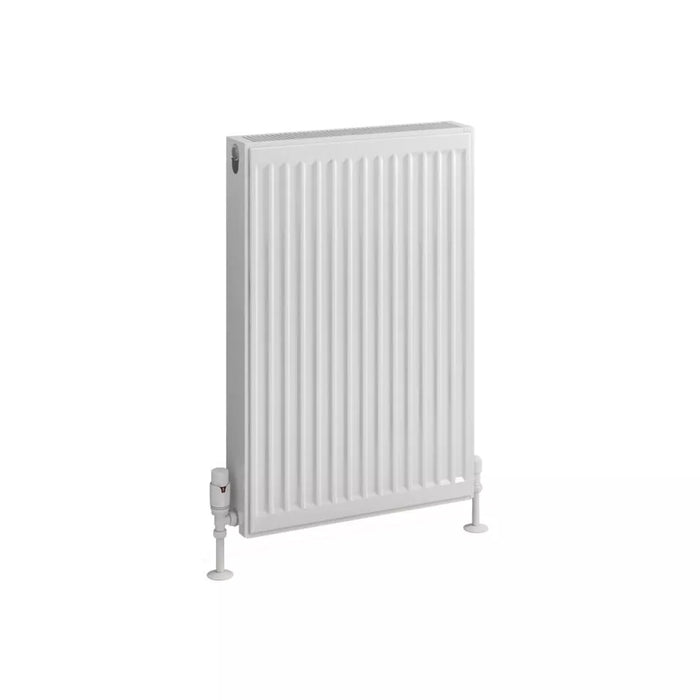

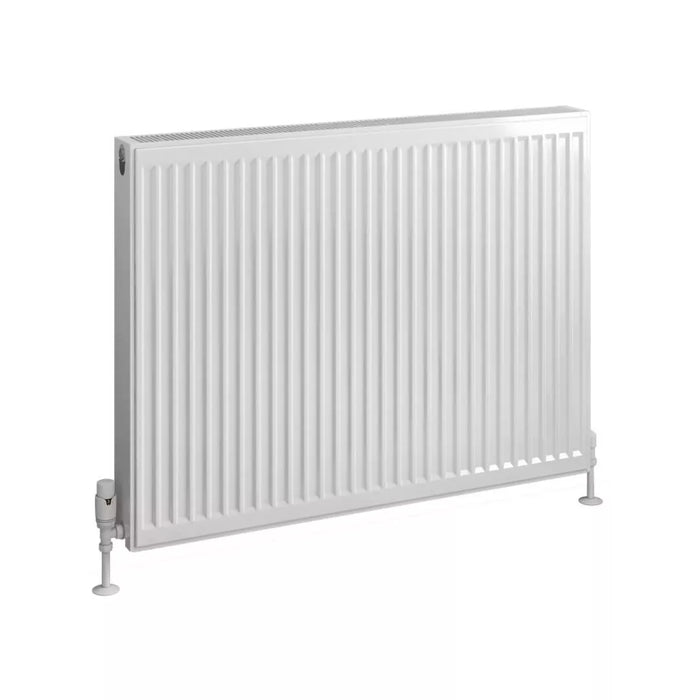

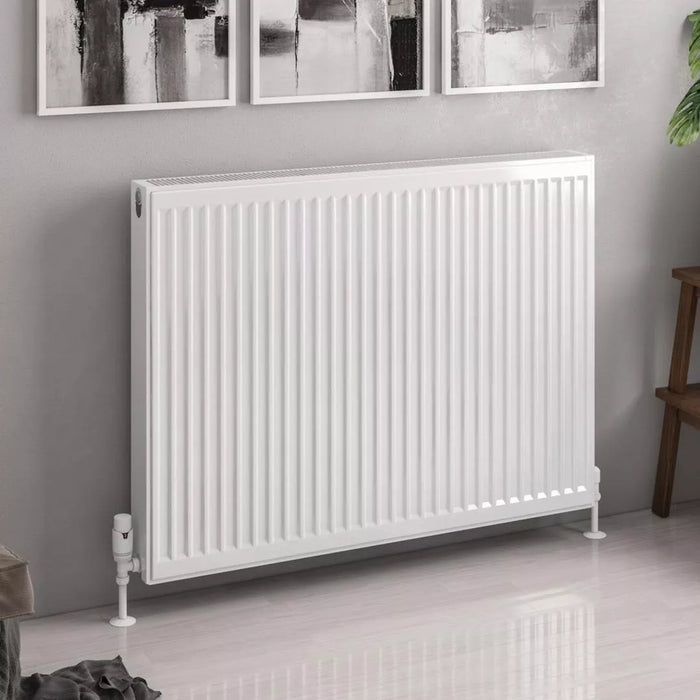

Eastbrook Type 22 Compact Single Panel Radiator Gloss White
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook type 22 compact single panel radiator in gloss white offers both style and functionality for modern heating needs. Made from high-quality mild steel, this radiator is suitable for hot water central heating systems. It comes with a fitted top grill and side panels, ensuring durability and a sleek appearance. The installation is made easy with the included kit, and it is tested to meet bs en 442 standards. Available in a range of sizes, this radiator is designed for two-pipe installations and indirect heating systems. Radiator valves and heating elements are not included, but the unit is ready to provide efficient and reliable warmth to your space.
Product Specifications:
- Guarantee: 10 Years
- Brand: Eastbrook
- Collection: Type 22
- Finish: Gloss White
- Style: Modern
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves and Heating Element are not included
- Tested to BS EN 442 standards.
- Hot water central heating systems only.
- Max operating pressure 4 bars.

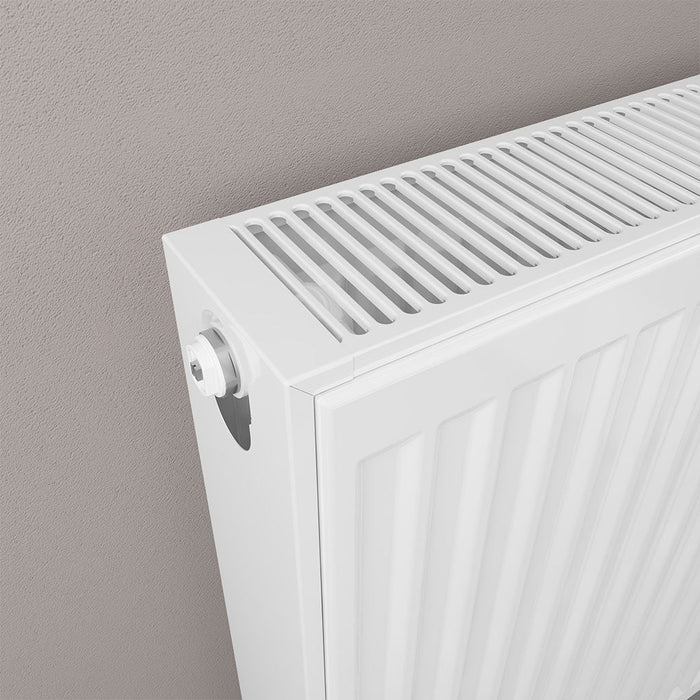

- Complete with fitted top grill & side panels.
- Radiators have 4 x 1/2 connections.
- Installation kit included in packaging.
- Heat outputs based on Delta ?T 50°C & Delta ?T 60°C.
- Radiators are only suitable for two-pipe installations.
- For indirect heating systems only.
- Pipework installation is recommended after receipt of radiator.
- Air vent (bleed valve) and blanking plug included in installation kit.
- Bottom opposite tapings are the width of the radiator and 72 or 84mm off the wall.
- Vertical tapings are approx. 55mm less than the height of the radiator and 72 or 84mm off the wall.
Dimensions:
- Depth: 102mm
|
Size |
Watts ?T60°C |
Watts ?T50°C |
BTU ?T60°C |
BTU ?T50°C |
|
300mm x 400mm |
465 |
368 |
1585 |
1254 |
|
300mm x 600mm |
696 |
551 |
2378 |
1881 |
|
300mm x 800mm |
929 |
735 |
3170 |
2508 |
|
300mm x 1000mm |
1162 |
919 |
3963 |
3135 |
|
300mm x 1200mm |
1394 |
1103 |
4358 |
3448 |
|
300mm x 1400mm |
1626 |
1286 |
5548 |
4389 |
|
300mm x 1600mm |
1858 |
1470 |
6340 |
5016 |
|
300mm x 2000mm |
2323 |
1838 |
7925 |
6270 |
|
400mm x 400mm |
592 |
468 |
2017 |
1596 |
|
400mm x 500mm |
739 |
585 |
2523 |
1996 |
|
400mm x 600mm |
887 |
702 |
3027 |
2395 |
|
400mm x 700mm |
1035 |
819 |
3532 |
2794 |
|
400mm x 800mm |
1183 |
936 |
4036 |
3193 |
|
400mm x 900mm |
1331 |
1053 |
4540 |
3592 |
|
400mm x 1000mm |
1479 |
1170 |
5045 |
3991 |
|
400mm x 1100mm |
1627 |
1287 |
5549 |
4390 |
|
400mm x 1200mm |
1775 |
1404 |
6053 |
4789 |
|
400mm x 1400mm |
2070 |
1638 |
7442 |
5888 |
|
400mm x 1600mm |
2366 |
1872 |
8072 |
6386 |
|

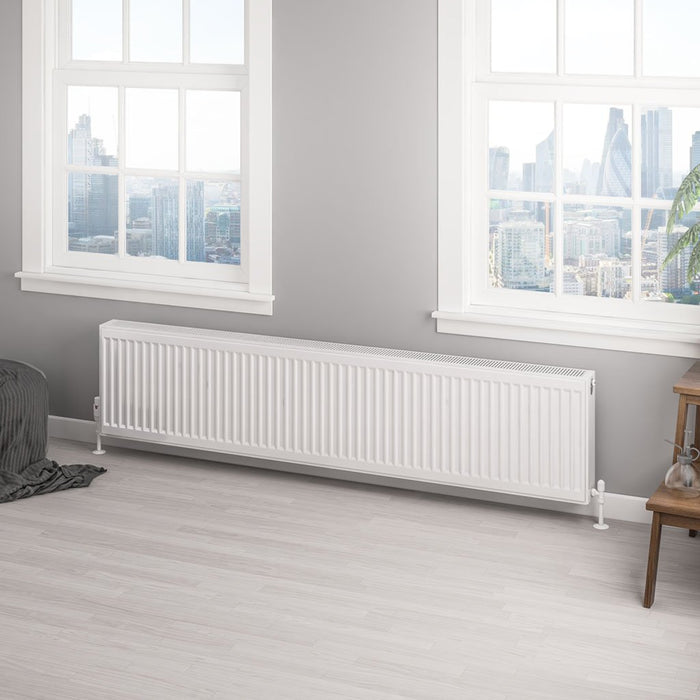

400mm x 1800mm |
2661 |
2105 |
9081 |
7184 |
|
400mm x 2000mm |
2956 |
2339 |
10089 |
7982 |
|
500mm x 400mm |
713 |
564 |
2433 |
1925 |
|
500mm x 500mm |
891 |
705 |
3041 |
2406 |
|
500mm x 600mm |
1069 |
846 |
3649 |
2887 |
|
500mm x 700mm |
1248 |
987 |
4257 |
3368 |
|
500mm x 800mm |
1426 |
1128 |
4865 |
3849 |
|
500mm x 900mm |
1604 |
1269 |
5473 |
4330 |
|
500mm x 1000mm |
1782 |
1410 |
6082 |
4812 |
|
500mm x 1100mm |
1960 |
1551 |
6690 |
5293 |
|
500mm x 1200mm |
2139 |
1692 |
7298 |
5774 |
|
500mm x 1300mm |
2317 |
1833 |
7905 |
6254 |
|

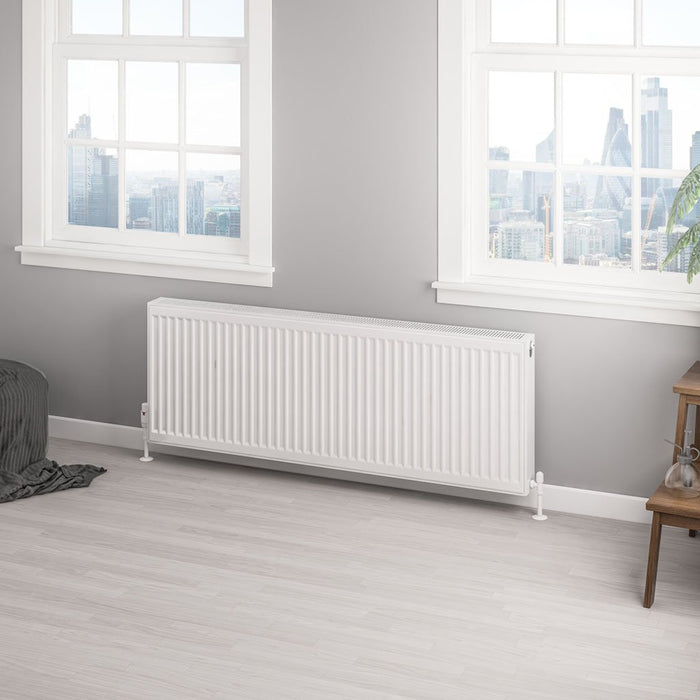

500mm x 1400mm |
2495 |
1974 |
8514 |
6736 |
|
500mm x 1500mm |
2670 |
2112 |
9108 |
7206 |
|
500mm x 1600mm |
2852 |
2256 |
9732 |
7699 |
|
500mm x 1800mm |
3208 |
2538 |
10948 |
8661 |
|
500mm x 2000mm |
3564 |
2820 |
12163 |
9623 |
|
600mm x 400mm |
829 |
656 |
2831 |
2240 |
|

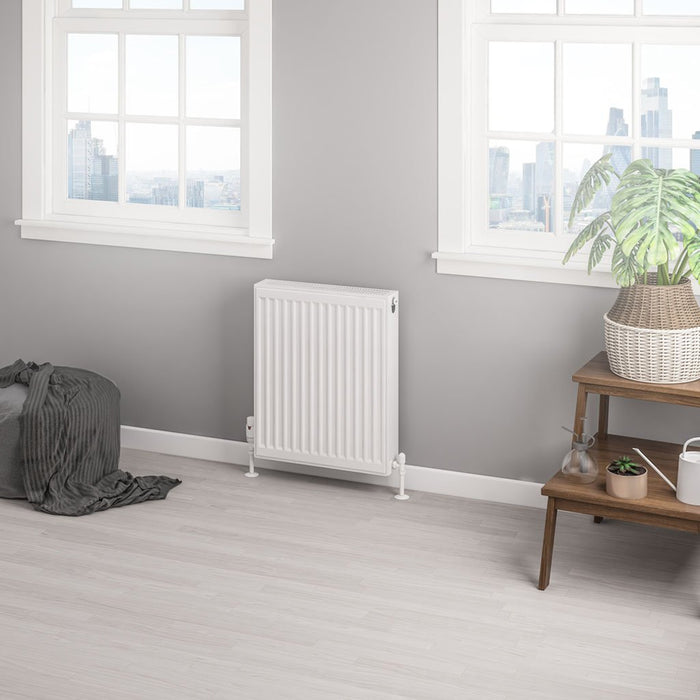

600mm x 500mm |
1038 |
821 |
3539 |
2800 |
|
600mm x 600mm |
1245 |
985 |
4247 |
3360 |
|
600mm x 700mm |
1452 |
1149 |
4955 |
3920 |
|
600mm x 800mm |
1660 |
1313 |
5663 |
4480 |
|
600mm x 900mm |
1867 |
1477 |
6371 |
5040 |
|
600mm x 1000mm |
2074 |
1641 |
7078 |
5600 |
|

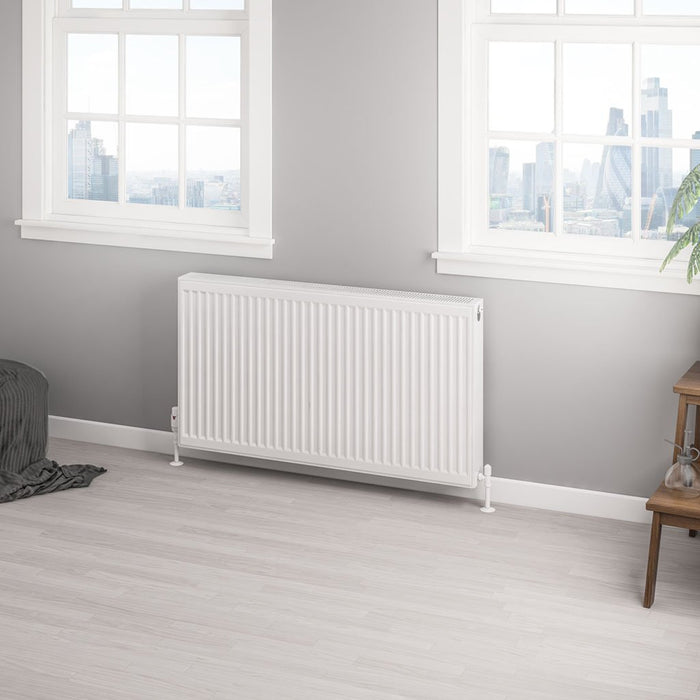

600mm x 1100mm |
2282 |
1805 |
7774 |
6150 |
|
600mm x 1200mm |
2489 |
1969 |
8494 |
6720 |
|
600mm x 1300mm |
2692 |
2130 |
9187 |
7268 |
|
600mm x 1400mm |
2905 |
2298 |
9910 |
7840 |
|
600mm x 1500mm |
3109 |
2460 |
10610 |
8394 |
|
600mm x 1600mm |
3319 |
2626 |
11325 |
8960 |
|

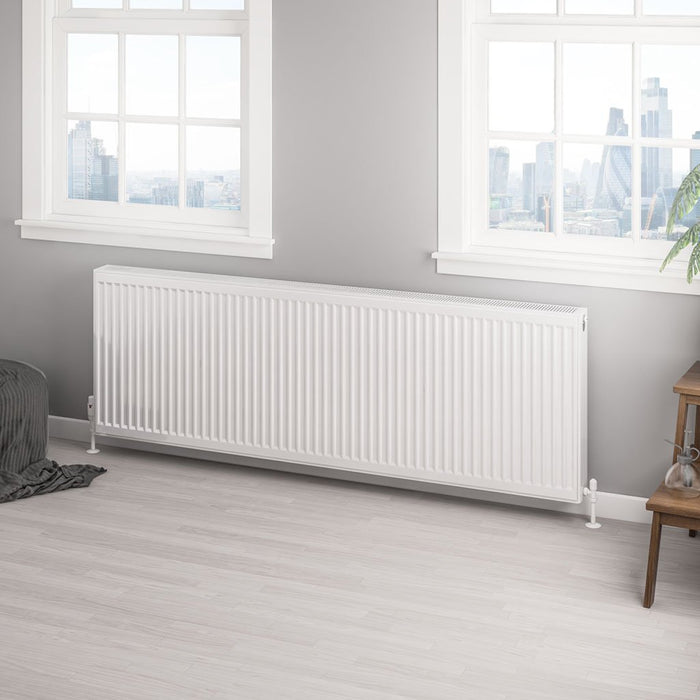

600mm x 1800mm |
3734 |
2954 |
12741 |
10080 |
|
600mm x 2000mm |
4148 |
3282 |
12893 |
10200 |
Assembling instructions for Compact Single Panel Radiator
Datasheet for 300mm x 400mm Single Panel Radiator
Datasheet for 300mm x 600mm Single Panel Radiator
Datasheet for 300mm x 800mm Single Panel Radiator
Datasheet for 300mm x 1000mm Single Panel Radiator
Datasheet for 300mm x 1200mm Single Panel Radiator
Datasheet for 300mm x 1400mm Single Panel Radiator
Datasheet for 300mm x 1600mm Single Panel Radiator
Datasheet for 300mm x 2000mm Single Panel Radiator
Datasheet for 400mm x 400mm Single Panel Radiator
Datasheet for 400mm x 500mm Single Panel Radiator
Datasheet for 400mm x 600mm Single Panel Radiator
Datasheet for 400mm x 700mm Single Panel Radiator
Datasheet for 400mm x 800mm Single Panel Radiator
Datasheet for 400mm x 900mm Single Panel Radiator
Datasheet for 400mm x 1000mm Single Panel Radiator
Datasheet for 400mm x 1100mm Single Panel Radiator
Datasheet for 400mm x 1200mm Single Panel Radiator
Datasheet for 400mm x 1400mm Single Panel Radiator
Datasheet for 400mm x 1600mm Single Panel Radiator
Datasheet for 400mm x 1800mm Single Panel Radiator
Datasheet for 400mm x 2000mm Single Panel Radiator
Datasheet for 500mm x 400mm Single Panel Radiator
Datasheet for 500mm x 500mm Single Panel Radiator
Datasheet for 500mm x 600mm Single Panel Radiator
Datasheet for 500mm x 700mm Single Panel Radiator
Datasheet for 500mm x 800mm Single Panel Radiator
Datasheet for 500mm x 900mm Single Panel Radiator
Datasheet for 500mm x 1000mm Single Panel Radiator
Datasheet for 500mm x 1100mm Single Panel Radiator
Datasheet for 500mm x 1200mm Single Panel Radiator
Datasheet for 500mm x 1300mm Single Panel Radiator
Datasheet for 500mm x 1400mm Single Panel Radiator
Datasheet for 500mm x 1500mm Single Panel Radiator
Datasheet for 500mm x 1600mm Single Panel Radiator
Datasheet for 500mm x 1800mm Single Panel Radiator
Datasheet for 500mm x 2000mm Single Panel Radiator
Datasheet for 600mm x 400mm Single Panel Radiator
Datasheet for 600mm x 500mm Single Panel Radiator
Datasheet for 600mm x 600mm Single Panel Radiator
Datasheet for 600mm x 700mm Single Panel Radiator
Datasheet for 600mm x 800mm Single Panel Radiator
Datasheet for 600mm x 900mm Single Panel Radiator
Datasheet for 600mm x 1000mm Single Panel Radiator
Datasheet for 600mm x 1100mm Single Panel Radiator
Datasheet for 600mm x 1200mm Single Panel Radiator
Datasheet for 600mm x 1300mm Single Panel Radiator
Datasheet for 600mm x 1400mm Single Panel Radiator
Datasheet for 600mm x 1500mm Single Panel Radiator
Datasheet for 600mm x 1600mm Single Panel Radiator
Datasheet for 600mm x 1800mm Single Panel Radiator

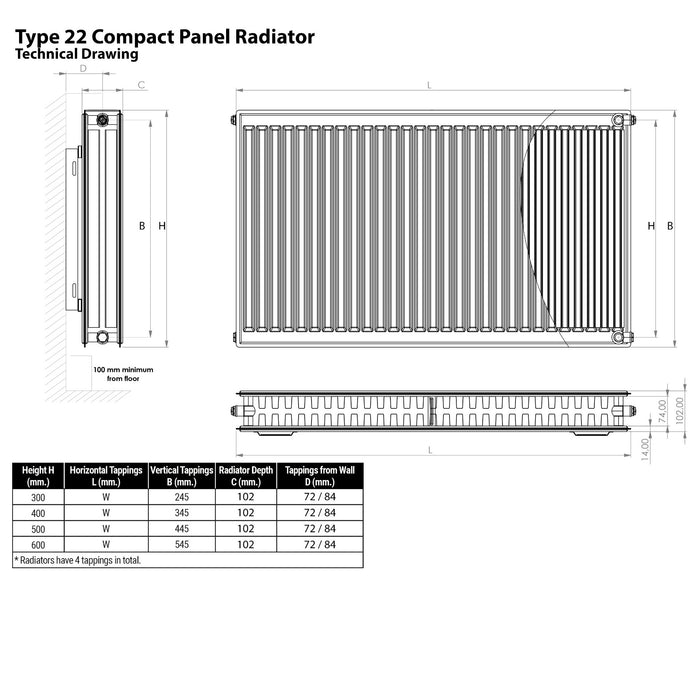

Technical Drawing
