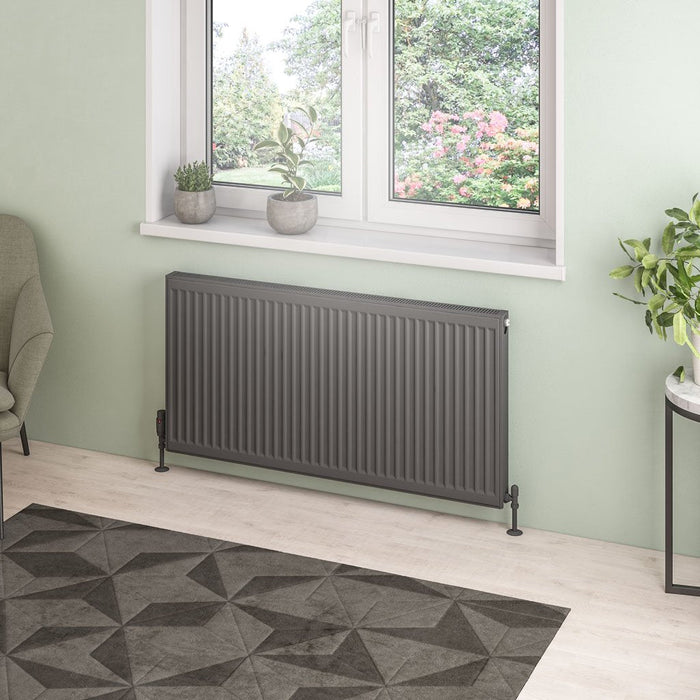

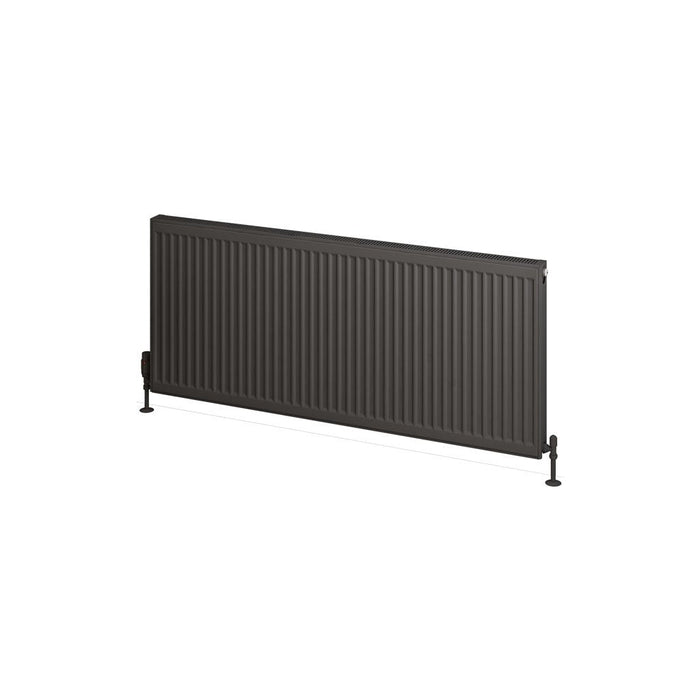

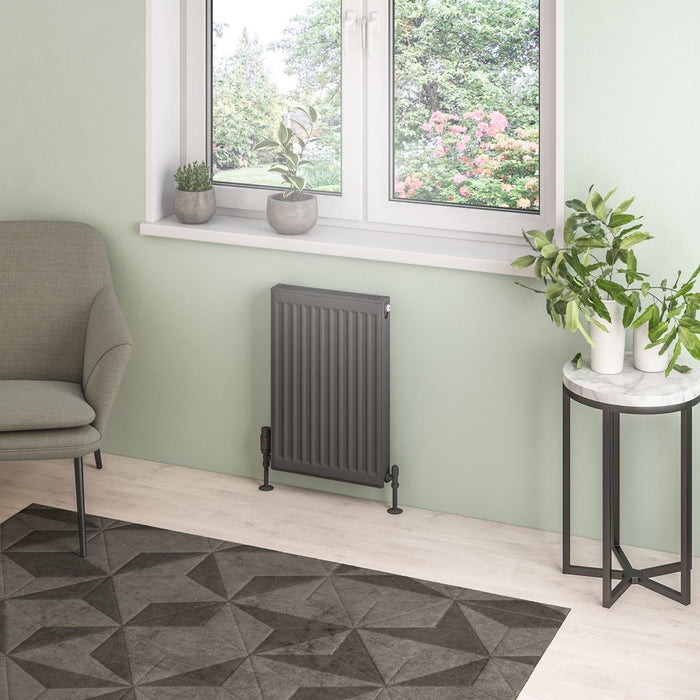

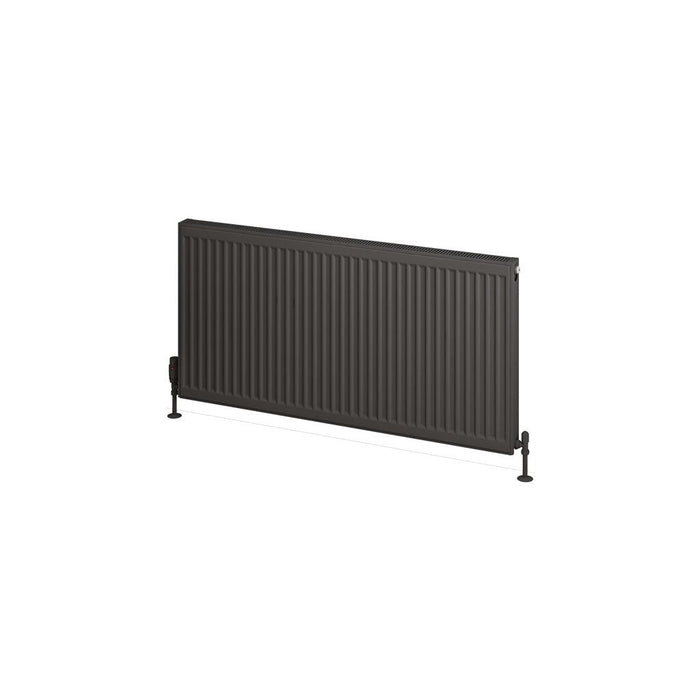

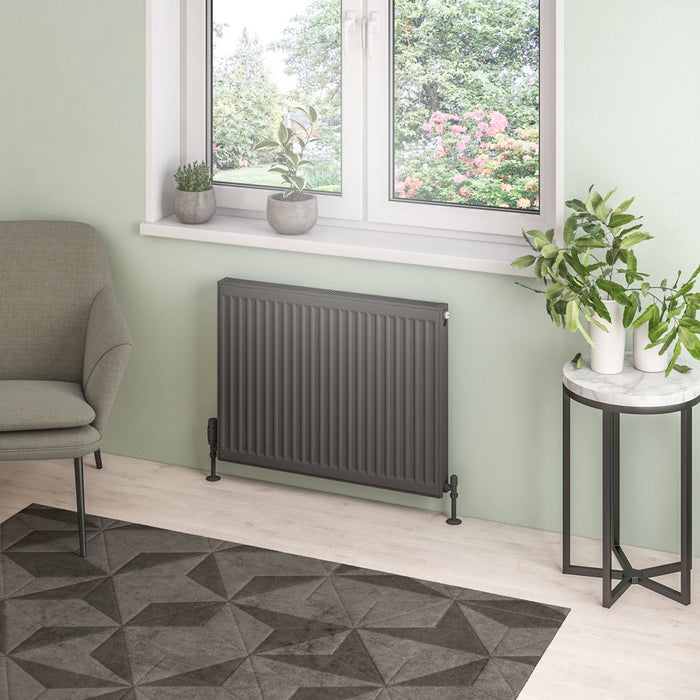

Eastbrook Type 21 Compact Single Panel Radiator Matt Anthracite

Name: Eastbrook Type 21 Compact Single Panel Radiator Matt Anthracite
Brand: Eastbrook
SKU: EAS25.0119
Price: 315.0 EUR
Availability: InStock

by Eastbrook

From €350.44

€350.44

€315.00

€350.44

From €315.00

€315.00

Save 10%

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch

Estimated Collection: 1 week

Estimated Delivery: 2 weeks

Select Your Options

Quantity

Product Information

The Eastbrook type 21 compact single panel radiator in matt anthracite offers modern heating solutions with a sleek, stylish finish. Made from high-quality mild steel, it is designed for hot water central heating systems. This radiator is tested to bs en 442 standards and comes with a fitted top grill and side panels for enha + View More

The Eastbrook type 21 compact single panel radiator in matt anthracite offers modern heating solutions with a sleek, stylish finish. Made from high-quality mild steel, it is designed for hot water central heating systems. This radiator is tested to bs en 442 standards and comes with a fitted top grill and side panels for enhanced durability and aesthetics. It is suitable for two-pipe installations and can handle a maximum operating pressure of 4 bars.Installation is straightforward with the included kit, which contains air vents and blanking plugs. The radiator is perfect for indirect heating systems, providing reliable performance and efficient heating for a variety of spaces.

Product Specifications:

Warranty: 10 Years
Product Type: Designer Radiator
Brand: Eastbrook
Collection: Type 21
Finish: Matt Anthracite
Style: Modern
Material: Mild Steel

Special Features:

Easy to install and use
Images are shown for illustration purposes only
Radiator Valves and Heating Element are not included
Tested to BS EN 442 standards.
Hot water central heating systems only.
Max operating pressure 4 bars.

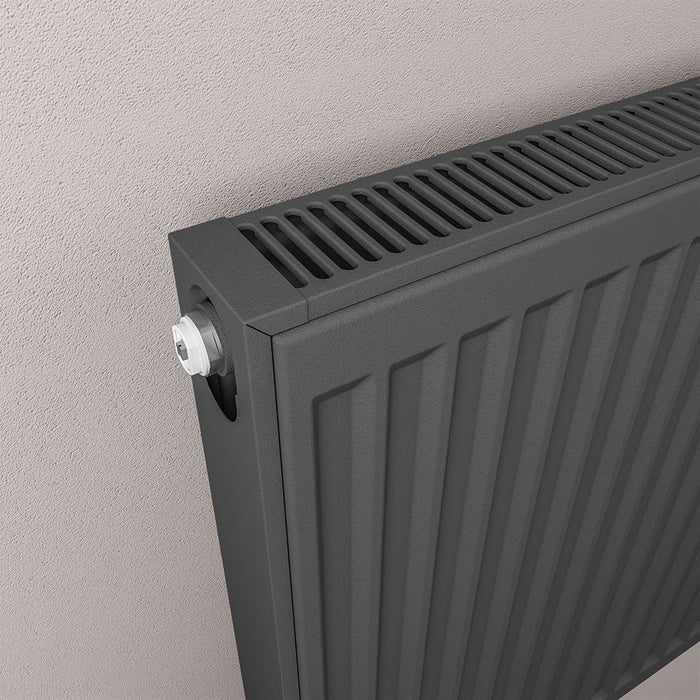

Complete with fitted top grill & side panels.
Radiators have 4 x 1/2 connections.
Installation kit included in packaging.
Heat outputs based on Delta T30°C & Delta T50°C.
Radiators are only suitable for two-pipe installations.
For indirect heating systems only.
Pipework installation is recommended after receipt of radiator.
Air vent (bleed valve) and blanking plug included in installation kit.
Bottom opposite tapings are the width of the radiator and 56 or 68mm off the wall.
Vertical tapings are approx. 55mm less than the height of the radiator and 56 or 68mm off the wall.

Dimensions:

Depth: 70mm

Technical Specifications

Size	Watts T30°C	BTU T30°C	Watts T50°C	BTU T50°C	Water Content/Litres
600mm x 400mm	262	895	516	1761	2.48 Litres
600mm x 600mm	393	1342	773	2641	3.72 Litres
600mm x 800mm	524	1789	1031	3521	4.96 Litres
600mm x 1000mm	655	2236	1289	4401	6.20 Litres
600mm x 1200mm	786	2684	1547	5282	7.44 Litres
600mm x 1400mm	917	3131	1805	6162	8.68 Litres
600mm x 1600mm	1048	3578	2063	7042	9.92 Litres
600mm x 1800mm	1179	4026	2320	7922	11.20 Litres

Assembling instructions for Single Panel Radiator

Datasheet for 600mm x 400mm Single Panel Radiator

Datasheet for 600mm x 600mm Single Panel Radiator

Datasheet for 600mm x 800mm Single Panel Radiator

Datasheet for 600mm x 1000mm Single Panel Radiator

Datasheet for 600mm x 1200mm Single Panel Radiator

Datasheet for 600mm x 1400mm Single Panel Radiator

Datasheet for 600mm x 1600mm Single Panel Radiator

Datasheet for 600mm x 1800mm Single Panel Radiator

Technical Drawing
