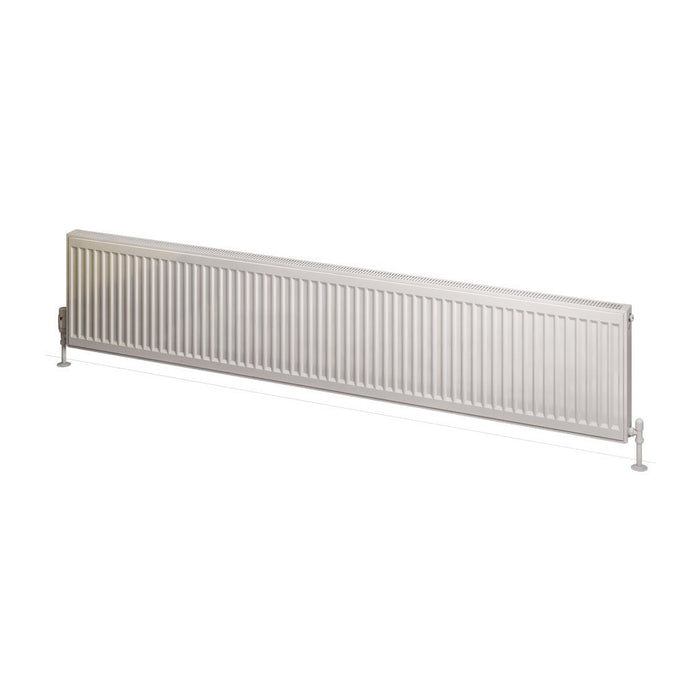

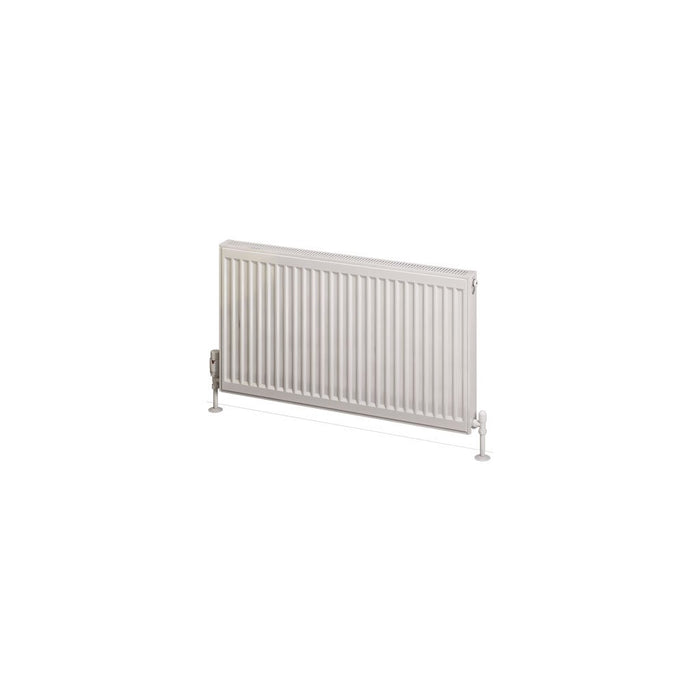

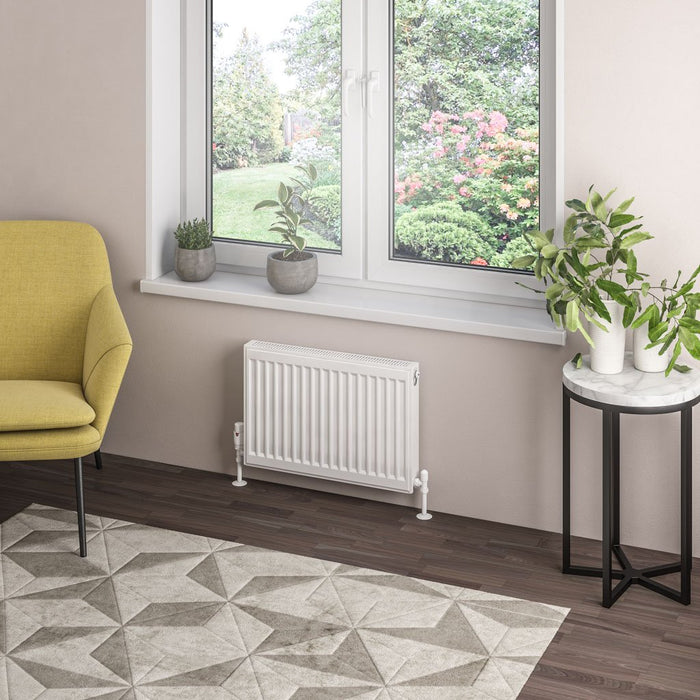

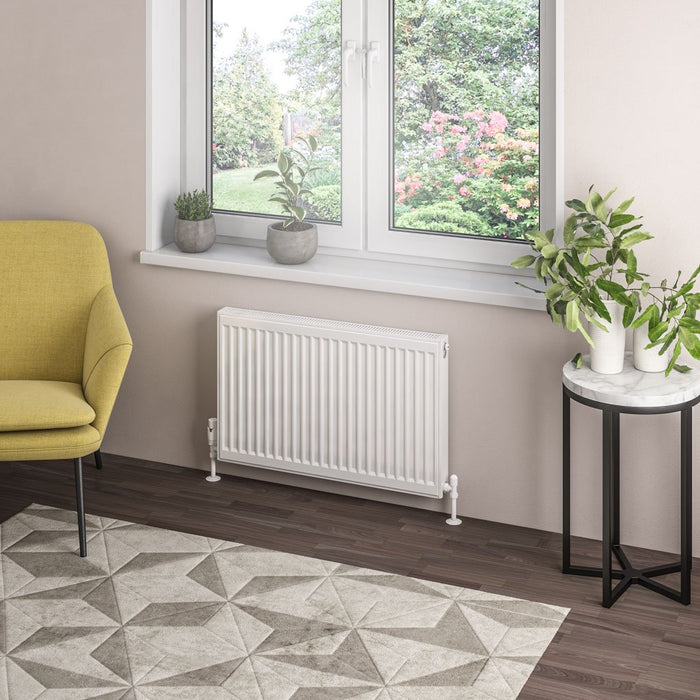

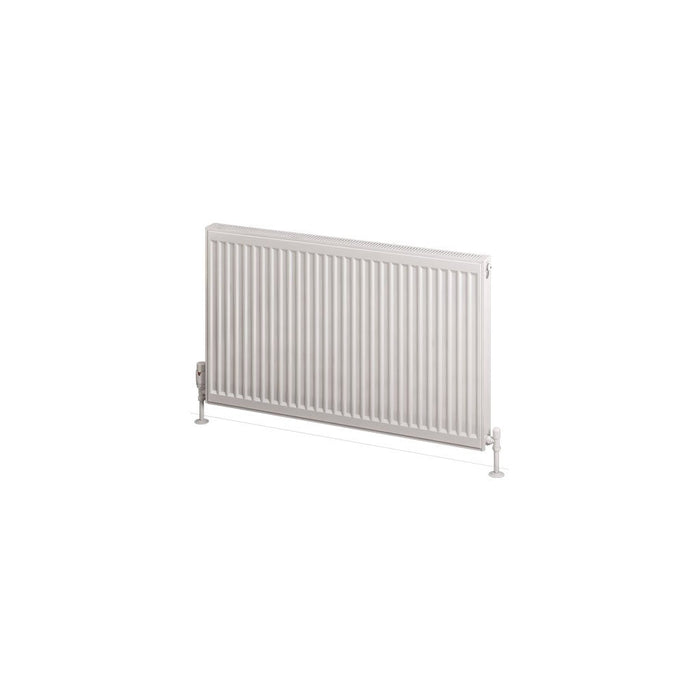

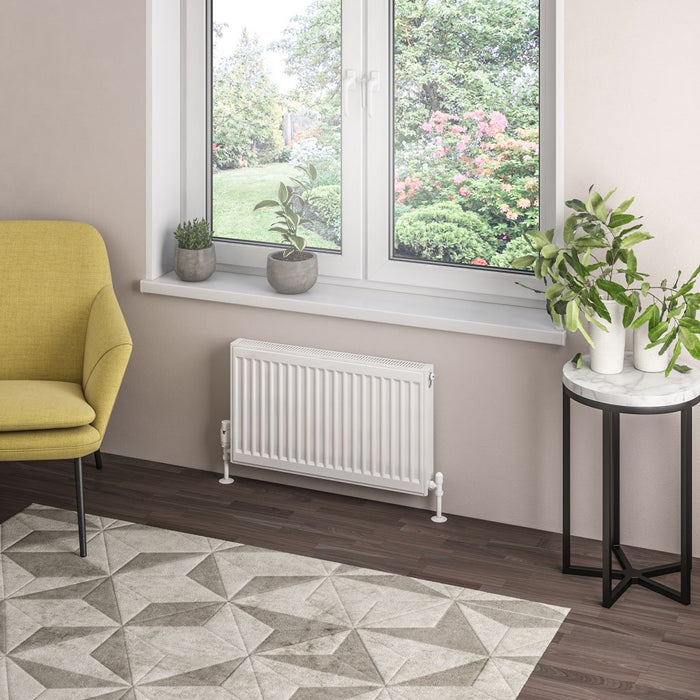

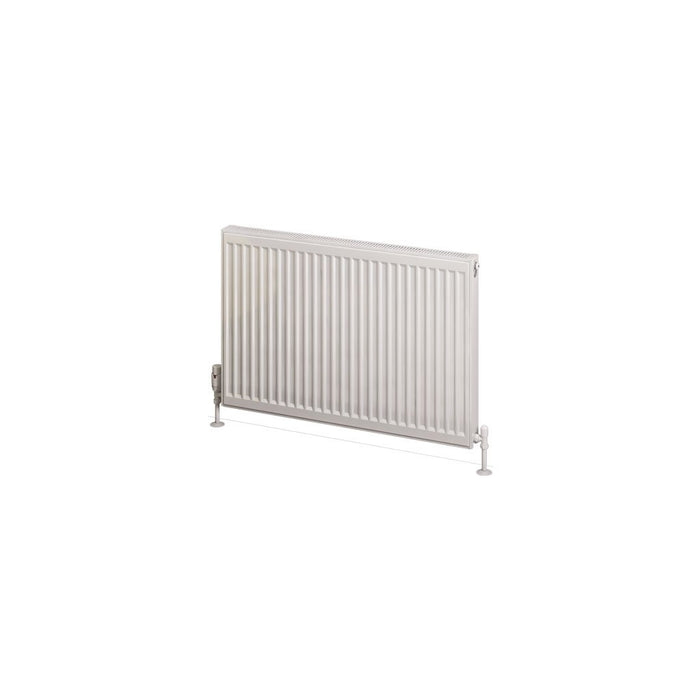

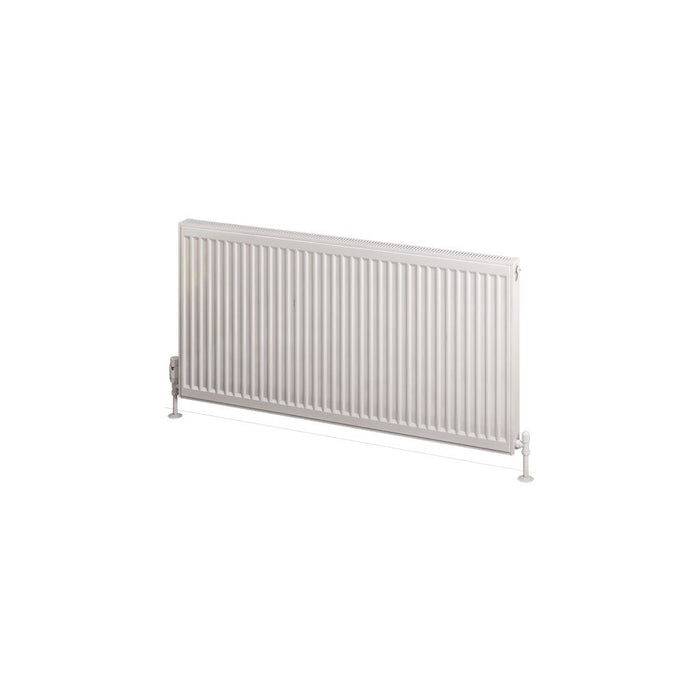

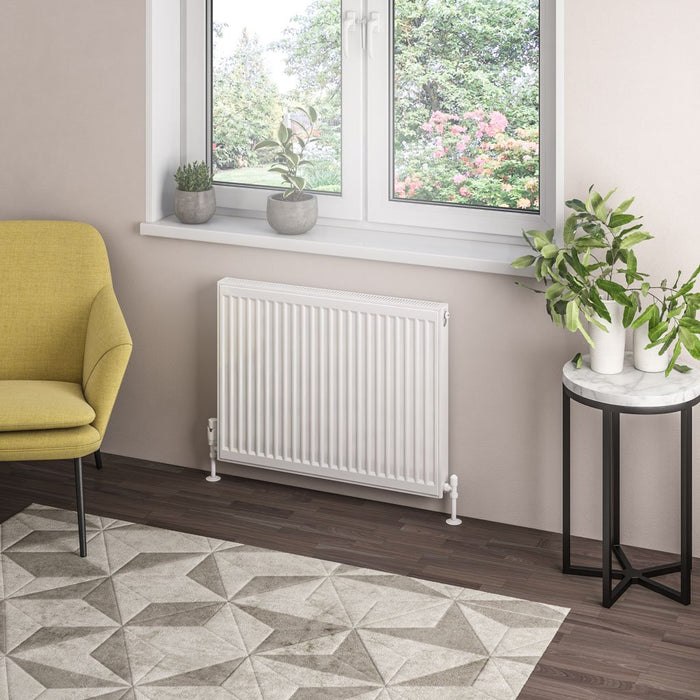

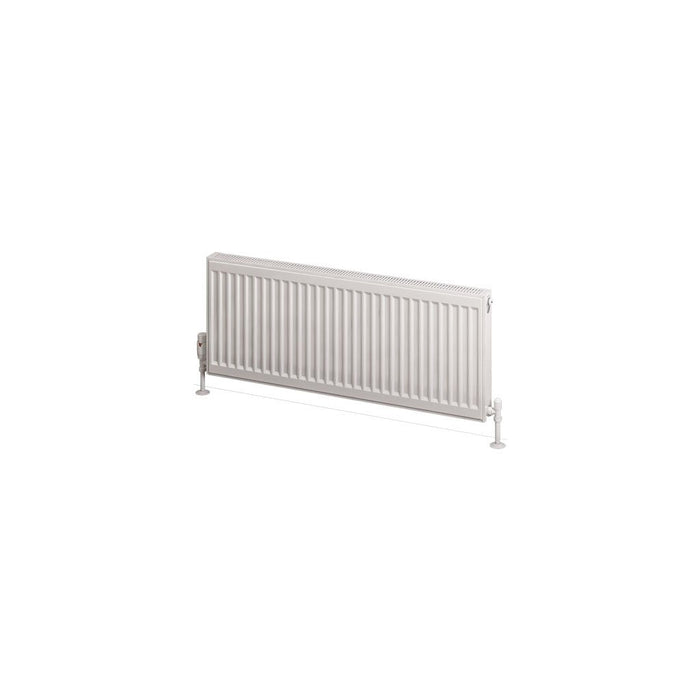

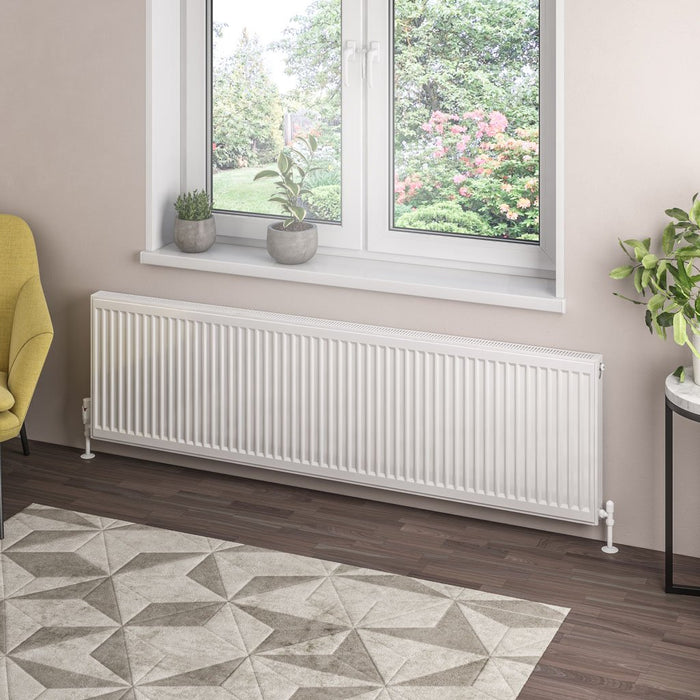

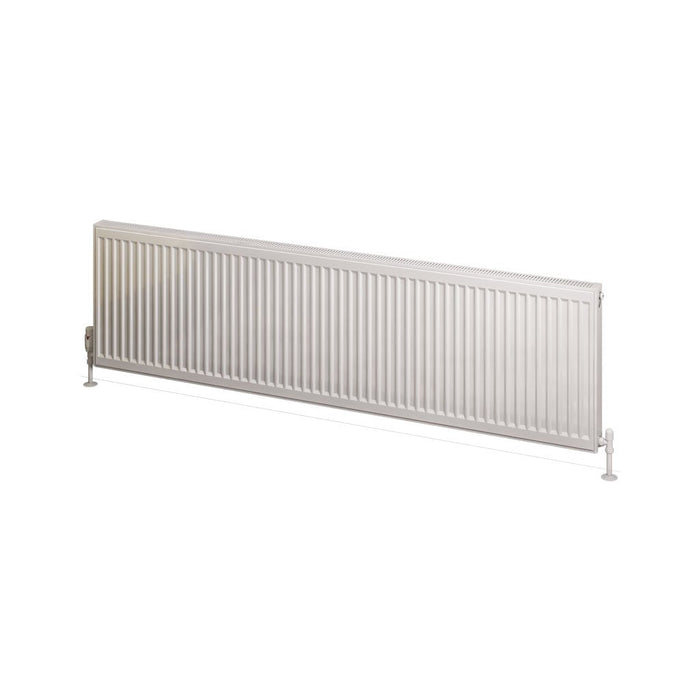

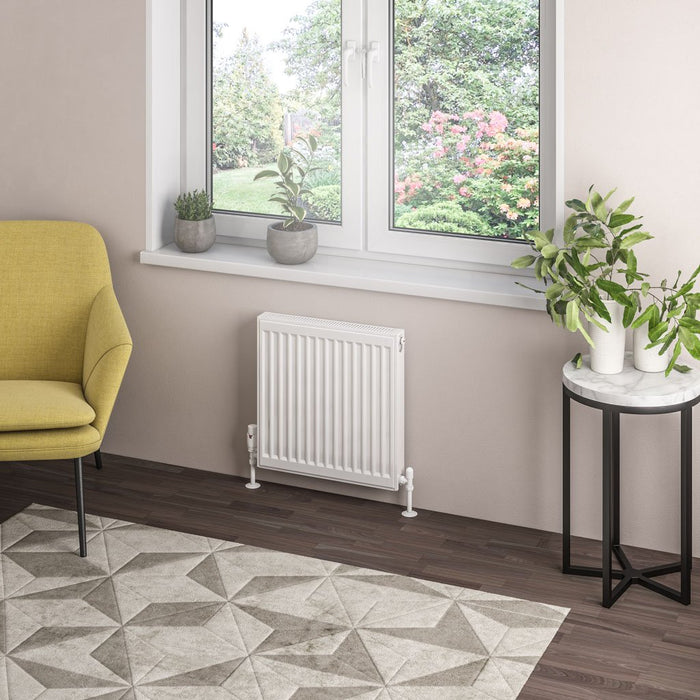

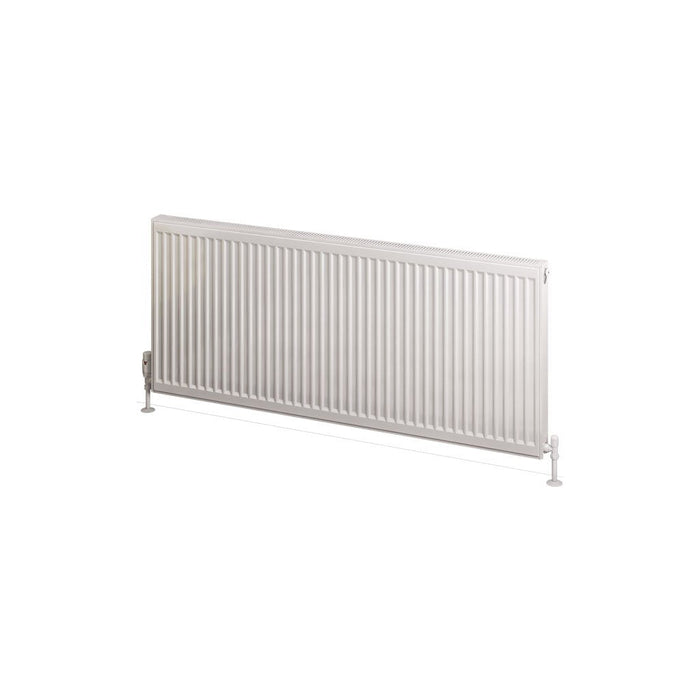

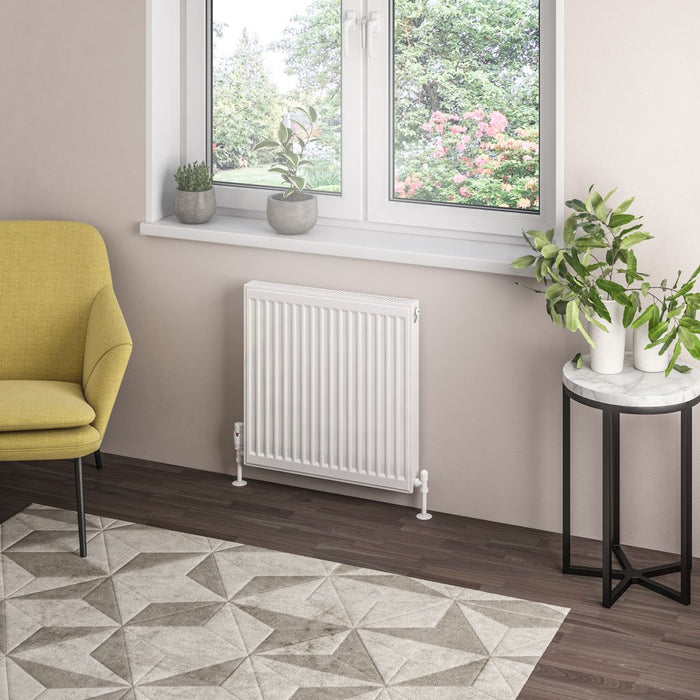

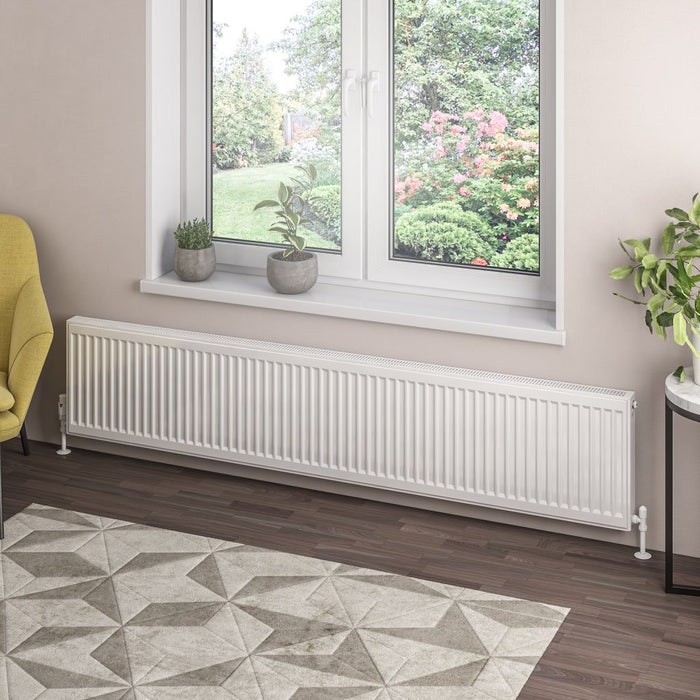

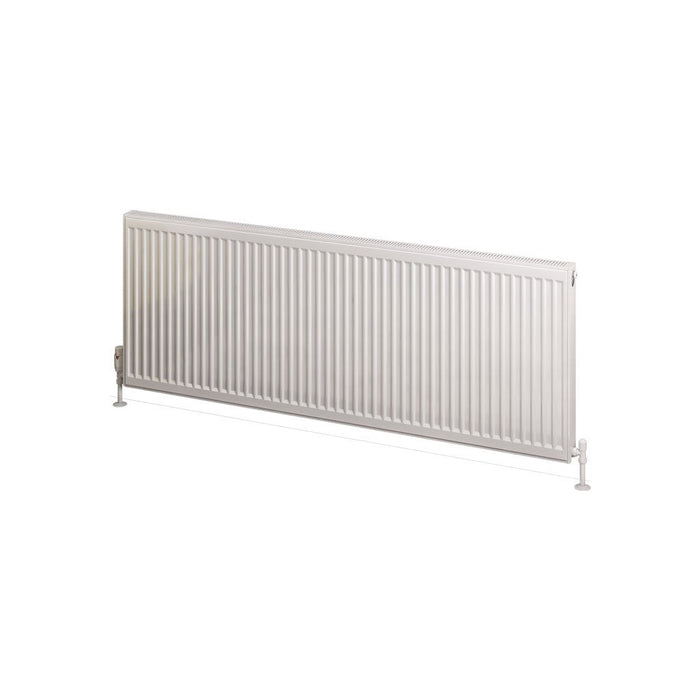

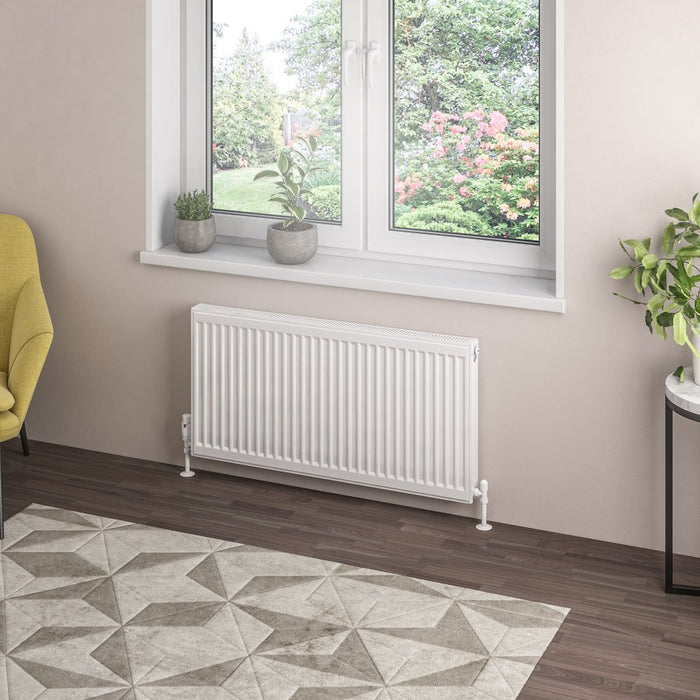

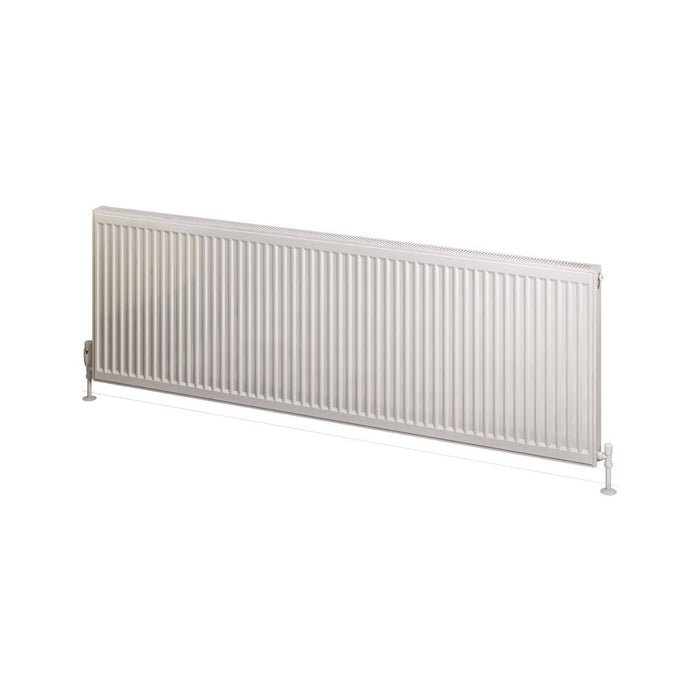

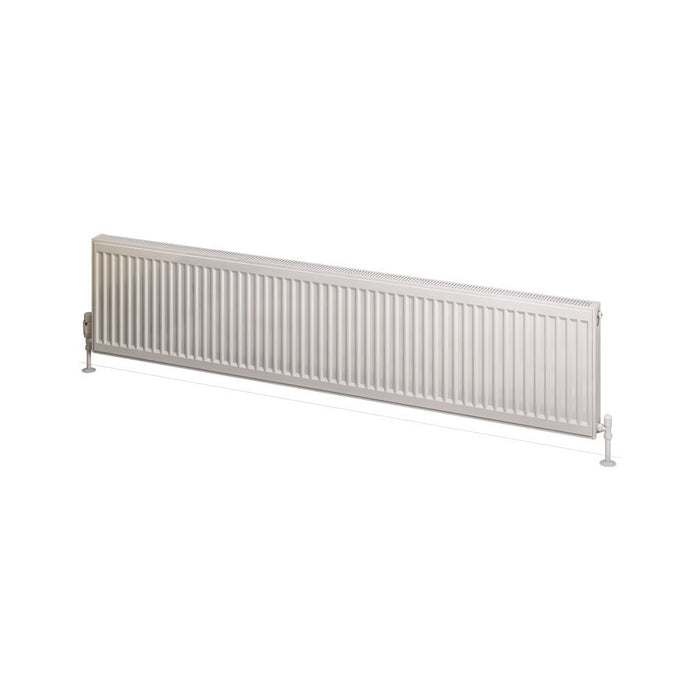

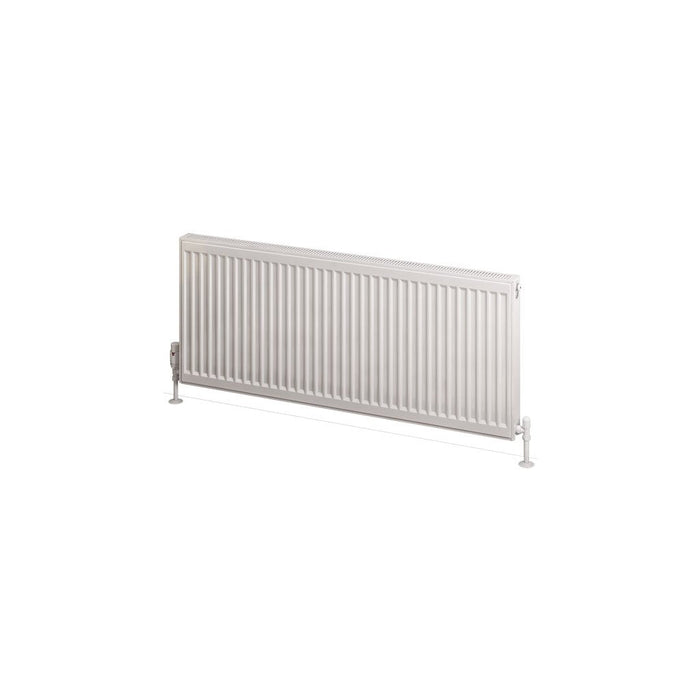

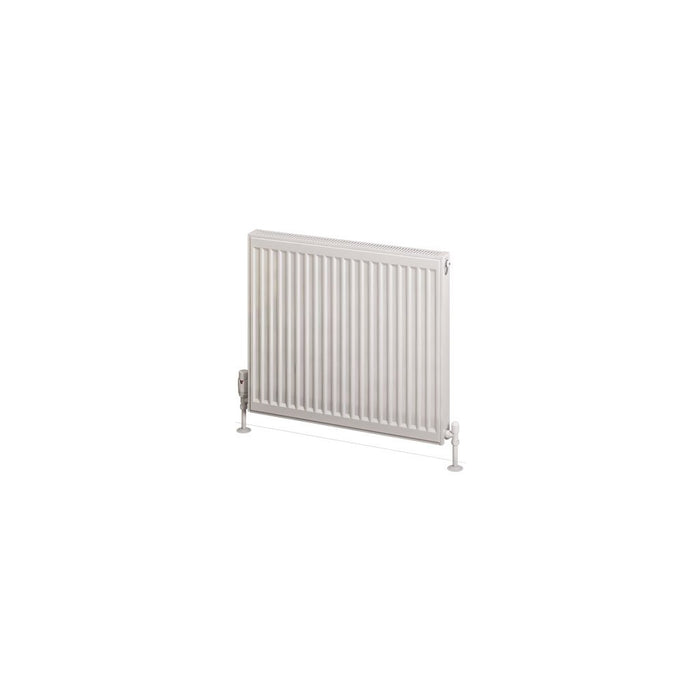

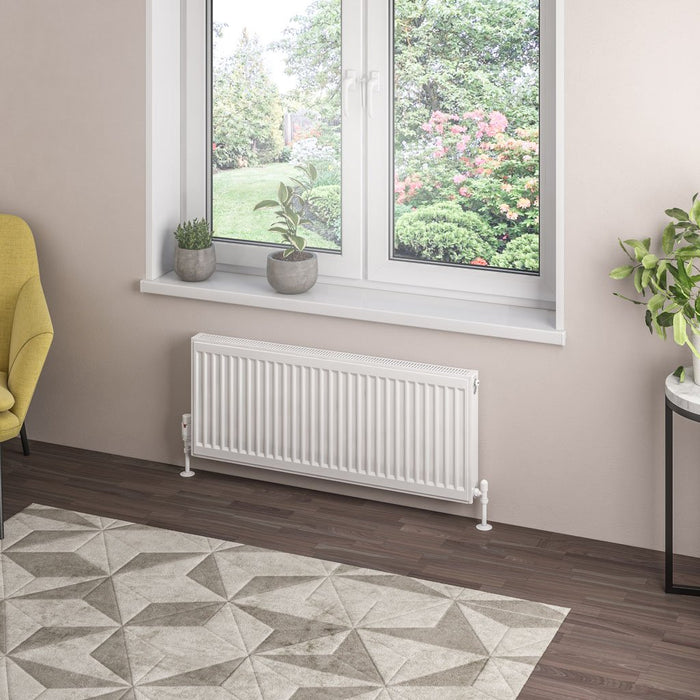

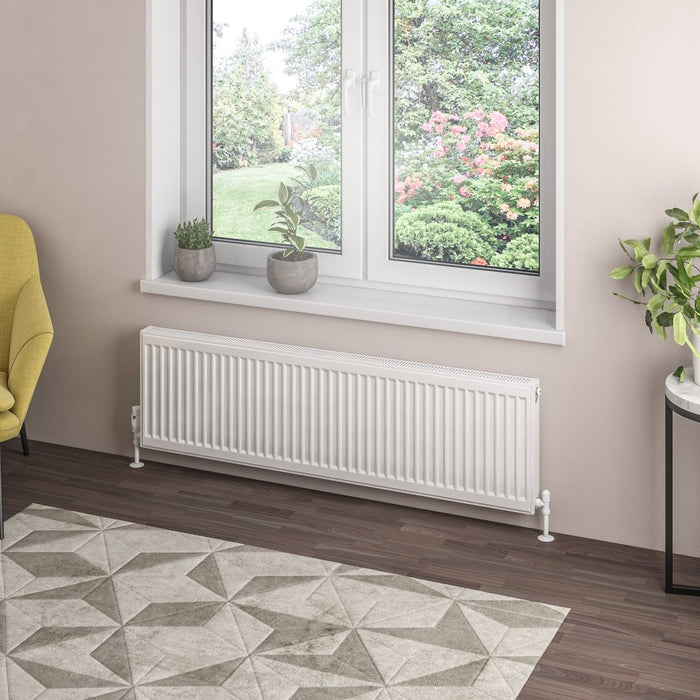

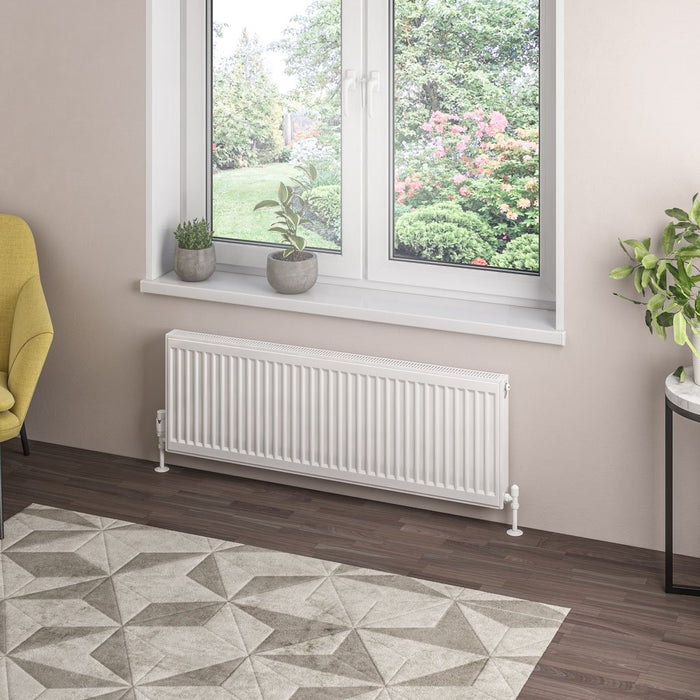

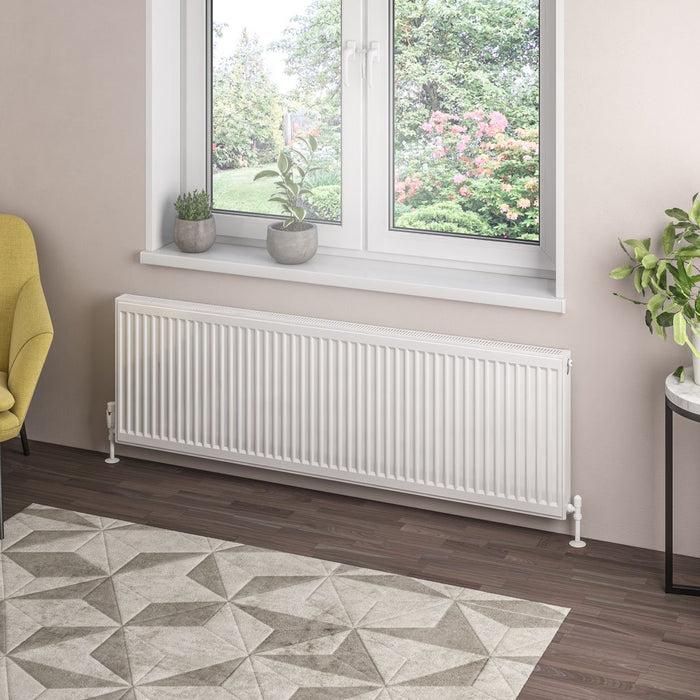

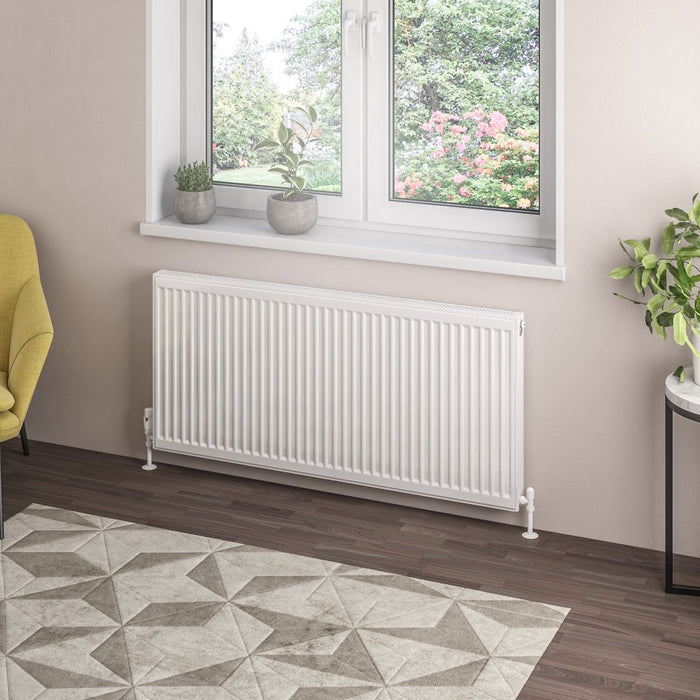

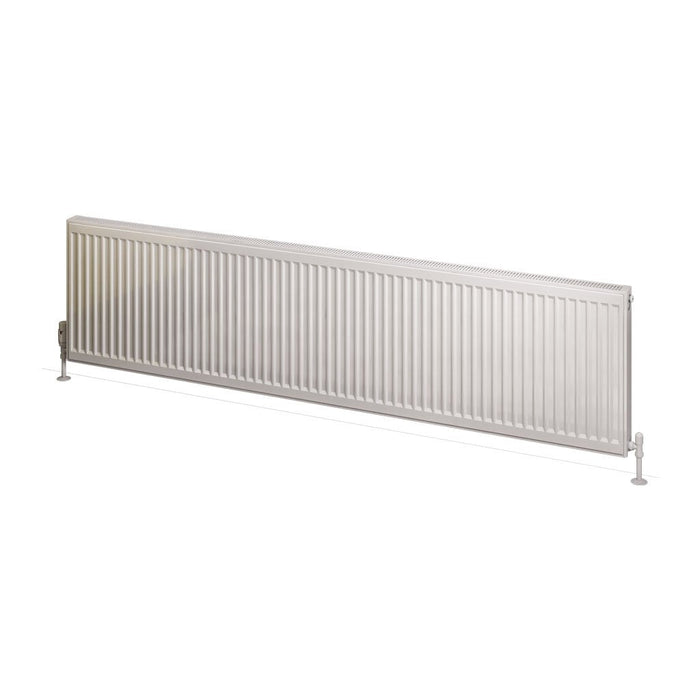

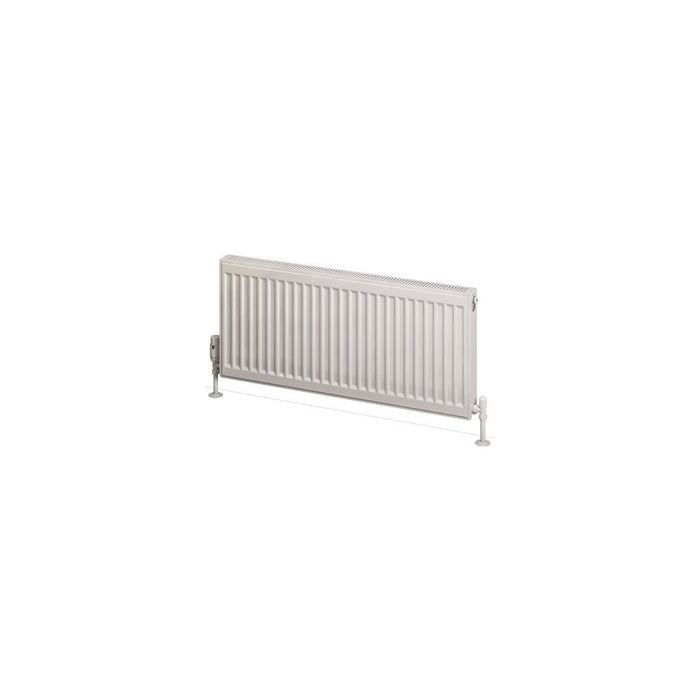

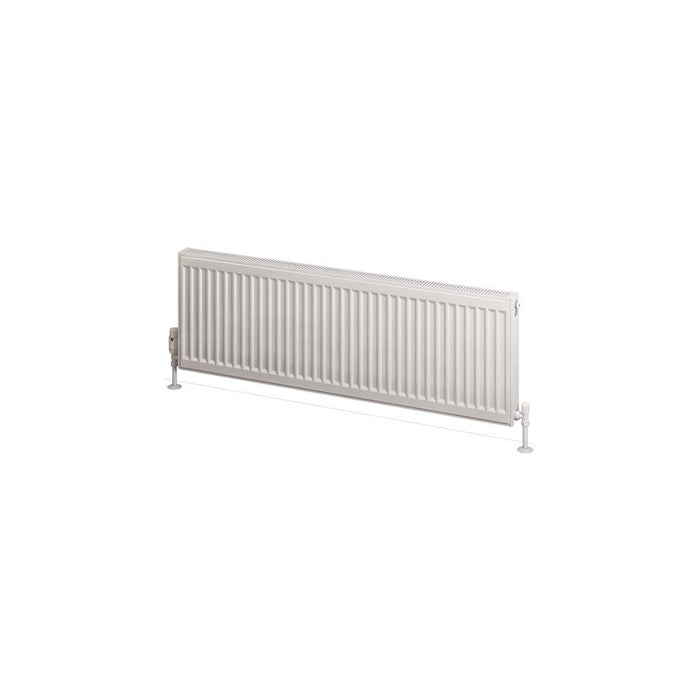

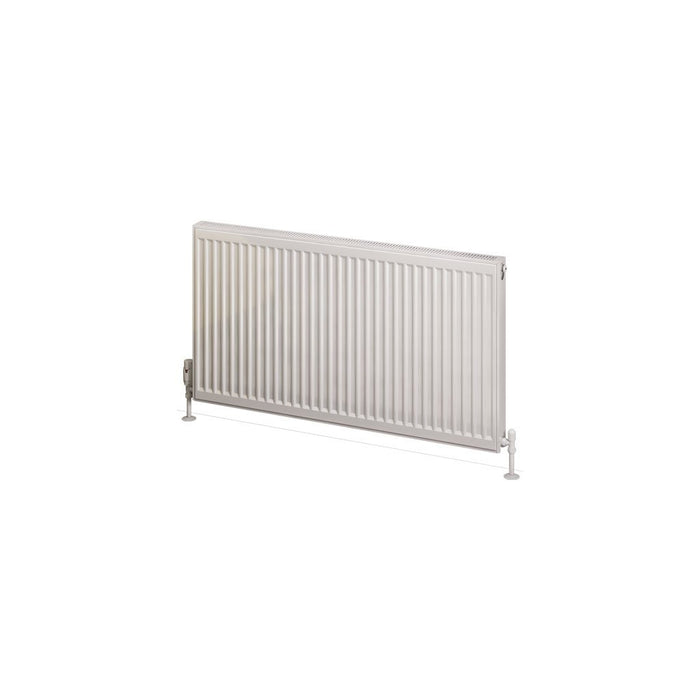

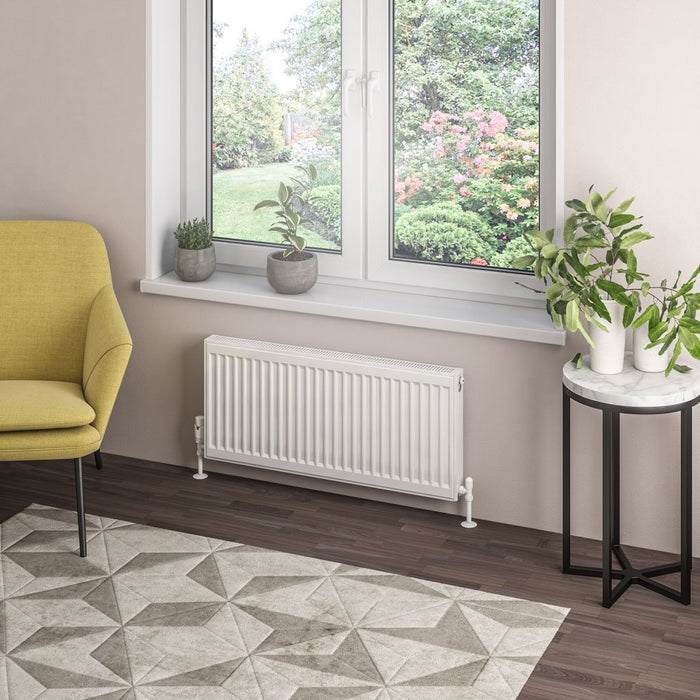

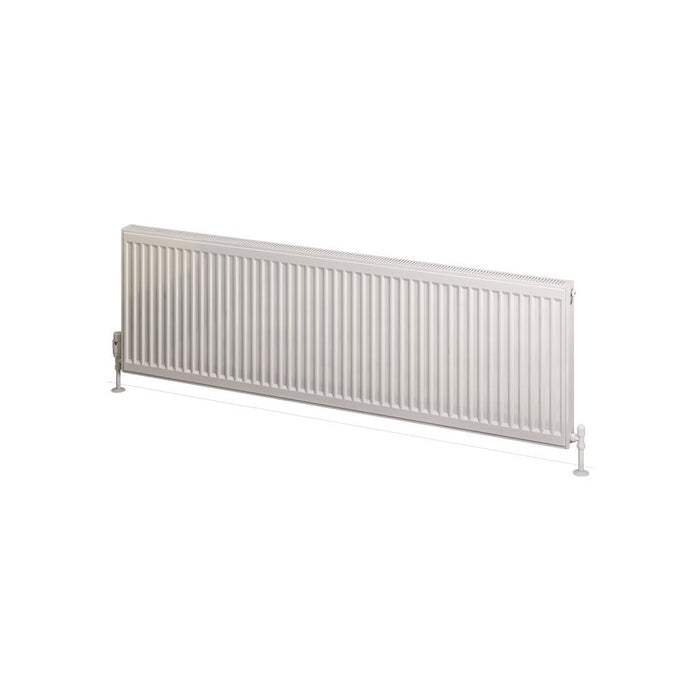

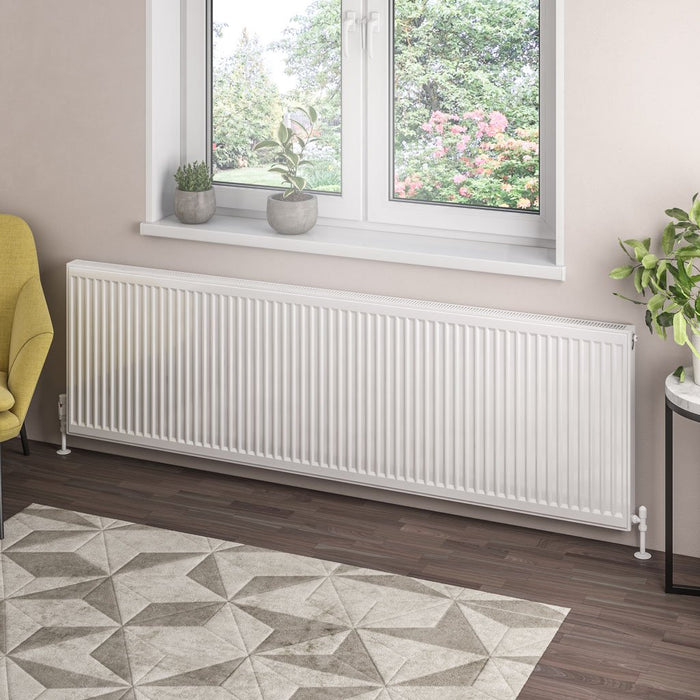

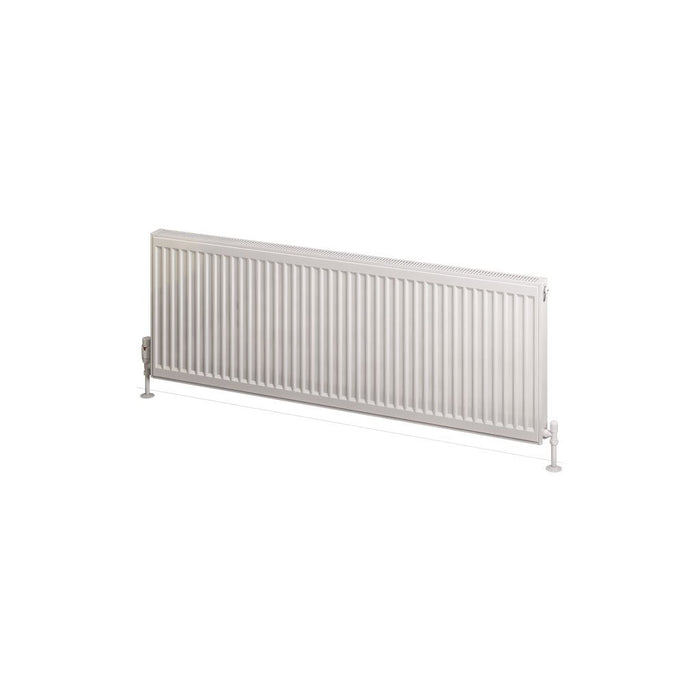

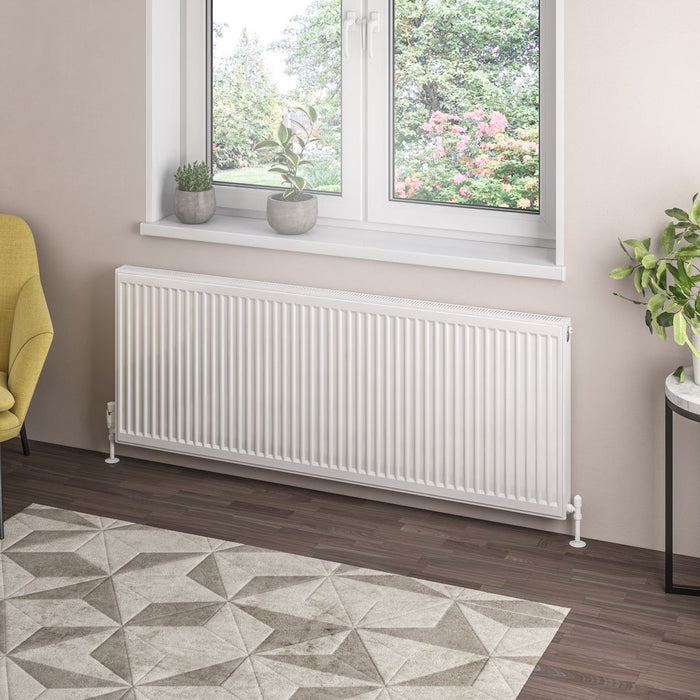

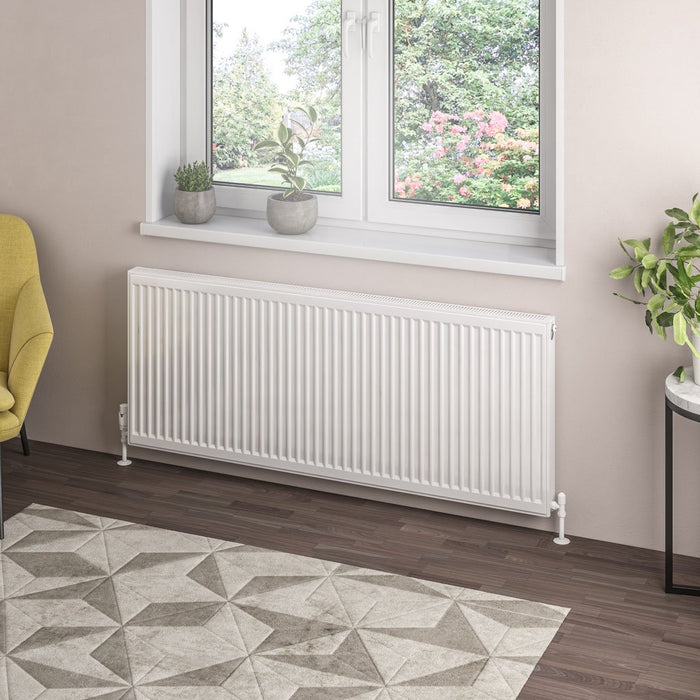

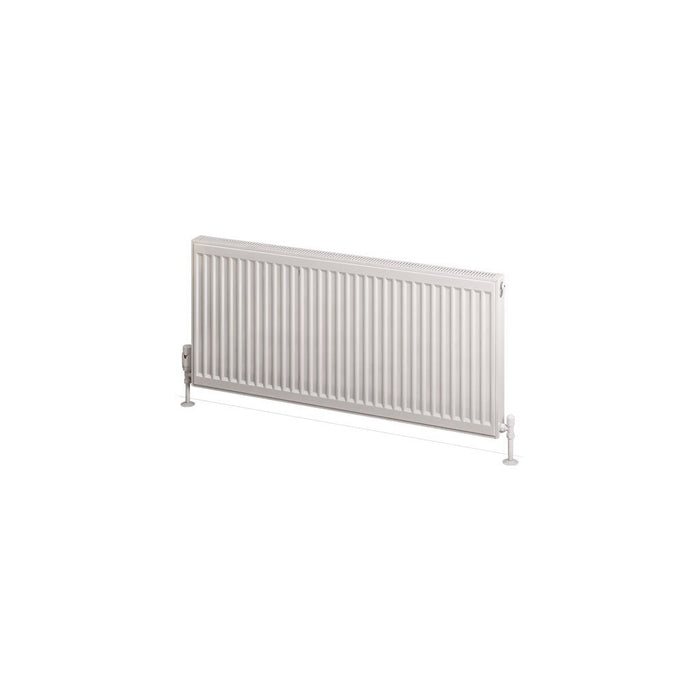

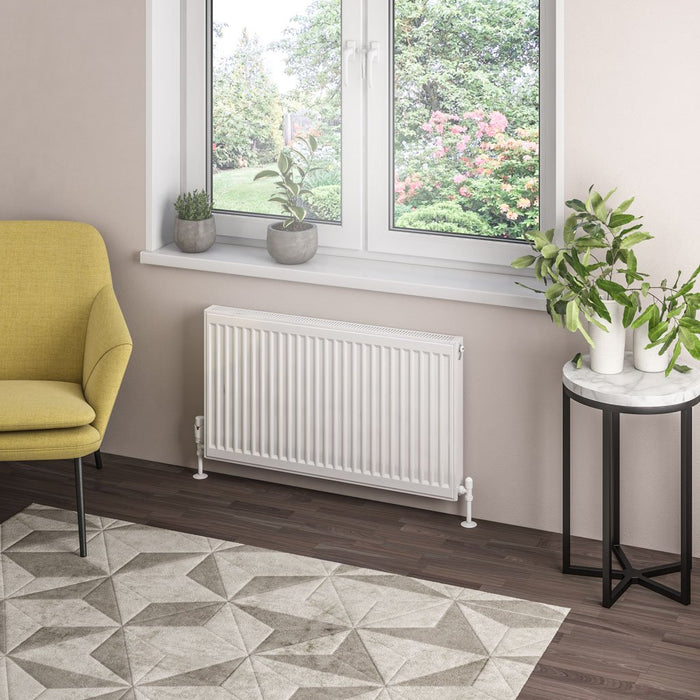

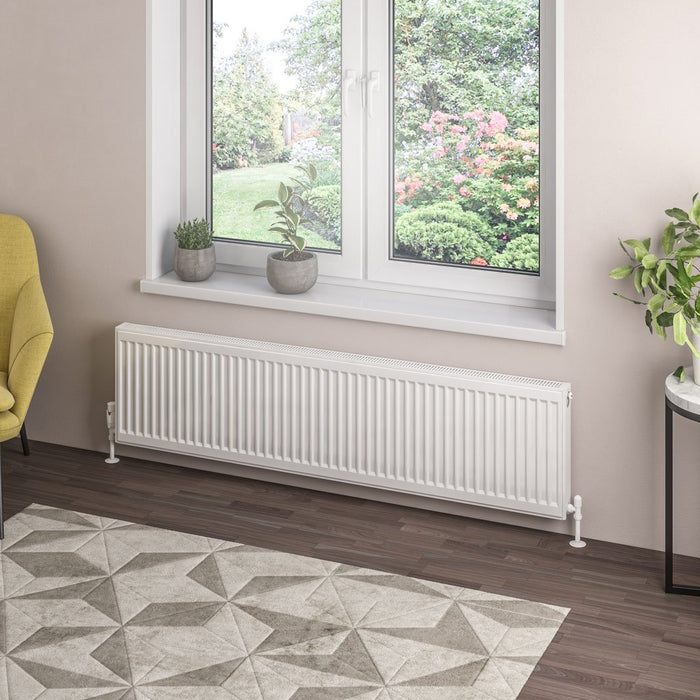

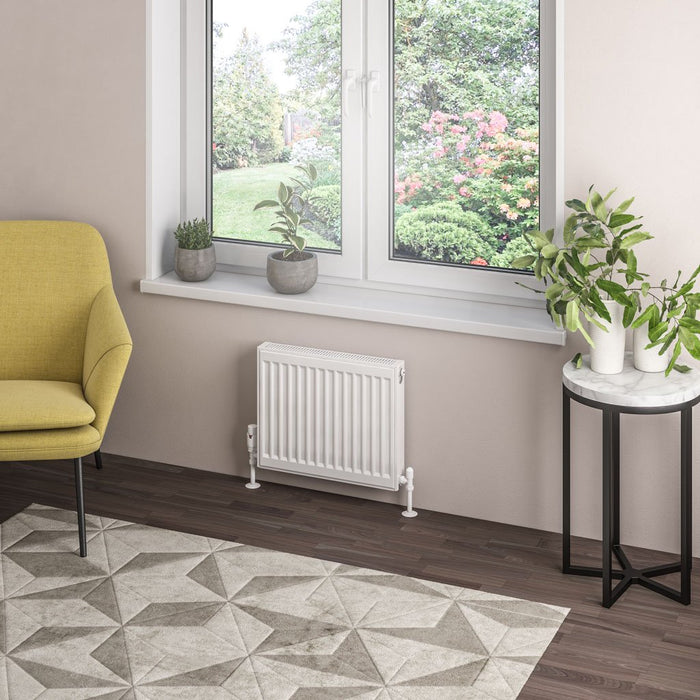

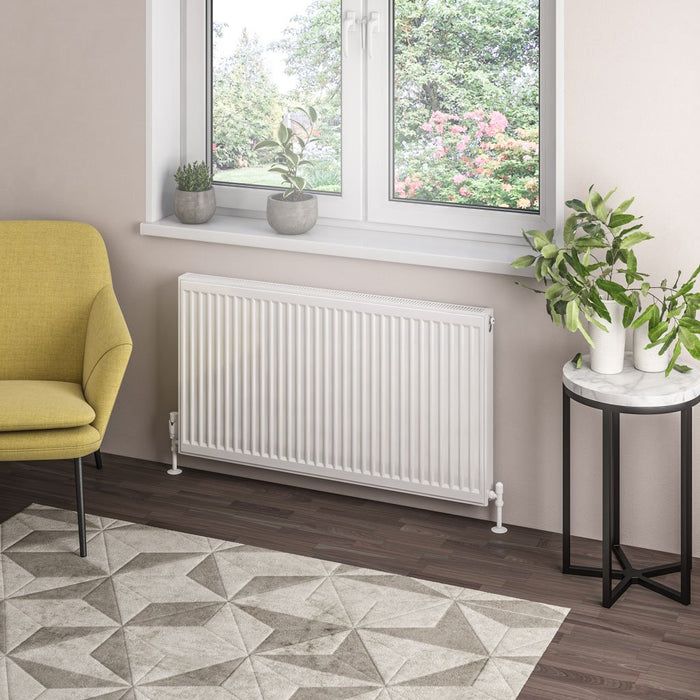

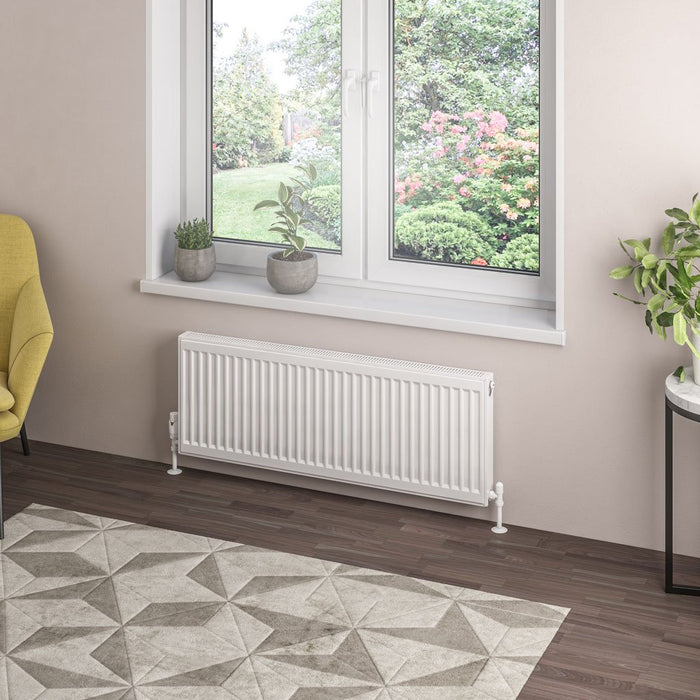

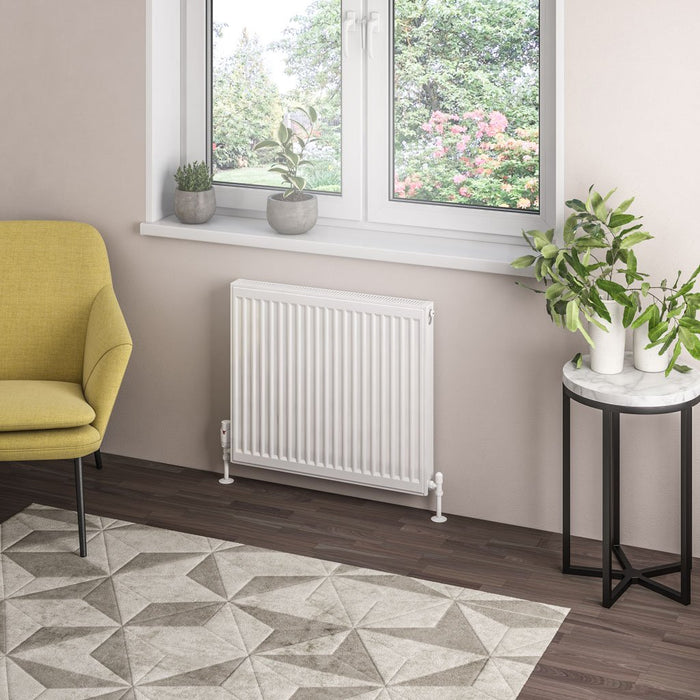

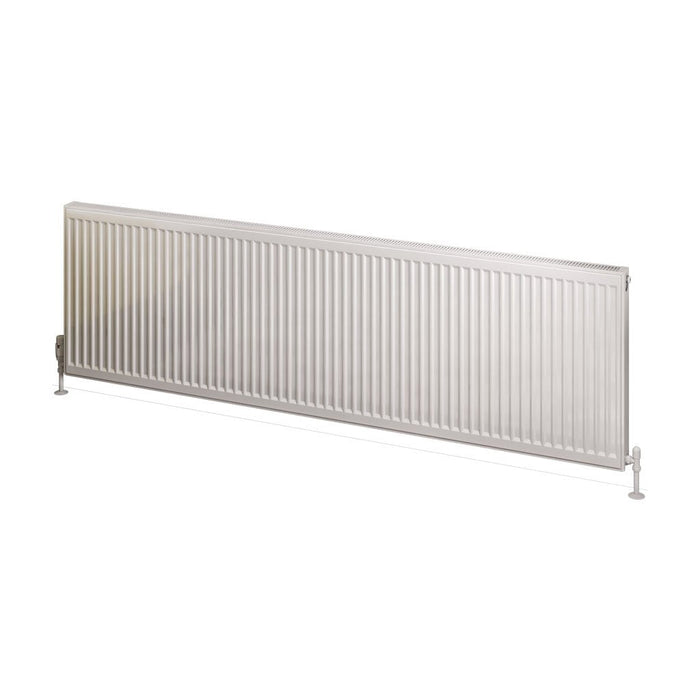

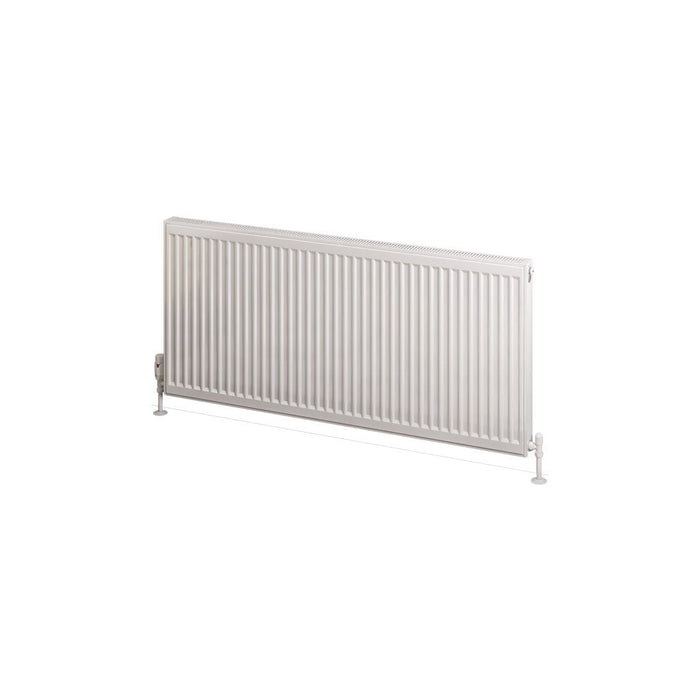

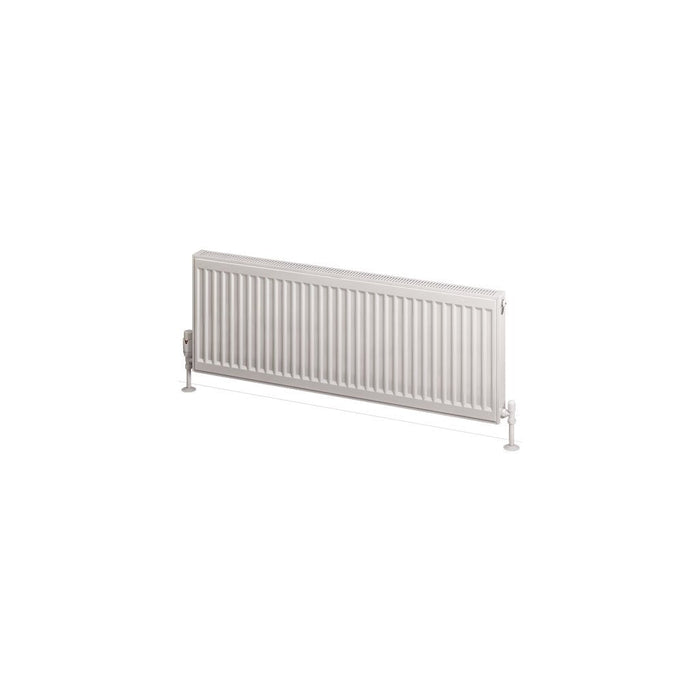

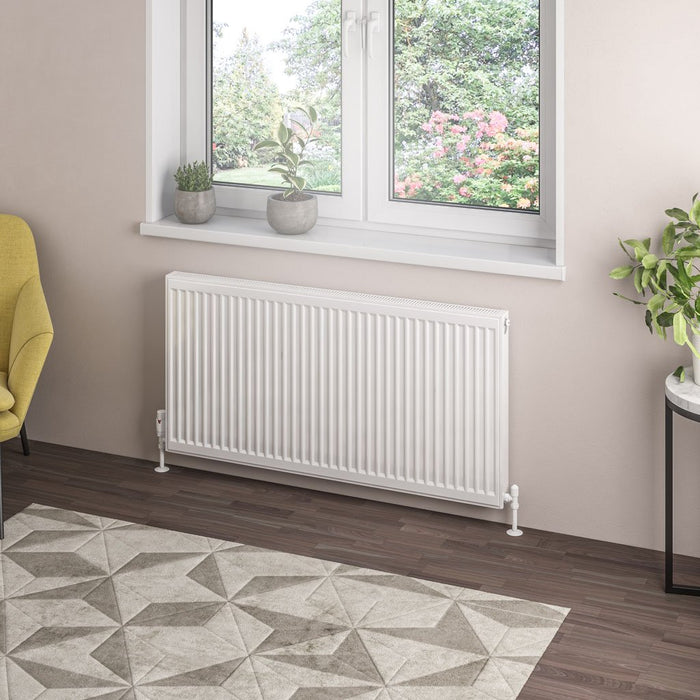

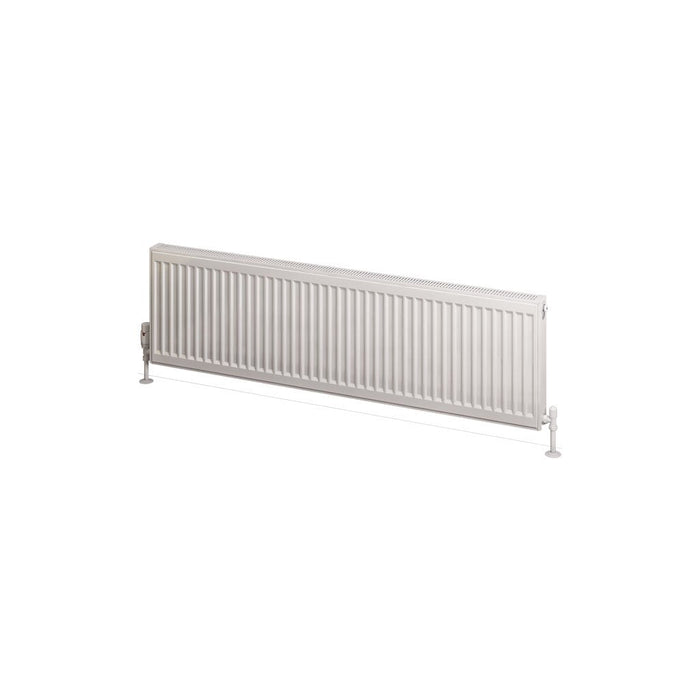

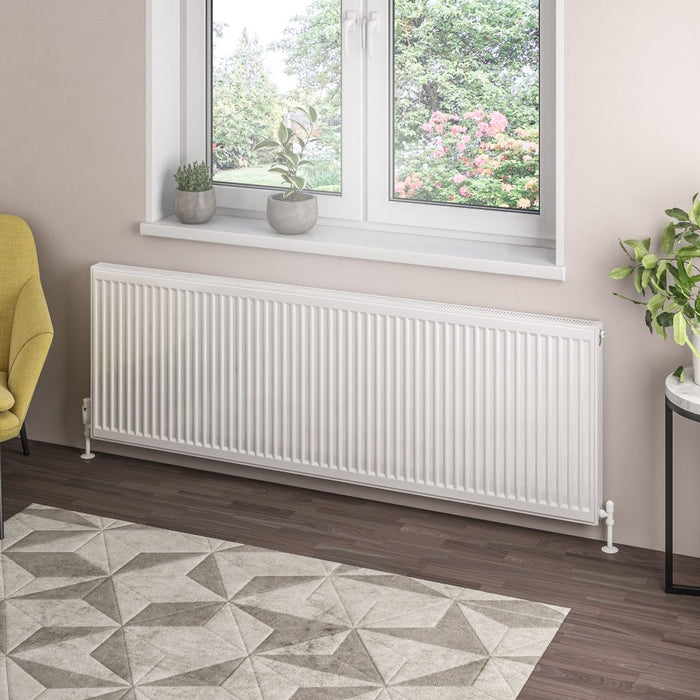

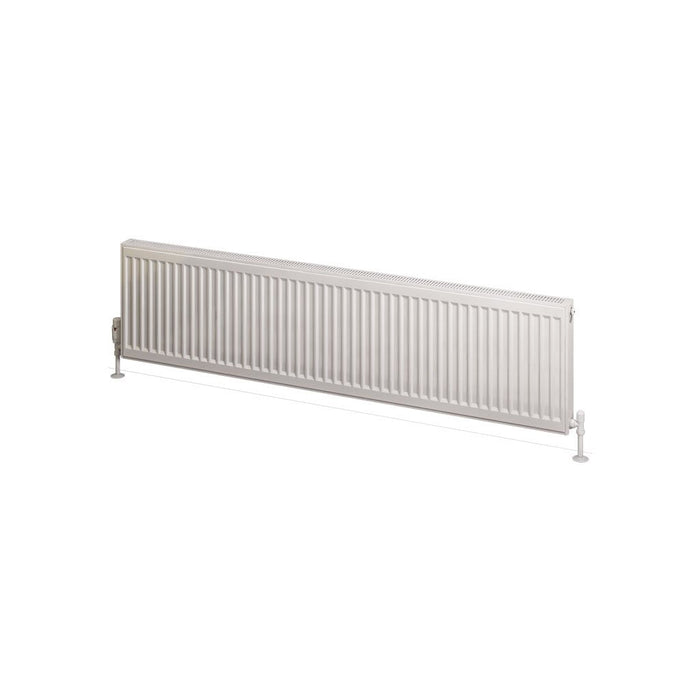

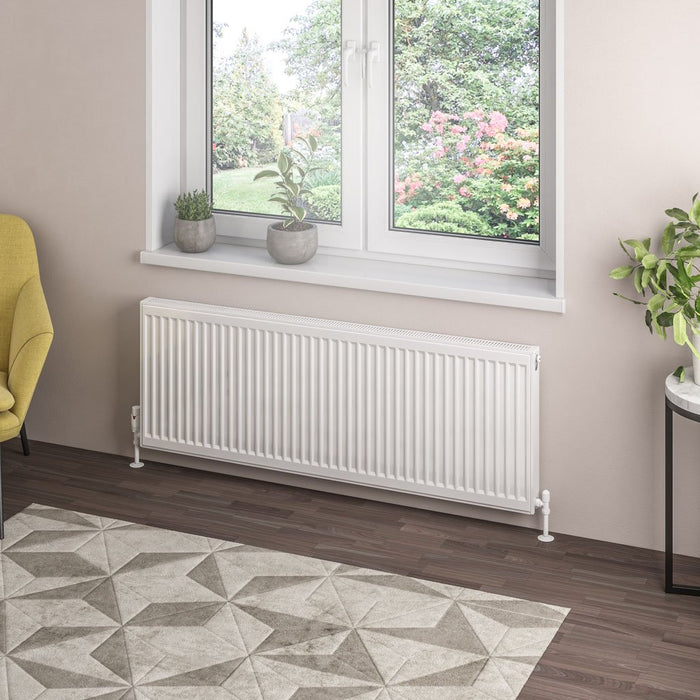

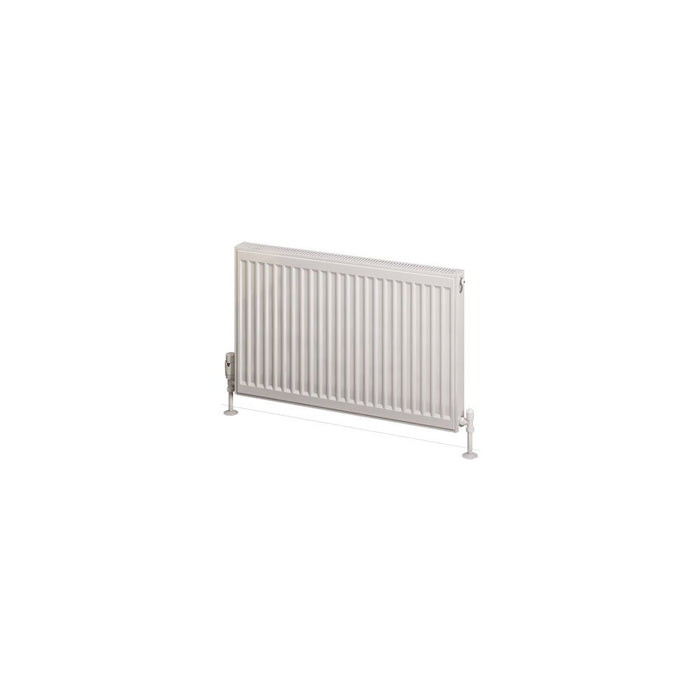

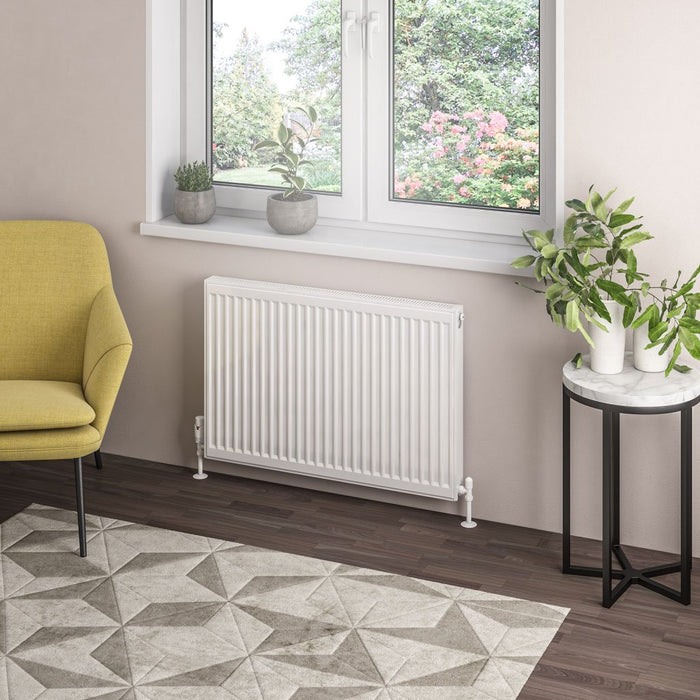

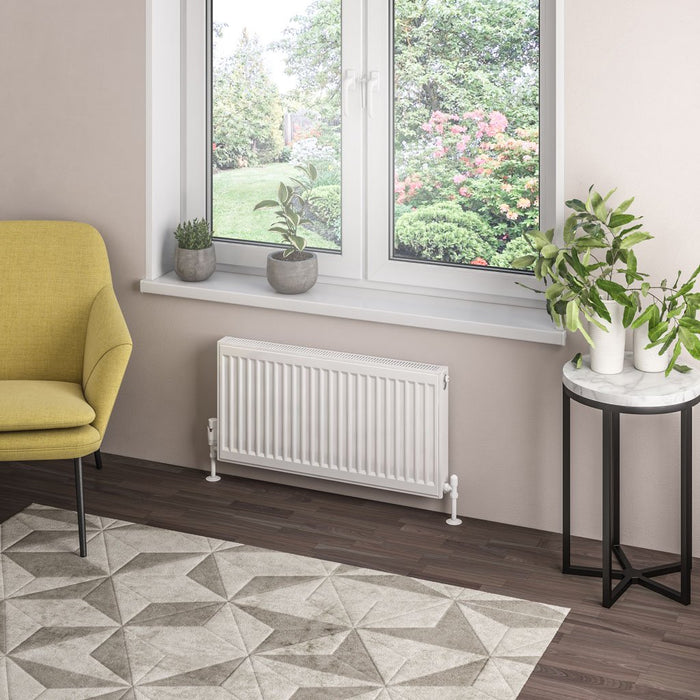

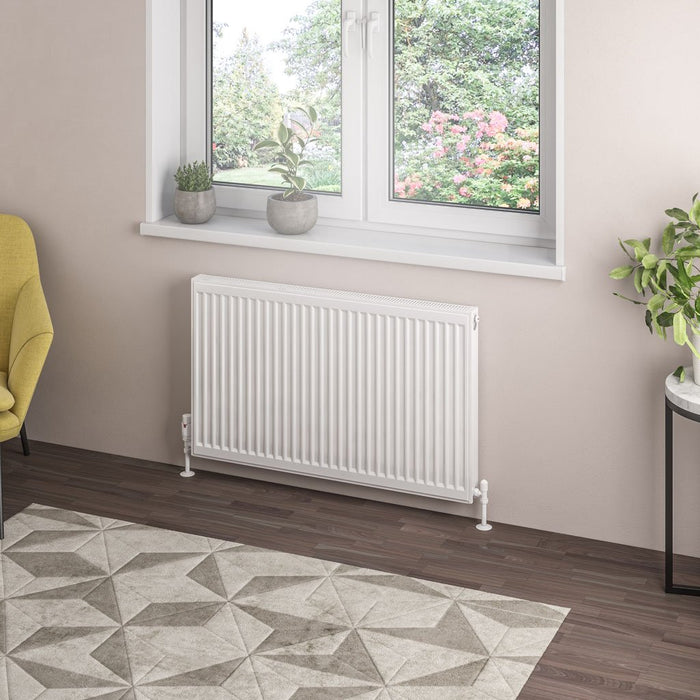

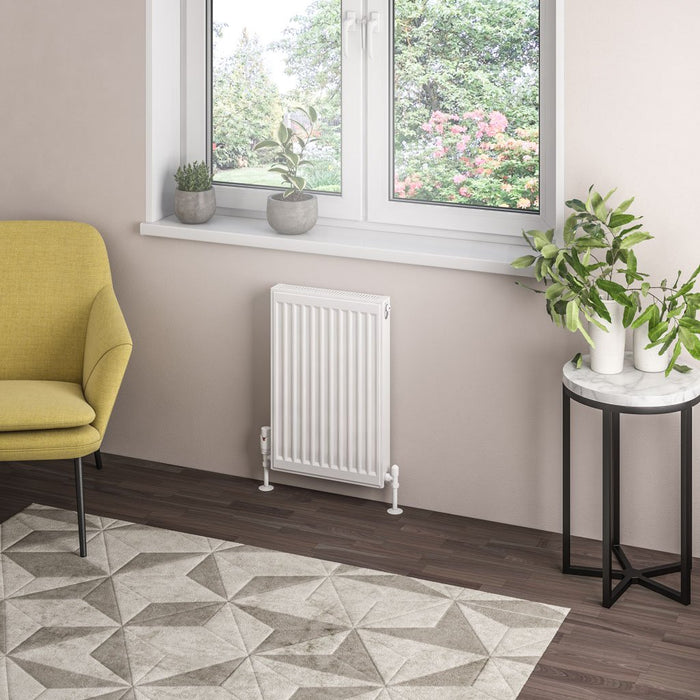

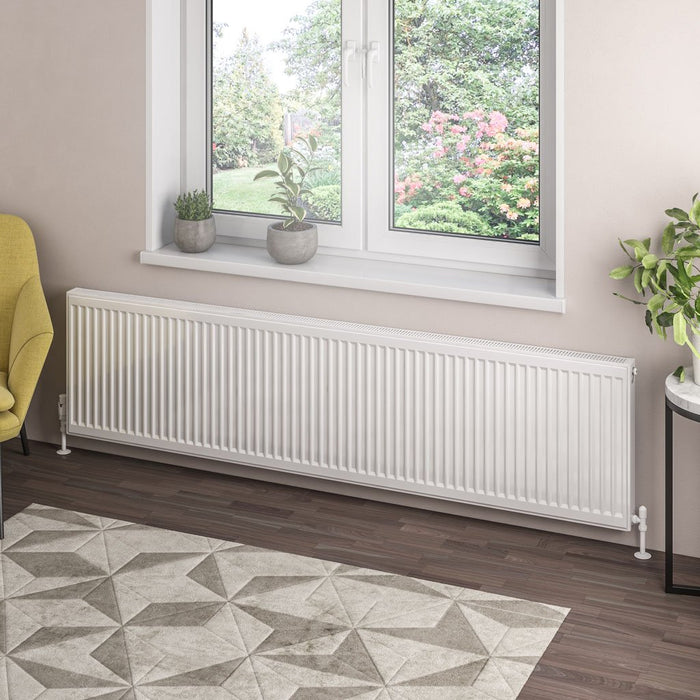

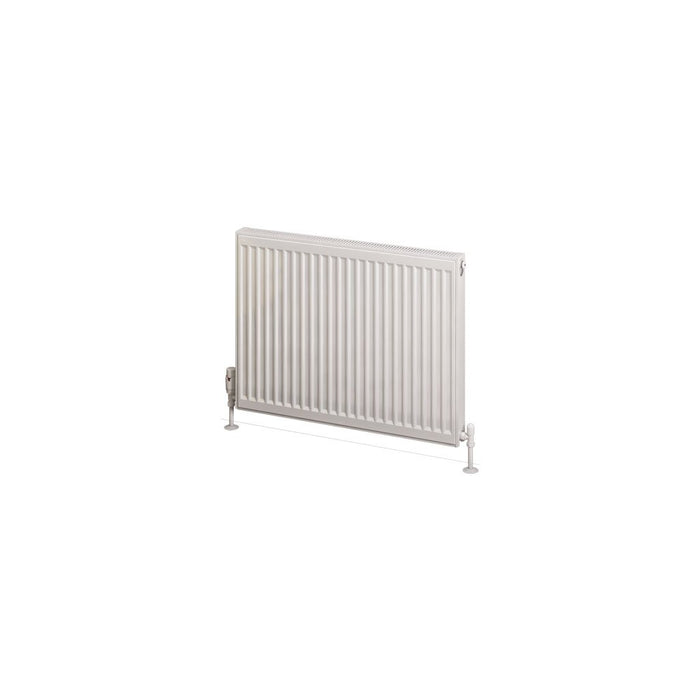

Eastbrook Type 21 Compact Single Panel Radiator Gloss White
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook type 21 compact single panel radiator in gloss white provides an elegant and efficient heating solution for modern homes. Made from durable mild steel, it is designed to complement various interior styles while delivering high-performance heating. This radiator is ideal for hot water central heating systems, tested to bs en 442 standards, and features a sleek, gloss white finish that blends seamlessly into any room.With a 10-year guarantee, the radiator is easy to install, with an included installation kit. It is compatible with two-pipe systems and supports a maximum operating pressure of 4 bars. This radiator ensures optimal heat output and reliable performance.
Product Specifications:
- Warranty: 10 Years
- Product Type: Designer Radiator
- Brand: Eastbrook
- Collection: Type 21
- Finish: Gloss White
- Style: Modern
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves and Heating Element are not included
- Tested to BS EN 442 standards.
- Hot water central heating systems only.
- Max operating pressure 4 bars.

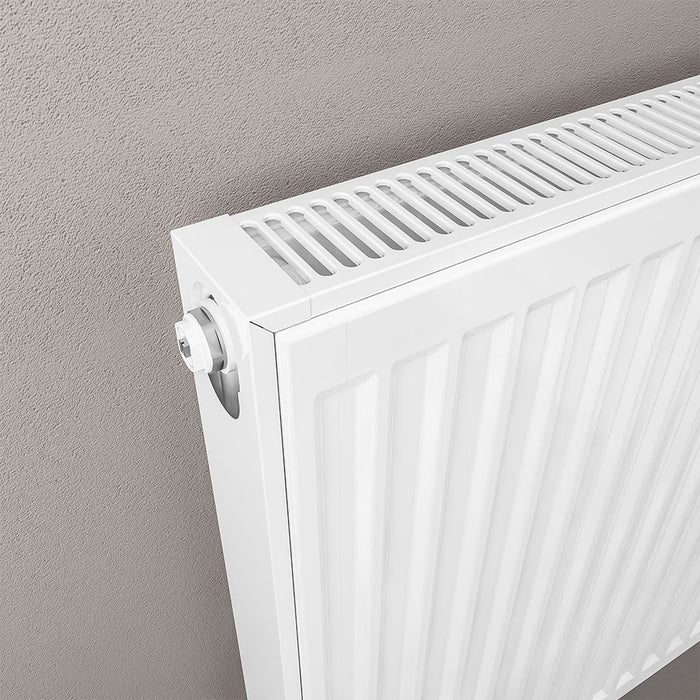

- Complete with fitted top grill & side panels.
- Radiators have 4 x 1/2 connections.
- Installation kit included in packaging.
- Heat outputs based on Delta T30°C & Delta T50°C.
- Radiators are only suitable for two-pipe installations.
- For indirect heating systems only.
- Pipework installation is recommended after receipt of radiator.
- Air vent (bleed valve) and blanking plug included in installation kit.
- Bottom opposite tapings are the width of the radiator and 56 or 68mm off the wall.
- Vertical tapings are approx. 55mm less than the height of the radiator and 56 or 68mm off the wall.
Dimensions:
- Depth: 70mm
Technical Specifications
|
Size |
Watts T30°C |
BTU T30°C |
Watts T50°C |
BTU T50°C |
Water Content/Litres |
|
400mm x 400mm |
189 |
646 |
372 |
1270 |
1.68 Litres |
|
400mm x 500mm |
237 |
808 |
465 |
1587 |
2.10 Litres |
|
400mm x 600mm |
284 |
969 |
558 |
1905 |
2.52 Litres |
|
400mm x 700mm |
331 |
1131 |
651 |
2222 |
2.90 Litres |
|
400mm x 800mm |
379 |
1293 |
744 |
2540 |
3.36 Litres |
|
400mm x 900mm |
426 |
1454 |
837 |
2857 |
3.80 Litres |
|
400mm x 1000mm |
473 |
1616 |
930 |
3175 |
4.20 Litres |
|
400mm x 1100mm |
521 |
1777 |
1023 |
3492 |
4.60 Litres |
|
400mm x 1200mm |
568 |
1939 |
1116 |
3810 |
5.04 Litres |
|
400mm x 1400mm |
663 |
2262 |
1302 |
4445 |
5.88 Litres |
|
400mm x 1600mm |
757 |
2585 |
1488 |
5080 |
6.72 Litres |
|
400mm x 1800mm |
852 |
2908 |
1674 |
5715 |
7.60 Litres |
|
400mm x 2000mm |
946 |
3231 |
1860 |
6350 |
8.40 Litres |
|
500mm x 400mm |
226 |
770 |
444 |
1516 |
2.08 Litres |
|
500mm x 500mm |
282 |
963 |
555 |
1895 |
2.60 Litres |
|
500mm x 600mm |
338 |
1155 |
666 |
2274 |
3.12 Litres |
|
500mm x 700mm |
395 |
1348 |
777 |
2653 |
3.60 Litres |
|
500mm x 800mm |
451 |
1540 |
888 |
3032 |
4.16 Litres |
|
500mm x 900mm |
508 |
1733 |
999 |
3411 |
4.70 Litres |
|
500mm x 1000mm |
564 |
1925 |
1110 |
1417 |
5.20 Litres |
|
500mm x 1100mm |
620 |
2118 |
1221 |
4168 |
5.70 Litres |
|
500mm x 1200mm |
677 |
2310 |
1332 |
4547 |
6.24 Litres |
|
500mm x 1400mm |
790 |
2696 |
1554 |
5305 |
7.28 Litres |
|
500mm x 1600mm |
902 |
3081 |
1776 |
6063 |
8.32 Litres |
|
500mm x 1800mm |
1015 |
3466 |
1998 |
6821 |
9.40 Litres |
|
500mm x 2000mm |
1128 |
3851 |
2220 |
7579 |
10.40 Litres |
|
600mm x 400mm |
262 |
895 |
516 |
1761 |
2.48 Litres |
|
600mm x 500mm |
328 |
1118 |
645 |
2201 |
3.10 Litres |
|
600mm x 600mm |
393 |
1342 |
773 |
2641 |
3.72 Litres |
|
600mm x 700mm |
459 |
1565 |
902 |
3081 |
4.30 Litres |
|
600mm x 800mm |
524 |
1789 |
1031 |
3521 |
4.96 Litres |
|
600mm x 900mm |
590 |
2013 |
1160 |
3961 |
5.60 Litres |
|
600mm x 1000mm |
655 |
2236 |
1289 |
4401 |
6.20 Litres |
|
600mm x 1100mm |
721 |
2460 |
1418 |
4841 |
6.80 Litres |
|
600mm x 1200mm |
786 |
2684 |
1547 |
5282 |
7.44 Litres |
|
600mm x 1300mm |
852 |
2907 |
1676 |
5722 |
8.10 Litres |
|
600mm x 1400mm |
917 |
3131 |
1805 |
6162 |
8.68 Litres |
|
600mm x 1500mm |
983 |
3355 |
1934 |
6602 |
9.30 Litres |
|
600mm x 1600mm |
1048 |
3578 |
2063 |
7042 |
9.92 Litres |
|
600mm x 1800mm |
1179 |
4026 |
2320 |
7922 |
11.20 Litres |
|
600mm x 2000mm |
1310 |
4473 |
2578 |
8803 |
12.40 Litres |
Assembling instructions for Single Panel Radiator
Datasheet for 400mm x 400mm Single Panel Radiator
Datasheet for 400mm x 500mm Single Panel Radiator
Datasheet for 400mm x 600mm Single Panel Radiator
Datasheet for 400mm x 700mm Single Panel Radiator
Datasheet for 400mm x 800mm Single Panel Radiator
Datasheet for 400mm x 900mm Single Panel Radiator
Datasheet for 400mm x 1000mm Single Panel Radiator
Datasheet for 400mm x 1100mm Single Panel Radiator
Datasheet for 400mm x 1200mm Single Panel Radiator
Datasheet for 400mm x 1400mm Single Panel Radiator
Datasheet for 400mm x 1600mm Single Panel Radiator
Datasheet for 400mm x 1800mm Single Panel Radiator
Datasheet for 400mm x 2000mm Single Panel Radiator
Datasheet for 500mm x 400mm Single Panel Radiator
Datasheet for 500mm x 500mm Single Panel Radiator
Datasheet for 500mm x 600mm Single Panel Radiator
Datasheet for 500mm x 700mm Single Panel Radiator
Datasheet for 500mm x 800mm Single Panel Radiator
Datasheet for 500mm x 900mm Single Panel Radiator
Datasheet for 500mm x 1000mm Single Panel Radiator
Datasheet for 500mm x 1100mm Single Panel Radiator
Datasheet for 500mm x 1200mm Single Panel Radiator
Datasheet for 500mm x 1400mm Single Panel Radiator
Datasheet for 500mm x 1600mm Single Panel Radiator
Datasheet for 500mm x 1800mm Single Panel Radiator
Datasheet for 500mm x 2000mm Single Panel Radiator
Datasheet for 600mm x 400mm Single Panel Radiator
Datasheet for 600mm x 500mm Single Panel Radiator
Datasheet for 600mm x 600mm Single Panel Radiator
Datasheet for 600mm x 700mm Single Panel Radiator
Datasheet for 600mm x 800mm Single Panel Radiator
Datasheet for 600mm x 900mm Single Panel Radiator
Datasheet for 600mm x 1000mm Single Panel Radiator
Datasheet for 600mm x 1100mm Single Panel Radiator
Datasheet for 600mm x 1200mm Single Panel Radiator
Datasheet for 600mm x 1300mm Single Panel Radiator
Datasheet for 600mm x 1400mm Single Panel Radiator
Datasheet for 600mm x 1500mm Single Panel Radiator
Datasheet for 600mm x 1600mm Single Panel Radiator
Datasheet for 600mm x 1800mm Single Panel Radiator
Datasheet for 600mm x 2000mm Single Panel Radiator
Technical Drawing
