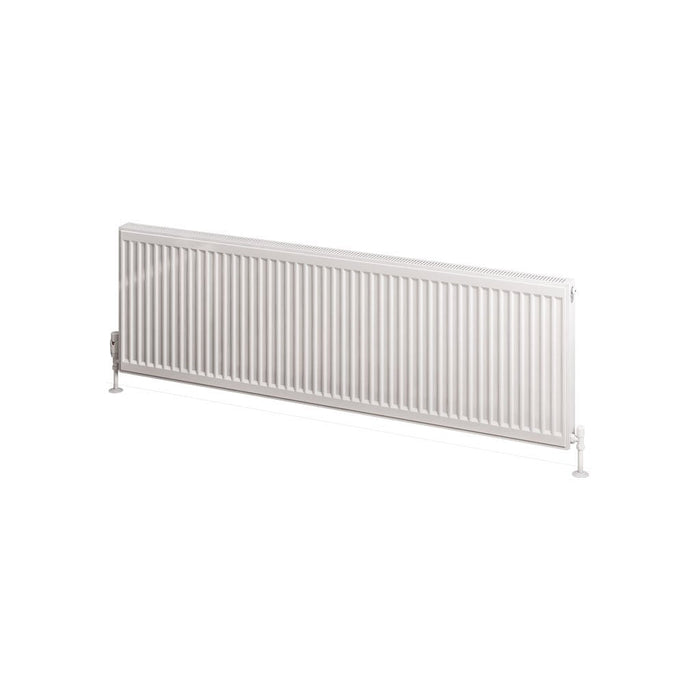

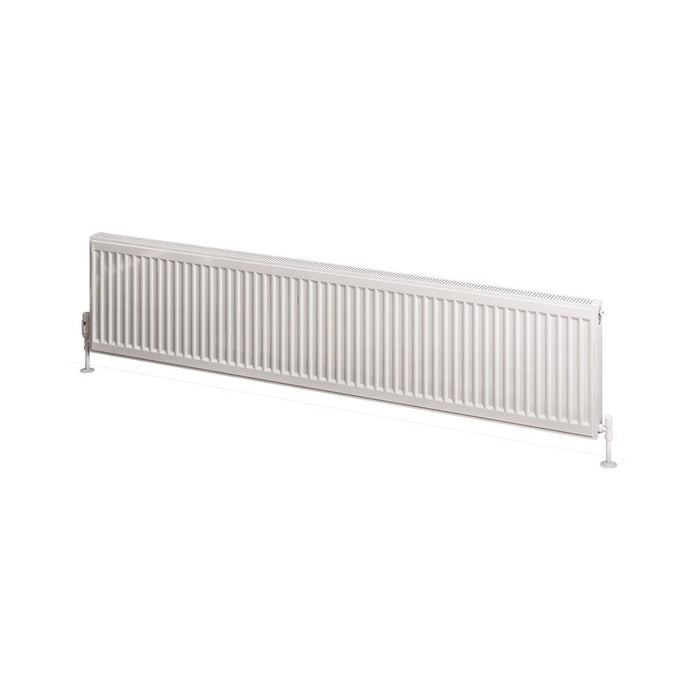

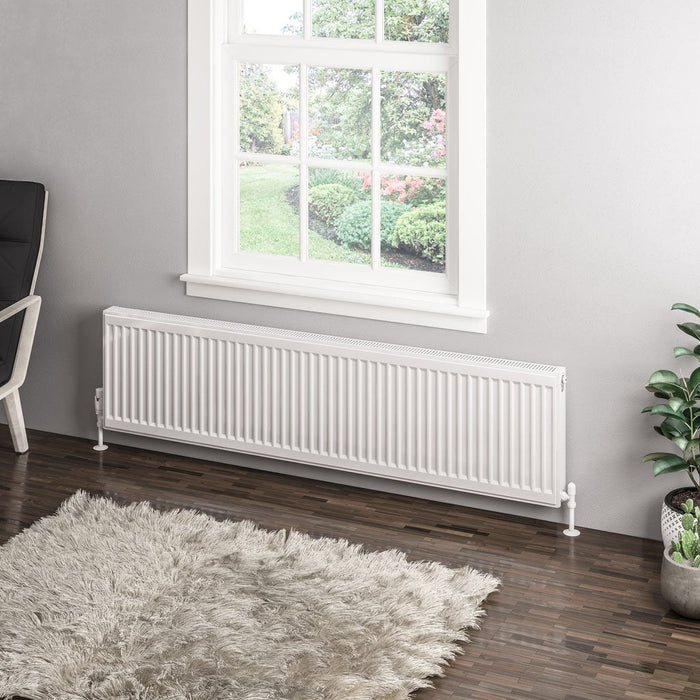

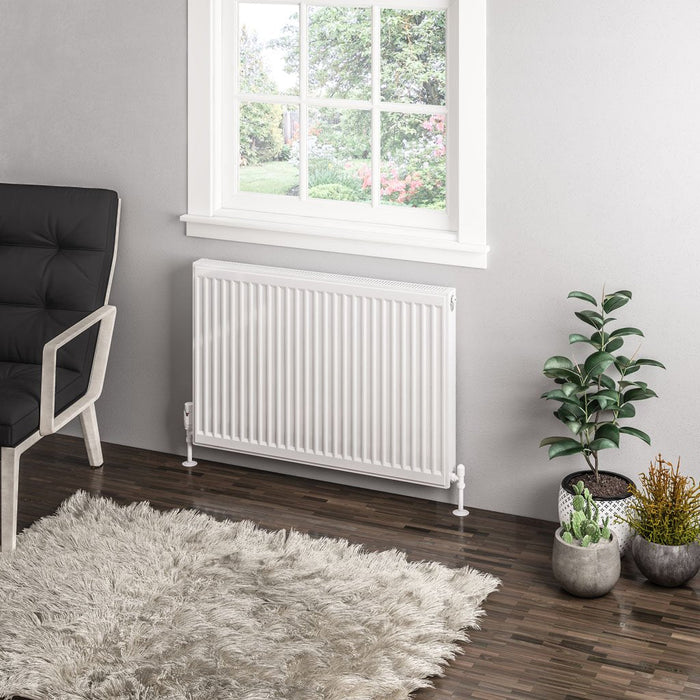

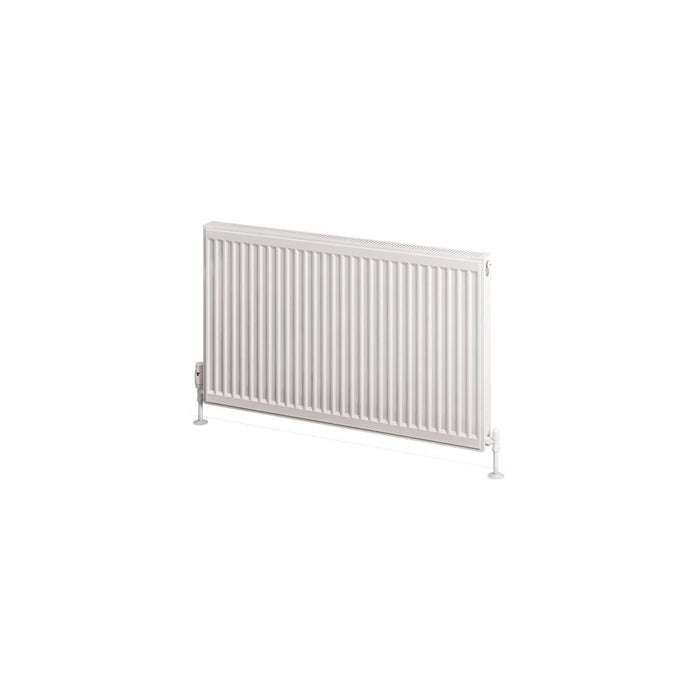

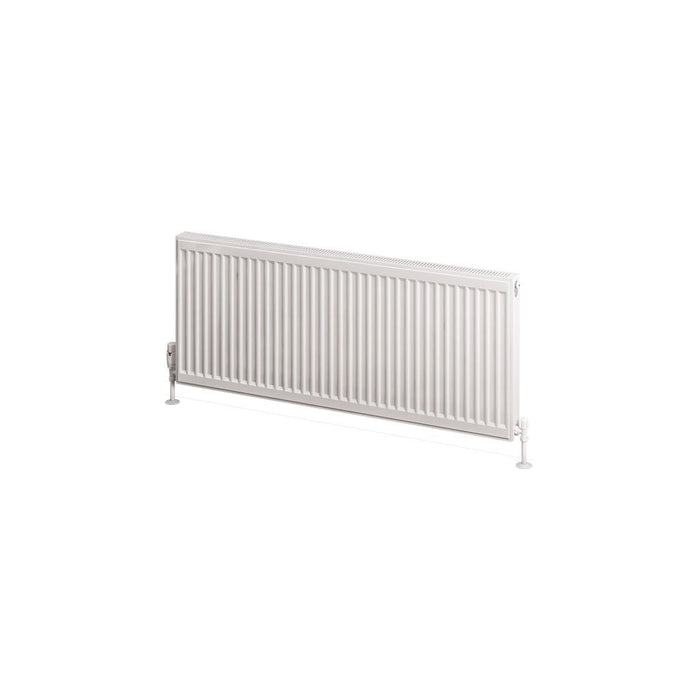

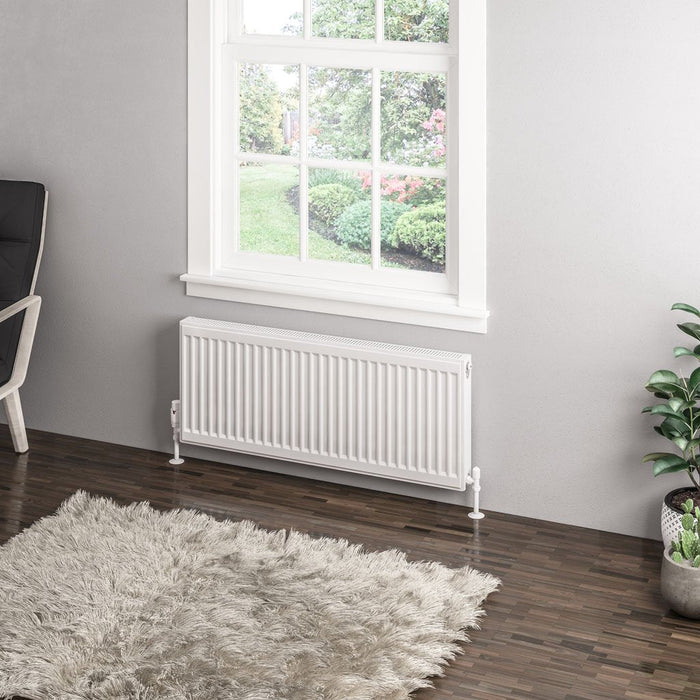

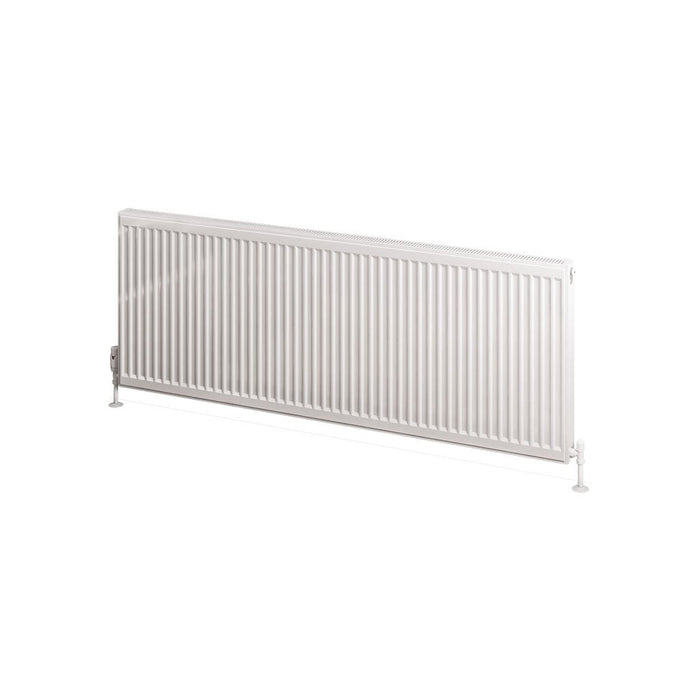

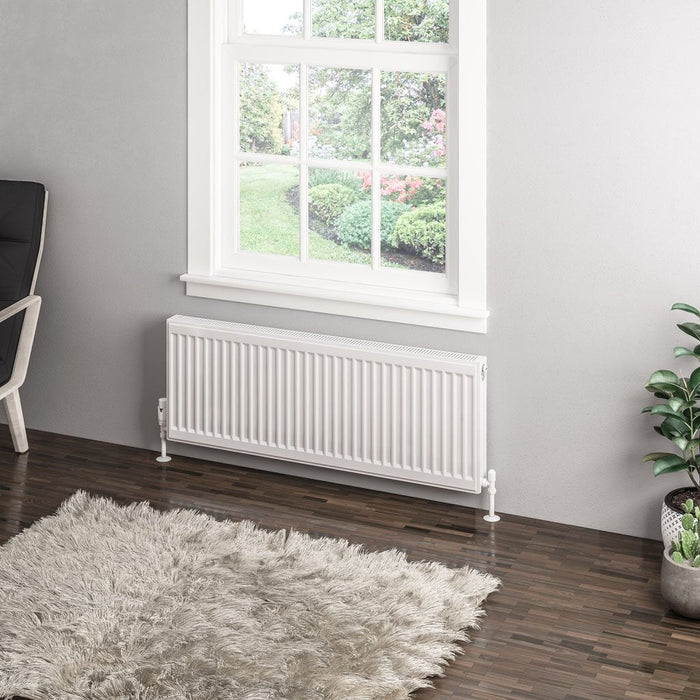

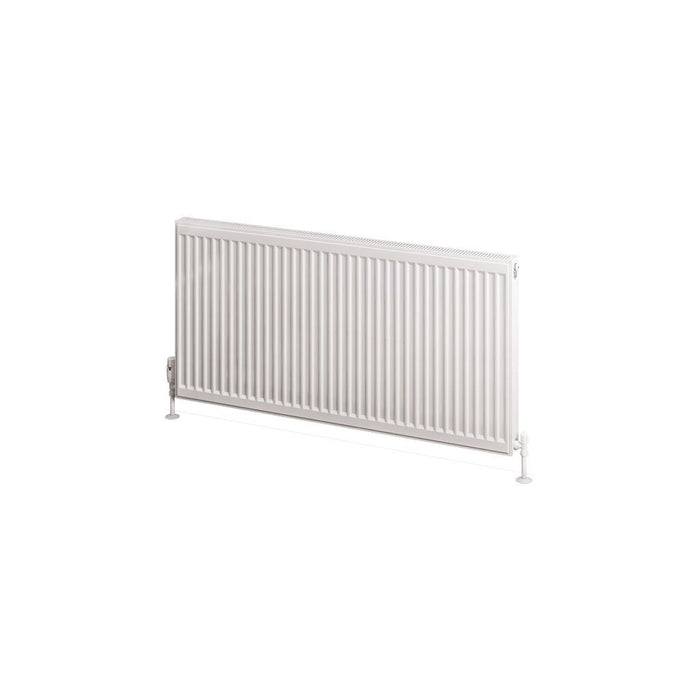

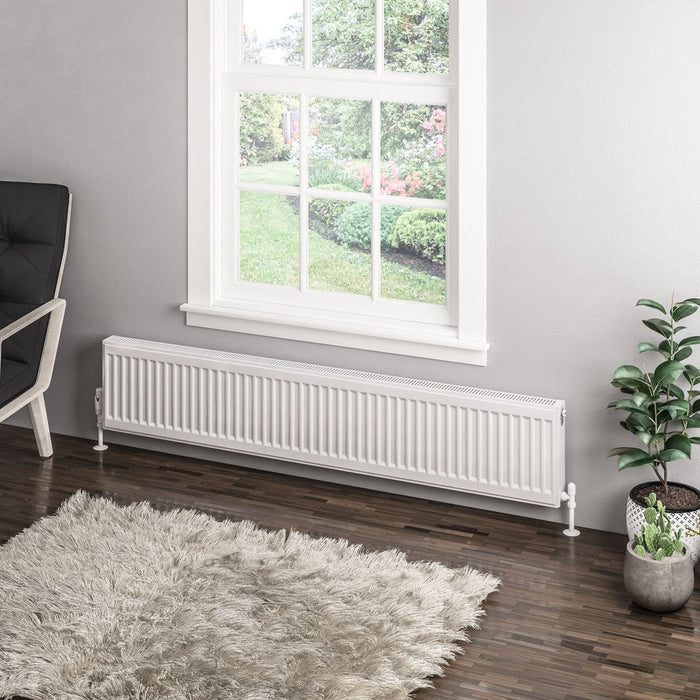

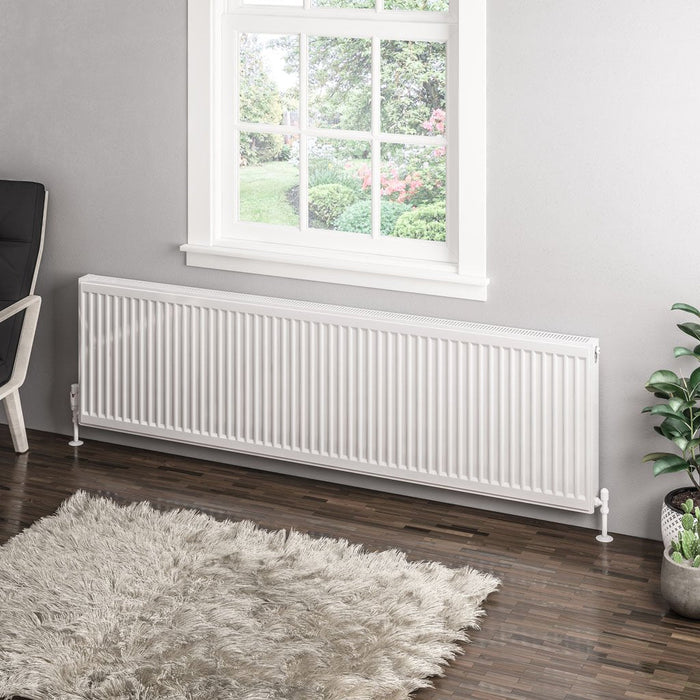

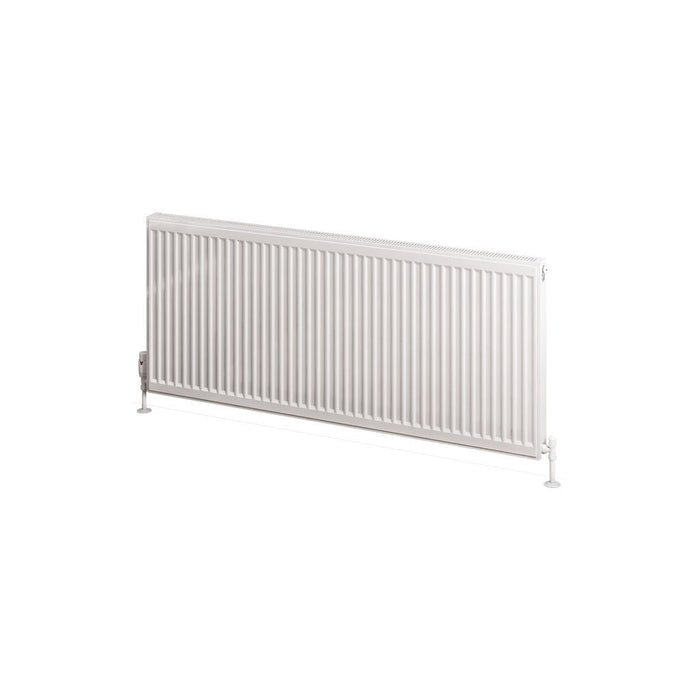

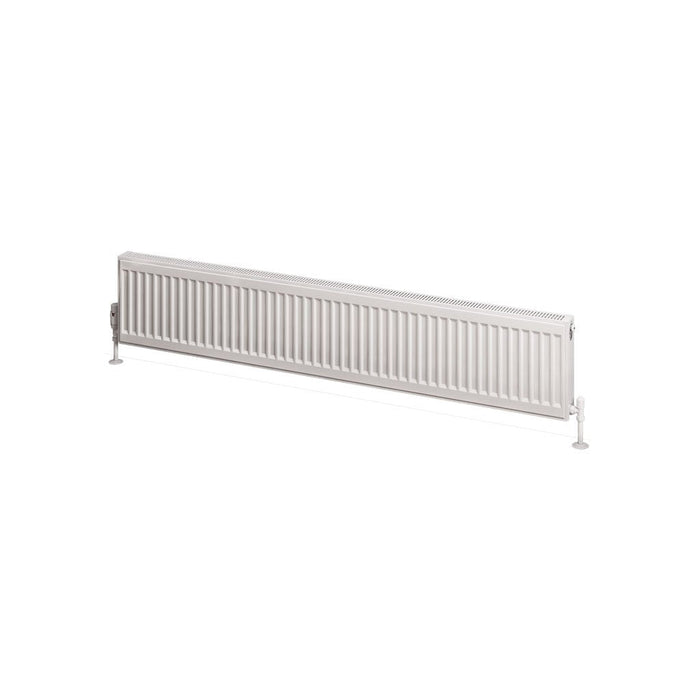

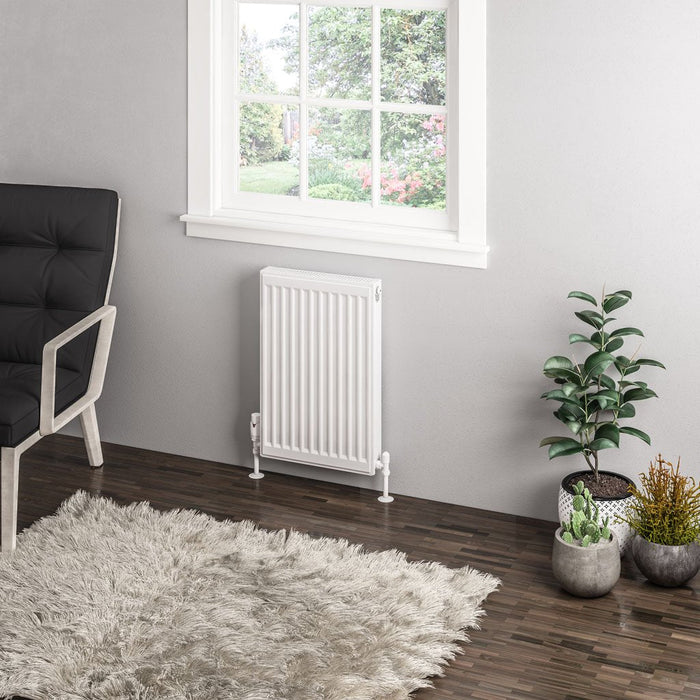

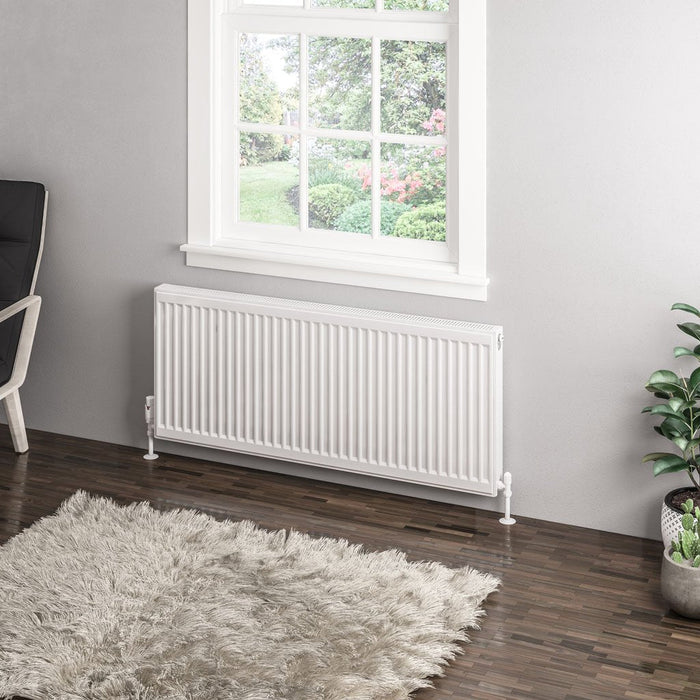

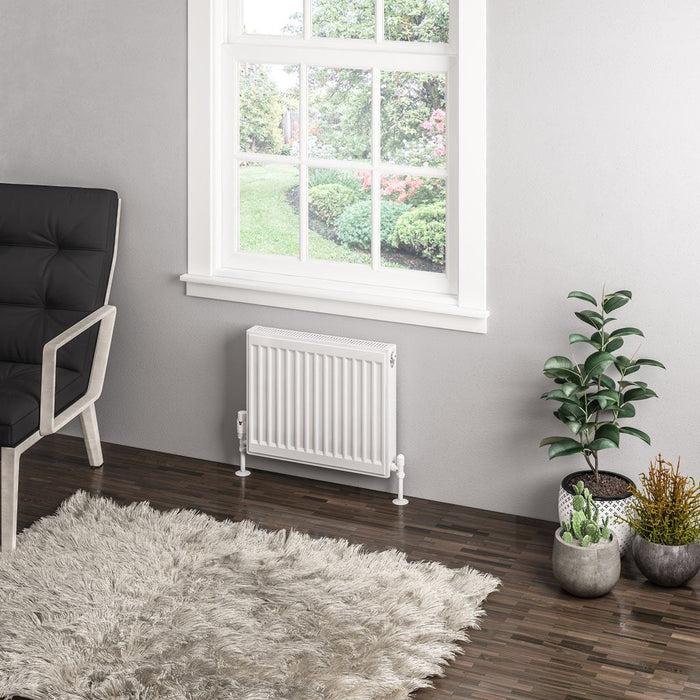

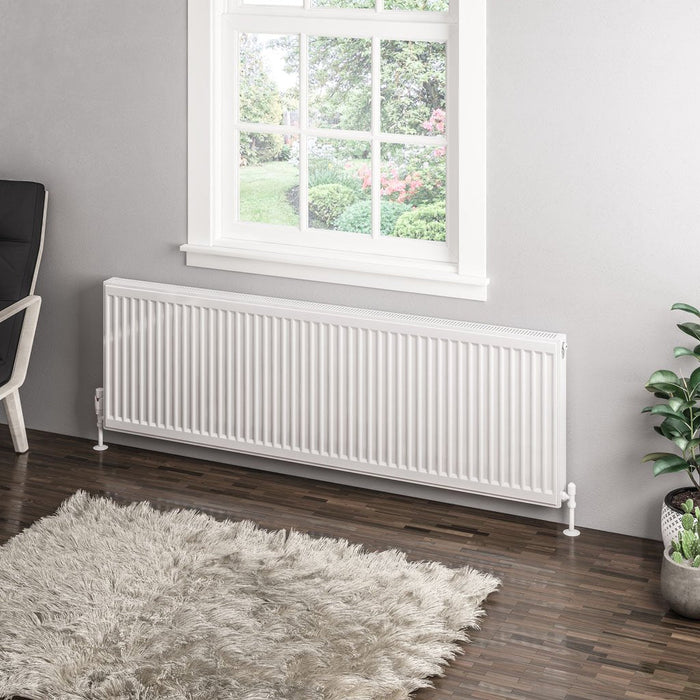

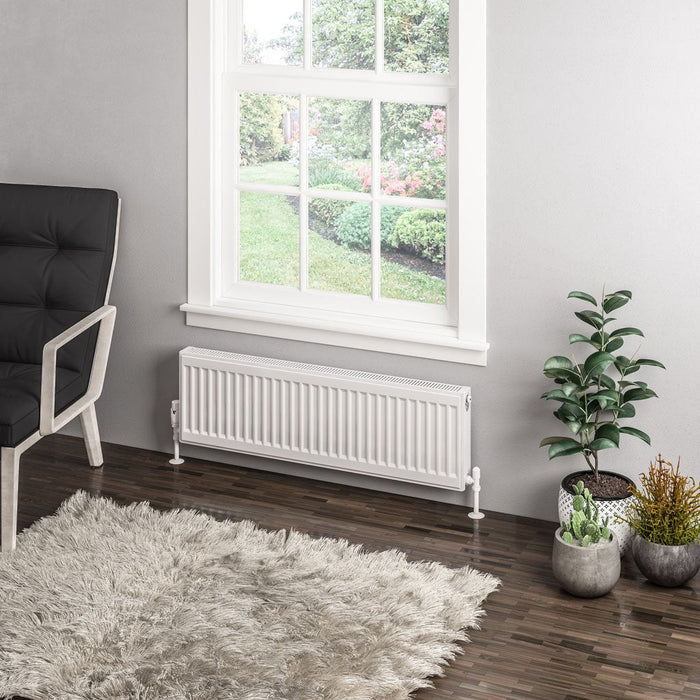

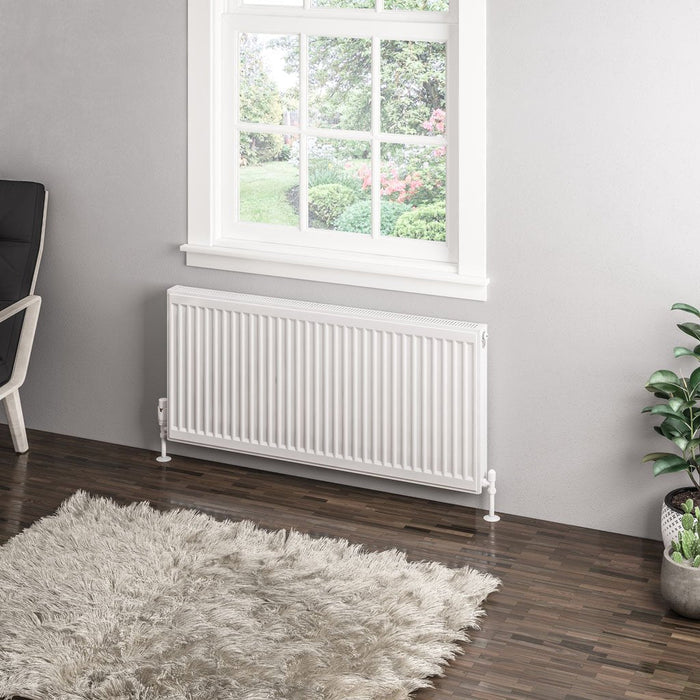

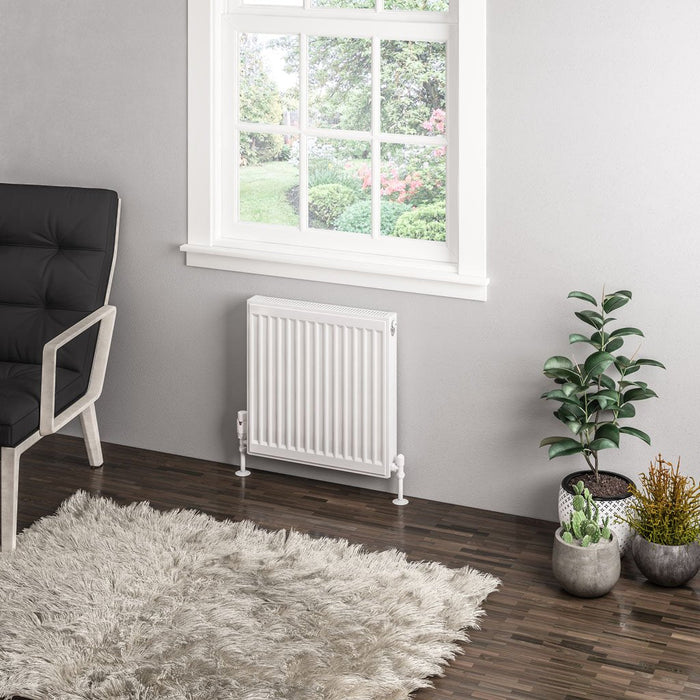

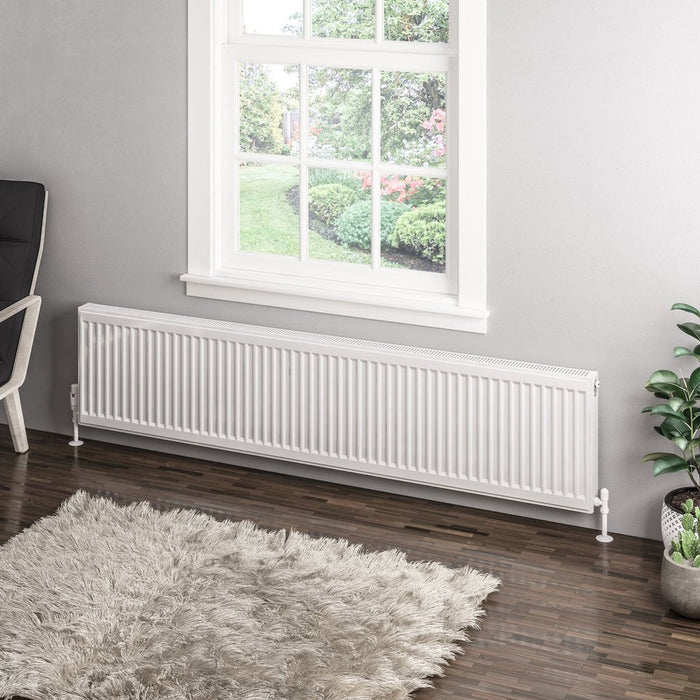

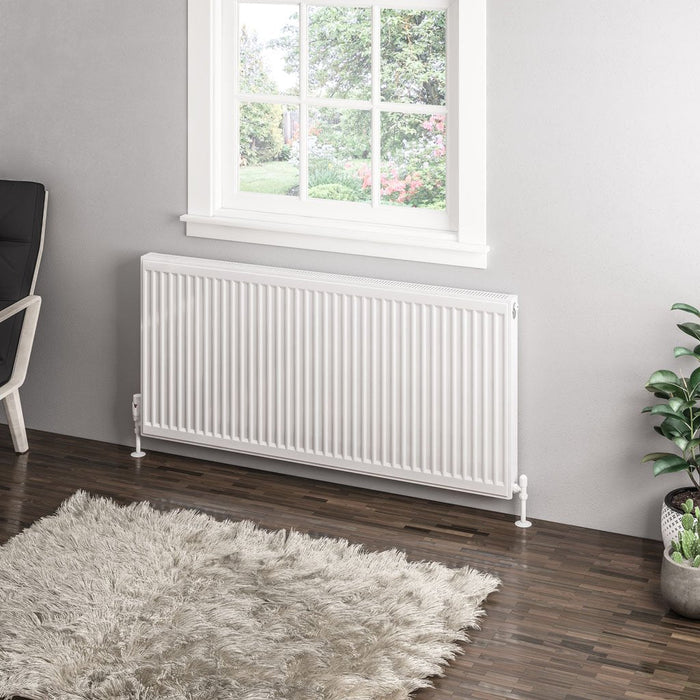

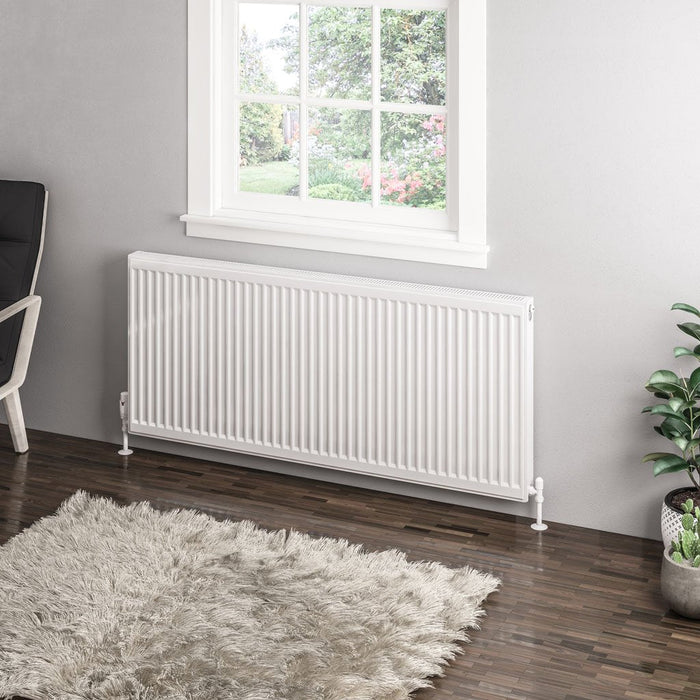

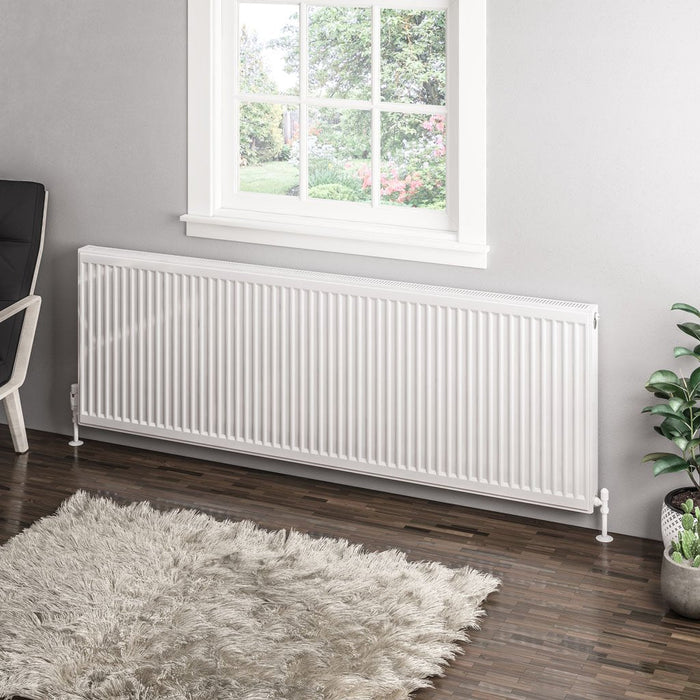

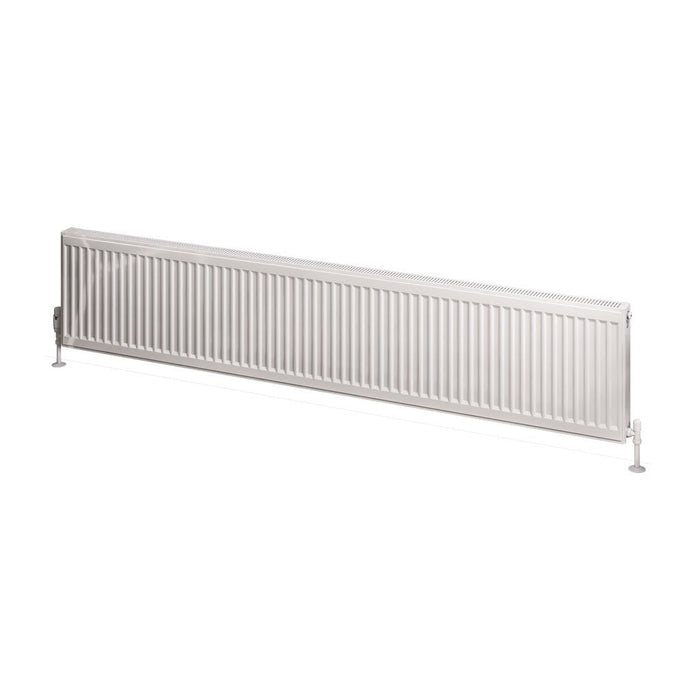

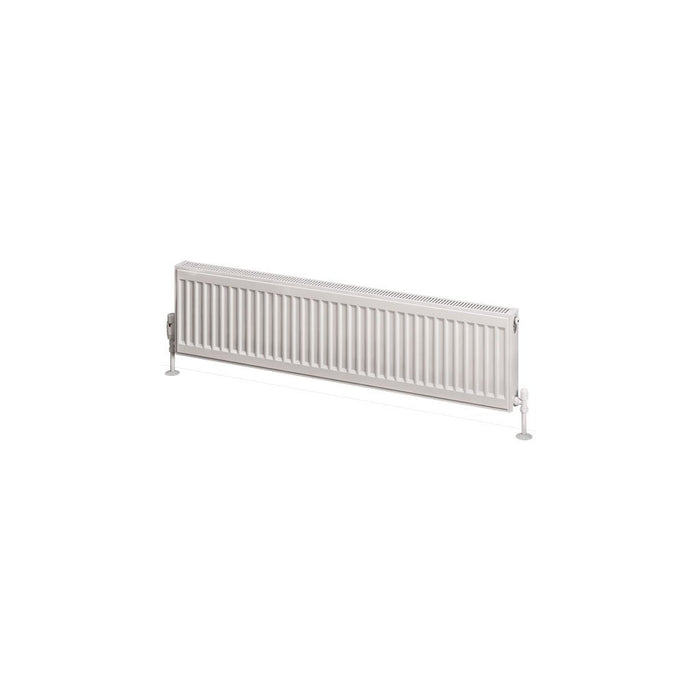

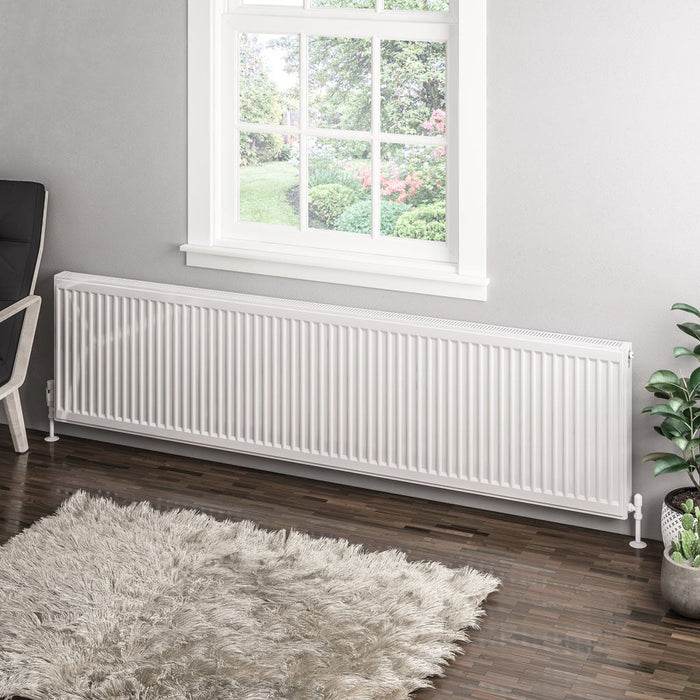

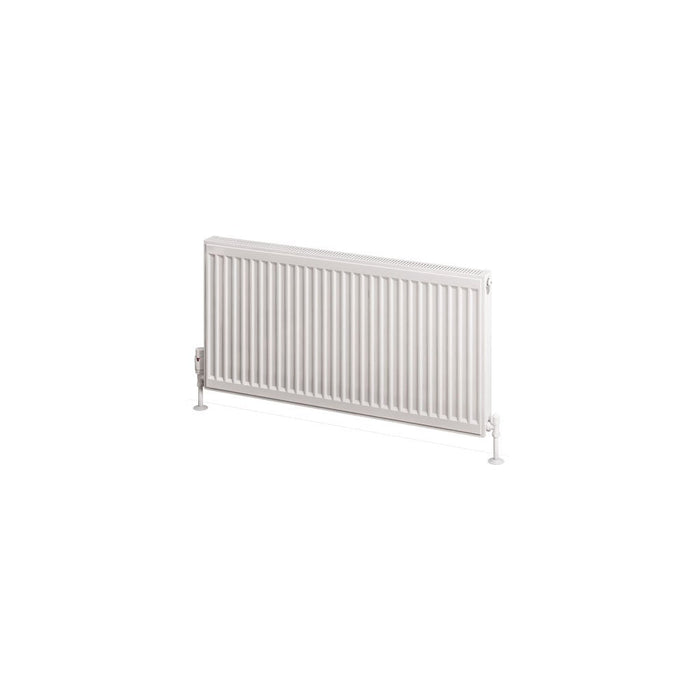

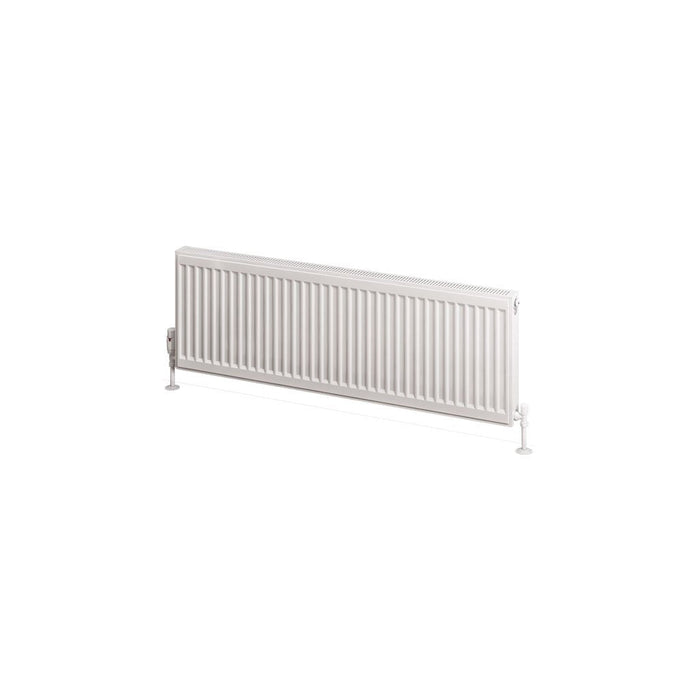

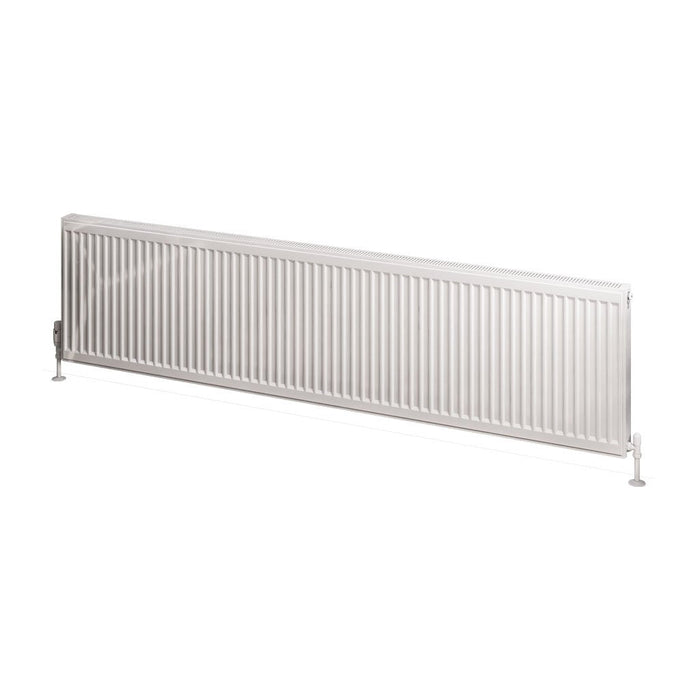

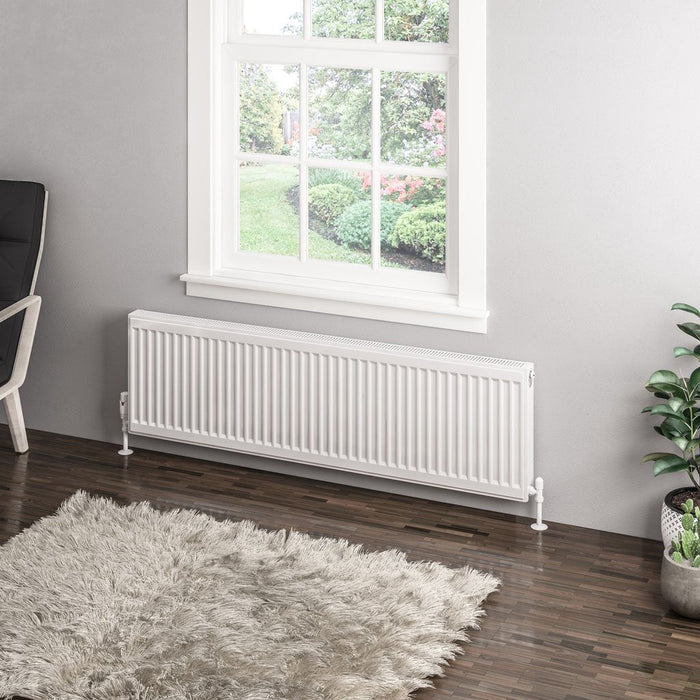

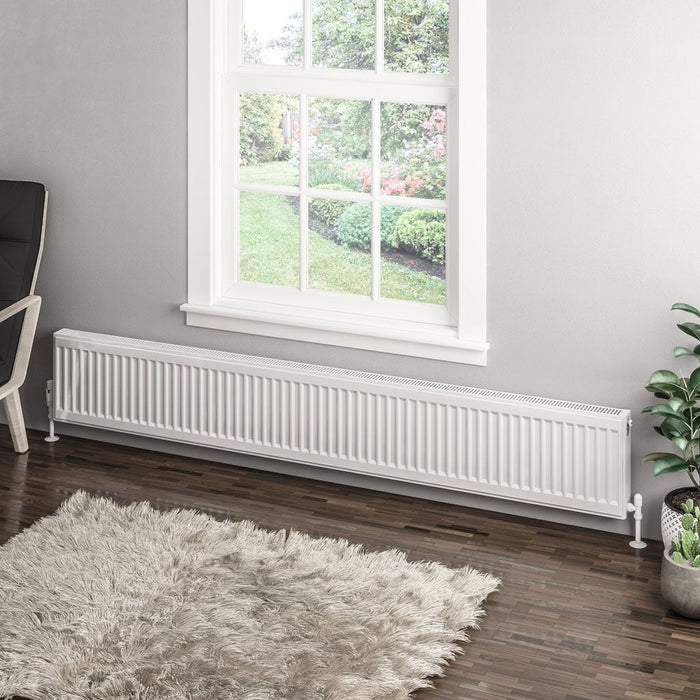

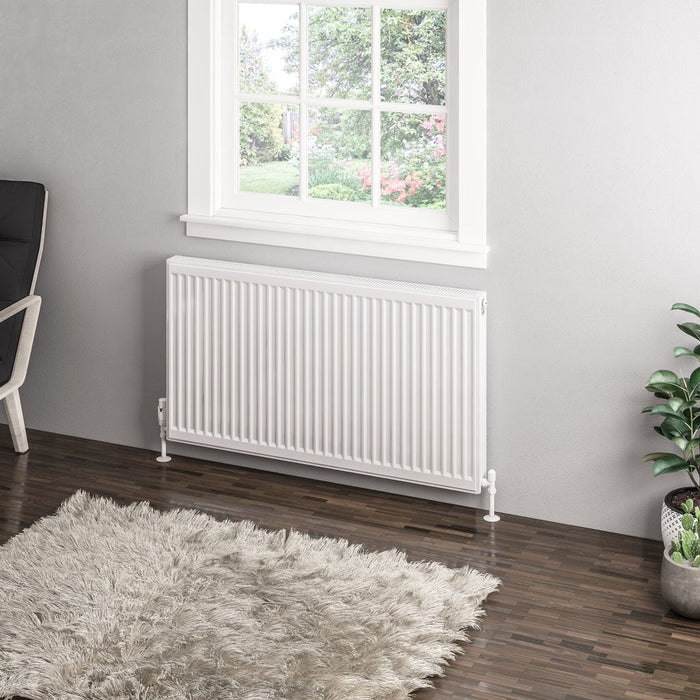

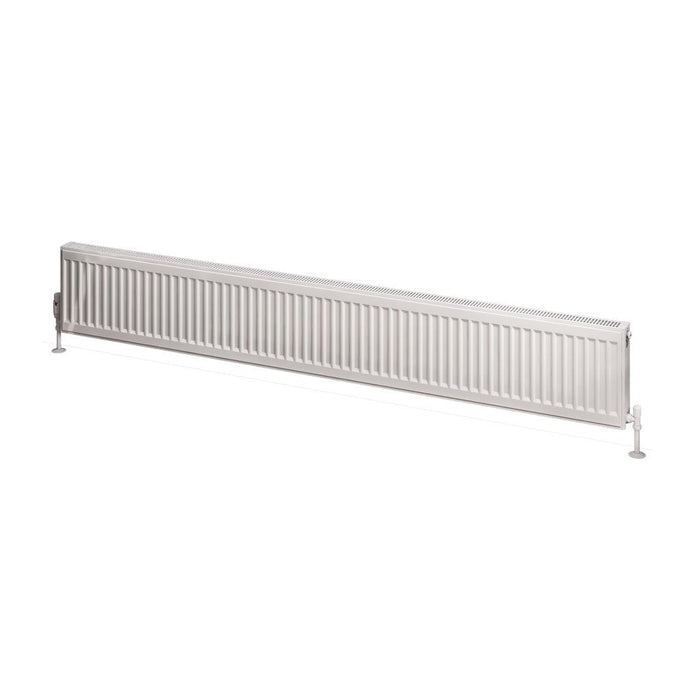

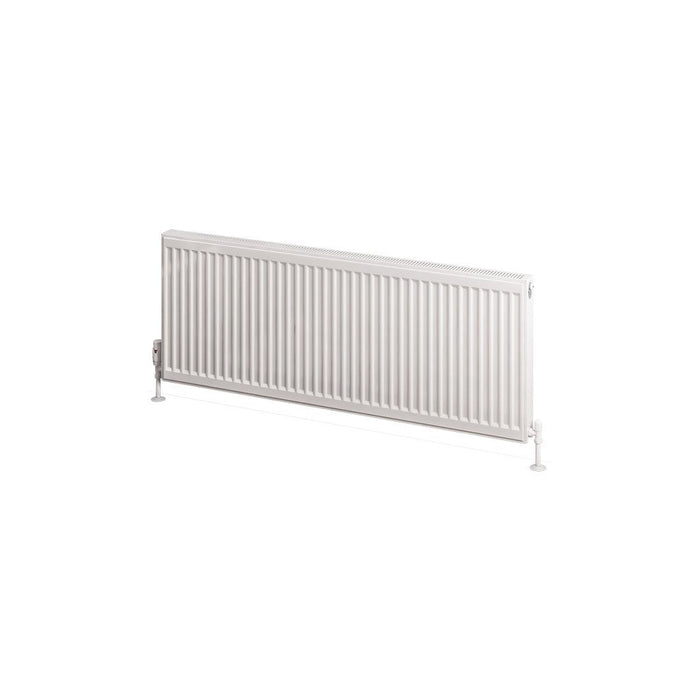

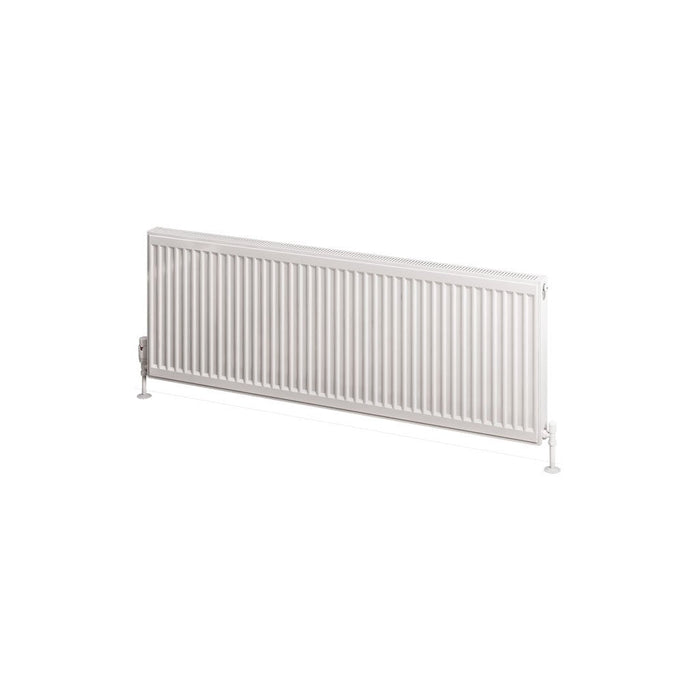

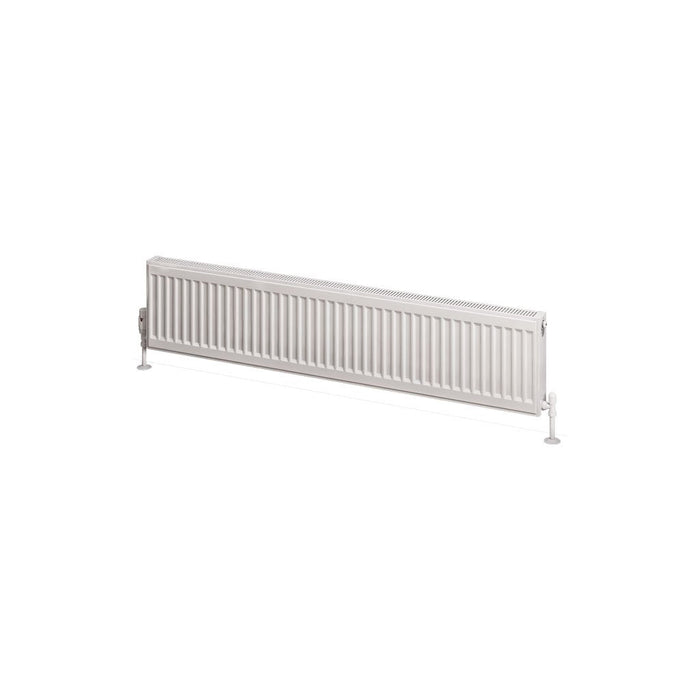

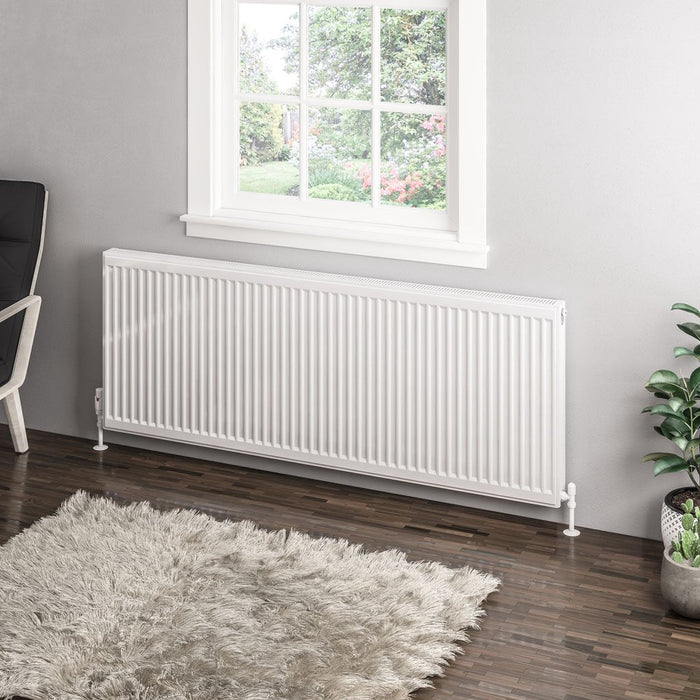

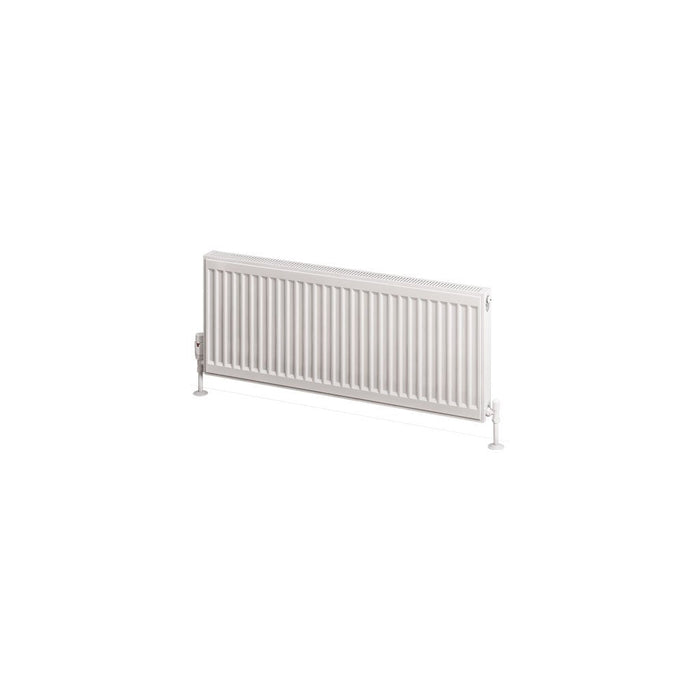

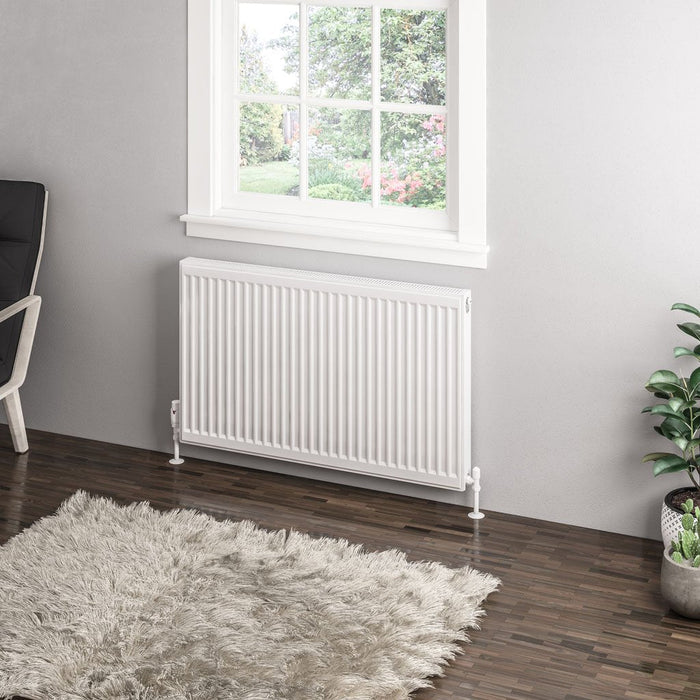

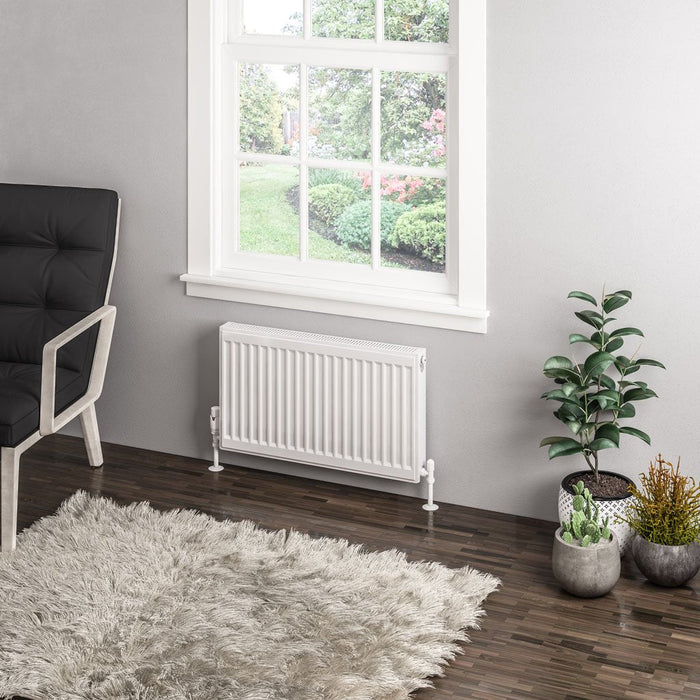

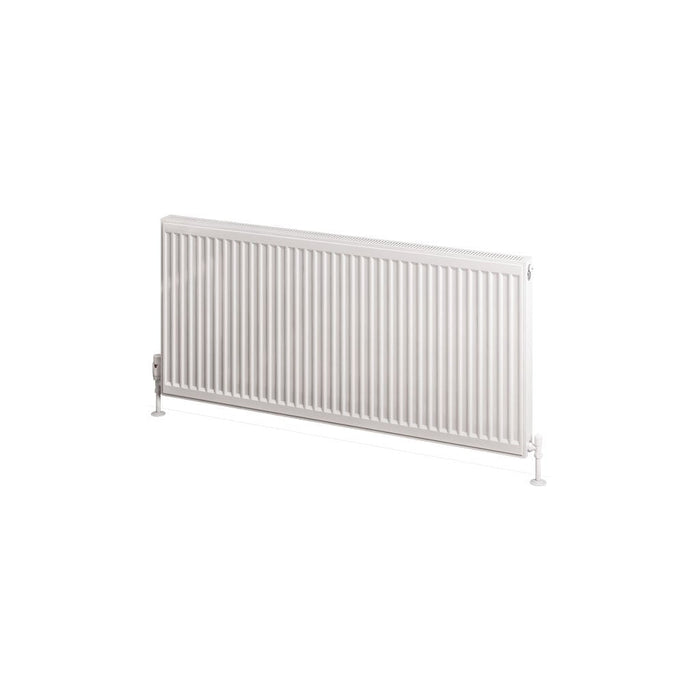

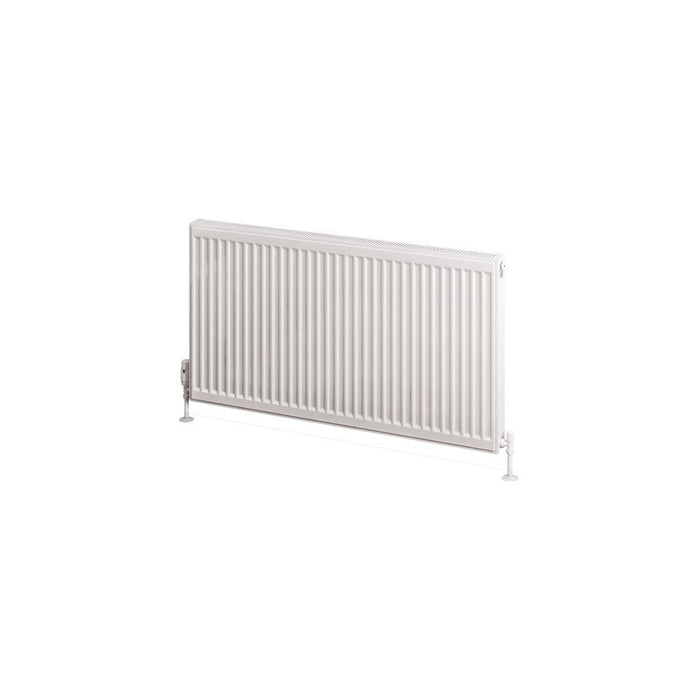

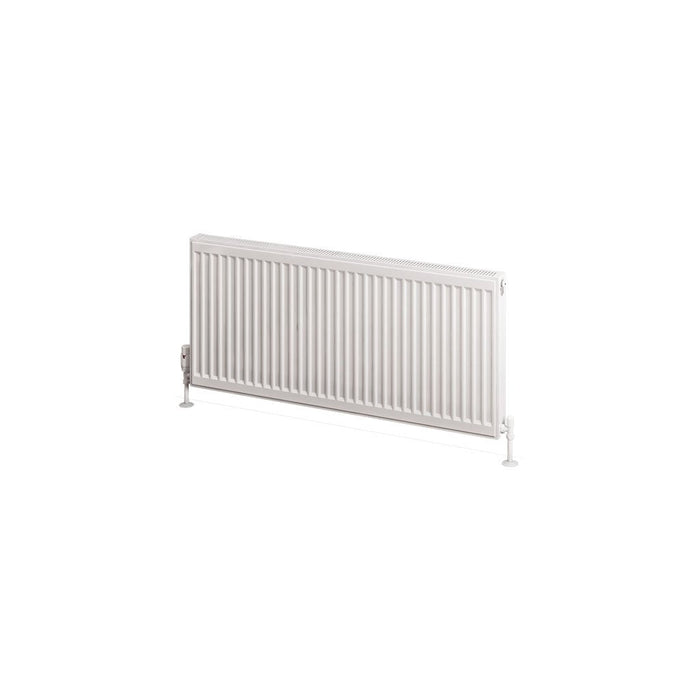

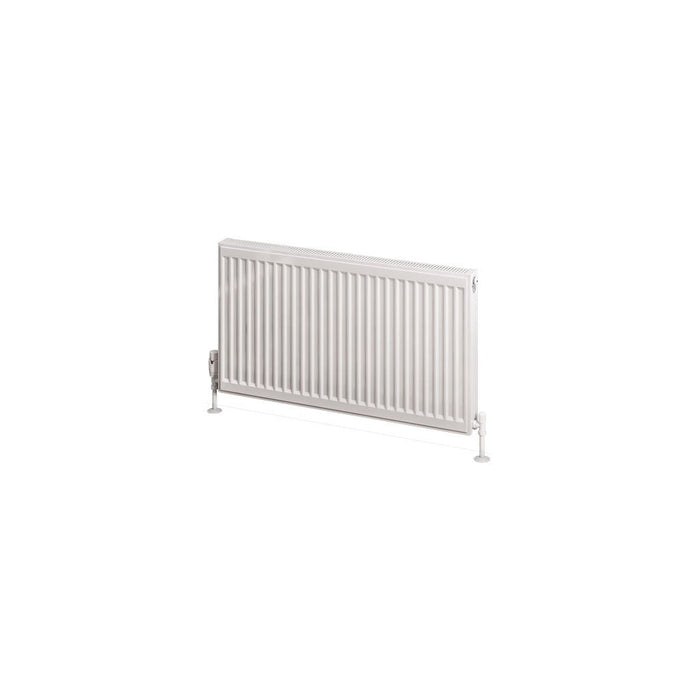

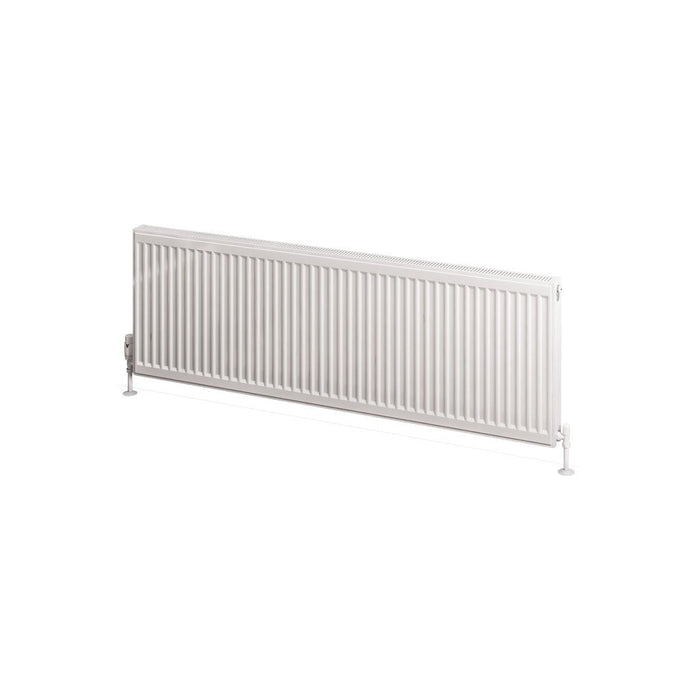

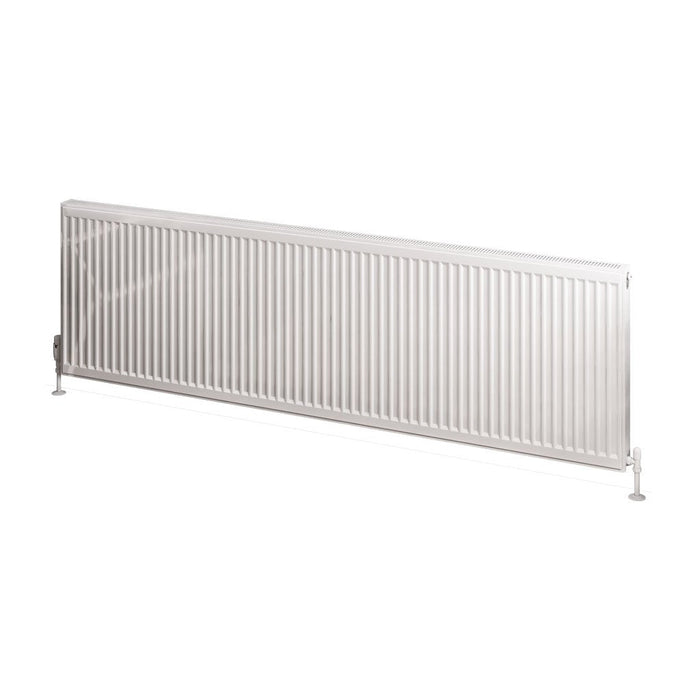

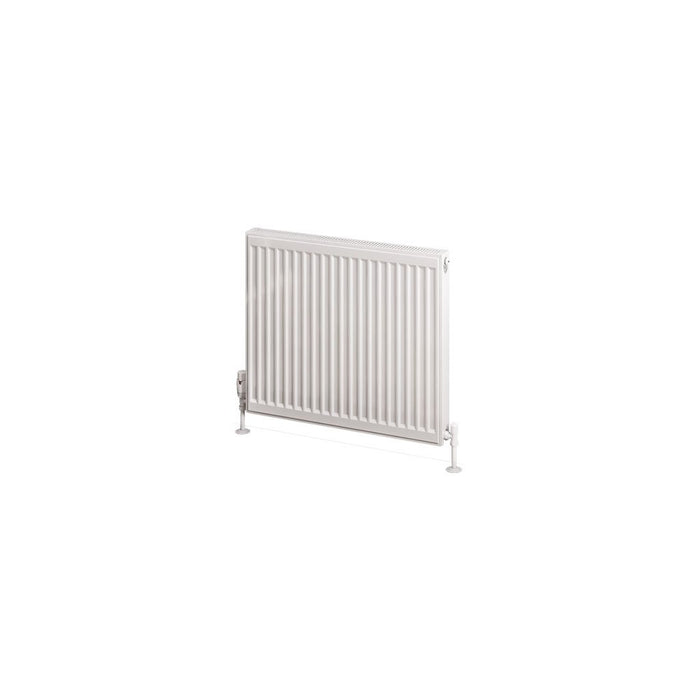

Eastbrook Type 11 Compact Single Panel Radiator Gloss White
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook type 11 compact single panel radiator in gloss white is a modern and stylish addition to any home. Crafted from durable mild steel, this radiator provides effective heating for hot water central heating systems. It's sleek, gloss white finish complements contemporary interiors, offering both style and performance.With a 10-year guarantee, this radiator is designed for easy installation and efficient heat output. It includes an installation kit with all necessary components, such as air vent and blanking plug. Tested to bs en 442 standards, it is suitable for two-pipe indirect heating systems, ensuring long-lasting reliability and performance.
Product Specifications:
- Warranty: 10 Years
- Product Type: Designer Radiator
- Brand: Eastbrook
- Collection: Type 11
- Finish: Gloss White
- Style: Modern
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves and Heating Element are not included
- Tested to BS EN 442 standards.
- Hot water central heating systems only.
- Max operating pressure 4 bars.

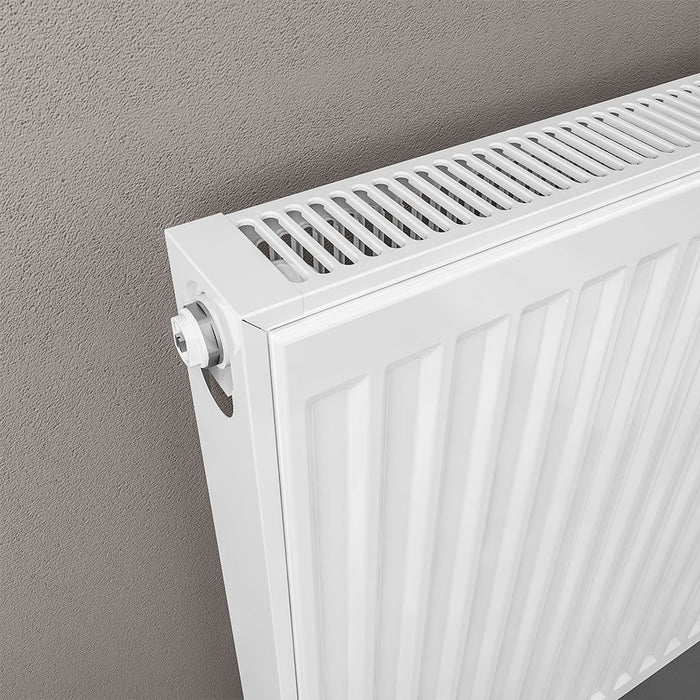

- Complete with fitted top grill & side panels.
- Radiators have 4 x 1/2 connections.
- Installation kit included in packaging.
- Heat outputs based on Delta T30°C & Delta T50°C.
- Radiators are only suitable for two-pipe installations.
- For indirect heating systems only.
- Pipework installation is recommended after receipt of radiator.
- Air vent (bleed valve) and blanking plug included in installation kit.
- Bottom opposite tapings are the width of the radiator and 38 or 50mm off the wall.
- Vertical tapings are approx. 55mm less than the height of the radiator and 38 or 50mm off the wall.
Dimensions:
- Depth: 50mm
Technical Specifications
|
Size |
Watts T30°C |
BTU T30°C |
Watts T50°C |
BTU T50°C |
Water Content/Litres |
|
300mm x 400mm |
104 | 355 | 201 | 688 |
0.68 Litres |
|
300mm x 500mm |
130 | 444 | 252 | 860 |
0.85 Litres |
|
300mm x 600mm |
156 | 532 | 302 | 1032 |
1.02 Litres |
|
300mm x 800mm |
208 | 710 | 403 | 1375 |
1.36 Litres |
|
300mm x 1000mm |
260 | 887 | 504 | 1719 |
1.70 Litres |
|
300mm x 1200mm |
312 | 1065 | 604 | 2063 |
2.04 Litres |
|
300mm x 1400mm |
364 | 1242 | 705 | 2407 |
2.38 Litres |
|
300mm x 1600mm |
416 | 1420 | 806 | 2751 |
2.72 Litres |
|
300mm x 2000mm |
520 | 1774 | 1007 | 3439 |
3.40 Litres |
|
400mm x 400mm |
134 |
458 |
262 |
895 |
0.84 Litres |
|
400mm x 500mm |
168 |
572 |
328 |
1118 |
1.05 Litres |
|
400mm x 600mm |
201 |
686 |
393 |
1342 |
1.26 Litres |
|
400mm x 700mm |
235 |
801 |
459 |
1566 |
1.50 Litres |
|
400mm x 800mm |
268 |
915 |
524 |
1789 |
1.68 Litres |
|
400mm x 900mm |
302 |
1030 |
590 |
2013 |
1.90 Litres |
|
400mm x 1000mm |
335 |
1144 |
655 |
2237 |
2.10 Litres |
|

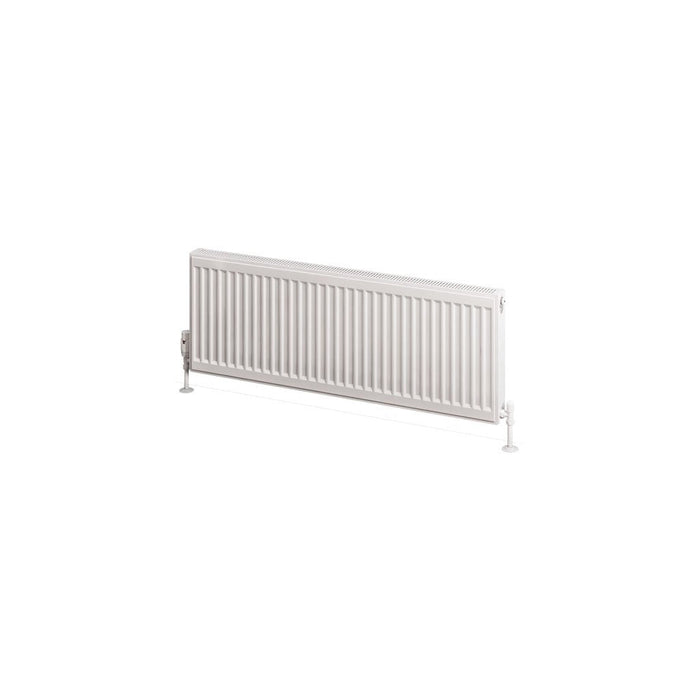

400mm x 1100mm |
369 |
1258 |
721 |
2460 |
2.30 Litres |
|
400mm x 1200mm |
402 |
1373 |
786 |
2684 |
2.52 Litres |
|

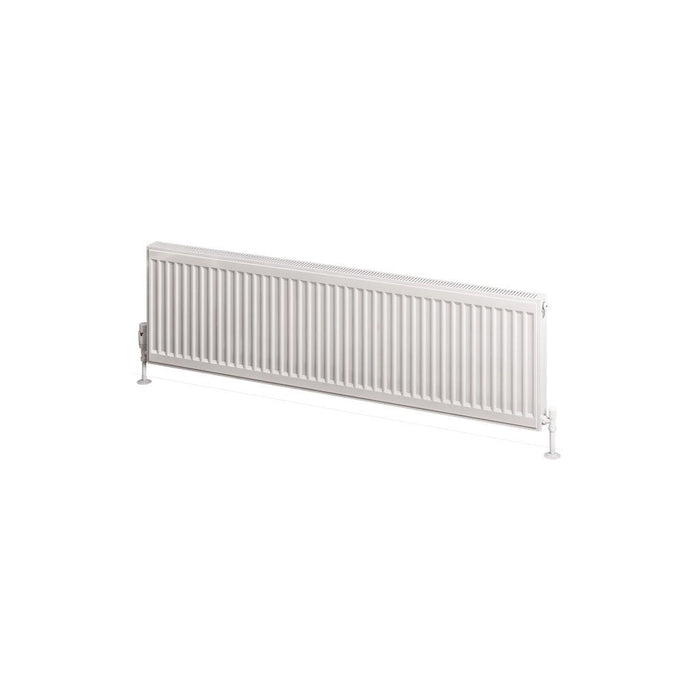

400mm x 1400mm |
469 |
1602 |
917 |
3131 |
2.94 Litres |
|
400mm x 1600mm |
536 |
1831 |
1048 |
3579 |
3.36 Litres |
|
400mm x 1800mm |
603 |
2059 |
1179 |
4026 |
3.80 Litres |
|
400mm x 2000mm |
670 |
2288 |
1310 |
4473 |
4.20 Litres |
|
500mm x 400mm |
164 |
558 |
319 |
1089 |
1.04 Litres |
|
500mm x 500mm |
204 |
698 |
399 |
1361 |
1.30 Litres |
|
500mm x 600mm |
245 |
838 |
478 |
1634 |
1.56 Litres |
|
500mm x 700mm |
286 |
977 |
558 |
1906 |
1.80 Litres |
|
500mm x 800mm |
327 |
1117 |
638 |
2178 |
2.08 Litres |
|
500mm x 900mm |
368 |
1256 |
718 |
2450 |
2.30 Litres |
|
500mm x 1000mm |
409 |
1396 |
797 |
2723 |
2.60 Litres |
|
500mm x 1100mm |
450 |
1536 |
877 |
2995 |
2.90 Litres |
|
500mm x 1200mm |
491 |
1675 |
957 |
3267 |
3.12 Litres |
|
500mm x 1300mm |
532 | 1815 | 1037 | 3539 | 3.40 Litres |
|
500mm x 1400mm |
572 |
1954 |
1116 |
3812 |
3.64 Litres |
|
500mm x 1500mm |
613 | 2094 | 1196 | 4084 | 3.90 Litres |
|
500mm x 1600mm |
654 |
2233 |
1276 |
4356 |
4.16 Litres |
|
500mm x 1800mm |
736 |
2513 |
1435 |
4901 |
4.70 Litres |
|
500mm x 2000mm |
818 |
2792 |
1595 |
5445 |
5.20 Litres |
|
600mm x 400mm |
193 |
660 |
375 |
1280 |
1.24 Litres |
|
600mm x 500mm |
242 |
825 |
469 |
1600 |
1.55 Litres |
|
600mm x 600mm |
290 |
989 |
562 |
1920 |
1.86 Litres |
|
600mm x 700mm |
338 |
1154 |
656 |
2240 |
2.20 Litres |
|

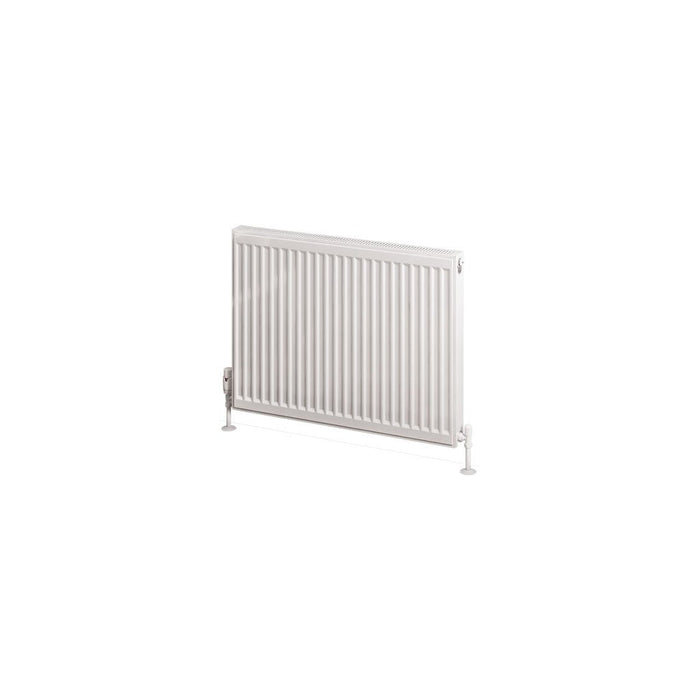

600mm x 800mm |
386 |
1319 |
750 |
2560 |
2.48 Litres |
|
600mm x 900mm |
435 |
1484 |
843 |
2880 |
2.80 Litres |
|
600mm x 1000mm |
483 |
1649 |
937 |
3200 |
3.10 Litres |
|
600mm x 1100mm |
531 |
1814 |
1031 |
3520 |
3.40 Litres |
|
600mm x 1200mm |
580 |
1979 |
1125 |
3840 |
3.72 Litres |
|
600mm x 1300mm |
628 |
2144 |
1218 |
4159 |
4.00 Litres |
|
600mm x 1400mm |
676 |
2309 |
1312 |
4479 |
4.34 Litres |
|

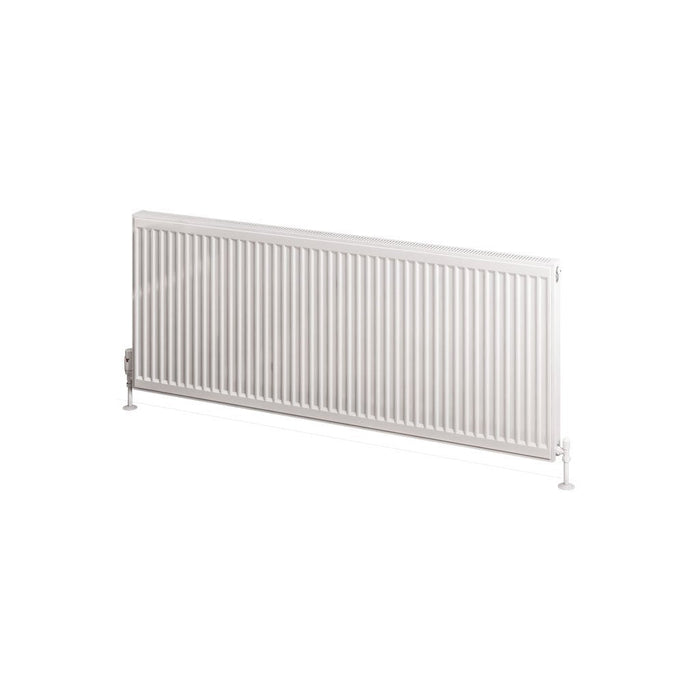

600mm x 1500mm |
725 |
2474 |
1406 |
4799 |
4.70 Litres |
|
600mm x 1600mm |
773 |
2639 |
1499 |
5119 |
4.96 Litres |
|

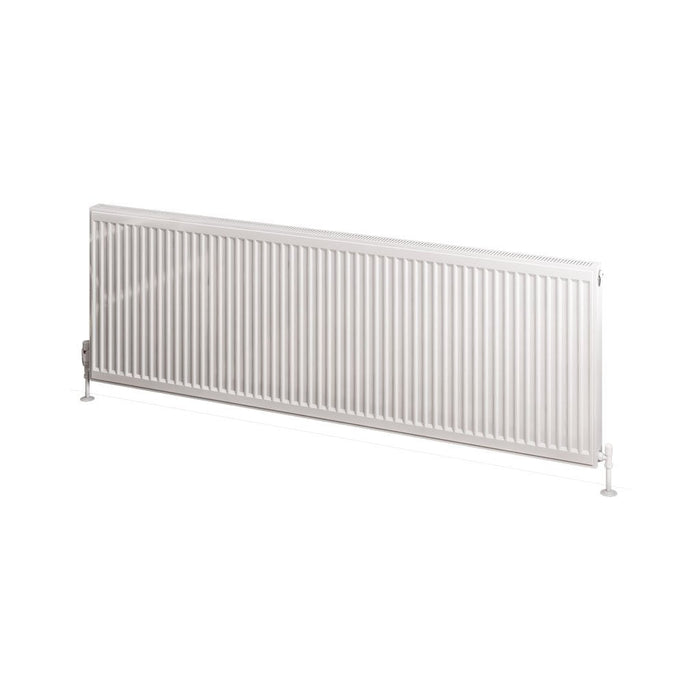

600mm x 1800mm |
869 |
2968 |
1687 |
5759 |
5.60 Litres |
|
600mm x 2000mm |
966 |
3298 |
1874 |
6399 |
6.20 Litres |
Assembling instructions for Compact Single Panel Radiator
Datasheet for 300mm x 400mm Compact Single Panel Radiator
Datasheet for 300mm x 500mm Compact Single Panel Radiator
Datasheet for 300mm x 600mm Compact Single Panel Radiator
Datasheet for 300mm x 800mm Compact Single Panel Radiator
Datasheet for 300mm x 1000mm Compact Single Panel Radiator
Datasheet for 300mm x 1200mm Compact Single Panel Radiator
Datasheet for 300mm x 1400mm Compact Single Panel Radiator
Datasheet for 300mm x 1600mm Compact Single Panel Radiator
Datasheet for 300mm x 2000mm Compact Single Panel Radiator
Datasheet for 400mm x 400mm Compact Single Panel Radiator
Datasheet for 400mm x 500mm Compact Single Panel Radiator
Datasheet for 400mm x 600mm Compact Single Panel Radiator
Datasheet for 400mm x 700mm Compact Single Panel Radiator
Datasheet for 400mm x 800mm Compact Single Panel Radiator
Datasheet for 400mm x 900mm Compact Single Panel Radiator
Datasheet for 400mm x 1000mm Compact Single Panel Radiator
Datasheet for 400mm x 1100mm Compact Single Panel Radiator
Datasheet for 400mm x 1200mm Compact Single Panel Radiator
Datasheet for 400mm x 1400mm Compact Single Panel Radiator
Datasheet for 400mm x 1600mm Compact Single Panel Radiator
Datasheet for 400mm x 1800mm Compact Single Panel Radiator
Datasheet for 400mm x 2000mm Compact Single Panel Radiator
Datasheet for 500mm x 400mm Compact Single Panel Radiator
Datasheet for 500mm x 500mm Compact Single Panel Radiator
Datasheet for 500mm x 600mm Compact Single Panel Radiator
Datasheet for 500mm x 700mm Compact Single Panel Radiator
Datasheet for 500mm x 800mm Compact Single Panel Radiator
Datasheet for 500mm x 900mm Compact Single Panel Radiator
Datasheet for 500mm x 1000mm Compact Single Panel Radiator
Datasheet for 500mm x 1100mm Compact Single Panel Radiator
Datasheet for 500mm x 1200mm Compact Single Panel Radiator
Datasheet for 500mm x 1300mm Compact Single Panel Radiator
Datasheet for 500mm x 1400mm Compact Single Panel Radiator
Datasheet for 500mm x 1500mm Compact Single Panel Radiator
Datasheet for 500mm x 1600mm Compact Single Panel Radiator
Datasheet for 500mm x 1800mm Compact Single Panel Radiator
Datasheet for 500mm x 2000mm Compact Single Panel Radiator
Datasheet for 600mm x 400mm Compact Single Panel Radiator
Datasheet for 600mm x 500mm Compact Single Panel Radiator
Datasheet for 600mm x 600mm Compact Single Panel Radiator
Datasheet for 600mm x 700mm Compact Single Panel Radiator
Datasheet for 600mm x 800mm Compact Single Panel Radiator
Datasheet for 600mm x 900mm Compact Single Panel Radiator
Datasheet for 600mm x 1000mm Compact Single Panel Radiator
Datasheet for 600mm x 1100mm Compact Single Panel Radiator
Datasheet for 600mm x 1200mm Compact Single Panel Radiator
Datasheet for 600mm x 1300mm Compact Single Panel Radiator
Datasheet for 600mm x 1400mm Compact Single Panel Radiator
Datasheet for 600mm x 1500mm Compact Single Panel Radiator
Datasheet for 600mm x 1600mm Compact Single Panel Radiator
Datasheet for 600mm x 1800mm Compact Single Panel Radiator
Datasheet for 600mm x 2000mm Compact Single Panel Radiator
Technical Drawing
