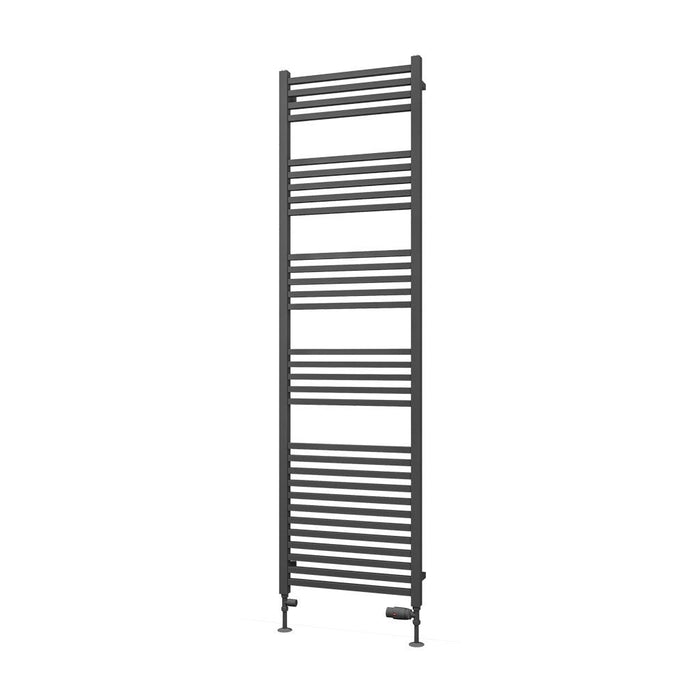

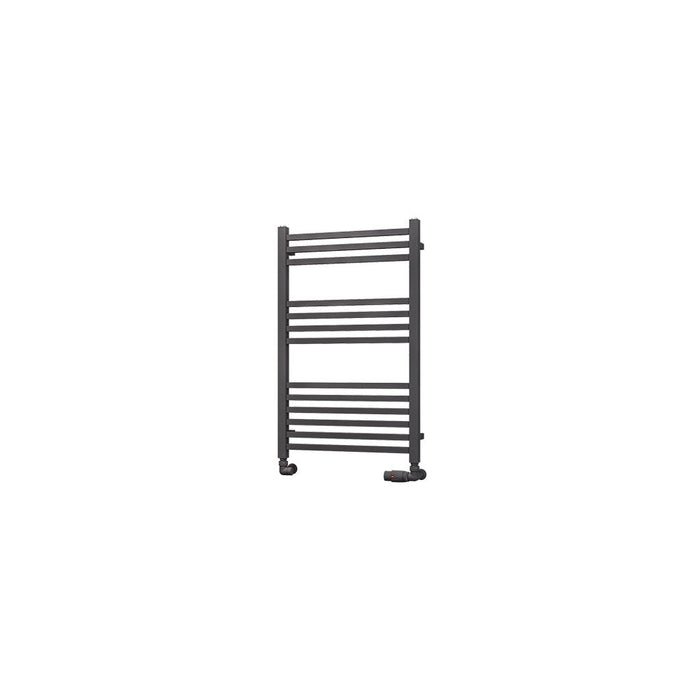

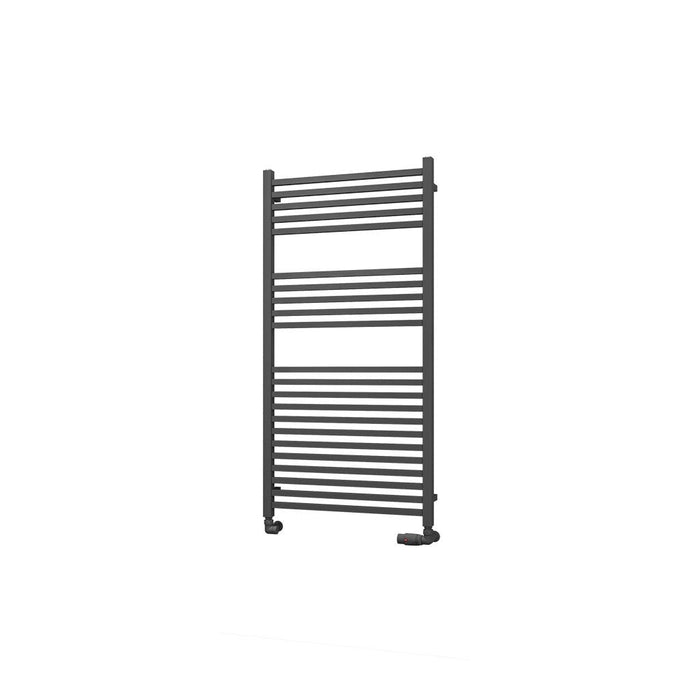

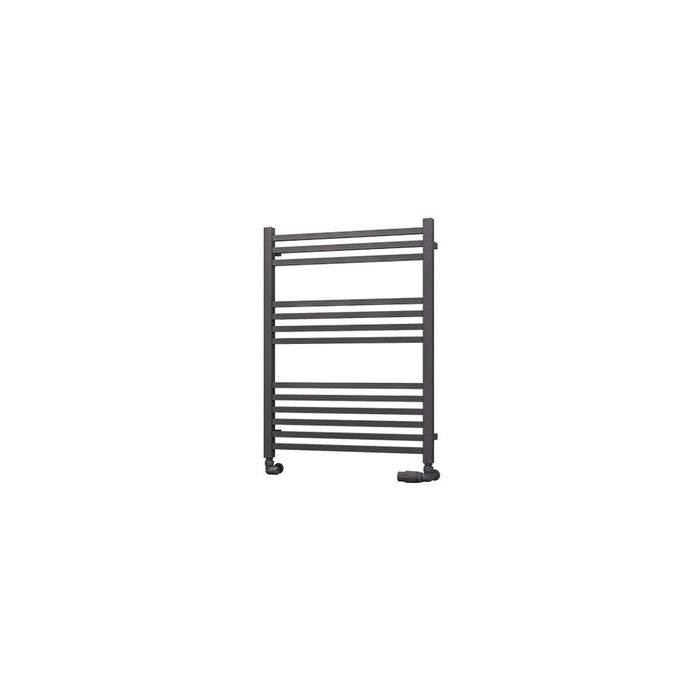

Eastbrook Tuscan Square Multirail Straight Heated Towel Rail Matt Anthracite
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook tuscan square multirail straight heated towel rail in matt anthracite offers a sleek and modern design made from durable mild steel. Featuring 30x30mm square vertical bars and 20x20mm square horizontal bars, this towel rail is designed to efficiently heat your bathroom while complementing contemporary interiors. It is easy to install, with metal wall brackets and matching colour wall fixing sets for added convenience.Tested to bs en 442 standards, this towel rail can be configured for single, dual fuel, or all-electric heating systems. It delivers effective heat output based on delta T 60°c and is ideal for indirect heating systems, with the option to enhance element capacity using compatible elements.
Product Specifications:
- Warranty: 5 Years
- Product Type: Heated Towel Rail
- Brand: Eastbrook
- Collection: Tuscan
- Finish: Matt Anthracite
- Shape: Straight
- Style: Modern
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves, feet's and Heating Element are not included
- 30x30mm square vertical bars with 20x20mm square horizontal bars.
- Tested to BS EN 442 standards.
- Metal wall brackets fitted at the back of the towel rail.
- Matching colour wall fixing sets.
- Can be single or dual fuel, or all electric.
- Heat output based on Delta T 60°C.
- Radiators that are electric only are restricted to the heat output of the elements.
- Element size can be increased to full capacity of rail if using element type D, E, F or G.
- For indirect heating systems only.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are approx. 30mm less than the width of the rail and 80mm off the wall.
Technical Specifications
| Size | Watts Delta 30°C | BTU Delta 30°C | Watts Delta 50°C | BTU Delta 50°C | Element Output |
|---|---|---|---|---|---|
| 800mm x 500mm | 171W | 584 BTU | 334W | 1139 BTU | 150W |
| 800mm x 600mm | 200W | 682 BTU | 391W | 1334 BTU | 150W |
| 1200mm x 500mm | 271W | 925 BTU | 523W | 1784 BTU | 150W |
| 1200mm x 600mm | 318W | 1085 BTU | 613W | 2091 BTU | 300W |
| 1800mm x 500mm | 412W | 1405 BTU | 780W | 2660 BTU | 300W |
| 1800mm x 600mm | 482W | 1644 BTU | 913W | 3114 BTU | 300W |
Assembling instructions for Heated Towel Rail
Datasheet for 800mm x 500mm Towel Rail
Datasheet for 800mm x 600mm Towel Rail
Datasheet for 1200mm x 500mm Towel Rail
Datasheet for 1200mm x 600mm Towel Rail
Datasheet for 1800mm x 500mm Towel Rail
Datasheet for 1800mm x 600mm Towel Rail

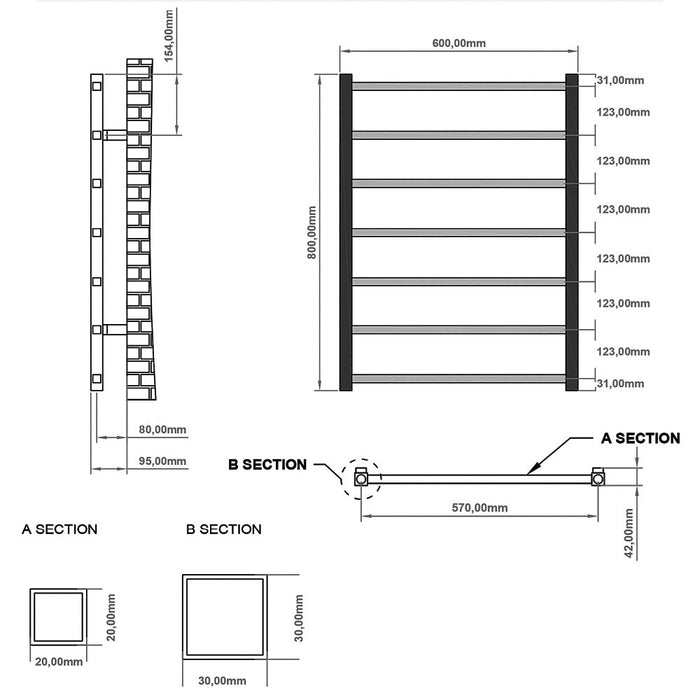

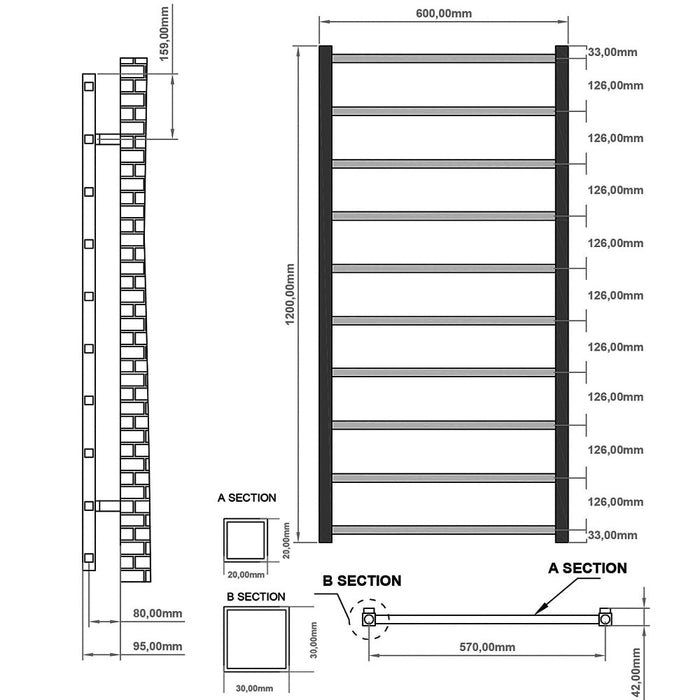

Technical Drawing

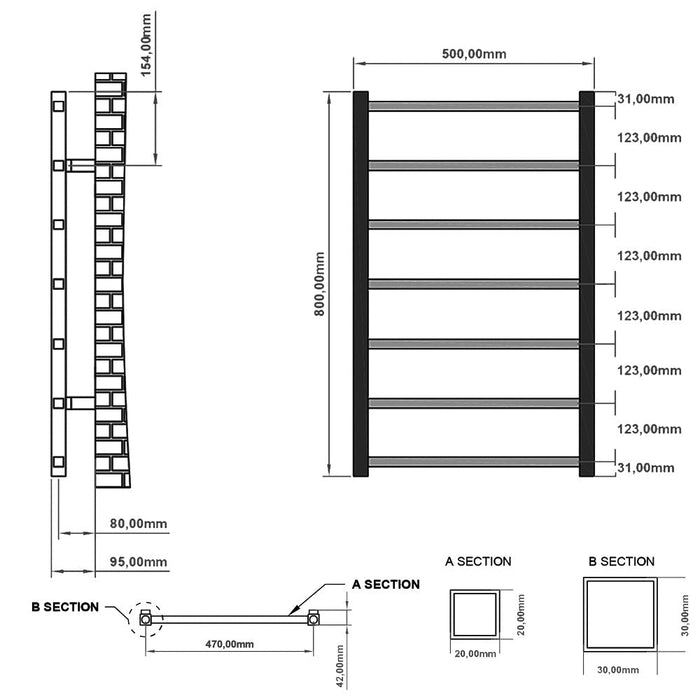

800mm x 500mm
800mm x 600mm

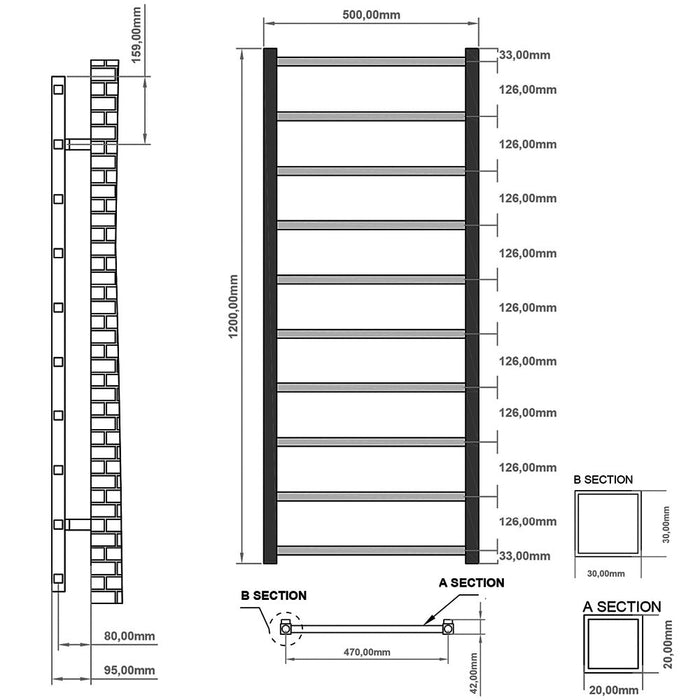

1200mm x 500mm
1200mm x 600mm

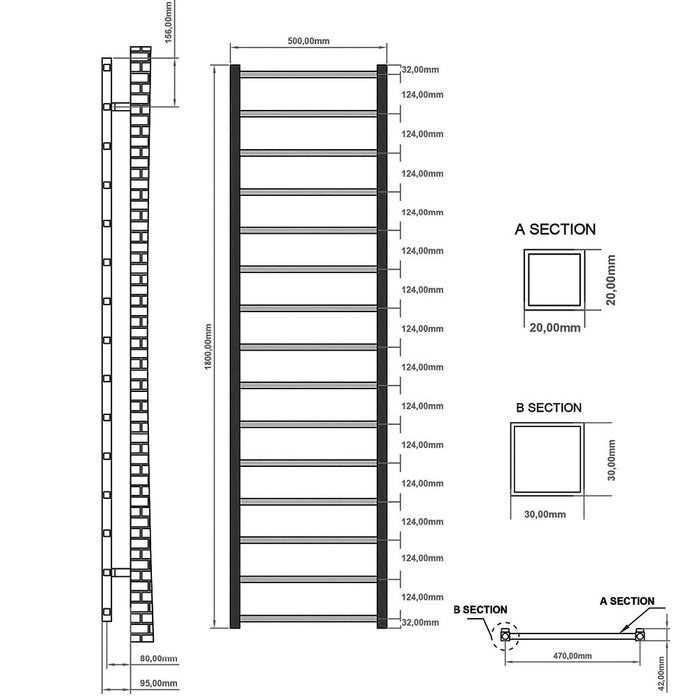

1800mm x 500mm

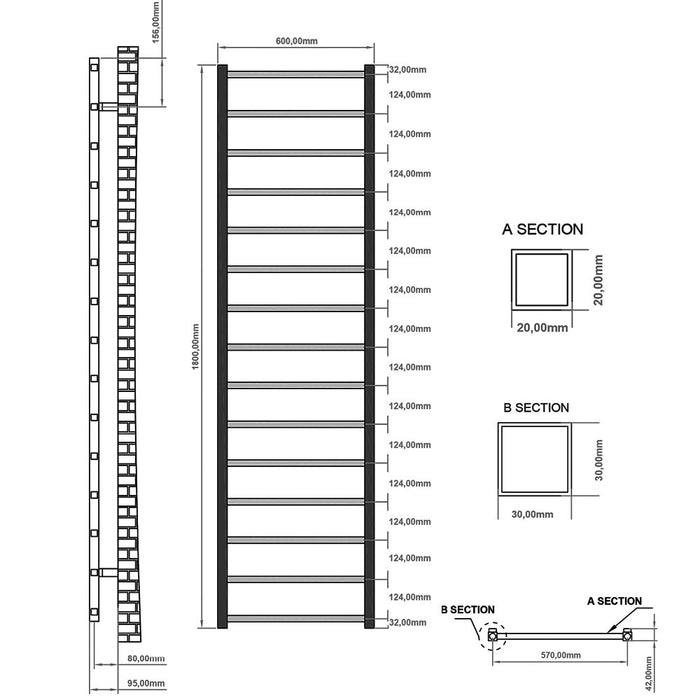

1800mm x 600mm
