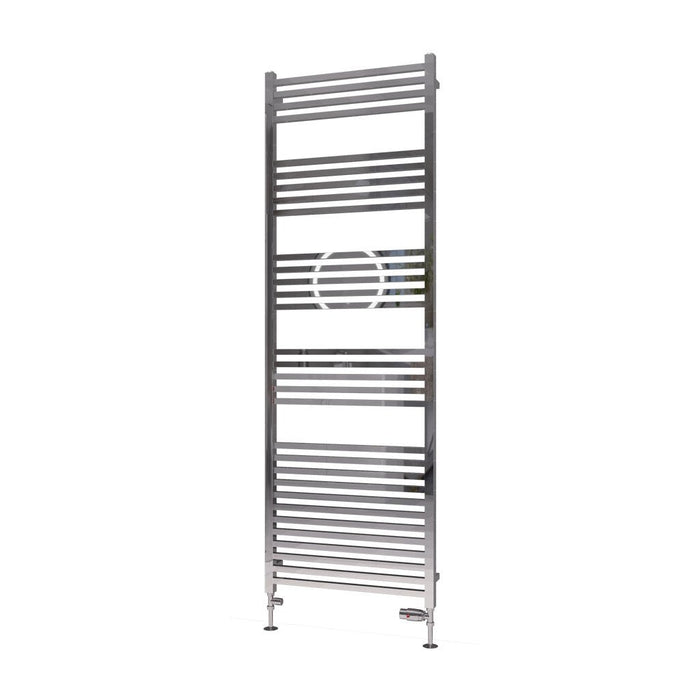

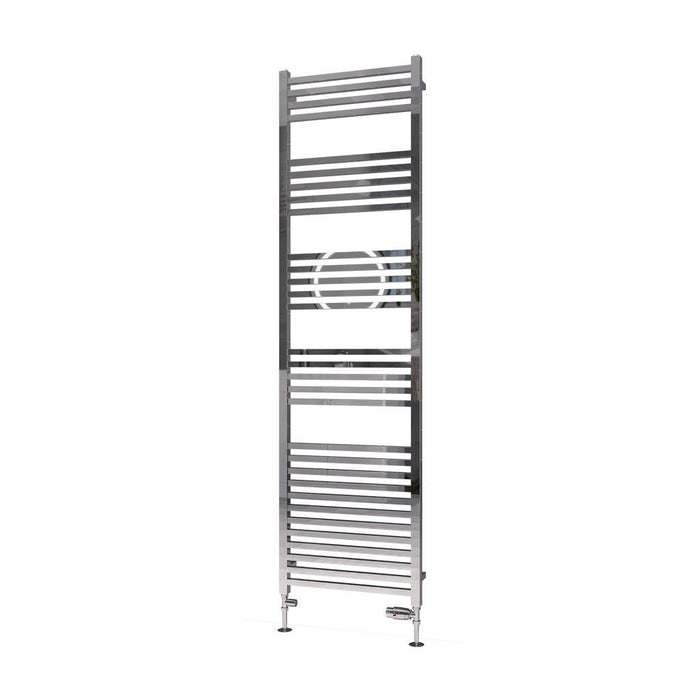

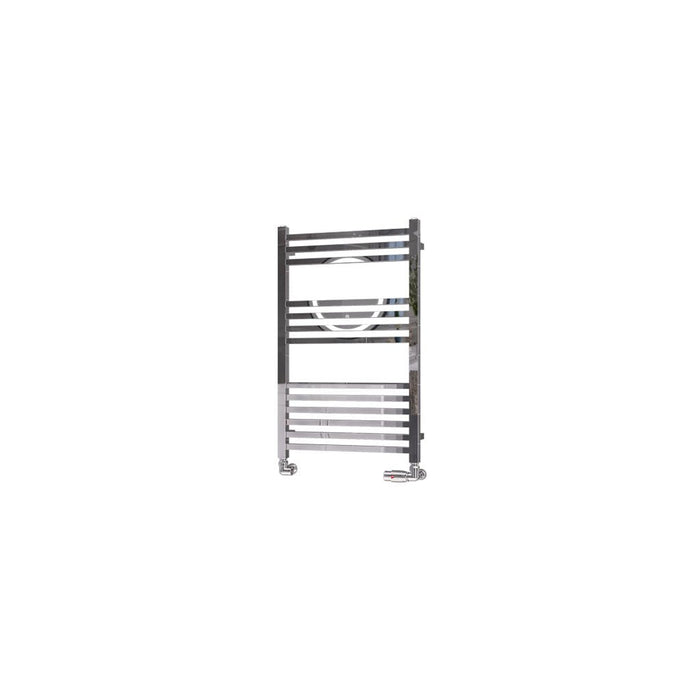

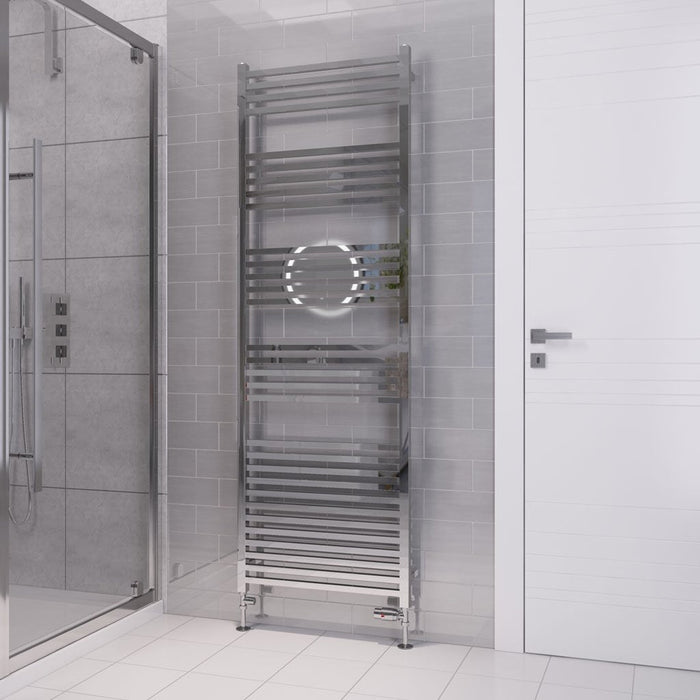

Eastbrook Tuscan Square Multirail Straight Heated Towel Rail Chrome
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook tuscan square multirail straight heated towel rail in chrome combines modern design with reliable functionality. Made from durable mild steel, it features 30x30mm square vertical bars and 20x20mm square horizontal bars for efficient heat distribution. This towel rail is easy to install with matching colour wall fixing sets and metal wall brackets for a clean, streamlined look.Tested to bs en 442 standards, it is compatible with single, dual fuel, or all-electric heating systems. The heat output is based on delta T 60°c, and the unit is designed for indirect heating systems. Corrosion inhibitor maintenance is required to ensure optimal performance.
Product Specifications:
- Warranty: 5 Years
- Product Type: Heated Towel Rail
- Brand: Eastbrook
- Collection: Tuscan
- Finish: Chrome
- Shape: Straight
- Style: Modern
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves, feet's and Heating Element are not included

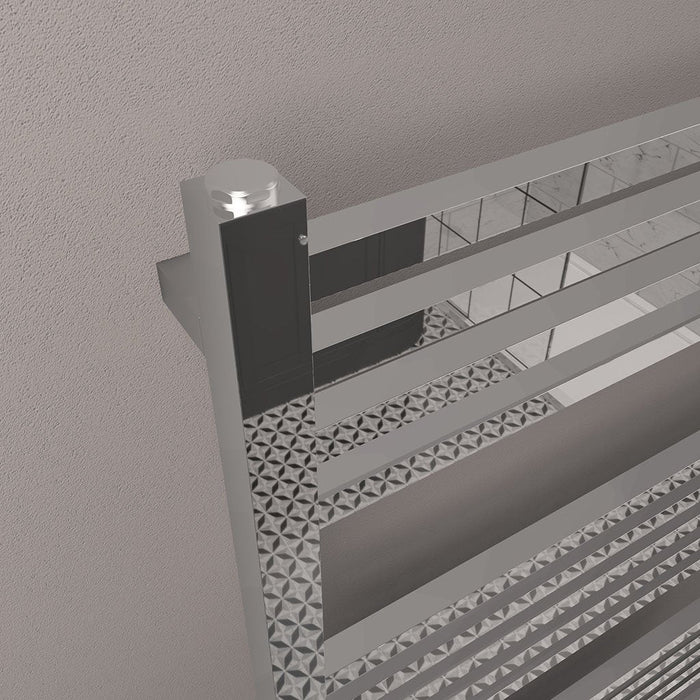

- 30x30mm square vertical bars with 20x20mm square horizontal bars.
- Tested to BS EN 442 standards.
- Metal wall brackets fitted at the back of the towel rail.
- Matching colour wall fixing sets.
- Can be single or dual fuel, or all electric.
- Heat output based on Delta T 60°C.
- Radiators that are electric only are restricted to the heat output of the elements.
- Element size can be increased to full capacity of rail if using element type D, E, F or G.
- For indirect heating systems only.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are approx. 30mm less than the width of the rail and 80mm off the wall.
Technical Specifications
| Size | Watts Delta 30°C | BTU Delta 30°C | Watts Delta 50°C | BTU Delta 50°C | Element Output |
|---|---|---|---|---|---|
| 800mm x 500mm | 109W | 372 BTU | 215W | 734 BTU | 100W |
| 800mm x 600mm | 125W | 427 BTU | 248W | 846 BTU | 100W |
| 1200mm x 500mm | 171W | 584 BTU | 335W | 1143 BTU | 150W |
| 1200mm x 600mm | 197W | 672 BTU | 386W | 1317 BTU | 150W |
| 1800mm x 500mm | 262W | 894 BTU | 509W | 1736 BTU | 150W |
| 1800mm x 600mm | 302W | 1030 BTU | 587W | 2002 BTU | 300W |
Assembling instructions for Heated Towel Rail
Datasheet for 800mm x 500mm Towel Rail
Datasheet for 800mm x 600mm Towel Rail
Datasheet for 1200mm x 500mm Towel Rail
Datasheet for 1200mm x 600mm Towel Rail
Datasheet for 1800mm x 500mm Towel Rail
Datasheet for 1800mm x 600mm Towel Rail

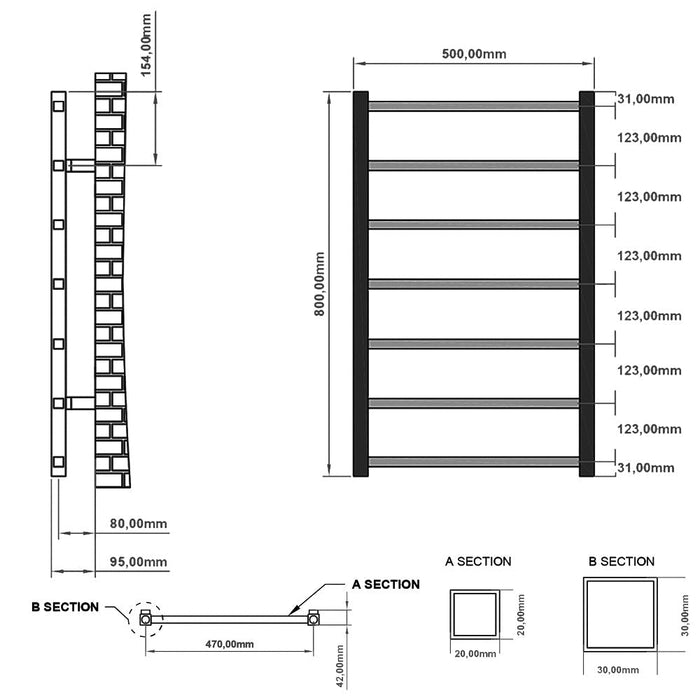

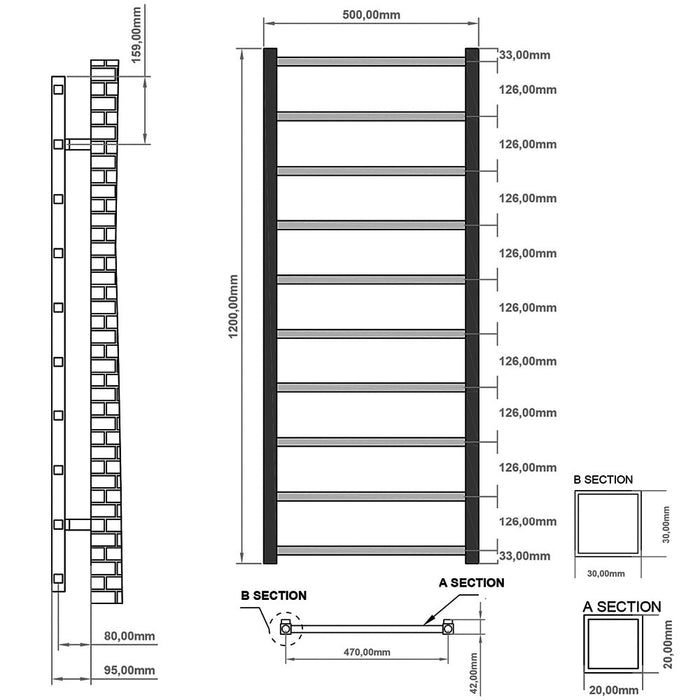

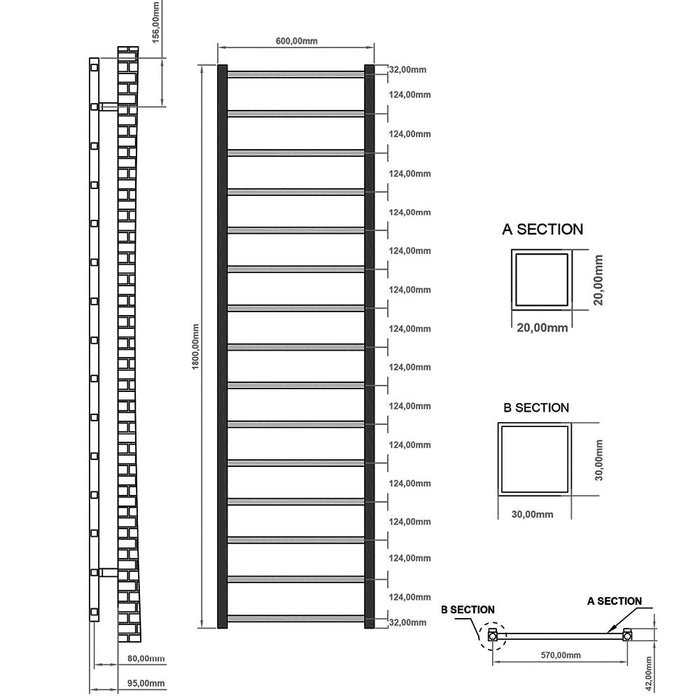

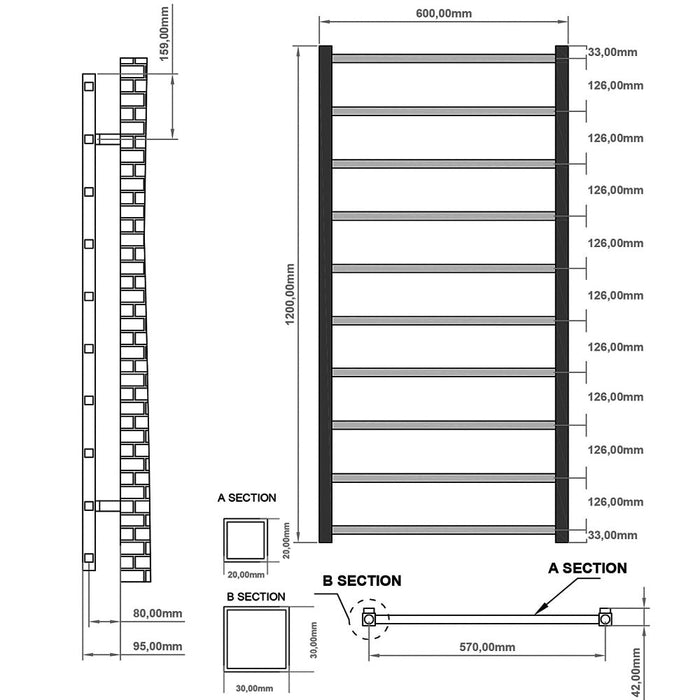

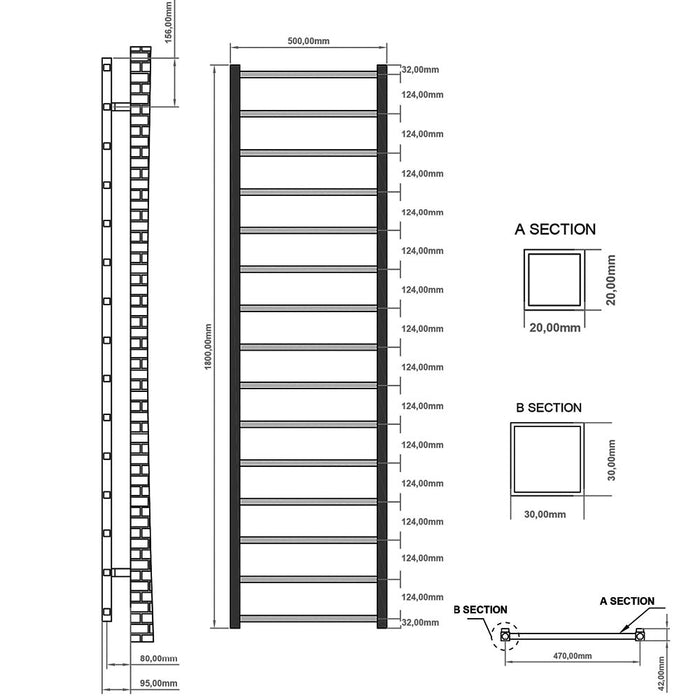

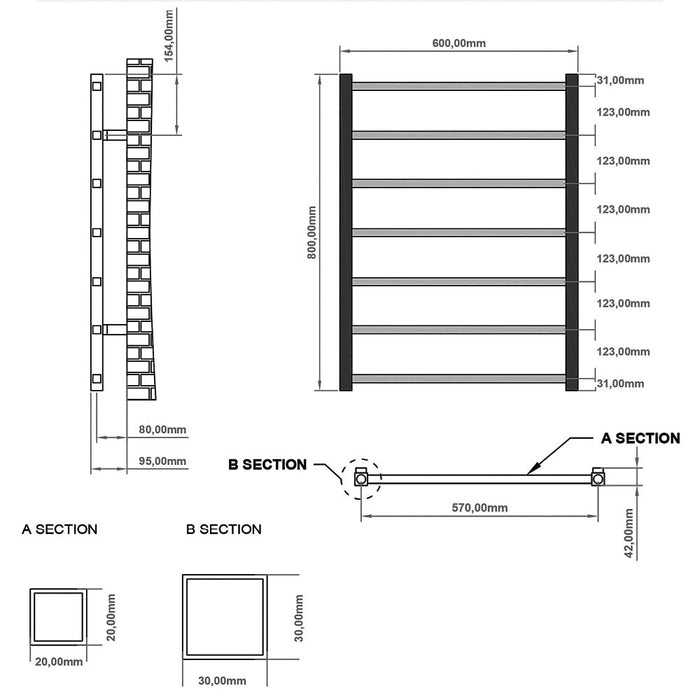

Technical Drawing
800mm x 500mm
800mm x 600mm
1200mm x 500mm
1200mm x 600mm
1800mm x 500mm
1800mm x 600mm
