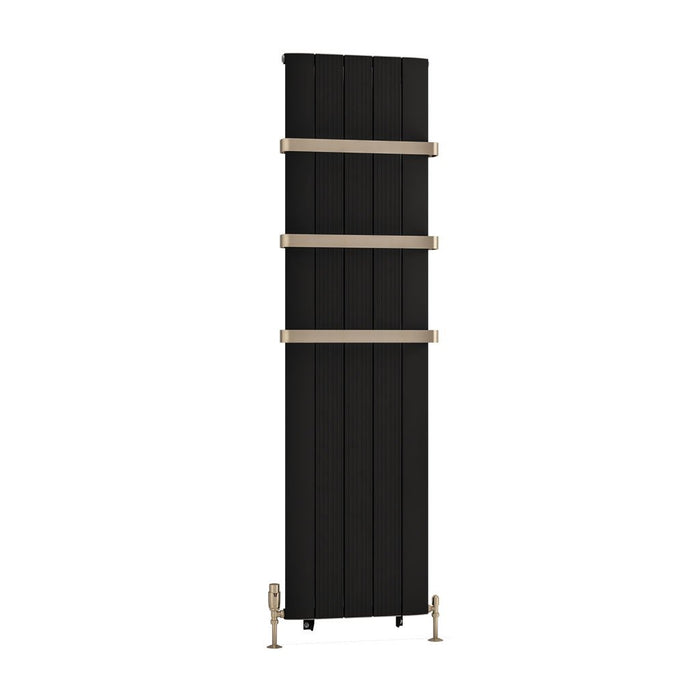

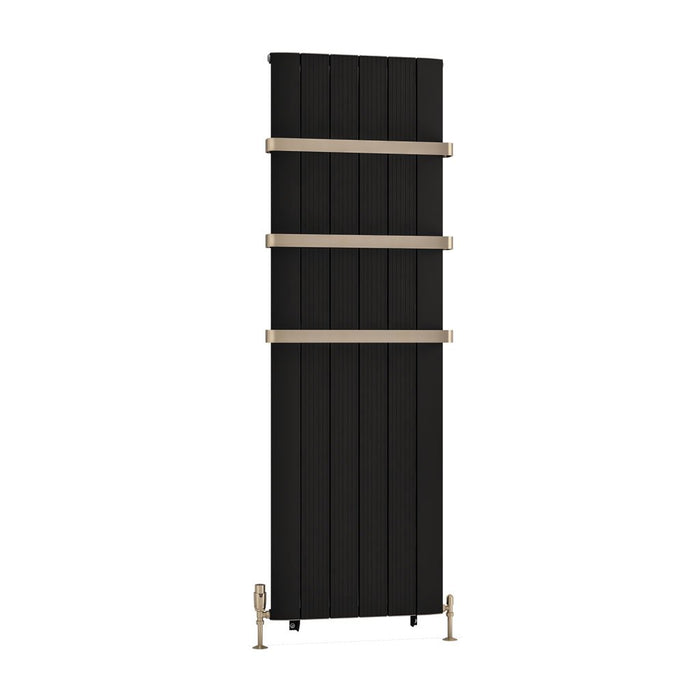

Eastbrook Trent Aluminium Designer Radiator Matt Black
Order now for dispatch in approximately 4 weeks.
Product Information

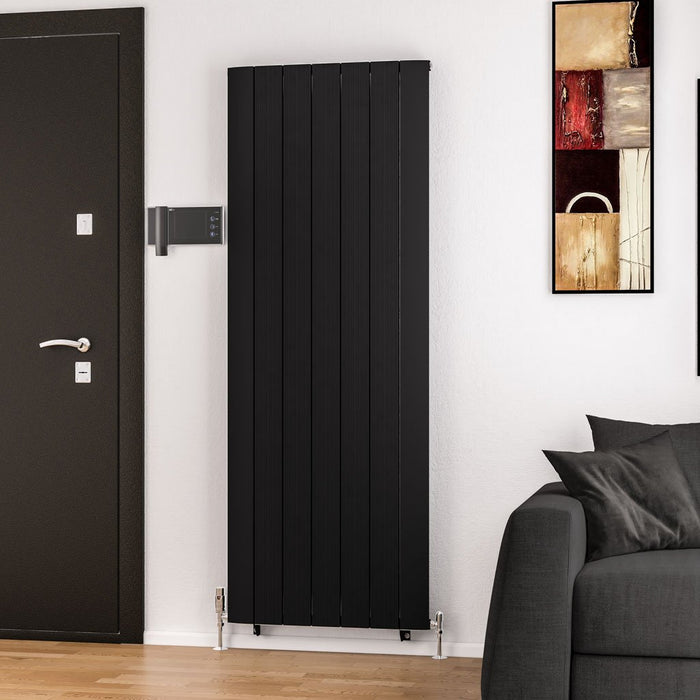

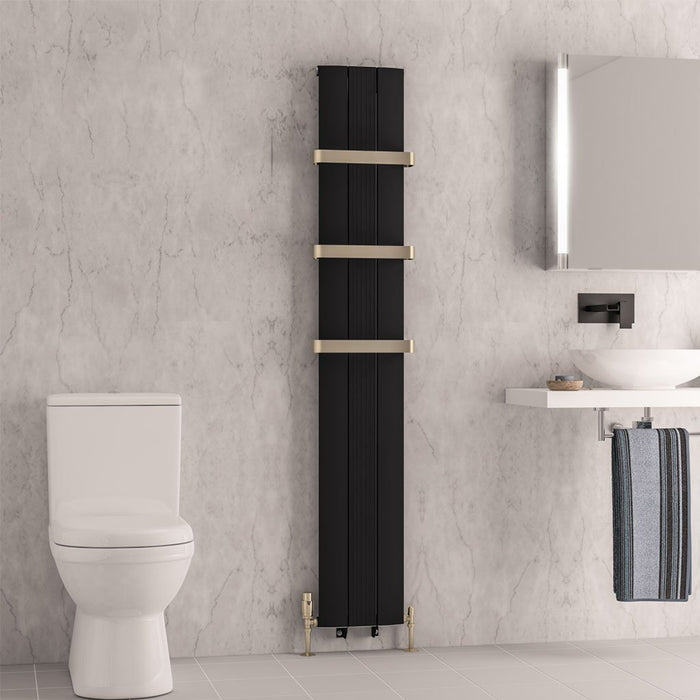

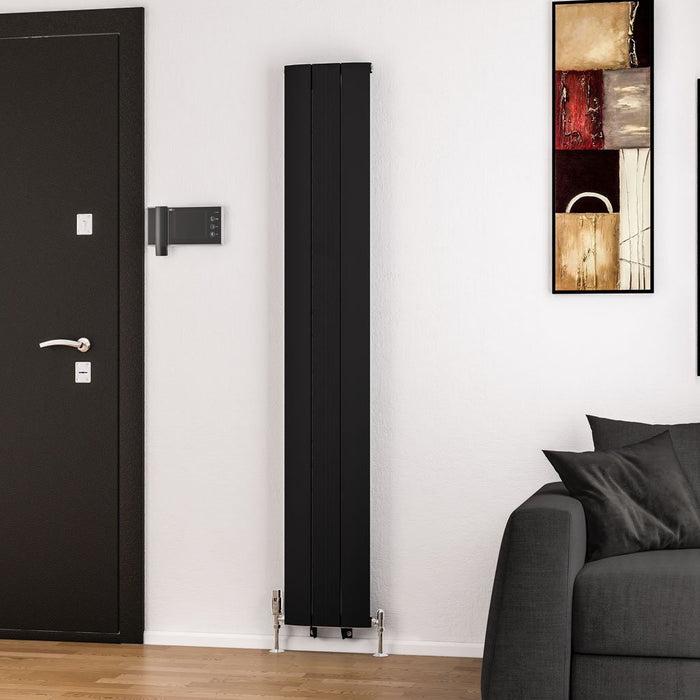

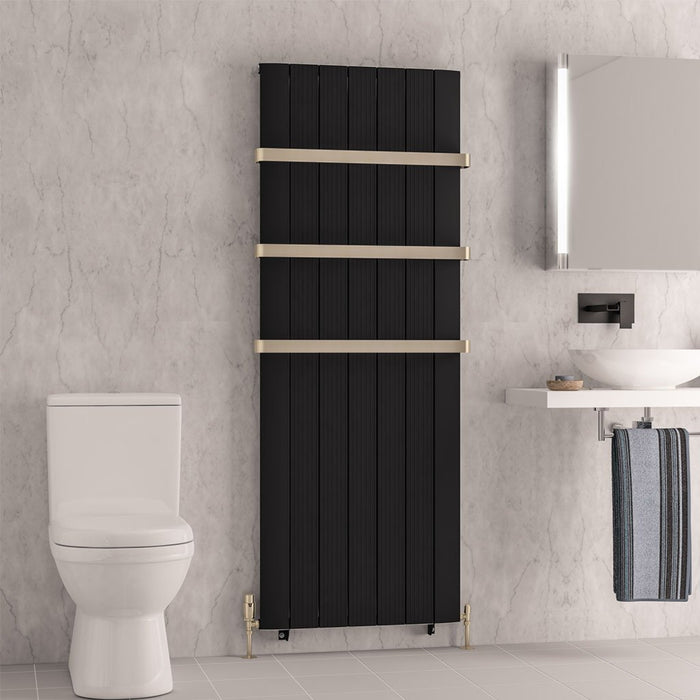

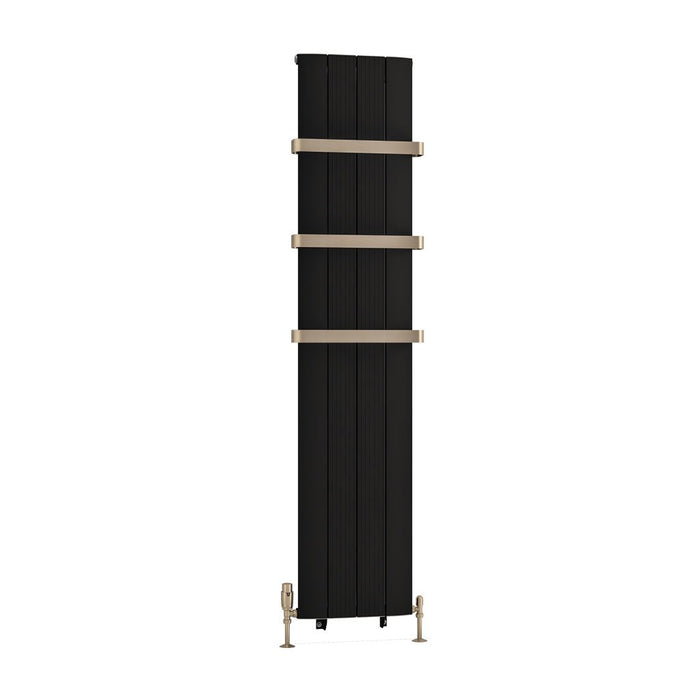

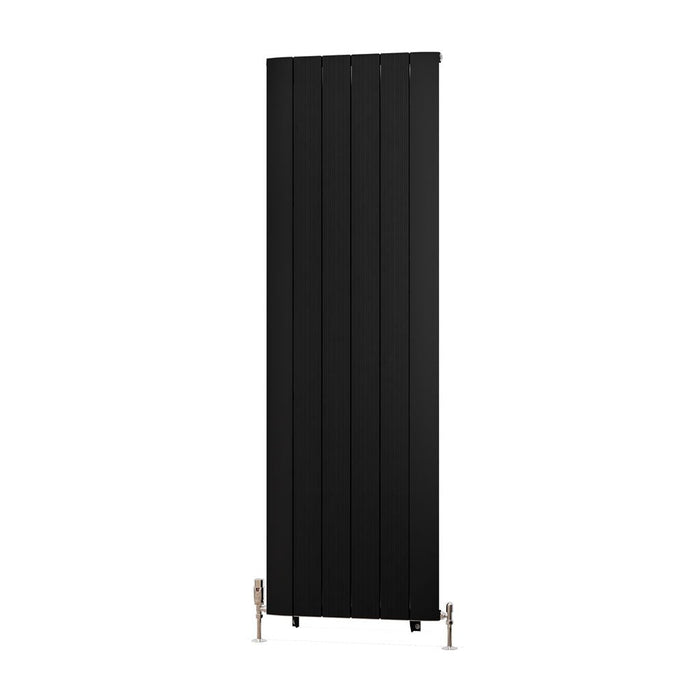

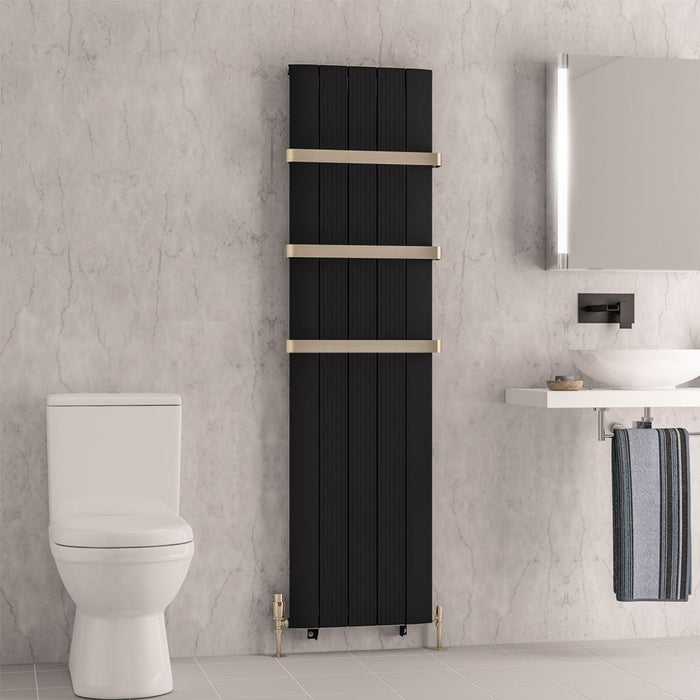

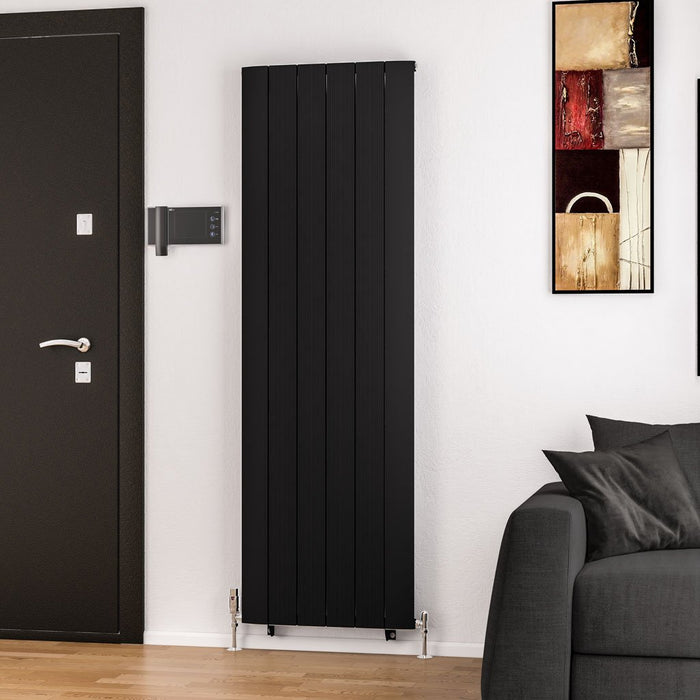

The Eastbrook trent aluminium designer radiator in matt black offers a sleek, modern look suitable for contemporary interiors. Made from lightweight aluminium, it features excellent heat conductivity and heats up quickly while using a low water volume. The radiator is wall-mounted, easy to install, and includes cover caps for a neat finish. It is tested to bs en 442 standards and designed for indirect heating systems only.Available in multiple sizes ranging from 1800mm x 280mm to 1800mm x 660mm, it comes with a 5-year guarantee. Each unit includes a pre-fitted flow diverter and must be used with a corrosion inhibitor in the system.
Product Specifications:
- Guarantee: 5 Years
- Brand: Eastbrook
- Collection: Trent
- Finish: Matt Black
- Style: Modern
- Mounting: Wall
- Material: Aluminium
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Excellent heat conductivity and lightweight.
- Only requires a low water volume.
- Heats up very quickly.

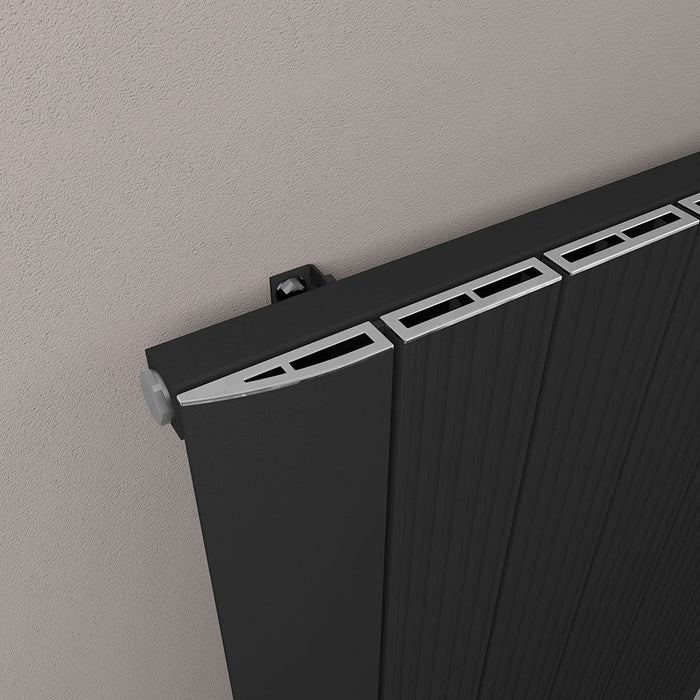

- Radiators come with cover caps on top and bottom.
- Tested to BS EN 442 standard.
- Not suitable for elements.
- Heat output based on Delta ?T 60°C.
- Comes with pre-fitted flow diverter, fitted in the middle of the bottom header.
- For indirect heating systems only.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are the width of the rail and 38mm off the wall.
Dimensions:
- Depth: 76mm
|
Size |
Watts ?T60°C |
Watts ?T50°C |
BTU ?T60°C |
BTU ?T50°C |
|

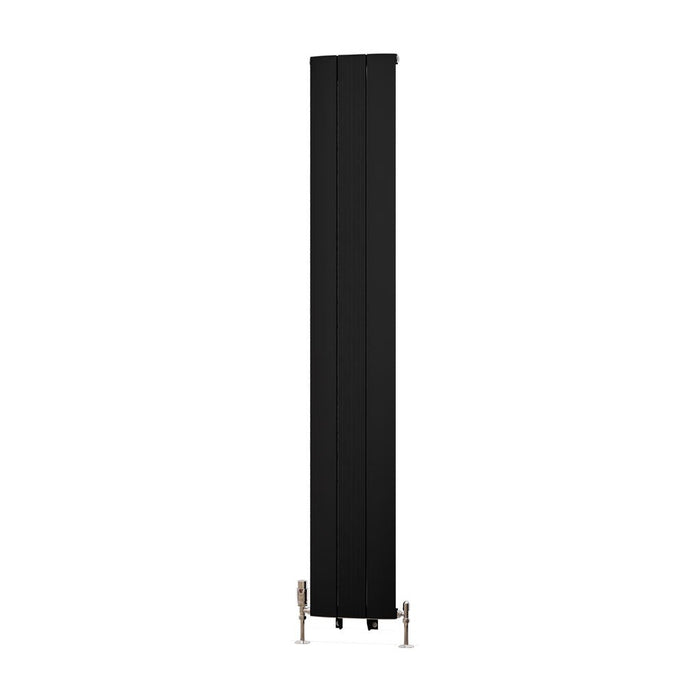

1800mm x 280mm |
762 |
596 |
2600 |
2031 |
|

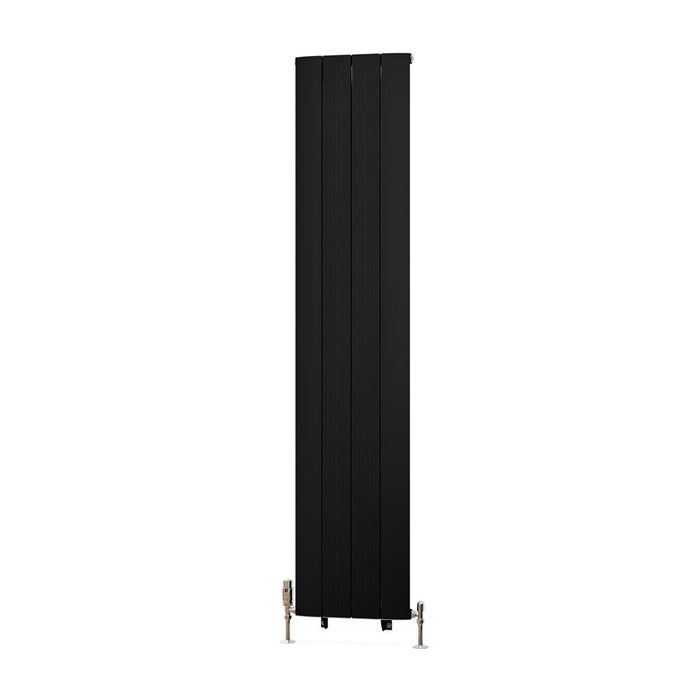

1800mm x 375mm |
1017 |
795 |
3470 |
2711 |
|
1800mm x 470mm |
1271 |
993 |
4337 |
3388 |
|
1800mm x 565mm |
1525 |
1192 |
5203 |
4064 |
|

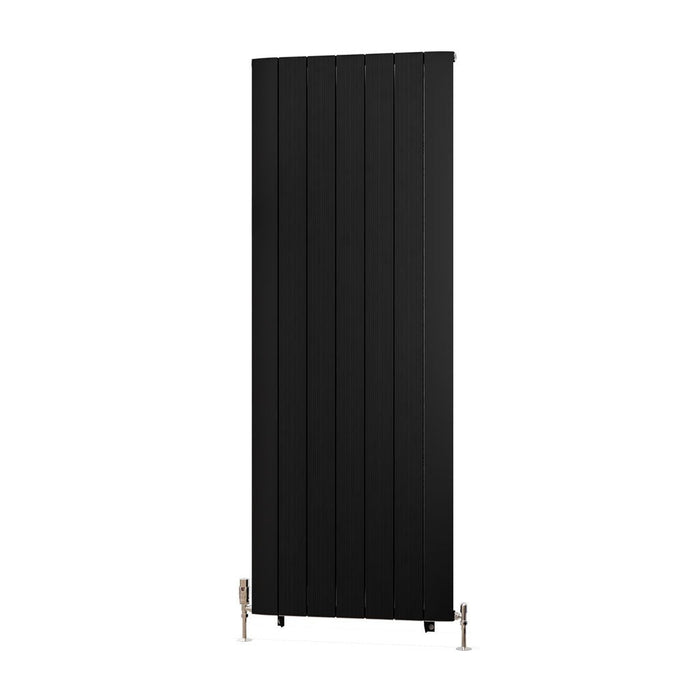

1800mm x 660mm |
1779 |
1390 |
6070 |
4741 |
Assembling instructions for Aluminium Designer Radiator
Datasheet for 1800mm x 280mm Aluminium Designer Radiator
Datasheet for 1800mm x 375mm Aluminium Designer Radiator
Datasheet for 1800mm x 470mm Aluminium Designer Radiator
Datasheet for 1800mm x 565mm Aluminium Designer Radiator
Datasheet for 1800mm x 660mm Aluminium Designer Radiator

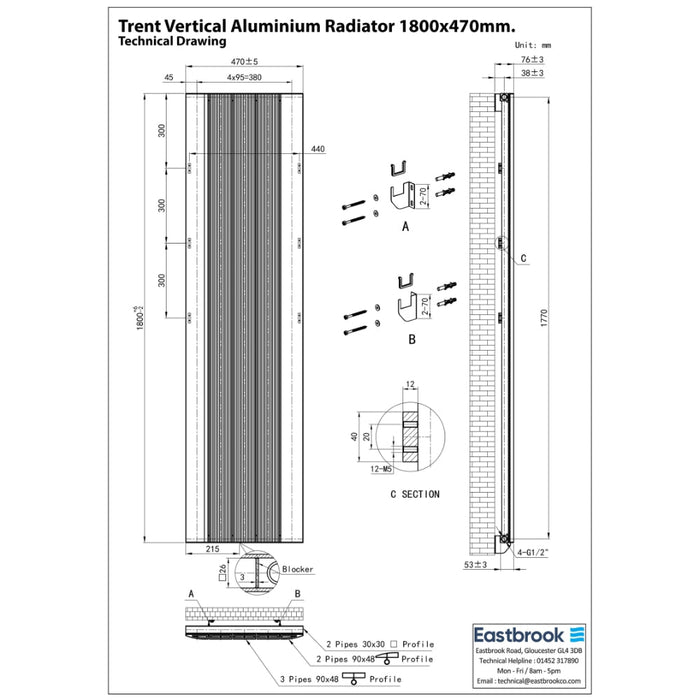

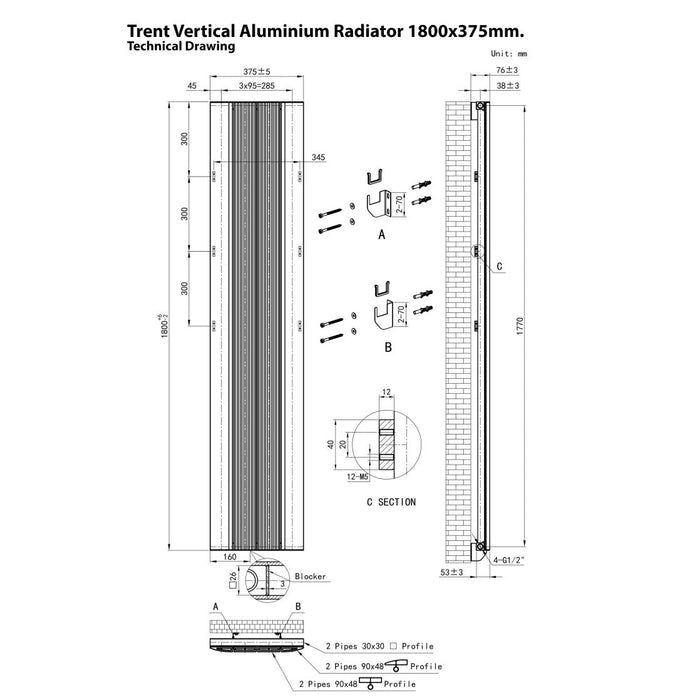

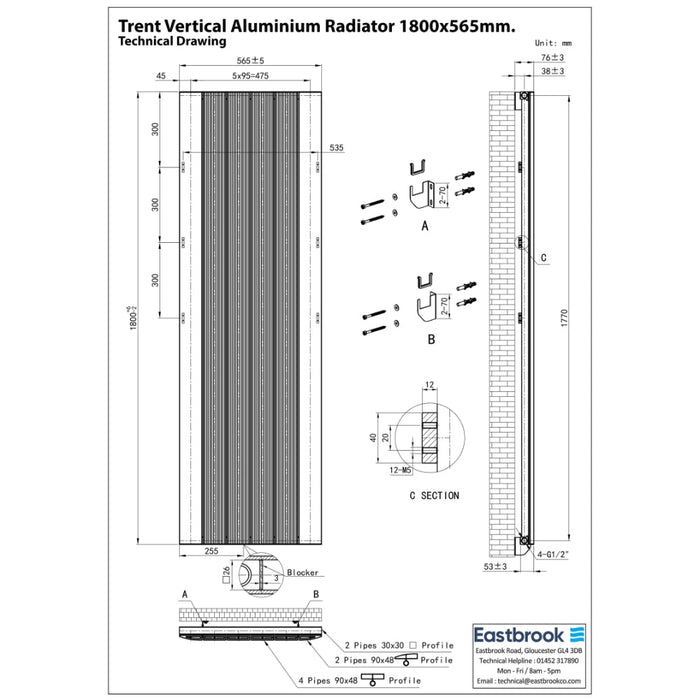

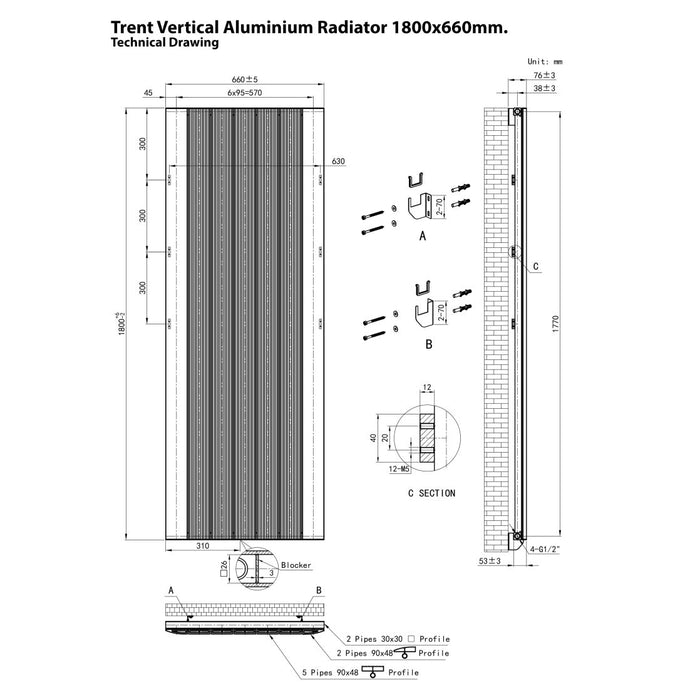

Technical Drawing
1800mm x 280mm
1800mm x 375mm
1800mm x 470mm
1800mm x 565mm
1800mm x 660mm
- View Less
