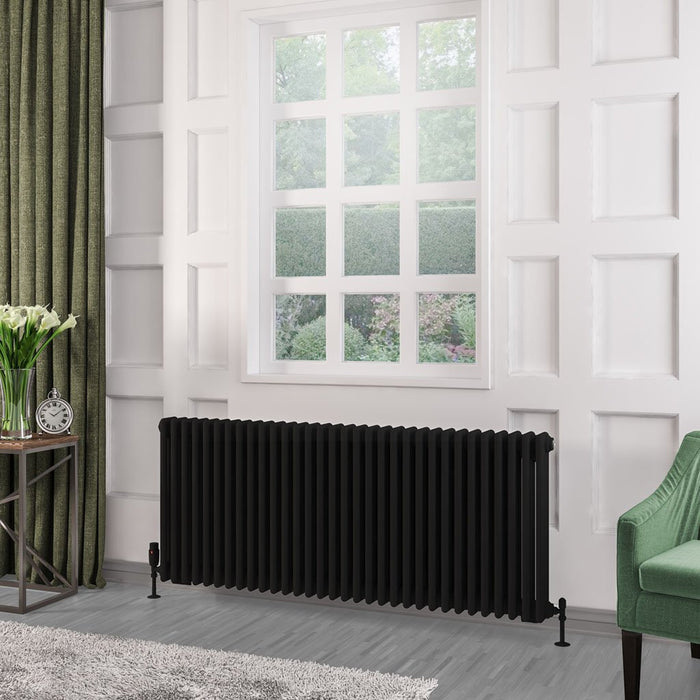

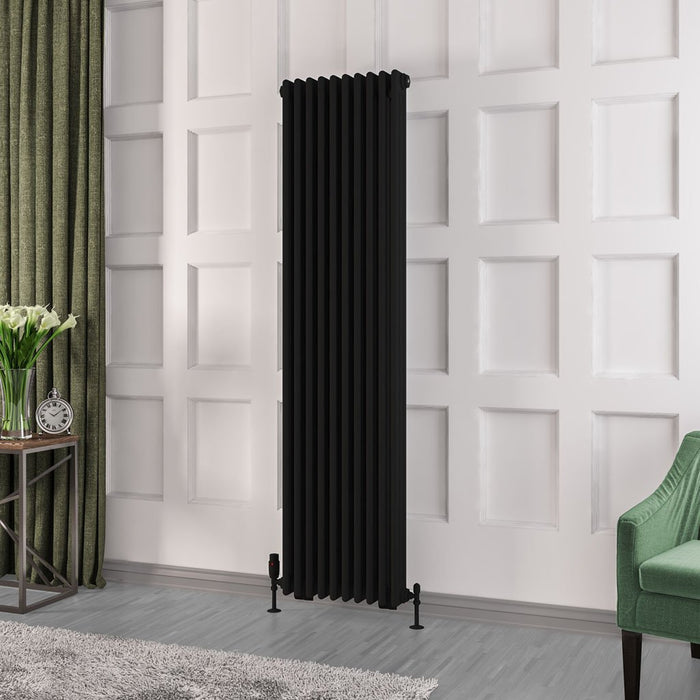

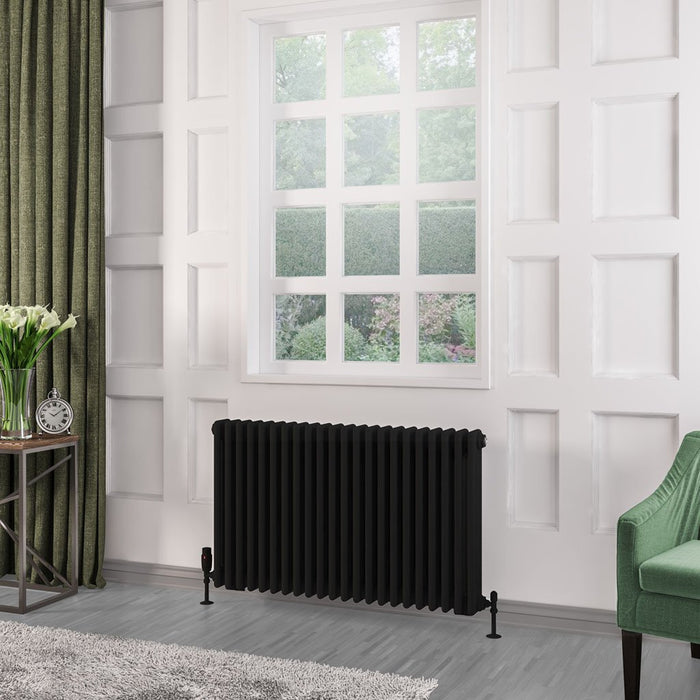

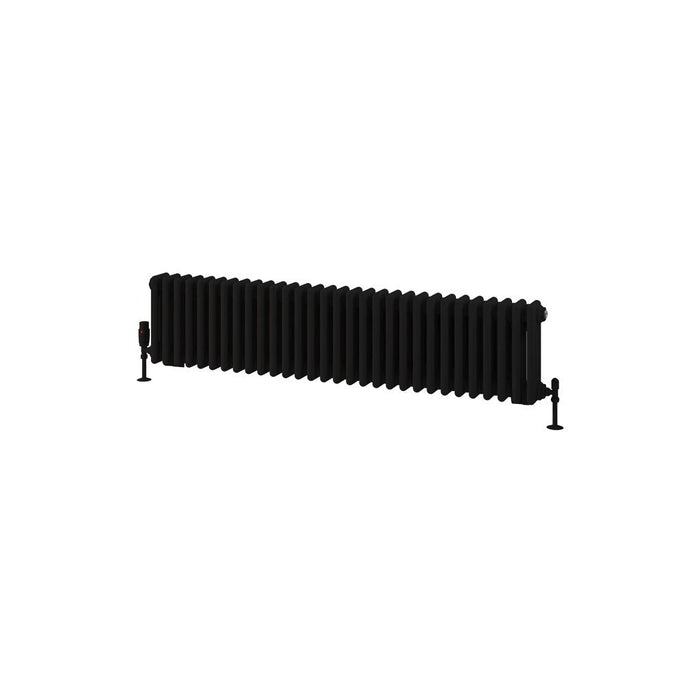

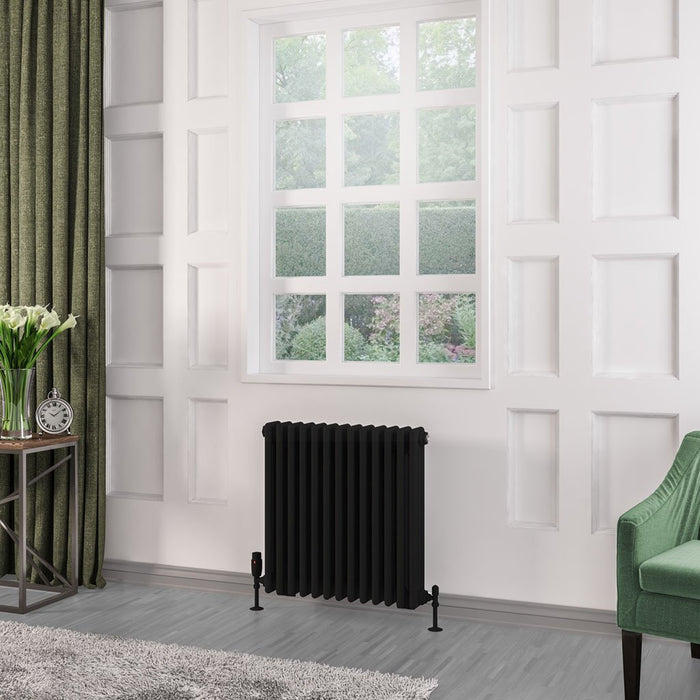

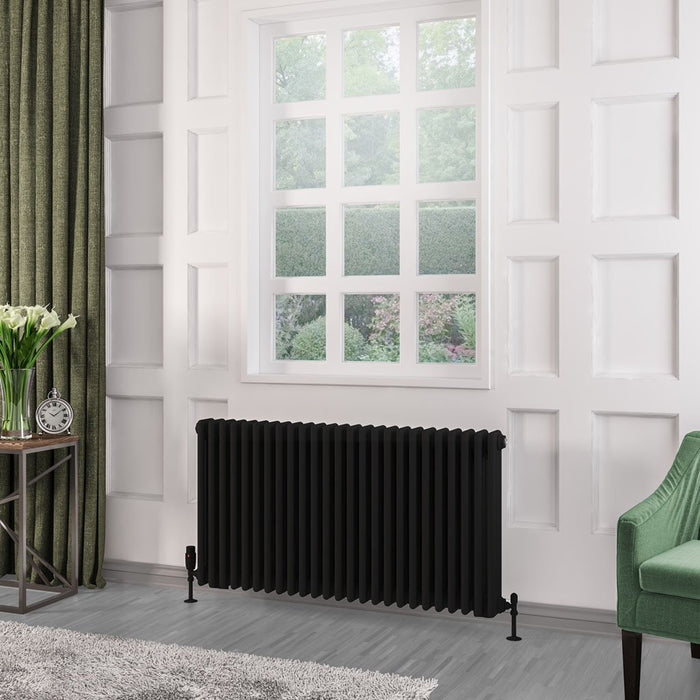

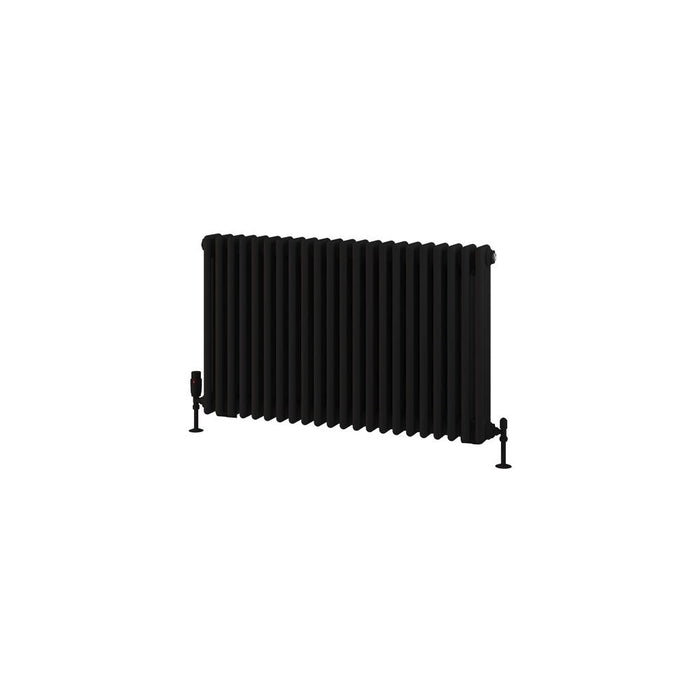

Eastbrook Rivassa 3 Column Radiator Matt Black
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook rivassa 3 column radiator in matt black brings a traditional touch to any space with its durable mild steel construction. Designed to be mounted on the wall, this radiator is available in multiple sizes to fit a variety of room requirements. It is easy to install, offering a straightforward solution for both residential and commercial settings.This radiator is ce certified and tested to en442 standards, ensuring it meets quality and safety requirements. It provides flexible installation options, allowing for single, dual fuel, or all-electric systems. With a 5-year guarantee, it offers reliable performance and optimal heat output when properly maintained.
Product Specifications:
- Warranty: 5 Years
- Product Type: Column Radiator
- Brand: Eastbrook
- Collection: Rivassa
- Finish: Matt Black
- Style: Traditional
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves, feet's and Heating Element are not included
- Tested to EN442 standard.
- CE Certification.
- Matching colour wall fixing sets.
- 300mm height option for limited spaces.
- Doesn't require flow diverter.
- Can be single or dual fuel, or all electric.
- Heat output based on Delta T30°C and T50°C.
- Radiators that are electric only are restricted to the heat output of the elements.
- Element size can be increased to full capacity of rail if using element type C or E.
- For indirect heating systems only.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are the width of the rail and 80mm off the wall.
Technical Specifications
|
Size |
Watts T30°C |
BTU T30°C |
Watts T50°C |
BTU T50°C |
Element Output |
Element Type |
|
300mm x 1148mm |
404 |
1378 |
785 |
2677 |
600W |
A, A+, C, E, H |
|
300mm x 1373mm |
484 |
1651 |
942 |
3213 |
750W |
A, A+, C, E, H |
|
600mm x 428mm |
279 |
952 |
543 |
1852 |
450W |
A, A+, C, H |
|
600mm x 473mm |
310 |
1058 |
604 |
2060 |
450W |
A, A+, C, H |
|
600mm x 518mm |
341 |
1163 |
664 |
2265 |
450W |
A, A+, C, H |
|
600mm x 563mm |
372 |
1269 |
724 |
2469 |
600W |
A+, C, H |
|
600mm x 608mm |
403 |
1375 |
785 |
2677 |
600W |
A+, C, H |
|
600mm x 833mm |
558 |
1903 |
1086 |
3704 |
900W |
A+, C, H |
|
600mm x 1010mm |
682 |
2326 |
1328 |
4529 |
1000W |
A, A+, C, H |
|
600mm x 1148mm |
776 |
2647 |
1509 |
5146 |
1200W |
A, A+, H |
|
600mm x 1460mm |
993 |
3387 |
1931 |
6585 |
1200W |
A, A+, H |
|
1800mm x 293mm |
528 |
1801 |
1030 |
3513 |
||
|
1800mm x 383mm |
705 |
2405 |
1374 |
4686 |
||
|
1800mm x 473mm |
881 |
3005 |
1717 |
5855 |
|
|
Assembling instructions for 3 Column Radiator
Datasheet for 300mm x 1148mm 3 Column Radiator
Datasheet for 300mm x 1373mm 3 Column Radiator
Datasheet for 600mm x 428mm 3 Column Radiator
Datasheet for 600mm x 473mm 3 Column Radiator
Datasheet for 600mm x 518mm 3 Column Radiator
Datasheet for 600mm x 563mm 3 Column Radiator
Datasheet for 600mm x 608mm 3 Column Radiator
Datasheet for 600mm x 833mm 3 Column Radiator
Datasheet for 600mm x 1010mm 3 Column Radiator
Datasheet for 600mm x 1148mm 3 Column Radiator
Datasheet for 600mm x 1460mm 3 Column Radiator
Datasheet for 1800mm x 293mm 3 Column Radiator
Datasheet for 1800mm x 383mm 3 Column Radiator
Datasheet for 1800mm x 473mm 3 Column Radiator

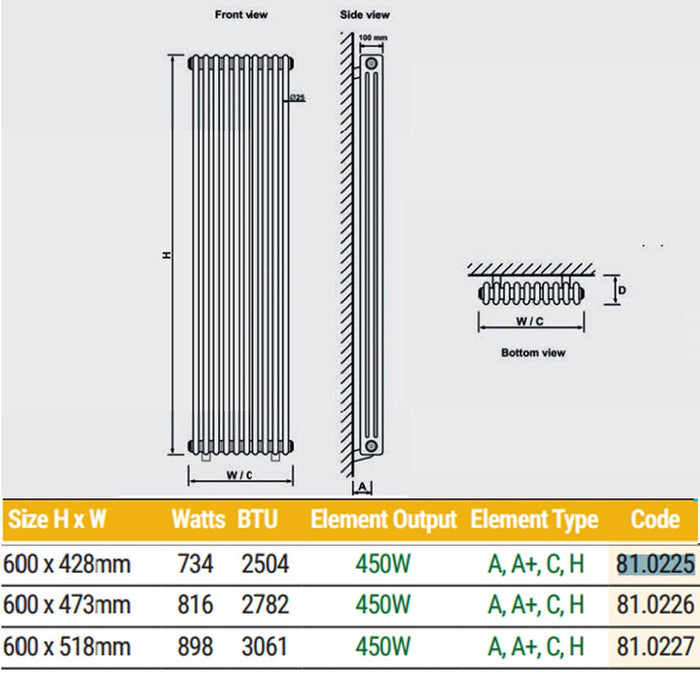

Technical Drawing

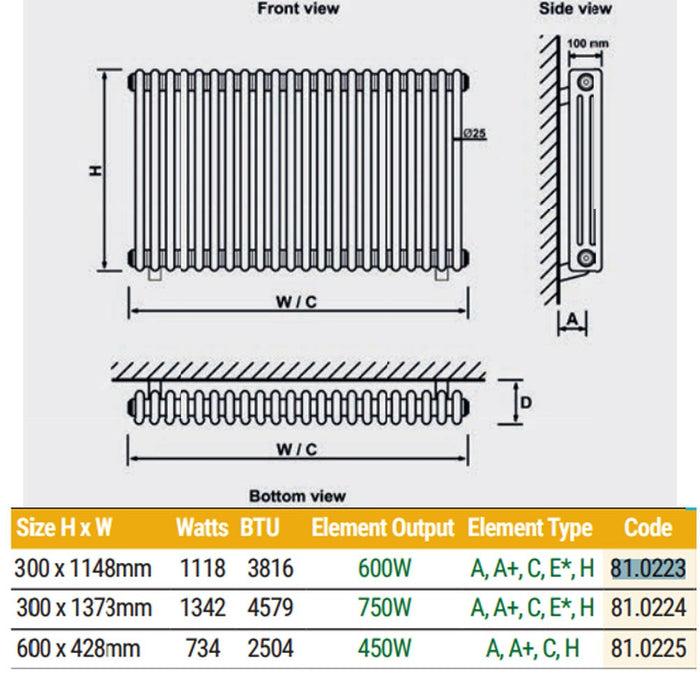

300mm x 1148mm, 300mm x 1373mm and 600mm x 428mm
600mm x 473mm and 600mm x 518mm

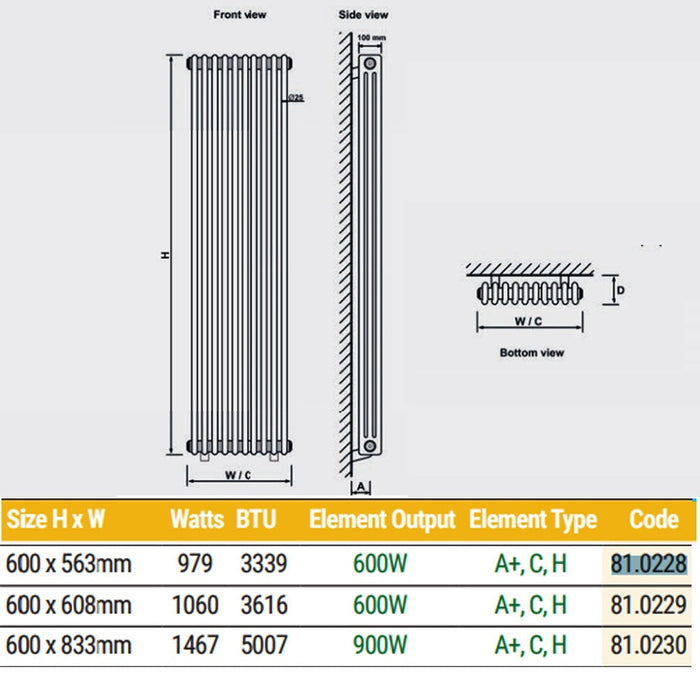

600mm x 563mm, 600mm x 608mm and 600mm x 833mm

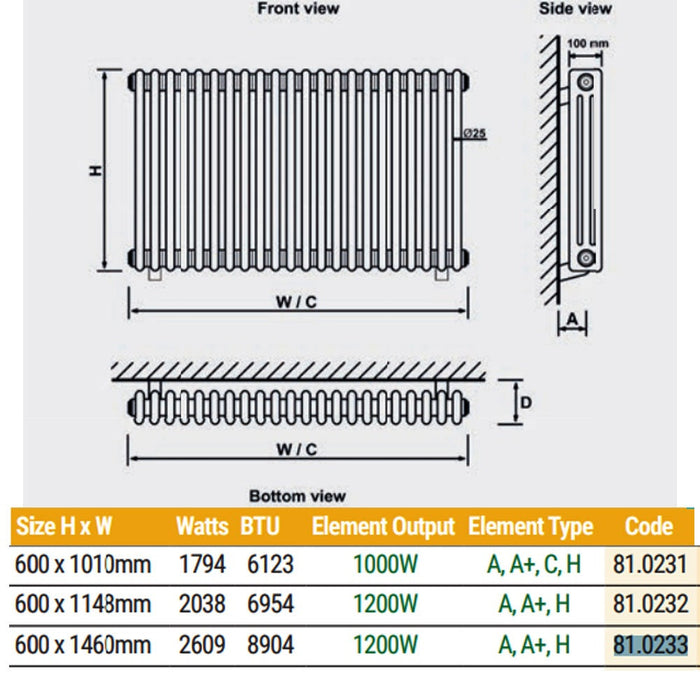

600mm x 1010mm, 600mm x 1148mm and 600mm x 1460mm

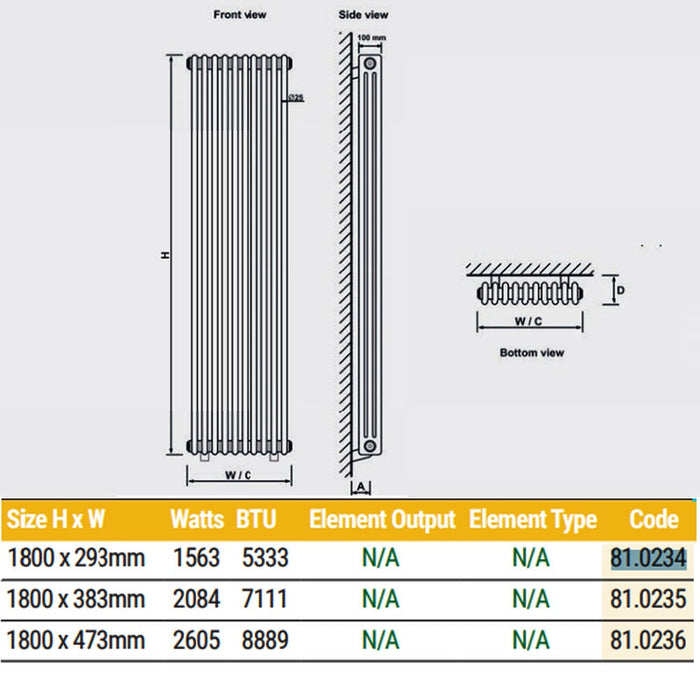

1800mm x 293mm, 1800mm x 383mm and 1800mm x 473mm
