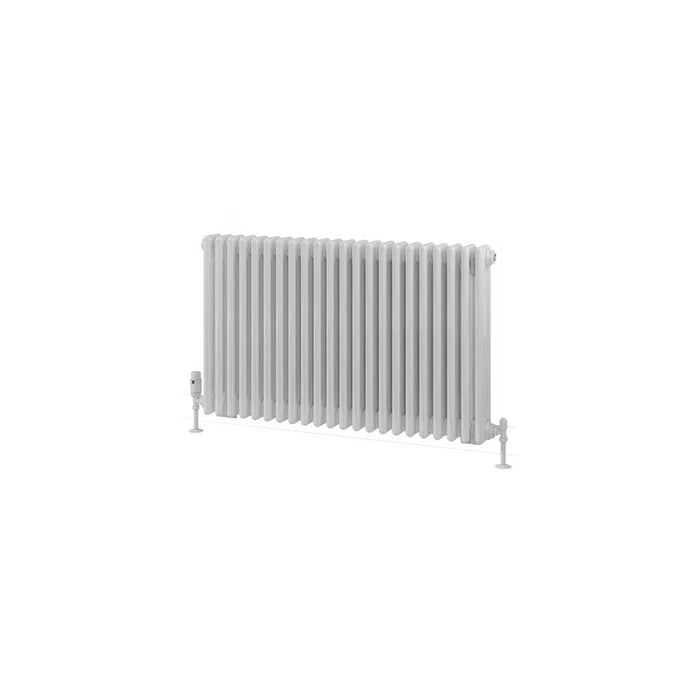

Eastbrook Rivassa 3 Column Horizontal Designer Radiator - White
Order now for dispatch in approximately 4 weeks.
Product Information

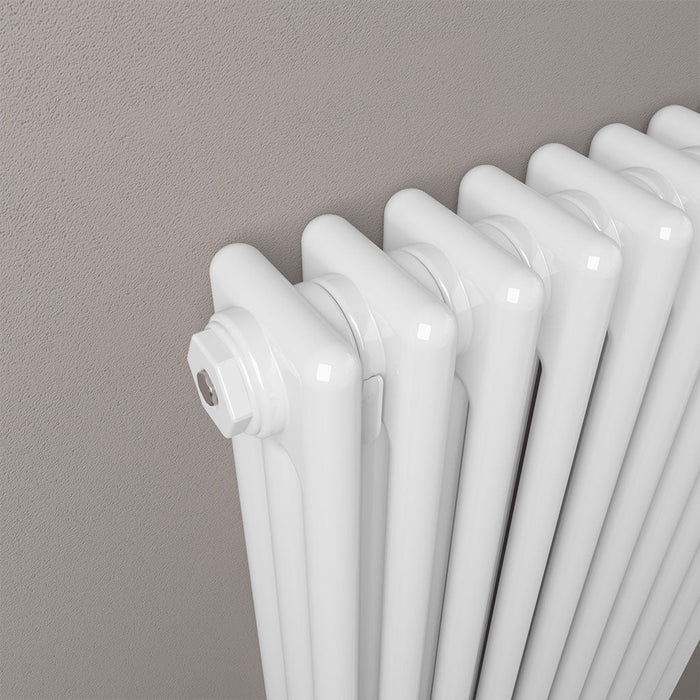

The Eastbrook Rivassa 3 Column Horizontal Designer Radiator in white combines traditional elegance with modern performance. Its three-column vertical tube design delivers strong, consistent heat while adding a timeless style to any room. Made from high-quality mild steel with a 1.5 mm thickness, this radiator is built for durability and long-lasting use. Designed for floor mounting and horizontal installation, the Rivassa is versatile and suitable for a variety of spaces. A 300 mm height option makes it perfect for areas with limited wall space or low window sills. It does not require a flow diverter and is suitable for conversion, providing flexibility for different central heating systems. Heat output is calculated based on delta T 60°C, and each radiator is manufactured and tested to BS EN 442 standards for reliable performance. The radiator is supplied without a valve or heating element. Images shown are for pictorial representation only. With a 5-year guarantee, the Eastbrook Rivassa 3 Column Horizontal Designer Radiator in white offers a combination of classic design, solid construction, and dependable warmth.
Specification
- Guarantee: 5 Years
- Product Type: Designer Radiator
- Brand: Eastbrook
- Collection: Rivassa
- Finish: White
- Material: Mild Steel
- Style: Traditional
- Mounting: Floor
- Suitable for Conversion: Yes
- Orientation: Horizontal
- Fuel: Central Heating
- Radiator Design: Column Vertical Tubes
- Radiator Valve included: No
- Radiator Configuration: 3 Column
- Radiator Type: Designer
Special Features
- Images shown are for pictorial representation only
- Radiator valve and heating element not included
- 300mm height option for limited spaces
- Material thickness 1.5 mm
- Doesn't require flow diverter
- Heat output based on delta T 60 degree C
- Manufactured and tested to BS EN 442 standards
Dimensions
- Depth: 100mm
| Size | Pipe Centres | Tapping From Wall | Watts | BTU | Weight | Water Content | Number of Tubes | Element Type | Element Output |

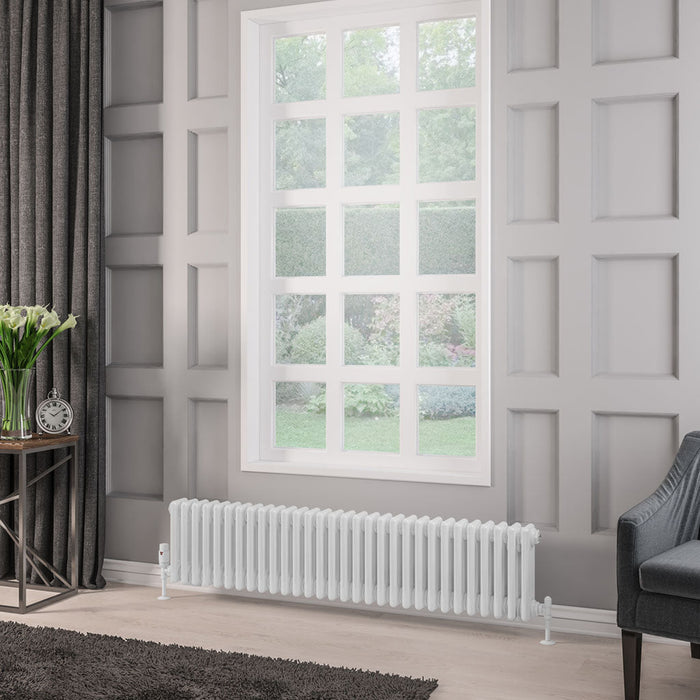

| 300mm X 1148mm | 1148mm + valve | 80mm | 1118 | 3816 | 25.2kg | 14.10L | 25 | A, A+, C, E, H | 600W |
| 300mm X 1373mm | 1373mm + valve | 80mm | 1342 | 4579 | 30.2kg | 16.80L | 30 | A, A+, C, E, H | 750W |
| 600mm X 608mm | 608mm + valve | 80mm | 1060 | 3616 | 24.4kg | 11.20L | 13 | A+, C, H | 600W |
| 600mm X 833mm | 833mm + valve | 80mm | 1467 | 5007 | 32.8kg | 15.50L | 18 | A+, C, H | 900W |
| 600mm X 1148mm | 1148mm + valve | 80mm | 2038 | 6954 | 45.6kg | 21.50L | 25 | A, A+, H | 1200W |

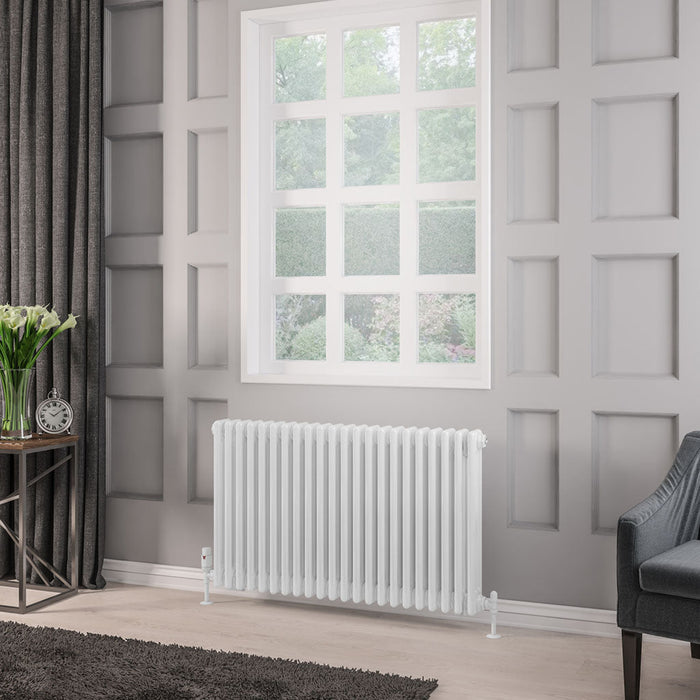

| 600mm X 1010mm | 1010mm + valve | 80mm | 1794 | 6123 | 40.30kg | 18.90L | 22 | A, A+, C, H | 1000W |
| 600mm X 1460mm | 1460mm + valve | 80mm | 2609 | 8904 | 58.10kg | 27.50L | 32 | A, A+, H | 1200W |
Assembling instructions 3 Column Horizontal Designer Radiator
Technical Drawing
600mm x 1010mm
600mm x 1460mm
- View Less
Product Information
The Eastbrook Rivassa 3 Column Horizontal Designer Radiator in white combines traditional elegance with modern performance. Its three-column vertical tube design delivers strong, consistent heat while adding a timeless style to any room. Made from high-quality mild steel with a 1.5 mm thickness, this radiator is built for durability and long-lasting use. Designed for floor mounting and horizontal installation, the Rivassa is versatile and suitable for a variety of spaces. A 300 mm height option makes it perfect for areas with limited wall space or low window sills. It does not require a flow diverter and is suitable for conversion, providing flexibility for different central heating systems. Heat output is calculated based on delta T 60°C, and each radiator is manufactured and tested to BS EN 442 standards for reliable performance. The radiator is supplied without a valve or heating element. Images shown are for pictorial representation only. With a 5-year guarantee, the Eastbrook Rivassa 3 Column Horizontal Designer Radiator in white offers a combination of classic design, solid construction, and dependable warmth.
Specification
- Guarantee: 5 Years
- Product Type: Designer Radiator
- Brand: Eastbrook
- Collection: Rivassa
- Finish: White
- Material: Mild Steel
- Style: Traditional
- Mounting: Floor
- Suitable for Conversion: Yes
- Orientation: Horizontal
- Fuel: Central Heating
- Radiator Design: Column Vertical Tubes
- Radiator Valve included: No
- Radiator Configuration: 3 Column
- Radiator Type: Designer
Special Features
- Images shown are for pictorial representation only
- Radiator valve and heating element not included
- 300mm height option for limited spaces
- Material thickness 1.5 mm
- Doesn't require flow diverter
- Heat output based on delta T 60 degree C
- Manufactured and tested to BS EN 442 standards
Dimensions
- Depth: 100mm
| Size | Pipe Centres | Tapping From Wall | Watts | BTU | Weight | Water Content | Number of Tubes | Element Type | Element Output |
| 300mm X 1148mm | 1148mm + valve | 80mm | 1118 | 3816 | 25.2kg | 14.10L | 25 | A, A+, C, E, H | 600W |
| 300mm X 1373mm | 1373mm + valve | 80mm | 1342 | 4579 | 30.2kg | 16.80L | 30 | A, A+, C, E, H | 750W |
| 600mm X 608mm | 608mm + valve | 80mm | 1060 | 3616 | 24.4kg | 11.20L | 13 | A+, C, H | 600W |
| 600mm X 833mm | 833mm + valve | 80mm | 1467 | 5007 | 32.8kg | 15.50L | 18 | A+, C, H | 900W |
| 600mm X 1148mm | 1148mm + valve | 80mm | 2038 | 6954 | 45.6kg | 21.50L | 25 | A, A+, H | 1200W |
| 600mm X 1010mm | 1010mm + valve | 80mm | 1794 | 6123 | 40.30kg | 18.90L | 22 | A, A+, C, H | 1000W |
| 600mm X 1460mm | 1460mm + valve | 80mm | 2609 | 8904 | 58.10kg | 27.50L | 32 | A, A+, H | 1200W |
Assembling instructions 3 Column Horizontal Designer Radiator
Technical Drawing

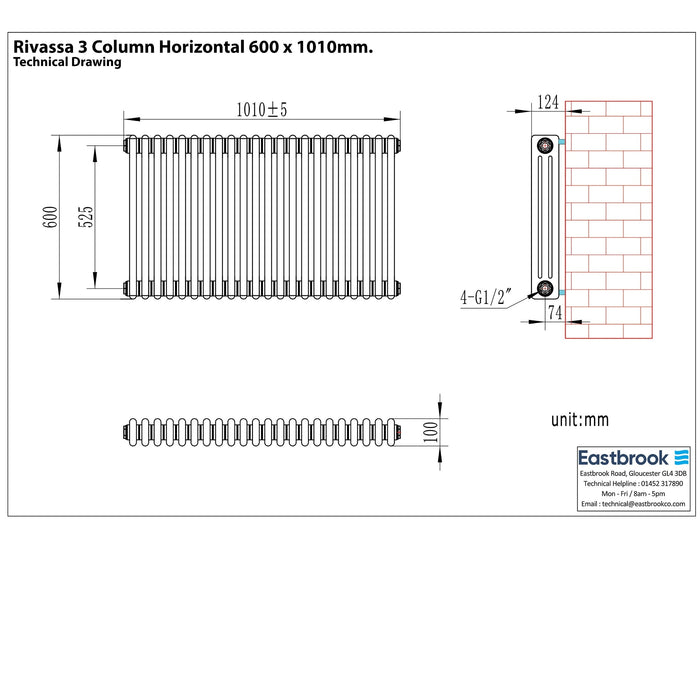

600mm x 1010mm

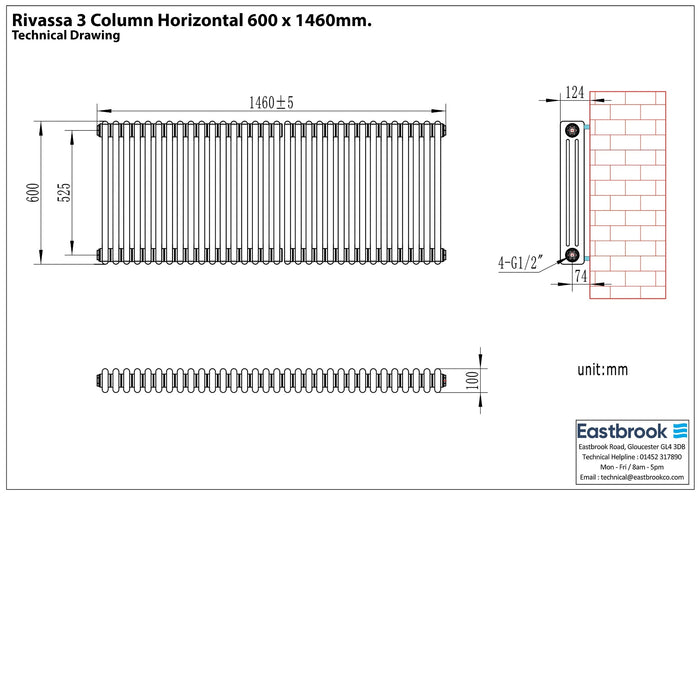

600mm x 1460mm
