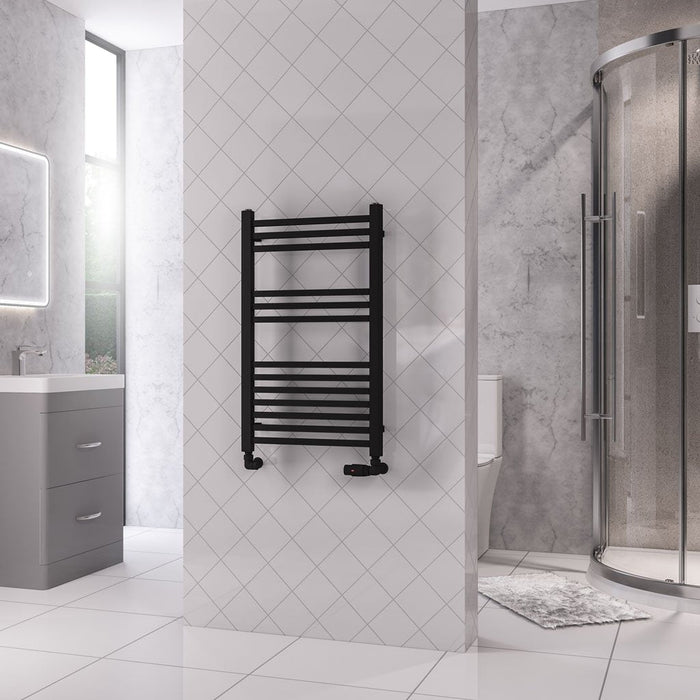

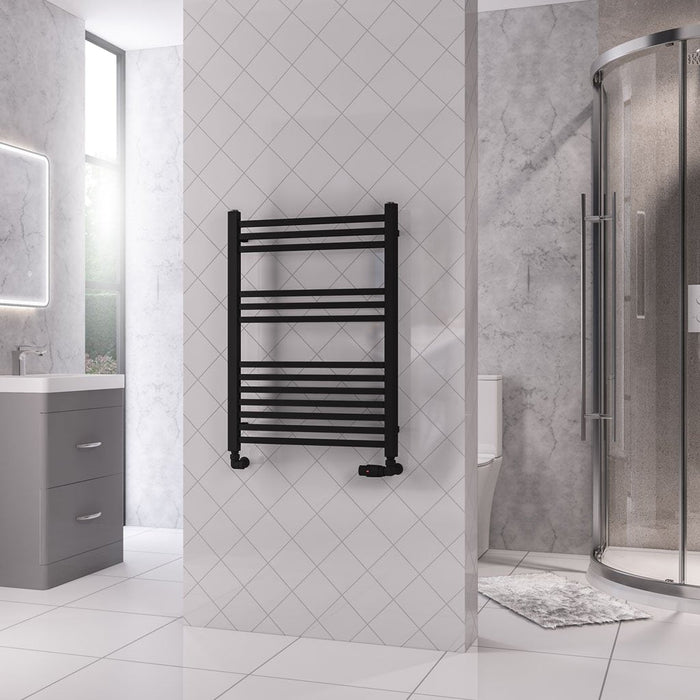

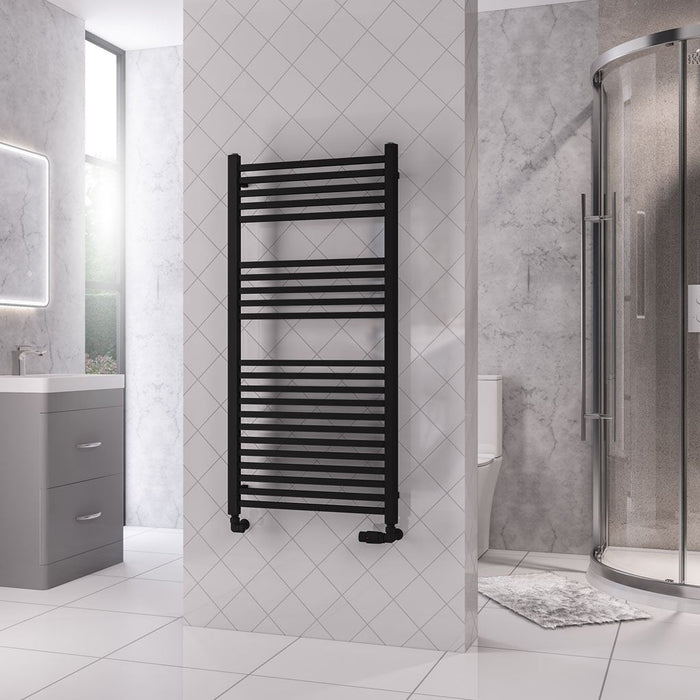

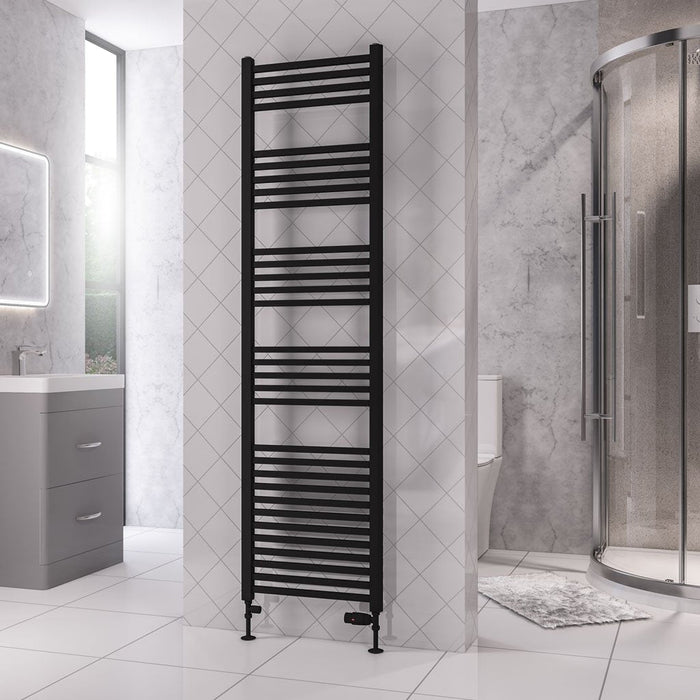

Eastbrook Rion Straight Heated Towel Rail Matt Black
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook rion straight heated towel rail in matt black brings modern style and practical functionality to your space. Constructed from mild steel, it features 40x30mm d-shaped vertical bars and 20x20mm square horizontal bars. This towel rail is easy to install and comes with matching colour wall fixing sets and metal wall brackets for a sleek, secure fit. It is available in various sizes and can be used with single, dual fuel, or all-electric heating systems.Tested to bs en 442 standards, this towel rail provides excellent heat output based on a delta T 60°c. It is designed for indirect heating systems, and element size can be increased for higher capacity using compatible elements.
Product Specifications:
-
Warranty: 5 Years
- Product Type: Heated Towel Rail
- Brand: Eastbrook
- Collection: Rion
- Finish: Matt Black
- Shape: Straight
- Style: Modern
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves, feet's and Heating Element are not included
- 40x30mm D shape vertical bars with 20x20mm square horizontal bars.
- Tested to BS EN 442 standards.
- Metal wall brackets fitted at the back of the towel rail.
- Matching colour wall fixing sets.
- Can be single or dual fuel, or all electric.
- Heat output based on Delta T 60°C.
- Radiators that are electric only are restricted to the heat output of the elements.
- Element size can be increased to full capacity of rail if using element type D, E, F or G.
- For indirect heating systems only.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are approx. 45mm less than the width of the rail and 80mm off the wall.
Technical Specifications
| Size | Watts Delta 30°C | BTU Delta 30°C | Watts Delta 50°C | BTU Delta 50°C | Element Output |
|---|---|---|---|---|---|
| 800mm x 500mm | 173W | 590 BTU | 332W | 1133 BTU | 150W |
| 800mm x 600mm | 197W | 672 BTU | 378W | 1289 BTU | 150W |
| 1200mm x 500mm | 269W | 918 BTU | 515W | 1757 BTU | 150W |
| 1200mm x 600mm | 307W | 1047 BTU | 587W | 2002 BTU | 300W |
| 1800mm x 500mm | 413W | 1409 BTU | 784W | 2674 BTU | 300W |
| 1800mm x 600mm | 471W | 1607 BTU | 893W | 3046 BTU | 300W |
Assembling instructions for Heated Towel Rail
Datasheet for 800mm x 500mm Towel Rail
Datasheet for 800mm x 600mm Towel Rail
Datasheet for 1200mm x 500mm Towel Rail
Datasheet for 1200mm x 600mm Towel Rail
Datasheet for 1800mm x 500mm Towel Rail
Datasheet for 1800mm x 600mm Towel Rail

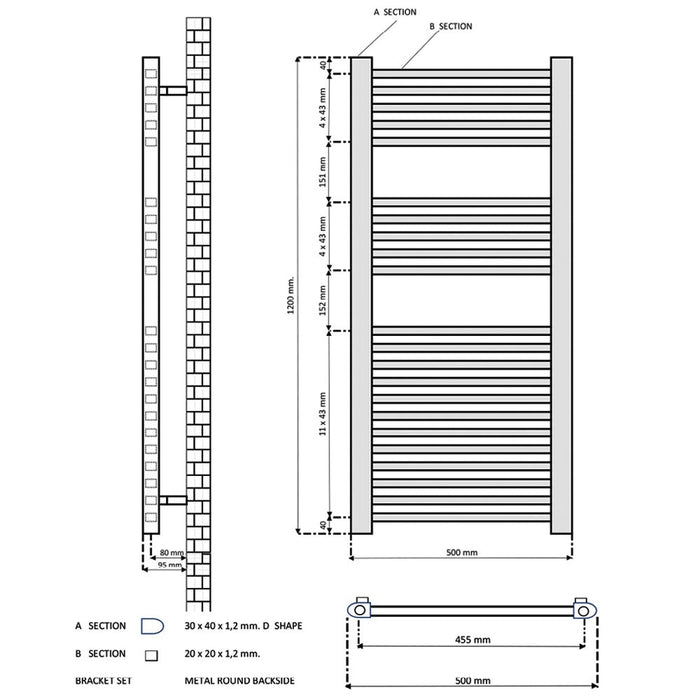

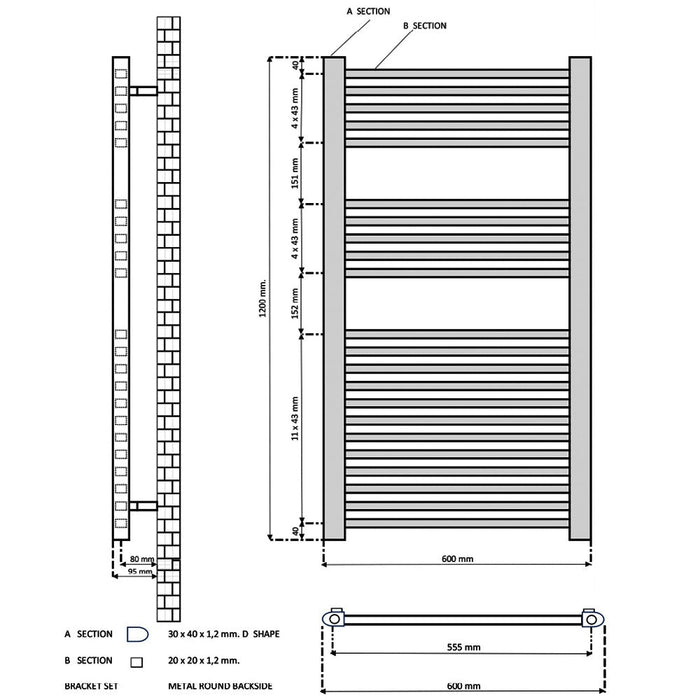

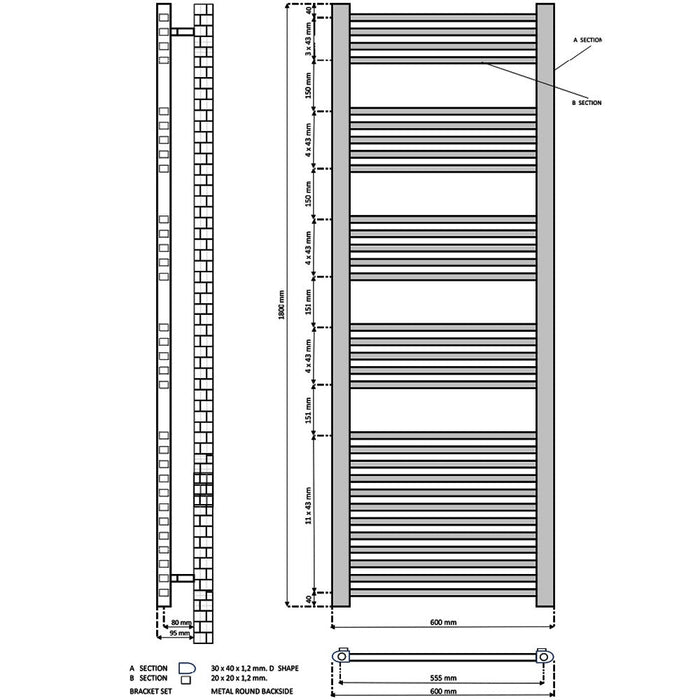

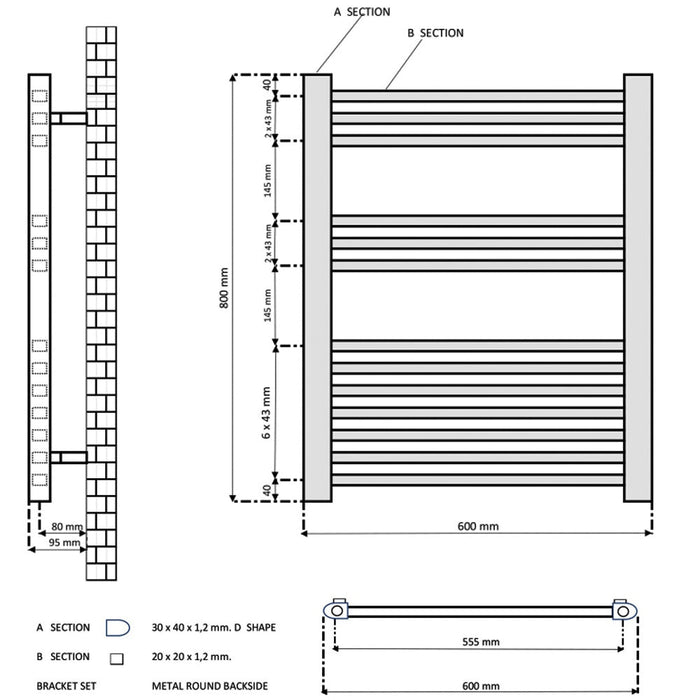

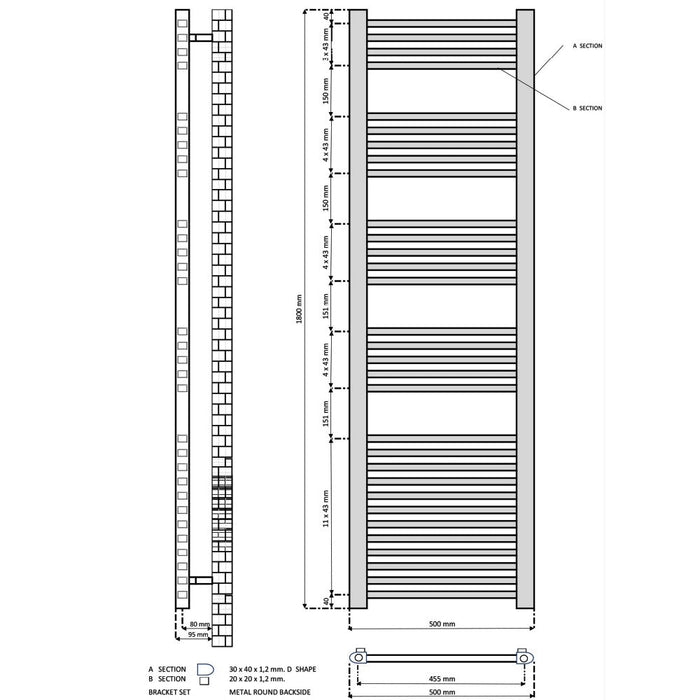

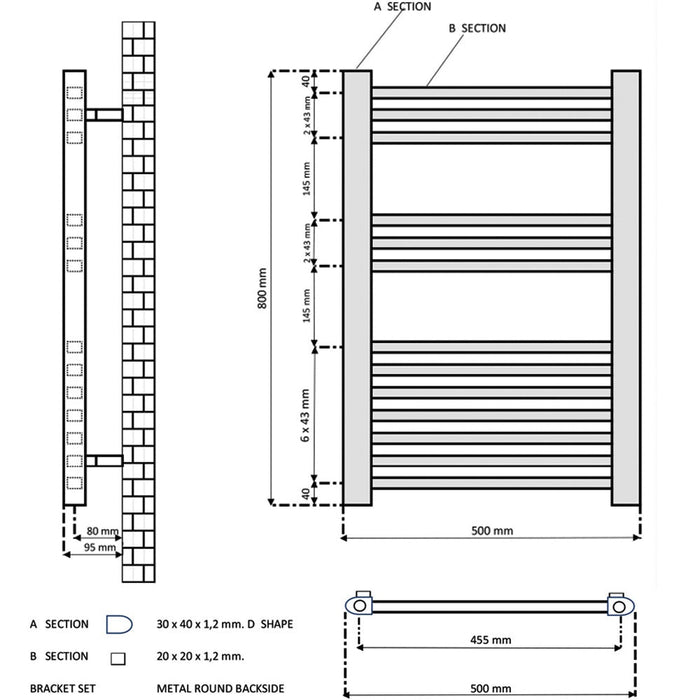

Technical Drawing
800mm x 500mm
800mm x 600mm

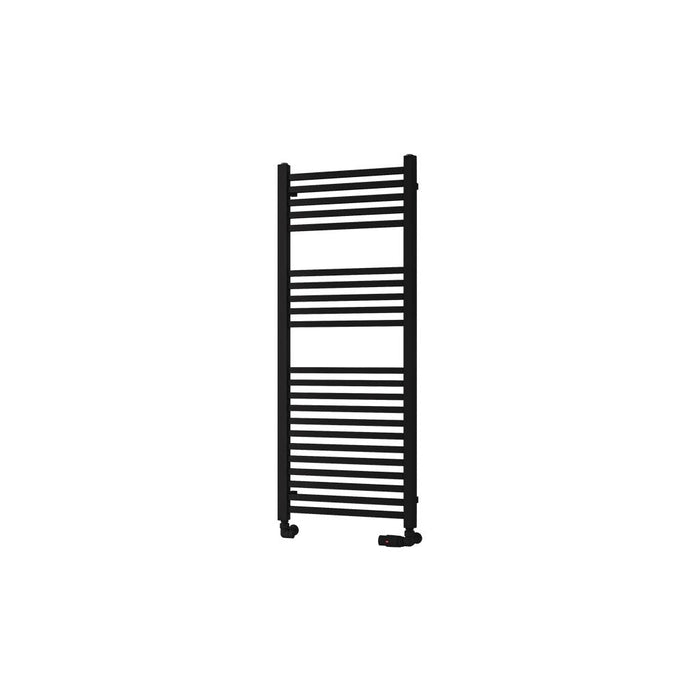

1200mm x 500mm
1200mm x 600mm

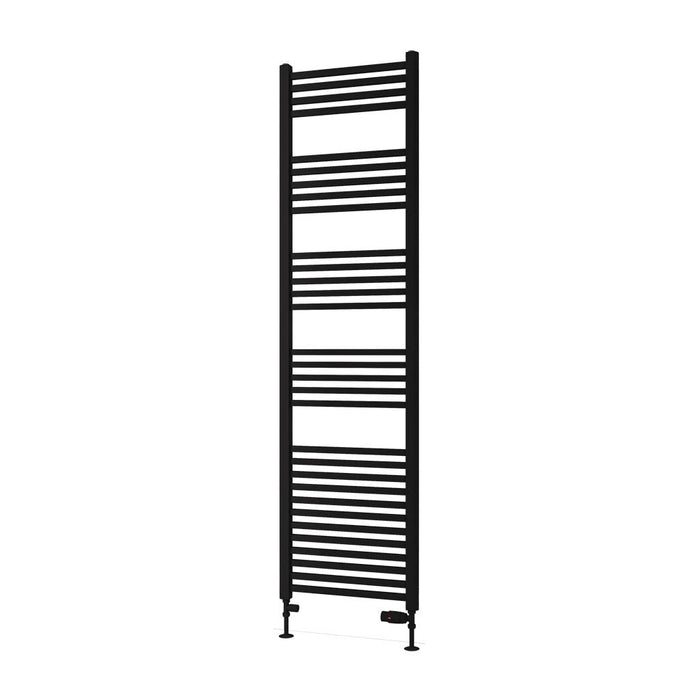

1800mm x 500mm
1800mm x 600mm
