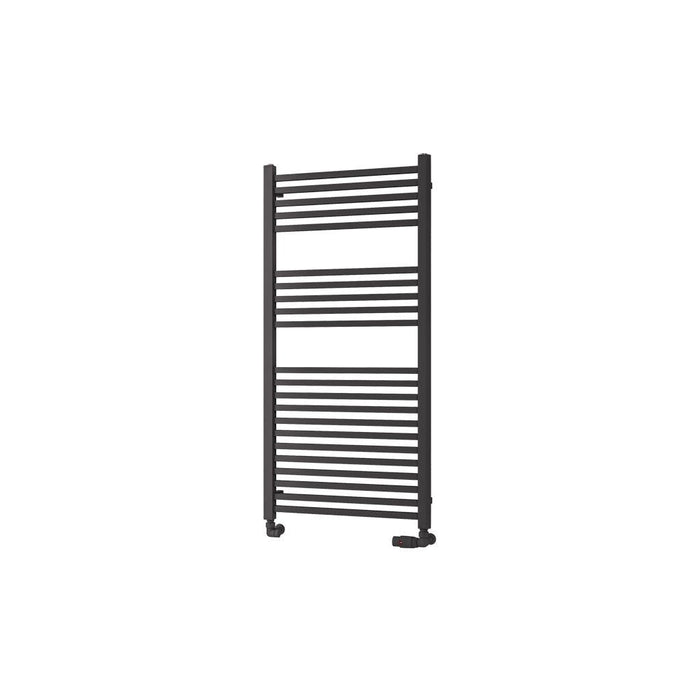

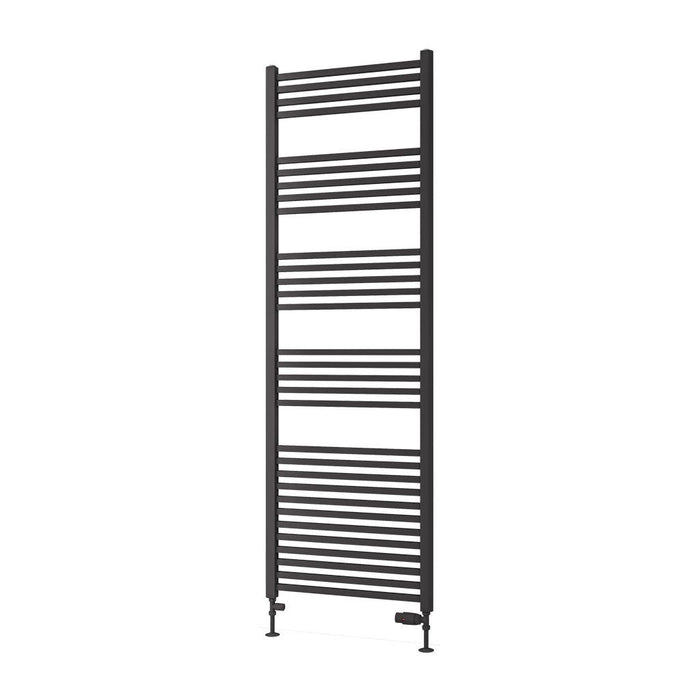

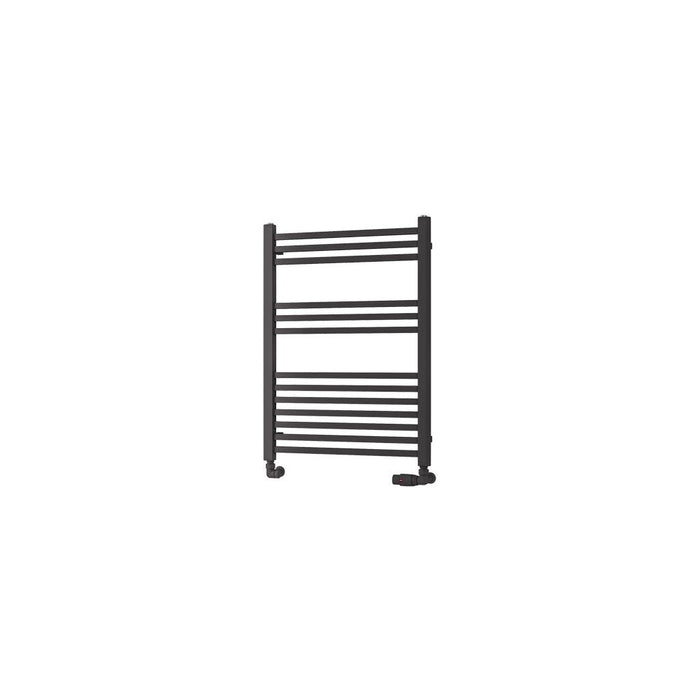

Eastbrook Rion Straight Heated Towel Rail Matt Anthracite
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook rion straight heated towel rail in matt anthracite combines modern design with efficient heating. Constructed from durable mild steel, it features 40x30mm d-shaped vertical bars and 20x20mm square horizontal bars for a sleek and stylish appearance. Easy to install, it comes with matching colour wall fixing sets and metal wall brackets for secure mounting. The rail is available in multiple sizes and can be used with single, dual fuel, or all-electric heating systems.This towel rail is tested to bs en 442 standards and offers excellent heat output based on a delta T 60°c. Designed for indirect heating systems, it allows for adjustable element capacity with compatible elements.
Product Specifications:
- Warranty: 5 Years
- Product Type: Heated Towel Rail
- Brand: Eastbrook
- Collection: Rion
- Finish: Matt Anthracite
- Shape: Straight
- Style: Modern
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves, feet's and Heating Element are not included

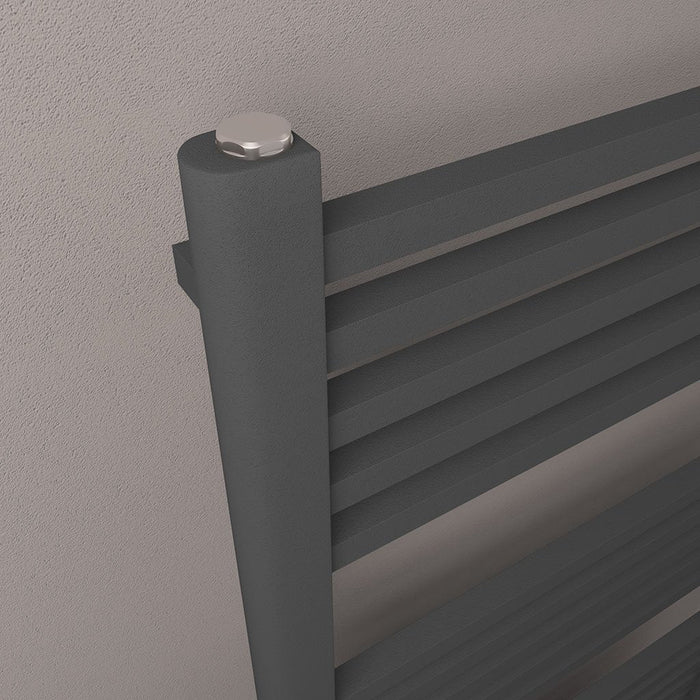

- 40x30mm D shape vertical bars with 20x20mm square horizontal bars.
- Tested to BS EN 442 standards.
- Metal wall brackets fitted at the back of the towel rail.
- Matching colour wall fixing sets.
- Can be single or dual fuel, or all electric.
- Heat output based on Delta ?T 60°C.
- Radiators that are electric only are restricted to the heat output of the elements.
- Element size can be increased to full capacity of rail if using element type D, E, F or G.
- For indirect heating systems only.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are approx. 45mm less than the width of the rail and 80mm off the wall.
Technical Specifications
| Size | Watts Delta 30°C | BTU Delta 30°C | Watts Delta 50°C | BTU Delta 50°C | Element Output |
|---|---|---|---|---|---|
| 800mm x 500mm | 173W | 590 BTU | 332W | 1133 BTU | 150W |
| 800mm x 600mm | 197W | 672 BTU | 378W | 1289 BTU | 150W |
| 1200mm x 500mm | 269W | 918 BTU | 515W | 1757 BTU | 150W |
| 1200mm x 600mm | 307W | 1047 BTU | 587W | 2002 BTU | 300W |
| 1800mm x 500mm | 413W | 1409 BTU | 784W | 2674 BTU | 300W |
| 1800mm x 600mm | 471W | 1607 BTU | 893W | 3046 BTU | 300W |
Assembling instructions for Heated Towel Rail
Datasheet for 800mm x 500mm Towel Rail
Datasheet for 800mm x 600mm Towel Rail
Datasheet for 1200mm x 500mm Towel Rail
Datasheet for 1200mm x 600mm Towel Rail
Datasheet for 1800mm x 500mm Towel Rail
Datasheet for 1800mm x 600mm Towel Rail

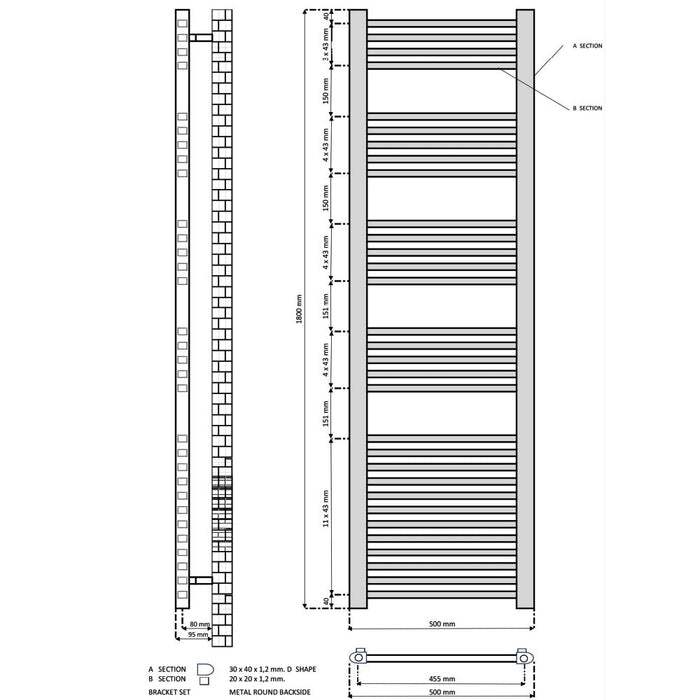

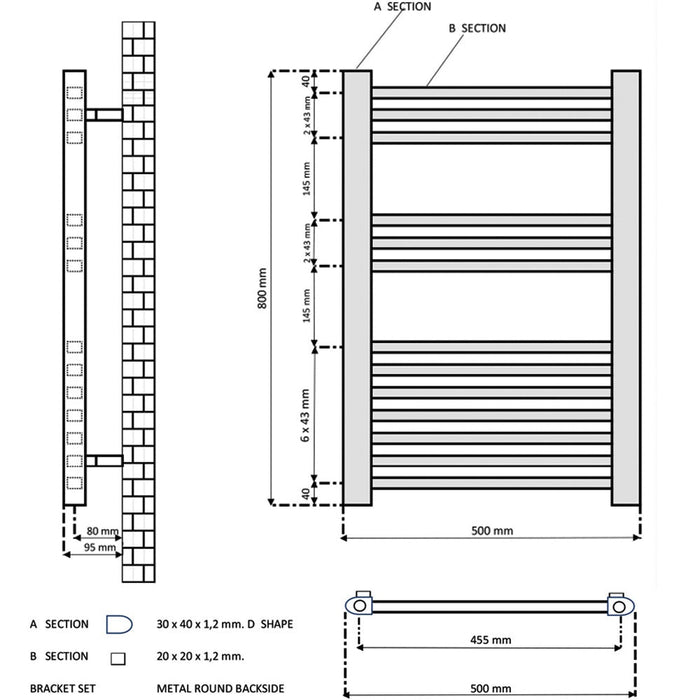

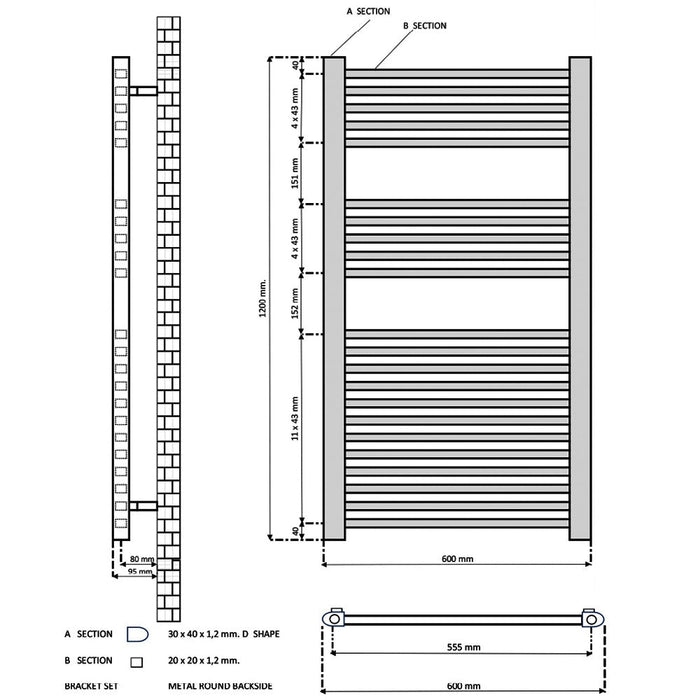

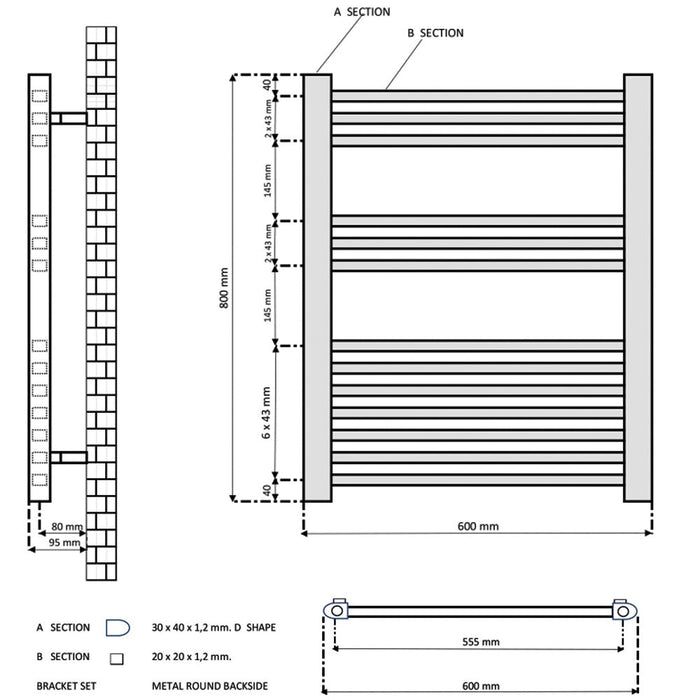

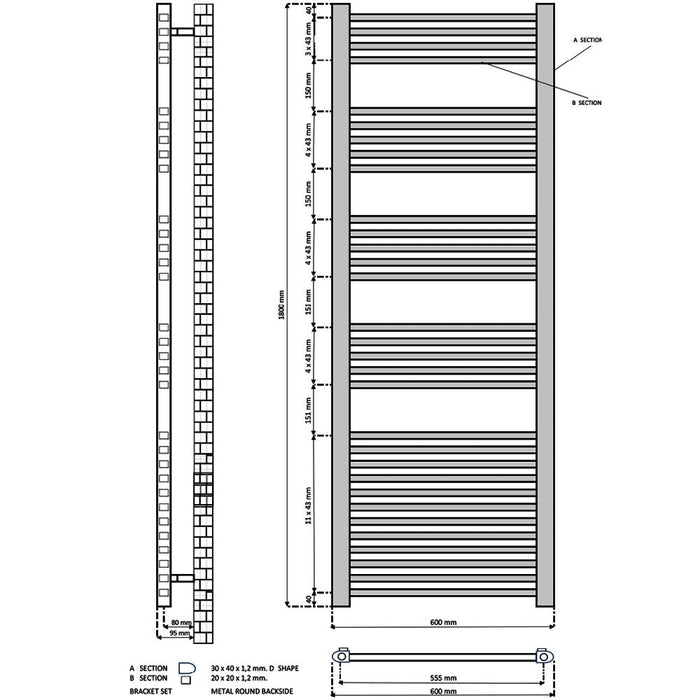

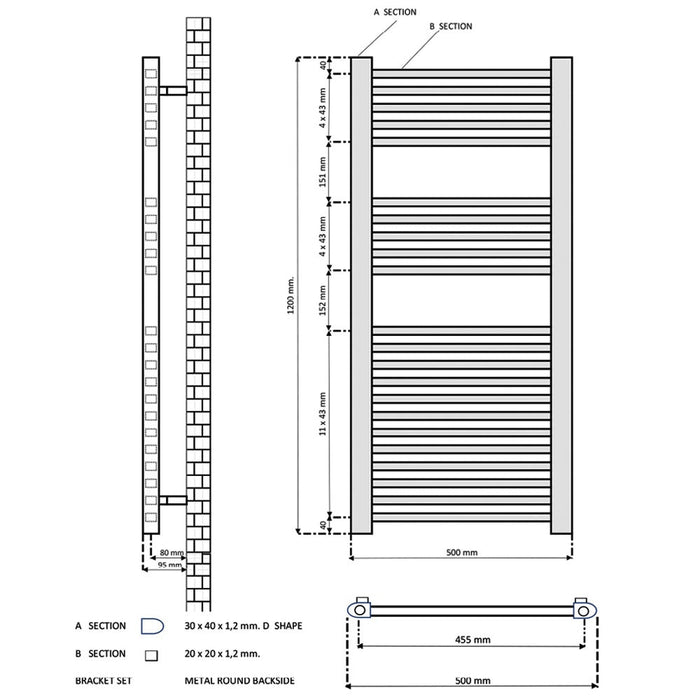

Technical Drawing
800mm x 500mm
800mm x 600mm
1200mm x 500mm
1200mm x 600mm
1800mm x 500mm
1800mm x 600mm
