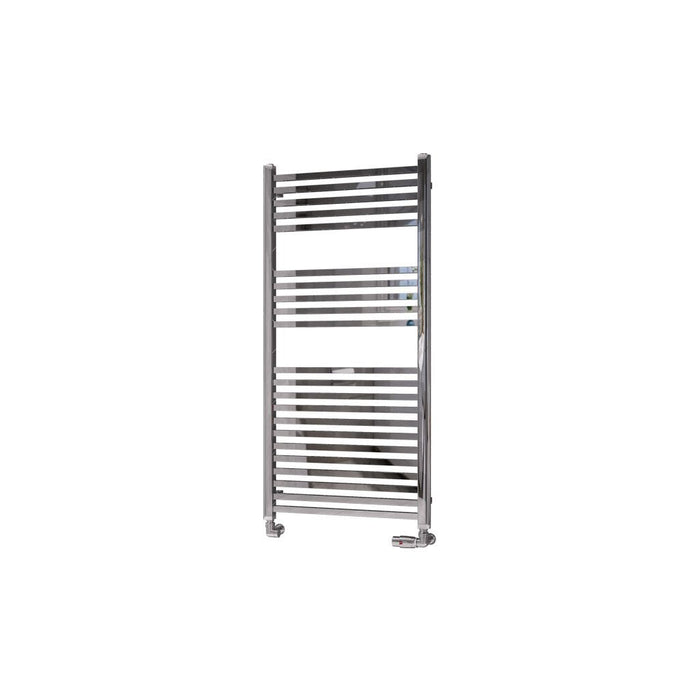

Eastbrook Rion Straight Heated Towel Rail Chrome
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook rion straight heated towel rail in chrome combines modern design with high functionality. Made from mild steel, it features 40x30mm d-shaped vertical bars and 20x20mm square horizontal bars, offering a sleek look and efficient heat distribution. The radiator is easy to install, with matching colour wall fixing sets and metal wall brackets included. It can be used in single, dual fuel, or all-electric systems for versatile heating options.Tested to bs en 442 standards, this towel rail delivers reliable performance. It's heat output is based on a delta T60°c, and the element size can be increased using compatible elements to maximise capacity.
Product Specifications:
- Warranty: 5 Years
- Product Type: Heated Towel Rail
- Brand: Eastbrook
- Collection: Rion
- Finish: Chrome
- Shape: Straight
- Style: Modern
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves, feet's and Heating Element are not included
- 40x30mm D shape vertical bars with 20x20mm square horizontal bars.
- Tested to BS EN 442 standards.
- Metal wall brackets fitted at the back of the towel rail.
- Matching colour wall fixing sets.
- Can be single or dual fuel, or all electric.
- Heat output based on Delta T60°C.
- Radiators that are electric only are restricted to the heat output of the elements.
- Element size can be increased to full capacity of rail if using element type D, E, F or G.
- For indirect heating systems only.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are approx. 45mm less than the width of the rail and 80mm off the wall.
Technical Specifications
| Size | Watts Delta 30 | BTU Delta 30 | Watts Delta 50 | BTU Delta 50 | Element Output |
|---|---|---|---|---|---|
| 800mm x 500mm | 109 | 372 | 212 | 723 | 100W |
| 800mm x 600mm | 123 | 420 | 240 | 819 | 100W |
| 1200mm x 500mm | 170 | 580 | 331 | 1129 | 150W |
| 1200mm x 600mm | 192 | 655 | 374 | 1276 | 150W |
| 1800mm x 500mm | 265 | 904 | 515 | 1757 | 150W |
| 1800mm x 600mm | 299 | 1020 | 582 | 1985 | 300W |
Assembling instructions for Heated Towel Rail
Datasheet for 800mm x 500mm Towel Rail
Datasheet for 800mm x 600mm Towel Rail
Datasheet for 1200mm x 500mm Towel Rail
Datasheet for 1200mm x 600mm Towel Rail
Datasheet for 1800mm x 500mm Towel Rail
Datasheet for 1800mm x 600mm Towel Rail

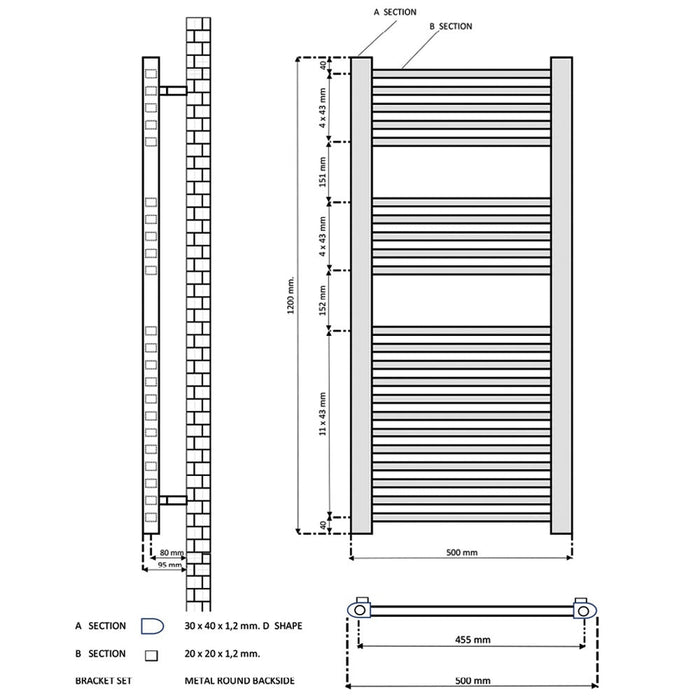

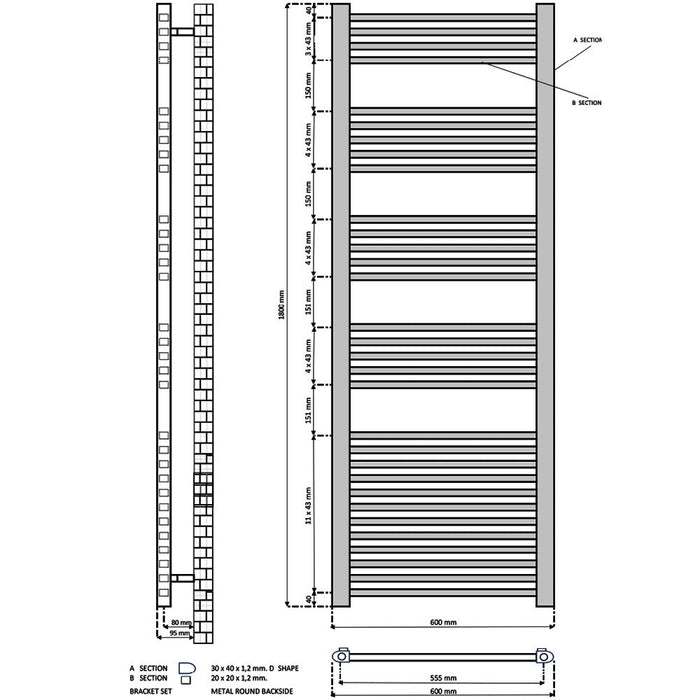

Technical Drawing

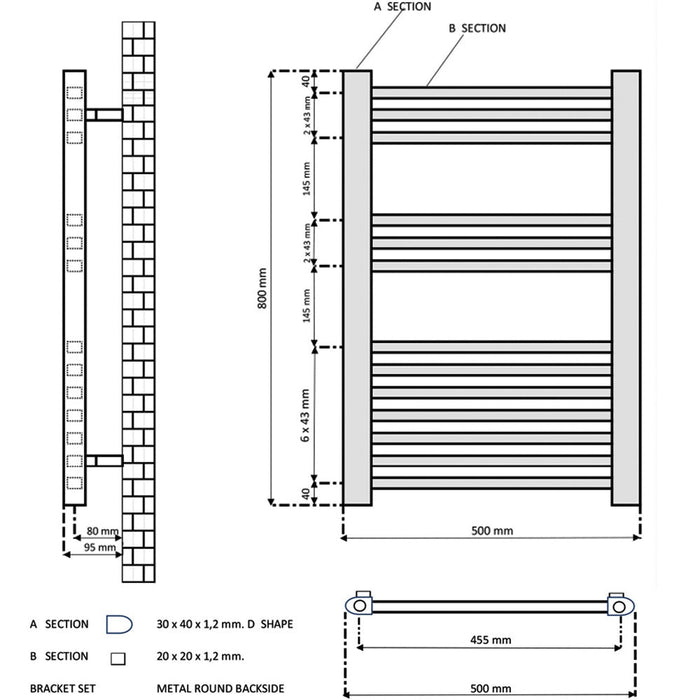

800mm x 500mm

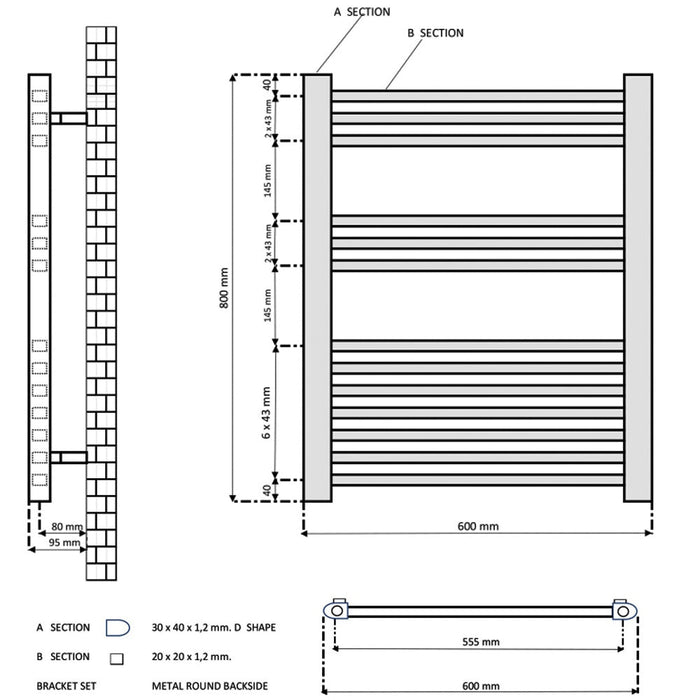

800mm x 600mm
1200mm x 500mm

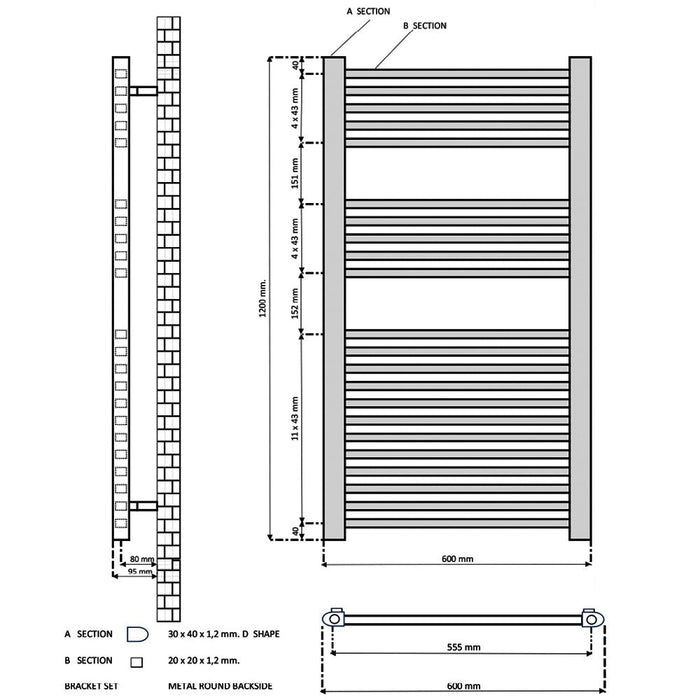

1200mm x 600mm

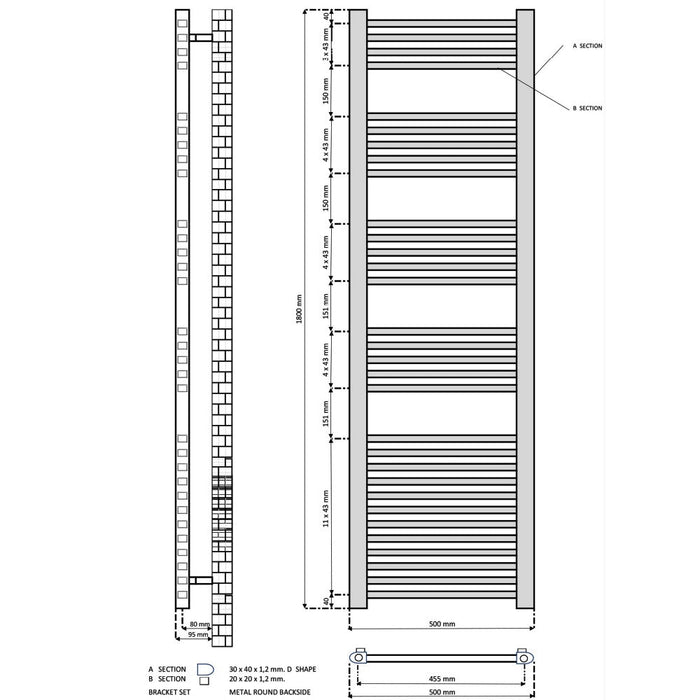

1800mm x 500mm
1800mm x 600mm
- View Less
