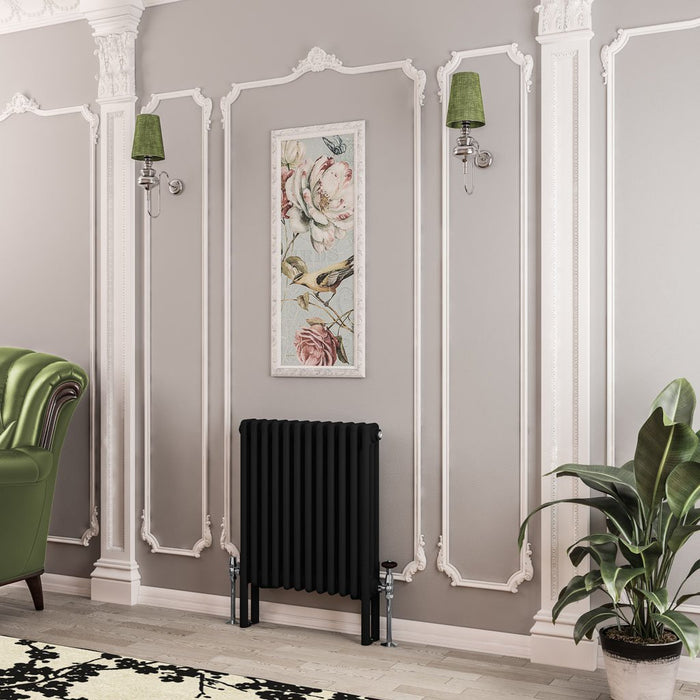

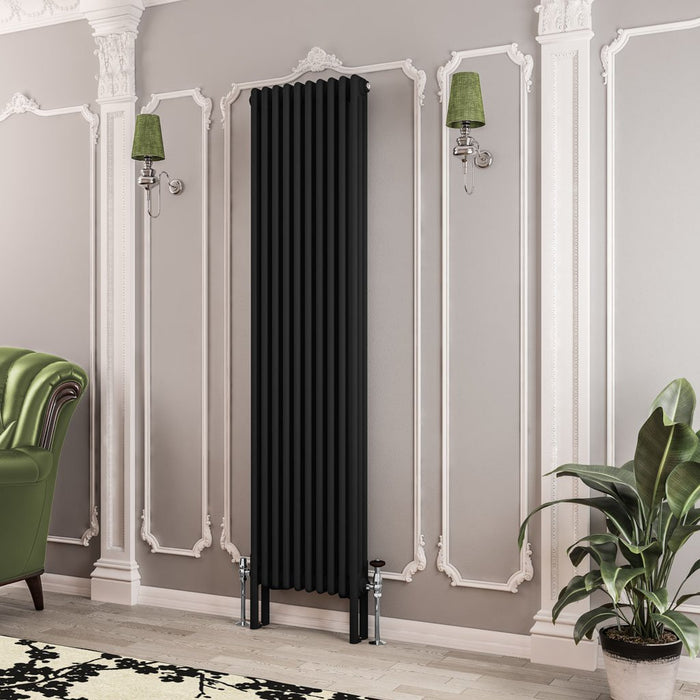

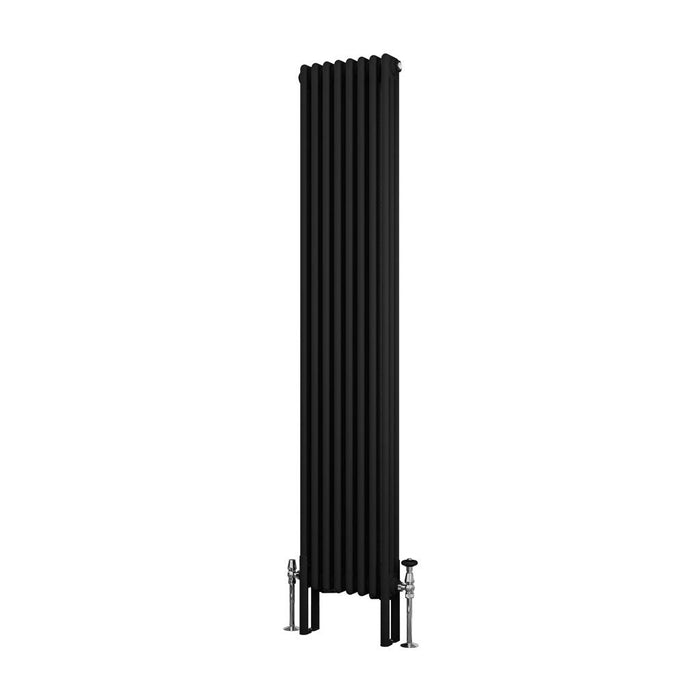

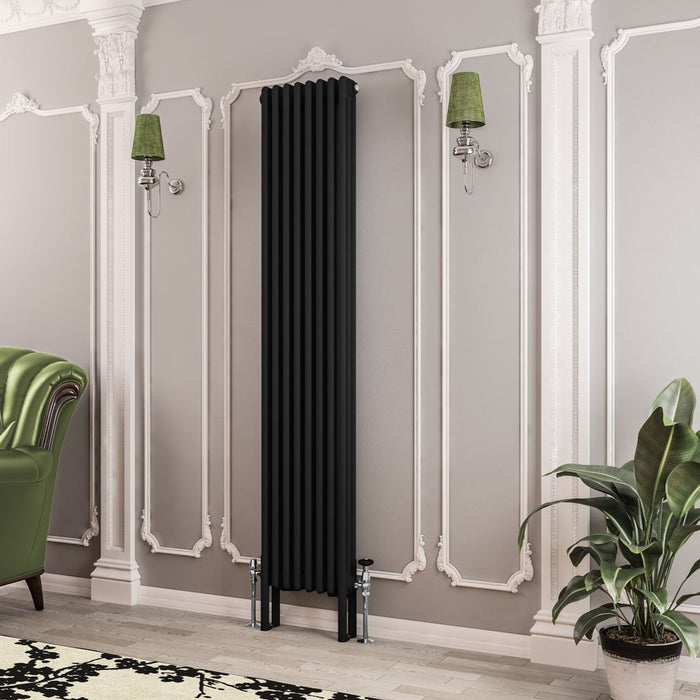

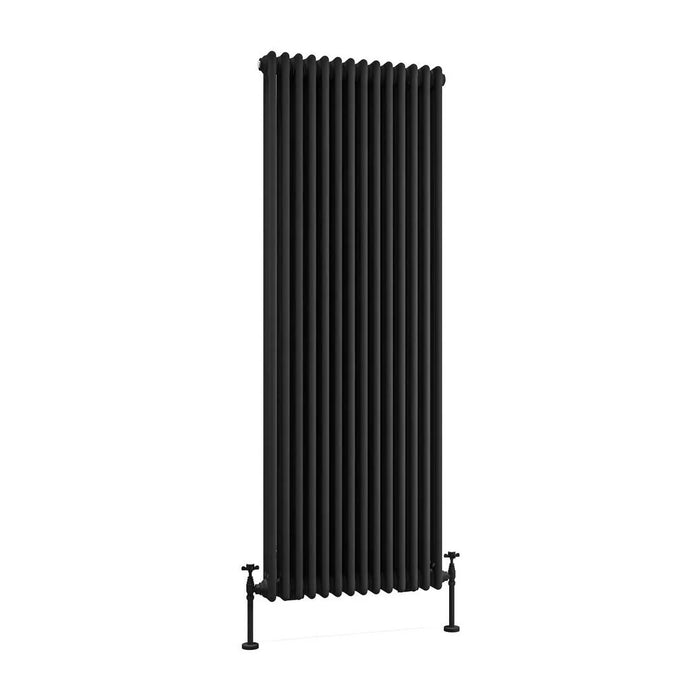

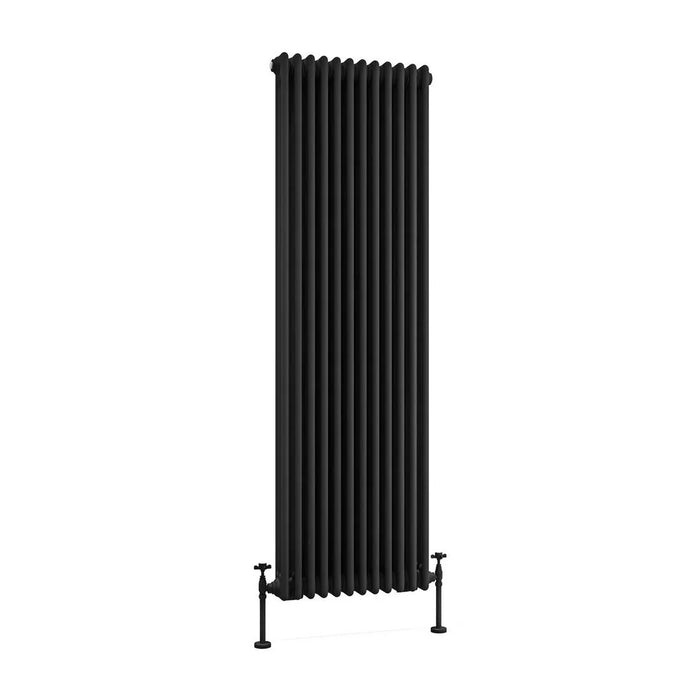

Eastbrook Imperia Vertical 3 Column Radiator - Matt Black
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook imperia vertical 3 column radiator in matt black combines a classic design with modern heating performance. Made from durable mild steel, this floor-mounted radiator is available in various sizes, offering flexibility for different spaces. It can be used with single, dual fuel, or all-electric systems, providing versatile installation options. Tested to bs en442 standards, it is equipped with a 5-year guarantee. The radiator features matching colour wall fixing sets and a material thickness of 1.5 mm. With a heat output based on delta t 60°c, it ensures efficient heating, suitable for indirect heating systems. Radiator valves and heating elements are sold separately.
Specifications
- Guarantee: 5 Years
- Product type: Column Radiator
- Brand: Eastbrook
- Range: Imperia
- Colour: Matt Black
- Style: Traditional
- Mounting: Floor
- Material: Mild Steel
- Orientation: Vertical
Special Features
- Radiator valves and heating element are not included
- Tested to BS EN442 standards
- Matching colour wall fixing stes
- Material thickness 1.5 mm
- Doesn't require flow diverter
- Can be single or dual fuel, or all electric
- With conditions
- All measurements are in Height by Width
- Heat output based on Delta T 60°C
- Radiators that are electric only are restricted to the heat output of the elements
- Element size can be increased to full capacity of rail if using element type C, E or H
- For indirect heating systems only
- Corrosion inhibitor must be added to the heating system and maintained
- Tappings are the width of the rail and approx. 60mm off the wall
Dimensions
- Depth: 110mm
|
Size |
BTU T50°C |
Watts T50°C |
Watts T60°C |
Element Type |
Element Output |
|
600mm X 425mm |
2265 |
664 |
850 |
A, A+ |
450W |
|
600mm X 470mm |
2518 |
738 |
945 |
A, A+, C, H |
450W |
|
600mm X 515mm |
2771 |
812 |
1040 |
A, A+, C, H |
450W |
|
600mm X 560mm |
3022 |
886 |
1134 |
A+, C, H |
600W |
|
1800mm X 290mm |
4285 |
1256 |
1608 |
||
|
1800mm X 380mm |
5592 |
1639 |
2099 |
||
|
1800mm X 470mm |
6990 |
2049 |
2623 |
Assembling instructions for Vertical 3 Column Radiator
Datasheet for 600mm x 425mm Column Radiator
Datasheet for 600mm x 470mm Column Radiator
Datasheet for 600mm x 515mm Column Radiator
Datasheet for 600mm x 560mm Column Radiator
Datasheet for 1800mm x 290mm Column Radiator
Datasheet for 1800mm x 380mm Column Radiator
Datasheet for 1800mm x 470mm Column Radiator

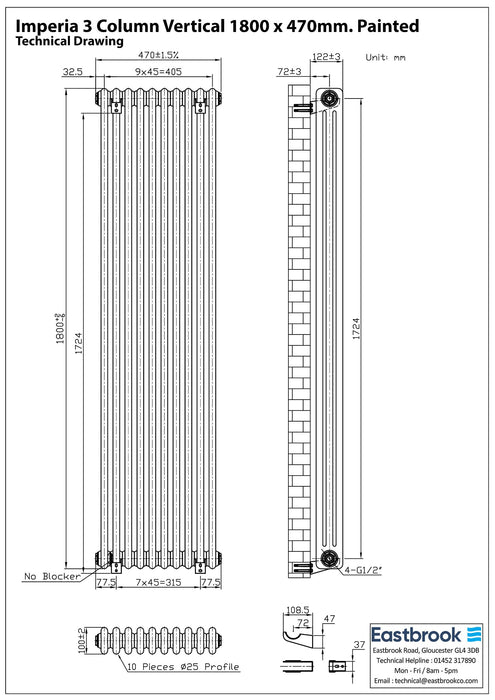

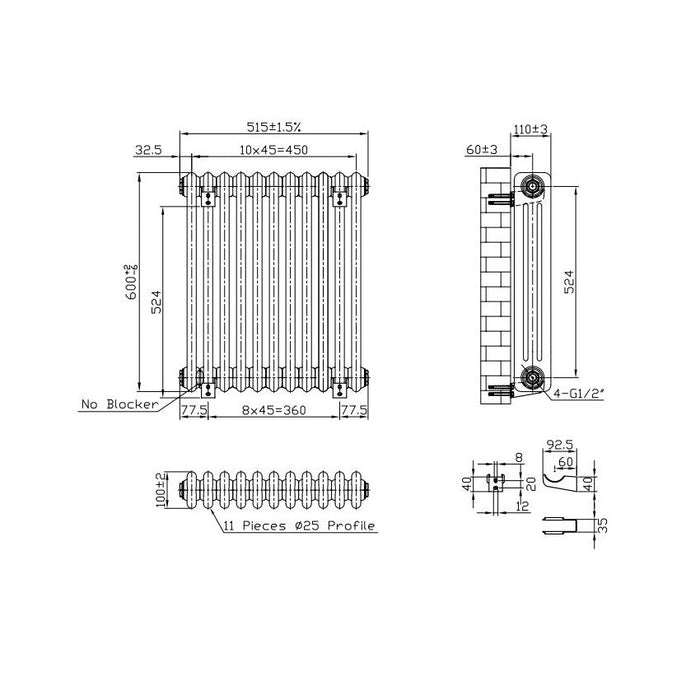

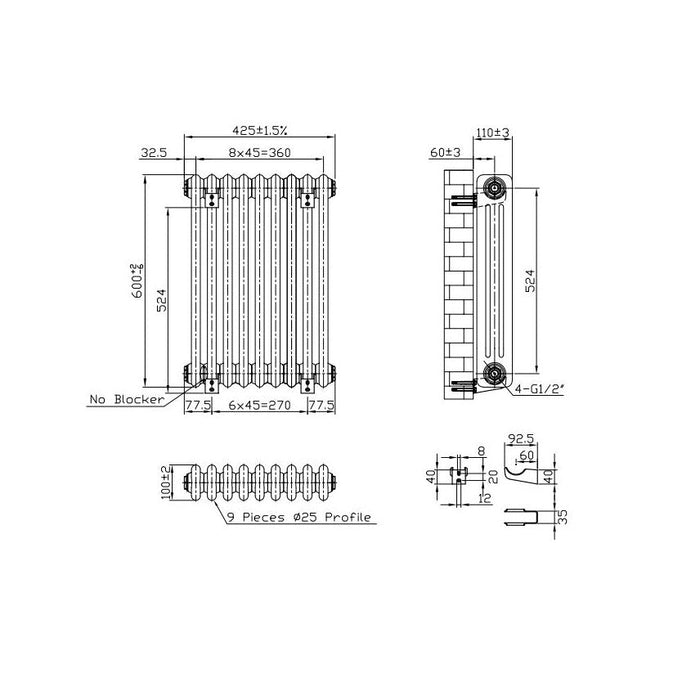

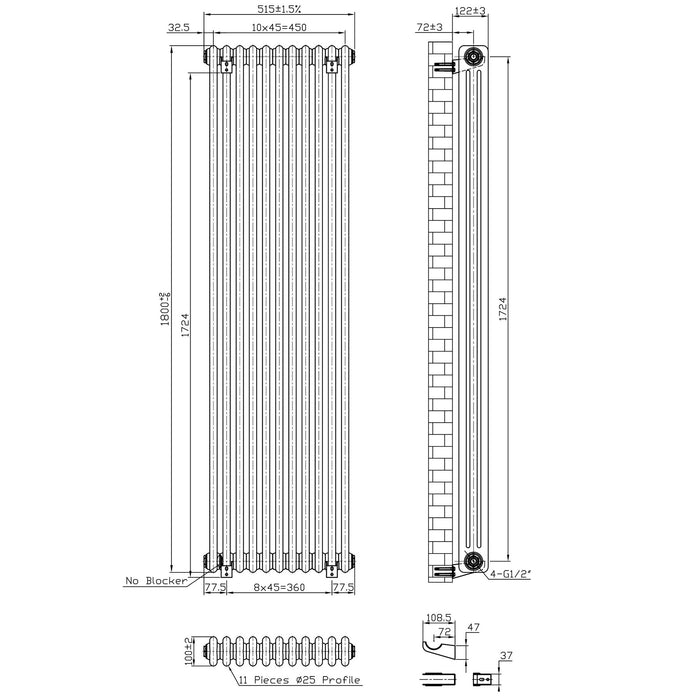

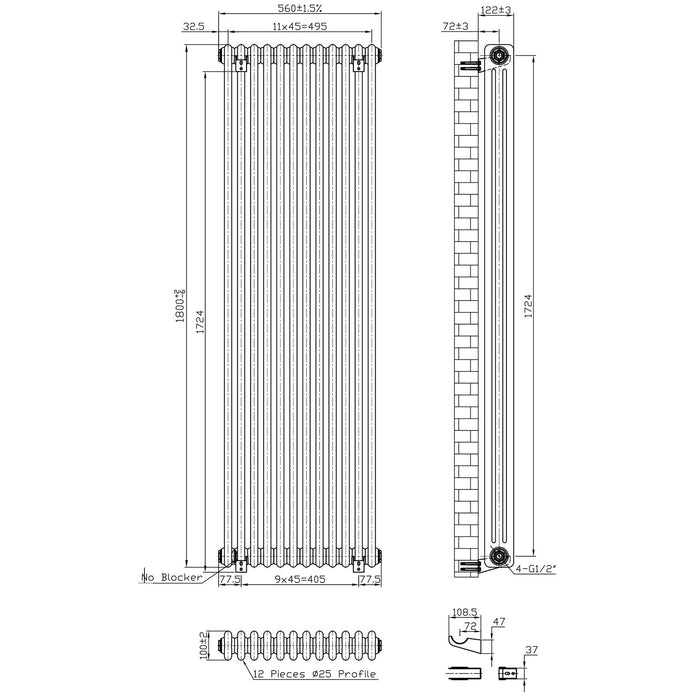

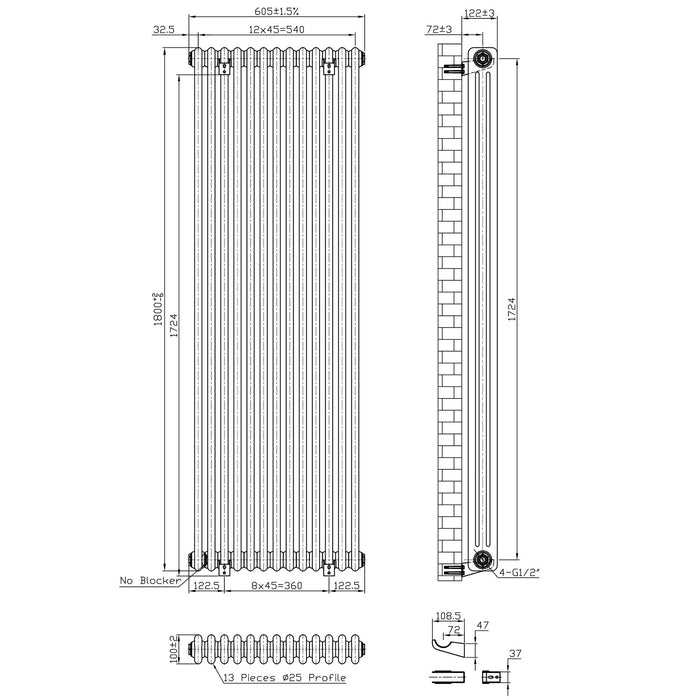

Technical Drawing
600mm x 425mm

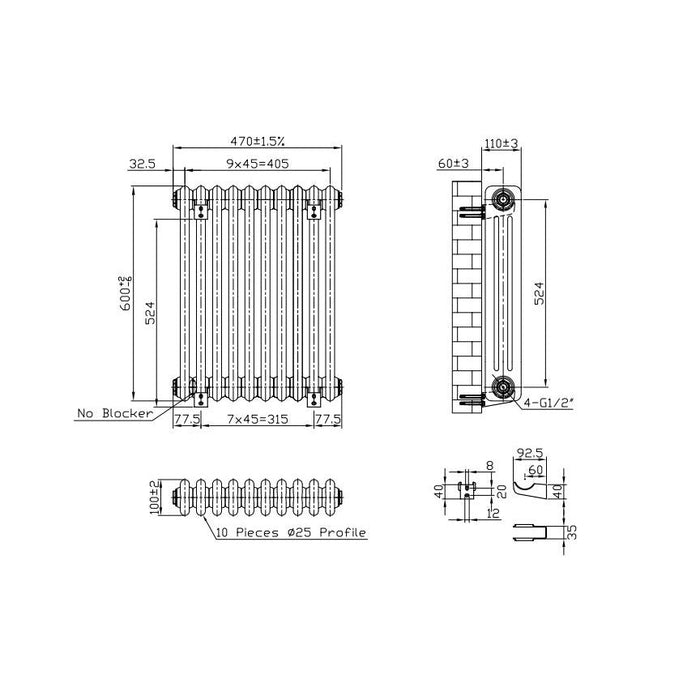

600mm x 470mm
600mm x 515mm

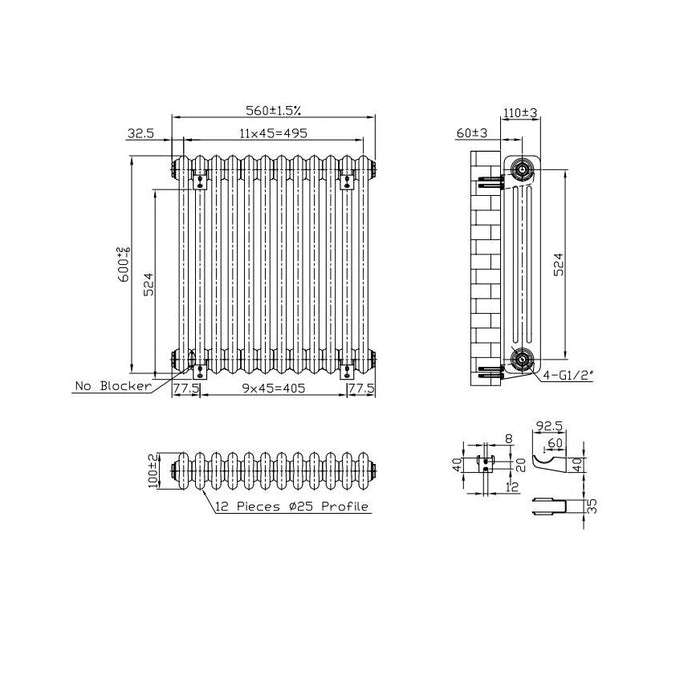

600mm x 560mm

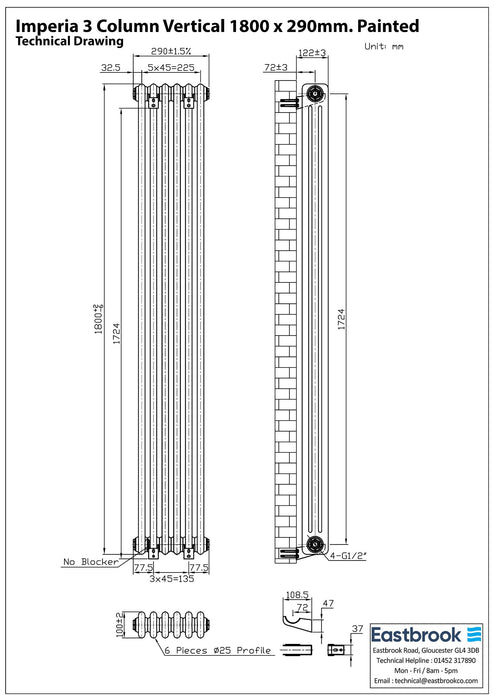

1800mm x 290mm

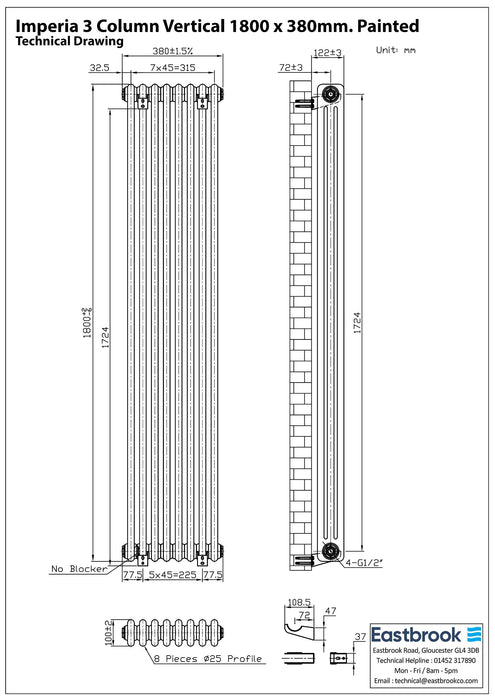

1800mm x 380mm
1800mm x 470mm
- View Less
Product Information
The Eastbrook imperia vertical 3 column radiator in matt black combines a classic design with modern heating performance. Made from durable mild steel, this floor-mounted radiator is available in various sizes, offering flexibility for different spaces. It can be used with single, dual fuel, or all-electric systems, providing versatile installation options. Tested to bs en442 standards, it is equipped with a 5-year guarantee. The radiator features matching colour wall fixing sets and a material thickness of 1.5 mm. With a heat output based on delta t 60°c, it ensures efficient heating, suitable for indirect heating systems. Radiator valves and heating elements are sold separately.
Specifications
- Guarantee: 5 Years
- Product type: Column Radiator
- Brand: Eastbrook
- Range: Imperia
- Colour: Matt Black
- Style: Traditional
- Mounting: Floor
- Material: Mild Steel
- Orientation: Vertical
Special Features
- Radiator valves and heating element are not included
- Tested to BS EN442 standards
- Matching colour wall fixing stes
- Material thickness 1.5 mm
- Doesn't require flow diverter
- Can be single or dual fuel, or all electric
- With conditions
- All measurements are in Height by Width
- Heat output based on Delta T 60°C
- Radiators that are electric only are restricted to the heat output of the elements
- Element size can be increased to full capacity of rail if using element type C, E or H
- For indirect heating systems only
- Corrosion inhibitor must be added to the heating system and maintained
- Tappings are the width of the rail and approx. 60mm off the wall
Dimensions
- Depth: 110mm
|
Size |
BTU T50°C |
Watts T50°C |
Watts T60°C |
Element Type |
Element Output |
|
600mm X 425mm |
2265 |
664 |
850 |
A, A+ |
450W |
|
600mm X 470mm |
2518 |
738 |
945 |
A, A+, C, H |
450W |
|
600mm X 515mm |
2771 |
812 |
1040 |
A, A+, C, H |
450W |
|
600mm X 560mm |
3022 |
886 |
1134 |
A+, C, H |
600W |
|
1800mm X 290mm |
4285 |
1256 |
1608 |
||
|
1800mm X 380mm |
5592 |
1639 |
2099 |
||
|
1800mm X 470mm |
6990 |
2049 |
2623 |
Assembling instructions for Vertical 3 Column Radiator
Datasheet for 600mm x 425mm Column Radiator
Datasheet for 600mm x 470mm Column Radiator
Datasheet for 600mm x 515mm Column Radiator
Datasheet for 600mm x 560mm Column Radiator
Datasheet for 1800mm x 290mm Column Radiator
Datasheet for 1800mm x 380mm Column Radiator
Datasheet for 1800mm x 470mm Column Radiator
Technical Drawing
600mm x 425mm
600mm x 470mm
600mm x 515mm
600mm x 560mm
1800mm x 290mm
1800mm x 380mm
1800mm x 470mm
- View Less
