Eastbrook Imperia Vertical 2 Column Radiator - Matt Black

Name: Eastbrook Imperia Vertical 2 Column Radiator - Matt Black
Brand: Eastbrook
SKU: EAS41.0751
Price: 245.0 EUR
Availability: InStock

by Eastbrook

From €273.06

€273.06

€245.00

€273.06

From €245.00

€245.00

Save 10%

Order now for dispatch in approximately 4 weeks.

In Stock, 48-hour Dispatch

Estimated Collection: 1 week

Estimated Delivery: 2 weeks

Select Your Options

Quantity

Product Information

The Eastbrook imperia vertical 2 column radiator in matt black is a stylish and efficient heating solution for any room. Made from mild steel, this floor-mounted radiator comes in a range of sizes and offers a heat output based on delta t 60°c. It is compatible with single, dual fuel, or all-electric systems, and is tested to + View More

The Eastbrook imperia vertical 2 column radiator in matt black is a stylish and efficient heating solution for any room. Made from mild steel, this floor-mounted radiator comes in a range of sizes and offers a heat output based on delta t 60°c. It is compatible with single, dual fuel, or all-electric systems, and is tested to bs en442 standards for durability and performance. The radiator features a 1.5mm material thickness and includes matching colour wall fixing sets. Ideal for indirect heating systems, it requires a corrosion inhibitor and is designed to be used without a flow diverter.

Specifications

Guarantee: 5 Years
Product type: Column Radiator
Brand: Eastbrook
Range: Imperia
Colour: Matt Black
Style: Traditional
Mounting: Floor
Material: Mild Steel
Orientation: Vertical

Special Features

Radiator valves and heating element are not included
Tested to BS EN442 standards.
Matching colour wall fixing stes.
Material thickness 1.5 mm.
Doesn't require flow diverter.
Can be single or dual fuel, or all electric.
All measurements are in Height by Width.
Heat output based on Delta T 60°C.
Radiators that are electric only are restricted to the heat output of the elements.
Element size can be increased to full capacity of rail if using element type C, E or H.
For indirect heating systems only.
Corrosion inhibitor must be added to the heating system and maintained.
Tappings are the width of the rail and approx. 60mm off the wall.

Dimensions

Depth: 92mm

Size	BTU T50°C	Watts T50°C	Watts T60°C	Element Type	Element Output
600mm X 425mm	1535	450	576	A, A+, C, H	300W
600mm X 470mm	1703	499	639	A, A+, C, H	300W
600mm X 515mm	1876	550	704	A, A+, C, H	300W
600mm X 560mm	2044	599	767	A, A+, C, H	300W
1800mm X 290mm	2873	842	1078
1800mm X 380mm	3170	929	1190
1800mm X 470mm	3963	1161	1487

Assembling instructions for Vertical 2 Column Radiator

Datasheet for 600mm x 425mm Column Radiator

Datasheet for 600mm x 470mm Column Radiator

Datasheet for 600mm x 515mm Column Radiator

Datasheet for 600mm x 560mm Column Radiator

Datasheet for 1800mm x 290mm Column Radiator

Datasheet for 1800mm x 380mm Column Radiator

Datasheet for 1800mm x 470mm Column Radiator

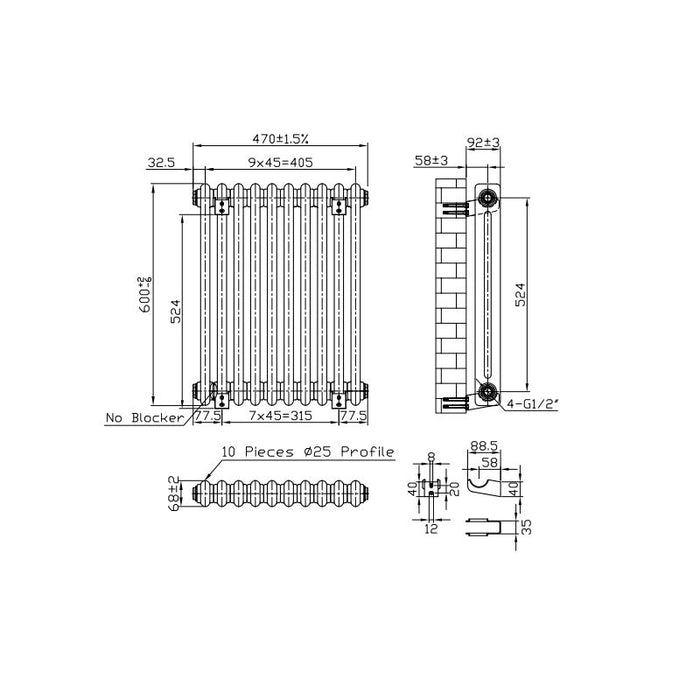

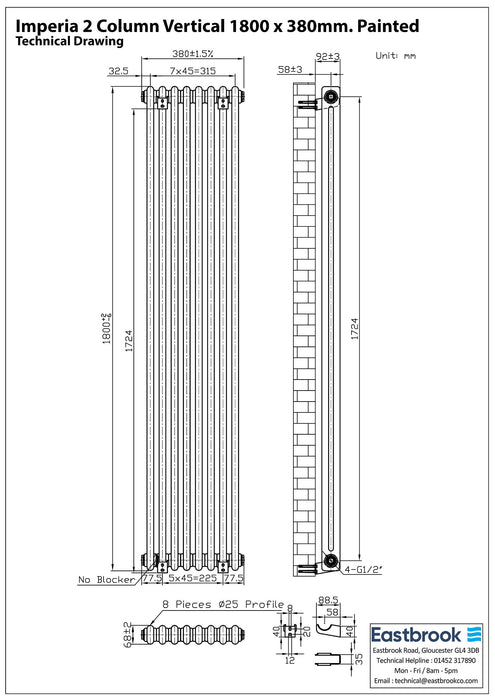

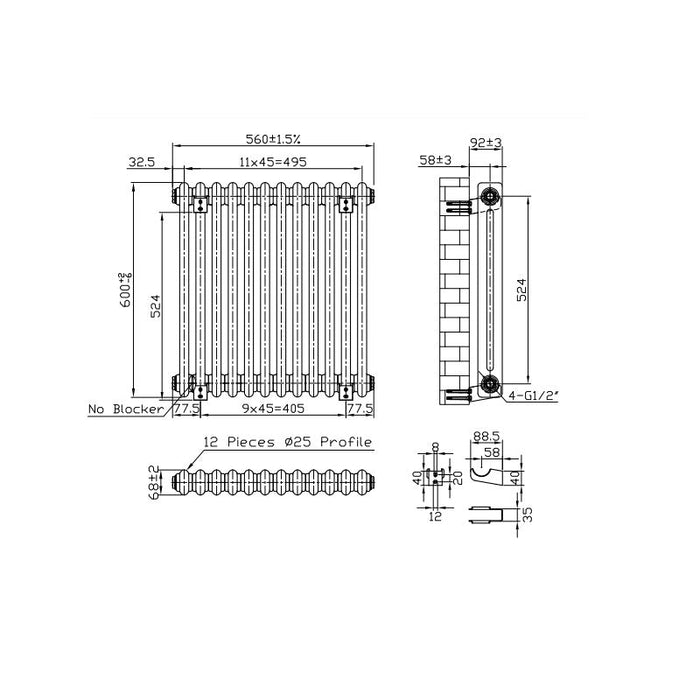

Technical Drawing

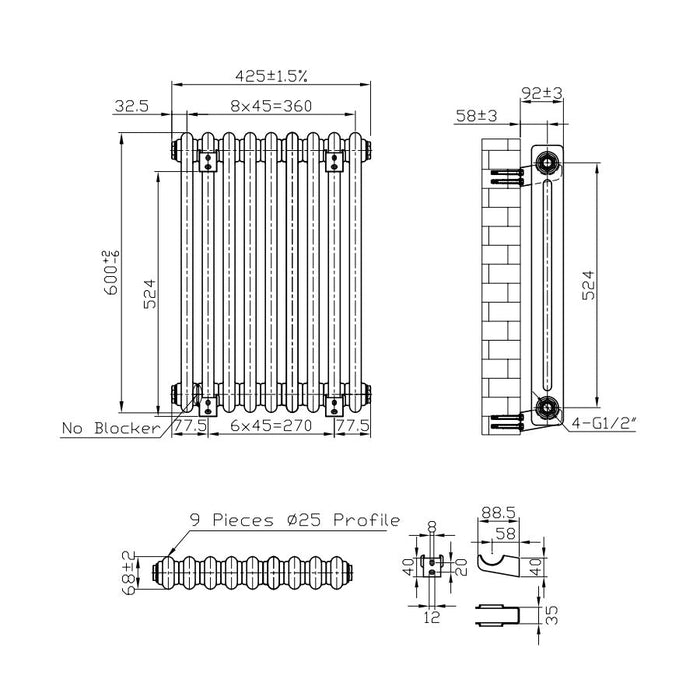

600mm x 425mm

600mm x 470mm

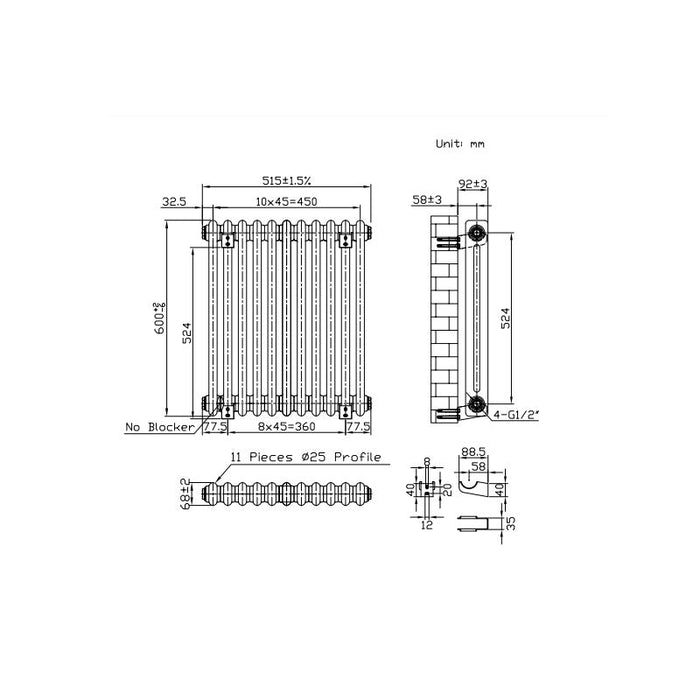

600mm x 515mm

600mm x 560mm

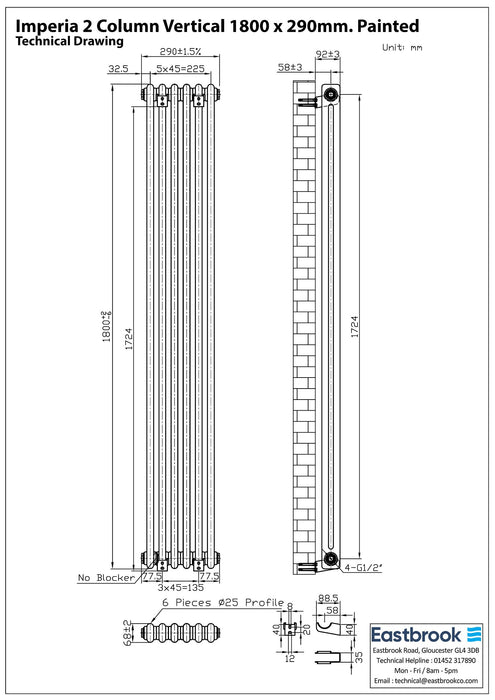

1800mm x 290mm

1800mm x 380mm

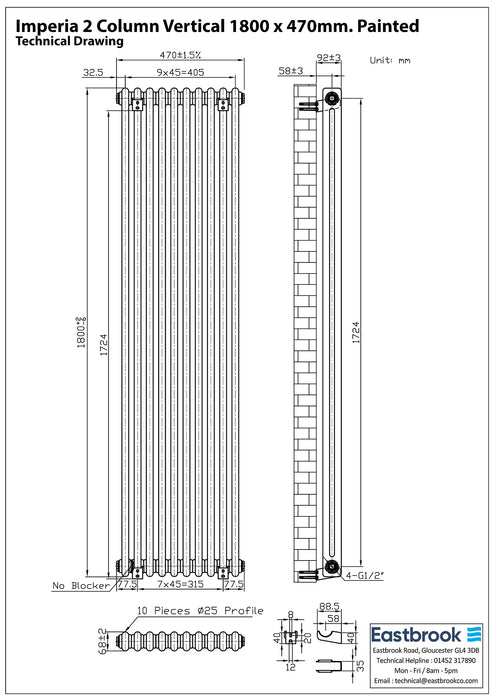

1800mm x 470mm
